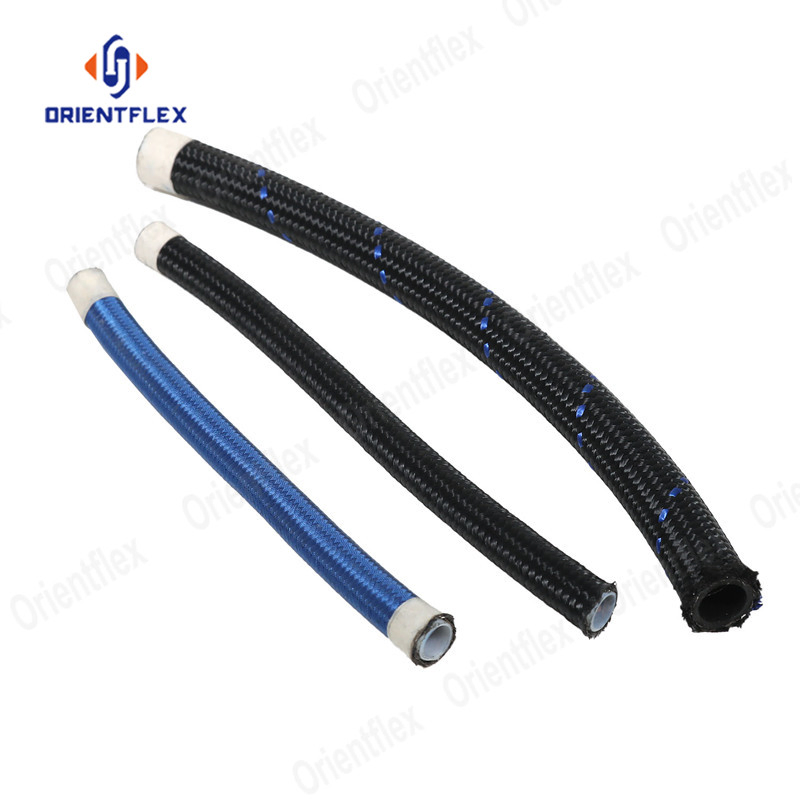

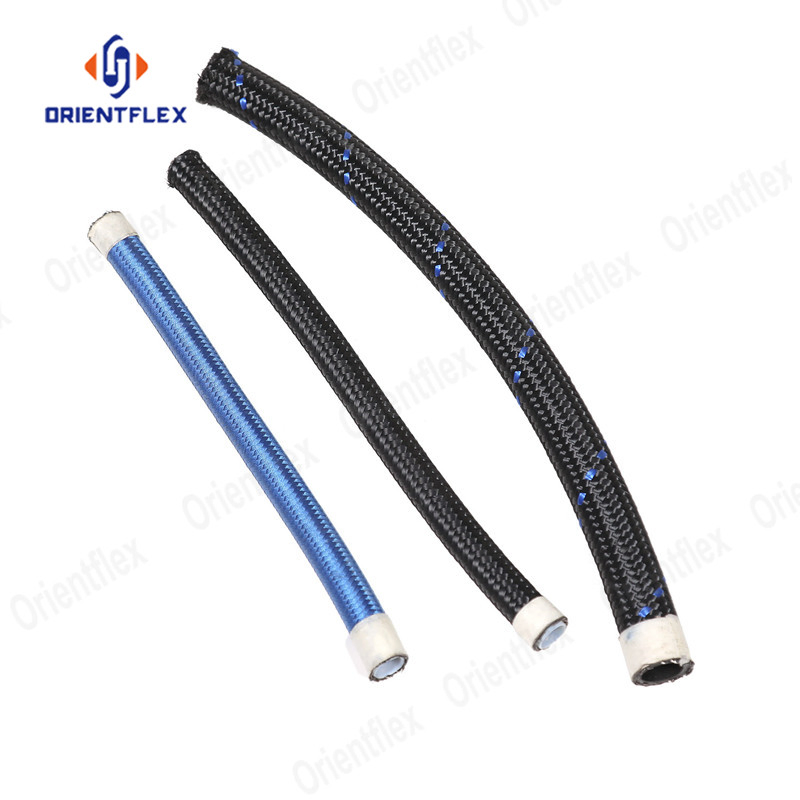

The oil cooler hose is designed to circulate oil efficiently between the oil cooler and engine. This essential automotive component helps prevent the engine from overheating. A failing hose can lead to oil leaks or trigger a low oil warning light.

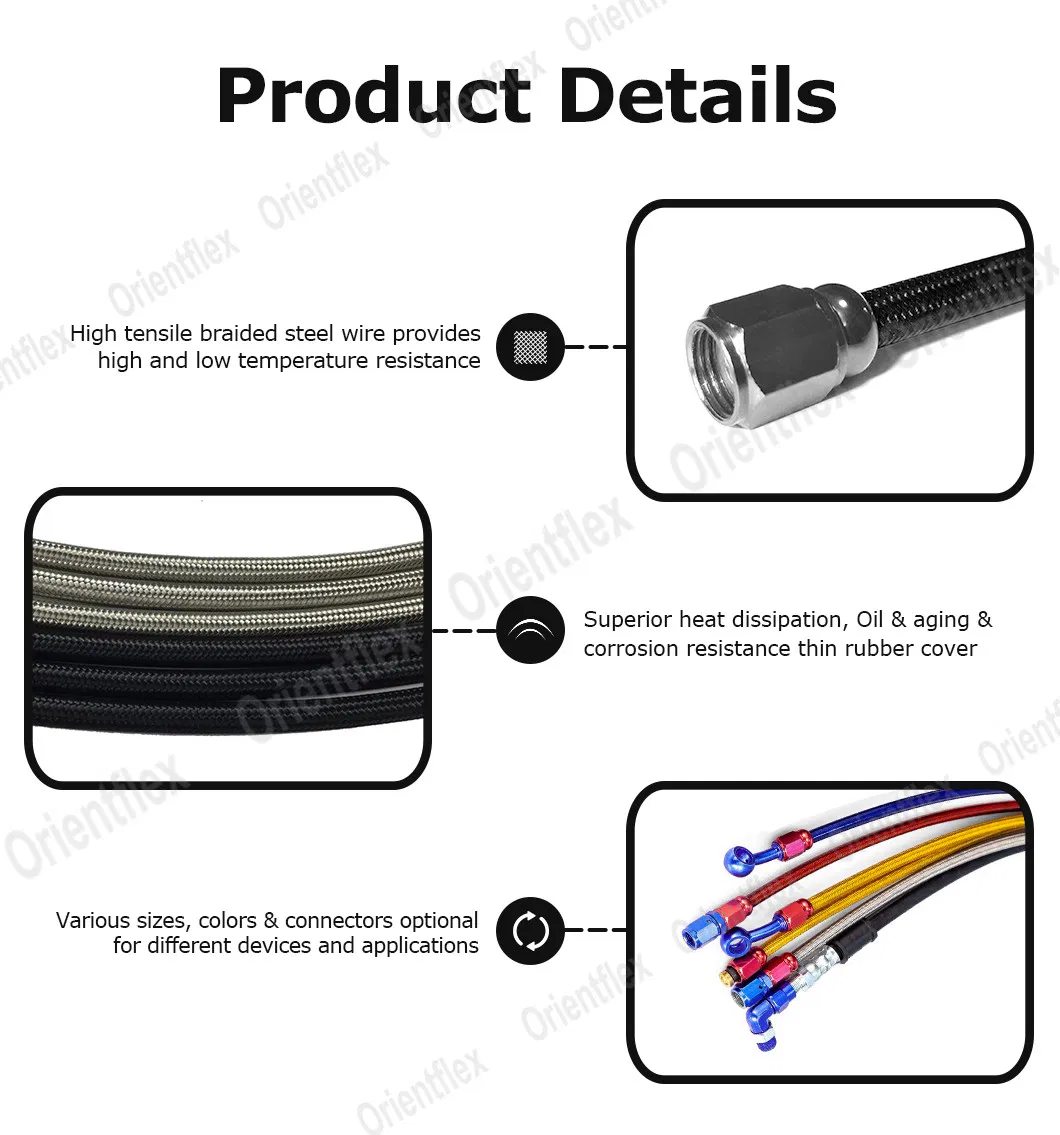

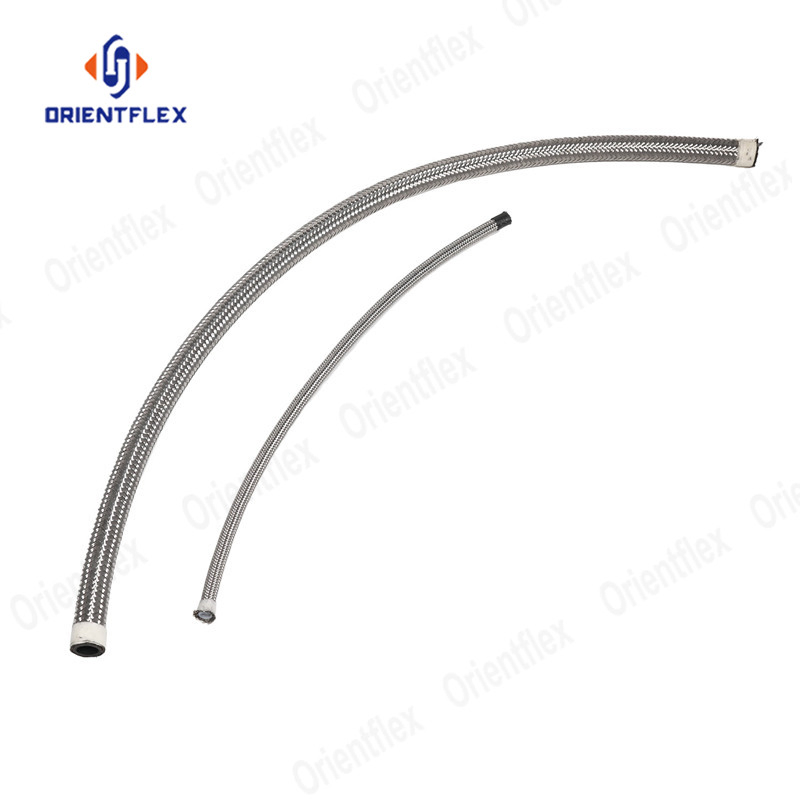

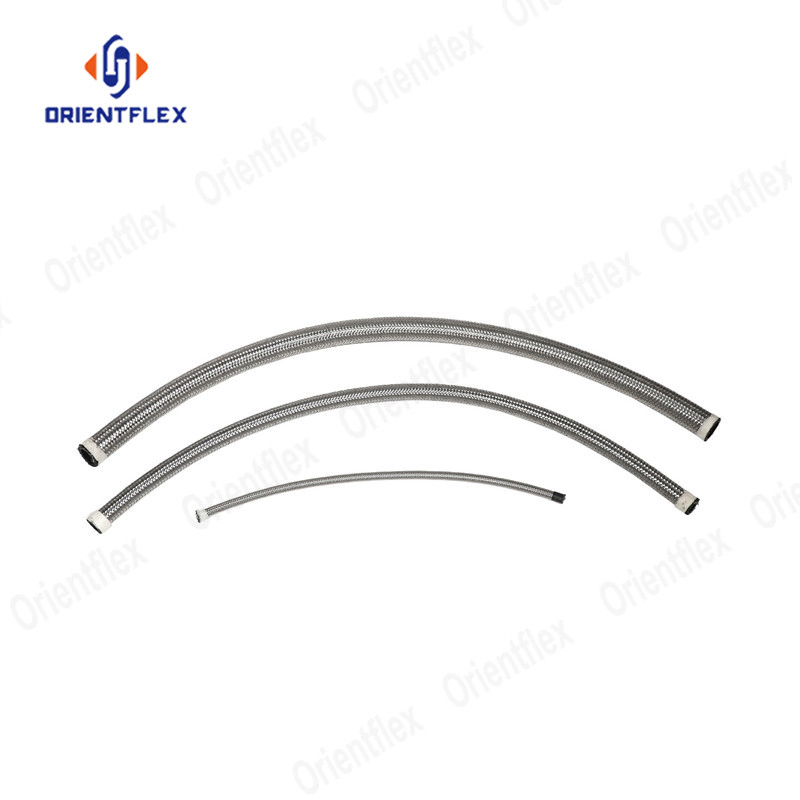

Constructed with a synthetic rubber inner tube and a partial stainless steel reinforcement inner braid, this hose features an external SS braid that makes it exceptionally lightweight, flexible, and durable. The rubber hose with stainless steel overbraid offers superior protection against abrasion, making it ideal for swaging or when using hose clips.

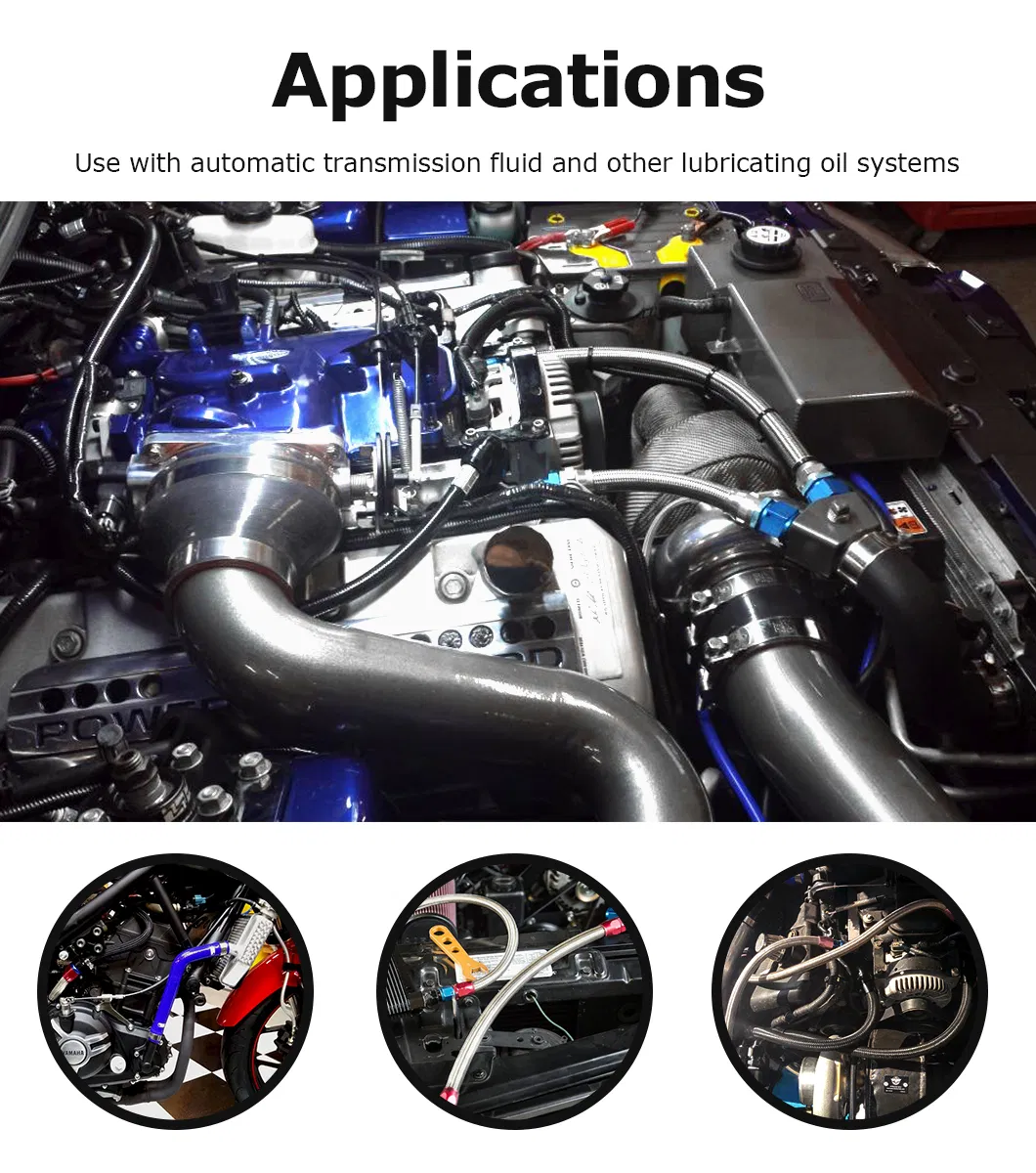

Primary Application: Perfect for use with automatic transmission fluid and other lubricating oil systems.
| Item Code | I.D (mm) | O.D (mm) | W.P (Mpa) | B.P (Mpa) |
|---|---|---|---|---|
| An04 | 5.56 | 11.13 | 7 | 42 |
| An06 | 8.73 | 13.89 | 7 | 42 |
| An08 | 11.12 | 16.28 | 7 | 35 |
| An10 | 14.27 | 20.24 | 7 | 35 |
| An12 | 17.47 | 23.82 | 7 | 26.3 |
| An16 | 22.22 | 29.96 | 5.2 | 17.5 |
| An20 | 28.5 | 35.81 | 5.2 | 17.5 |

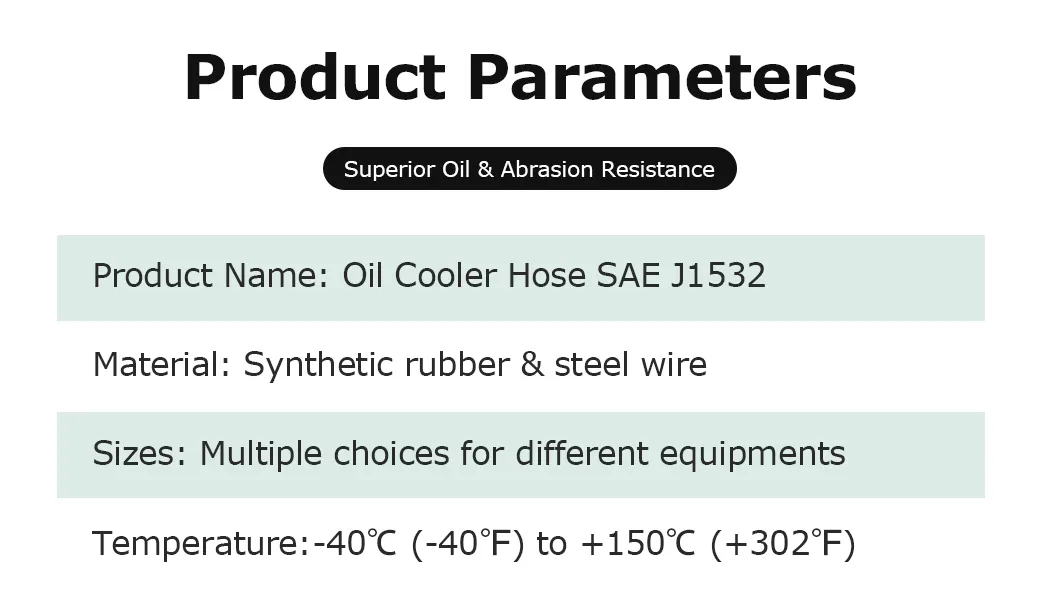

The hose is designed to withstand extreme temperatures ranging from -40ºC to +150 ºC (-104 ºF to +302 ºF), making it suitable for high-performance engine environments.
Yes, it is specifically engineered for use with automatic transmission fluids and other lubricating oil systems.

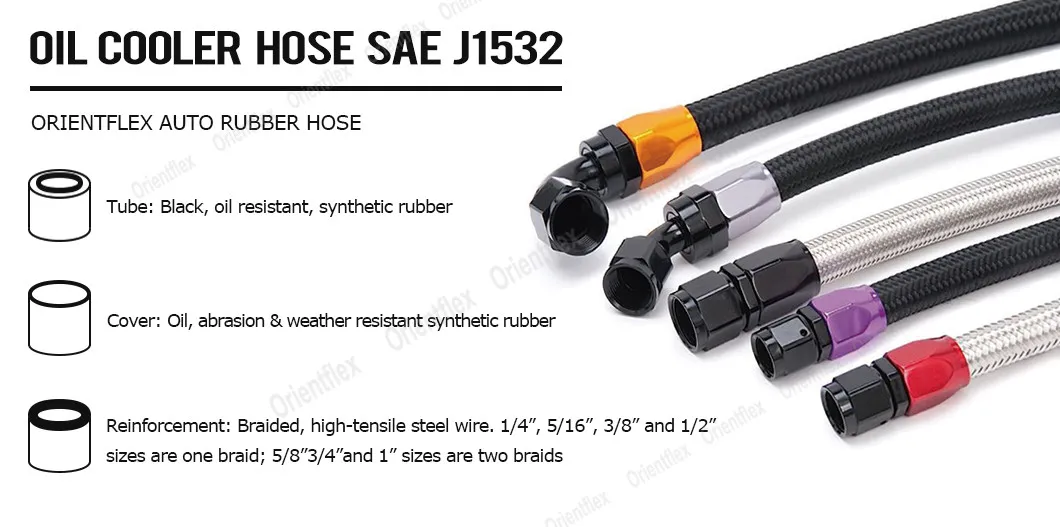

The reinforcement consists of braided, high-tensile steel wire. Smaller sizes (1/4" to 1/2") utilize a single braid, while larger sizes (5/8" to 1") use two braids for enhanced pressure resistance.
Absolutely. The hose features a synthetic rubber cover that is resistant to oil, weather, and abrasion, further protected by a stainless steel overbraid in some configurations.
We offer a wide range of specifications from 5.56mm (An04) up to 28.5mm (An20) internal diameter to fit various automotive requirements.
Failure typically results in oil leakage or a low oil warning light. Because it helps prevent the engine from overheating, timely replacement of a worn hose is critical for vehicle health.
