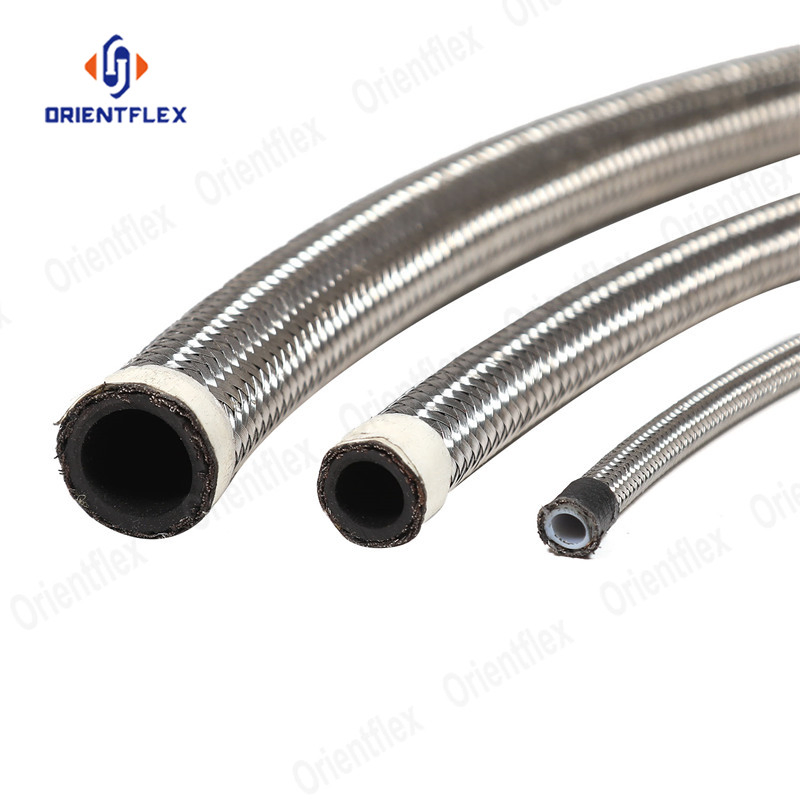

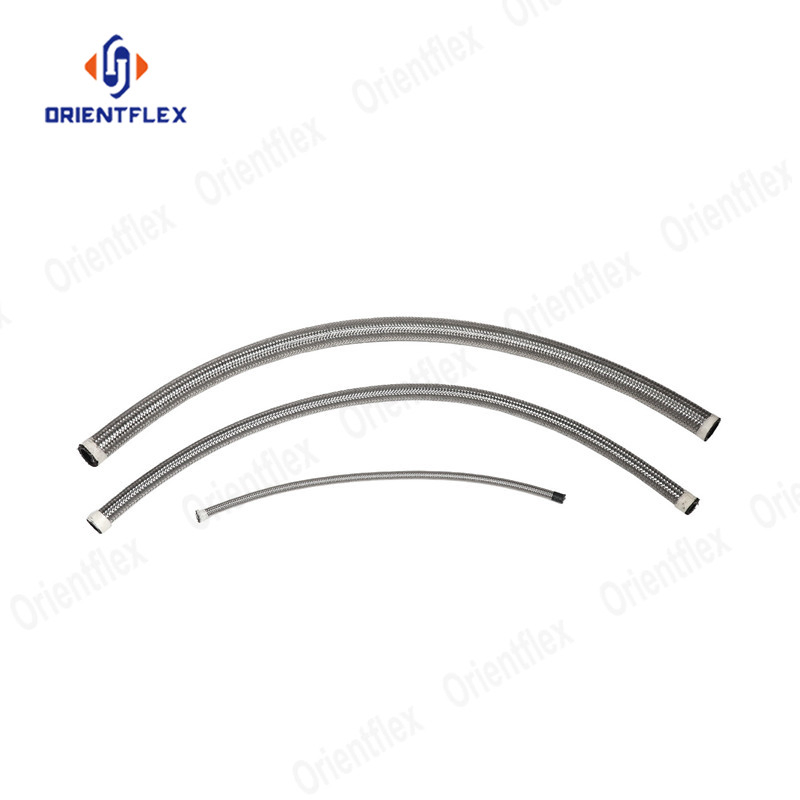

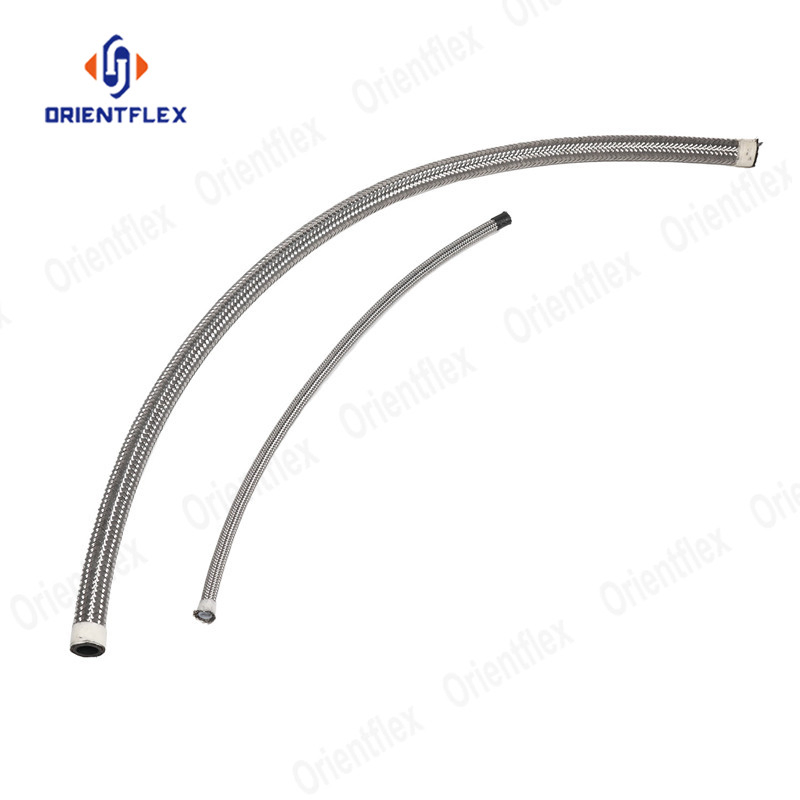

The oil cooler hose circulates oil between the oil cooler and engine, playing a vital role in preventing engine overheating. If the hose fails, symptoms include oil leaks or low oil warning lights. This specialized auto hose is engineered for high-performance fluid transfer in demanding environments.

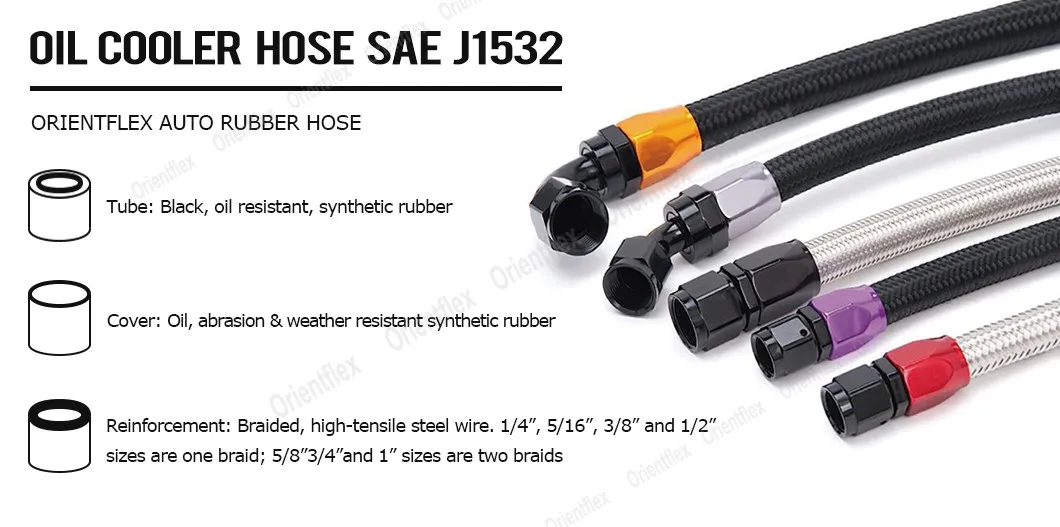

Tube: Black, oil resistant, synthetic rubber.

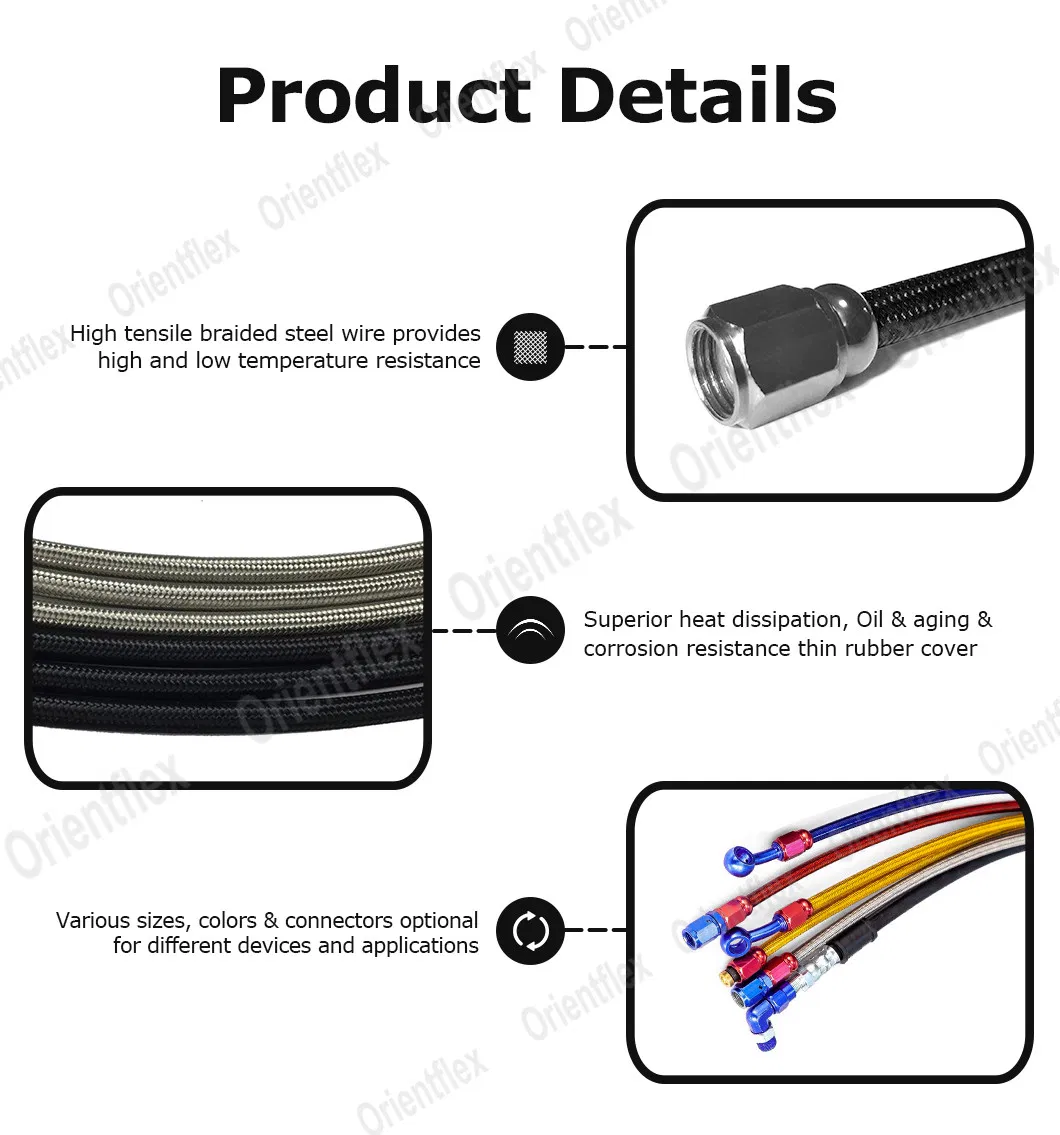

Reinforcement: Braided, high-tensile steel wire. 1/4", 5/16", 3/8" and 1/2" sizes feature one braid; 5/8", 3/4" and 1" sizes feature two braids for enhanced strength.
Cover: Black, thin synthetic rubber that is resistant to oil, abrasion, and harsh weather conditions.
| Item Code | I.D (mm) | O.D (mm) | W.P (Mpa) | B.P (Mpa) |
|---|---|---|---|---|
| An04 | 5.56 | 11.13 | 7 | 42 |
| An06 | 8.73 | 13.89 | 7 | 42 |
| An08 | 11.12 | 16.28 | 7 | 35 |
| An10 | 14.27 | 20.24 | 7 | 35 |
| An12 | 17.47 | 23.82 | 7 | 26.3 |
| An16 | 22.22 | 29.96 | 5.2 | 17.5 |
| An20 | 28.5 | 35.81 | 5.2 | 17.5 |
