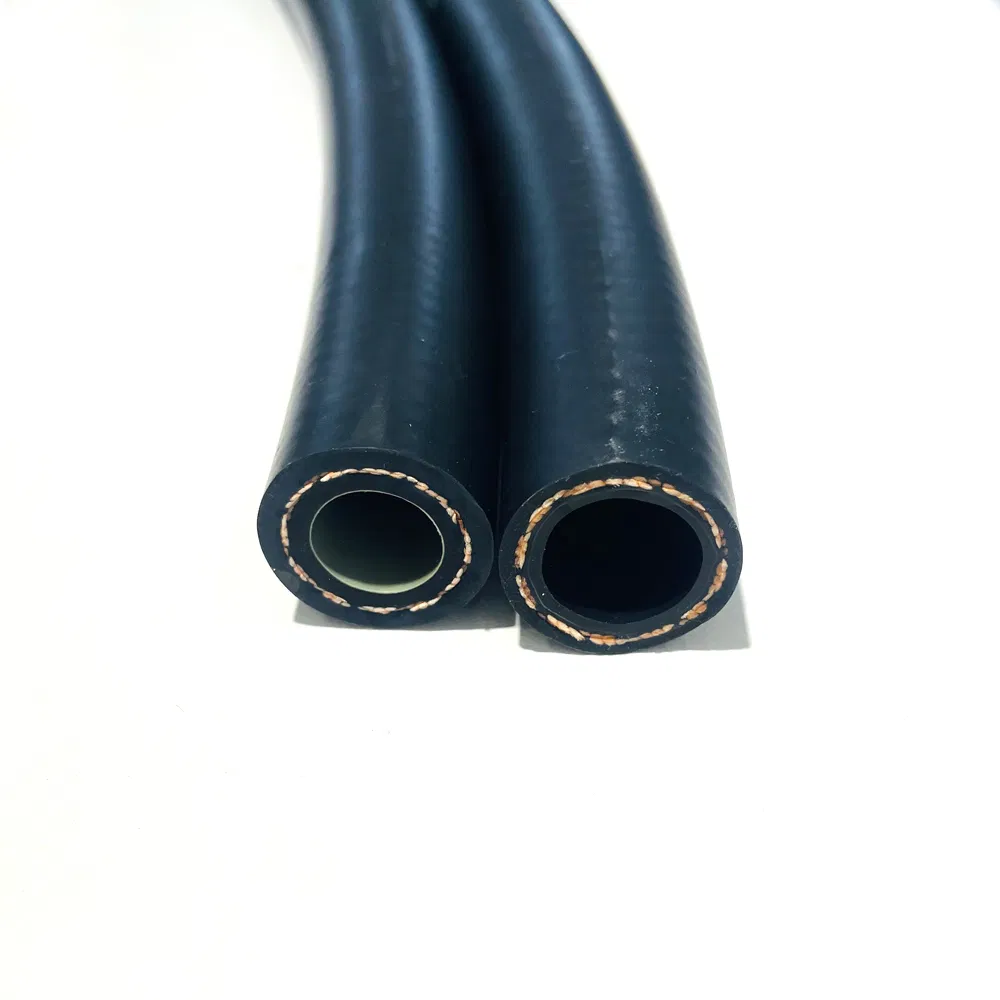

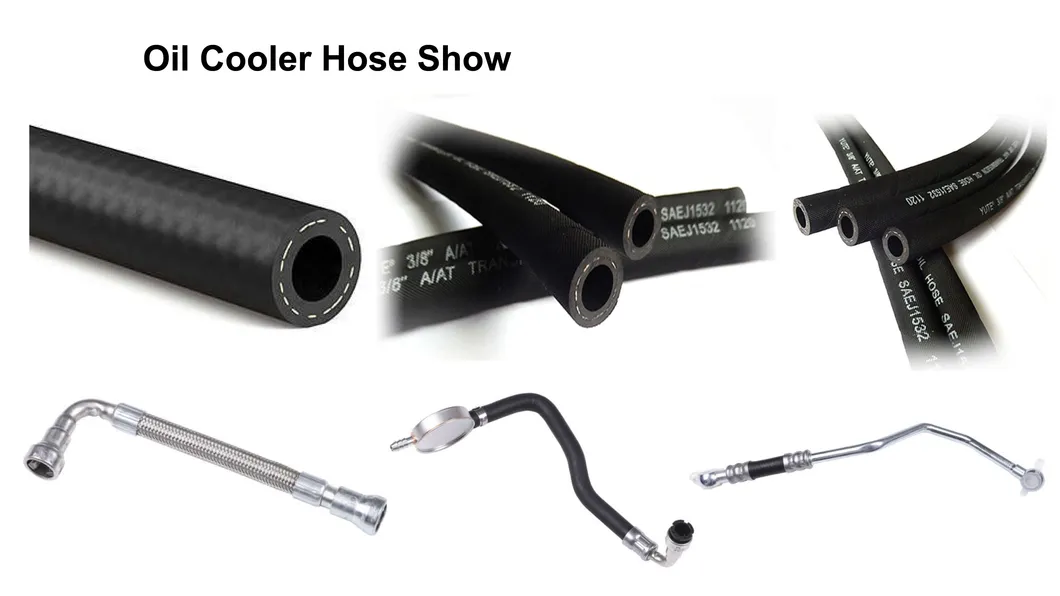

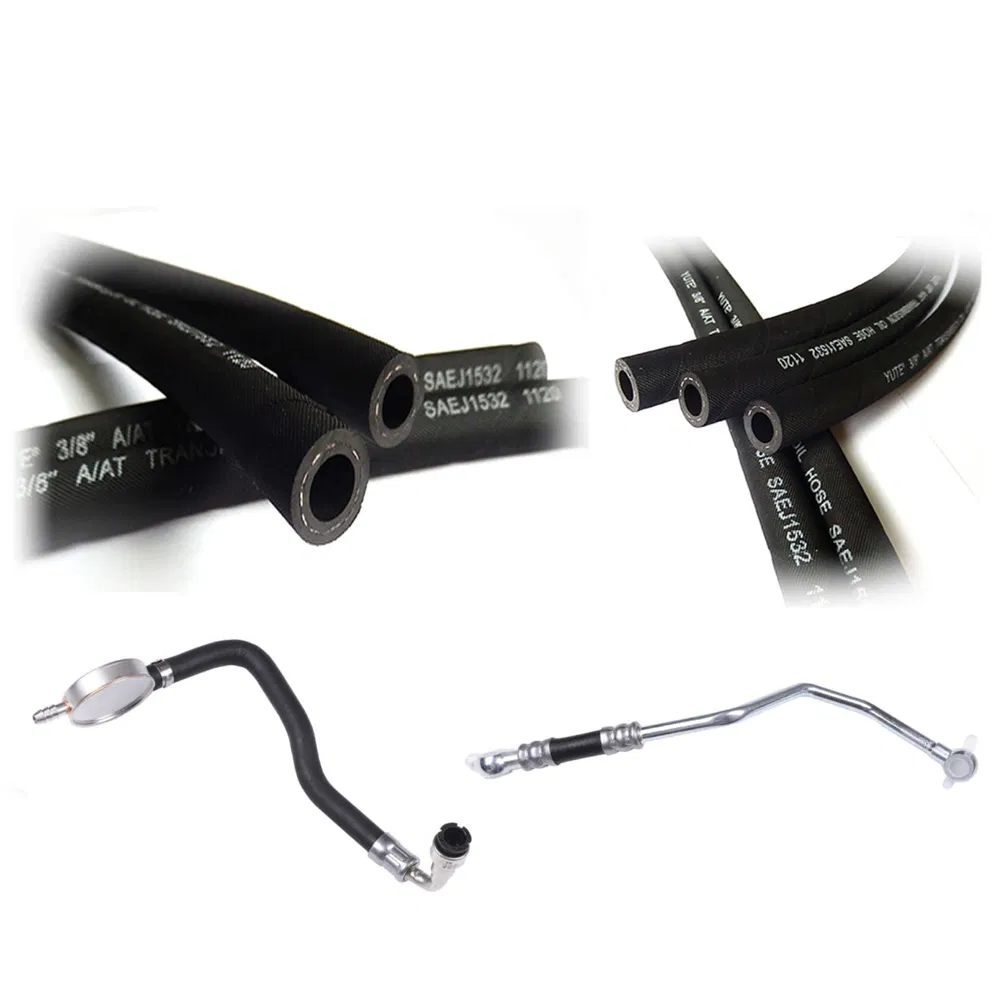

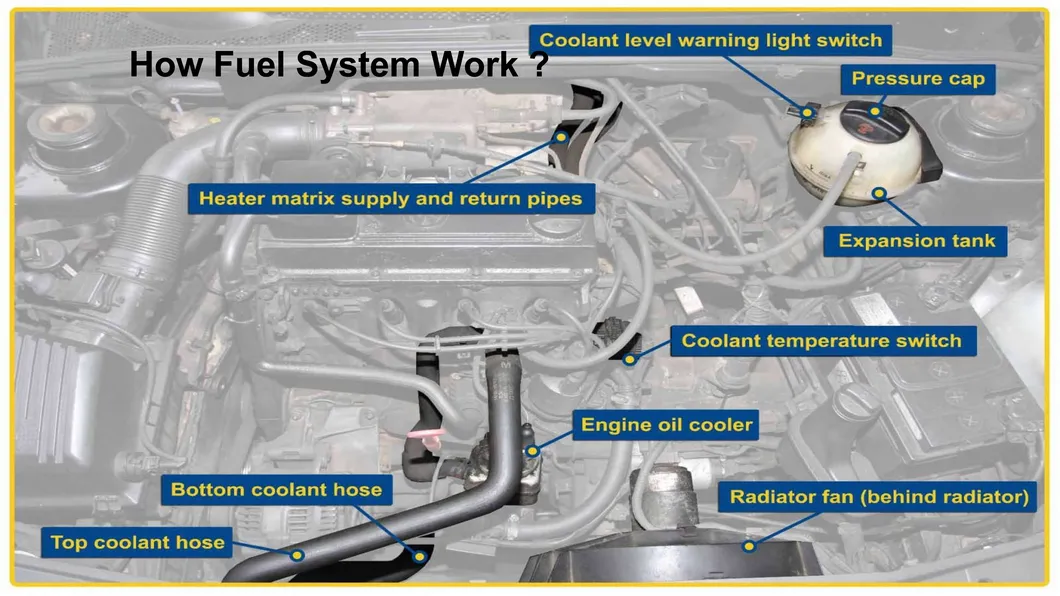

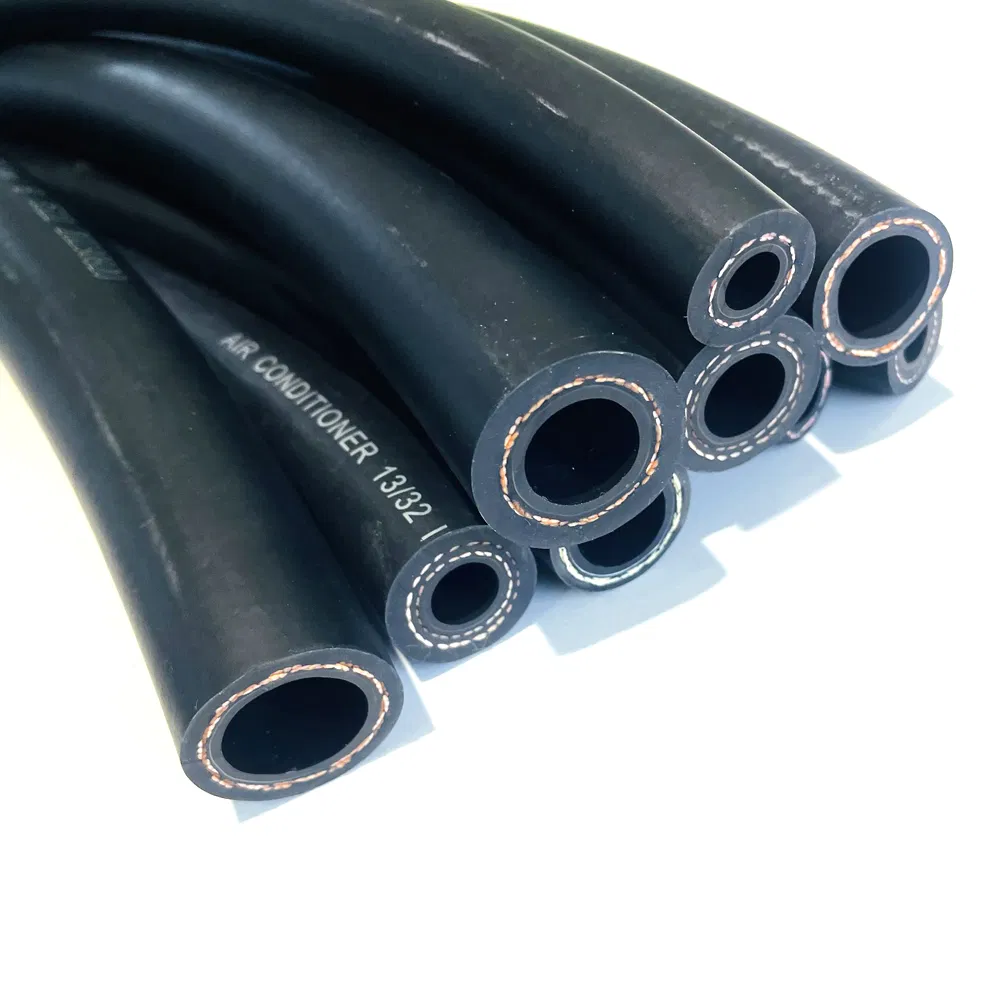

The oil cooler hose circulates oil between the oil cooler and engine, helping to prevent overheating. Over time, heat, chemicals, or age can cause the hose to wear out. Failure of this hose can lead to oil leaks or low oil warnings. Regular inspection is critical to avoid major engine damage and costly repairs.

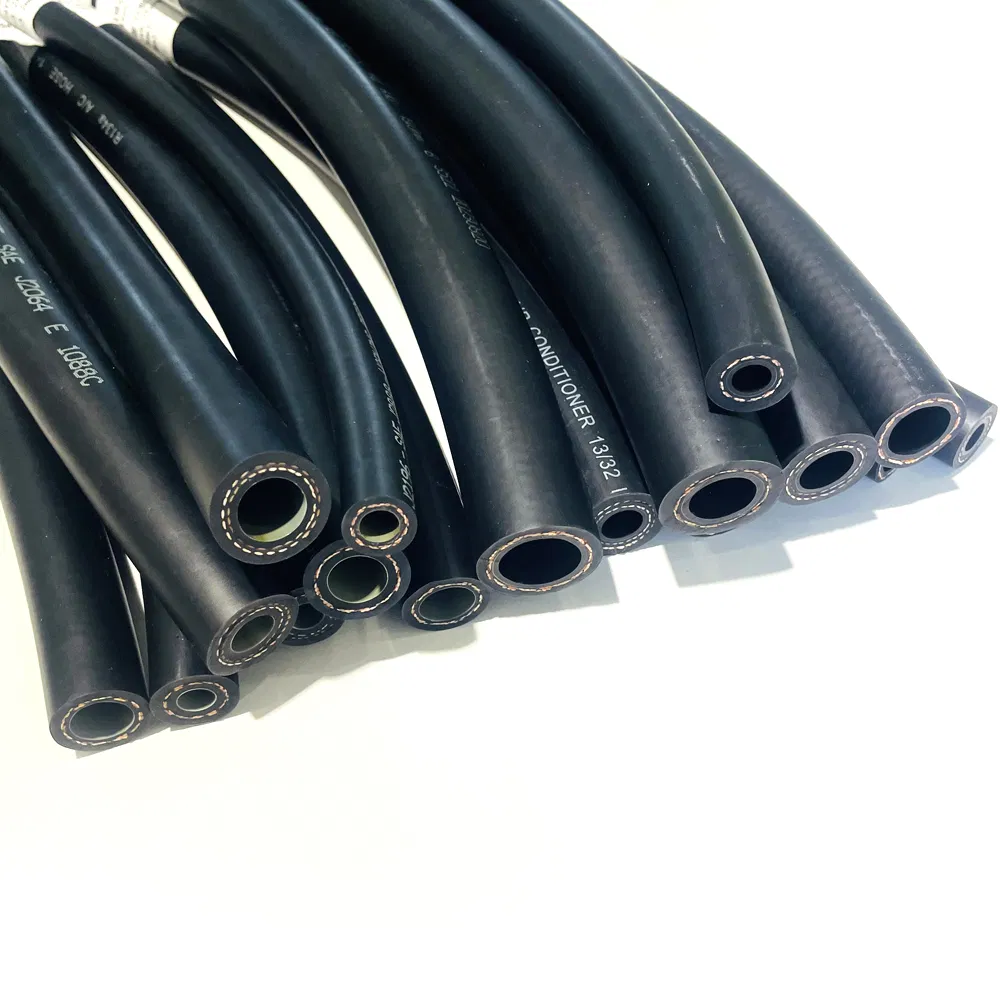

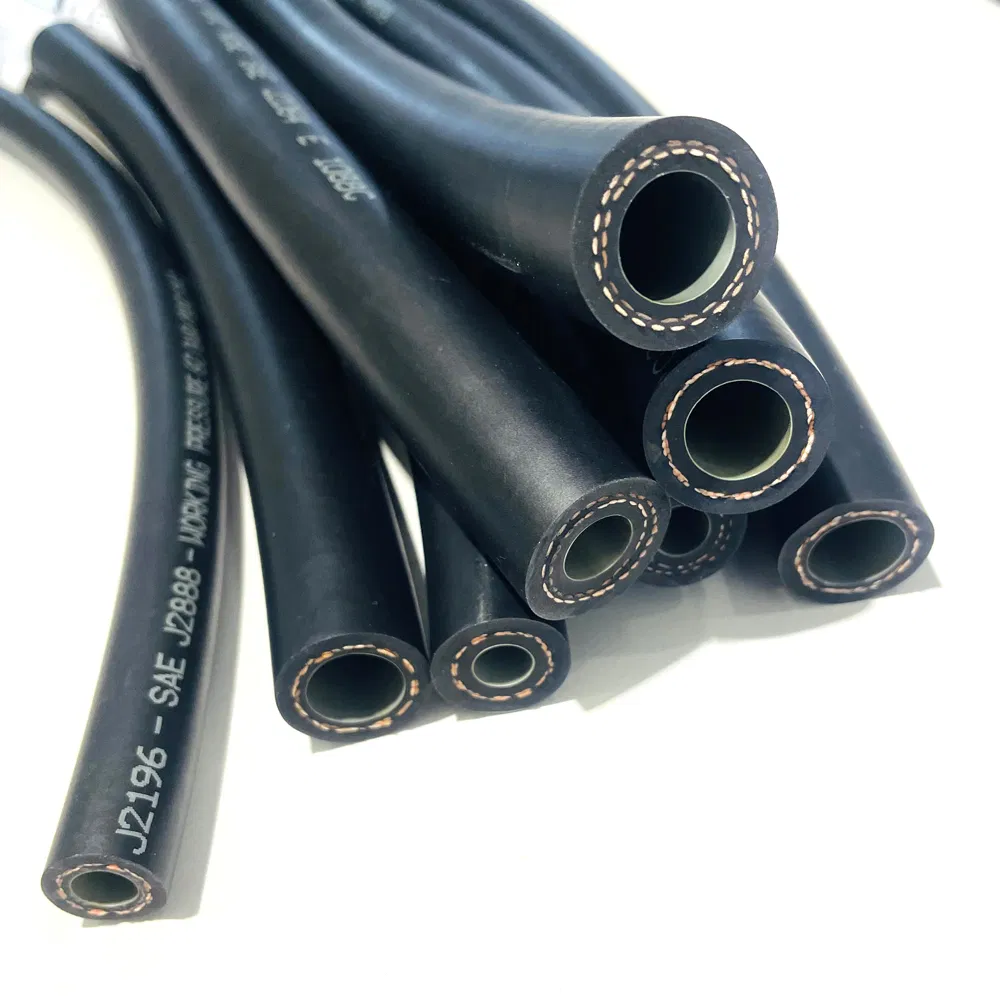

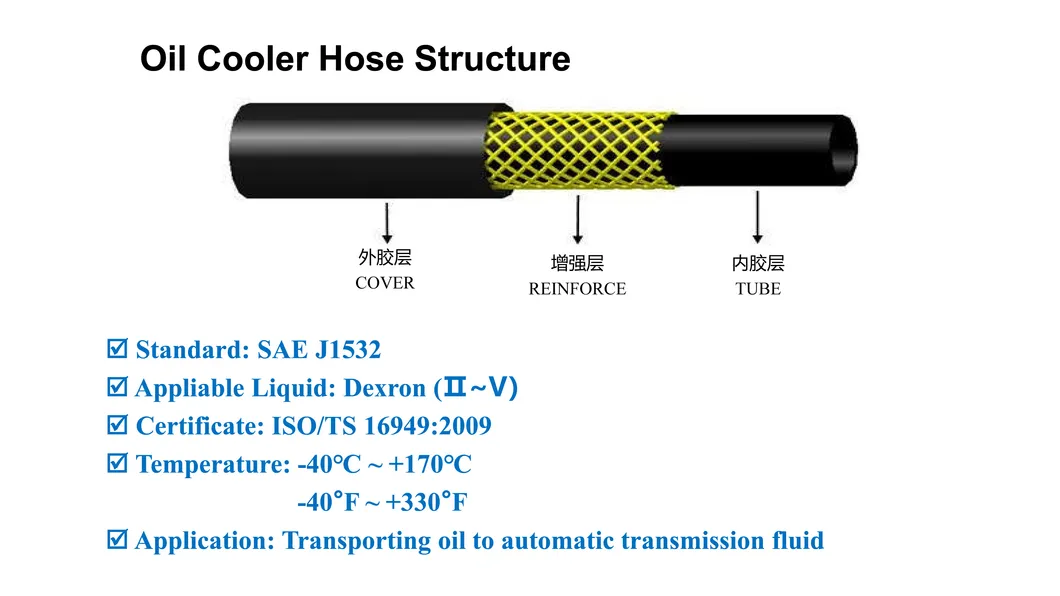

Designed for durability, these hoses are built to last nearly as long as the engine. Most transmission oil cooler hoses are constructed from a combination of high-grade rubber and metal reinforcements.
Specification (MM)
I.D (MM)
O.D (MM)
Working Pressure (Mpa)
Working Pressure (Psi)
Burst Pressure (Min.Mpa)
Burst Pressure (Min. Psi)
8.0 x 14.0
8.0±0.20
14.0±0.30
2.06
300
8.27
1200
10.0 x 17.0
10.0±0.30
17.0±0.40
2.06
300
8.27
1200
13.0 x 22.0
13.0±0.40
22.0±0.50
2.06
300
8.27
1200
Certifications

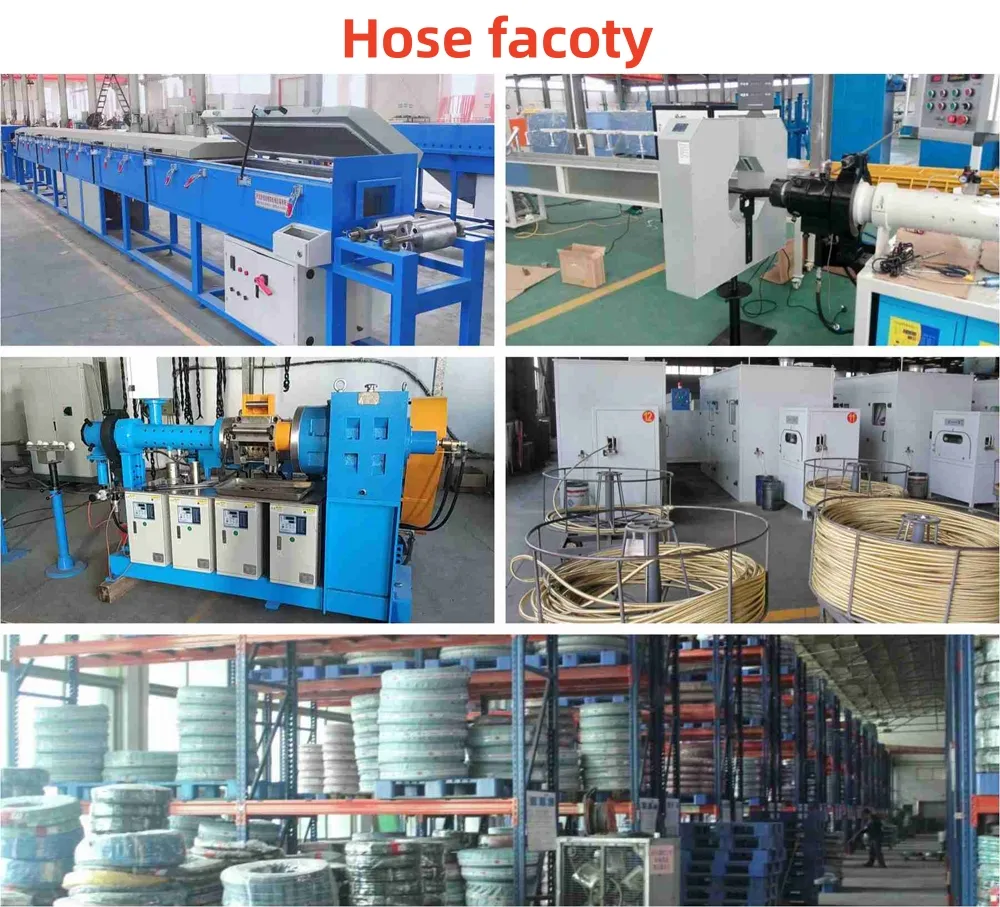

Manufacturing Capabilities
Established with decades of specialized experience in the domestic and international markets.
Equipped with IATF16949 and ISO9001:2015 quality management system certifications.
Production capacity of 1 million brake hose assemblies and 2 million meters of hose per year.
Professional staff across dedicated facilities for hose production, fitting, and assembly.
Related Hydraulic Solutions

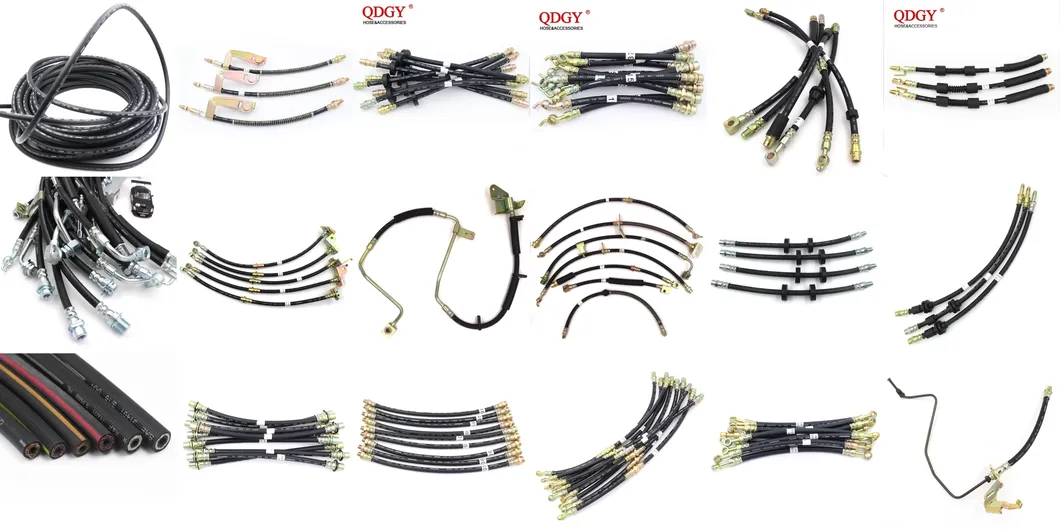

Disc Brake Hydraulic Hoses: Flexible connectors between the body frame and brake calipers, designed to handle suspension travel while maintaining hydraulic pressure integrity.

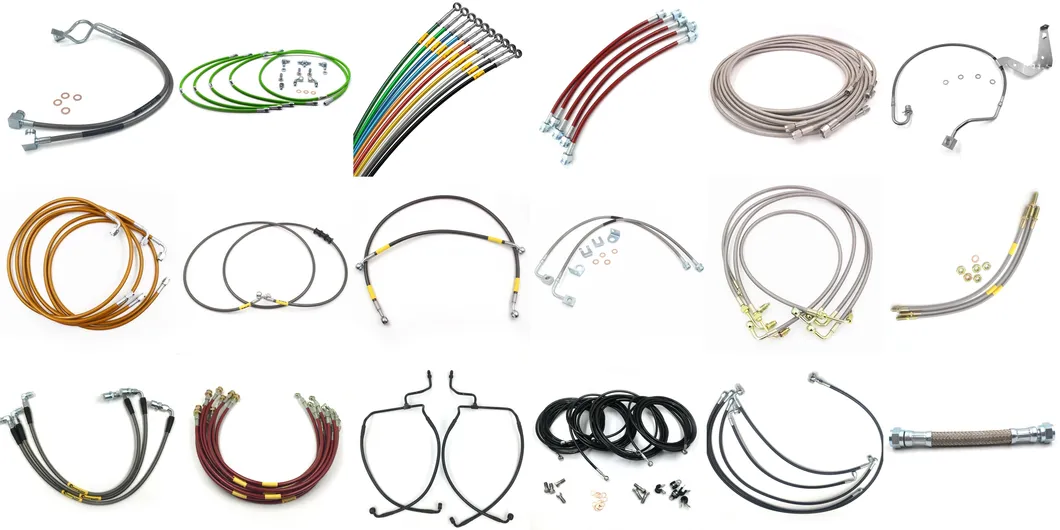

Stainless Steel Sport Brake Lines: Ideal for high-performance applications, offering a firmer, more responsive brake feel and resistance to corrosion.
Packaging & Logistics
Frequently Asked Questions
What types of rubber hoses can you produce?
We produce a wide range including rubber brake hoses, EPDM hoses, hydraulic hoses, fuel and oil hoses, and SAE J1401 standard hoses.
What sizes are available for your brake hoses?
Our common sizes include 3.2x10.5mm (1/8") and 4.8x12.5mm (3/16"). Special sizes like 3.2x11mm are also available upon request.
Can you provide custom marking or printing?
Yes, we provide both embossed and color printing marks according to your specific requirements.
What kinds of fittings are available for the hoses?

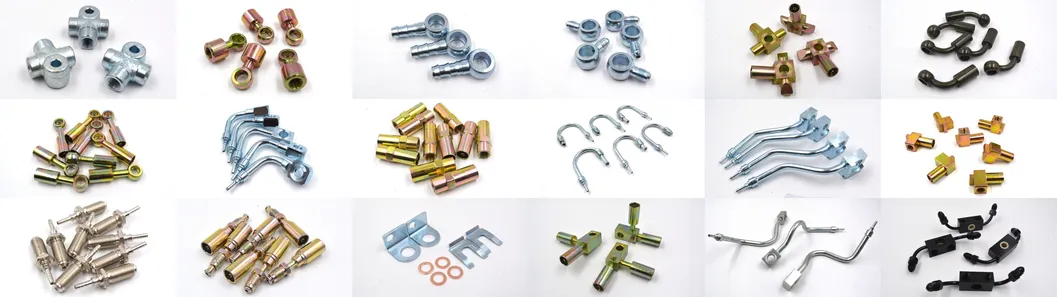

We offer various fittings including female, male, banjo, and adapter fittings made from steel (zinc, chrome, or nickel plated), stainless steel, or brass.
What is the typical delivery timeframe for an order?
Delivery usually takes between 5 to 40 days, depending on the order quantity and current inventory levels.
Are you a manufacturer or a trading company?
We are a professional manufacturer with our own export capabilities, ensuring direct quality control and competitive lead times.
