📋 Basic Specification
Model NO.
Durable Fire Hose
Coupling Type
Hose Coupling
Standard Length
15m, 20m, 25m, 30m
Working Pressure
13bar, 16bar, 20bar, 25bar
Diameter Range
25mm to 100mm
Weaving Type
Twill Weaving
Material
PVC / TPU / Rubber
Reinforcement
Polyester Woven Jacket
⚙️ Technical Parameters
| Internal Diameter (I.D.) |
Service Pressure (PSI/Bar) |
Burst Pressure (PSI/Bar) |
| Inch |
mm |
Standard Range |
Maximum Capacity |
| 1½″ | 38 | 250 / 17
300 / 21
400 / 28 | 750 / 51
900 / 63
1200 / 84 |
| 1¾″ | 45 |
| 2″ | 50 |
| 2½″ | 65 |
| 2¾″ | 70 |
| 3″ | 75 |
| 4″ | 102 |
🔍 Product Detailed Overview

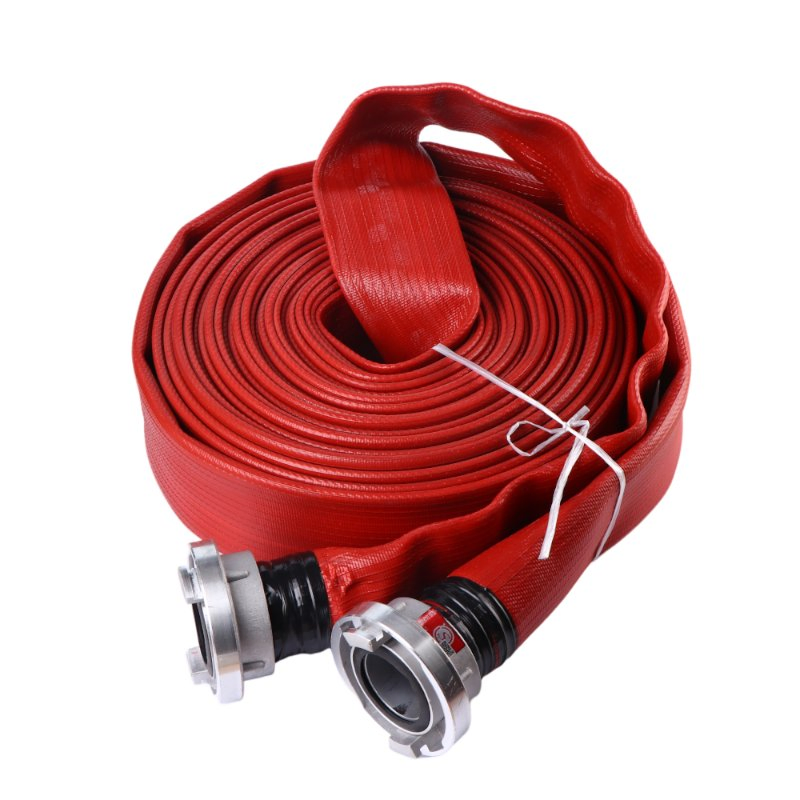

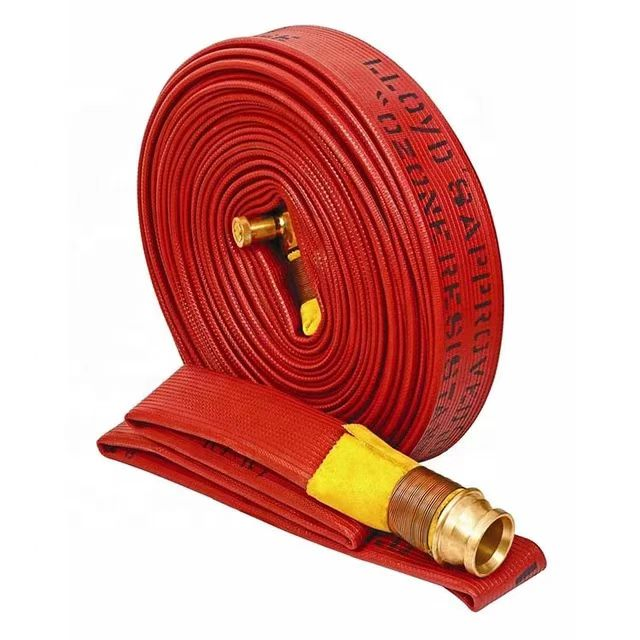

Rubber Lining Fire Hose: Constructed with a high-strength polyester jacket and premium rubber lining. The jacket features a warp of polyester staple and a weft of polyester filament. This specialized construction ensures the hose is extremely flexible while maintaining high pressure resistance.
Advanced Bonding: A proprietary adhesive is applied between the jacket and the rubber lining, significantly enhancing adhesive strength. This prevents separation even after prolonged heavy-duty use.
✔
Durability: High abrasion resistance and ozone resistance for outdoor longevity.
✔
Performance: Low flow resistance due to a highly polished inner lining.
✔
Operation: Thinner, softer, and lighter for convenient emergency handling.
✔
Resilience: Excellent anti-corrosion and anti-aging properties in low temperatures.
🖼️ Product Gallery
📦 Packaging & Delivery
Package Type
Poly bag and heavy-duty cartons
Package Size
20.00cm * 10.00cm * 10.00cm
Gross Weight
1.000kg (Reference)
Capacity
2000 Rolls Per Month
❓ Frequently Asked Questions
Q1: What materials are used for the fire hose lining?
We provide linings made of PVC, Natural Rubber, or TPU depending on your specific durability and pressure requirements.
Q2: Can the hose be used for purposes other than firefighting?

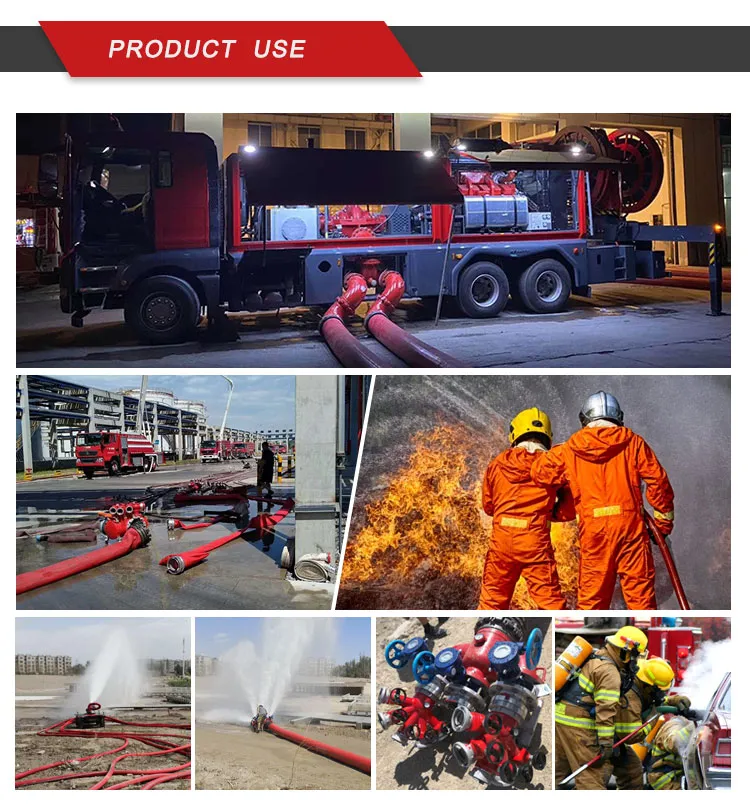

Yes, these hoses are versatile and widely used in agricultural irrigation, emergency rescue, and industrial water discharge.
Q3: What are the standard lengths available?
Standard lengths are 15m, 20m, 25m, and 30m. We can also provide custom lengths based on your specific needs.
Q4: Does the hose jacket resist abrasion?
Yes, the jacket is woven from high-intensity polyester filament or staple fiber in a twill or plain weave, providing excellent abrasion resistance.
Q5: How does the hose perform under high pressure?
Our hoses support working pressures from 13bar to 25bar, with burst pressures reaching up to 84bar (1200 PSI) for the highest-grade specifications.
Q6: Is the lining prone to separating from the jacket?
No, we use a specialized solid or liquid adhesive between the jacket and the lining to ensure maximum bonding strength and prevent delamination.
