E10 Rubber Reinforced Fuel Hose Pipe for Engines Oil Unleaded Fuel Injection UK Hydraulic Hose Cutting Toolharga Mesin Press Hose Hydraulic

Customization:	Available
Material:	Silicone Rubber
Capability:	Heat-resistant Rubber Hose

Send Inquiry

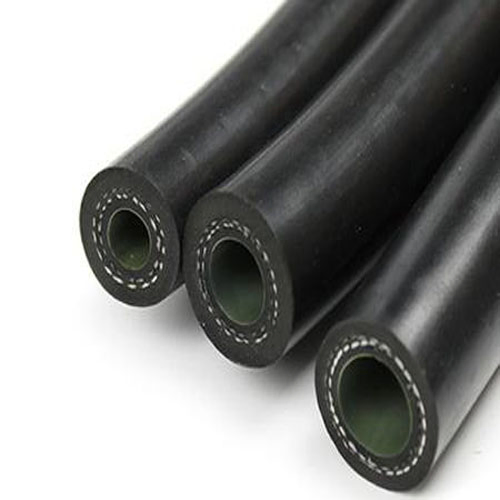

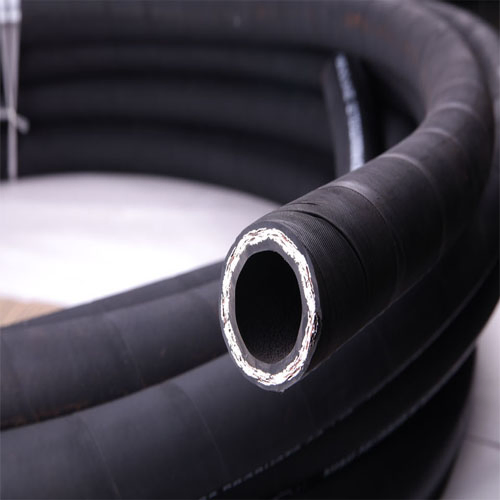

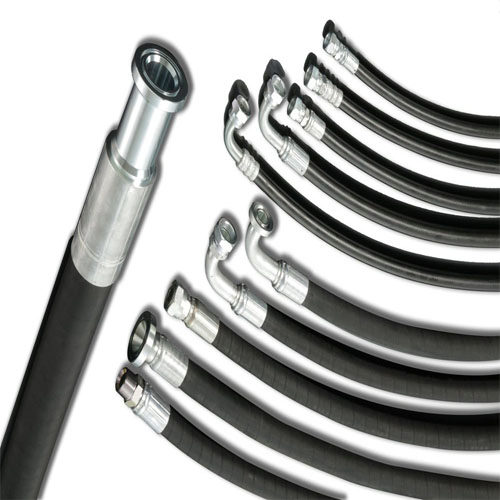

Product Description

Basic Information

Model NO.:

LT SA5993

Color:

Black

Inner Layer:

Suitable for Hydraulic Oil

Reinforcement:

Four Layers of Steel Wire Winding

Outer Layer:

Wear-Resistant & Non-Stripping

Weight(Kg/M):

0.384-6.33

Temp Range:

-40°c to +121°c

Production Capacity:

50,000,000 meters/Year

Product Description

⚙️

Product Application: Suitable for large-scale long-range machinery such as excavators or demanding environmental use requirements.

🛡️

Superior Construction: Features Neoprene synthetic rubber inner layer and up to six layers of steel wire winding for extreme pulse resistance (≥1 million times).

🌀

Low Bending Radius: The bending radius is reduced by 27% compared with the ISO18752 standard and 37% compared with the SAE standard.

💎

High Durability: Non-stripping, wear-resistant, and weather-resistant outer layer designed for harsh environments.

Product Parameters

Model	ISO18752 Standard			Inner Dia (mm)	Outer Dia (mm)	Working Pressure (MPa)	Min. Burst (MPa)	Min. Bending (mm)
Model	Standard	Wear-Resistant	Super Wear	Inner Dia (mm)	Outer Dia (mm)	Working Pressure (MPa)	Min. Burst (MPa)	Min. Bending (mm)
SA5993-1/4"-4	BC	CC	CC	6.3	13-15	42-45	168-180	50
SA5993-3/8"-4	DC	DC	DC	10	18.7	45	180	70
SA5993-1/2"-4	DC	DC	DC	13	22.8	45	180	140
SA5993-3/4"-4	DC	DC	DC	19	30.8	42	168	220
SA5993-1"-4	DC	DC	DC	25	38	42	168	250
SA5993-1 1/2"-6	DC	DC	DC	38	52.5	42	168	480
SA5993-2"-6	DC	DC	DC	51	66.5	42	168	650

Packaging & Shipping

International Exhibition

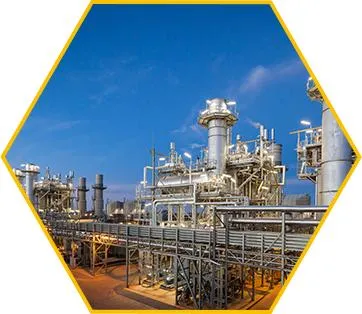

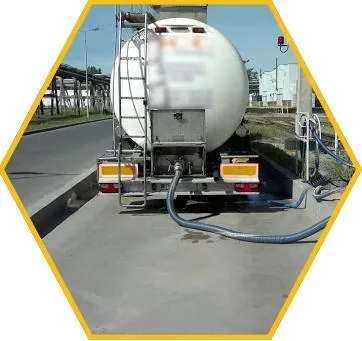

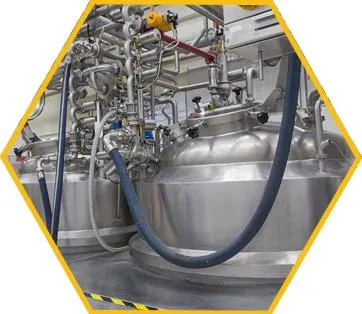

Application Scenarios

Manufacturing Excellence & Certifications

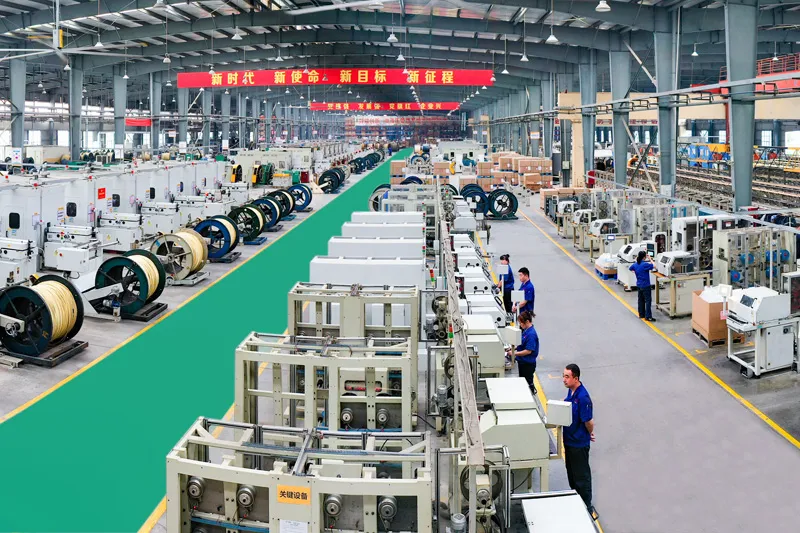

With decades of experience, the facility utilizes 46 high-speed steel wire braiders and 12 spiral production lines. Annual capacity reaches 30 million meters for hydraulic hoses. Testing centers are accredited by CNAS, featuring impulse, burst, and salt spray laboratories to ensure authority and accuracy.

Success Case

Construction Machinery Application: Widely implemented in excavators. Key benefits include 5-year weather resistance, high-pressure tolerance (25% above SAE standards), and superior pulse resistance, making it ideal for heavy-duty construction tasks.

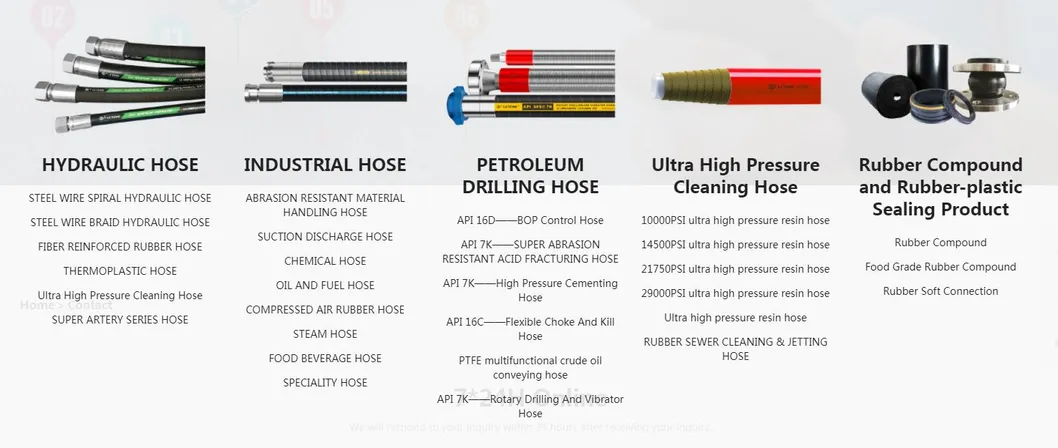

More Products

Frequently Asked Questions

Q: What is the maximum temperature range for these hydraulic hoses?

A: The temperature range is -40°C to +121°C (-40°F to +250°F), making it suitable for extreme industrial environments.

Q: How does the bending radius compare to standard hoses?

A: Our hoses offer a significantly lower bending radius—reduced by 27% compared to ISO18752 and 37% compared to SAE standards.

Q: What certifications do the products hold?

A: Our products meet MSHA, API Type Approval (16C and 7K), ABS Type Approval, and ISO9001/ISO14001 quality management systems.

Q: How many pulse cycles can the reinforcement layers withstand?

A: Both the four-layer (1/4"-1") and six-layer (1 1/4"-2") steel wire windings are tested to withstand ≥1 million pulse cycles.

Q: What are the primary applications for the LT SA5993 model?

A: It is primarily designed for large-scale construction machinery like excavators and long-range machinery requiring high-pressure stability.

Q: Is the outer rubber layer wear-resistant?

A: Yes, the outer layer is made of non-stripping, wear-resistant, and weather-resistant synthetic rubber for maximum durability.
