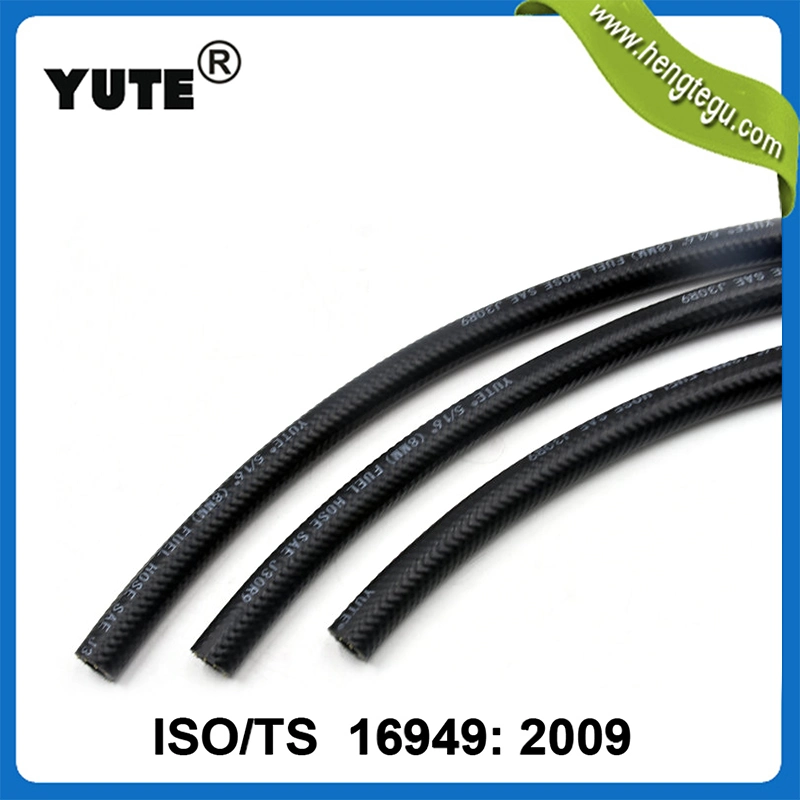

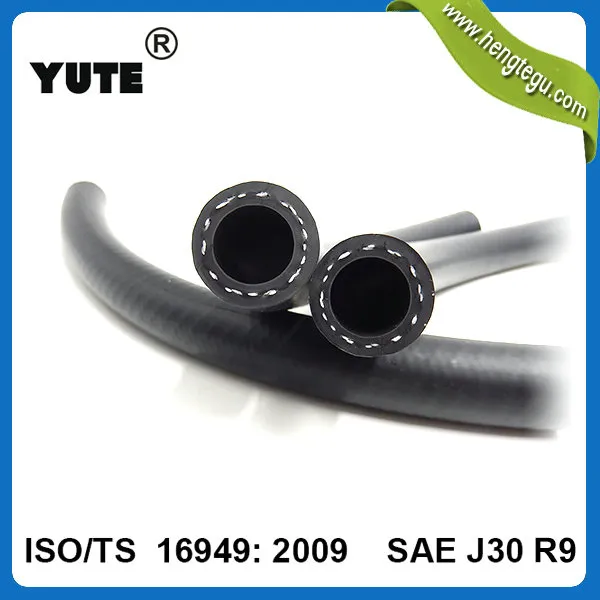

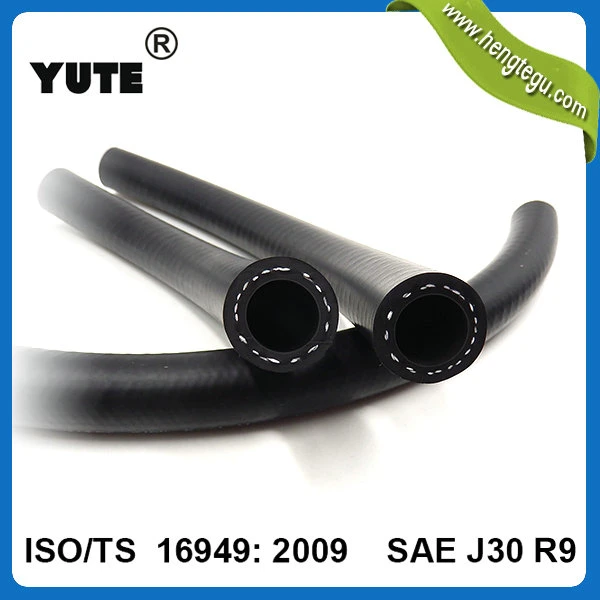

SAE J30R9 Oil Resistant Black Synthetic Rubber Fuel Injection Hose
Used in the transportation of gasoline, ethanol extended gasoline, diesel fuel, lubrication oil, or the vapor present in either the fuel injection system or the crankcase of internal combustion engines.
Construction
| No. | I.D | O.D | W.P | B.P | ||||
|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | Bar | PSI | Bar | PSI | |
| 1 | 1/8 | 3.2 | 23/64 | 9 | 20 | 300 | 80 | 1200 |
| 2 | 5/32 | 4 | 25/64 | 10 | 20 | 300 | 80 | 1200 |
| 3 | 3/16 | 4.8 | 7/16 | 11 | 20 | 300 | 80 | 1200 |
| 4 | 1/4 | 6.3 | 1/2 | 12.7 | 20 | 300 | 80 | 1200 |
| 5 | 5/16 | 7.9 | 35/64 | 14 | 20 | 300 | 80 | 1200 |
| 6 | 3/8 | 9.5 | 5/8 | 16 | 20 | 300 | 80 | 1200 |
| 7 | 15/32 | 12 | 3/4 | 19 | 20 | 300 | 80 | 1200 |
| 8 | 1/2 | 12.7 | 25/32 | 20 | 20 | 300 | 80 | 1200 |
| 9 | 5/8 | 16 | 61/64 | 24 | 10 | 150 | 40 | 600 |
| 10 | 3/4 | 19 | 1-9/64 | 28.8 | 10 | 150 | 40 | 600 |
| 11 | 1 | 25.4 | 1-3/8 | 35 | 10 | 150 | 40 | 600 |

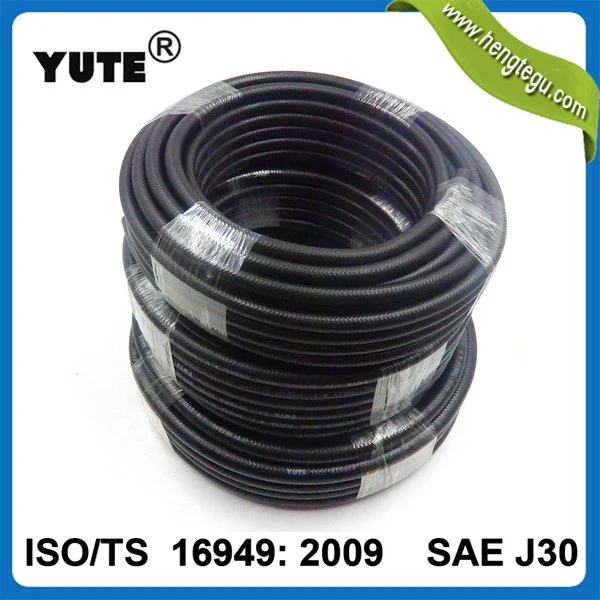

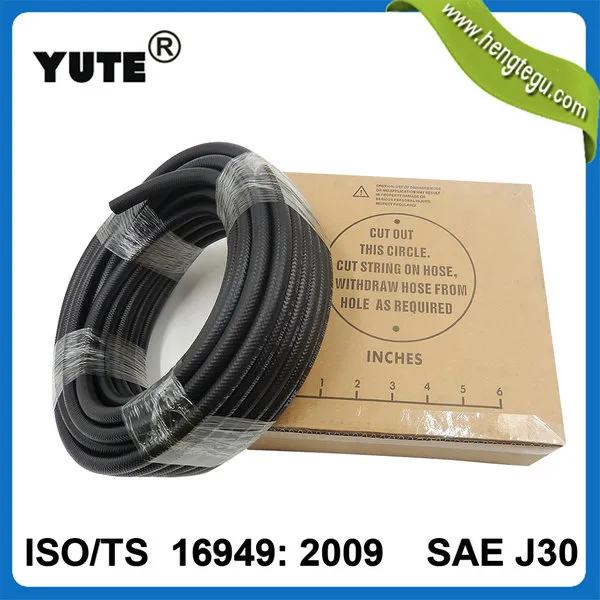

Packing: 20/25/50 meters per roll, packed in cartons or on pallets. Custom packaging is available upon request.
Logistics: Supports both Sea Shipping and Air Transport.
