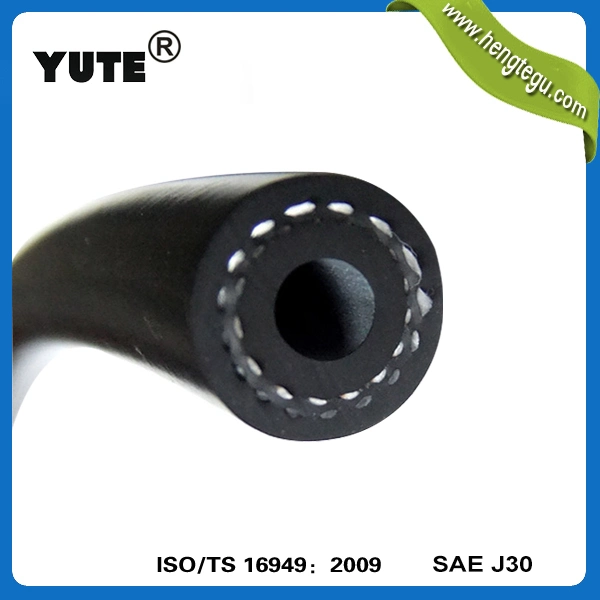

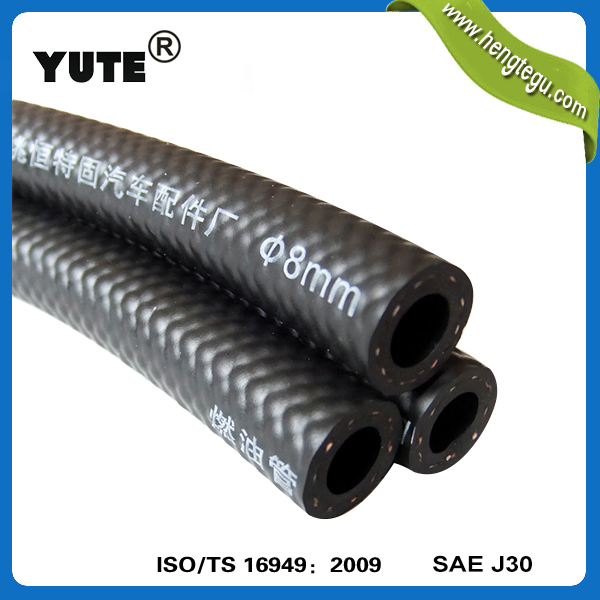

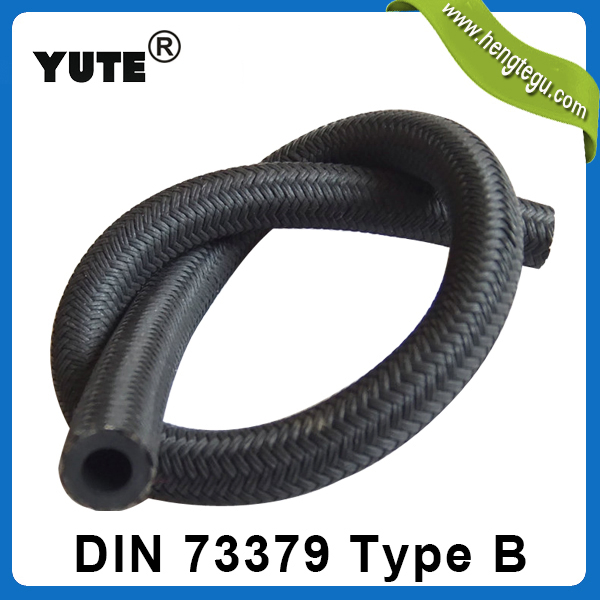

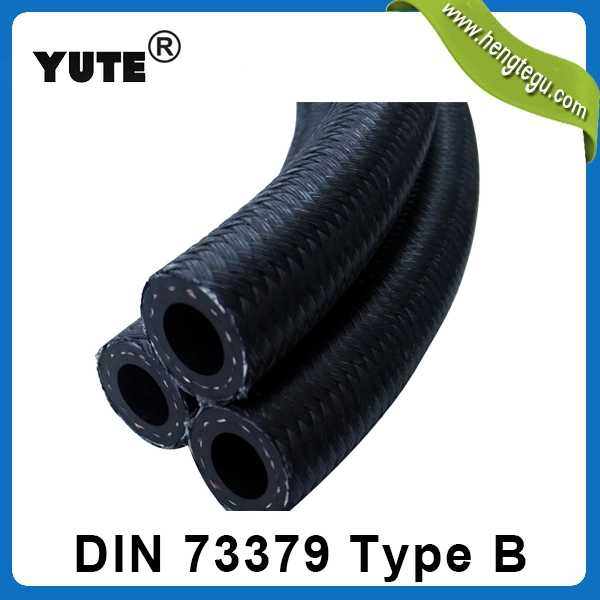

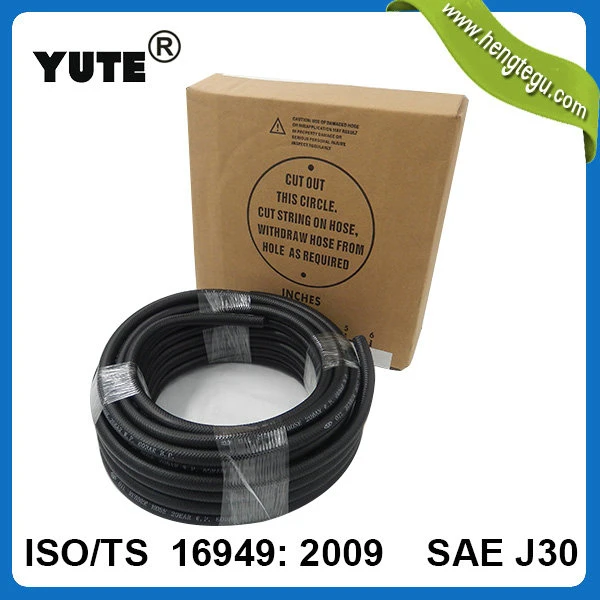

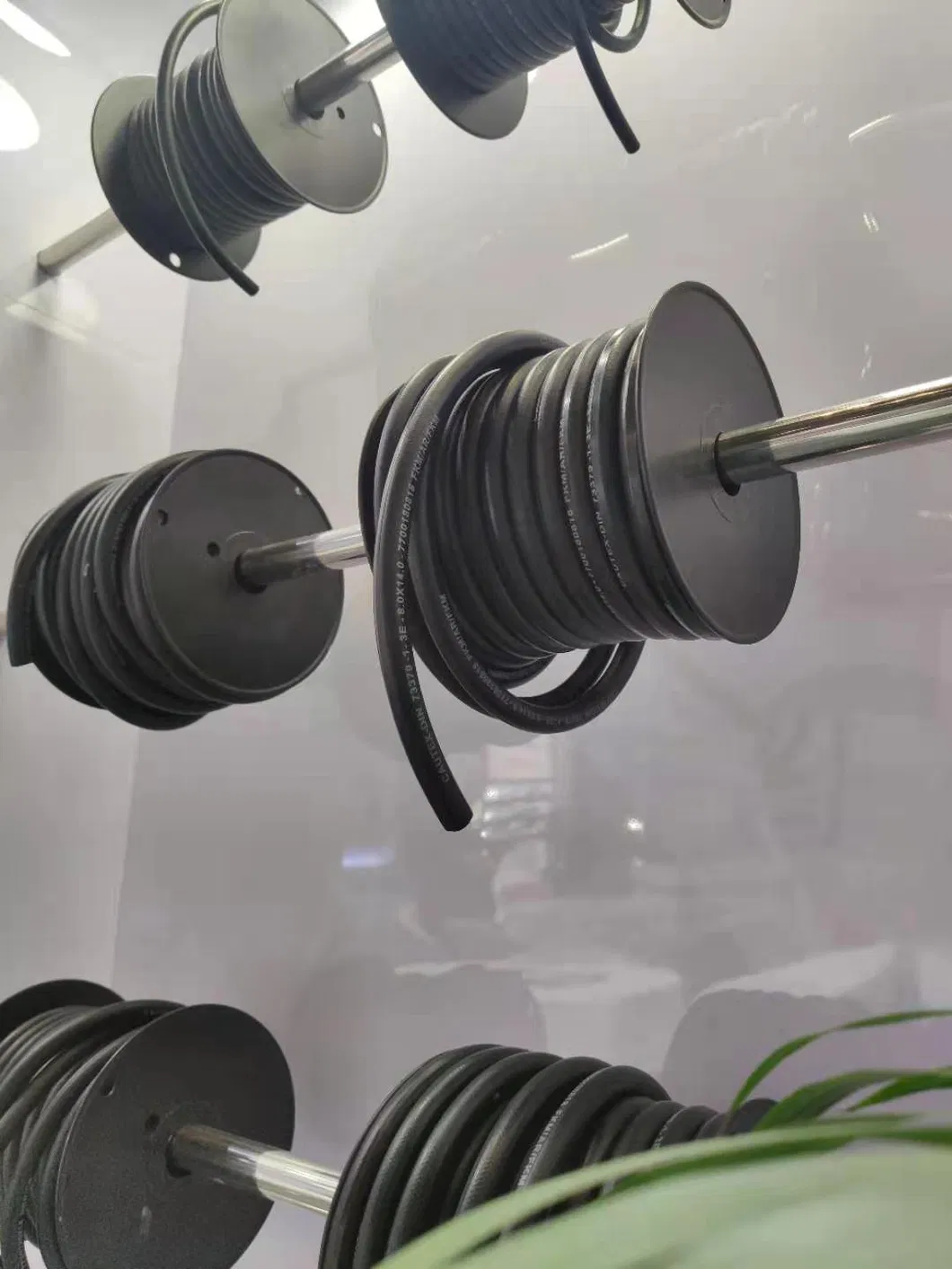

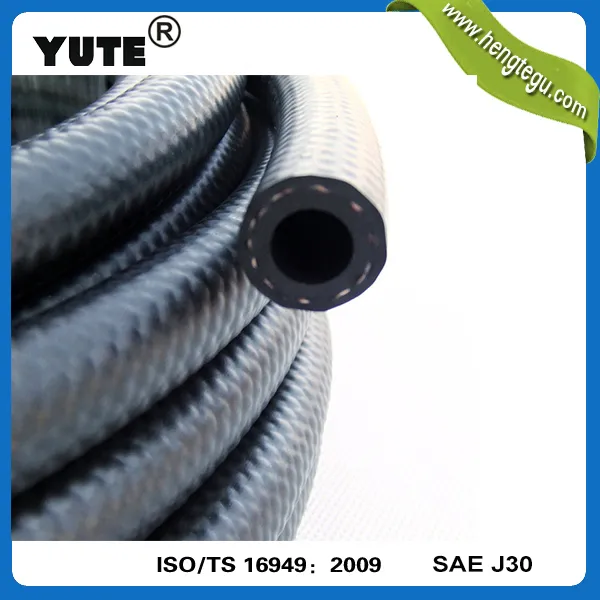

High Quality/Low Pressure Oil Resistant SAE J30 R9 FKM Tube Fuel Injection Rubber Hose
Applications: Designed to convey gasoline, diesel, and lubricating oil or vapors emission in either the fuel system or the crankcase of internal combustion engines.
Construction:
Working Temperature: -40ºC to +125ºC (-40ºF to +257ºF)
| No. | I.D. (Internal Diameter) | O.D. (Outer Diameter) | W.P. (Working Pressure) | B.P. (Burst Pressure) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inch | mm | Tolerance | Inch | mm | Tolerance | Bar | PSI | Bar | PSI | |
| 1 | 1/8 | 3.2 | ±0.3 | 23/64 | 9 | ±0.3 | 20 | 300 | 80 | 1200 |
| 2 | 5/32 | 4 | ±0.3 | 25/64 | 10 | ±0.3 | 20 | 300 | 80 | 1200 |
| 3 | 3/16 | 4.8 | ±0.3 | 7/16 | 11 | ±0.3 | 20 | 300 | 80 | 1200 |
| 4 | 1/4 | 6.3 | ±0.3 | 1/2 | 12.7 | ±0.4 | 20 | 300 | 80 | 1200 |
| 5 | 5/16 | 7.9 | ±0.4 | 35/64 | 14 | ±0.5 | 20 | 300 | 80 | 1200 |
| 6 | 3/8 | 9.5 | ±0.4 | 5/8 | 16 | ±0.5 | 20 | 300 | 80 | 1200 |
| 7 | 15/32 | 12 | ±0.4 | 3/4 | 19 | ±0.5 | 20 | 300 | 80 | 1200 |
| 8 | 1/2 | 12.7 | ±0.5 | 25/32 | 20 | ±0.6 | 20 | 300 | 80 | 1200 |
