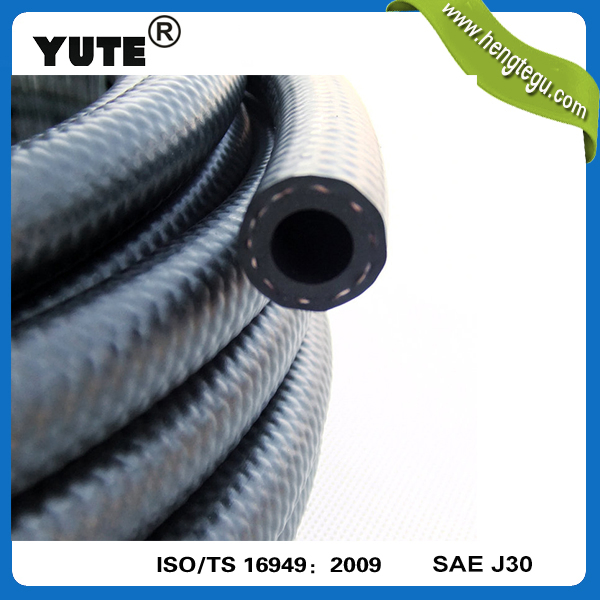

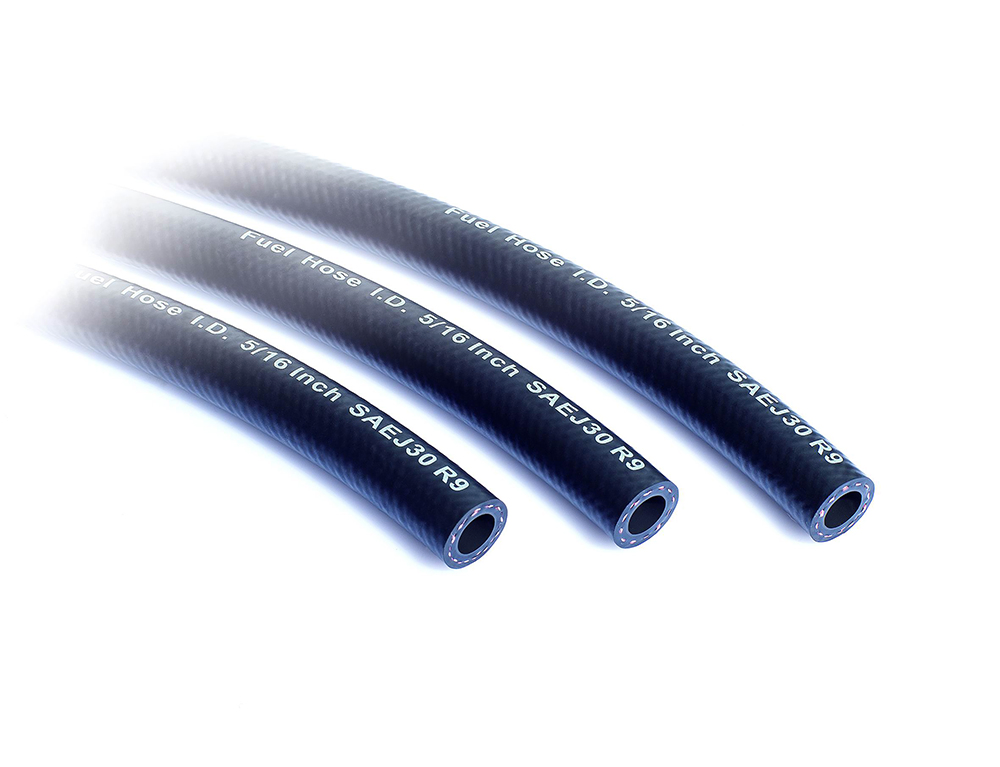

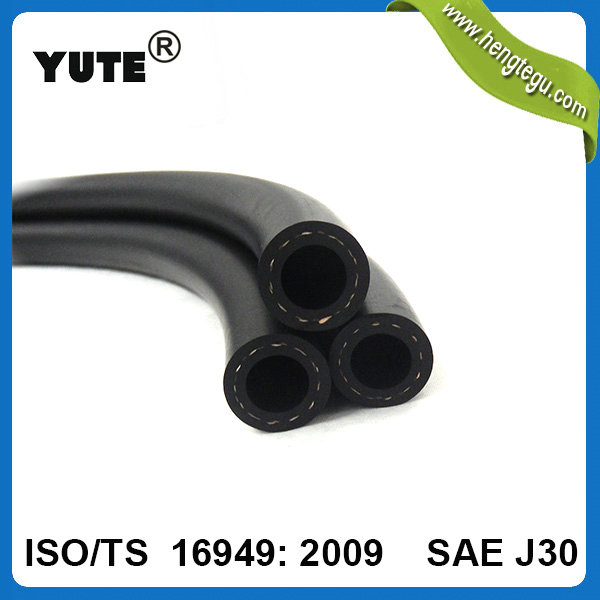

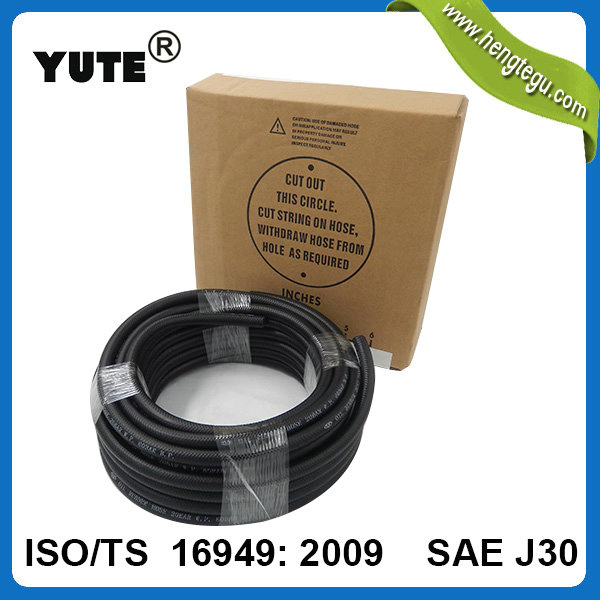

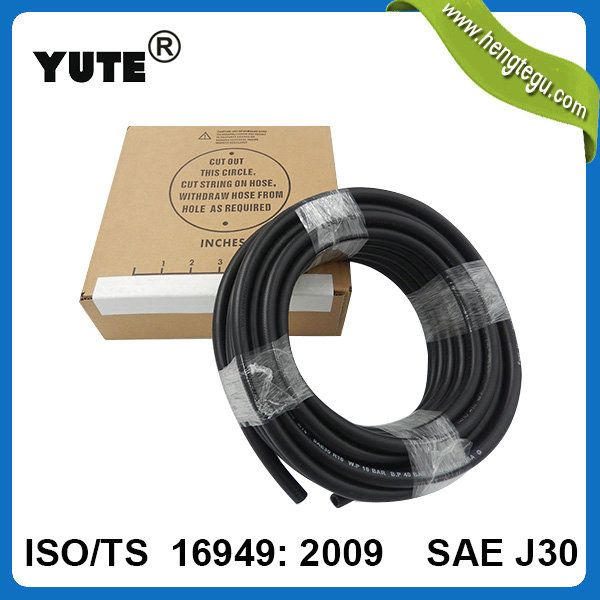

Yute SAE J30r9 Fuel Injection Hose 3/8"I. D.
Yute SAE J30r9 Fuel Injection Hose 3/8"I. D.
Yute SAE J30r9 Fuel Injection Hose 3/8"I. D.
Yute SAE J30r9 Fuel Injection Hose 3/8"I. D.
Yute SAE J30r9 Fuel Injection Hose 3/8"I. D.
1 / 5
Yute SAE J30r9 Fuel Injection Hose 3/8"I. D.
Yute SAE J30r9 Fuel Injection Hose 3/8"I. D.
Yute SAE J30r9 Fuel Injection Hose 3/8"I. D.
Yute SAE J30r9 Fuel Injection Hose 3/8"I. D.
Yute SAE J30r9 Fuel Injection Hose 3/8"I. D.

Yute SAE J30r9 Fuel Injection Hose 3/8"I. D.

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
3.8"
Color
Black
Standard
SAE J30r9
Size Range
1/4"; 5/16";3/8"
Cylinder
Multi-Cylinder
Carburettor Type
Downdraft
Working Pressure
300p.S.I
Burst Pressure
900p.S.I
Temperature Range
-40~135 Degree Centigrade
Fuel Saver Type
Use Water as Raw Material
Aging Time
72 H
HS Code
4009420000
Production Capacity
30000 Meters Per Day
Transport Package
Carton
Packaging & Delivery
Package Size
60.00cm * 10.00cm * 60.00cm
Package Gross Weight
5.000kg
Product Description

Applications:

  • Designed specially for auto and truck fuel injection systems, use with gasoline, diesel, bio-diesel, E-85, methanol, ethanol, ethanol extended gasoline, and gasohol fuels.
  • Temperature rating: -40° F to 275° F (-40° C to 135° C)
  • Meet SAE 30R9 specification
  • Note: Do not submerse in gasoline

Construction:

Tube
FKM
Buffer
ECO/ CSM
Reinforcement
Aramid Spiral
Cover
ECO/CSM

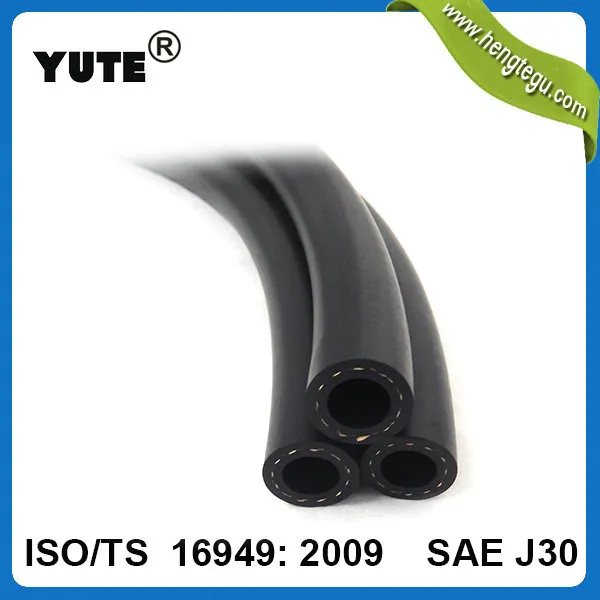

Fuel Injection Hose 1
Fuel Injection Hose 2
Size & Technical Data
Part NO. I.D O.D Working pressure Burst pressure
inchmm inchmm PSIMPa PSIMPa
60011/83.20.3592251.559006.2
60033/1650.43112251.559006.2
60051/460.5132251.559006.2
60075/1680.6142251.559006.2
60093/89.50.63162251.559006.2
60111/212.70.8202251.559006.2
60135/815.90.95242251.559006.2
60153/4191.1282251.559006.2
6017125.41.2302251.559006.2
Technical Data Chart
Separator Image

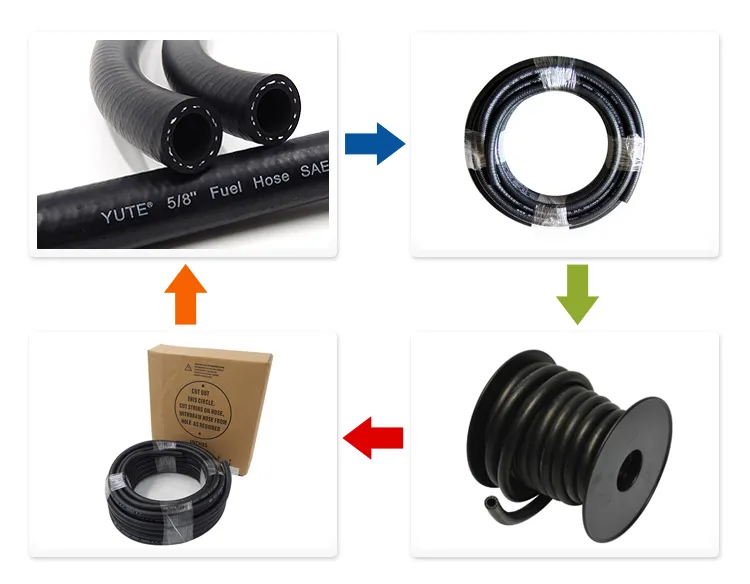

Detailed View
Our Services
  • Provide OEM Manufacturing based on your requirements.
  • Accept sample orders for quality verification.
  • Inquiry response within 12 hours.
  • Full product tracking until delivery.
  • Sample testing support and problem-solving consultation.
Service and Support
Frequently Asked Questions
What are your terms of packing?
Generally, we pack our goods in neutral PVC film and brown cartons. Branded boxes can be used after receiving authorization letters.
What are your terms of payment?
T/T 30% as deposit, and 70% before delivery. We will provide photos of the products and packages before final payment.
What are your terms of delivery?
We support FOB, CIF, EXW, CFR, and DDU.
How about your delivery time?
Generally, it takes 15 to 30 days after receiving advance payment, depending on the items and quantity.
Can you produce according to the samples?
Yes, we can produce based on your physical samples or technical drawings.
Do you test all your goods before delivery?
Yes, we perform 100% testing on all products before they are shipped.
