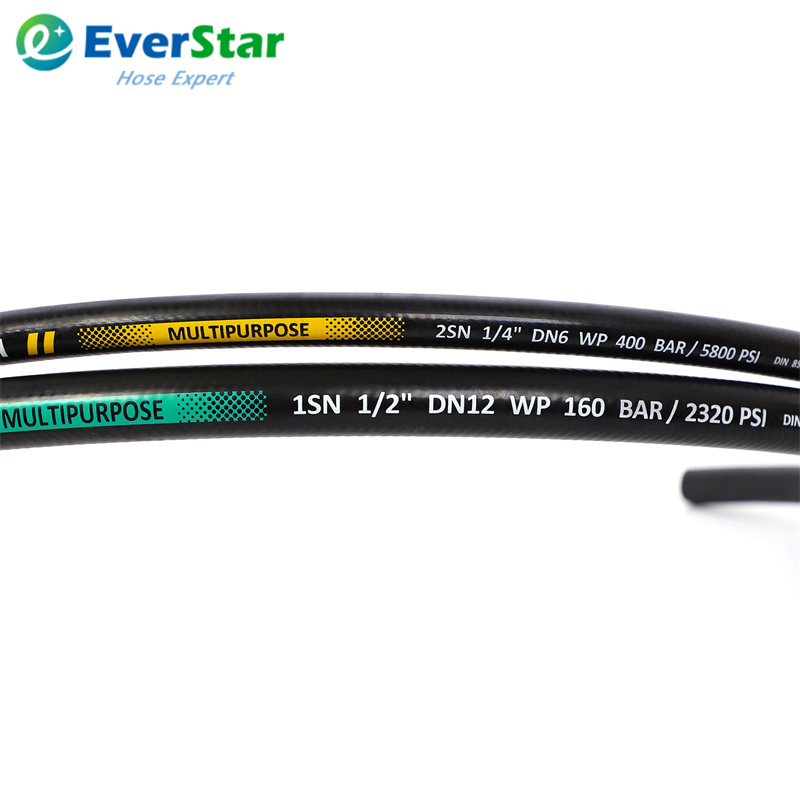

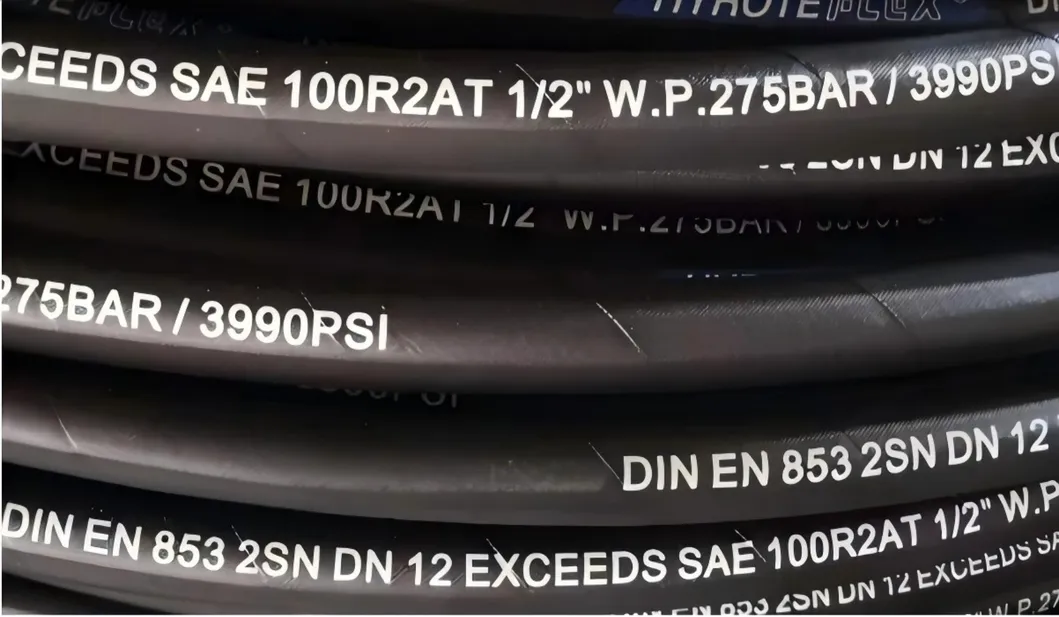

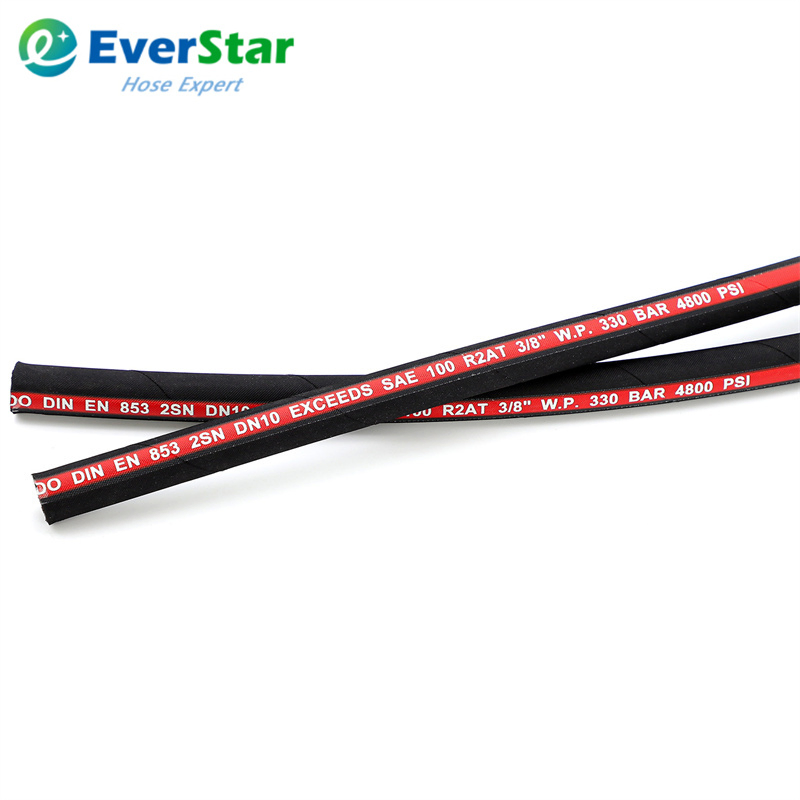

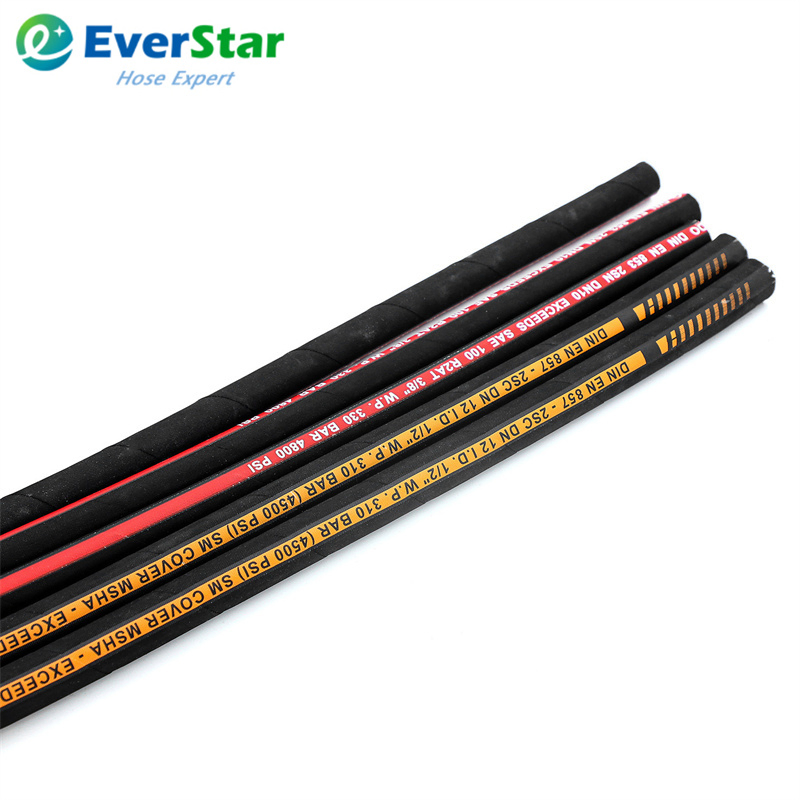

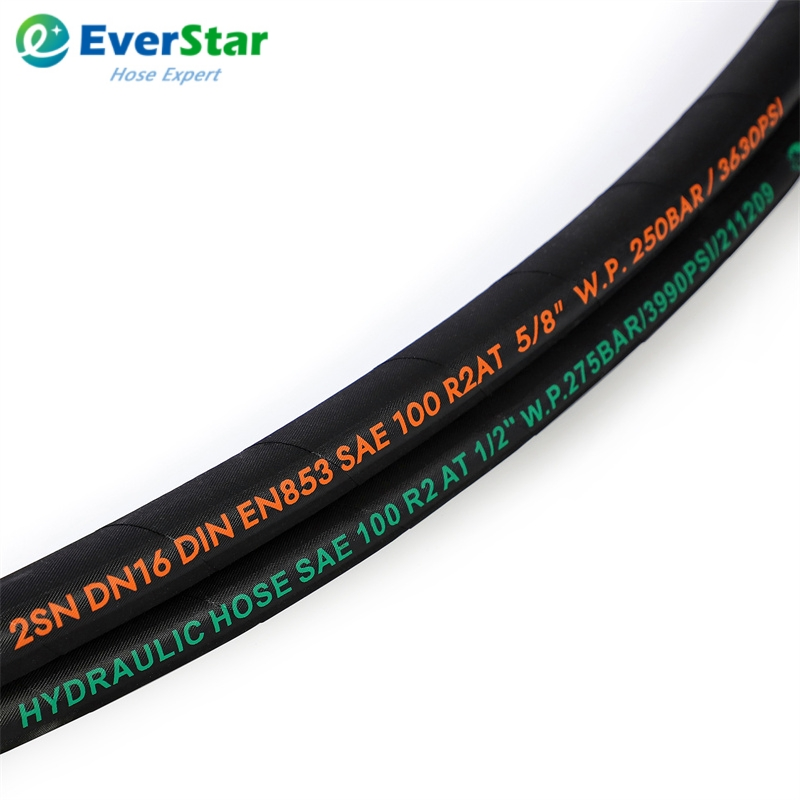

Flexible Two Steel Wire Braids High Pressure SAE 100r2at DIN En853 2sn Hydraulic Rubber Hose
| Construction Details | |
|---|---|
| Tube | Oil resistant synthetic rubber |
| Reinforcement | Two high tensile steel wire braids |
| Cover | Oil and weather resistant synthetic rubber |
| Temperature | -40ºC to +100°C |
| Application | Petroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, mineral oils. |
| Size (Inch) | Inside Ø (mm) | Outside Ø (mm) | Work Pressure (Bar) | Burst Pressure (Bar) | Bend Radius (mm) | Weight (Kg/m) |
|---|---|---|---|---|---|---|
| 1/4" | 6.3 | 15.7 | 400 | 1600 | 100 | 0.36 |
| 3/8" | 10 | 19.7 | 331 | 1320 | 130 | 0.54 |
| 1/2" | 12.5 | 23.0 | 276 | 1100 | 180 | 0.68 |
| 3/4" | 19 | 30.1 | 215 | 850 | 240 | 0.94 |
| 1" | 25 | 39.9 | 165 | 650 | 300 | 1.35 |
| 2" | 51 | 68.6 | 80 | 320 | 630 | 3.50 |

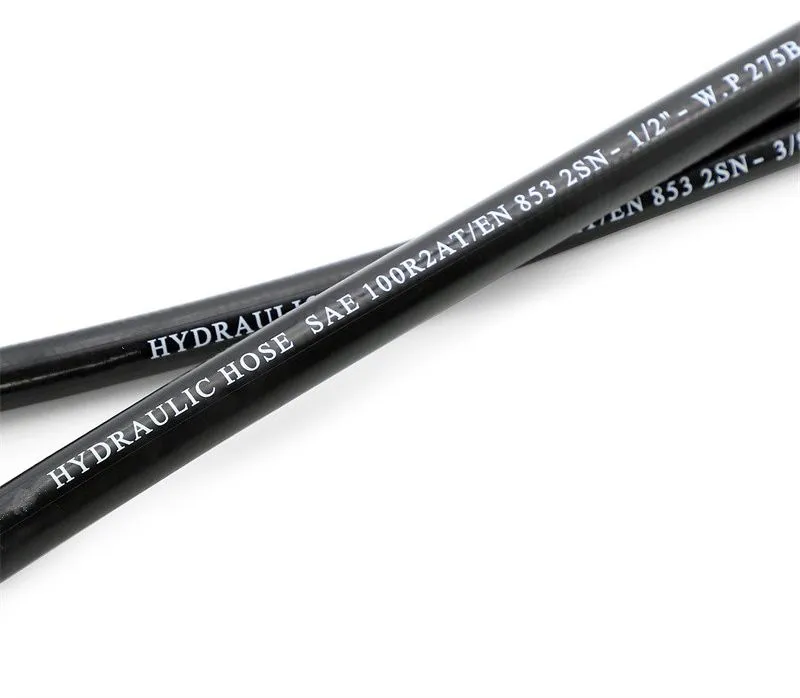

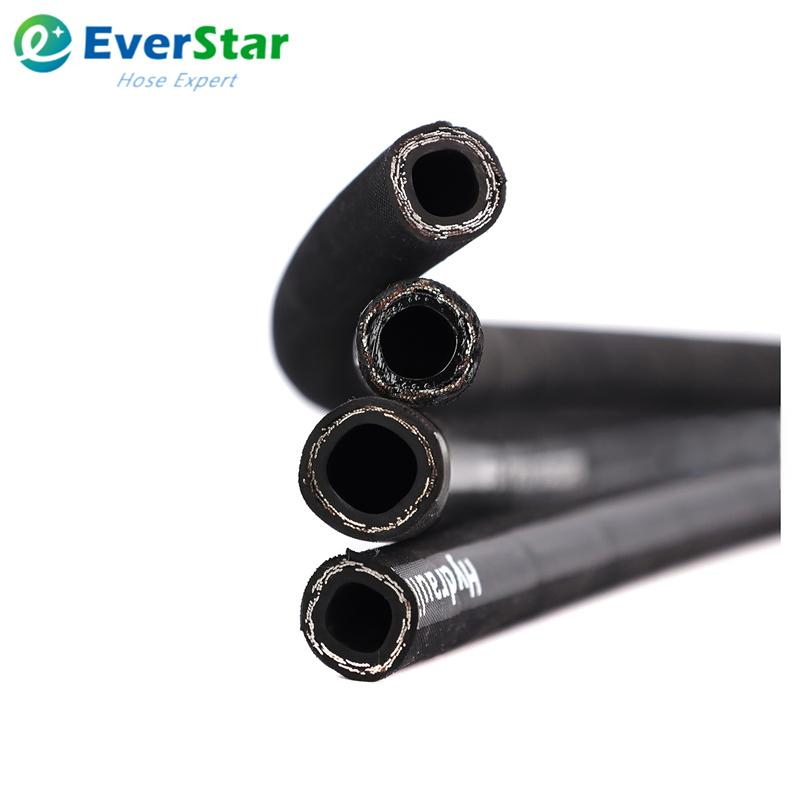

High-brightness cross section, pure material.

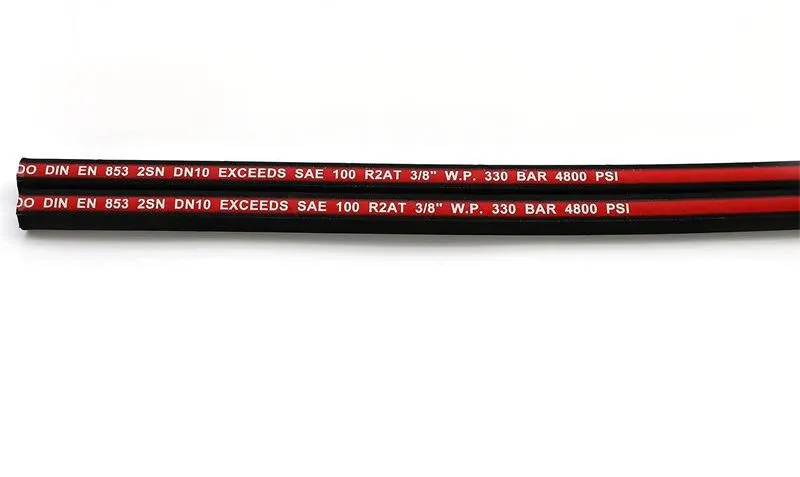

Wear-resistant and oil-resistant exterior.
We are a professional manufacturer and exporter of various hydraulic hoses and industrial hoses. We are also capable of providing high quality fittings and couplings to satisfy your crimping solution. Our products are popular in more than 20 countries and widely used in agriculture, construction, coal mining industry, machinery, and automotive fields.
We commit to provide one-stop solution for high quality hoses and couplings, maintaining strict quality management standards since 2012.
