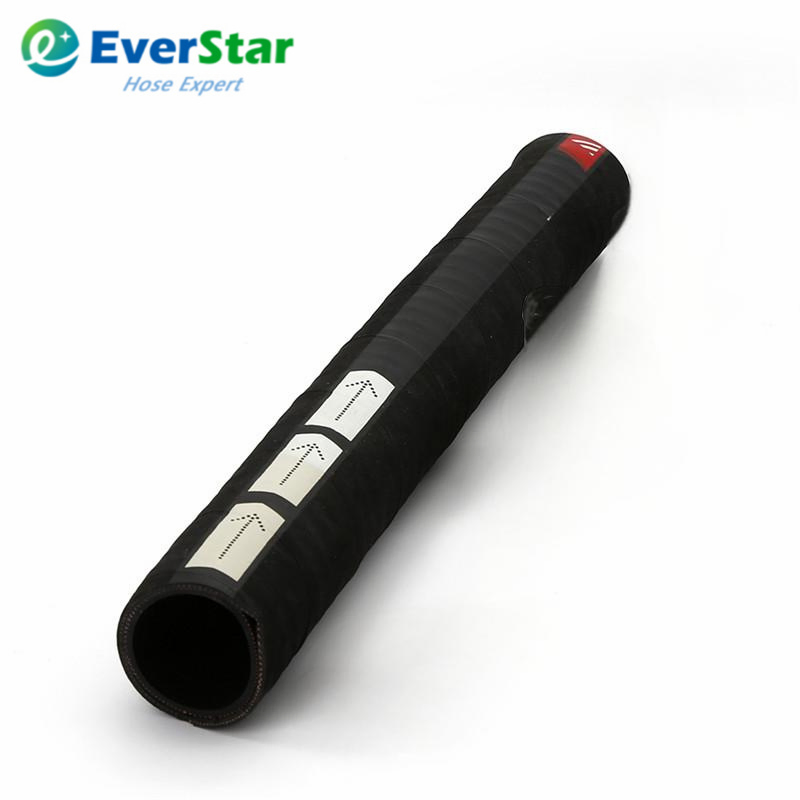

Flexible Hose Textile Braided Pipe Wire Spiral Tube Hydraulic Fuel Oil Rubber Fluid Hose Suction Oil SAE 100r4 Hose

Still deciding? Get samples of $ !
Order Sample

Product Description

📋
Product Overview

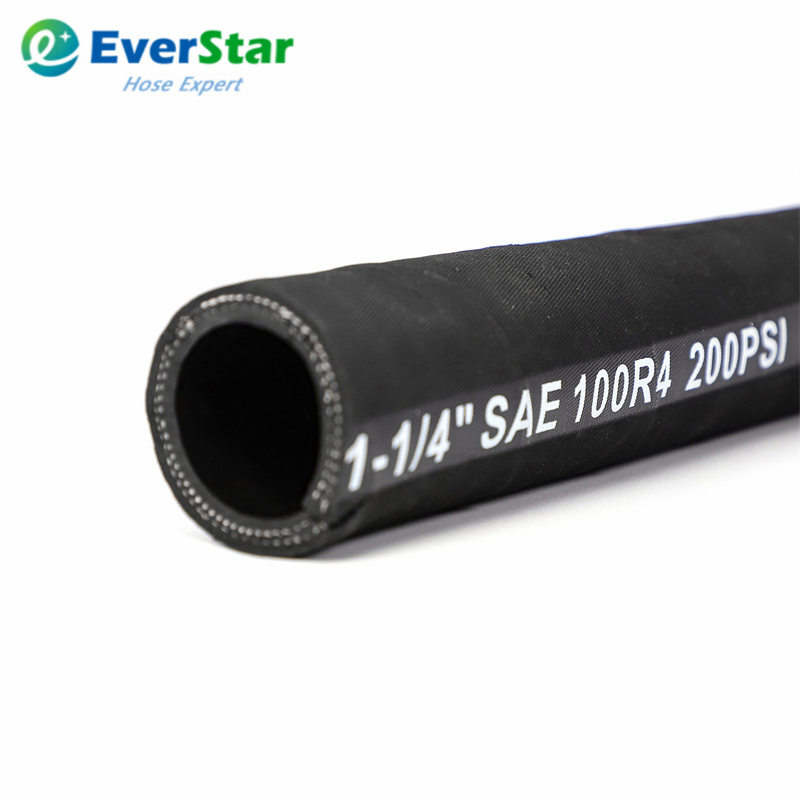

Flexible Hose Textile Braided Pipe Wire Spiral Tube Hydraulic Fuel Oil Rubber Fluid Hose Suction Oil SAE 100R4 Hose
Model NO.
SAE 100R4
Reinforcement
Textile Braided and Wire Spiral
Surface
Wrapped & Smooth
Temperature Range
-40ºC ~+100ºC
Length
40m, 60m
Application
Agriculture, Forestry, Mining
Warranty Time
12 Months
Specification
3/4"~4"
⚙️
Product Description
Construction & Specifications
TubeOil resistant synthetic rubber
ReinforcementHigh tensile cords and helix steel wire
CoverOil and weather resistant synthetic rubber
Temperature-40°C to +100°C
ApplicationPetroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, mineral oils.
Hydraulic Hose Advantages
📊
SAE 100R4 Technical Data
Size (Inch) Dash Inside Ø (mm) Outside Ø (mm) Working Pressure (Psi) Burst Pressure (Psi) Bend Radius (mm) Weight (Kg/m)
3/4-1219.834.930512101250.92
1-1626.241.325010151501.10
1 1/4-2033.050.82008102001.30
1 1/2-2439.357.21506102551.80
2-3252.469.91004103002.23
3-4877.895.3602304604.25
4-64103.2120.7401456105.60
📸

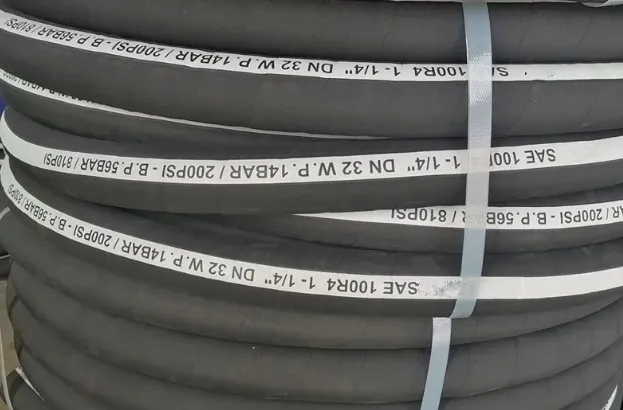

Detailed Photos

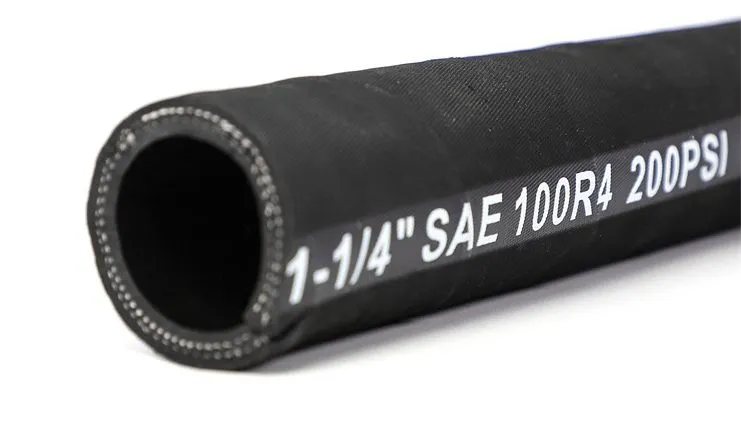

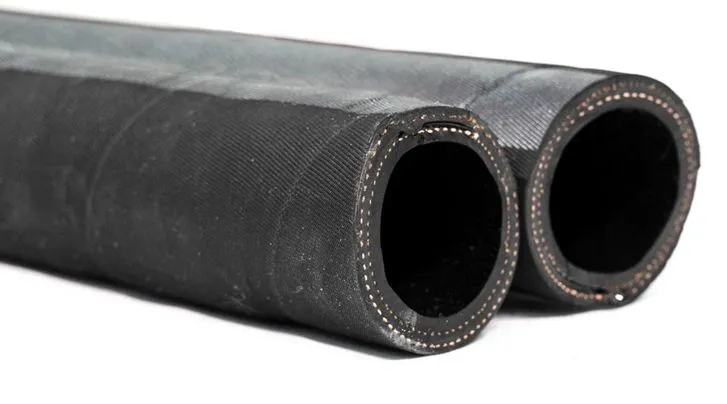

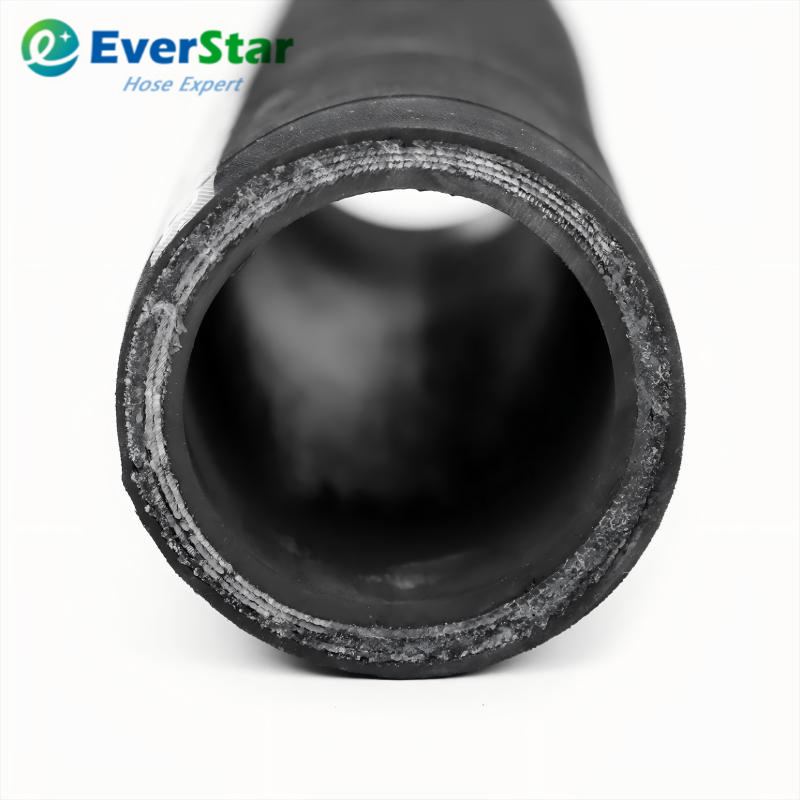

Cross Section
High-brightness cross section, rubber material is pure and free of impurities, layers are tightly bonded, and it is not easy to delaminate.

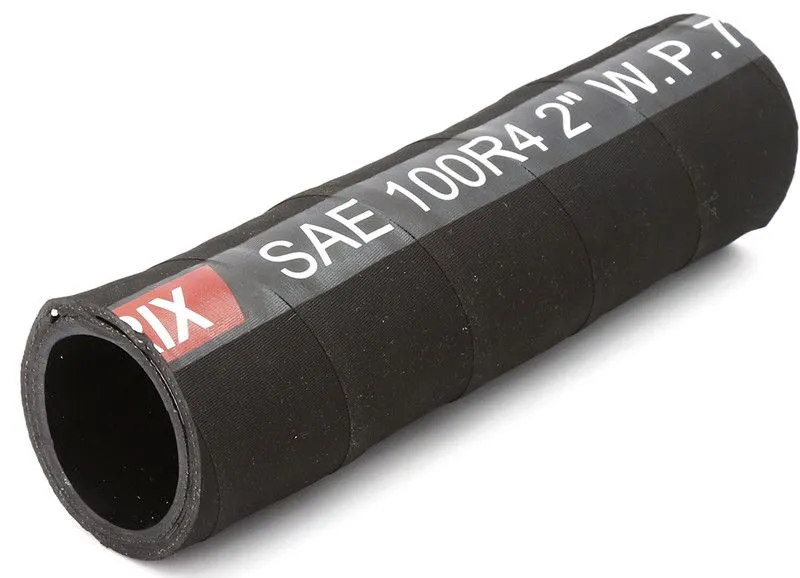

Hose Elasticity
The hose is wear-resistant and oil-resistant, featuring excellent elasticity and sealing for long service life.
🛠️

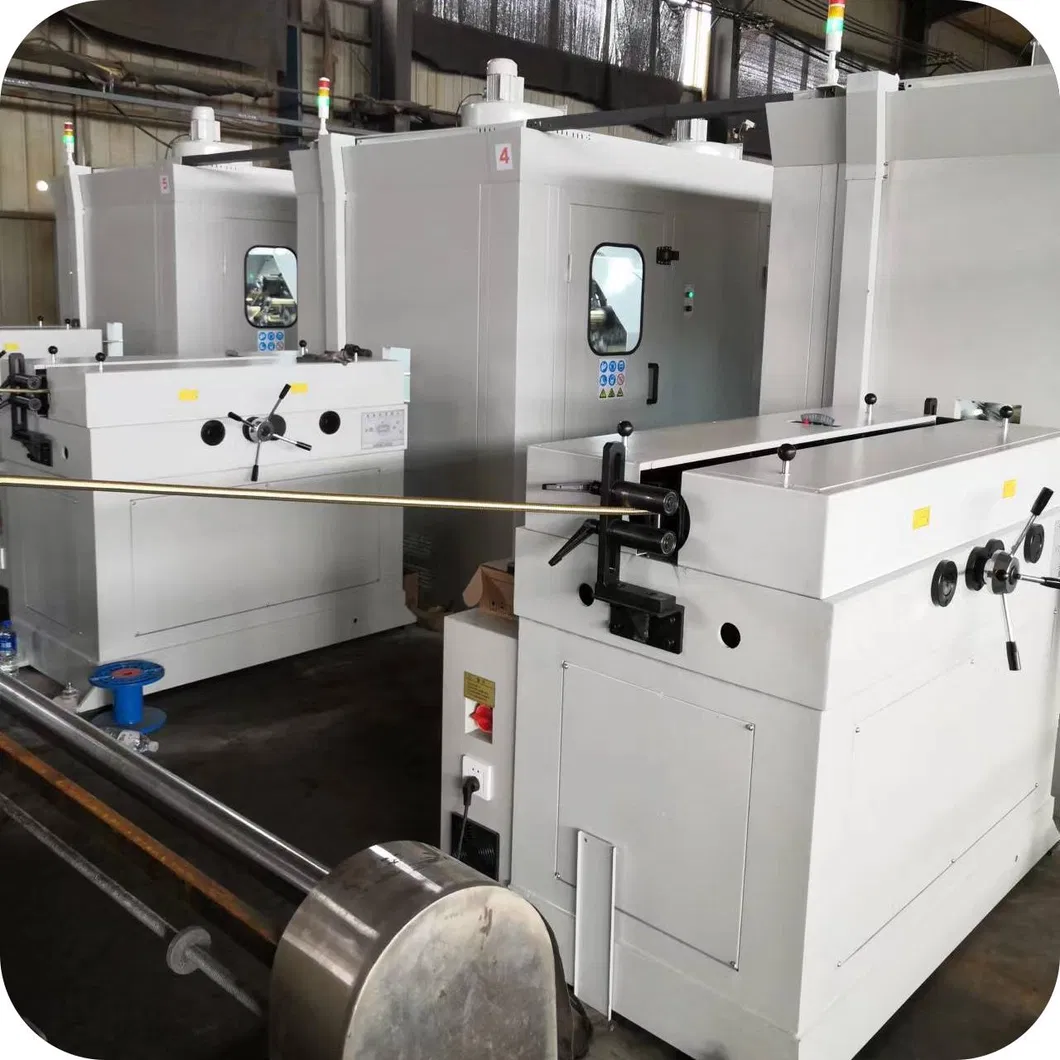

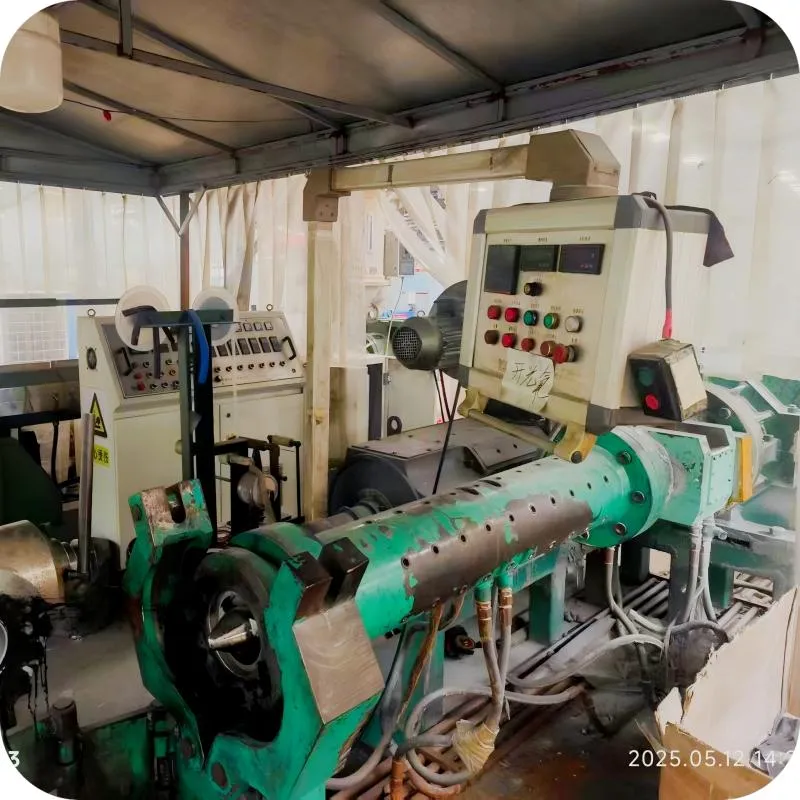

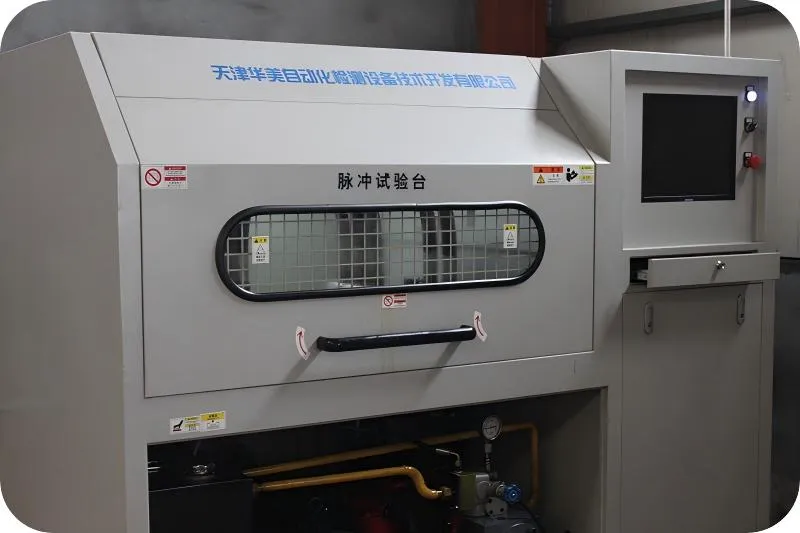

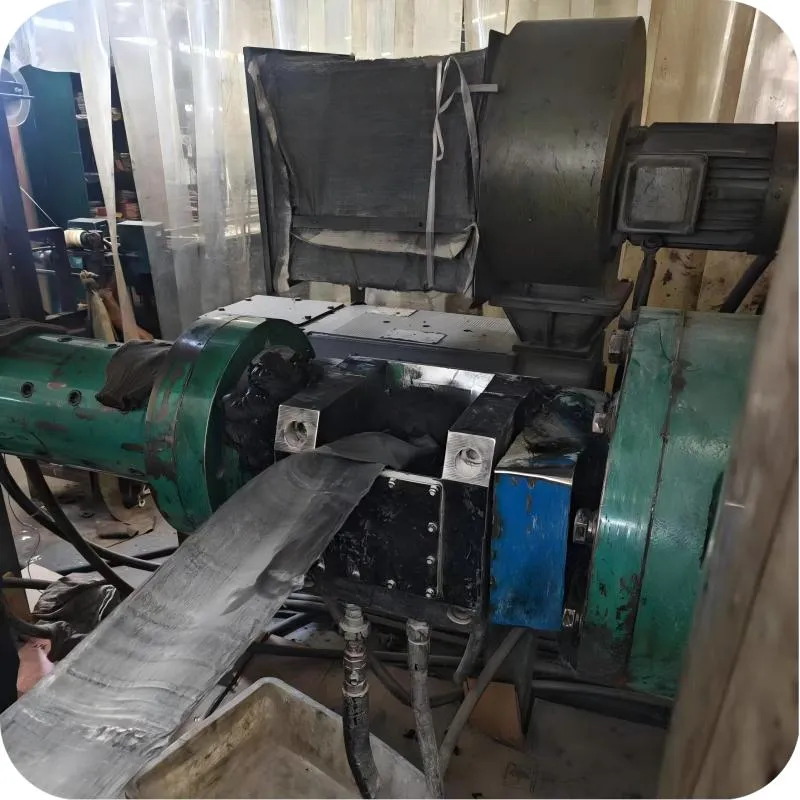

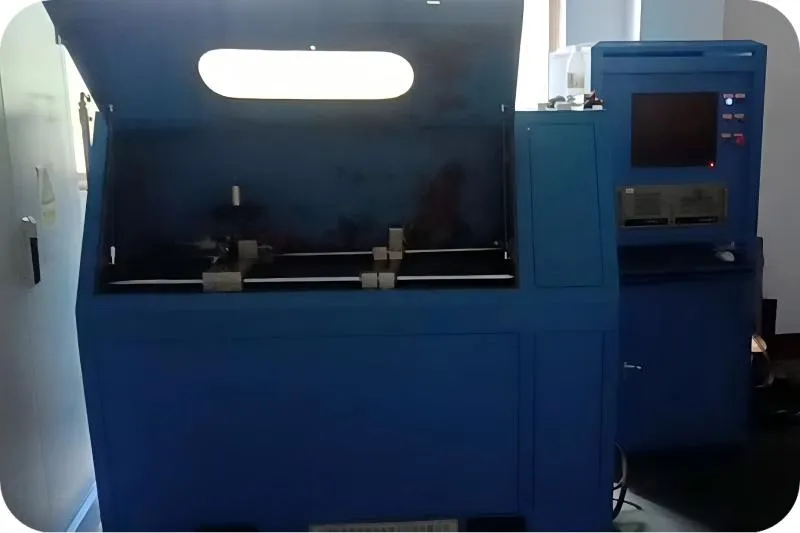

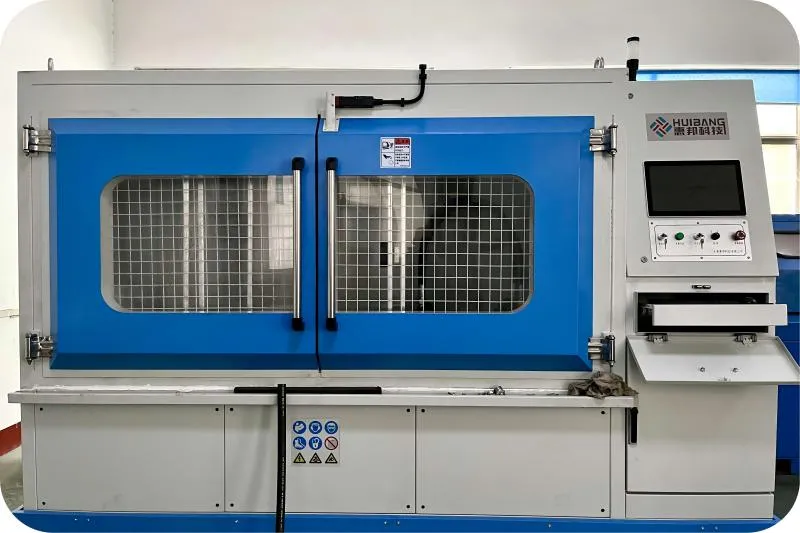

Production & Quality Control
📦

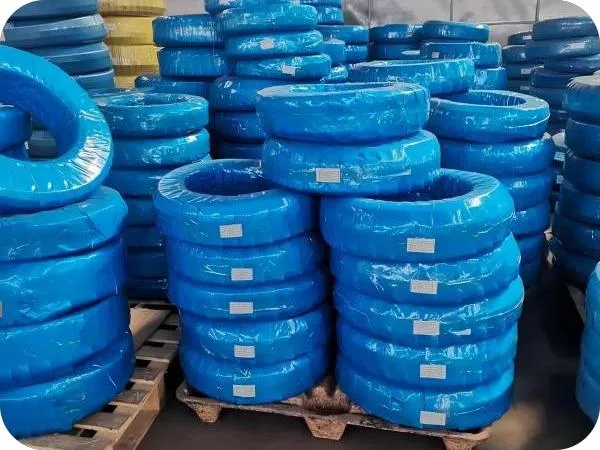

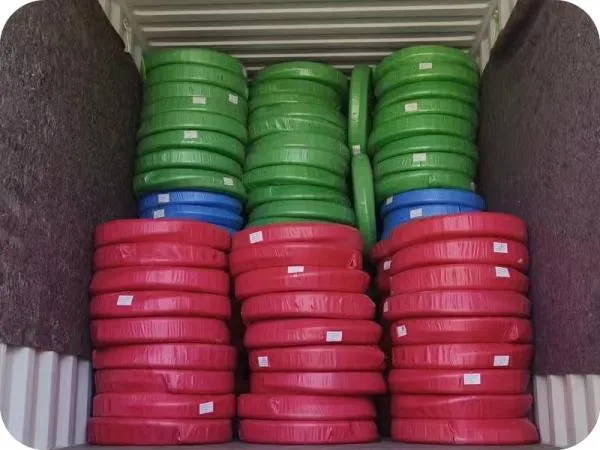

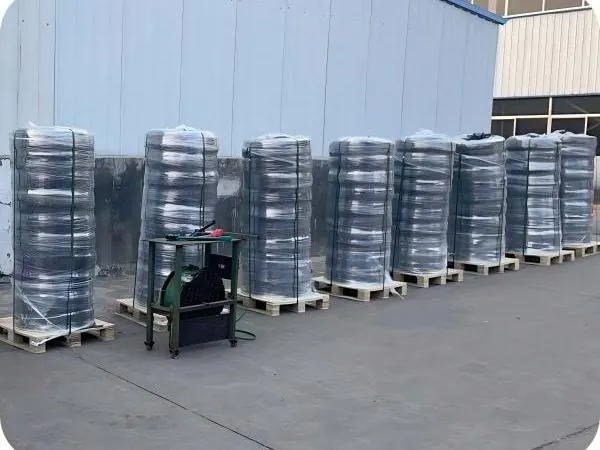

Packaging & Shipping
Frequently Asked Questions
1. Could I get free sample before order?
Yes, reasonable samples are provided free of charge. Freight terms are subject to negotiation.
2. What is your minimum order quantity (MOQ)?
Our standard MOQ is USD 5,000. Orders below this amount may incur additional export handling fees.
3. How do you ensure product quality?
We conduct rigorous quality testing from raw materials to finished hoses, offering a standard one-year warranty on our products.
4. Can you produce customized branding on the hose?
Yes, we provide free layline, marking, and branding services (excluding embossed printing) for our clients.
5. What payment terms do you support?
Generally, we accept T/T with 30% in advance and the remaining balance upon receipt of the copy of the Bill of Lading (BL).
6. Can I request a catalog or technical datasheet?
Certainly. Please send us a message, and we will provide our electronic catalog and relevant datasheets immediately.
