SAE J30 R9 Heat-Resistant Flexible Fuel Injection Hose in Tank

Basic Info

Model NO.

TB FI08

Color

Transport Package

as Customer Demand

Specification

Hose

Trademark

STANDARDS

Origin

Hebei, China

HS Code

400921

Capacity

300000 Meters Per Week

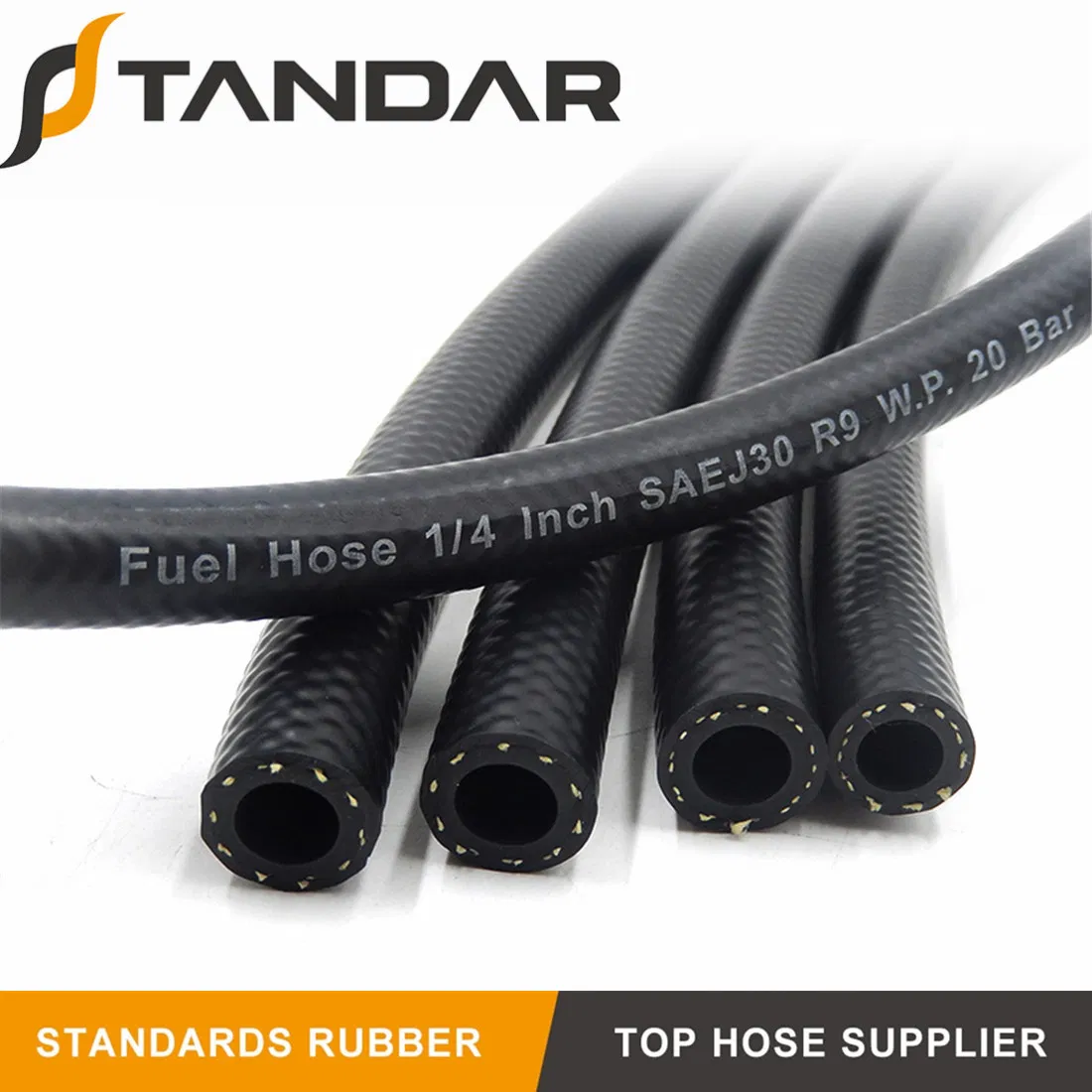

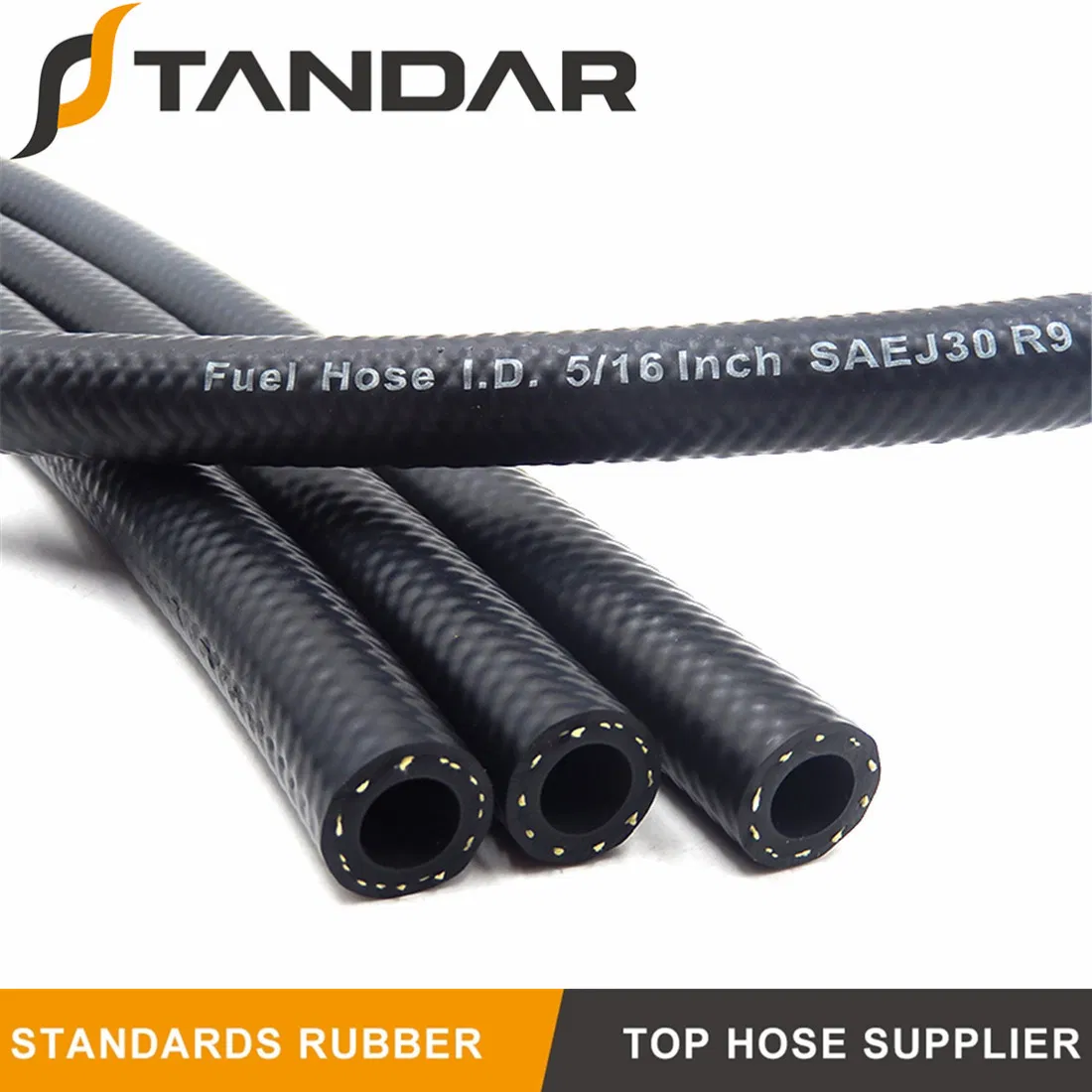

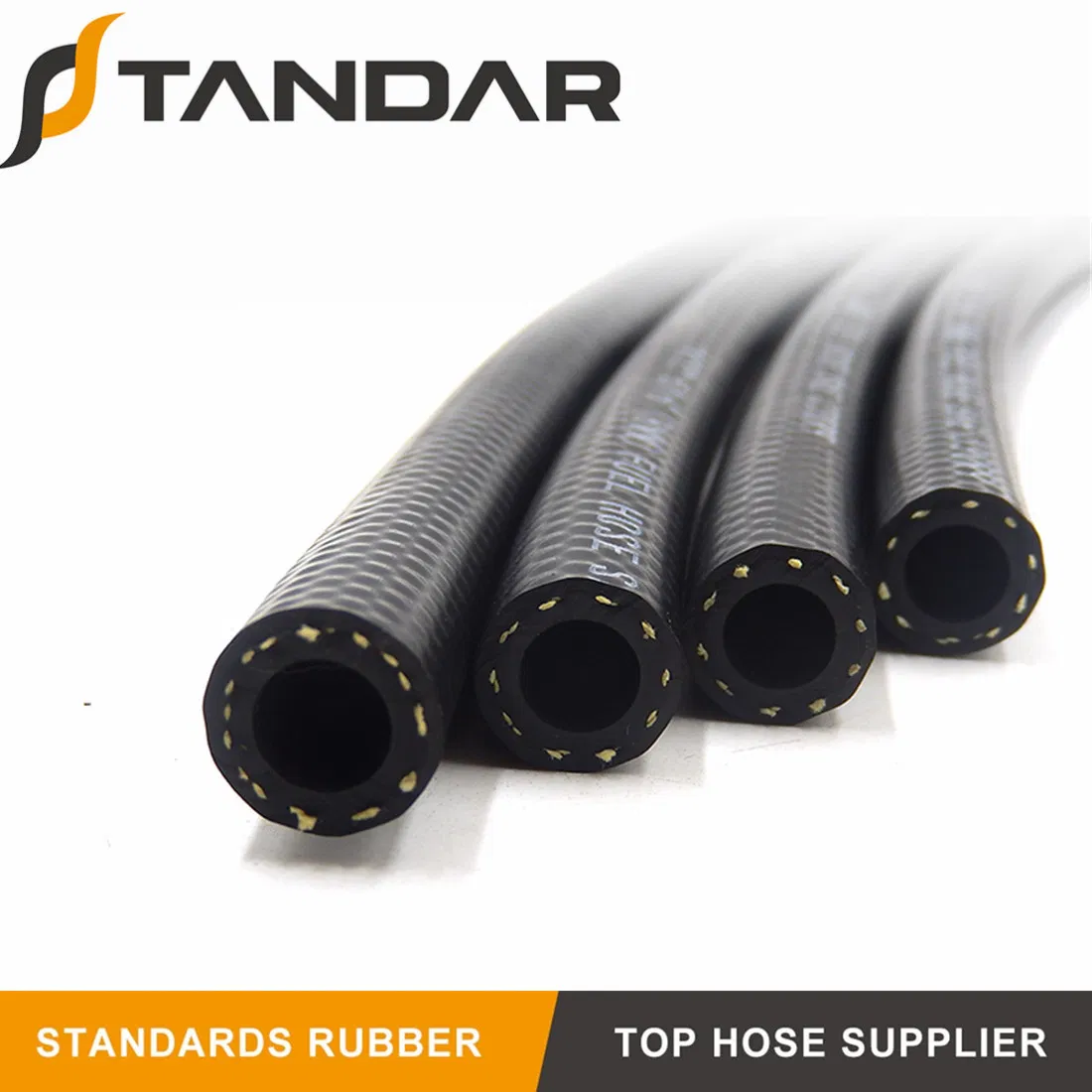

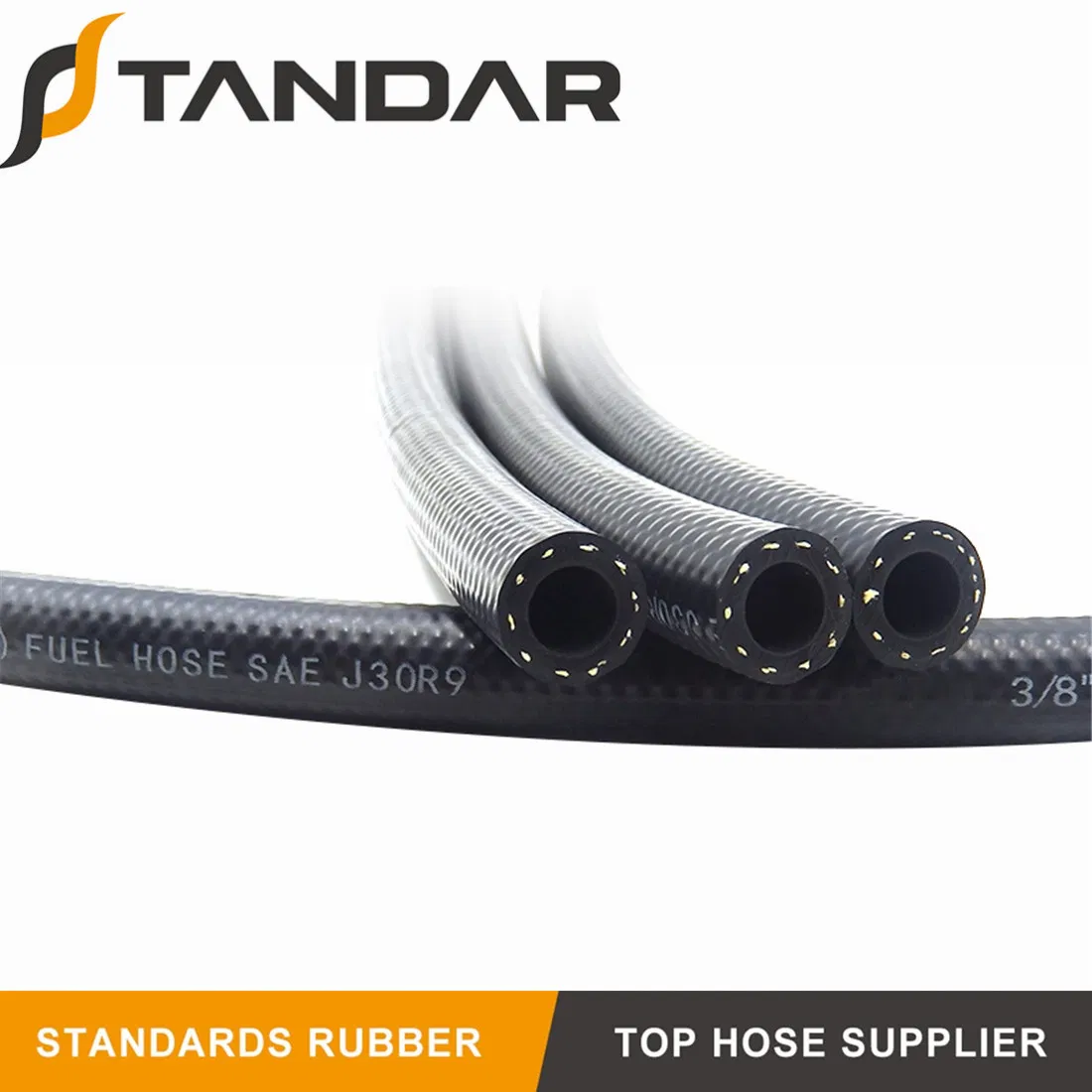

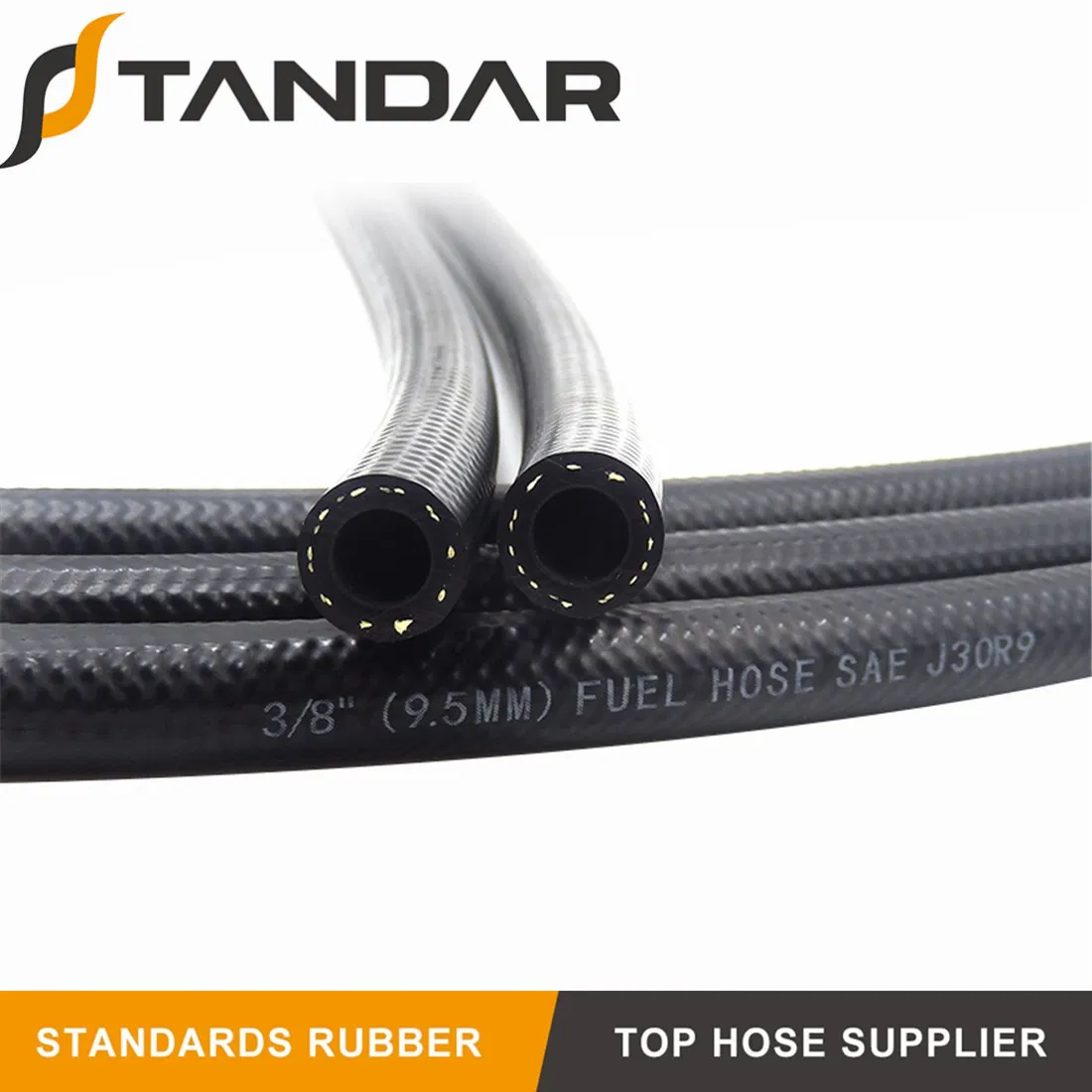

SAE J30 R9 Heat-Resistant Flexible Fuel Injection Hose In Tank

STRUCTURE

✔

Permeation Barrier: Special rubber which has perfect oil-, fuel-resistant performance (FKM)

✔

Tube: Oil-, Fuel-resistant synthetic rubber compound (ECO)

✔

Reinforcement: High tensile braided fiber (AR)

✔

Cover: Suitable oil-, ozone-, and heat-resistant synthetic rubber compound (FKM)

✔

Working Temperature: -40 ºC ~ +135ºC (-40 ºF ~ +275 ºF)

✔

Standard: SAE J 30R9, DIN 73379 3E

APPLICATION

Used in the transportation of gasoline, ethanol extended gasoline, diesel fuel, lubrication oil, or the vapor present in either the fuel injection system or the crankcase of internal combustion engines.

TECHNICAL DATA

NO.	I.D			O.D			W.P		B.P
NO.	inch	mm	Tolerance	inch	mm	Tolerance	Bar	PSI	Bar	PSI
1	1/8	3.2	±0.3	23/64	9	±0.3	20	300	80	1200
2	5/32	4	±0.3	25/64	10	±0.3	20	300	80	1200
3	3/16	4.8	±0.3	7/16	11	±0.3	20	300	80	1200
4	1/4	6.3	±0.3	1/2	12.7	±0.4	20	300	80	1200
5	5/16	7.9	±0.4	35/64	14	±0.5	20	300	80	1200
6	3/8	9.5	±0.4	5/8	16	±0.5	20	300	80	1200
7	15/32	12	±0.4	3/4	19	±0.5	20	300	80	1200
8	1/2	12.7	±0.5	25/32	20	±0.6	20	300	80	1200
9	5/8	16	±0.5	61/64	24	±0.6	10	150	40	600
10	3/4	19	±0.6	1-9/64	28.8	±0.8	10	150	40	600
11	1	25.4	±0.8	1-3/8	35	±1	10	150	40	600
