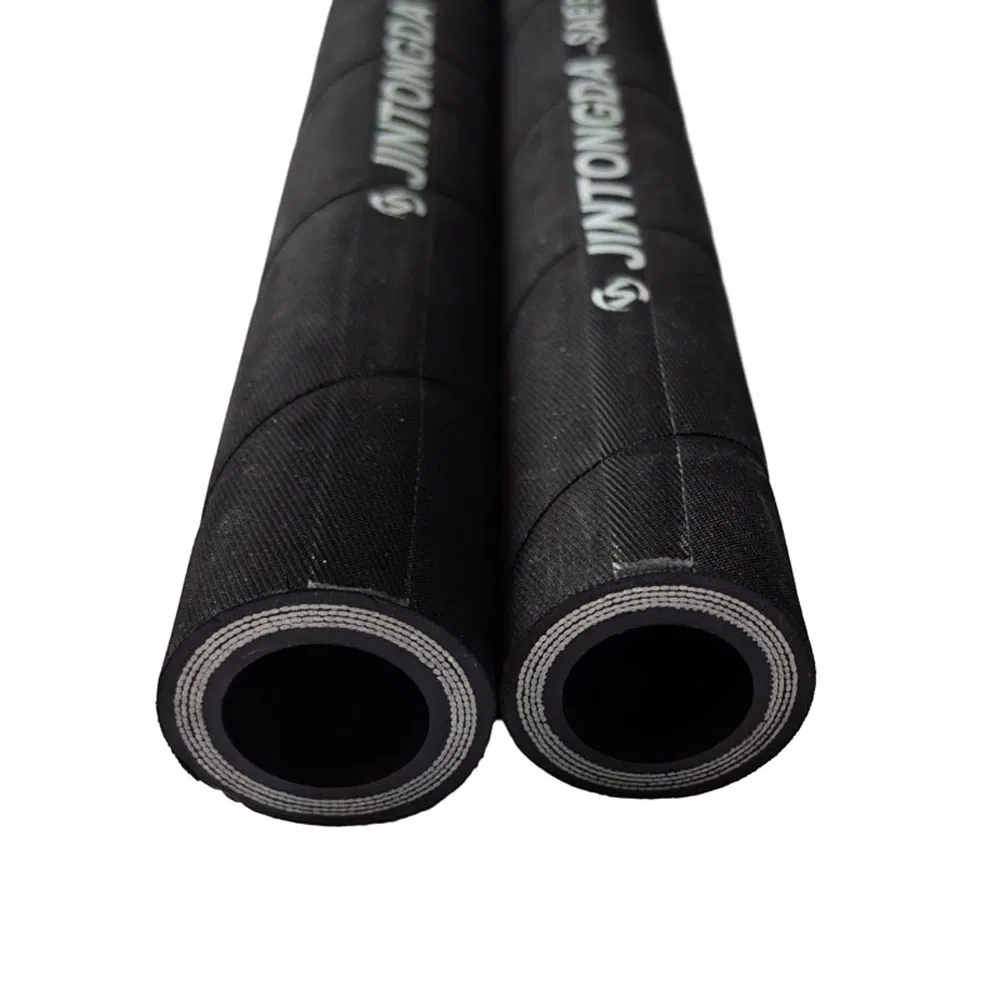

Tube: Oil Resistant Synthetic rubber

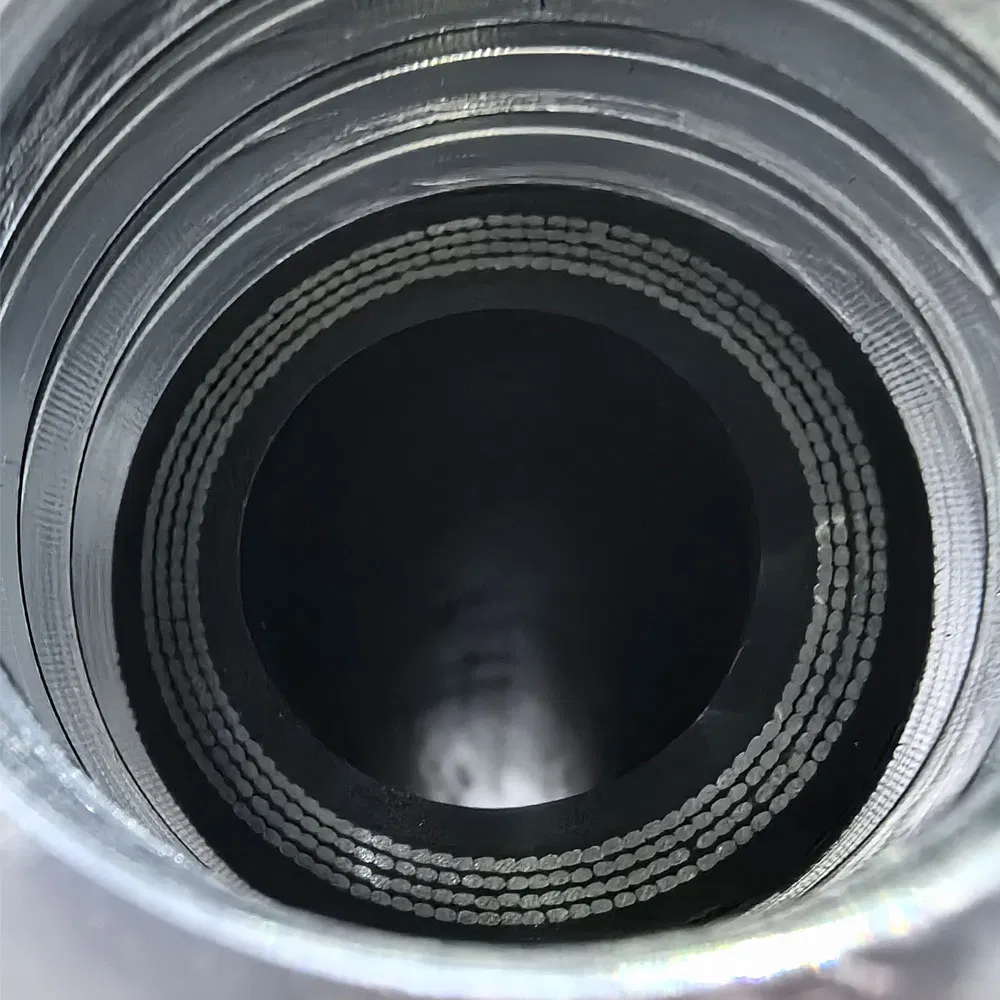

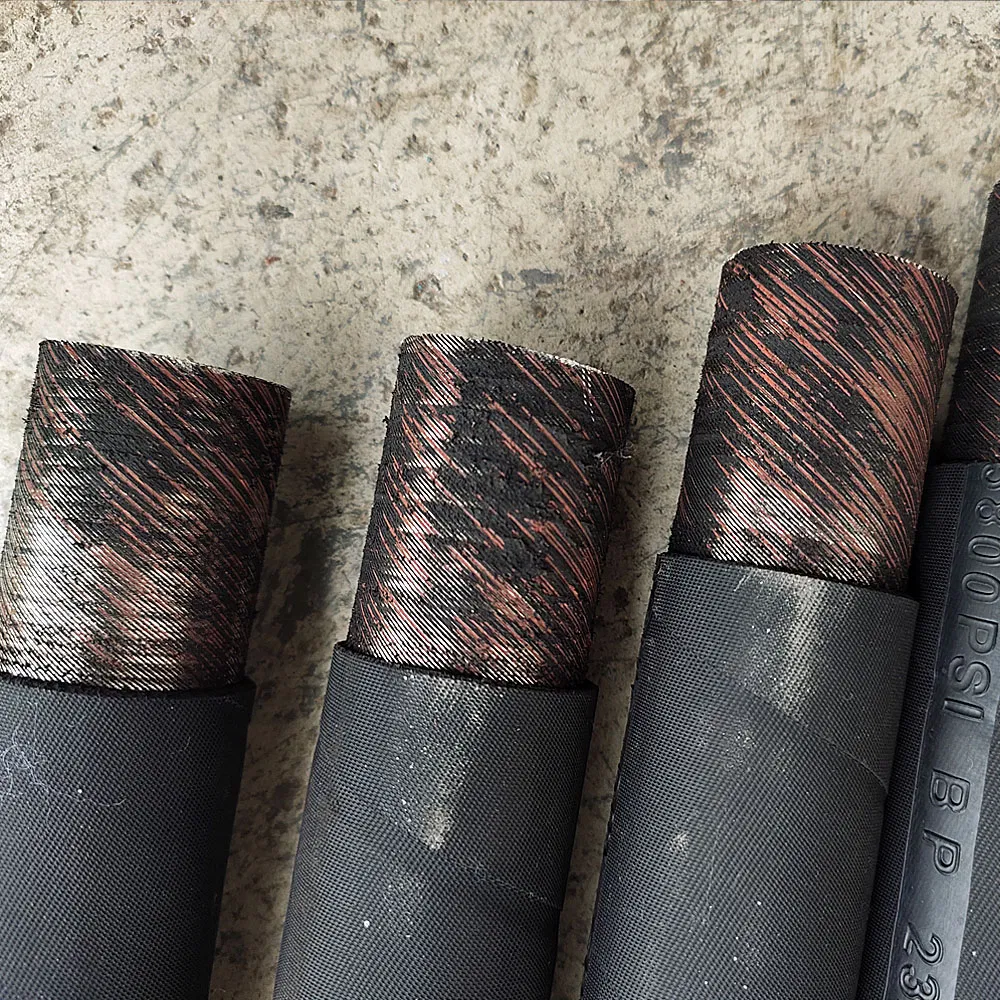

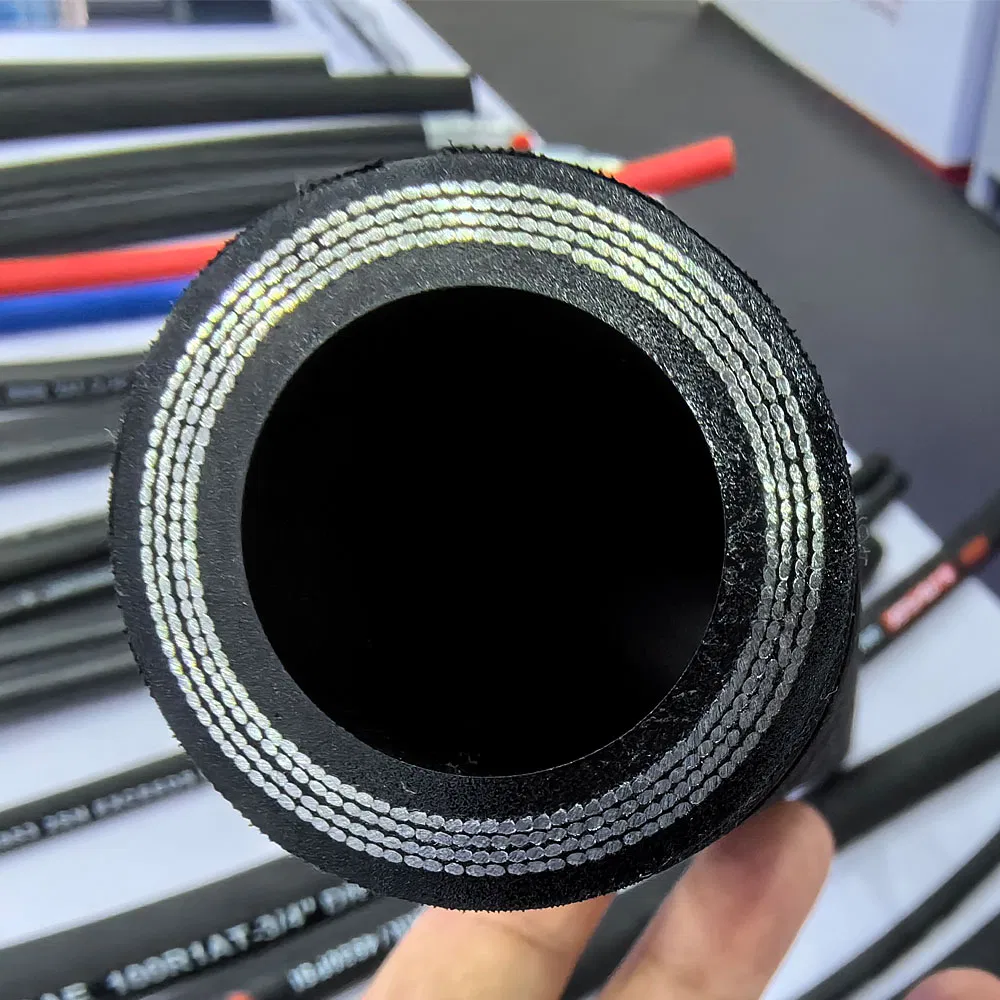

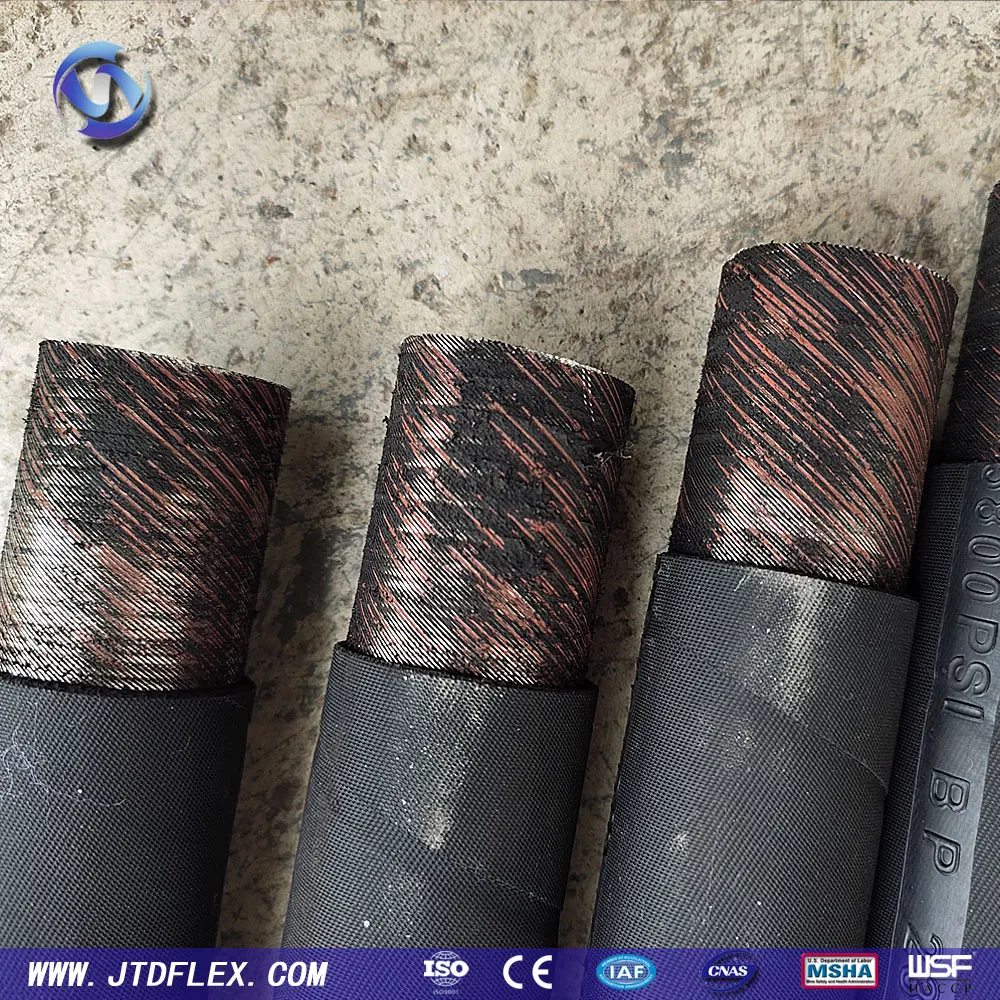

Reinforcement: Four wires braid of high-tensile steel
Applicable Ways: Used to transport hydraulic fluids, such as: glycol, mineral oils, fuels, lubricating oil, emulsion, hydrocarbons, etc.
Operating Temperature: -40ºC to +120ºC
Cover: Smooth or Wrapped surface available
Established in 1999 with over 20 years of experience in hydraulic hose production. Operating three dedicated factories for rubber mixing and production.

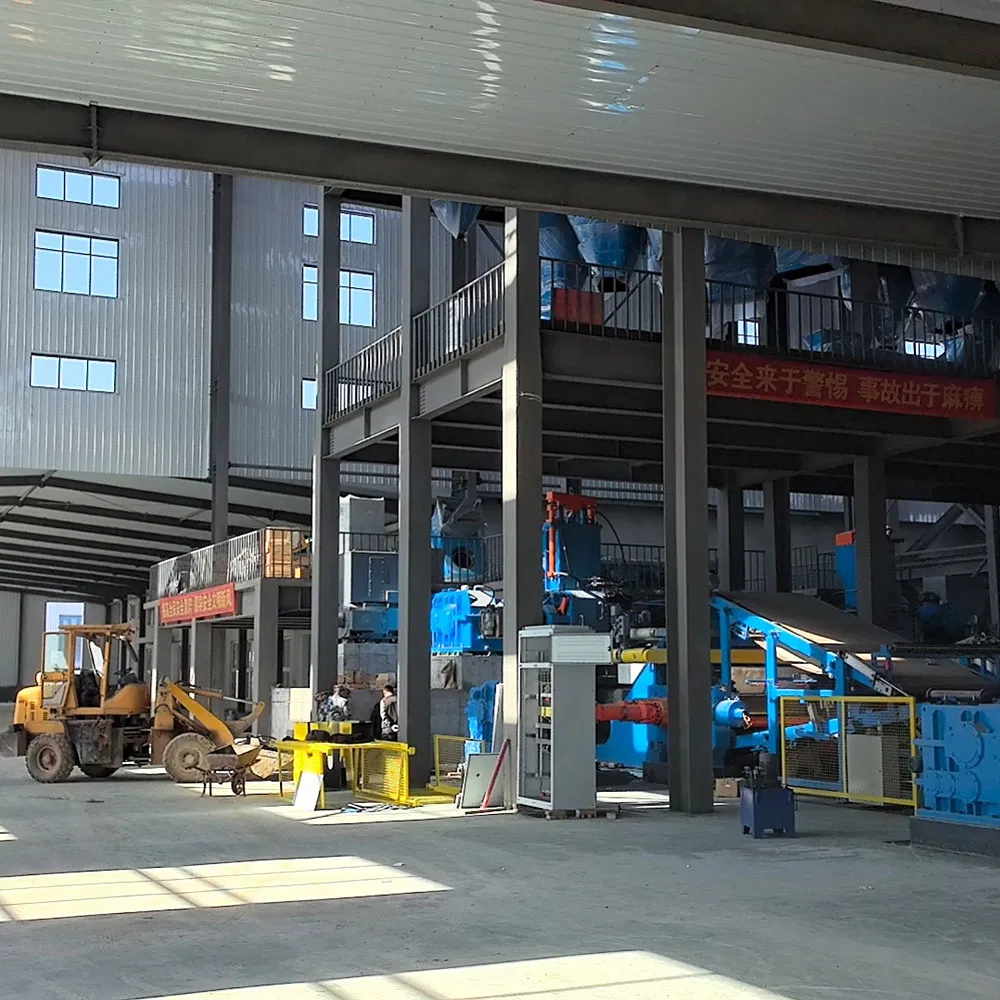

Equipped with 26 high-speed automatic braiding machines. Monthly output reaches 800,000 meters, with an annual capacity of 10 million meters.
We use high-quality raw materials and operate our own rubber mixing center to control quality strictly from the source.
Dedicated after-sales support with a 72-hour response guarantee for any quality-related feedback.
| DN | Hose I.D (Inch) | Hose I.D (MM) | Hose O.D (MM) | W.P (MPa) | W.P (Psi) | B.P (MPa) | Min. Bend (MM) | Weight (Kg/m) |
|---|---|---|---|---|---|---|---|---|
| 10 | 3/8 | 9.3-10.1 | 17.4-18.2 | 31.0 | 4495 | 124.0 | 125 | 0.70 |
| 13 | 1/2 | 12.3-13.5 | 20.3-21.1 | 27.6 | 4002 | 110.4 | 180 | 0.83 |
| 19 | 3/4 | 18.6-19.8 | 27.3-28.1 | 20.7 | 3002 | 82.8 | 200 | 1.30 |
| 25 | 1 | 25.0-26.4 | 35.4-36.2 | 20.7 | 3002 | 82.8 | 240 | 1.70 |
| 31 | 1-1/4 | 31.4-33.0 | 44.8-45.6 | 17.2 | 2494 | 82.8 | 300 | 3.08 |
| 38 | 1-1/2 | 37.7-39.3 | 50.6-51.4 | 13.8 | 2001 | 55.2 | 420 | 4.30 |
| 51 | 2 | 50.4-52.0 | 64.6-65.4 | 13.8 | 2001 | 55.2 | 500 | 5.63 |
We have obtained numerous international certifications including ISO, WSF, SAE, DIN, and IAF. Our quality management systems ensure every meter of hose meets global standards.

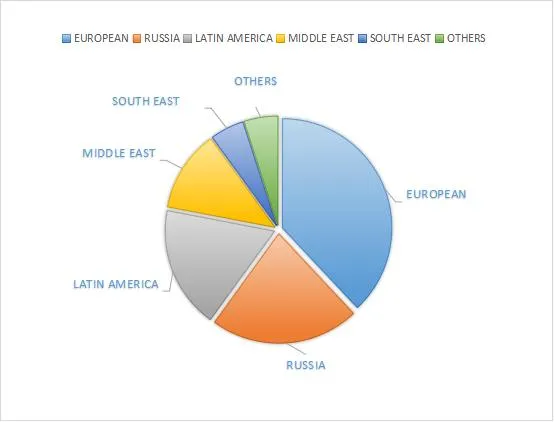

Our products are designed to meet diverse market needs. Currently, our distribution is primarily focused on Europe, America, Russia, and other major industrial regions.

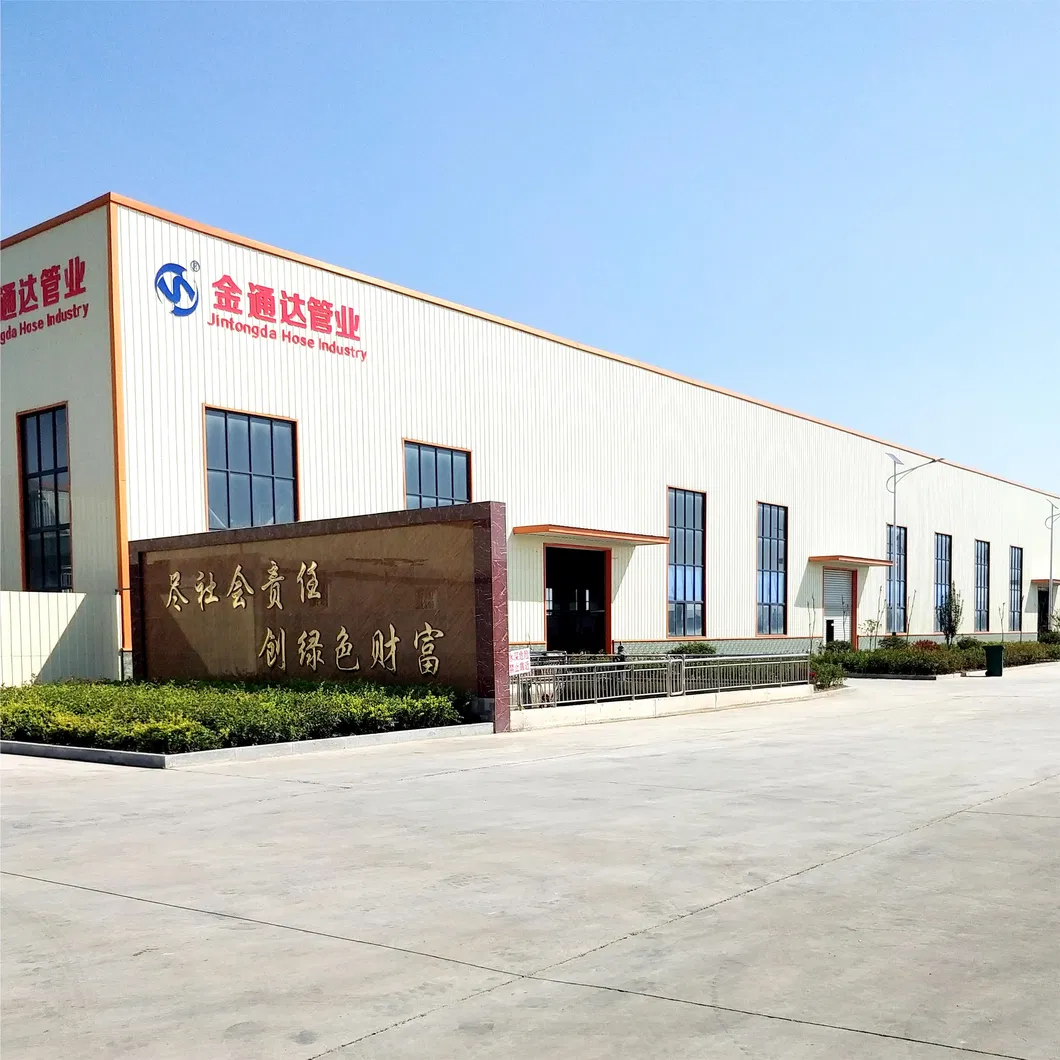

We are a professional manufacturer of hydraulic hoses and industrial hoses with various specifications since 1999. We integrate R&D, production, and export sales, focusing consistently on high-quality products.

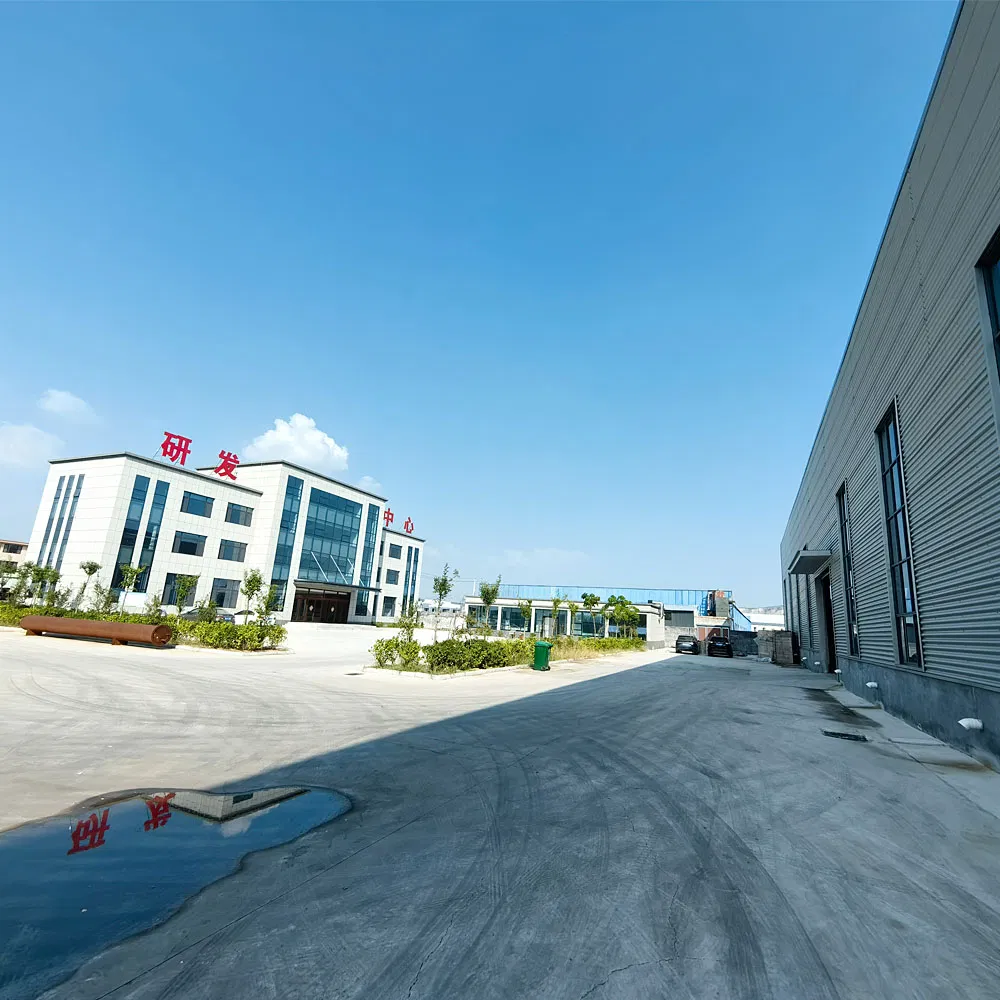

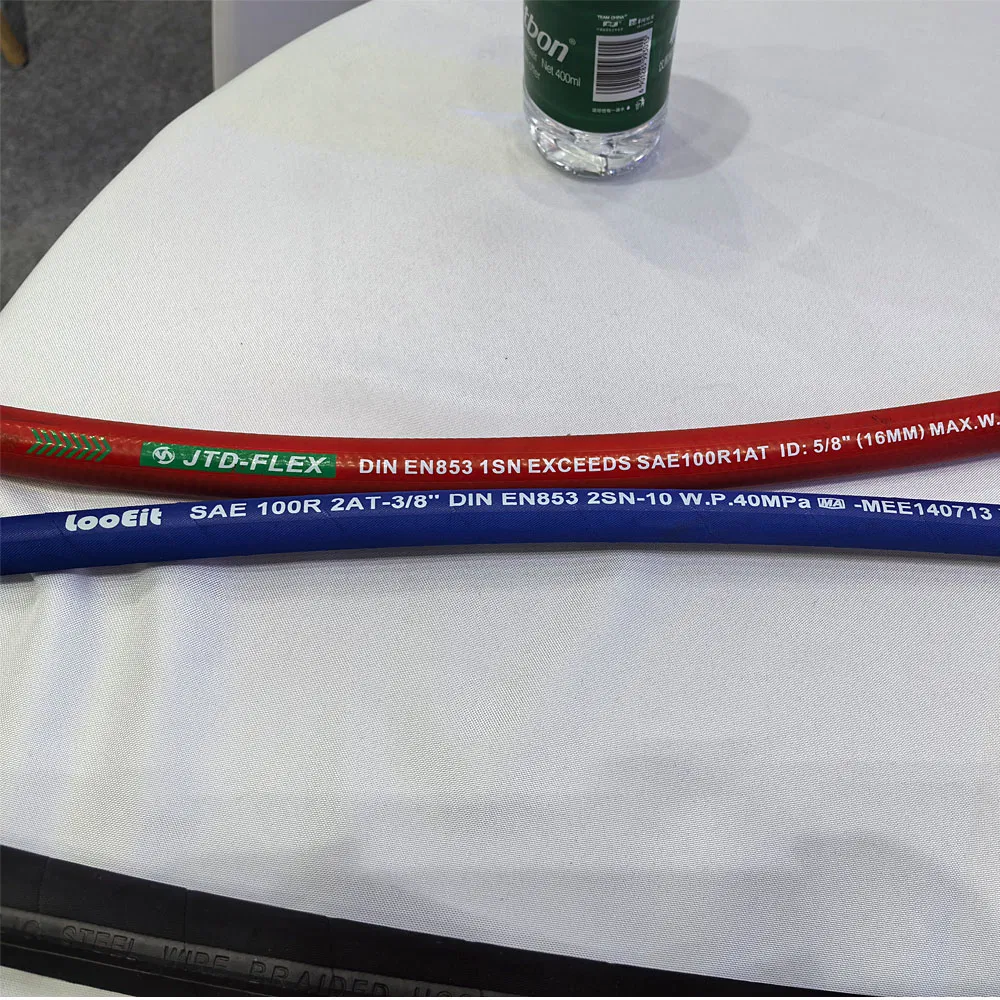

The facility covers an area of 30,000 square meters with convenient logistics access. We specialize in producing 1SN, 2SN, 4SP, and 4SH products in compliance with SAE J517 and DIN standards.
