Product Description

Basic Specifications

Model NO.: R1R2

Color: Black

Tube: High Quality Oil Resistant Synthetic Rubber

Temp Range: -40 °C to +100 °C

Reinforcement: Two Layers of High Tensile Braided Steel Wires

Warranty: Within 5 Years

Certification: ISO CE

HS Code: 4009210000

✓

Why Choose Our Hydraulic Solutions

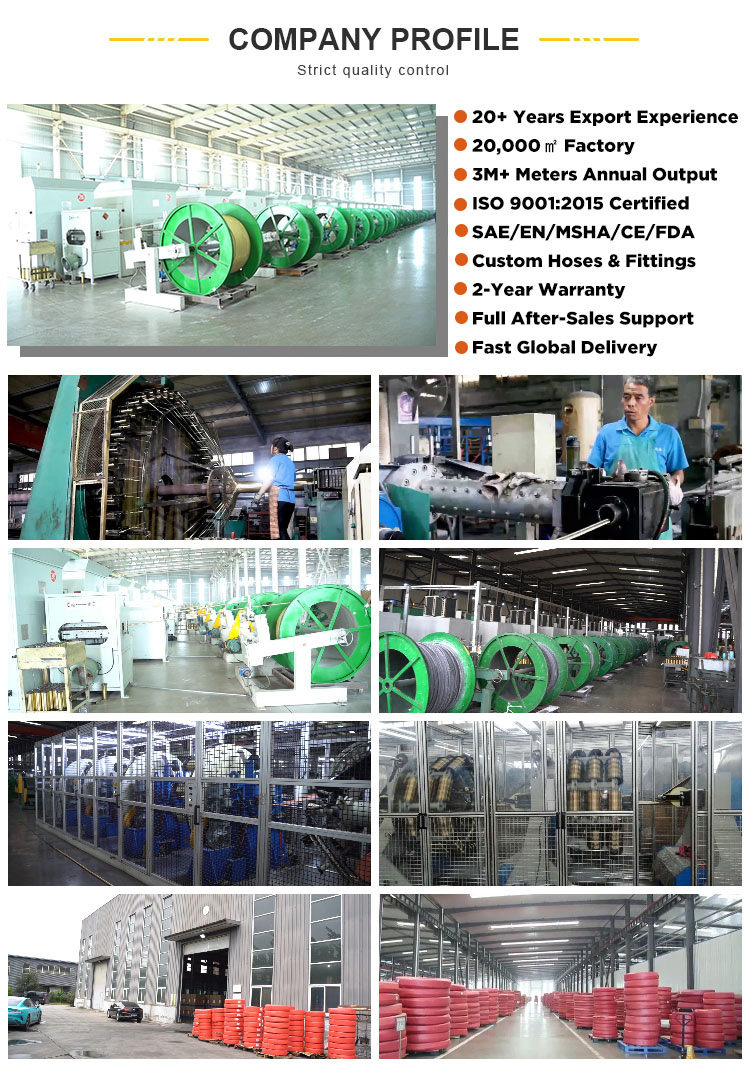

Verified Integrated Manufacturing

Dual-factory verified manufacturer guaranteeing superior quality control and exceptional value from source to delivery.

Global Market Trust

Proven performance with a top-ranked position by sales volume and order value globally.

Extensive Distributor Network

Trusted by over 300+ distributors worldwide across 70+ countries including Europe, Americas, and Southeast Asia.

Optimal Price-Performance

Engineered for over a decade of reliable, high-uptime operation without sacrificing core quality.

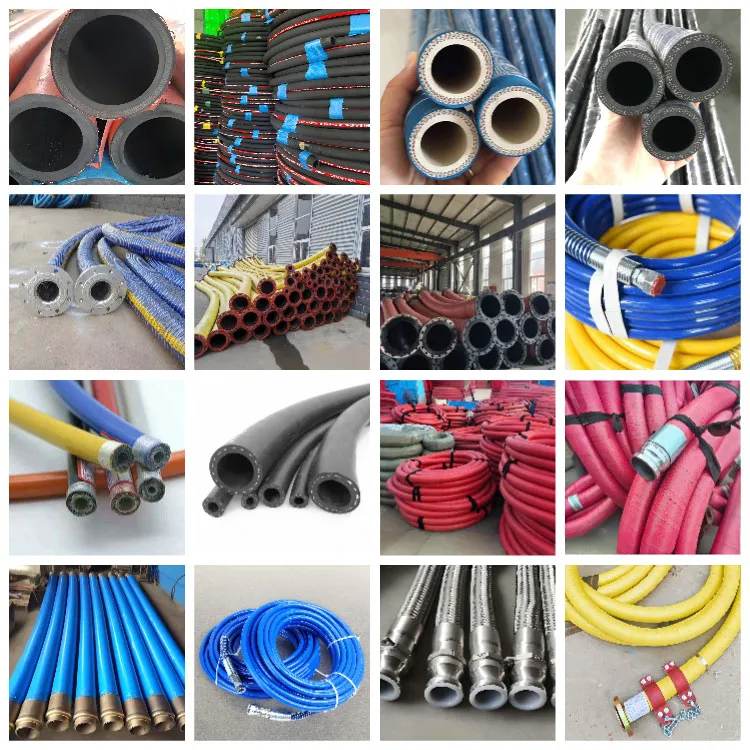

Our products include hydraulic hoses, fittings, adapters, quick couplers, connectors, hose guards, and complete hydraulic equipment. We provide a one-stop sourcing solution to keep your operations running smoothly and efficiently.

⚙

Technical Details: SAE 100 R2

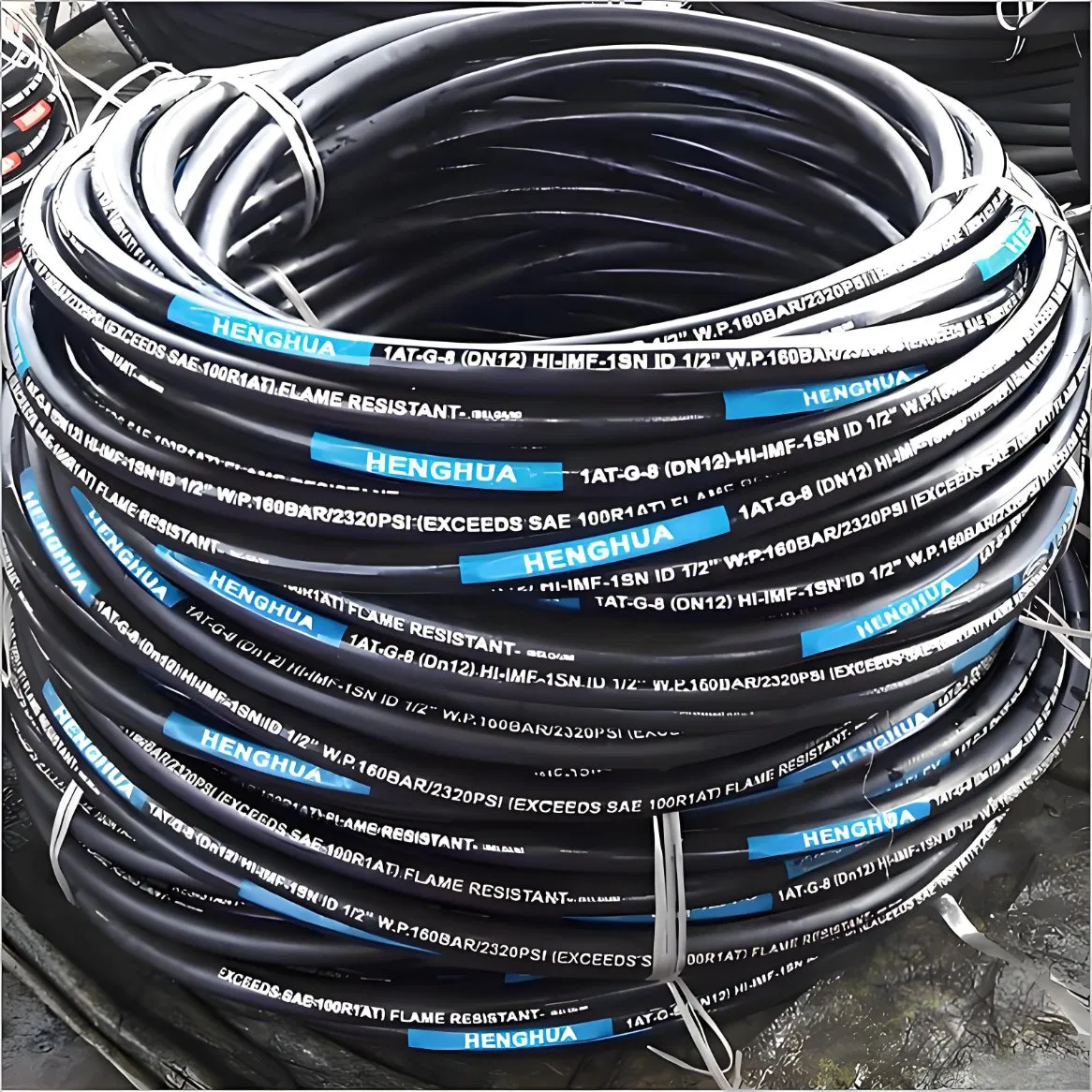

The SAE 100 R2 steel wire reinforced hydraulic hose is designed for petroleum-based hydraulic oils. Composed of an oil-resistant synthetic rubber tube, two layers of high tensile braided steel wire reinforcement, and a weather/ozone resistant cover, it ensures long service life in mobile equipment such as tractors and dump trucks.

Oil Resistant Abrasion Resistant High Pressure Tolerance Weatherproof Cover

📊

Performance Parameters

Parameter	SAE 100 R2	EN 853 2SN	EN 857 2SC
Size (inch)	3/16" - 2"	3/16" - 2"	1/4" - 1"
Working Pressure	7.8 - 35 MPa	8 - 41.5 MPa	16.5 - 40 MPa
Min Burst Pressure	31.5 - 140 MPa	32 - 165 MPa	66 - 160 MPa
Min Bending Radius	90 - 630 mm	90 - 630 mm	75 - 250 mm

🏗

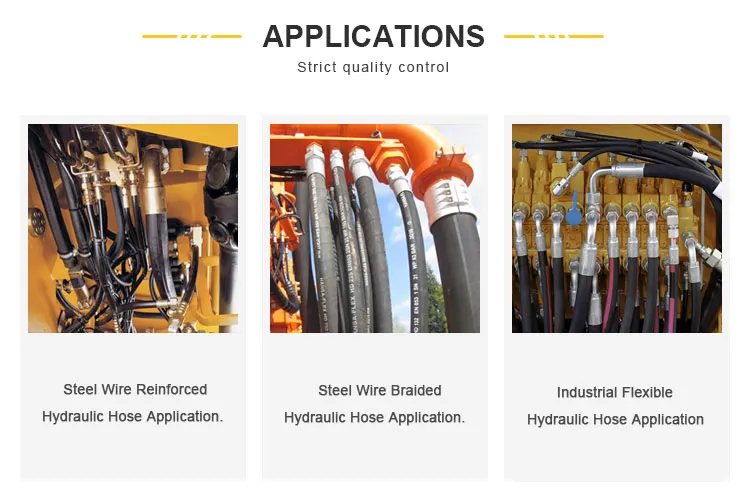

Typical Applications

Mining machinery and hydraulic supports
Oilfield and exploration equipment
Engineering and construction machinery
Shipbuilding and marine systems
Agricultural and forestry machinery
Injection molding and industrial automation

Frequently Asked Questions

What international standards do your hoses meet?

Our hoses are manufactured to meet or exceed major international standards such as SAE, DIN, EN, ISO, and BS. Certificates like MSHA, DNV, CE, and FDA are available.

Do you offer custom hose assemblies?

Yes, we provide custom-length hoses and can crimp a wide variety of fittings (JIC, NPT, BSP, metric, etc.) and perform pressure tests on the complete assembly.

How do you ensure the quality of the raw materials?

We use premium NBR/CR rubber and high-tensile steel wire. Every batch undergoes critical laboratory tests including pressure, impulse, and adhesion testing.

What is the standard lead time for orders?

Standard products typically ship within 7-15 days, while custom assemblies or large bulk orders may require 15-25 days.

Are your hoses suitable for extreme temperatures?

Yes, our standard hydraulic hoses are rated for -40 °C to +100 °C. We also offer specialty hoses for higher temperature requirements.

What information is needed for a detailed quotation?

Please provide the hose standard (e.g., SAE 100R2), size (ID/OD), number of wire layers, quantity, and specific application or fluid compatibility needs.
