Low Temperature Hydraulic Hose SAE 100 R1 at/DIN-En 8531sn Lt Rubber Hose Hydraulic Hose Flexible Hydraulic Hose Garden Hose Fire Fighting Hose
Low Temperature Hydraulic Hose SAE 100 R1 at/DIN-En 8531sn Lt Rubber Hose Hydraulic Hose Flexible Hydraulic Hose Garden Hose Fire Fighting Hose
Low Temperature Hydraulic Hose SAE 100 R1 at/DIN-En 8531sn Lt Rubber Hose Hydraulic Hose Flexible Hydraulic Hose Garden Hose Fire Fighting Hose
Low Temperature Hydraulic Hose SAE 100 R1 at/DIN-En 8531sn Lt Rubber Hose Hydraulic Hose Flexible Hydraulic Hose Garden Hose Fire Fighting Hose
Low Temperature Hydraulic Hose SAE 100 R1 at/DIN-En 8531sn Lt Rubber Hose Hydraulic Hose Flexible Hydraulic Hose Garden Hose Fire Fighting Hose
1 / 5
Low Temperature Hydraulic Hose SAE 100 R1 at/DIN-En 8531sn Lt Rubber Hose Hydraulic Hose Flexible Hydraulic Hose Garden Hose Fire Fighting Hose
Low Temperature Hydraulic Hose SAE 100 R1 at/DIN-En 8531sn Lt Rubber Hose Hydraulic Hose Flexible Hydraulic Hose Garden Hose Fire Fighting Hose
Low Temperature Hydraulic Hose SAE 100 R1 at/DIN-En 8531sn Lt Rubber Hose Hydraulic Hose Flexible Hydraulic Hose Garden Hose Fire Fighting Hose
Low Temperature Hydraulic Hose SAE 100 R1 at/DIN-En 8531sn Lt Rubber Hose Hydraulic Hose Flexible Hydraulic Hose Garden Hose Fire Fighting Hose
Low Temperature Hydraulic Hose SAE 100 R1 at/DIN-En 8531sn Lt Rubber Hose Hydraulic Hose Flexible Hydraulic Hose Garden Hose Fire Fighting Hose

Low Temperature Hydraulic Hose SAE 100 R1 at/DIN-En 8531sn Lt Rubber Hose Hydraulic Hose Flexible Hydraulic Hose Garden Hose Fire Fighting Hose

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.
SAE100R1 AT
Color
Black
Standard
DIN/En, SAE
Length
20, 40, 50, 100m
Feature
Soft, Flexible, Durable
Application
Hydraulic, Power, Fluid
Origin
China
HS Code
7307990000
Capacity
100,000,000
📦

Packaging & Delivery

Package Size
20.00cm * 20.00cm * 20.00cm
Gross Weight
2.000kg
⚙️

Product Description

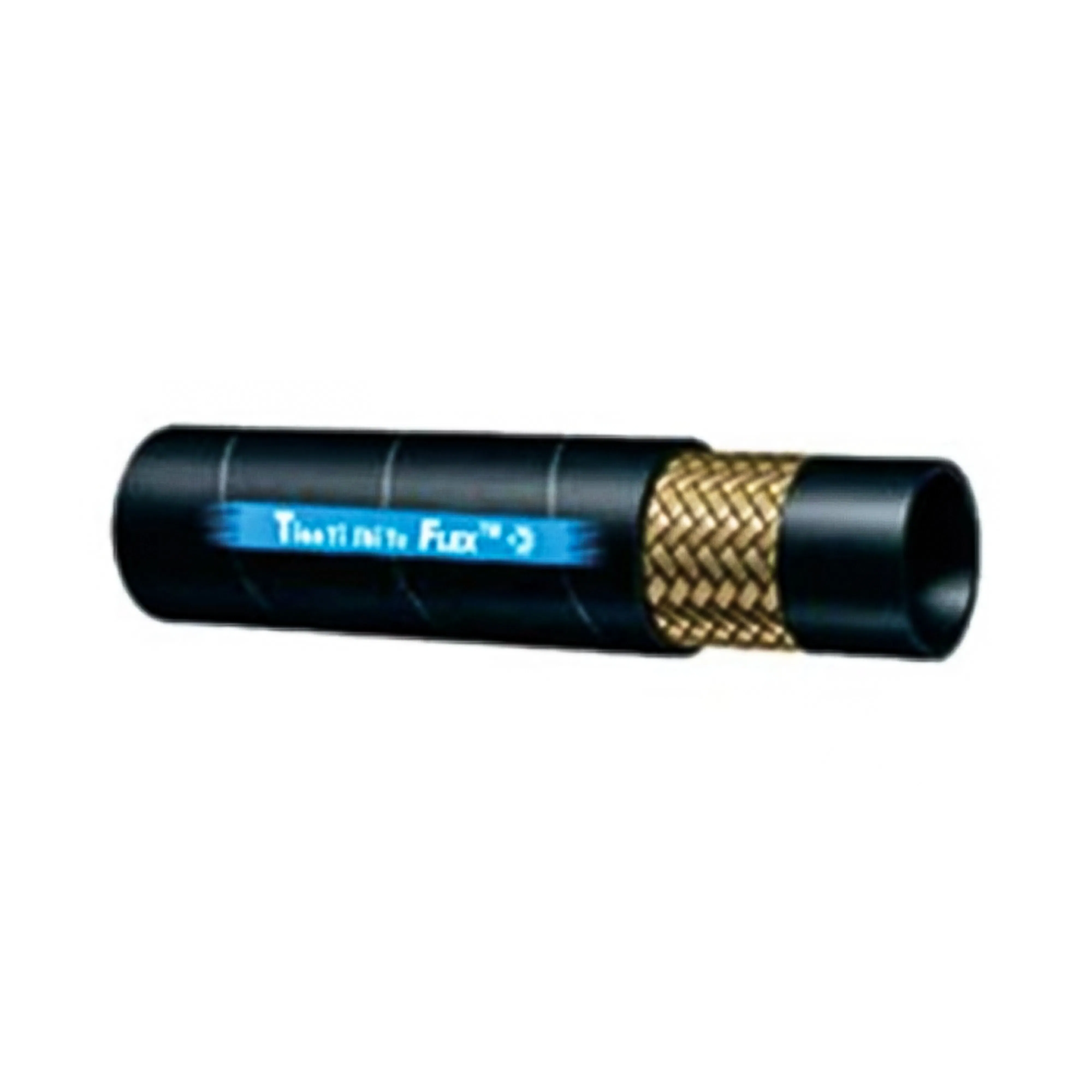

SAE100R1 AT / DIN-EN 853 1SN Hydraulic Hose

  • STANDARD: SAE 100 R1AT, EN853 1SN, ISO1436 1SN, GB/T3683.1 1SN
  • TUBE: Oil resistant synthetic rubber
  • REINFORCEMENT: One braid of high-tensile steel wire
  • COVER: Oil, abrasion & weather resistant synthetic rubber
  • TEMPERATURE RANGE: -40ºC / +100ºC (-40 °F / +212°F); LT-55 & HT150ºC customizable
  • APPLICATION: Suitable for low and medium pressure hydraulic applications, machine tools, agriculture, construction machinery, mining, and shipbuilding.
Product number DN Inch ID (mm) OD (mm) Max OD WP (MPa) WP (PSI) BP (MPa) BP (PSI) BR (mm) Weight (kg/m)
G1SN-03-0553/16"4.89.511.825363010014280890.19
G1SN-04-0661/4"6.411.113.422.5327090128401020.21
G1SN-05-0885/16"7.912.71521.5312085122801140.24
G1SN-06-10103/8"9.515.117.418261072102801270.33
G1SN-08-13131/2"12.718.320.61623106491801780.41
G1SN-10-16165/8"15.921.423.71318905274202030.45
G1SN-12-19193/4"1925.427.710.515304260002410.58
G1SN-16-25251"25.433.335.68.812803550203050.88
📸

Product Gallery

Hydraulic Hose Photo 1

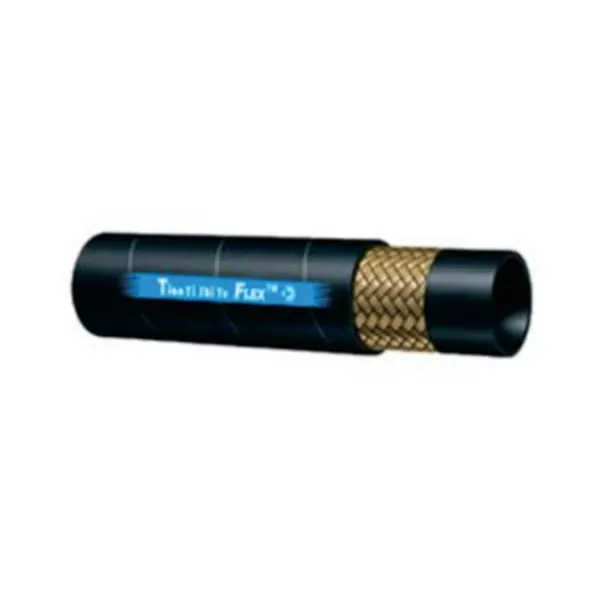

Hydraulic Hose Photo 2
Hydraulic Hose Photo 3
⭐

Why Choose Our Solutions

  • Advanced Production: Utilization of high-end production equipment and technical services introduced globally to optimize process and quality.
  • Premium Materials: Use of high-quality carbon black and Bekaert steel wire to ensure hose durability.
  • Extreme Durability: Excellent performance in heat resistance (up to +220°C) and cold tolerance (down to -55°C).
  • Global Certification: All products meet ISO9001 quality management standards and international industry requirements.
  • Diverse Range: Over 1400 specifications available, ranging from 5mm to 76mm in diameter.
🏭

Workshop Overview

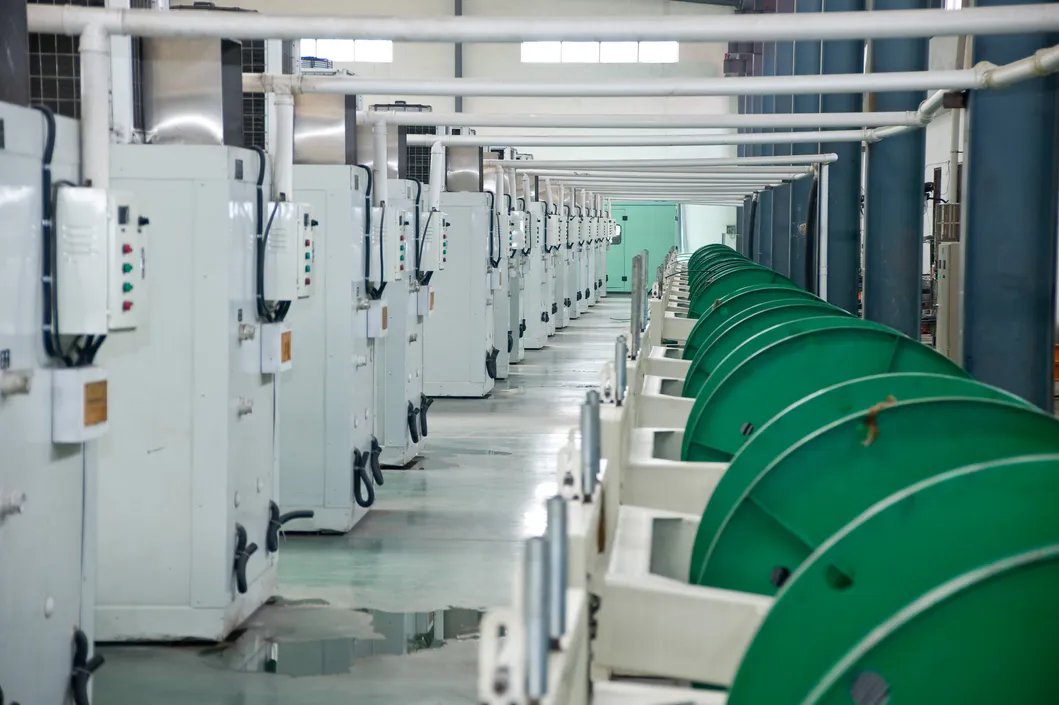

Workshop Photo 1

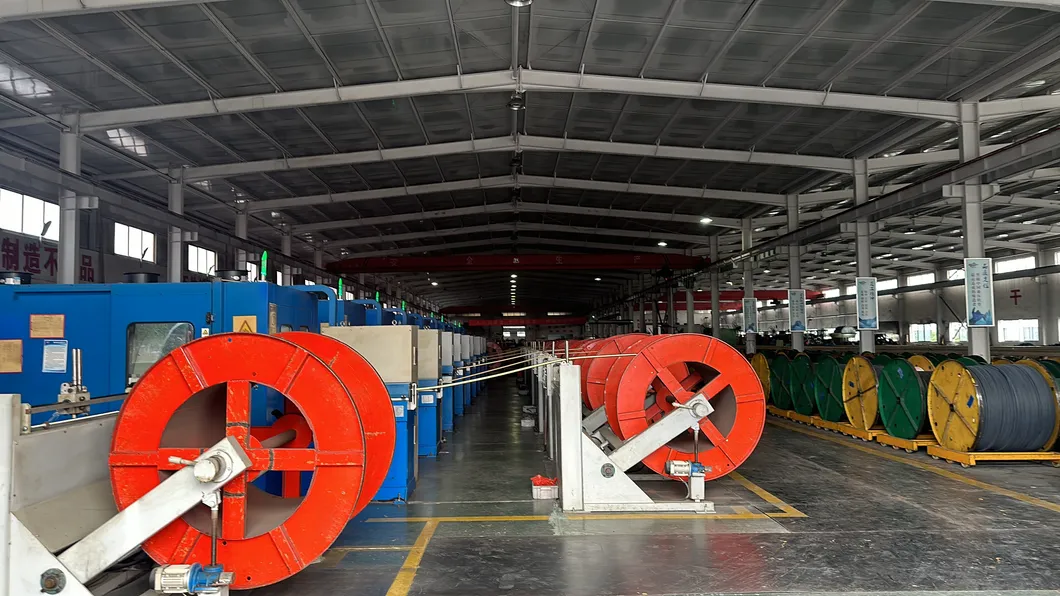

Workshop Photo 2
Workshop Photo 3
❓

Frequently Asked Questions

What international standards does the SAE100R1 AT hose comply with?
The hose meets multiple international standards including SAE 100 R1AT, EN853 1SN, ISO1436 1SN, and GB/T3683.1 1SN.
What is the temperature tolerance of this hydraulic hose?
The standard temperature range is -40ºC to +100ºC (-40°F to +212°F). However, customizable options for low temperatures (LT-55) and high temperatures (HT150ºC) are available.
What materials are used in the construction of the hose?
The inner tube is made of oil-resistant synthetic rubber, reinforced with one braid of high-tensile steel wire, and protected by an oil, abrasion, and weather-resistant synthetic rubber cover.
In which industries can this hose be applied?
It is ideal for low and medium-pressure hydraulic applications in construction, agriculture, machine tools, mining, shipbuilding, and energy sectors.
Is the hose resistant to harsh environmental conditions?
Yes, the outer cover is specifically engineered to resist oil, abrasion, and various weather conditions, ensuring long-term durability in the field.
What sizes are available for the SAE100R1 AT model?
The product line covers diameters from 5mm to 76mm, providing a comprehensive range of over 1400 different specifications.
