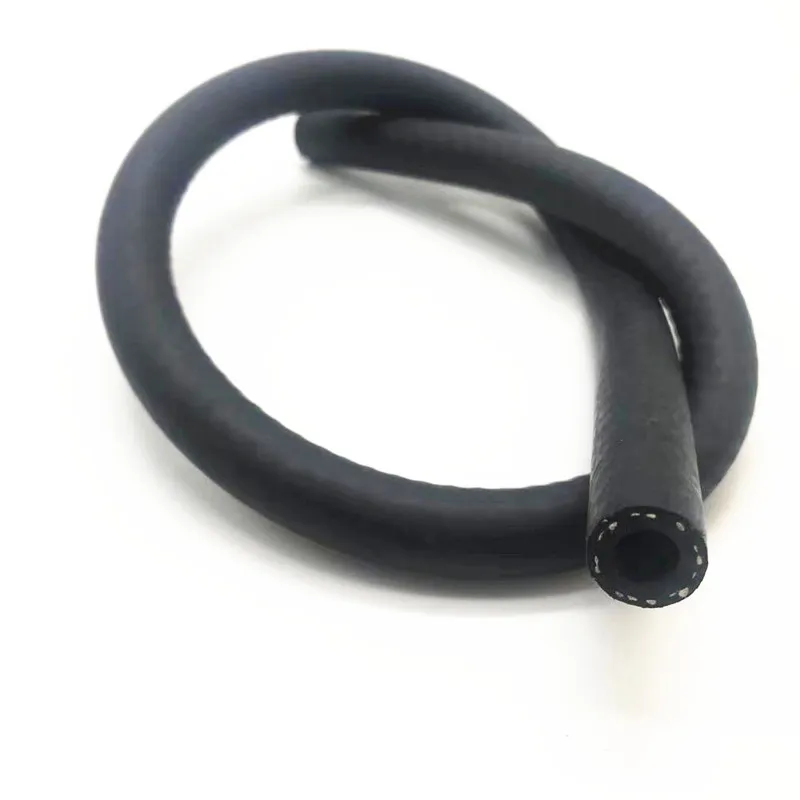

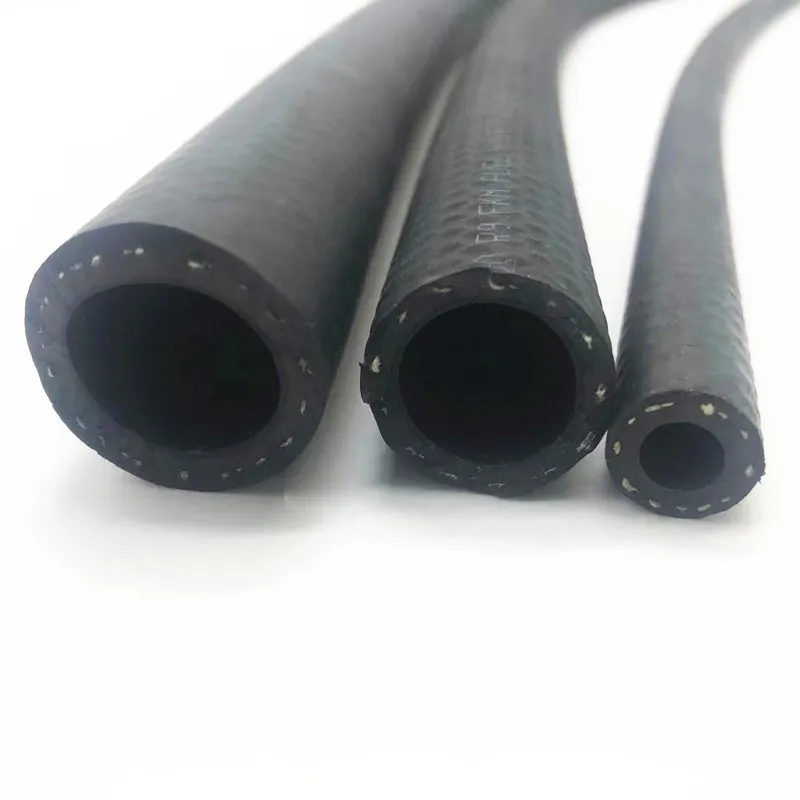

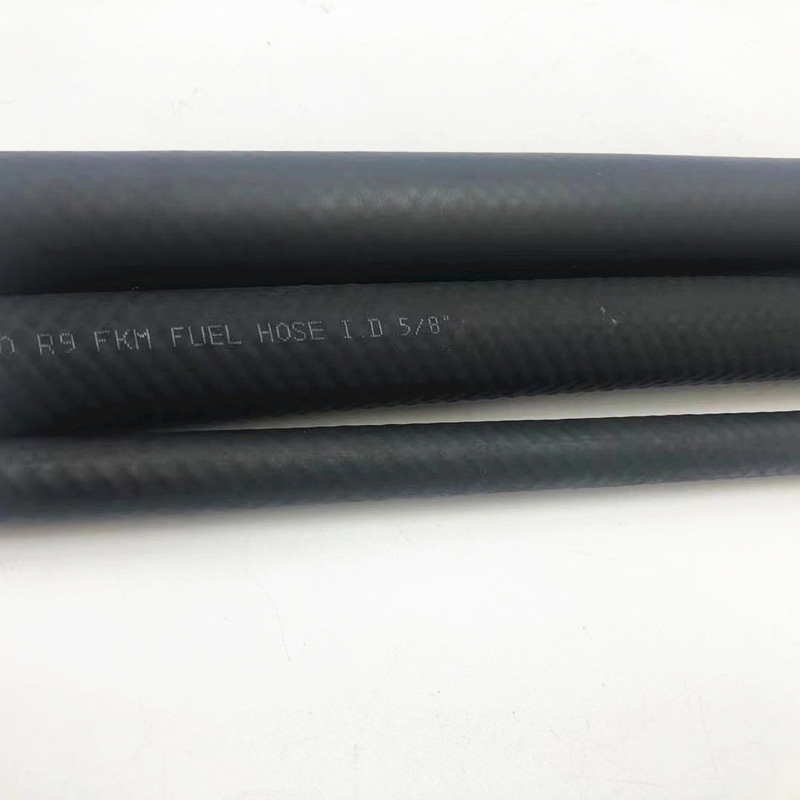

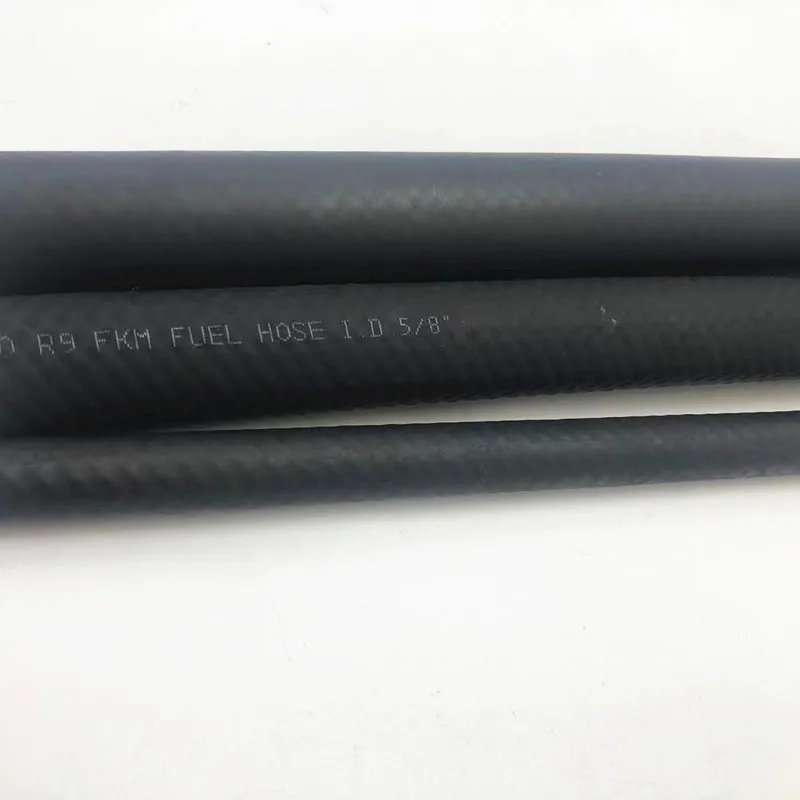

Medium Pressure SAE J30R9 Fuel Injection Hose FKM / ECO Synthetic Rubber Hose
This hose is primarily designed to meet the rigorous demands of modern fuel injection systems. It is ideally suited for electronic fuel metering (EFM), electronic fuel injection (EFI), throttle body injection (TBI), and similar high-performance automotive applications.
It can be supplied in long lengths, specific cut lengths, or preformed configurations. The hose operates reliably in temperatures ranging from −34°C to 135°C (−29°F to 275°F), with intermittent tolerance up to 150°C (302°F).
| Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | |||
|---|---|---|---|---|---|---|
| inch | mm | mm | bar | psi | bar | psi |
| 1/8" | 3.2 | 9 | 20 | 300 | 80 | 1200 |
| 5/32" | 4 | 10 | 20 | 300 | 80 | 1200 |
| 3/16" | 5 | 11 | 20 | 300 | 80 | 1200 |
| 1/4" | 6.3 | 12.7 | 20 | 300 | 80 | 1200 |
| 5/16" | 8 | 14 | 20 | 300 | 80 | 1200 |
| 3/8" | 9.5 | 16 | 20 | 300 | 80 | 1200 |
| 1/2" | 12.7 | 20 | 20 | 300 | 80 | 1200 |
| 3/4" | 19 | 30 | 10 | 150 | 40 | 600 |
| 1" | 25 | 35 | 10 | 150 | 40 | 600 |
