| Model NO. | DHF Series |
| Shore A | 65-90 |
| Compression Set | 17 |

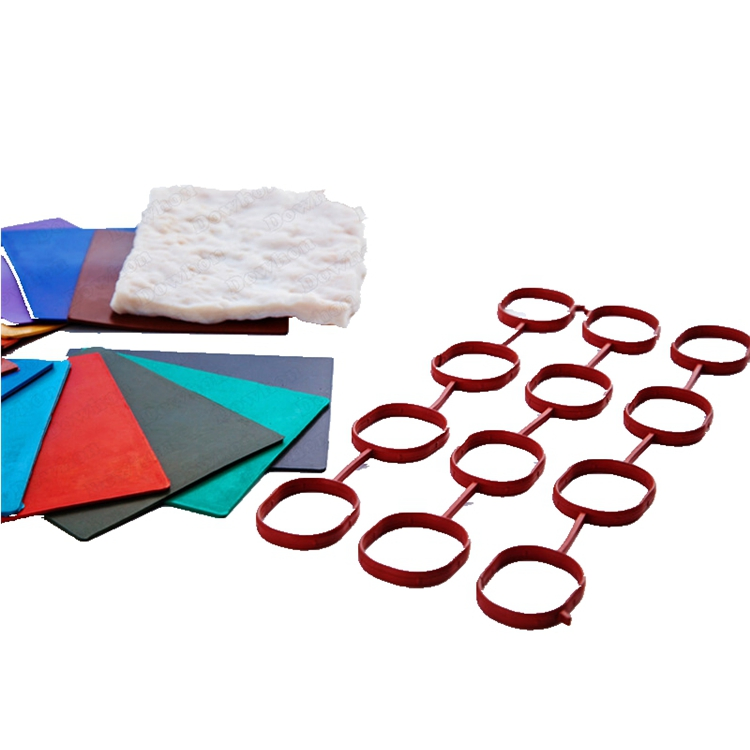

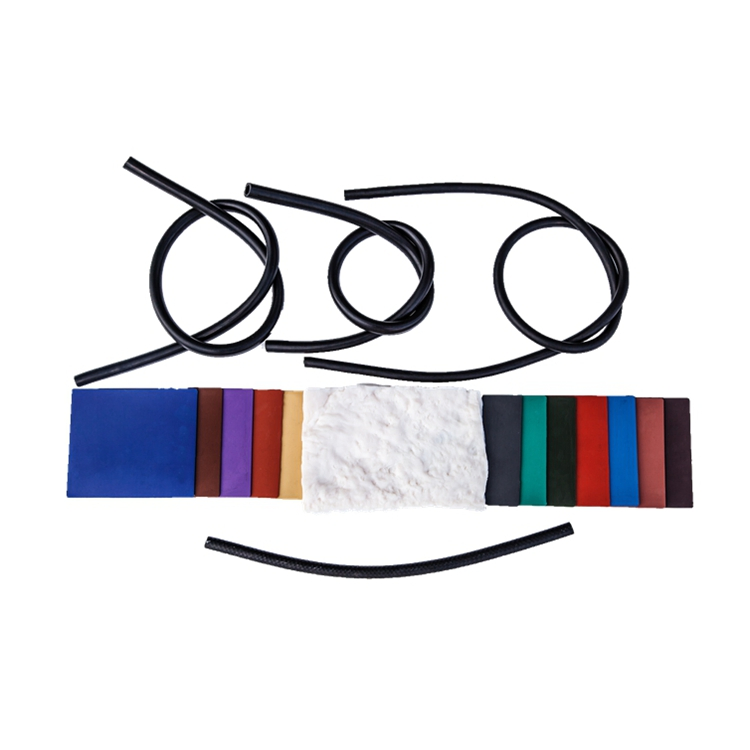

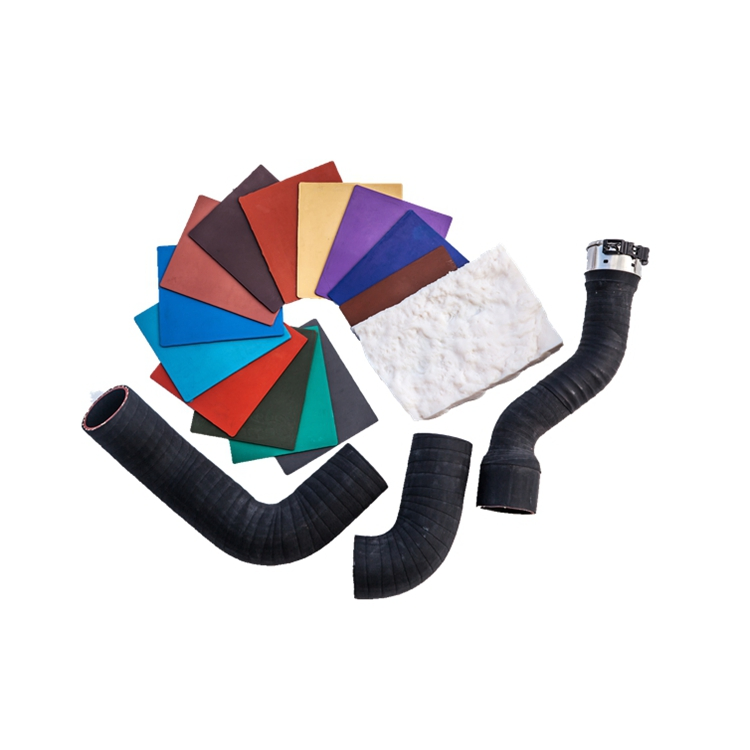

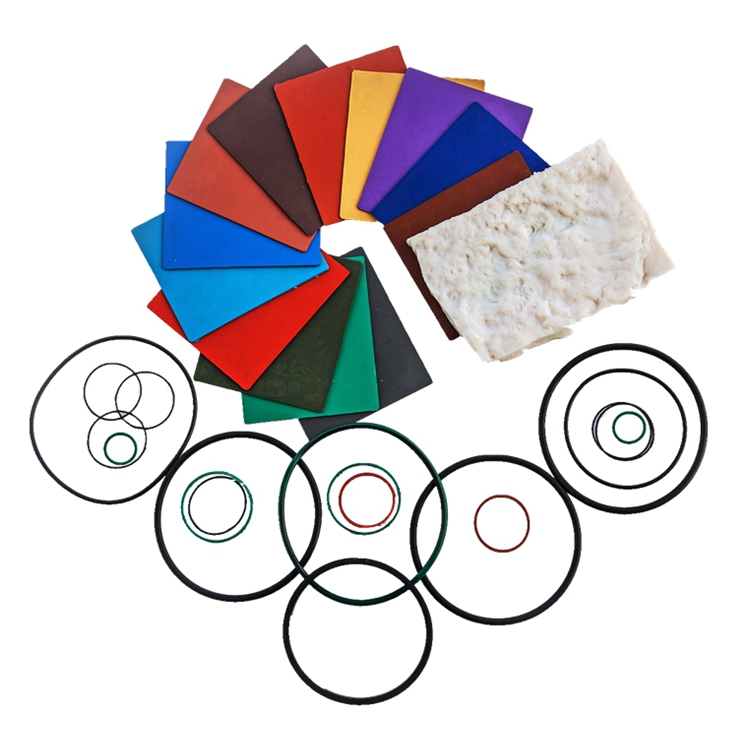

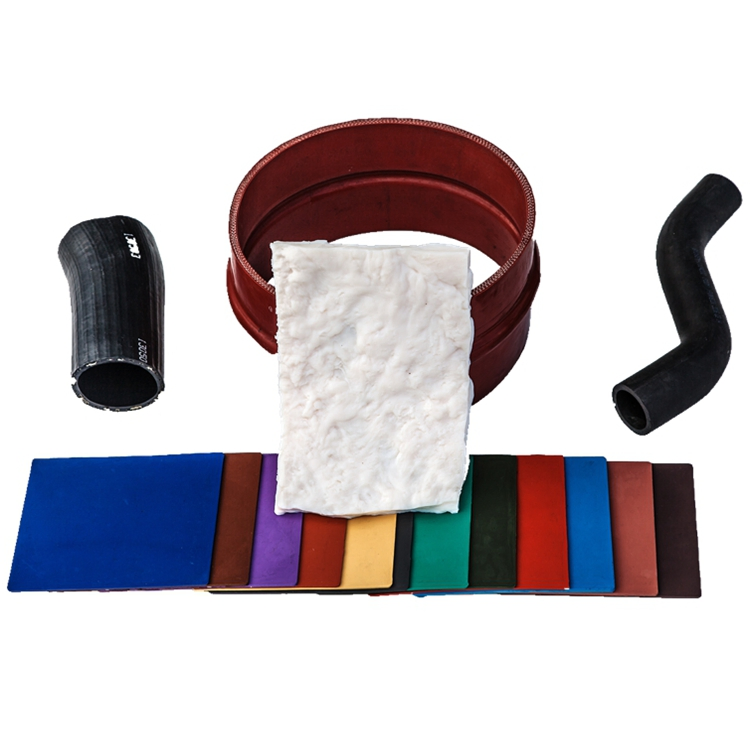

| Final Products | O-rings, Gaskets, Oil Seals, Fuel Hoses |
| Industry | Automotive Industry |
| Color | Various |
| Thickness | 2mm-8mm |
| Production Capacity | 14,000 mt/Year |
| Transport Package | Carton |
| F Content | Min 66% |
| Specific Gravity | Min 1.92 |
| Physical Form | Slab |
| Solubility | Ketones and Esters |
| Hardness (Shore A) | 75 ± 5 |
Specifically designed for high-performance gaskets and O-rings. DHF-75611F is a ready-to-use compound for direct final product manufacturing.
(Conditions: Press Cure 180ºC @ 5min, Post Cure 230ºC @ 24hour)
| Elongation at Break | Min 200% (ASTM D 412) |
| Tensile Strength | Min 11.0 MPa (ASTM D 2240) |
| Compression Set (200ºC@70h) | Max 15% (ASTM D 395) |
| Brittleness Temperature | -26ºC (ASTM D 1329) |
Standard packaging consists of PE film protected within heavy-duty cartons. Net weight is typically 20kg or 25kg per carton. For large shipments, pallets are available in 500kg, 625kg, or 700kg configurations.

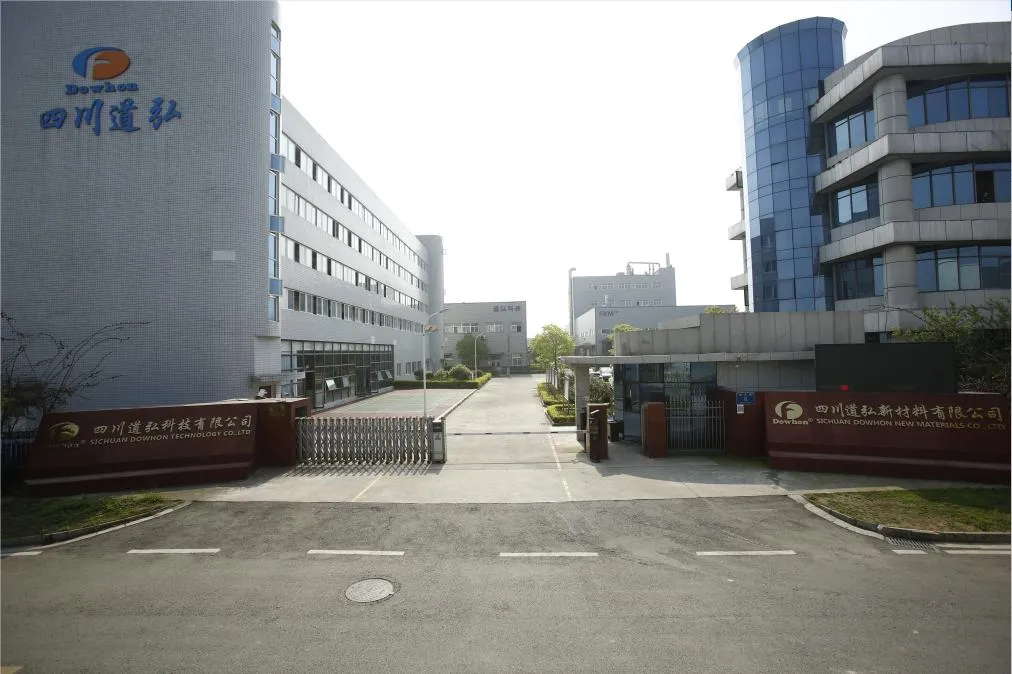

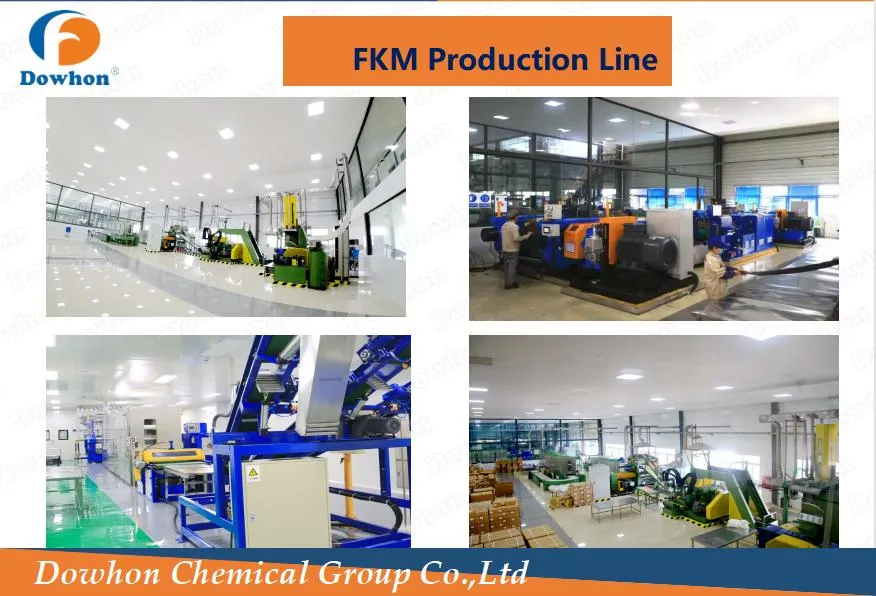

The facility is certified under ISO9001, ISO14001, and ISO16949 standards. We hold over 65 patents and contribute to National Standard formulations.
