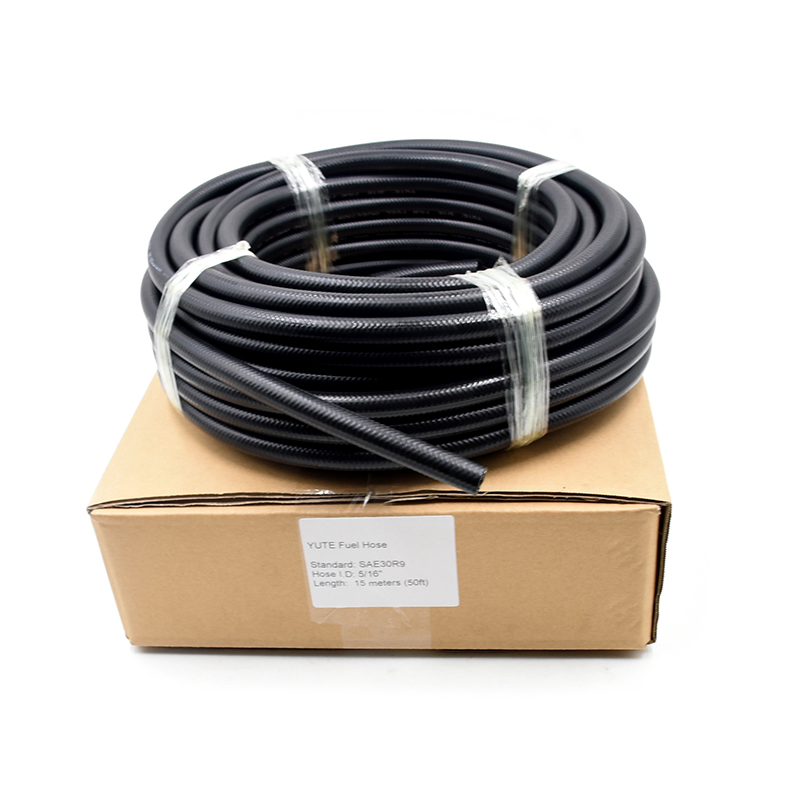

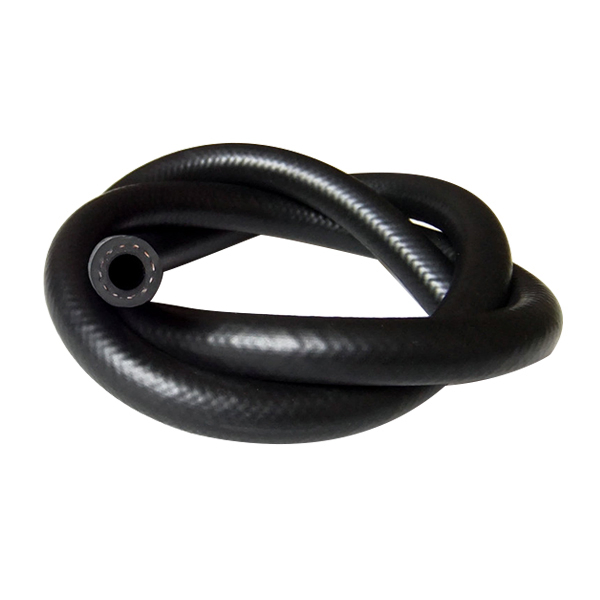

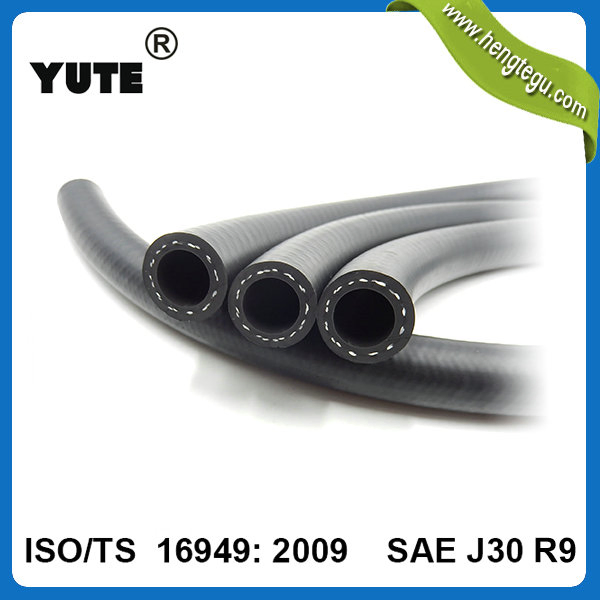

Oil /Fuel Gaso Line Injection Line Rubber Hose

Overview & Basic Info

Model NO.:R9

Color:Black

Transport Package:Pallet

Origin:China

Production Capacity:200,000 Meters/Month

Product Description

Applications: Used in the transportation of gasoline, ethanol extended gasoline, diesel fuel, lubrication oil, or the vapor present in either the fuel injection system or the crankcase of internal combustion engines.

Construction Details:

Permeation Barrier: Special rubber with perfect oil and fuel-resistant performance (FKM).
Tube: Oil and fuel-resistant synthetic rubber compound (ECO).
Reinforcement: High tensile braided fiber (AR).
Cover: Suitable oil, ozone, and heat-resistant synthetic rubber compound (FKM).

Technical Standards:

Working Temperature: -40 ºC to +135 ºC (-40 ºF to +275 ºF)

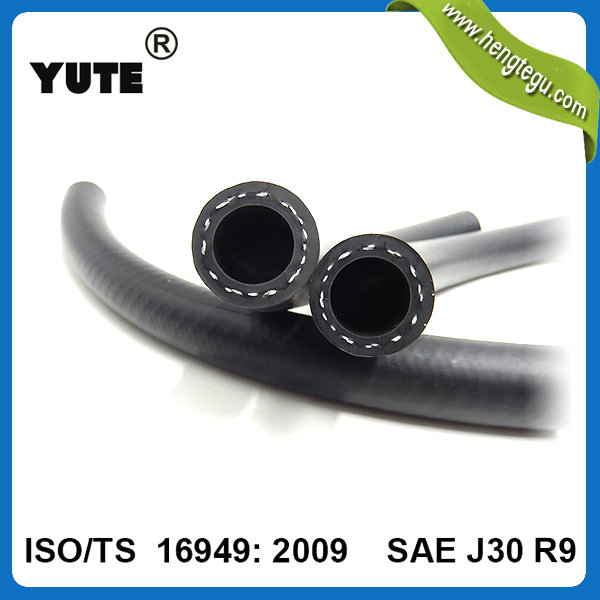

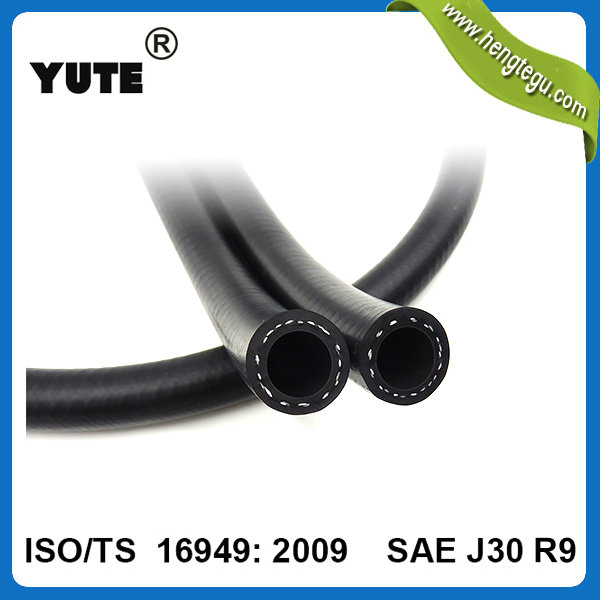

Standard Compliance: SAE J 30R9, DIN 73379 3E

Technical Parameters

No.	I.D (Internal Diameter)			O.D (Outer Diameter)			W.P (Working Pressure)		B.P (Burst Pressure)
No.	inch	mm	Tolerance	inch	mm	Tolerance	Bar	PSI	Bar	PSI
1	1/8	3.2	±0.3	23/64	9	±0.3	20	300	80	1200
4	1/4	6.3	±0.3	1/2	12.7	±0.4	20	300	80	1200
6	3/8	9.5	±0.4	5/8	16	±0.5	20	300	80	1200
8	1/2	12.7	±0.5	25/32	20	±0.6	20	300	80	1200
9	5/8	16	±0.5	61/64	24	±0.6	10	150	40	600
10	3/4	19	±0.6	1-9/64	28.8	±0.8	10	150	40	600
11	1	25.4	±0.8	1-3/8	35	±1	10	150	40	600

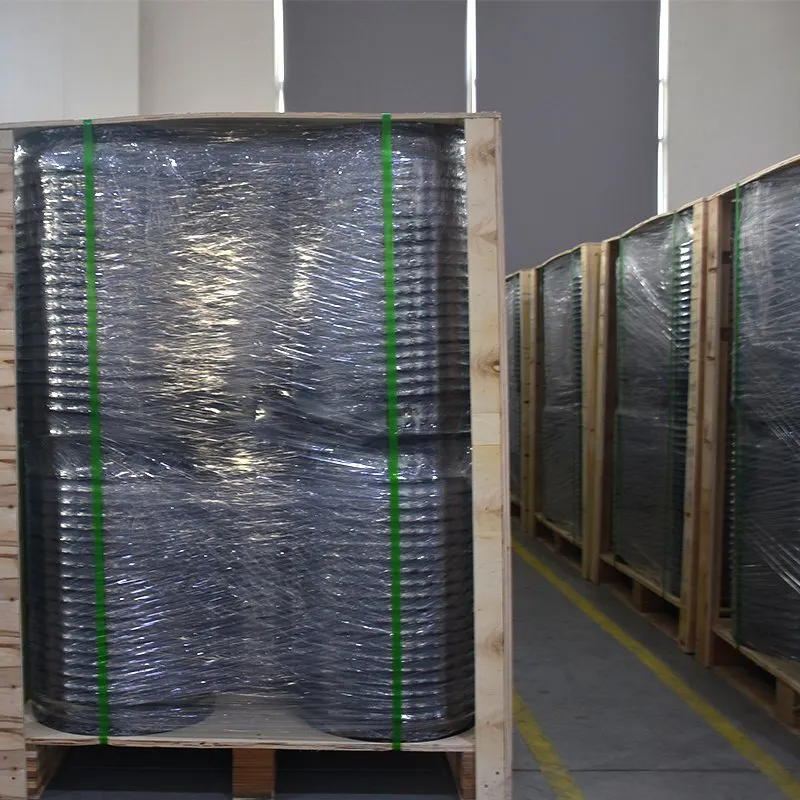

Packaging & Shipping

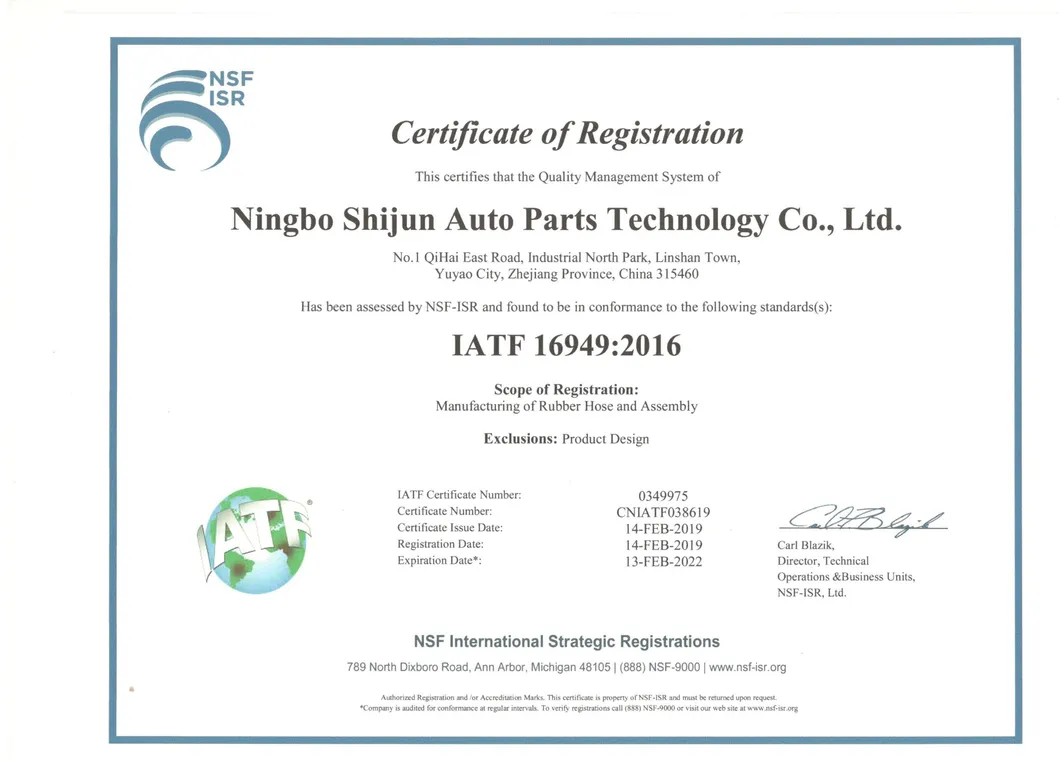

Quality Certifications & Trade Shows

Frequently Asked Questions

What are your terms of packing?

Generally, we pack our goods in neutral PVC film and brown cartons. Customized branded boxes are available upon authorization for legally registered patents.

What are your terms of payment?

Our standard terms are T/T 30% as a deposit, and 70% before delivery. We provide photos of the products and packages before the final balance is paid.

What is the typical delivery time?

Generally, it takes 30 to 45 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Can you produce according to specific samples?

Yes, we can produce based on your provided physical samples or technical drawings to ensure exact specifications.

What is your sample policy?

We can supply samples if we have ready parts in stock, but customers are responsible for the sample cost and courier fees.

Do you test all goods before delivery?

Yes, we conduct 100% rigorous testing on all goods before they are dispatched to ensure quality consistency.
