KEY PERFORMANCE

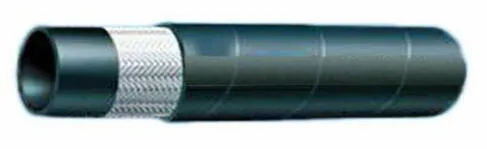

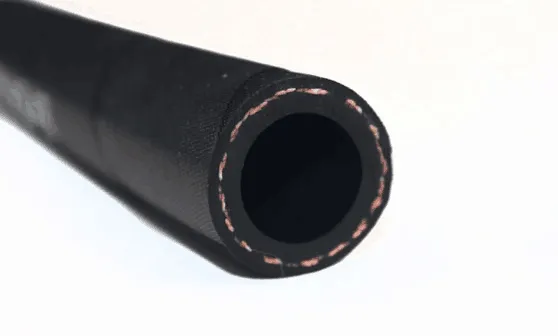

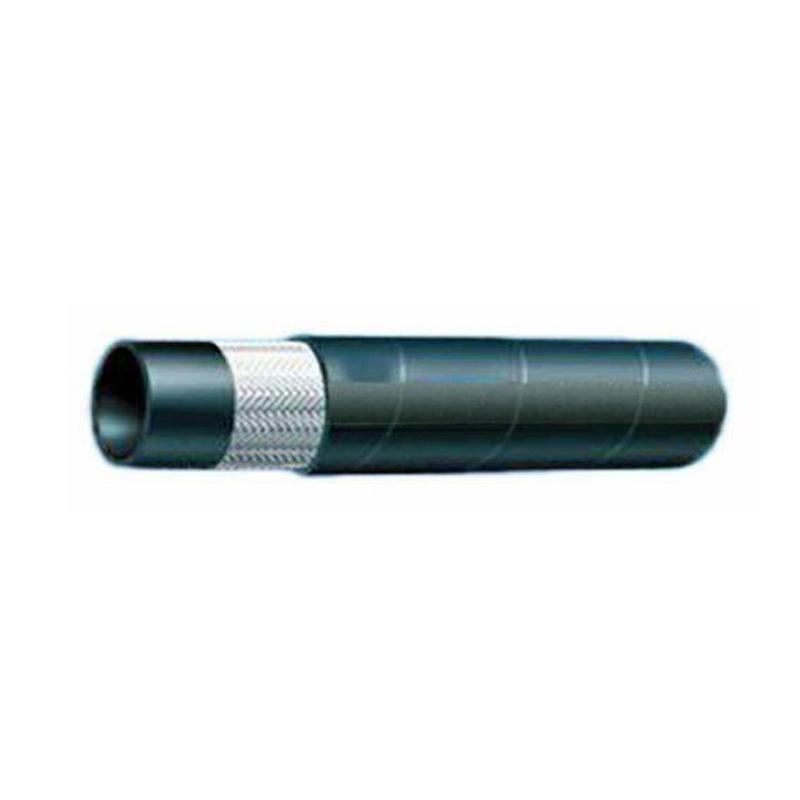

Appearance: Wrap (I.D less than 25.4mm smooth cover)
Branding: Printing and indelible branding with embossed technology
Colour: Black, red, blue, yellow, green, gray (customizable)
Technical Specifications:
| Model No. | HOSE I.D | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| DN | Dash | Inch | mm | bar | psi | bar | psi | mm | Kg/m | |
| TB J30 6 | 6 | -4 | 1/4" | 12.7 | 35 | 510 | 140 | 2030 | 76 | 0.13 |
| TB J30 8 | 8 | -5 | 5/16" | 14.3 | 35 | 510 | 140 | 2030 | 76 | 0.16 |
| TB J30 10 | 10 | -6 | 3/8" | 15.8 | 35 | 510 | 140 | 2030 | 76 | 0.18 |
| TB J30 12 | 12 | -8 | 1/2" | 19.6 | 25 | 360 | 100 | 1450 | 127 | 0.24 |
| TB J30 16 | 16 | -10 | 5/8" | 23.6 | 25 | 360 | 100 | 1450 | 150 | 0.32 |
| TB J30 19 | 19 | -12 | 3/4" | 28.3 | 21 | 300 | 84 | 1210 | 180 | 0.47 |
| TB J30 25 | 25 | -16 | 1" | 33.9 | 14 | 200 | 56 | 810 | 240 | 0.53 |
Primary Applications:

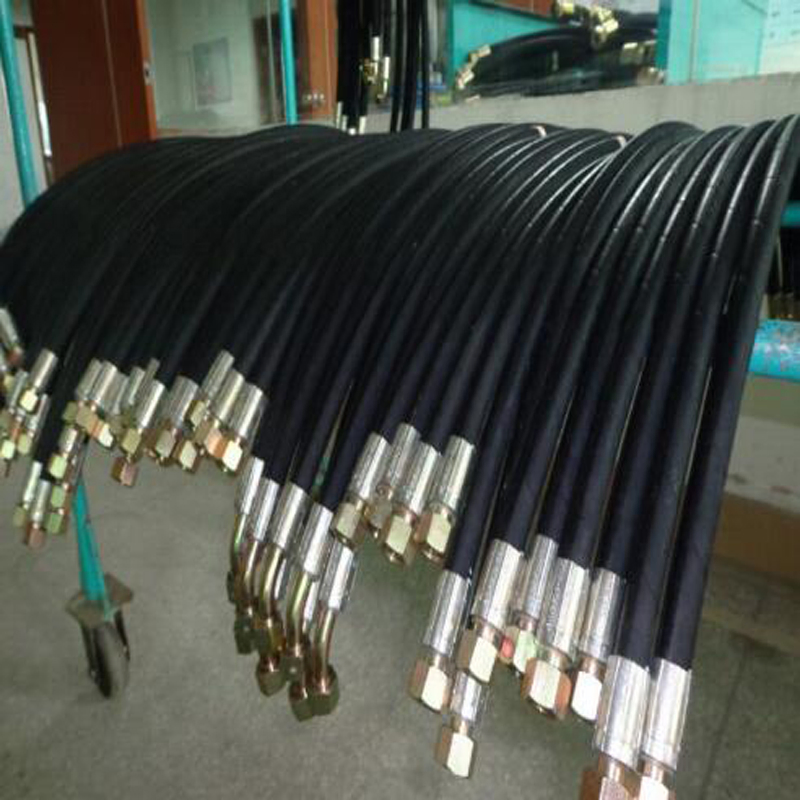

Push-on hose for low pressure lines, return lines, drain lines. Used in fuel systems or in the crankcase of internal combustion engines in mobile (truck, bus, off-highway vehicles), stationary and marine applications. Compatible with mineral oils, vegetable oils, glycol based oils, water, diesel fuel, and gasoline.
