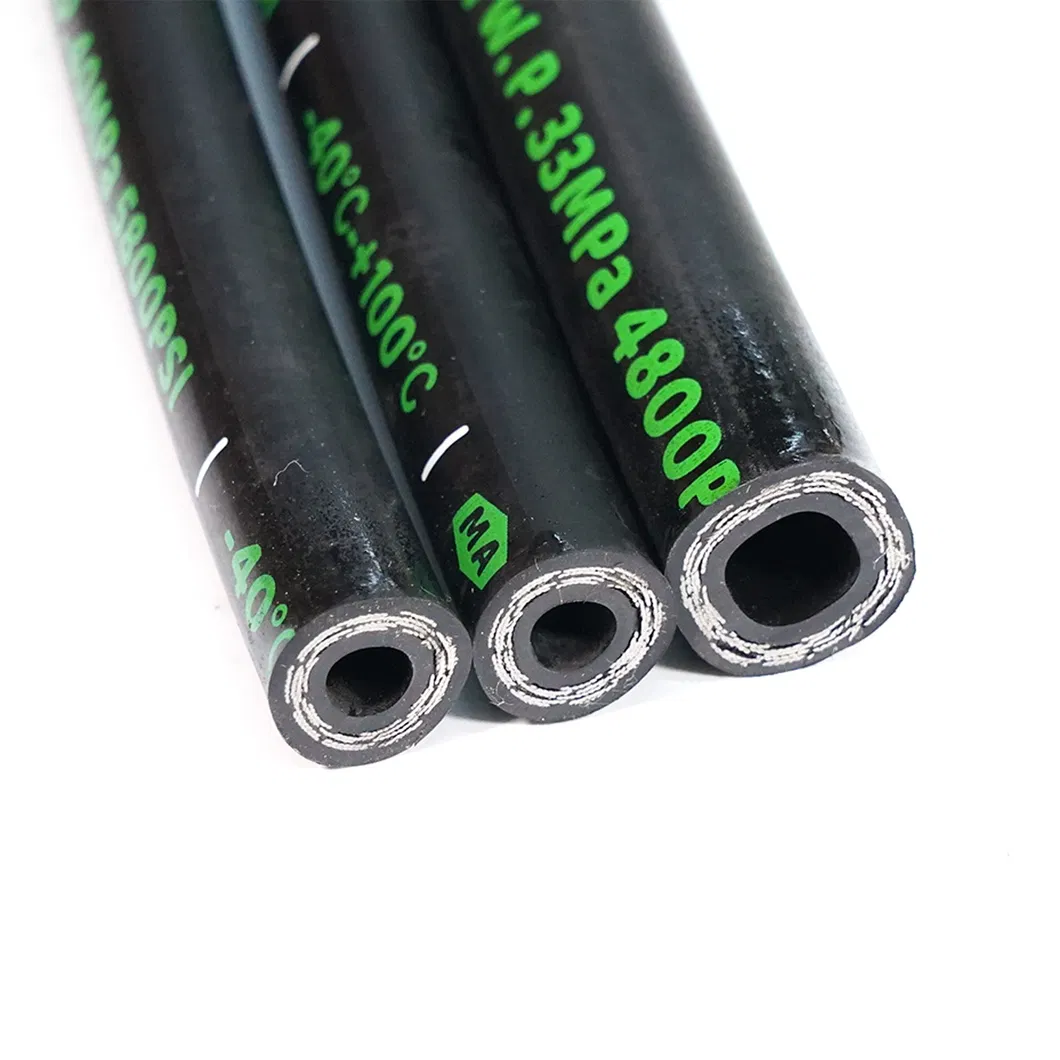

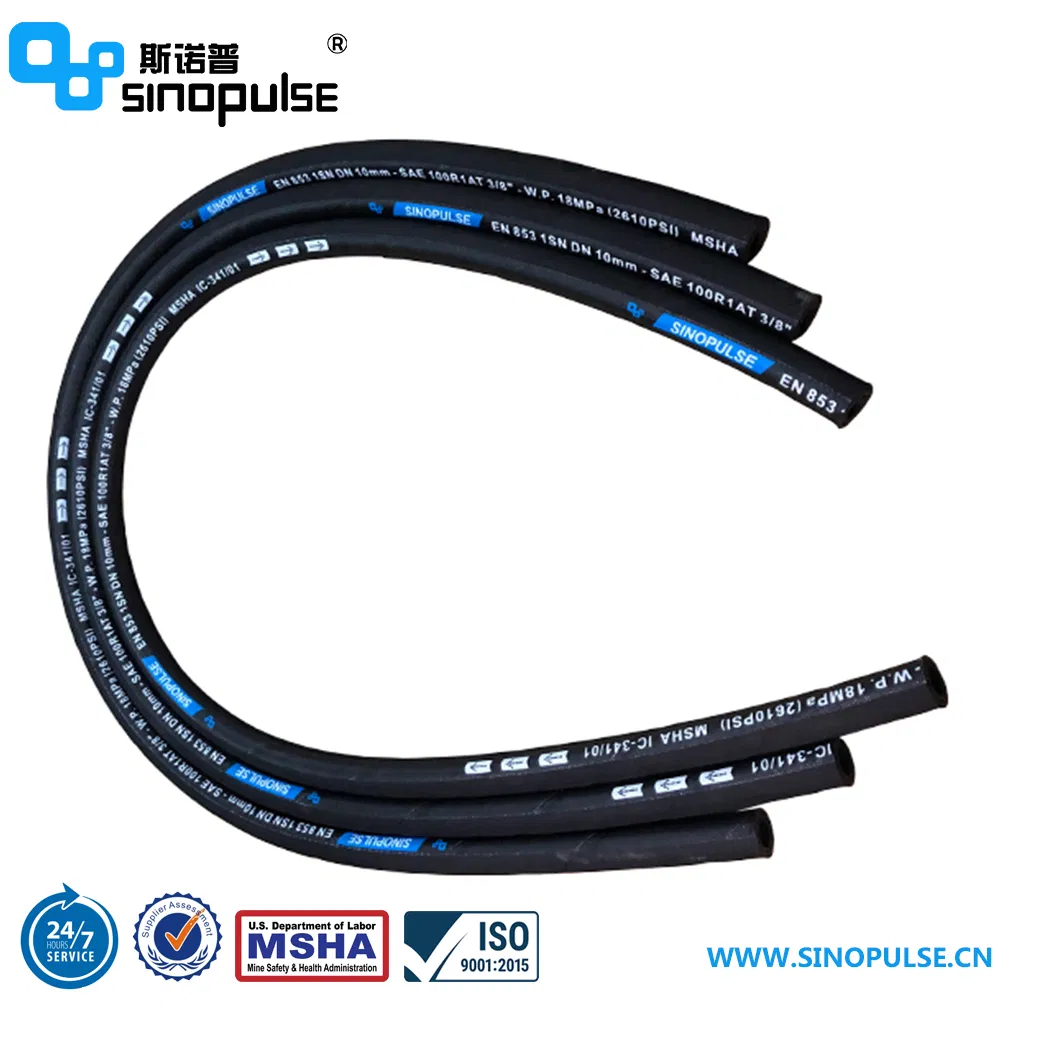

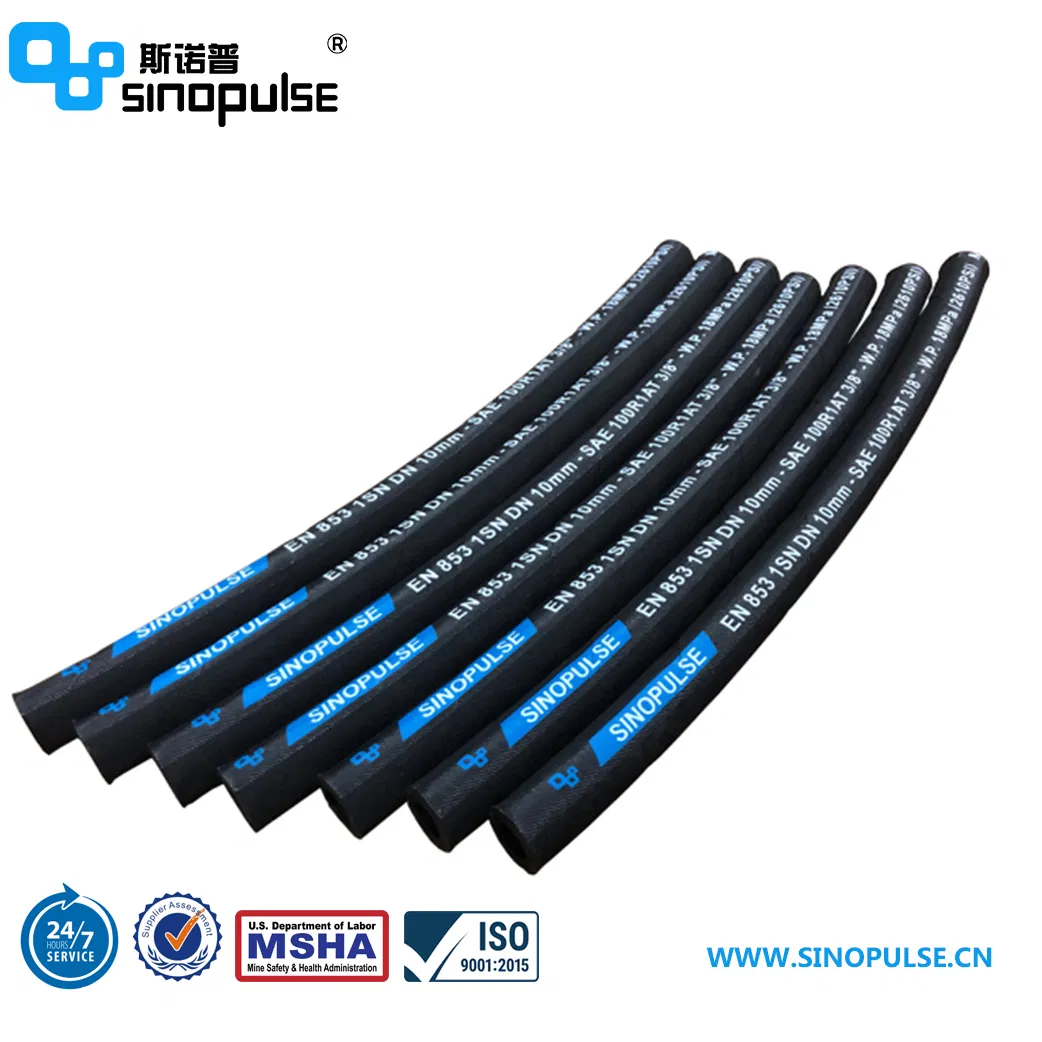

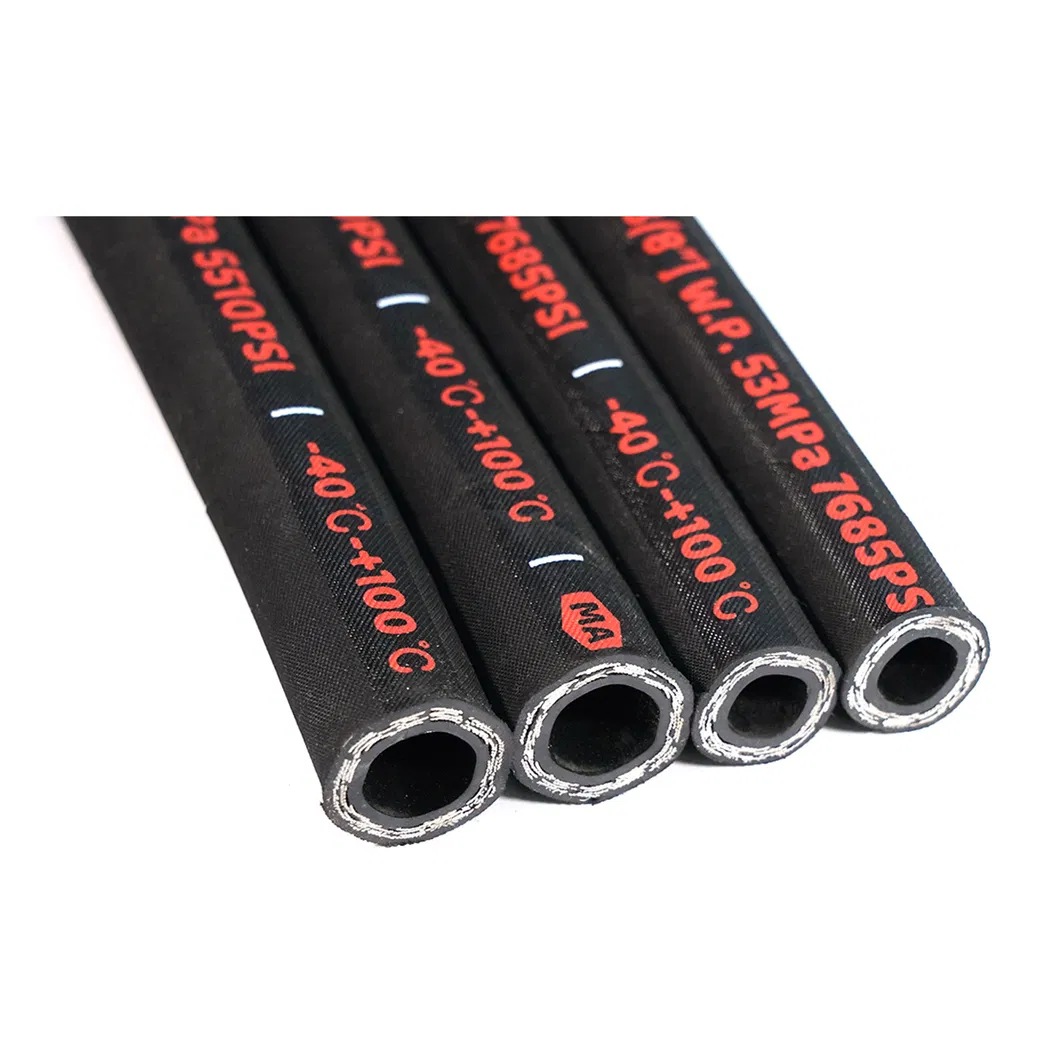

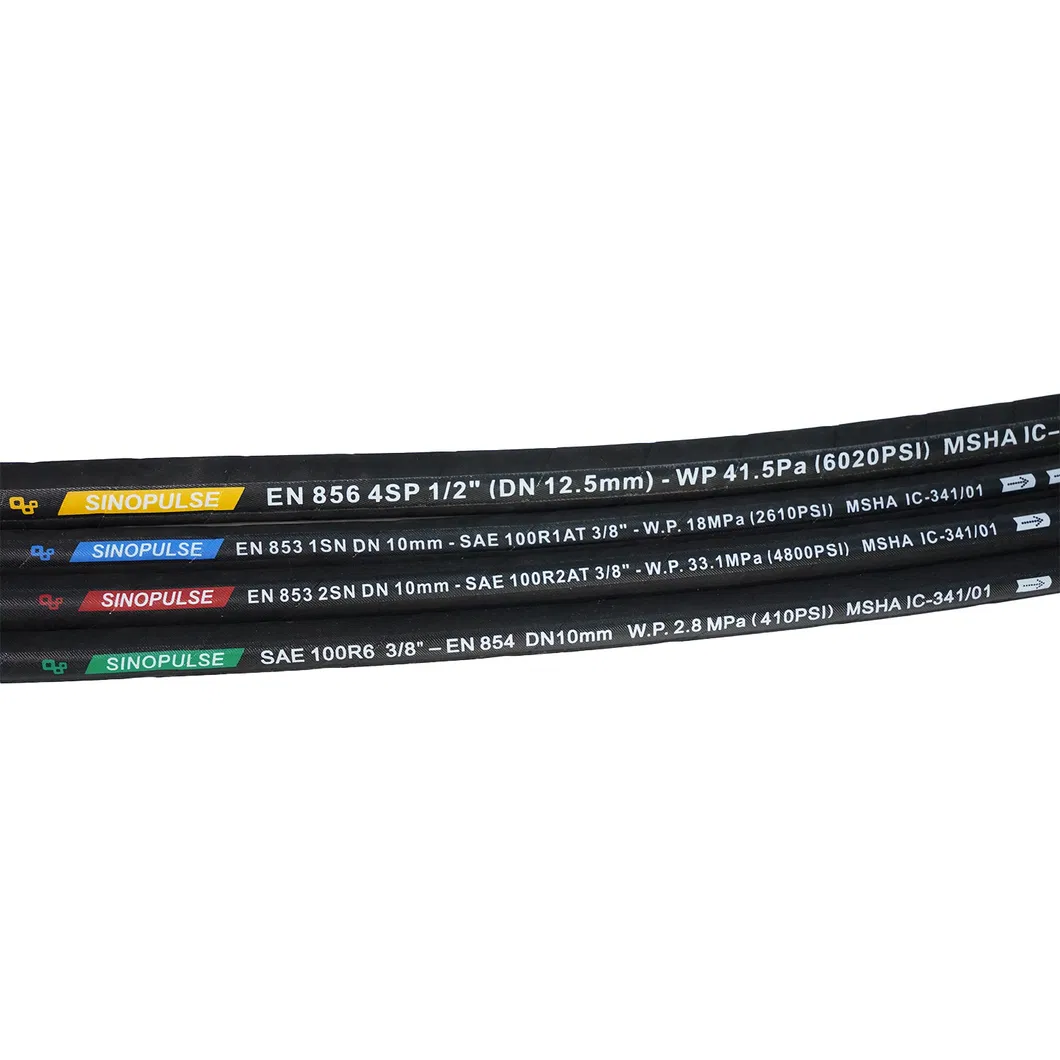

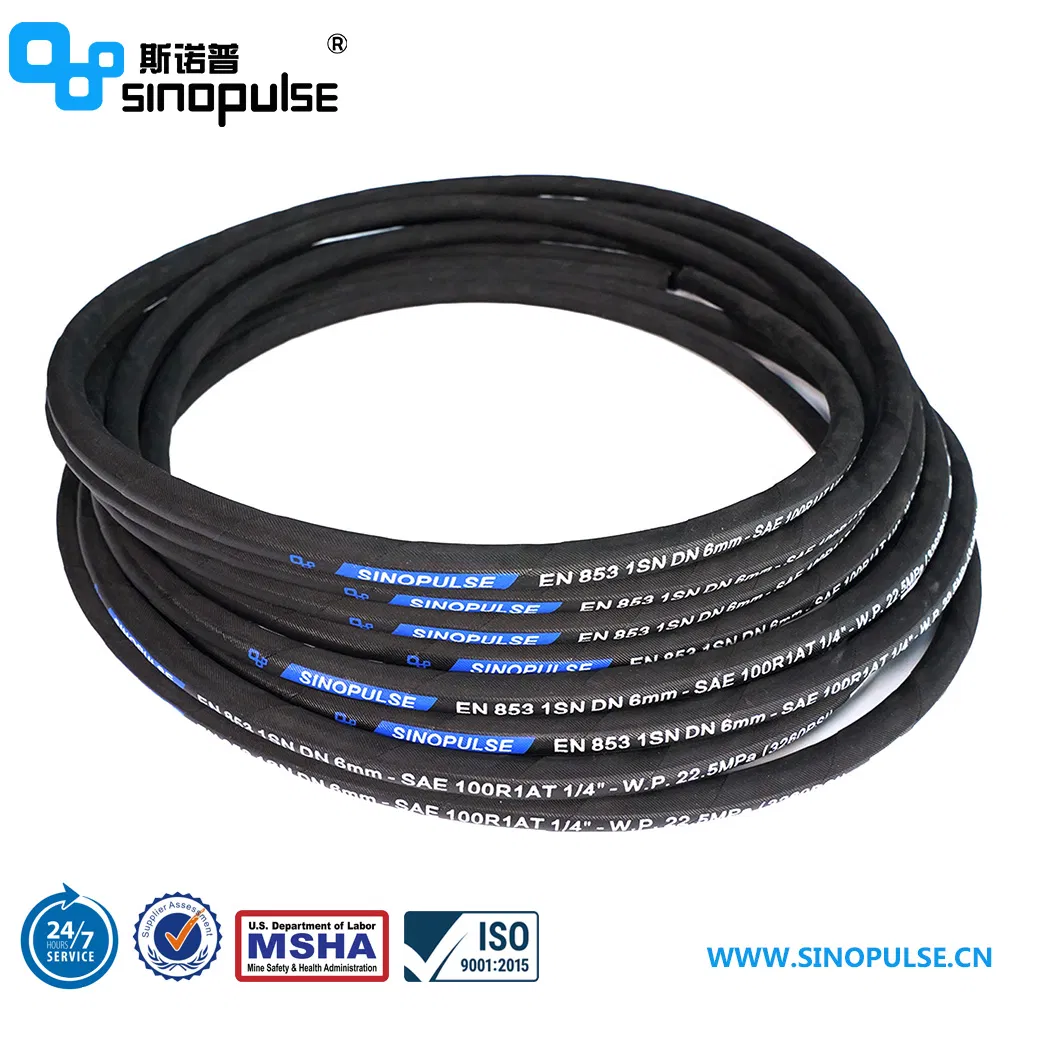

We provide an extensive hydraulic hose range in the market, available with highly abrasion-resistant covers. Our products are engineered to deliver high performance and withstand the harshest working environments. Designed for both high and low temperatures and pressures, these hoses are suitable for a wide variety of industrial applications.
Each hydraulic hose complies with stringent industry standards such as SAE 100 and DIN, supported by ISO and MSHA certifications. These hoses are primarily used for high-pressure fluid power applications on both mobile and fixed machinery. Our reinforced hoses are compatible with a wide variety of adapters and fittings, specifically designed for use with petroleum- and water-based hydraulic fluids, including fuels, mineral oils, glycol, and lubricating oils.

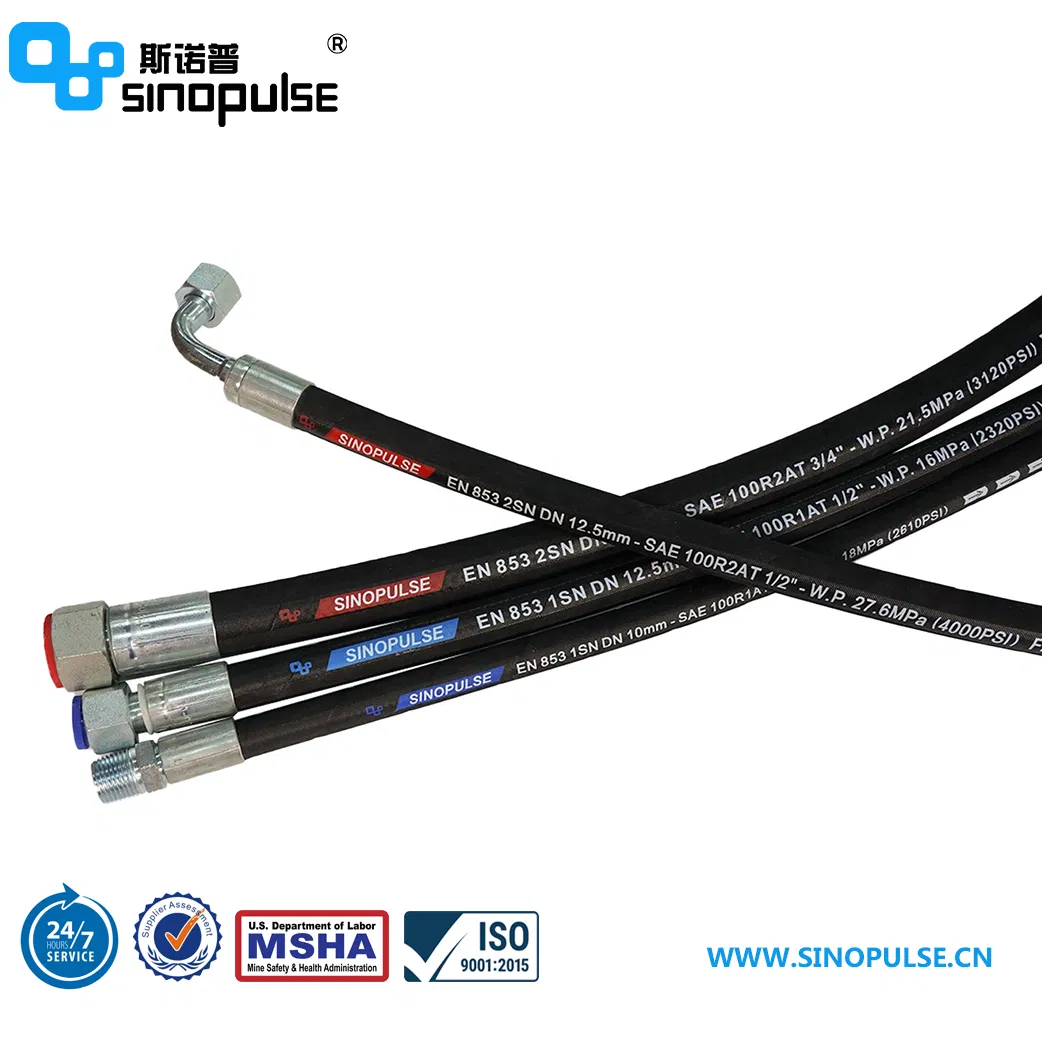

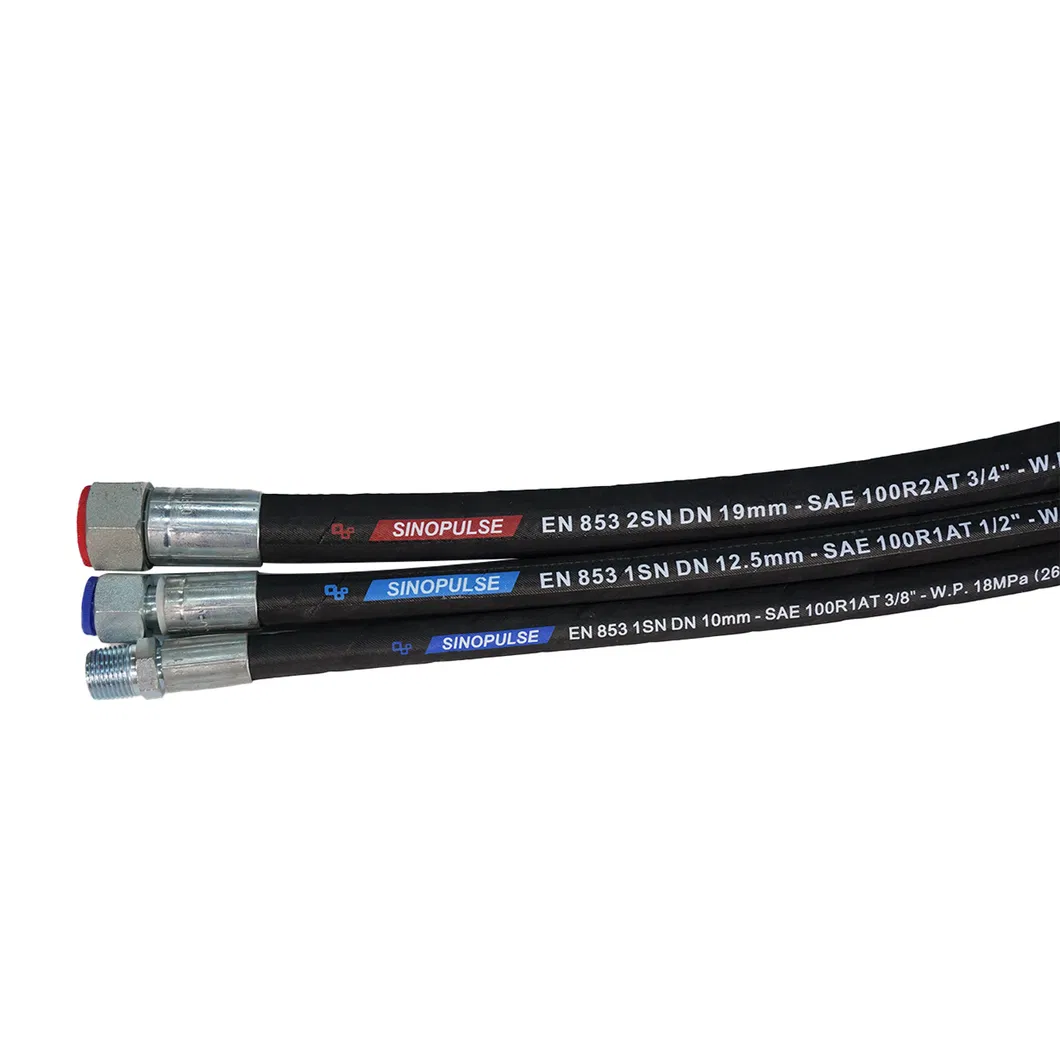

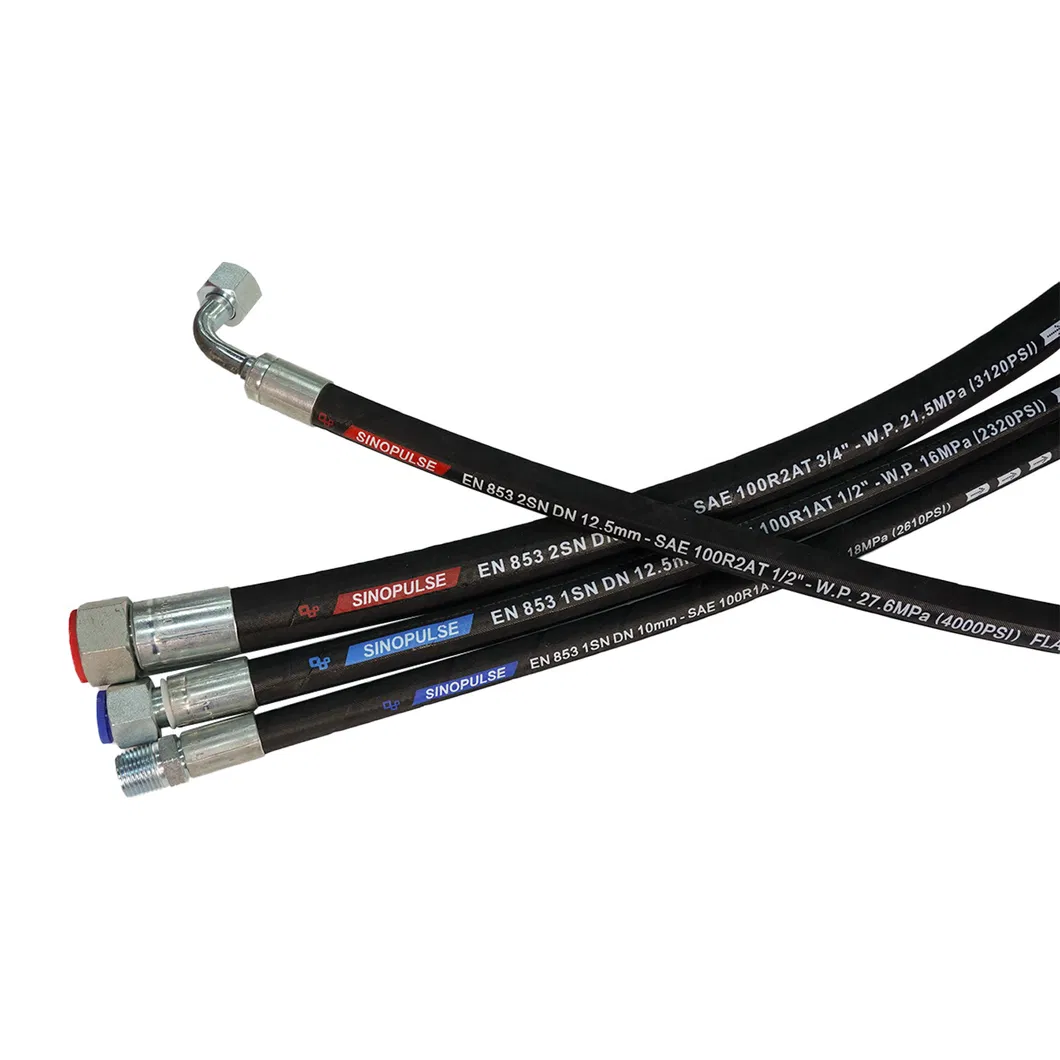

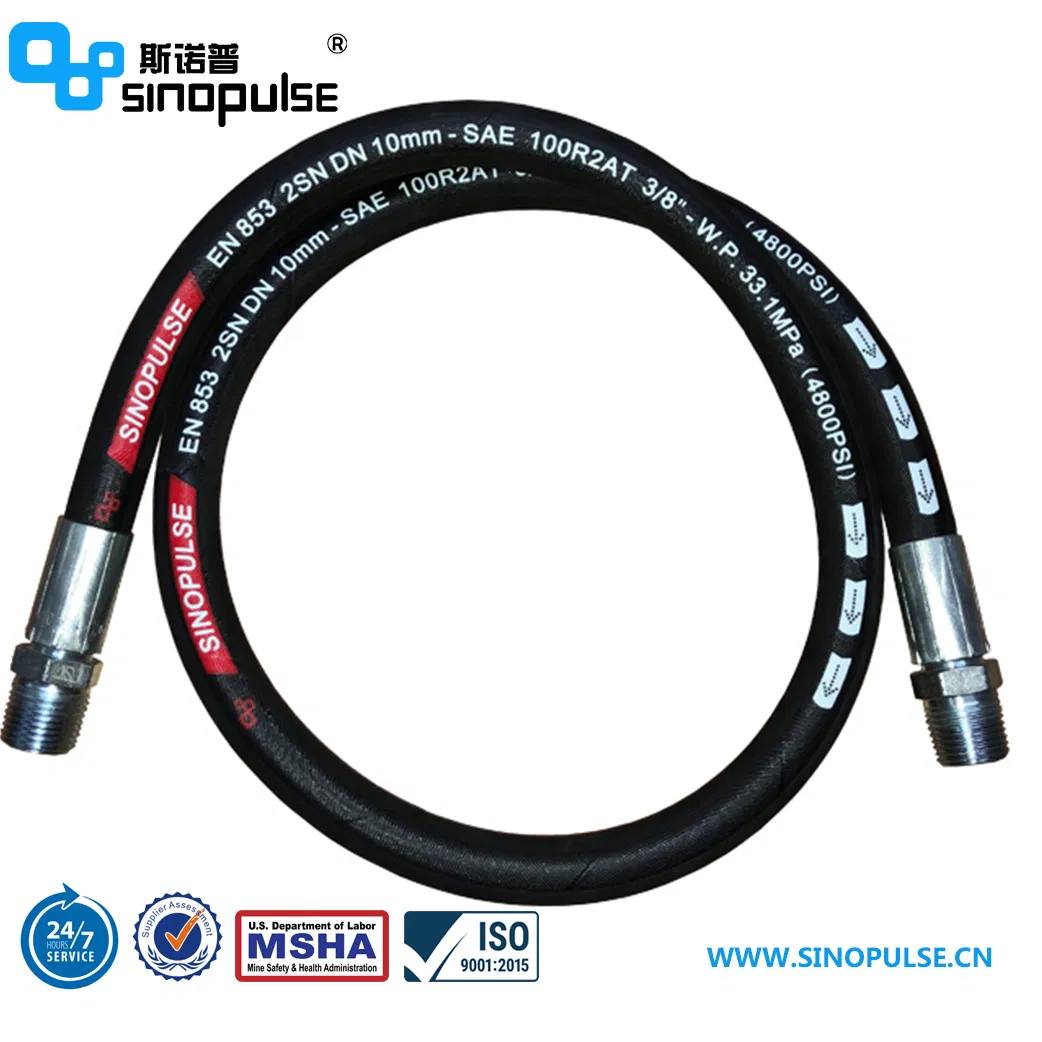

We also offer complete hydraulic assemblies. Our finished assemblies consist of specific lengths of hydraulic hose with pre-attached crimp fittings, allowing you to customize the hose type, length, and fittings to create the perfect solution for your project.
| Hose Type | I.D | O.D | W.P | B.P | MIN B.R | |||
|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | bar | psi | bar | psi | mm | |
| SNP-R2-3 | 4.8 | 3/16" | 13.4 | 415 | 6010 | 1650 | 23920 | 89 |
| SNP-R2--4 | 6.4 | 1/4" | 15.0 | 400 | 5800 | 1600 | 23200 | 100 |
| SNP-R2--5 | 7.9 | 5/16" | 16.5 | 350 | 5070 | 1400 | 20300 | 114 |
| SNP-R2--6 | 9.5 | 3/8" | 18.9 | 330 | 4780 | 1320 | 19140 | 127 |
| SNP-R2--8 | 12.7 | 1/2" | 22.2 | 275 | 3980 | 1100 | 15950 | 178 |
| SNP-R2-10 | 15.9 | 5/8" | 25.6 | 250 | 3620 | 1000 | 14500 | 200 |
| SNP-R2--12 | 19 | 3/4" | 29.3 | 215 | 3110 | 860 | 12470 | 240 |
| SNP-R2--16 | 25.4 | 1" | 37.8 | 165 | 2390 | 650 | 9420 | 300 |
| SNP-R2--20 | 31.8 | 1.1/4" | 44.3 | 125 | 1810 | 500 | 7250 | 419 |
| SNP-R2--24 | 38.1 | 1.1/2" | 50.3 | 90 | 1300 | 360 | 5220 | 500 |
| SNP-R2--32 | 50.8 | 2" | 63.8 | 80 | 1160 | 320 | 4640 | 630 |
