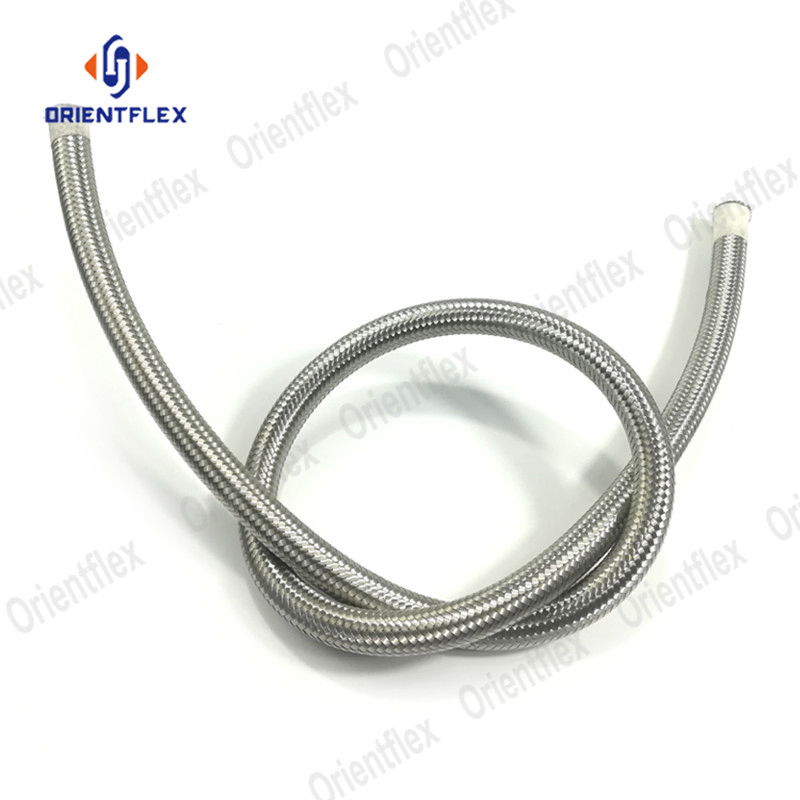

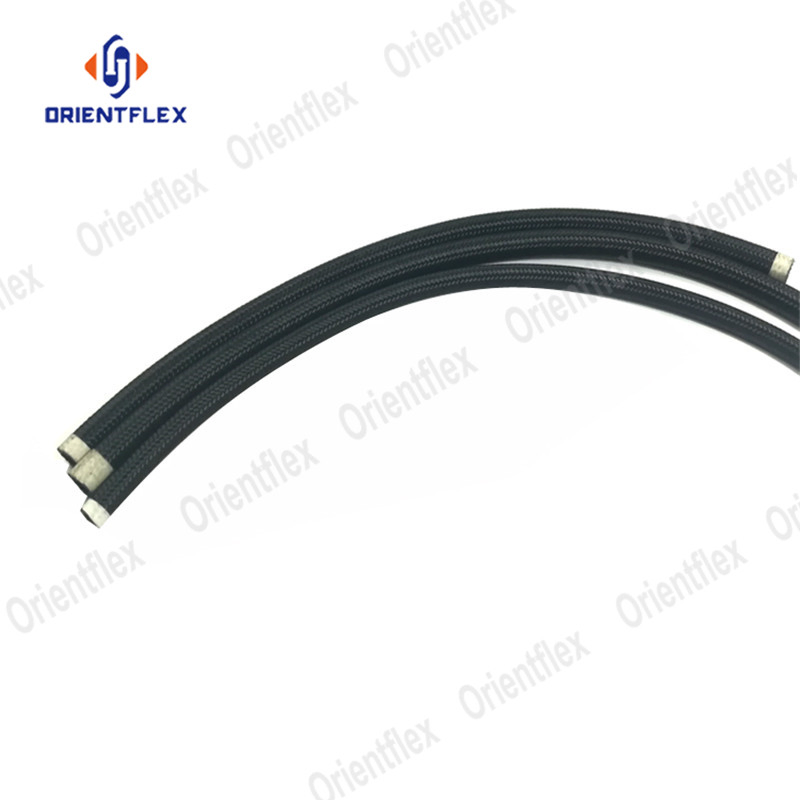

Transmission Rubber Oil Coolant Line Hose

1 / 5

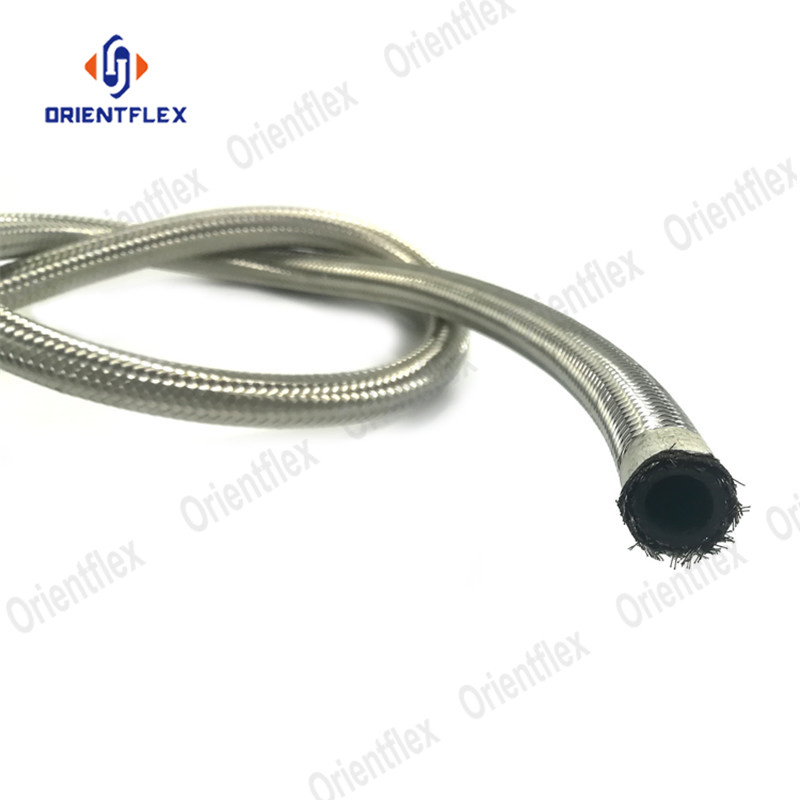

Transmission Rubber Oil Coolant Line Hose

Customization:	Available
Material:	Synthetic Rubber
Capability:	Transmission Fluid Systems

Send Inquiry

Product Description

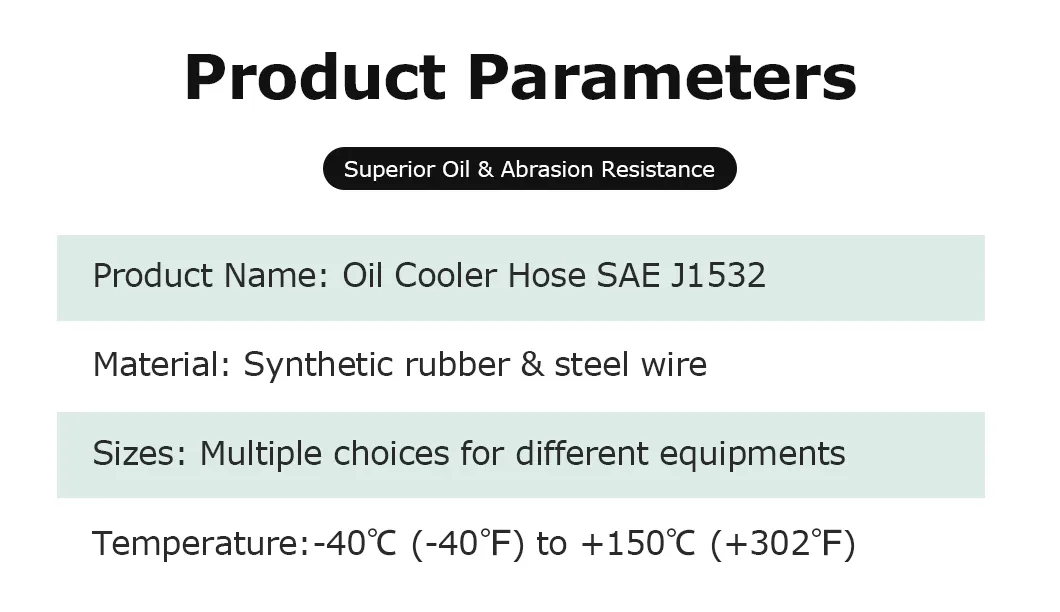

Basic Specifications

Model NO.:SAE J1532

Product Name:Oil Cooler Hose SAE J1532

Color:Black

Tube Material:Synthetic Rubber

Reinforcement:Braided, High-Tensile Steel Wire

Cover Material:Synthetic Rubber

Working Pressure:5.2/7 MPa

Burst Pressure:17.5-42 MPa

Characteristic:Oil Resistance

Feature:Corrosion Resistance

Specification:5.56mm-28.5mm

Capacity:500000 Meters Per Month

Product Description

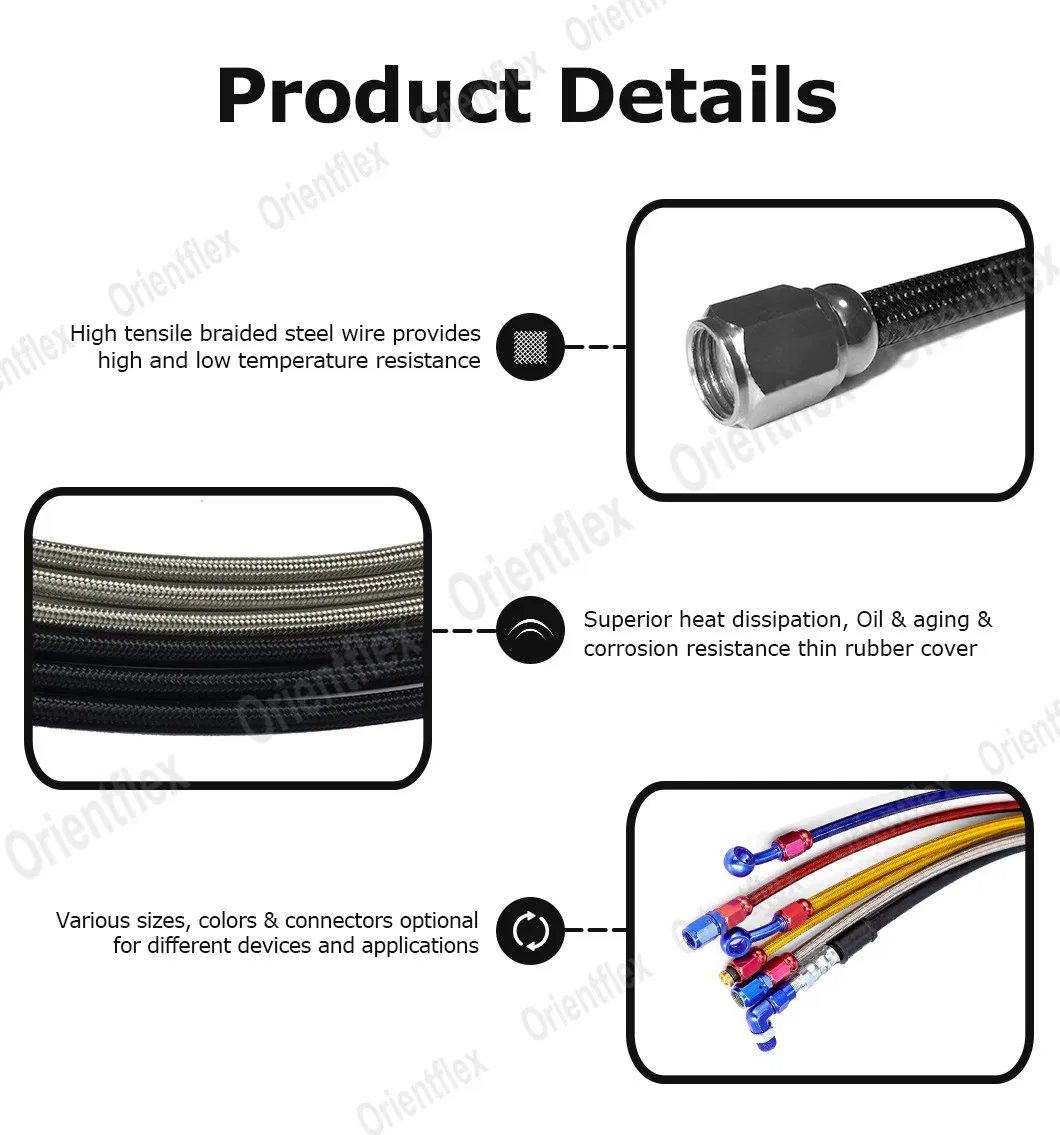

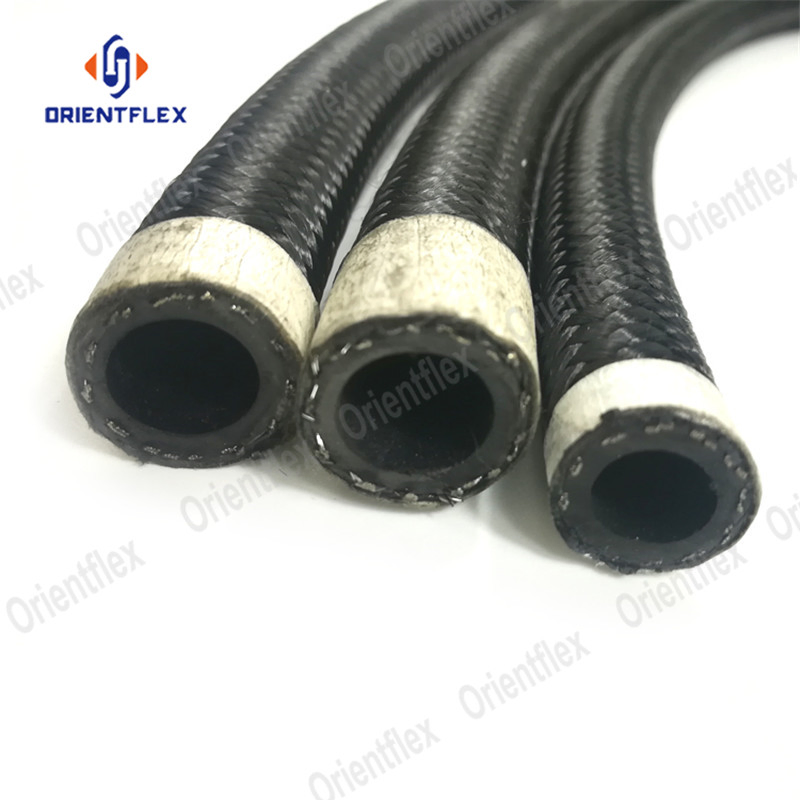

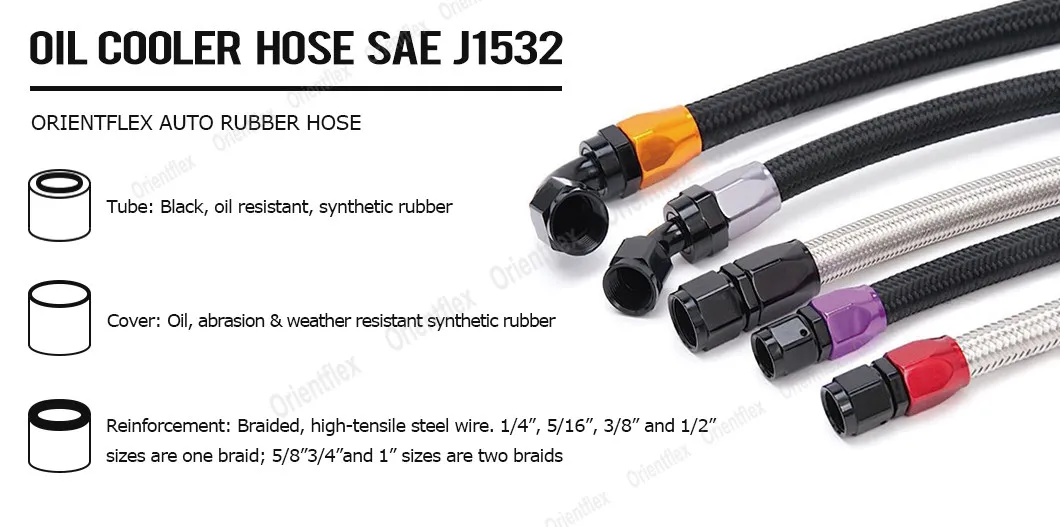

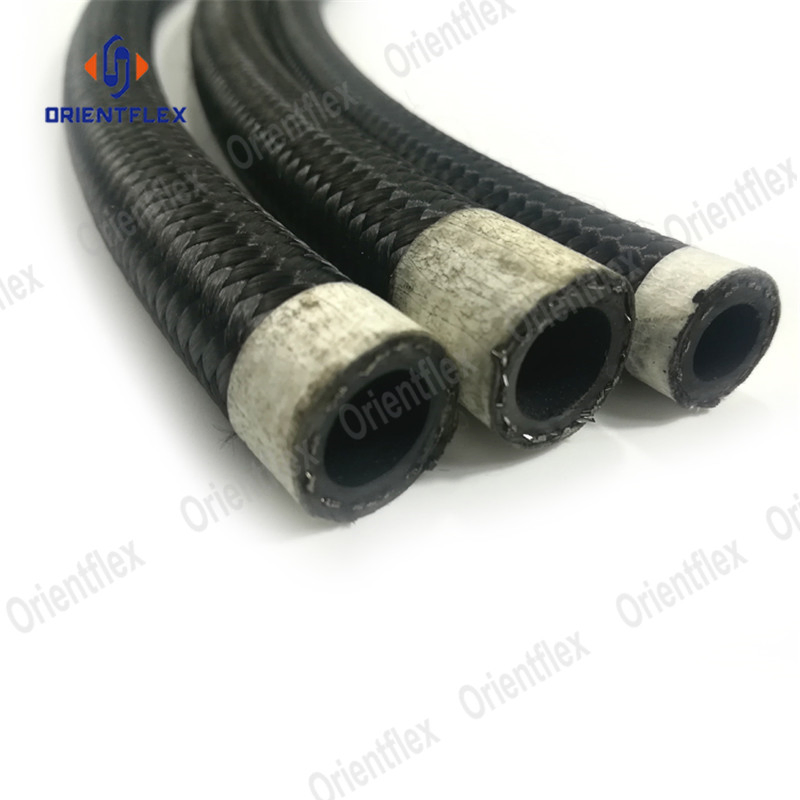

🏗️ Construction:
• Tube: Black, oil resistant, synthetic rubber.
• Reinforcement: Braided, high-tensile steel wire. 1/4", 5/16", 3/8" and 1/2" sizes are one braid; 5/8", 3/4" and 1" sizes are two braids.
• Cover: Black, oil, abrasion and weather resistant, thin synthetic rubber.

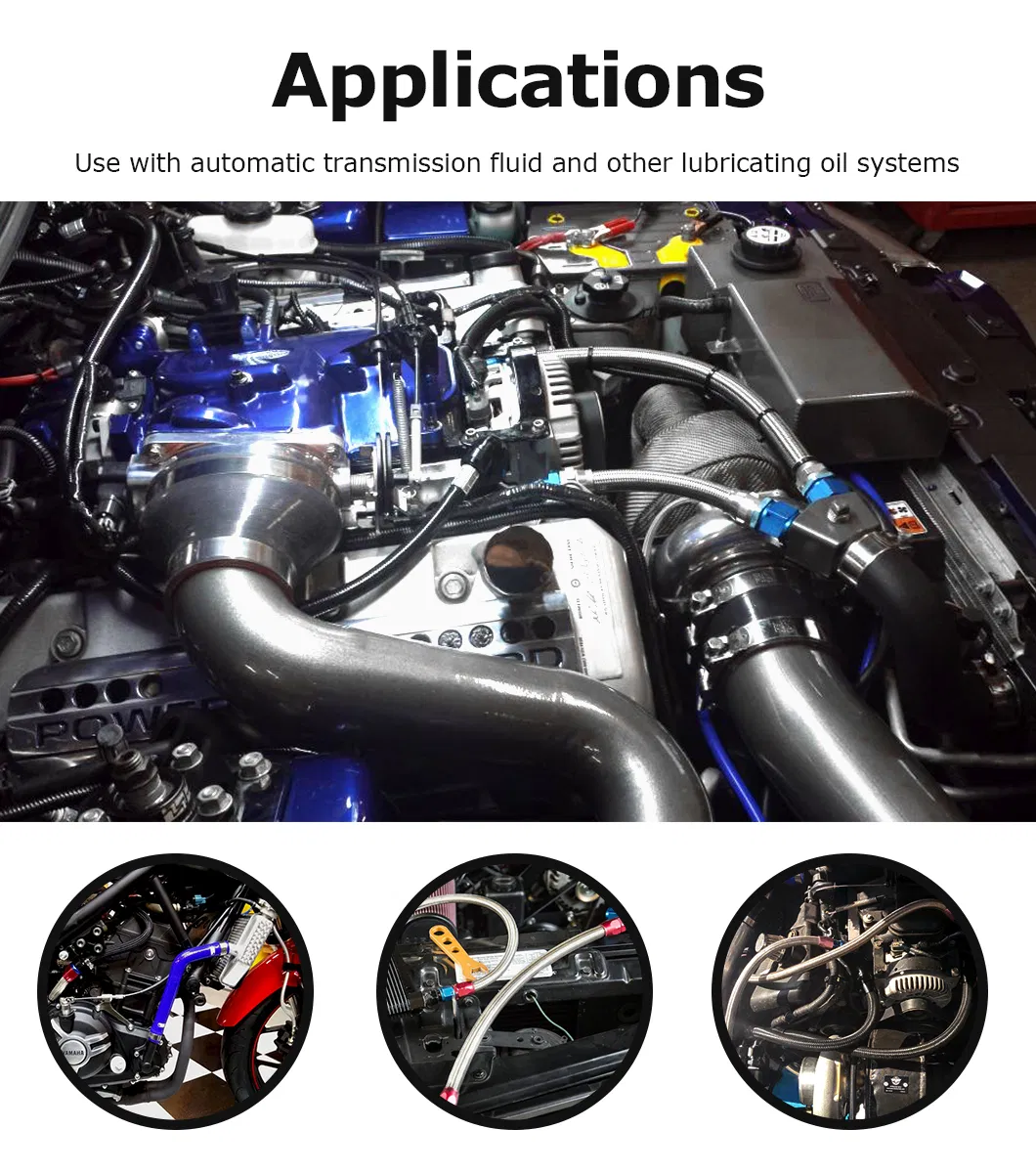

⚙️ Application:
Designed for use with automatic transmission fluid and other lubricating oil systems.

Key Characteristics

✅ Oil Resistance

✅ Aging Resistance

✅ Corrosion Resistance

✅ Superior Heat Dissipation

✅ High/Low Temp Resistance

🌡️ Temperature Range: -104 ºF to + 302 ºF (-40ºC to + 150 ºC)

Item Code	I.D (mm)	O.D (mm)	W.P (Mpa)	B.P (Mpa)
An04	5.56	11.13	7	42
An06	8.73	13.89	7	42
An08	11.12	16.28	7	35
An10	14.27	20.24	7	35
An12	17.47	23.82	7	26.3
An16	22.22	29.96	5.2	17.5
An20	28.5	35.81	5.2	17.5

Frequently Asked Questions

1. What standard does this oil cooler hose follow?

The hose is manufactured according to the SAE J1532 standard, ensuring high quality for automotive oil systems.

2. What is the working temperature range?

It can operate effectively in temperatures ranging from -40ºC to +150 ºC (-104 ºF to +302 ºF).

3. What types of fluids is this hose compatible with?

It is specifically designed for automatic transmission fluids and various lubricating oil systems.

4. How is the hose reinforced?

The reinforcement consists of braided, high-tensile steel wire. Smaller sizes use one braid, while larger sizes (5/8" and above) feature two braids for added strength.

5. Is the hose resistant to environmental factors?

Yes, the synthetic rubber cover is specially formulated to be resistant to oil, abrasion, and weather conditions.

6. What are the main characteristics of SAE J1532 hose?

The primary characteristics include excellent oil resistance, aging resistance, corrosion resistance, and superior heat dissipation.
