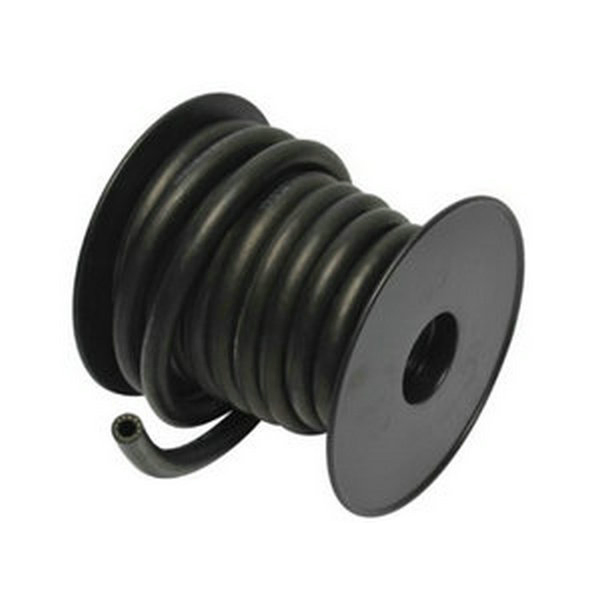

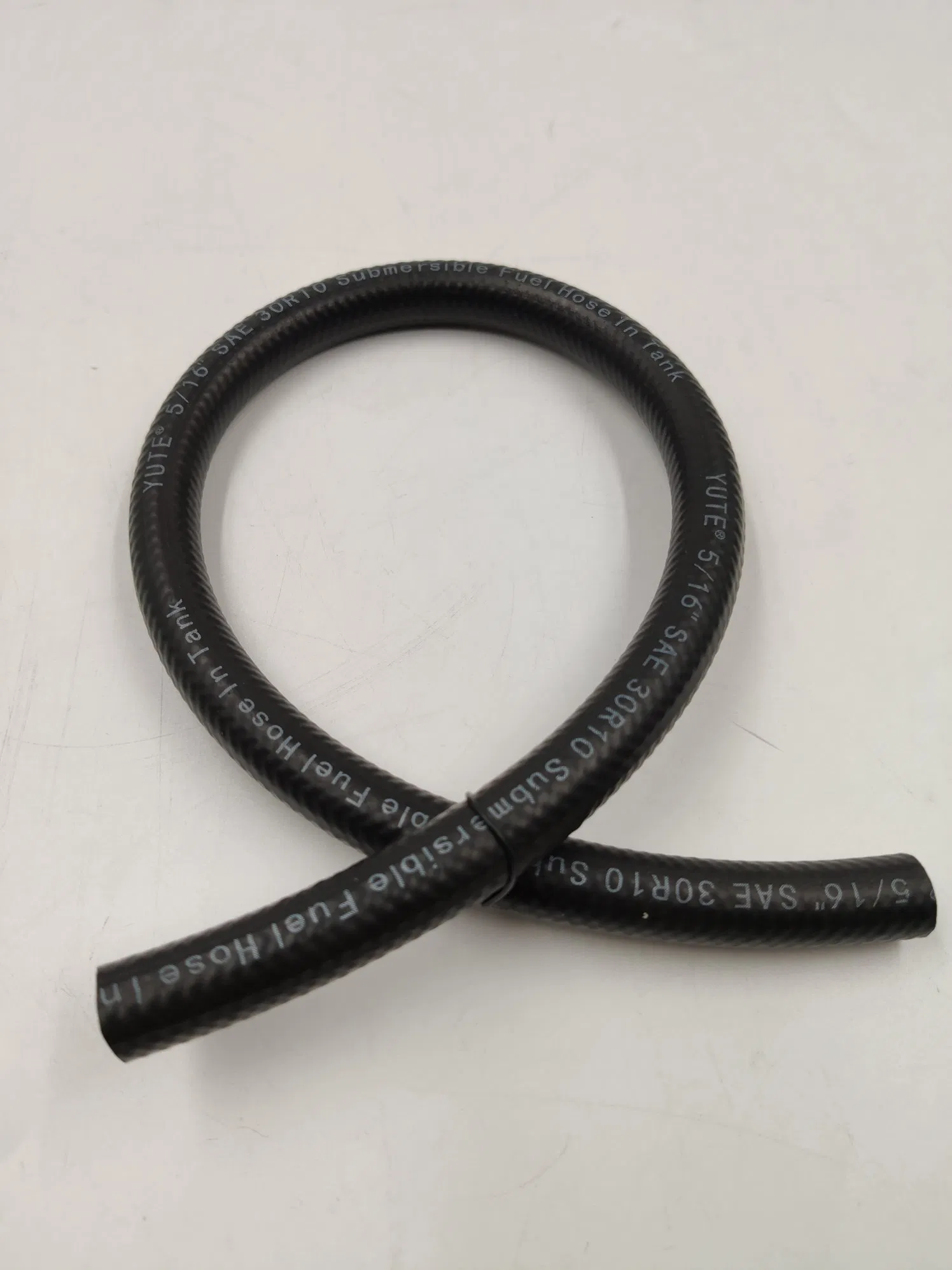

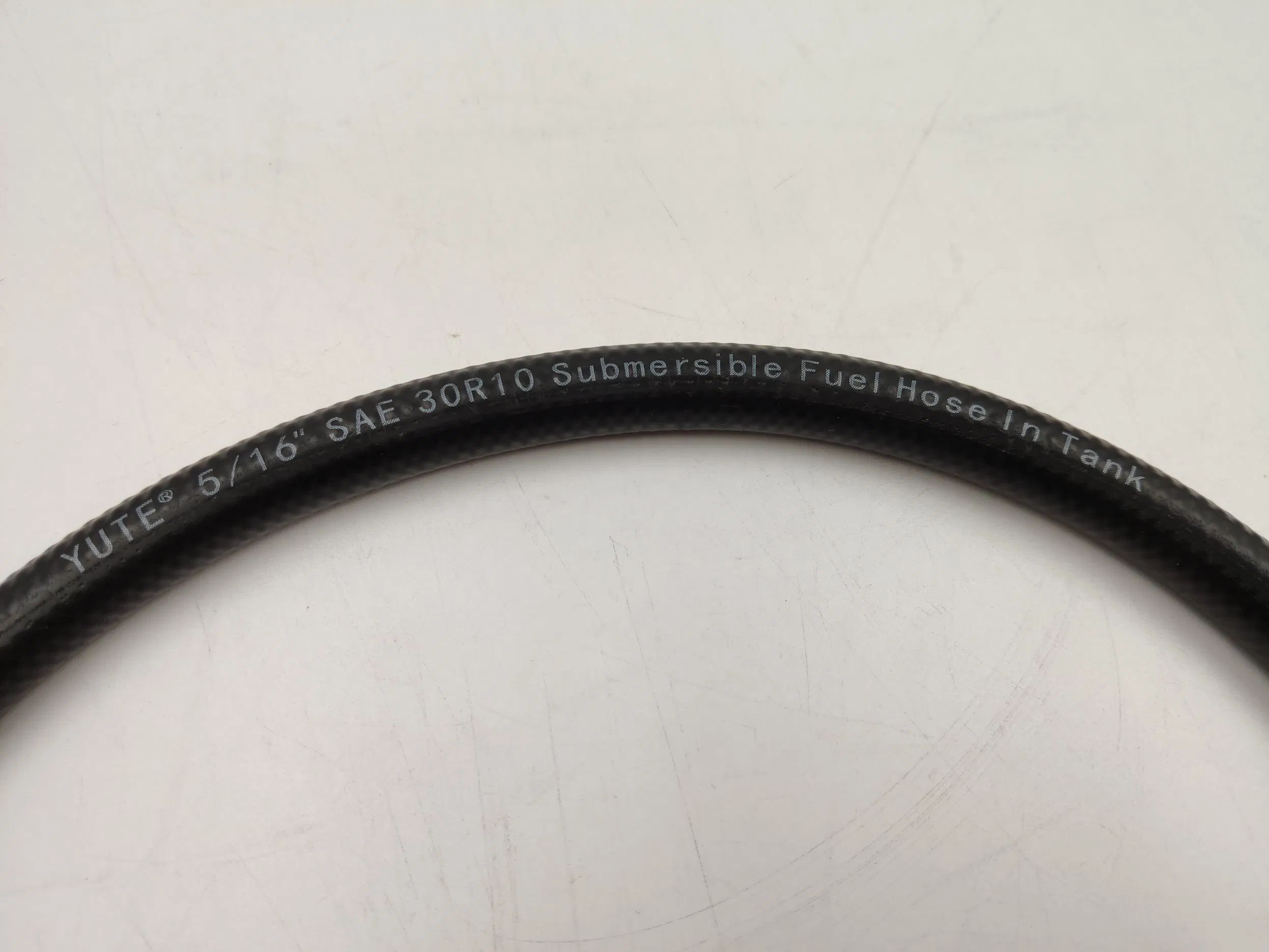

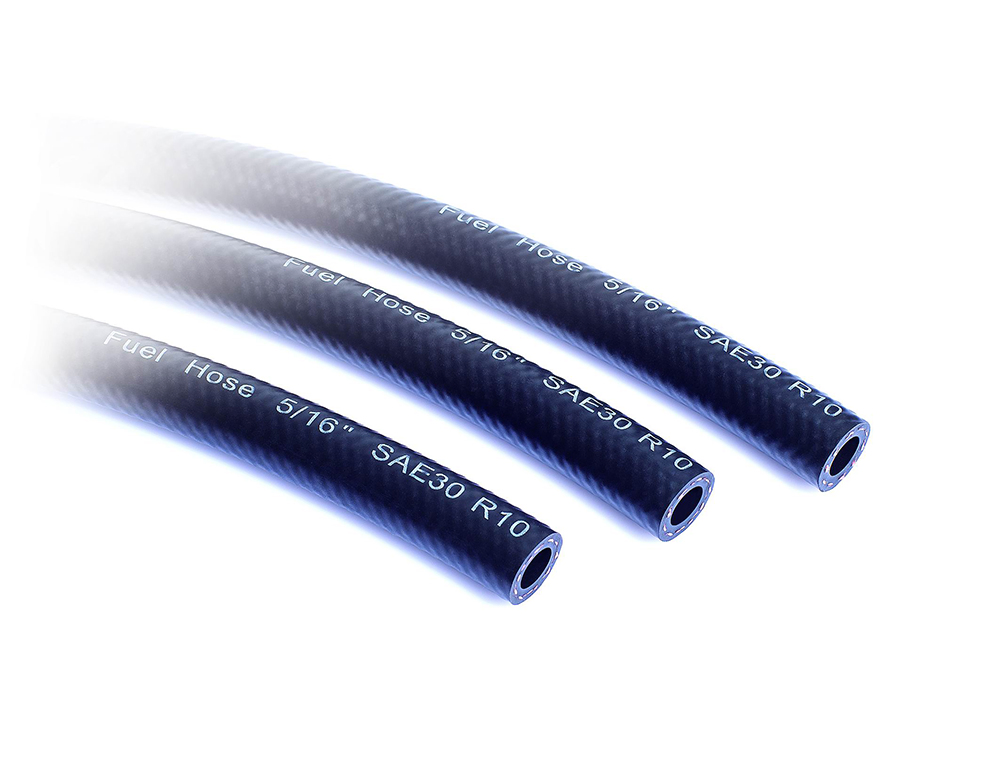

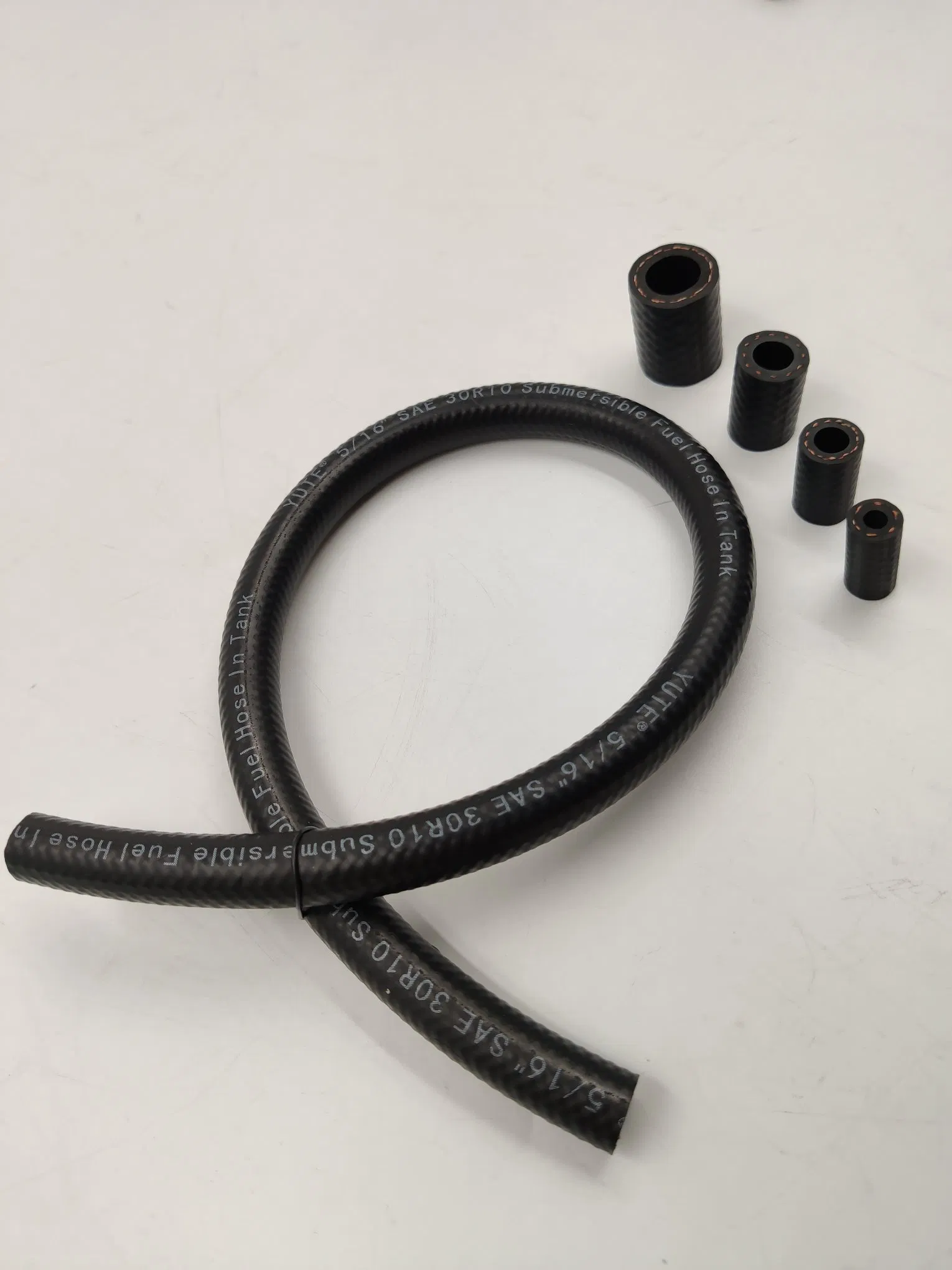

Applications: The hose is capable of handling gasoline, alcohol-extended gasoline or diesel fuel, or for use in fuel injection systems where the hose may be submerged in the fuel tank.
Construction Details:
| NO | I.D | Refer to O.D | Working Pressure | Burst Pressure | Approx. Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | MPa | Psi | MPa | Psi | kg/m | lbs/ft | |
| 1 | 1/8 | 3.2±0.2 | 0.35 | 9±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.078 | 0.12 |
| 2 | 5/32 | 4±0.2 | 0.4 | 10±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.092 | 0.14 |
| 3 | 3/16 | 4.8±0.2 | 0.43 | 11±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.108 | 0.16 |
| 4 | 1/4 | 6.3±0.3 | 0.5 | 12.7±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.134 | 0.2 |
| 5 | 5/16 | 8.0±0.3 | 0.56 | 14±0.3 | 2.06 | 300 | 8.27 | 1200 | 0.147 | 0.22 |
| 6 | 3/8 | 9.5±0.3 | 0.63 | 16±0.4 | 2.06 | 300 | 8.27 | 1200 | 0.182 | 0.27 |
| 7 | 15/32 | 12±0.3 | 0.75 | 19±0.5 | 2.06 | 300 | 8.27 | 1200 | 0.238 | 0.35 |
| 8 | 1/2 | 12.7±0.4 | 0.78 | 20±0.5 | 2.06 | 300 | 8.27 | 1200 | 0.262 | 0.39 |
| 9 | 5/8 | 16±0.4 | 0.94 | 24±0.5 | 1.03 | 150 | 4.12 | 600 | 0.351 | 0.52 |
| 10 | 3/4 | 19±0.4 | 1.13 | 28.8±0.5 | 1.03 | 150 | 4.12 | 600 | 0.515 | 0.77 |
| 11 | 1 | 25.4±0.5 | 1.38 | 35±0.6 | 1.03 | 150 | 4.12 | 600 | 0.637 | 0.95 |

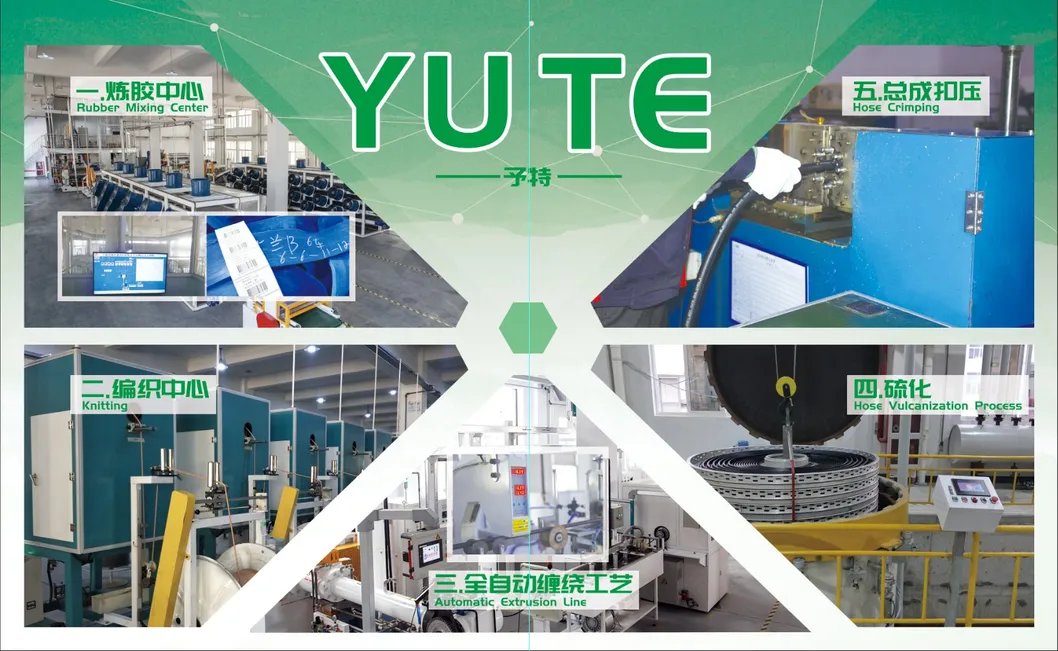

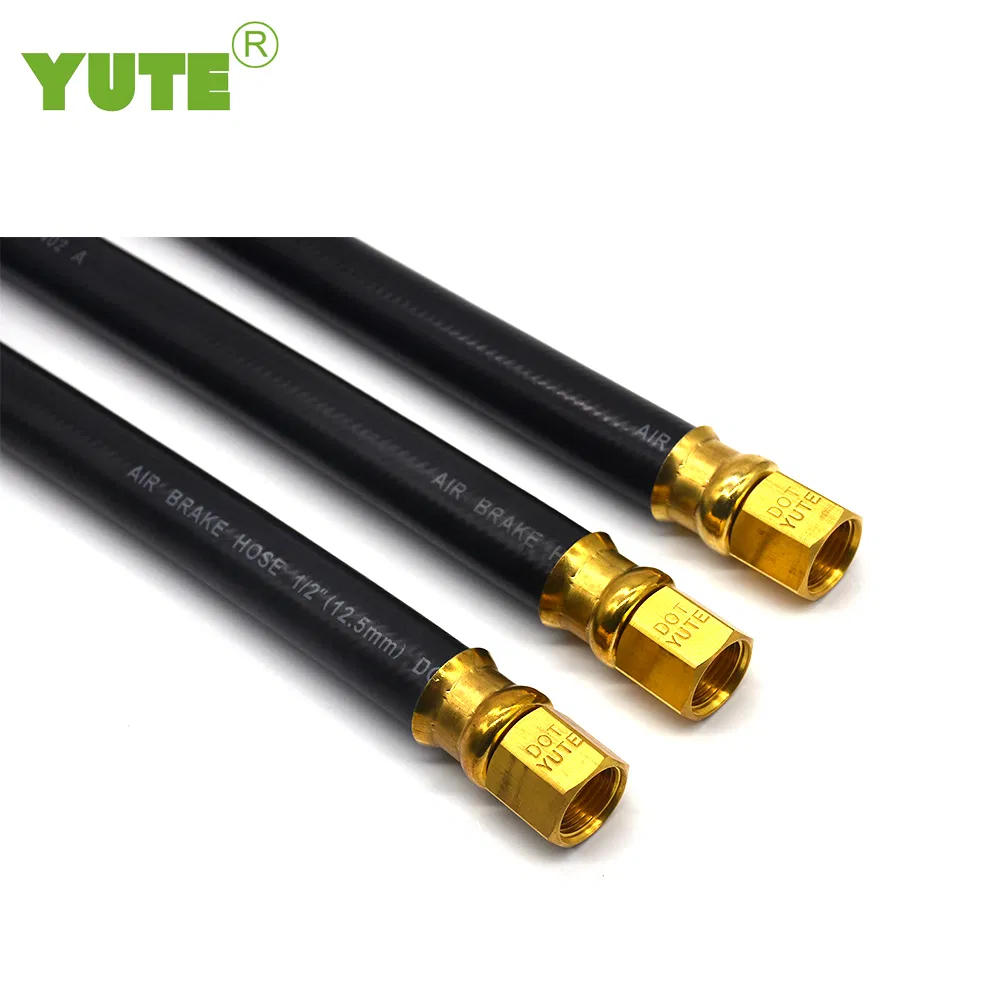

We are a national high-tech enterprise specializing in rubber hose manufacturing and exporting. Our product range includes Air Brake Hoses, Hydraulic Brake Hoses, Fuel Hoses, Radiator Hoses, and more, widely used in the Automotive and AC Refrigeration industries.

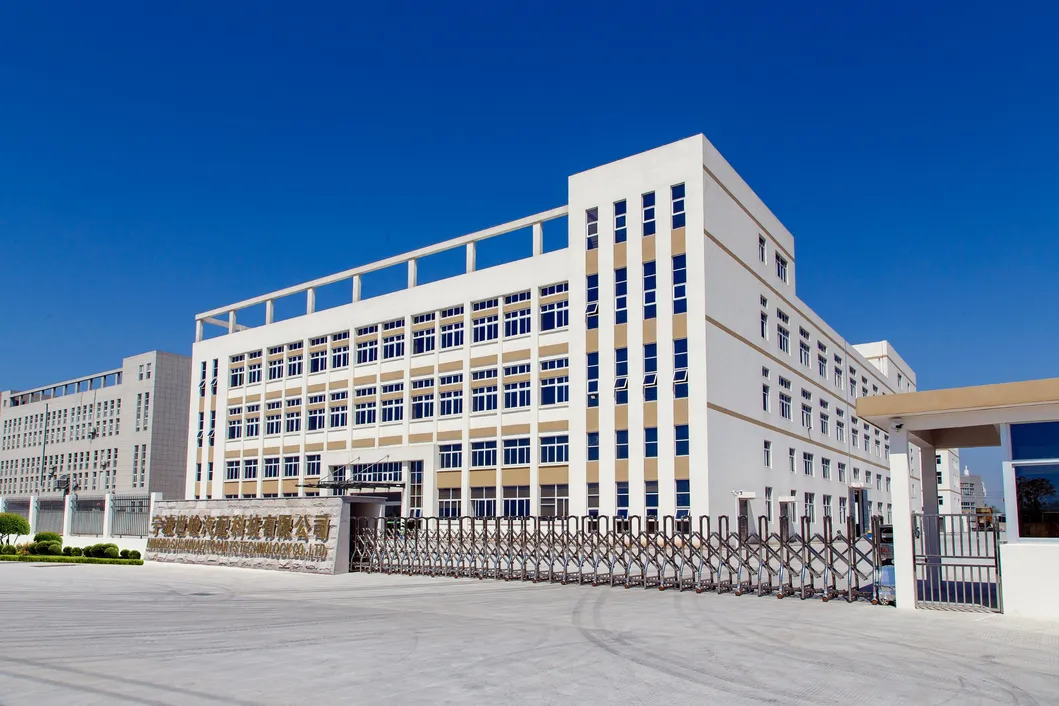

Our facility has passed the IATF 16949 quality management system, ensuring all production processes strictly follow quality control procedures.
