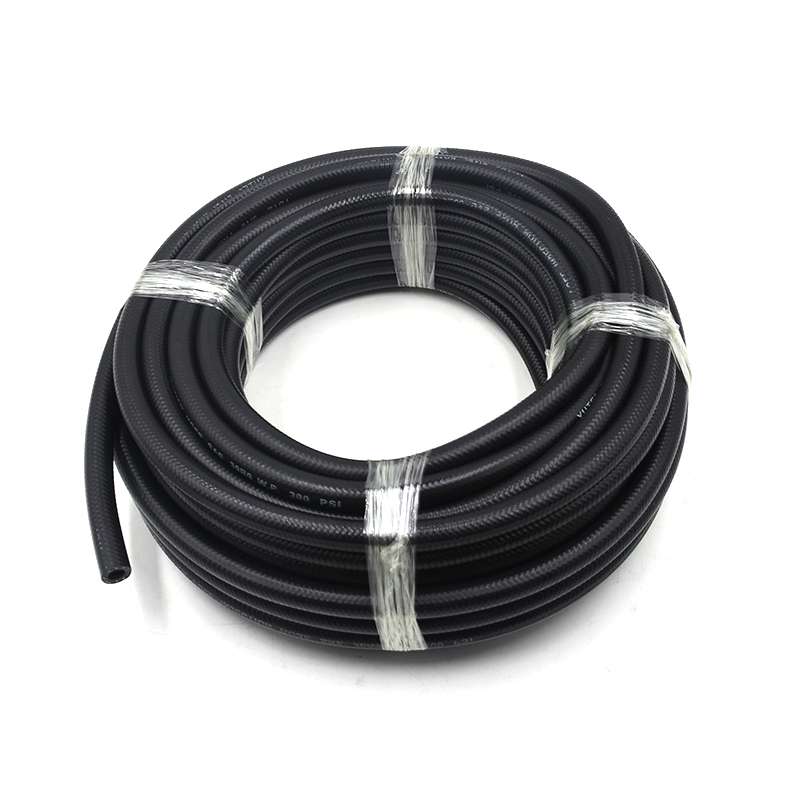

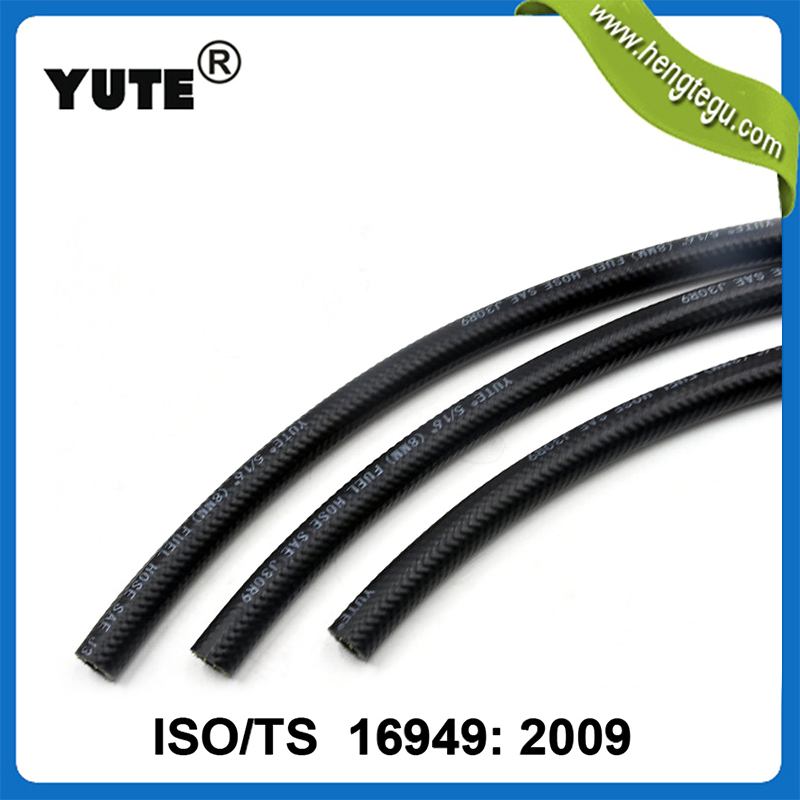

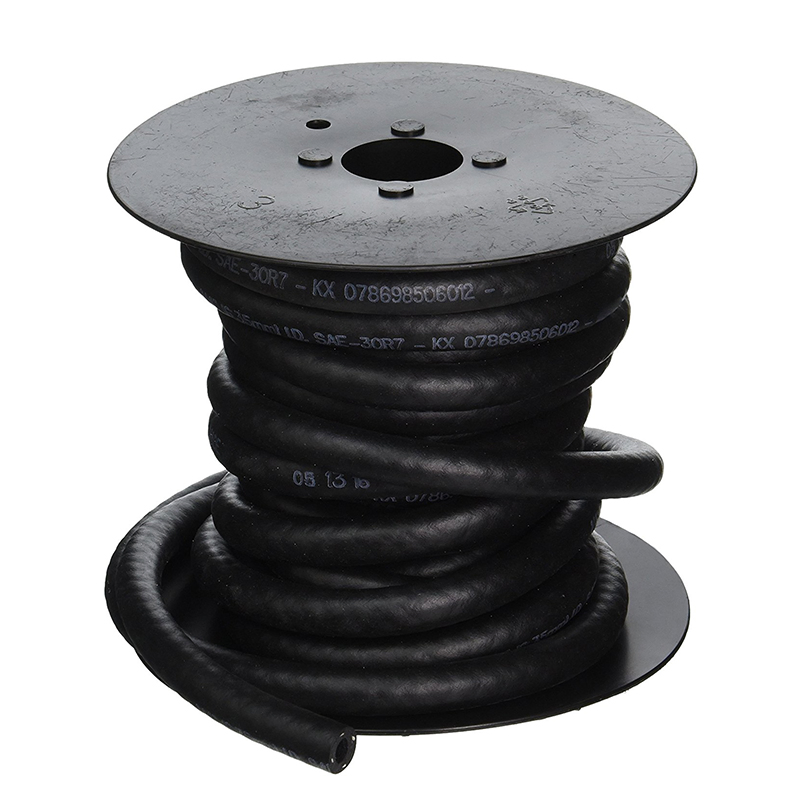

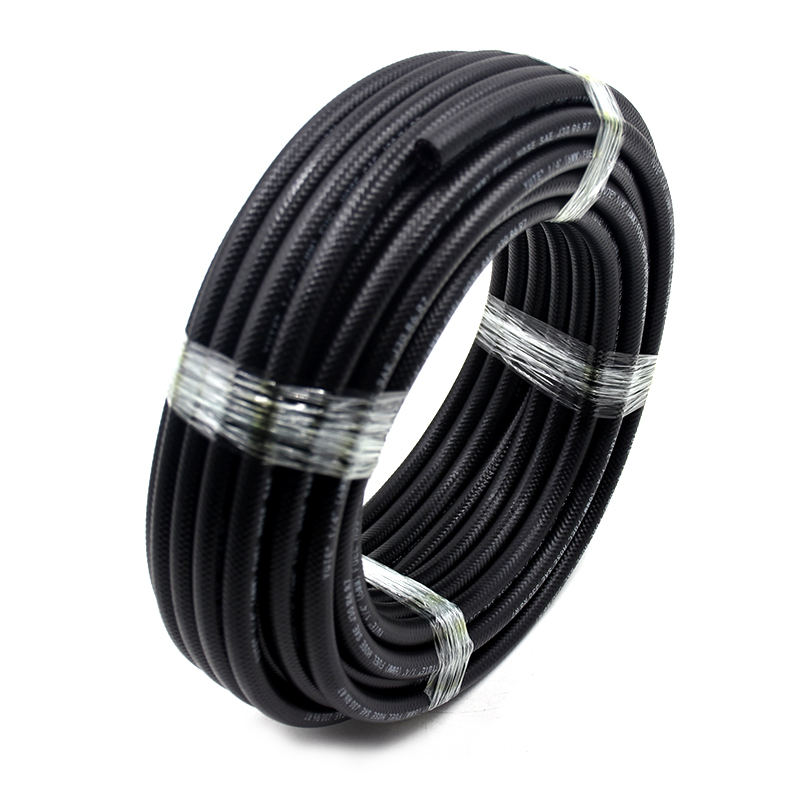

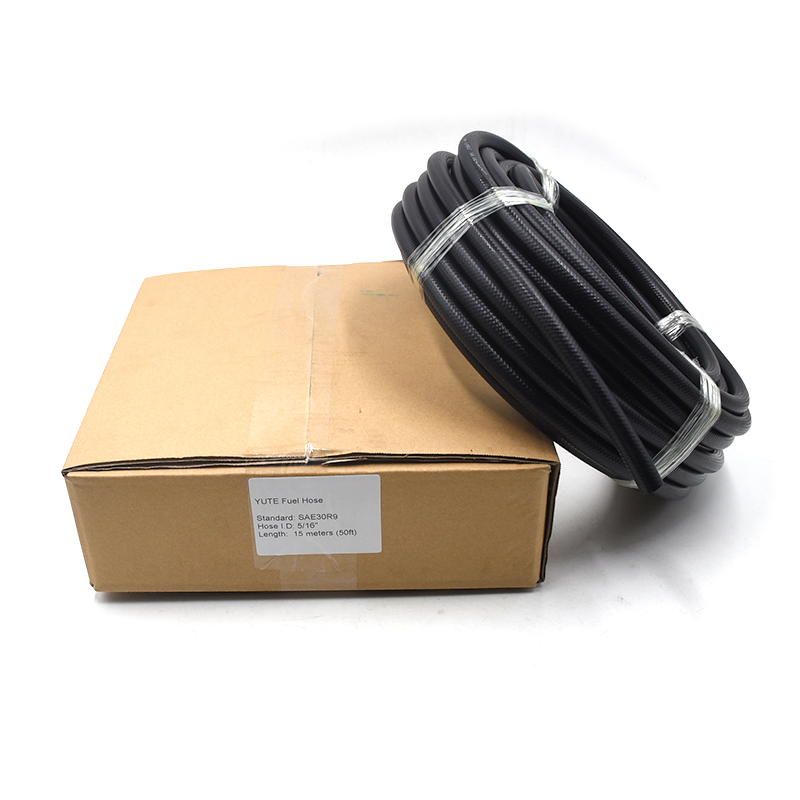

Yute SAE J30r9 Fuel Injection Hose 5/16"

1 / 5

Yute SAE J30r9 Fuel Injection Hose 5/16"

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

🔵 Basic Information

Model NO.

5/16"

Color

Black

Standard

SAE J30r9

Size Range

1/4"; 5/16"; 3/8"

Cylinder

Multi-Cylinder

Carburettor Type

Downdraft

Working Pressure

300p.S.I

Burst Pressure

900p.S.I

Temperature Range

-40~135 Degree Centigrade

Aging Time

72 H

HS Code

4009420000

Production Capacity

30000 Meters Per Day

📦 Packaging & Delivery

Package Size

20.00cm * 20.00cm * 5.00cm

Gross Weight

5.000kg

Transport Package

Carton

📝 Product Description

Applications:

Designed specially for auto and truck fuel injection systems.
Compatible with gasoline, diesel, bio-diesel, E-85, methanol, ethanol, ethanol extended gasoline, and gasohol fuels.
Temperature rating: -40° F to 275° F (-40° C to 135° C).
Meets SAE 30R9 specification.

Note: Do not submerse in gasoline.

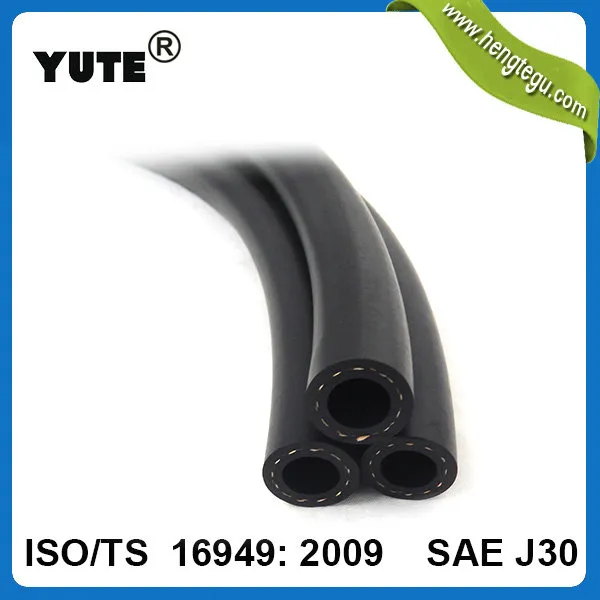

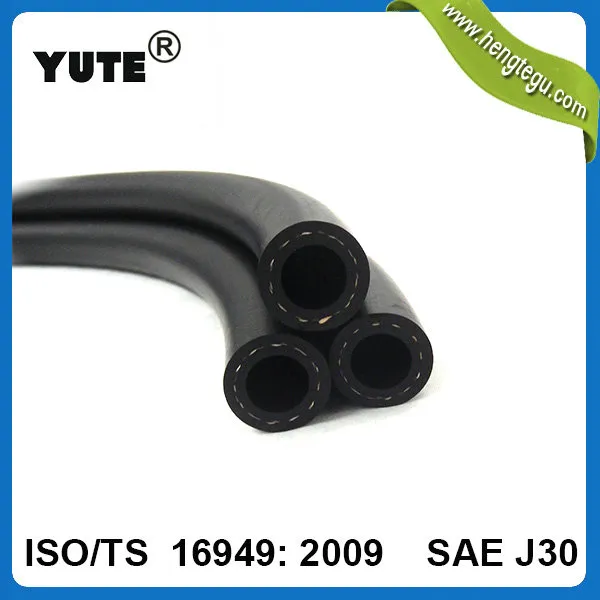

Construction:

Tube: FKM
Buffer: ECO / CSM
Reinforcement: Aramid Spiral
Cover: ECO / CSM

📊 Size & Technical Data

Part NO.	I.D		O.D		Working Pressure		Burst Pressure
Part NO.	inch	mm	inch	mm	PSI	MPa	PSI	MPa
6001	1/8	3.2	0.35	9	225	1.55	900	6.2
6003	3/16	5	0.43	11	225	1.55	900	6.2
6005	1/4	6	0.5	13	225	1.55	900	6.2
6007	5/16	8	0.6	14	225	1.55	900	6.2
6009	3/8	9.5	0.63	16	225	1.55	900	6.2
6011	1/2	12.7	0.8	20	225	1.55	900	6.2
6013	5/8	15.9	24	0.95	225	1.55	900	6.2
6015	3/4	19	28	1.1	225	1.55	900	6.2
6017	1	25.4	30	1.2	225	1.55	900	6.2

🛠 Service Support

OEM Manufacturing

Sample Orders Accepted

12-Hour Inquiry Reply

Shipping Tracking

Testing & Feedback Support

❓ Frequently Asked Questions

What is your terms of packing?

Generally, we pack our goods in neutral PVC film and brown cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

What is your terms of payment?

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

What is your terms of delivery?

FOB, CIF, EXW, CFR, DDU.

How about your delivery time?

Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings.

Do you test all your goods before delivery?

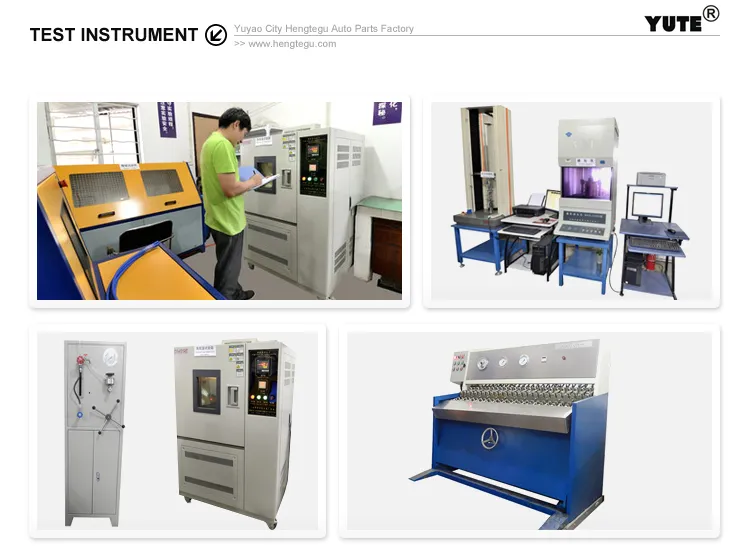

Yes, we have 100% test before delivery to ensure quality standards.
