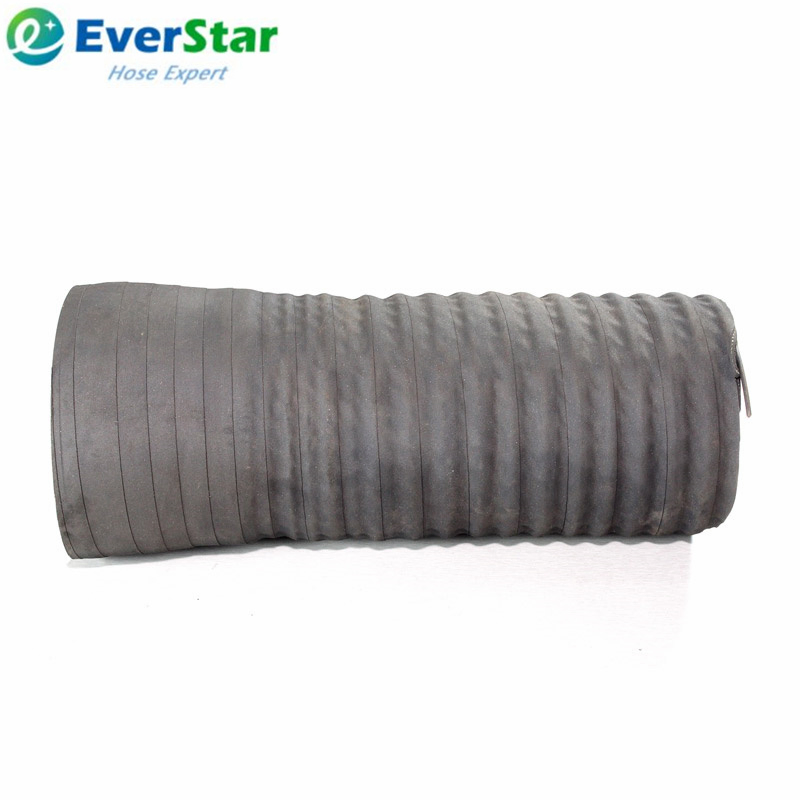

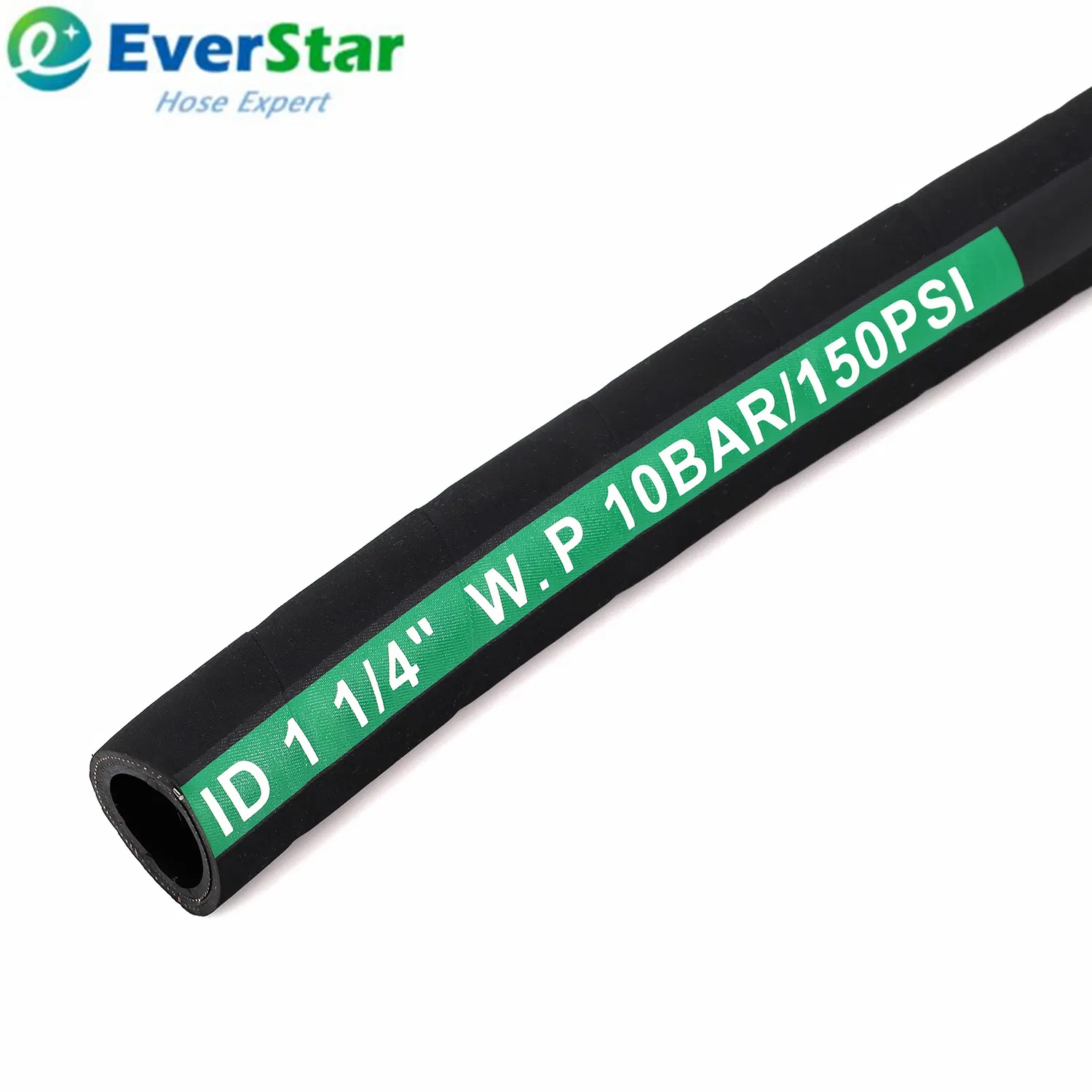

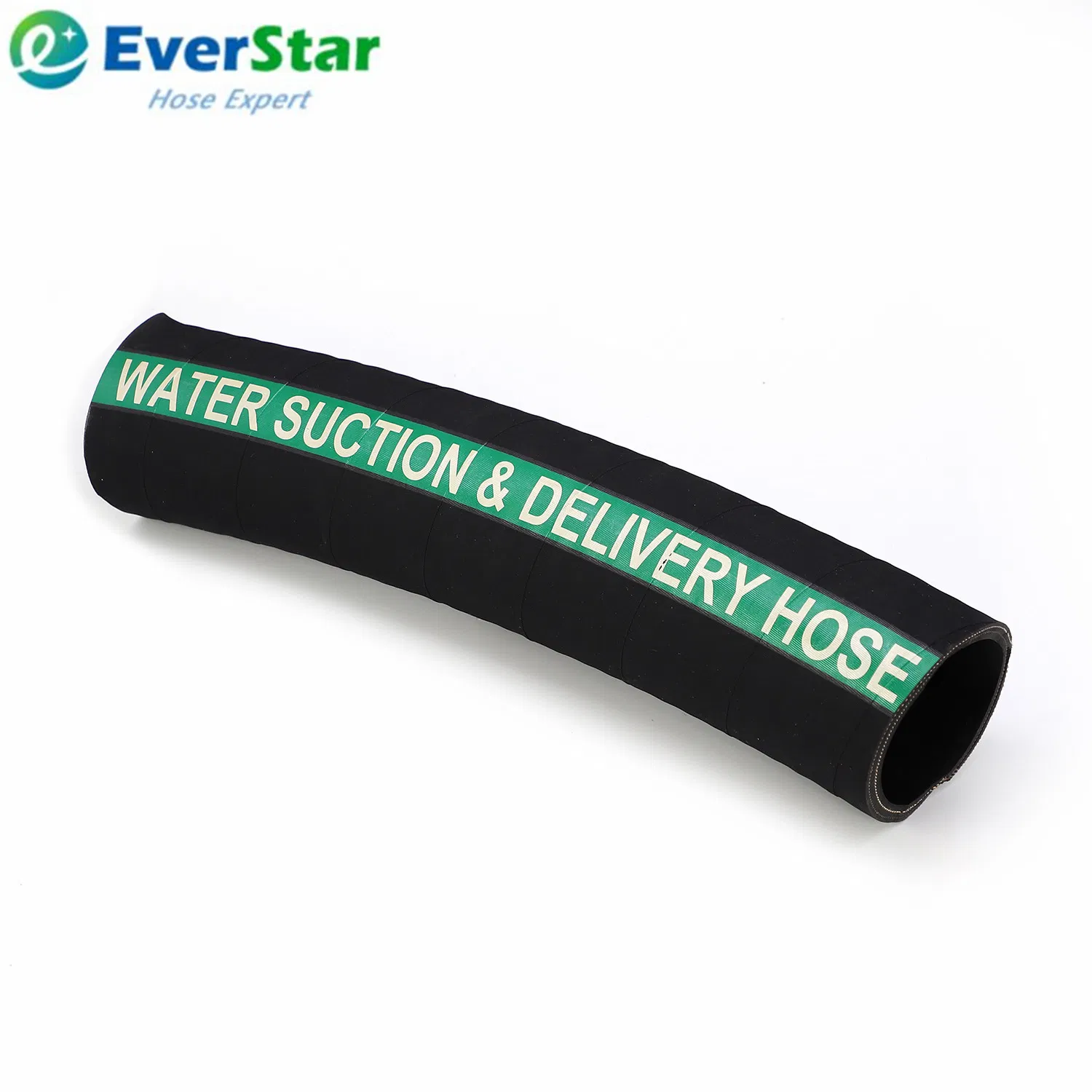

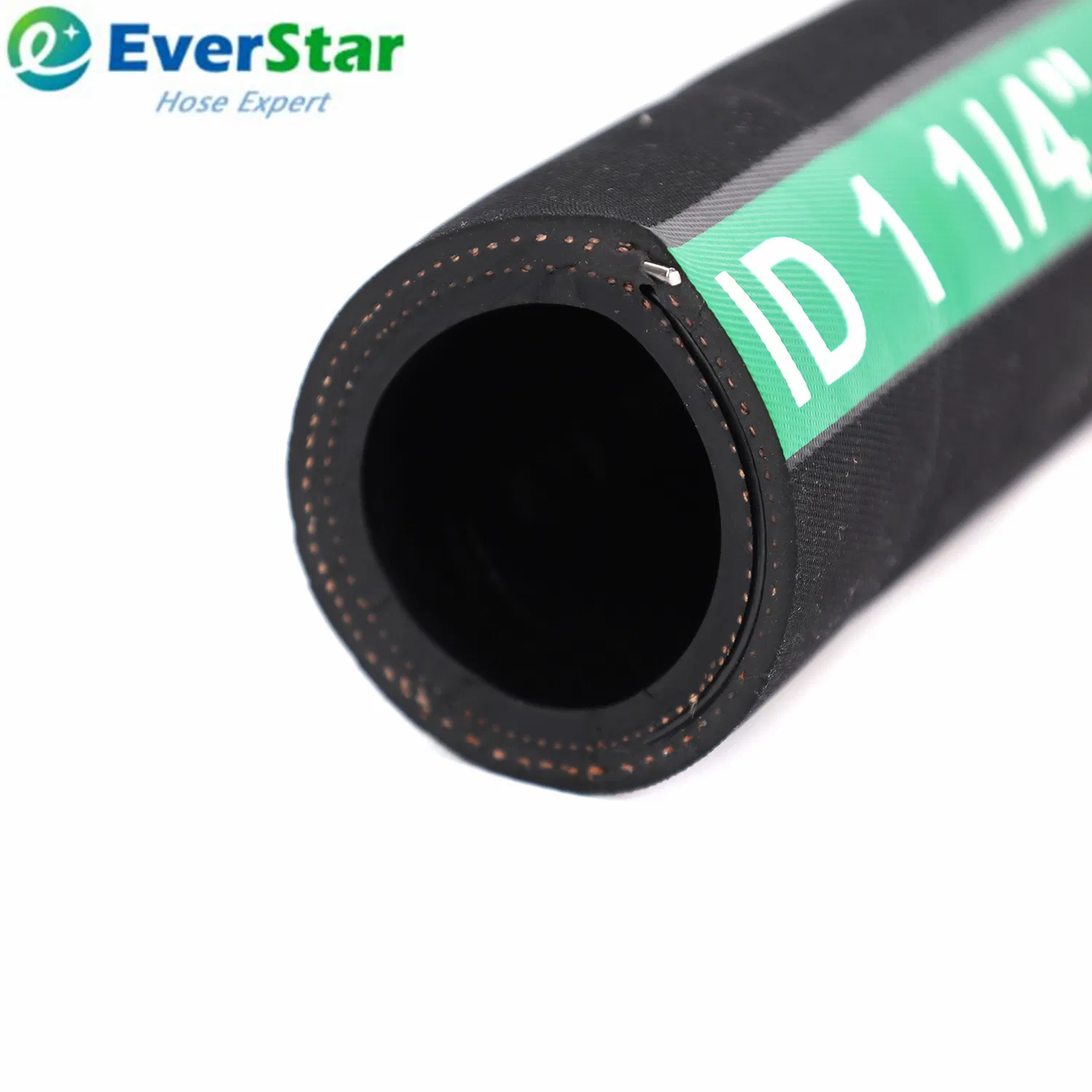

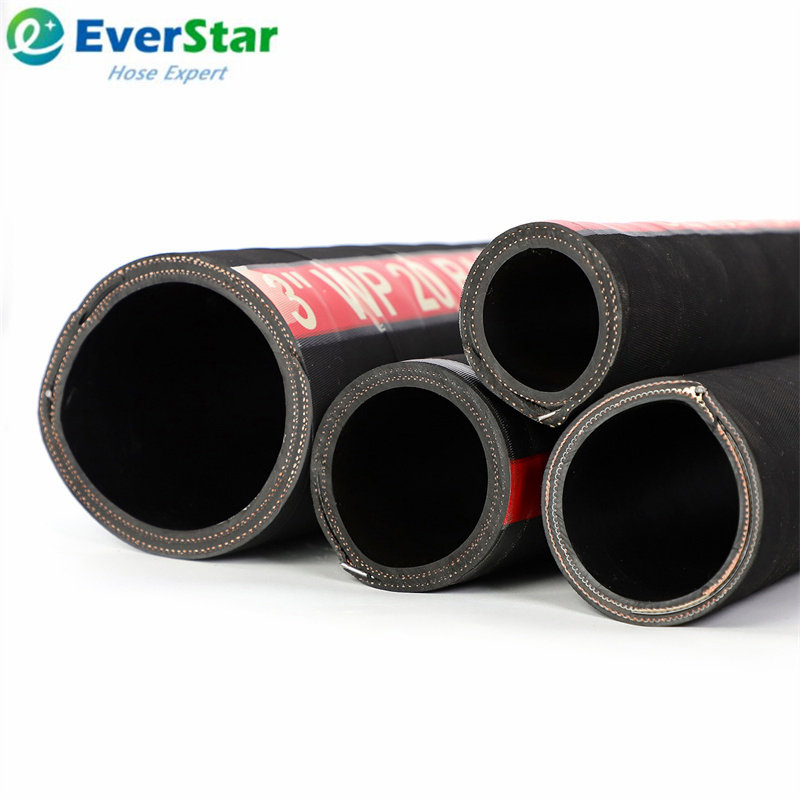

10 Inch 8 Inch Flexible Suction Delivery/Discharge Industrial Water Pump Rubber Hose

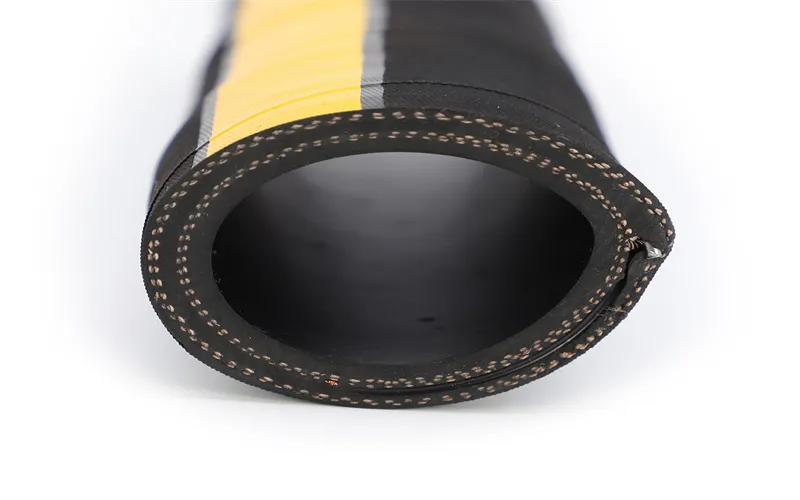

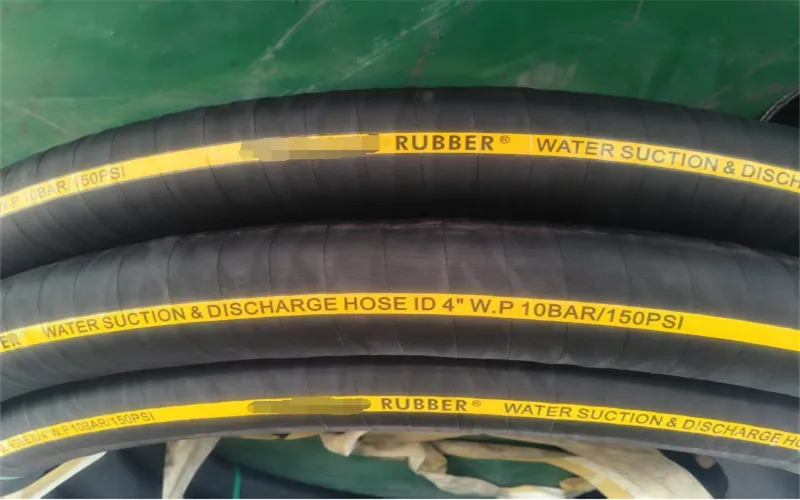

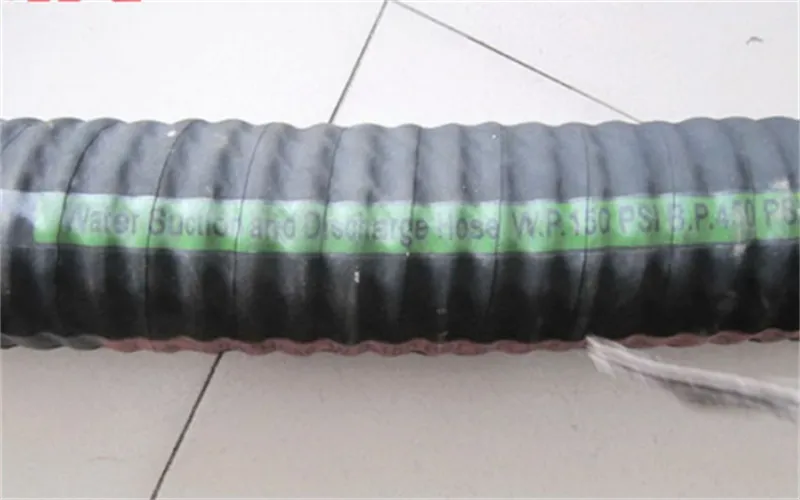

Application: Suitable for both suction and delivery of weak acids, alkalis, oil and water. This multipurpose hard wall hose incorporates a twin high tensile wire helix embedded into the carcass, effectively preventing kinking.
| Inside Ø | Outside Ø | Working Pressure | Burst Pressure | Length | |||
|---|---|---|---|---|---|---|---|
| inch | mm | mm | Bar | Psi | Bar | Psi | m |
| 3/4 | 19 | 30.4 | 10 | 150 | 30 | 450 | 40/60 |
| 1 | 25 | 36.4 | 10 | 150 | 30 | 450 | 40/60 |
| 2 | 51 | 64.4 | 10 | 150 | 30 | 450 | 40/60 |
| 3 | 76 | 90.8 | 10 | 150 | 30 | 450 | 40/60 |
| 4 | 102 | 119.6 | 10 | 150 | 30 | 450 | 40/60 |
| 6 | 152 | 171.6 | 10 | 150 | 30 | 450 | 30.00 |
| 8 | 203 | 224.8 | 10 | 150 | 30 | 450 | 30.00 |
| 12 | 304 | 332.6 | 10 | 150 | 30 | 450 | 10.00 |
Fabricated using high-grade raw materials. Known for dimensional accuracy, high strength, and corrosion resistance. Compact design with high pressure bearing capacity.
A professional manufacturer and exporter of various hydraulic and industrial hoses. Complying with ISO 9001:2015 requirements since 2012. Products are widely used in agriculture, construction, mining, and the petroleum fields across more than 20 countries.
