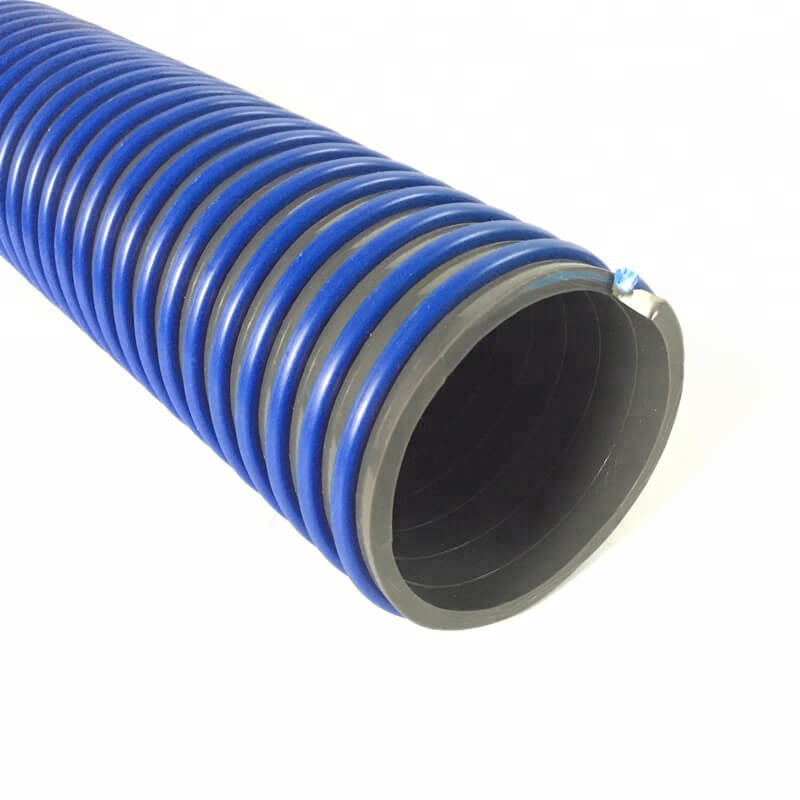

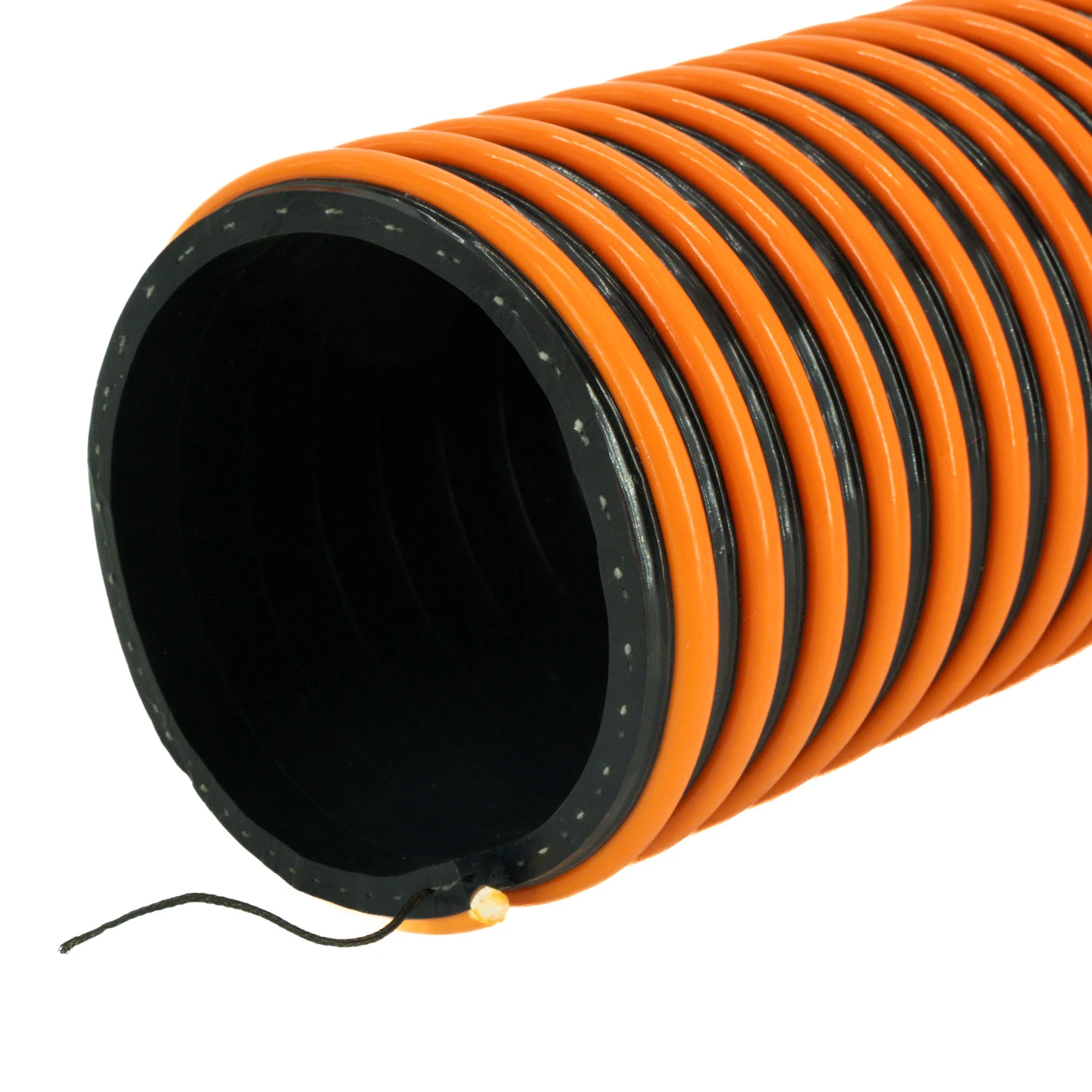

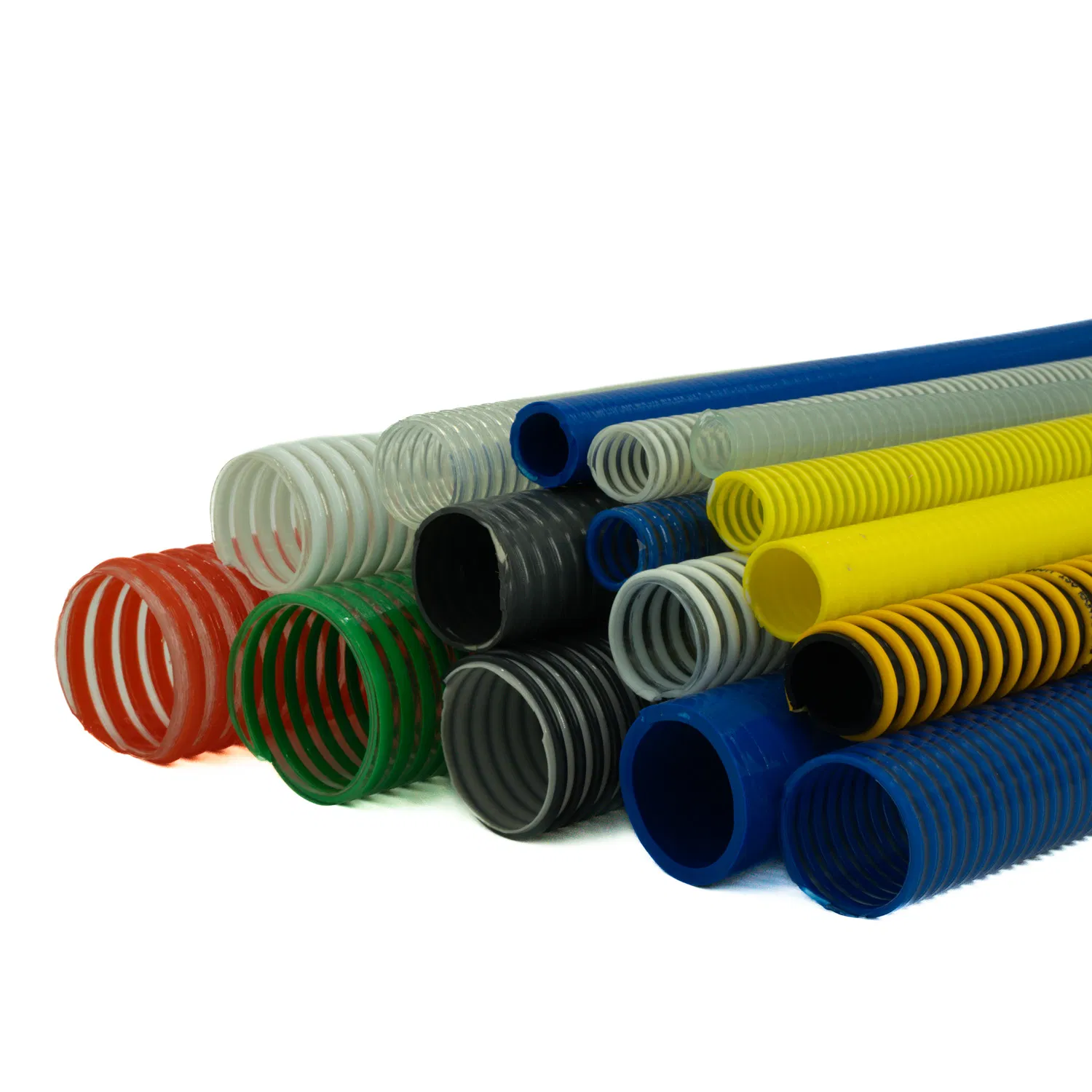

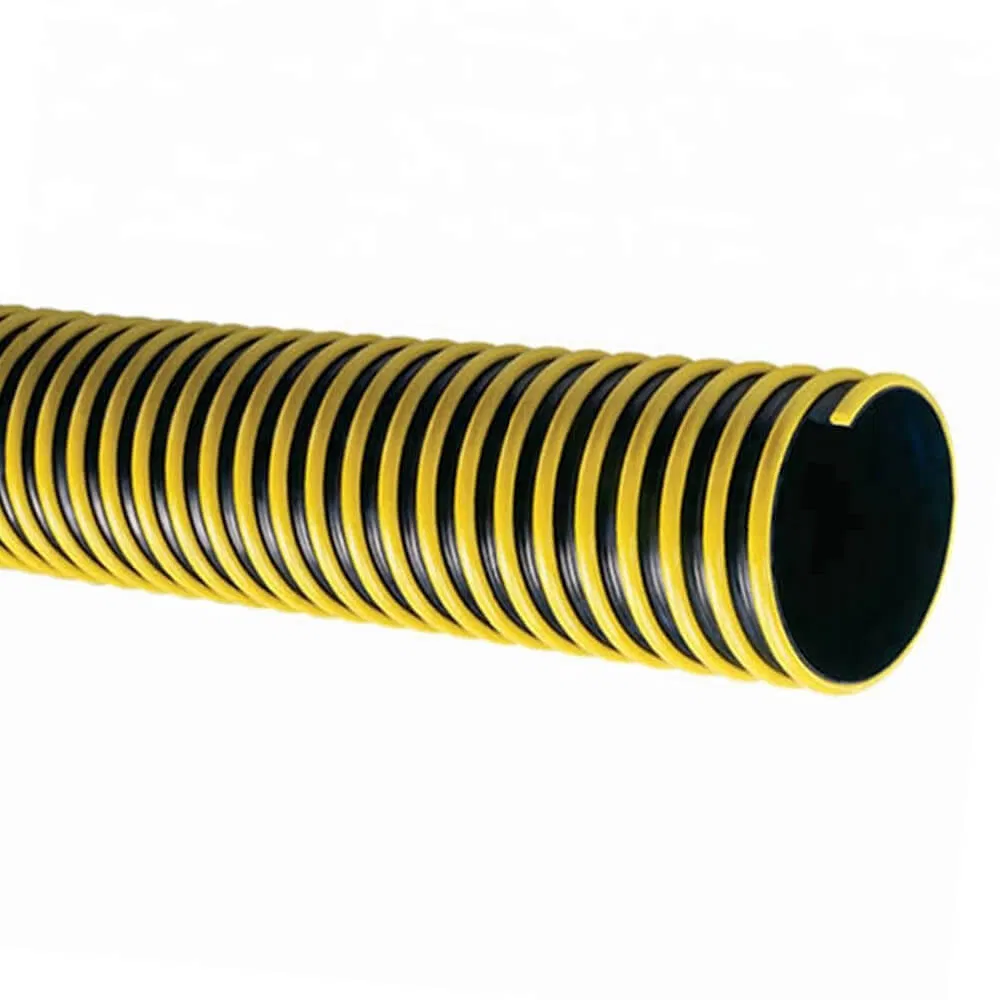

Durable Spiral PVC Water Suction Hose Reinforced Wire 1 2 3 4 6 10 12 14 16 Inch for Mining Vacuum Water Oil Pump SPA Duct Grit Sewage Plastic Tubes

1 / 5

Durable Spiral PVC Water Suction Hose Reinforced Wire 1 2 3 4 6 10 12 14 16 Inch for Mining Vacuum Water Oil Pump SPA Duct Grit Sewage Plastic Tubes

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

PVC Suction Hose

Shape

Round

Usage

Drainpipe, Water Supply, Irrigation, Agricultural, Corrugated Pipe

Application

Oil Suction and Delivery

Characteristic

High Pressure

Feature

Corrosion Resistant

Function

Industrial Drainage

Thickness

4mm-24mm

MOQ

1000 Meters

Certification

CE ISO

Specification

3/4"-16"

Capacity

2000 tons/Year

Product Description

Durable Spiral PVC Water Suction Hose Reinforced Wire 1 2 3 4 6 10 12 14 16 Inch for Mining Vacuum Water Oil Pump SPA Duct Grit Sewage Plastic Tubes

Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		Weight	Coil
inch	mm	mm	bar	psi	bar	psi	g/m	m
3/4	19	23	6	90	18	270	230	50
1	25	29	6	90	18	270	290	50
1-1/4	32	38	6	90	18	270	400	50
1-1/2	38	46	6	90	18	270	650	50
2	50	56	5	75	15	225	700	50
2-1/2	63	71	4	60	12	180	1170	30
3	75	83	3	45	9	135	1300	30
4	100	110	3	45	9	135	2300	30
5	125	137	3	45	9	135	3300	30
6	152	166	2	30	6	90	5500	20
8	200	216	2	30	6	90	6700	10
10	254	270	2	30	6	90	10000	10
12	305	329	2	30	6	90	18000	10
14	358	382	2	30	6	90	20000	10
16	408	432	2	30	6	90	23000	10

Product Showcase

Packaging & Delivery

Package Size

40.00cm * 40.00cm * 25.00cm

Gross Weight

25.000kg

Packing Method

Woven Plastic Cloth Wrapped

Frequently Asked Questions

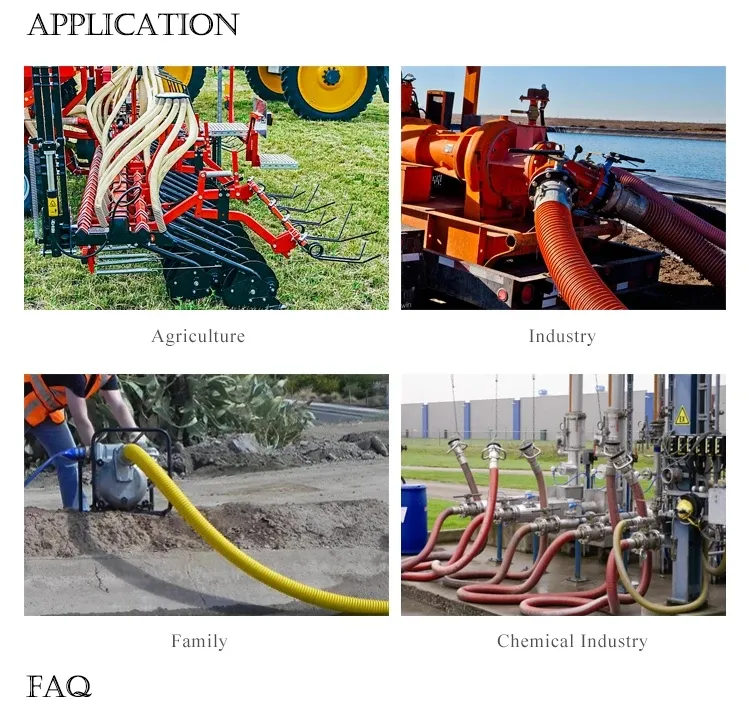

1. What are the primary applications for this PVC suction hose?

It is widely used for water supply and drainage, agricultural irrigation, mining vacuum operations, oil delivery, and sewage disposal in industrial environments.

2. What size range do you offer for the spiral reinforced hose?

We provide a comprehensive range of sizes from 3/4 inch up to 16 inches in diameter to meet various industrial needs.

3. Is this hose resistant to chemicals and corrosion?

Yes, the hose is specifically designed with corrosion-resistant features, making it suitable for handling various fluids, including certain oils and chemicals.

4. Can I request a sample before placing a bulk order?

Yes, we provide free samples to help you evaluate the quality and specifications of our PVC suction hoses.

5. What is the Minimum Order Quantity (MOQ)?

The standard MOQ for our PVC suction hose is 1000 meters.

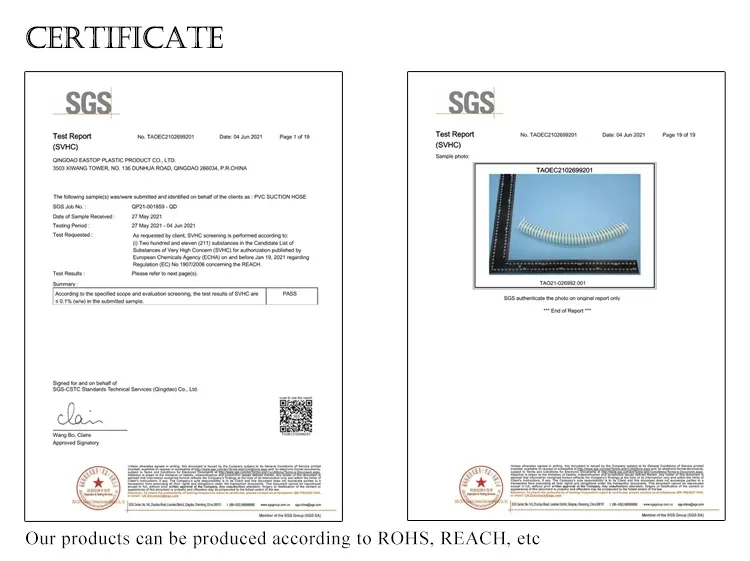

6. What certifications does the product hold?

Our hoses are manufactured to meet CE and ISO standards, ensuring high quality and safety for industrial applications.
