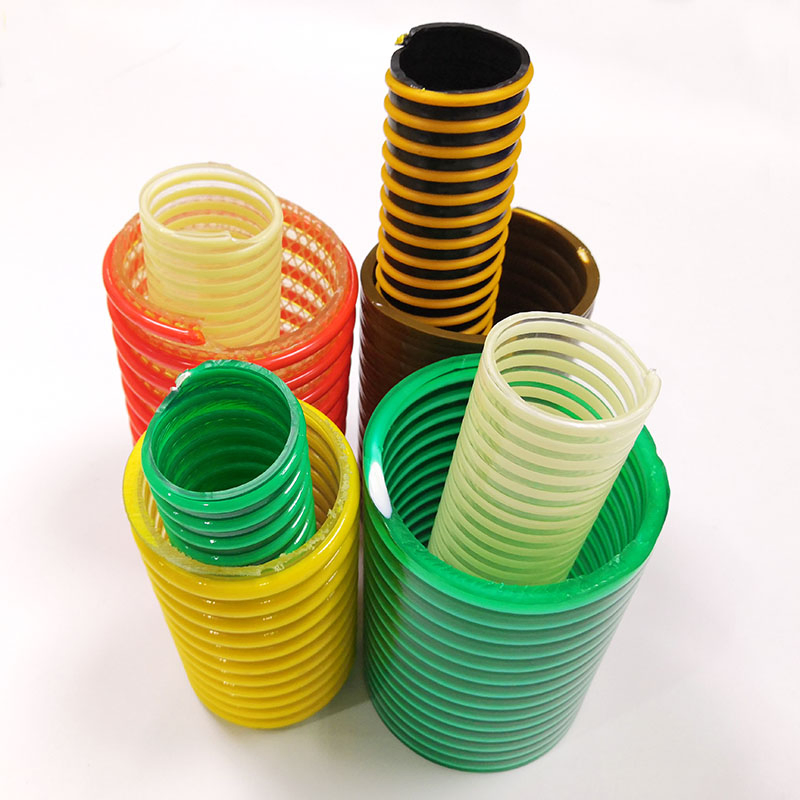

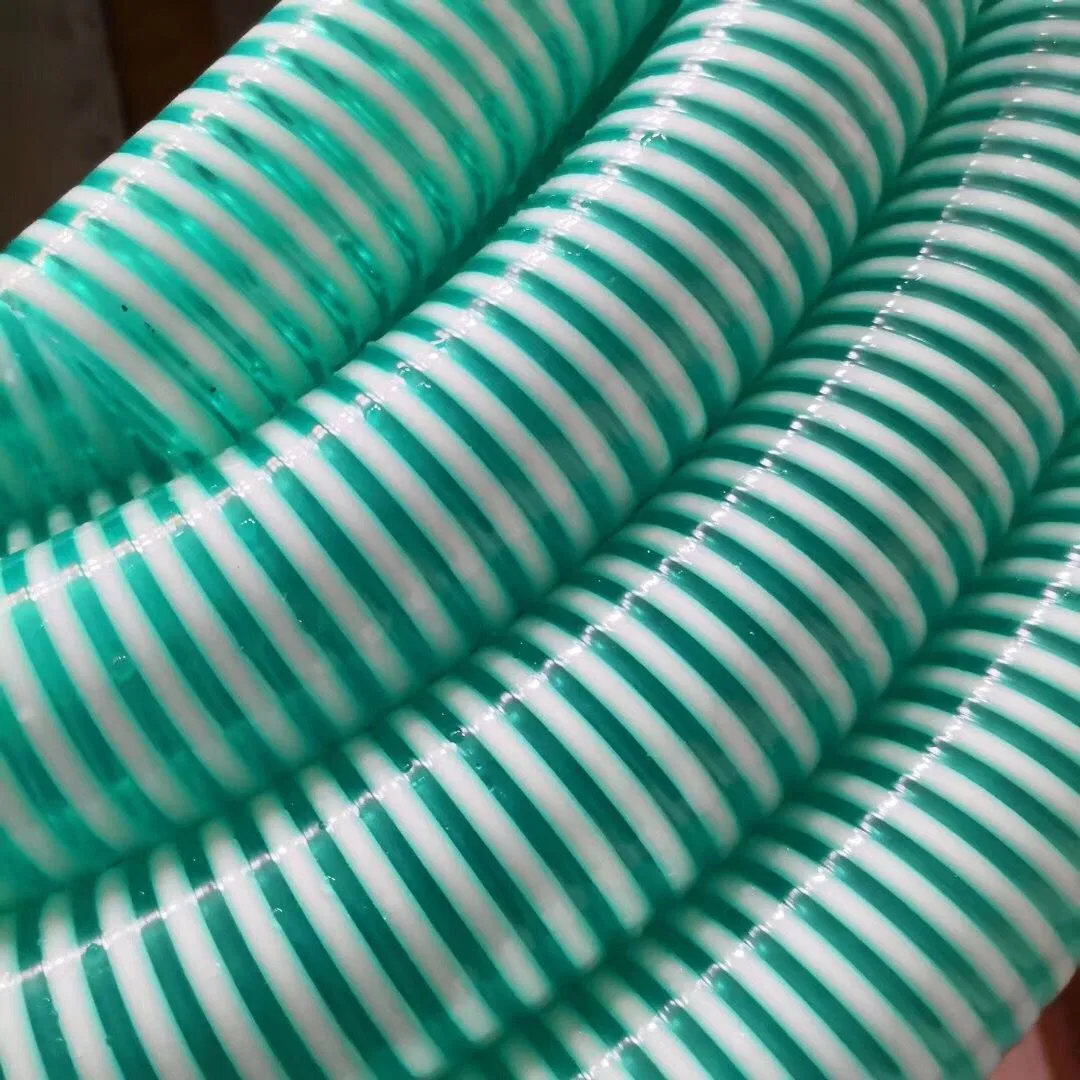

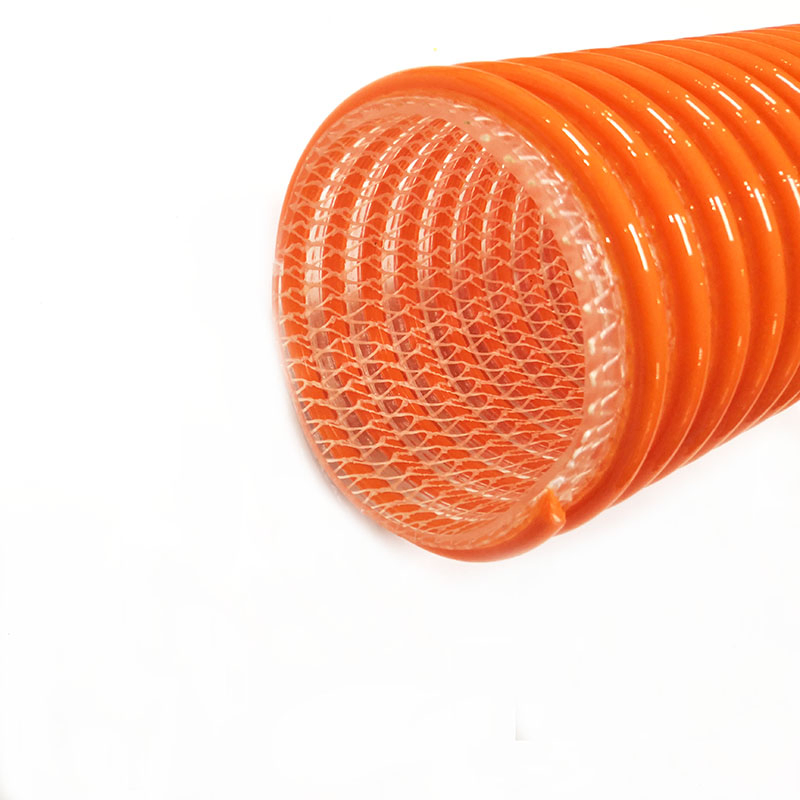

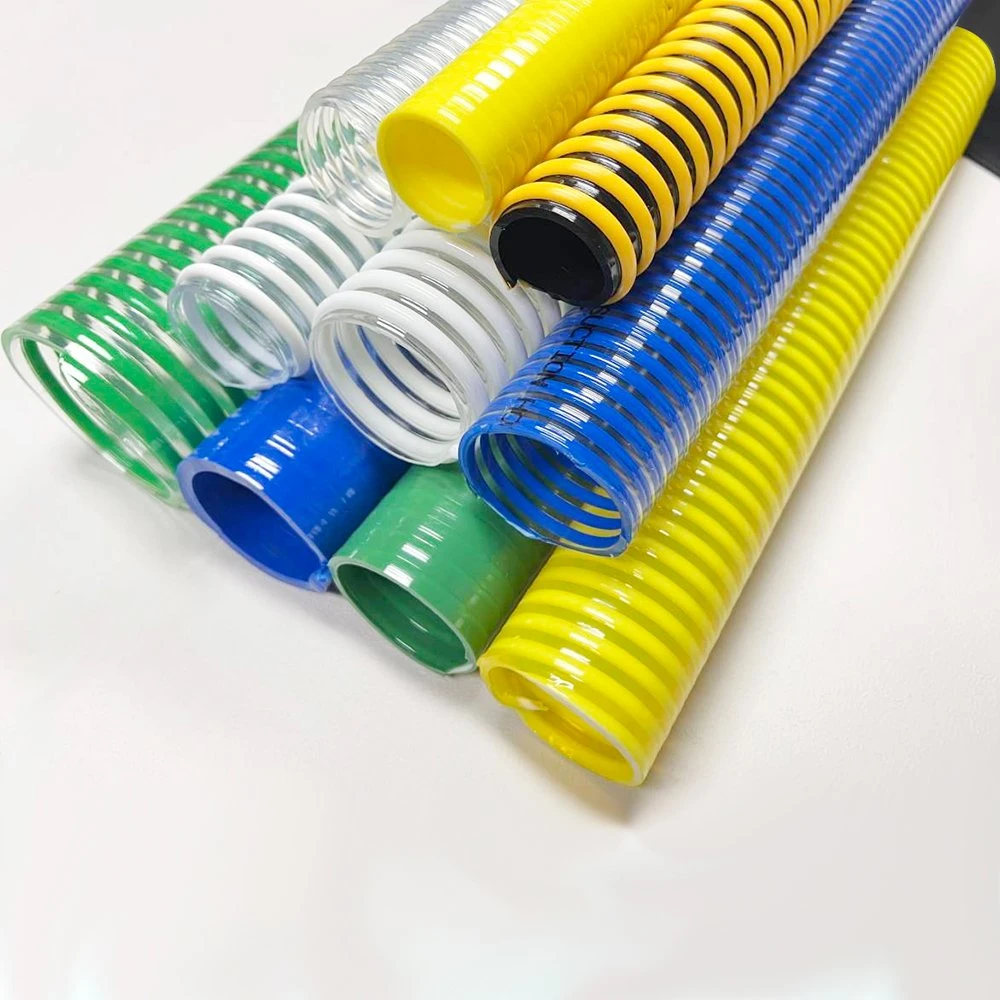

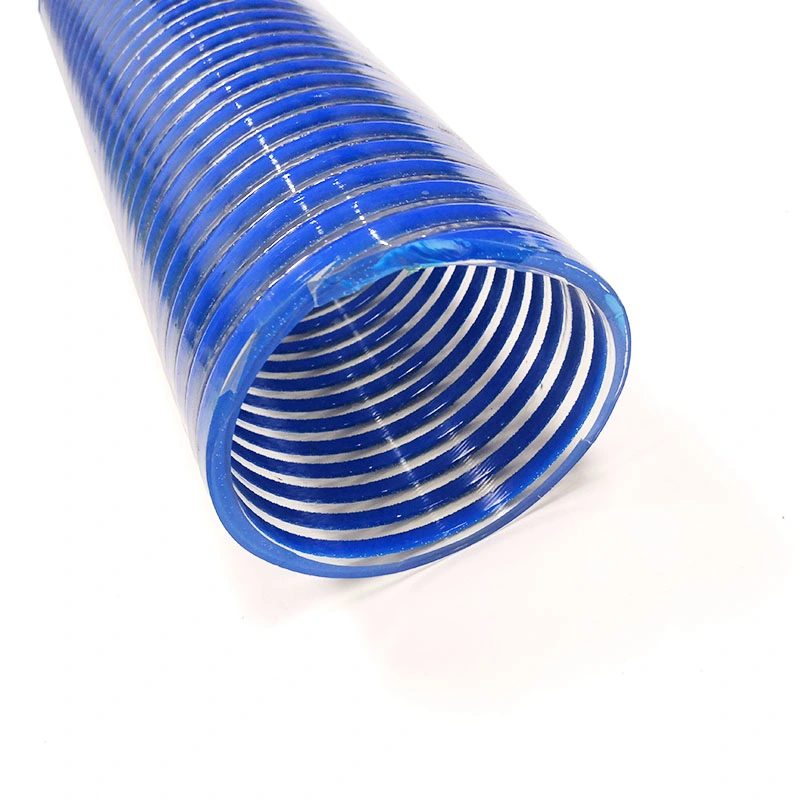

Heavy Duty PVC Flexible Helix Suction Hose Pipe 1 2 3 4 5 6 8 10 12 Inch for Mining Vacuum Water Oil Pump
Heavy Duty PVC Flexible Helix Suction Hose Pipe 1 2 3 4 5 6 8 10 12 Inch for Mining Vacuum Water Oil Pump
Heavy Duty PVC Flexible Helix Suction Hose Pipe 1 2 3 4 5 6 8 10 12 Inch for Mining Vacuum Water Oil Pump
Heavy Duty PVC Flexible Helix Suction Hose Pipe 1 2 3 4 5 6 8 10 12 Inch for Mining Vacuum Water Oil Pump
Heavy Duty PVC Flexible Helix Suction Hose Pipe 1 2 3 4 5 6 8 10 12 Inch for Mining Vacuum Water Oil Pump
1 / 5
Heavy Duty PVC Flexible Helix Suction Hose Pipe 1 2 3 4 5 6 8 10 12 Inch for Mining Vacuum Water Oil Pump
Heavy Duty PVC Flexible Helix Suction Hose Pipe 1 2 3 4 5 6 8 10 12 Inch for Mining Vacuum Water Oil Pump
Heavy Duty PVC Flexible Helix Suction Hose Pipe 1 2 3 4 5 6 8 10 12 Inch for Mining Vacuum Water Oil Pump
Heavy Duty PVC Flexible Helix Suction Hose Pipe 1 2 3 4 5 6 8 10 12 Inch for Mining Vacuum Water Oil Pump
Heavy Duty PVC Flexible Helix Suction Hose Pipe 1 2 3 4 5 6 8 10 12 Inch for Mining Vacuum Water Oil Pump

Heavy Duty PVC Flexible Helix Suction Hose Pipe 1 2 3 4 5 6 8 10 12 Inch for Mining Vacuum Water Oil Pump

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
suction hose
Type
Thermosetting Plastic Pipe
Color
Blue, Orange, Yellow, Red, etc
Hollow
Hollow
Shape
Round
Usage
Drainpipe, Water Supply Pipe, Threading Pipe, Wire and Cable Pipe, Agricultural Irrigation Pipe, Corrugated Pipe
Length
10m/20m/30m/50m
Thickness
3mm-12mm
Working Pressure
3bar-10bar
Working Temperature
-5℃ to +65℃
Features
Abrasion and Chemical Resistant, Impact and Crush
Transporting Medium
Liquid, Powder, Granules
Bursting Pressure
6bar-30bar
Application
Ndustry, Agriculture and Construction
Reinforced Material
Integral Helix Rigid PVC
Transport Package
Woven Plastic Cloth Wrapped
Specification
3/4"-16"
HS Code
3917390000
Production Capacity
2000tons/Year
Product Description

HEAVY DUTY PVC FLEXIBLE HELIX SUCTION HOSE PIPE 1 2 3 4 5 6 8 10 12 INCH FOR MINING VACUUM WATER OIL PUMP SPA DUCT GRIT SEWAGE

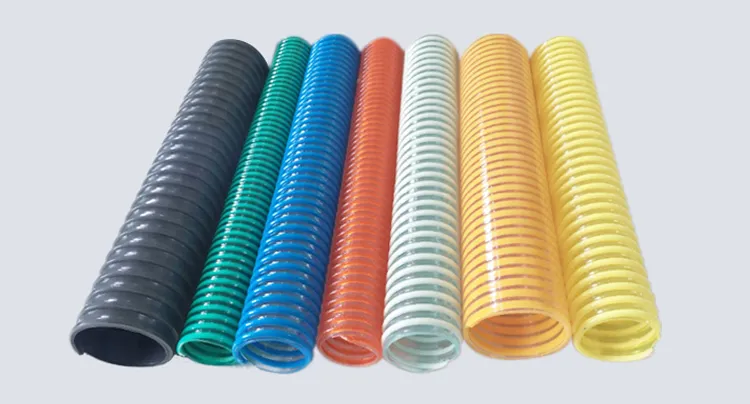

PVC Helix Suction Hose

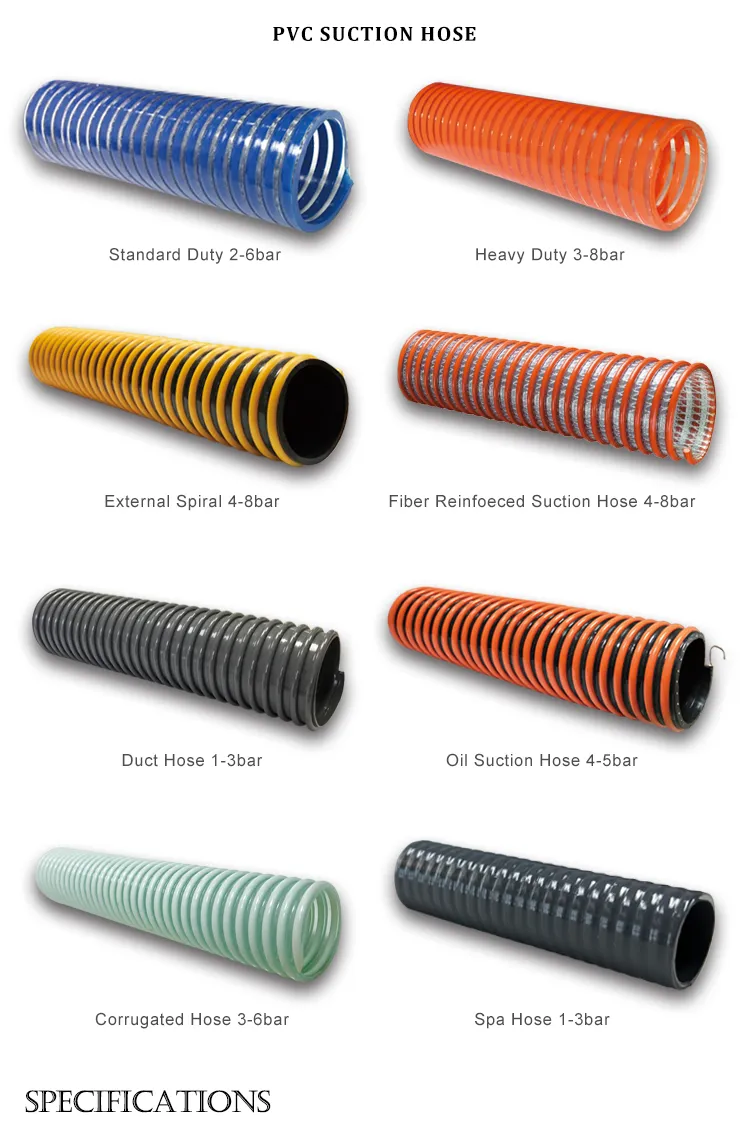

Flexible Suction Hose Pipe
ID OD WP BP W/A COIL
in mm mm bar psi bar psi g/m m
3/419236901827023030
125296901827029030
1-1/432386901827040030
1-1/238466901827065030
250565751522570030
2-1/2637146012180117030
375833459135130030
41001103459135230030
51251373459135330020
6152166230690550010
8200214230690630010
102542702306901000010
123053292306901800010
143583822306902000010
164084322306902300010

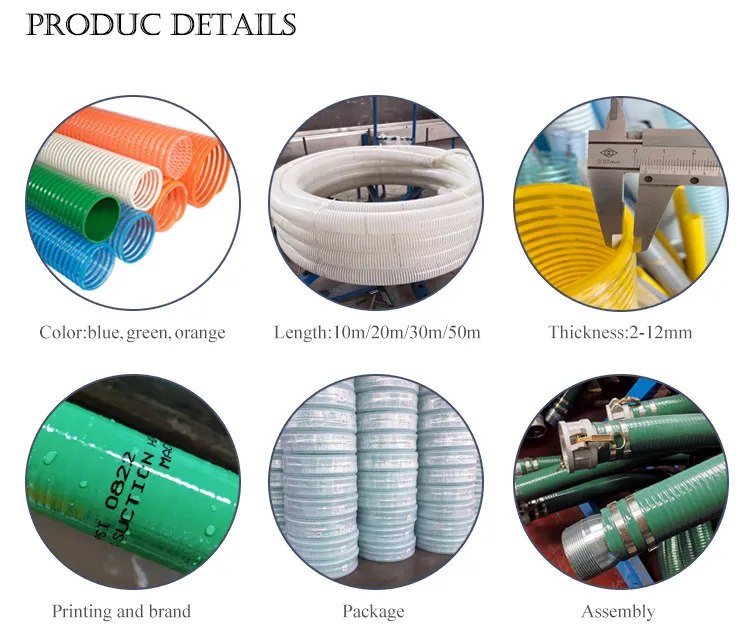

Product Display 1

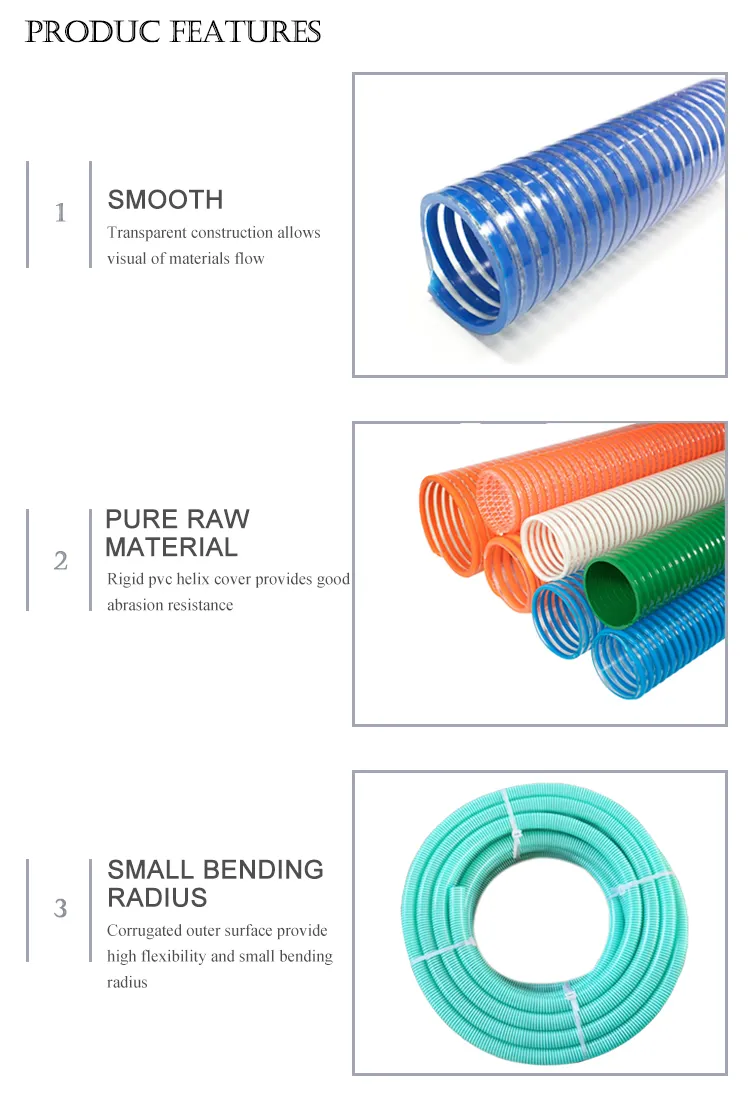

Product Display 2

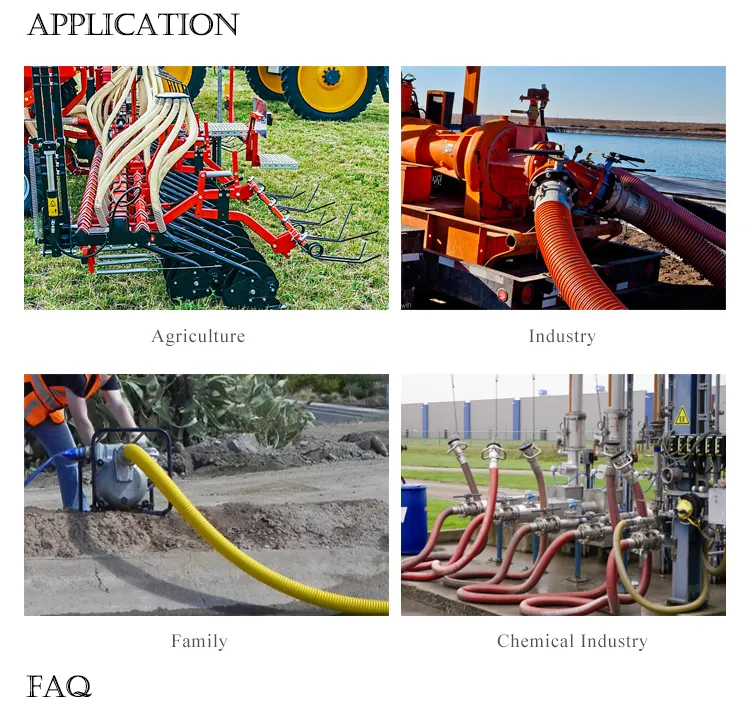

Product Display 3

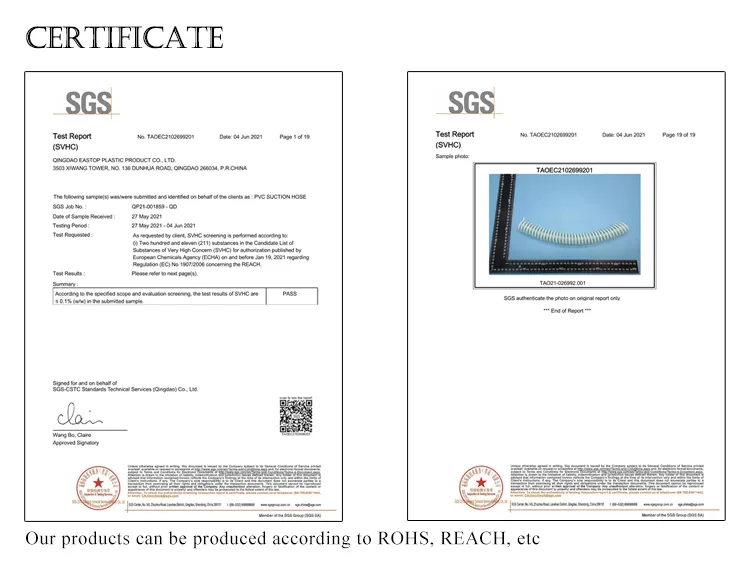

Product Display 4
Product Display 5

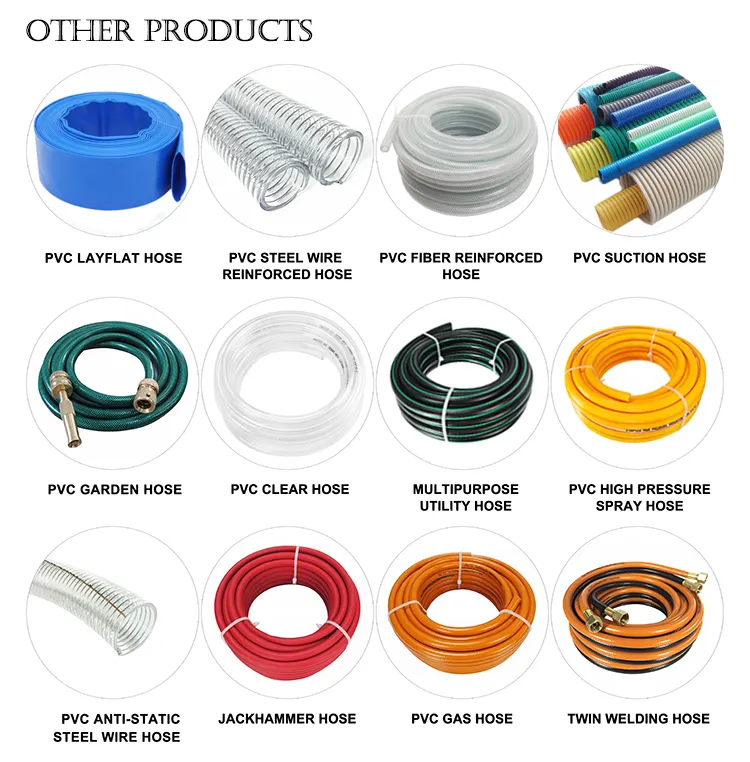

Product Display 6
Product Display 7

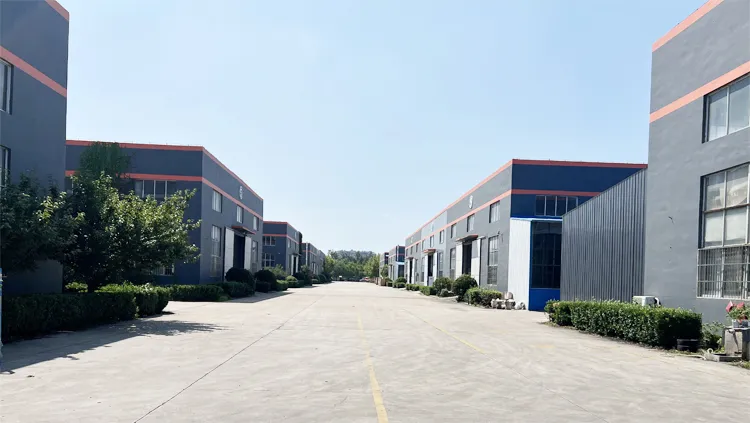

Product Display 8

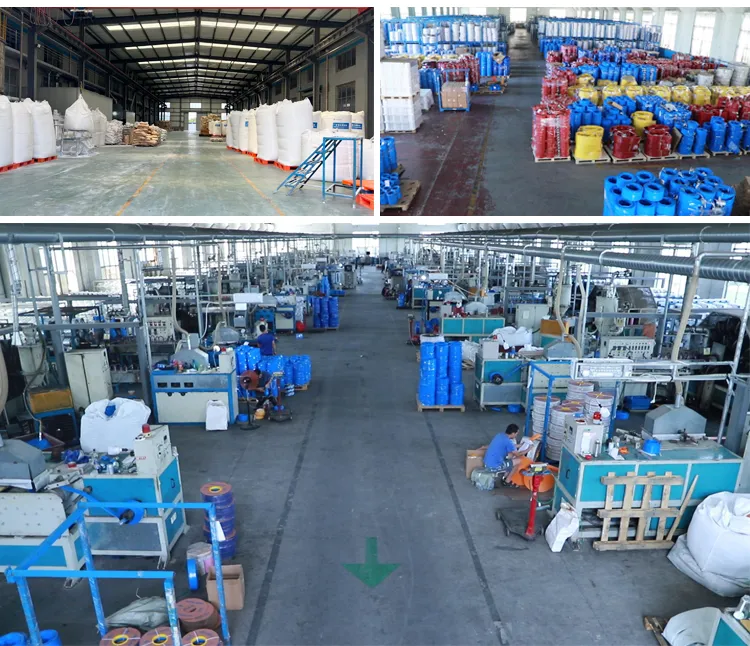

Product Display 9
Frequently Asked Questions
What is your standard length per roll?
The standard length is 100m, we can also make any length as customers' requirement, like 10m/15m/20m/30m/50m.
What is the minimum and maximum size you can produce?
The minimum size is 3/4"-19mm, the maximum size is 16"-406mm.
What is the working pressure of your layflat hose?
The maximum working pressure of our layflat hose is 10bar.
Is your layflat hose UV resistant?
Yes, our layflat hose is UV resistant and designed for durable outdoor use.
What is the service life of your layflat hose?
The service life is 2-3 years if it is well preserved according to standard guidelines.
Can you provide quality guarantees?
We test the quality each shift. If any quality problem arises, we will replace the hose freely.
