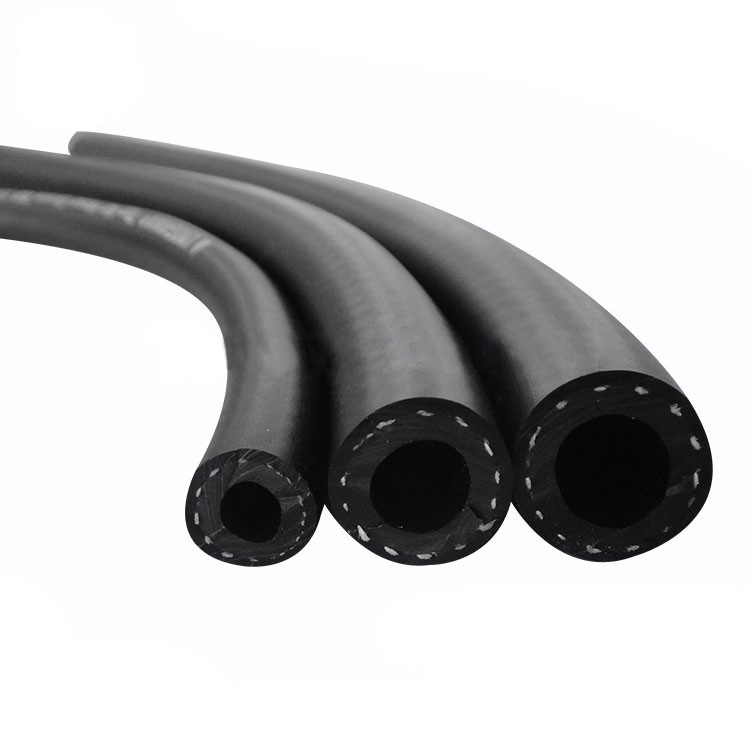

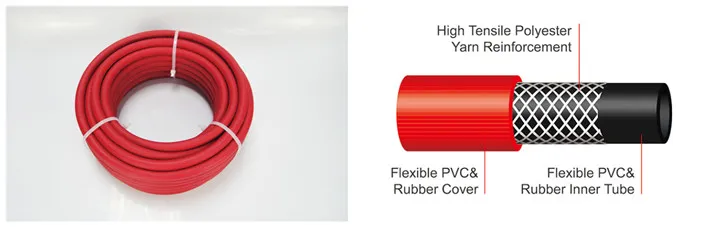

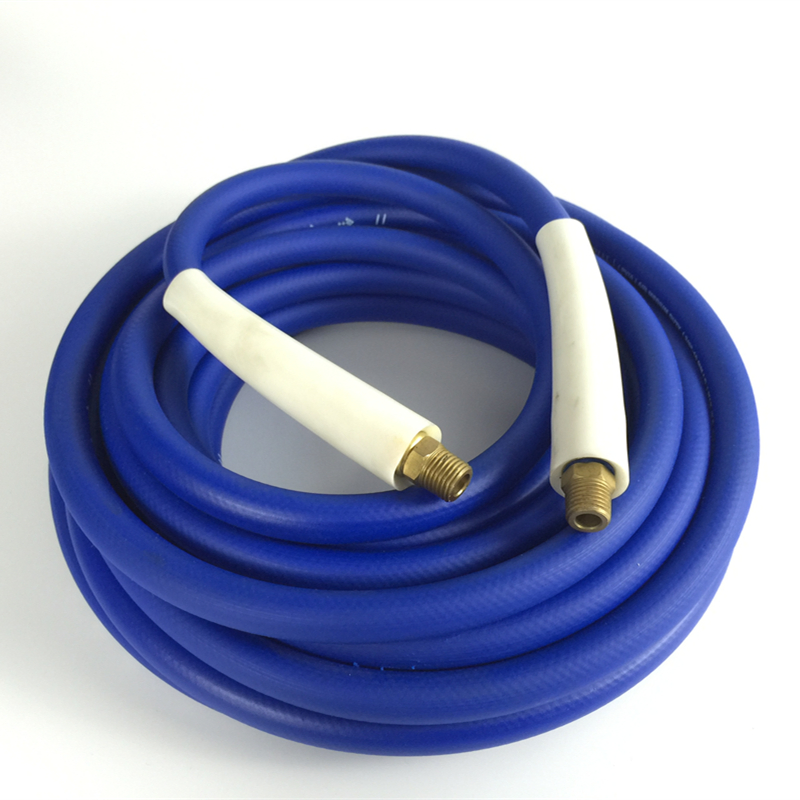

The PVC and Rubber Composite Multipurpose Utility Hose is engineered for long-term high performance in general air, water, oil, and light chemical applications. Its hybrid construction combines the best qualities of both materials for maximum durability and flexibility.
Ideally suited for transferring air, water, fuel, and light chemicals. Essential for:
Temperature Range: -15°C to +65°C
| Inner Diameter | Outer Diameter | Weight | W.P. (at 23ºC) | Std Length | ||||
|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1/4 | 6.5 | 0.472 | 12 | 0.11 | 20 | 300 | 100 | 300 |
| 5/16 | 8.5 | 0.551 | 14 | 0.13 | 20 | 300 | 100 | 300 |
| 3/8 | 10 | 0.629 | 16 | 0.17 | 20 | 300 | 100 | 300 |
| 1/2 | 13 | 0.787 | 20 | 0.25 | 20 | 300 | 100 | 300 |
| 5/8 | 16 | 0.984 | 25 | 0.39 | 20 | 300 | 100 | 300 |
| 3/4 | 19 | 1.102 | 28 | 0.45 | 20 | 300 | 50 | 150 |
| 1 | 25 | 1.338 | 34 | 0.56 | 20 | 300 | 50 | 150 |

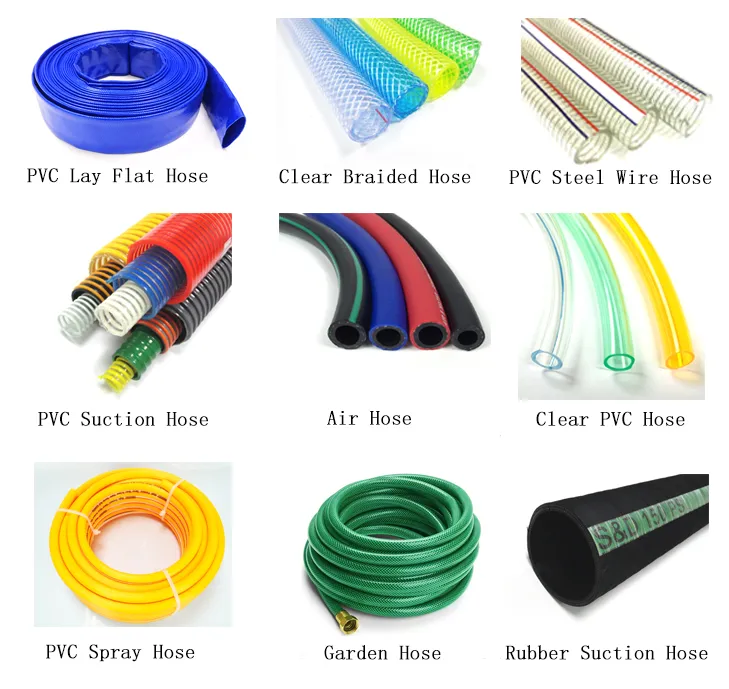

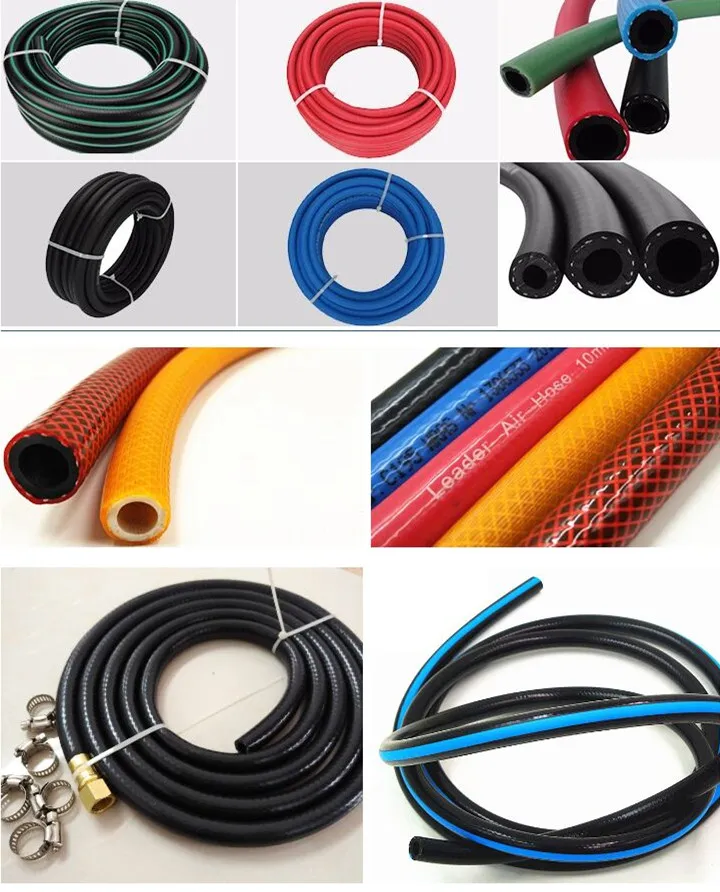

As a professional manufacturer and exporter of PVC flexible hoses, there is over 14 years of production experience and 10 years of export expertise. The product range covers PVC layflat hoses, fiber reinforced hoses, steel wire reinforced hoses, and garden hoses, widely used in industry, agriculture, and home applications.

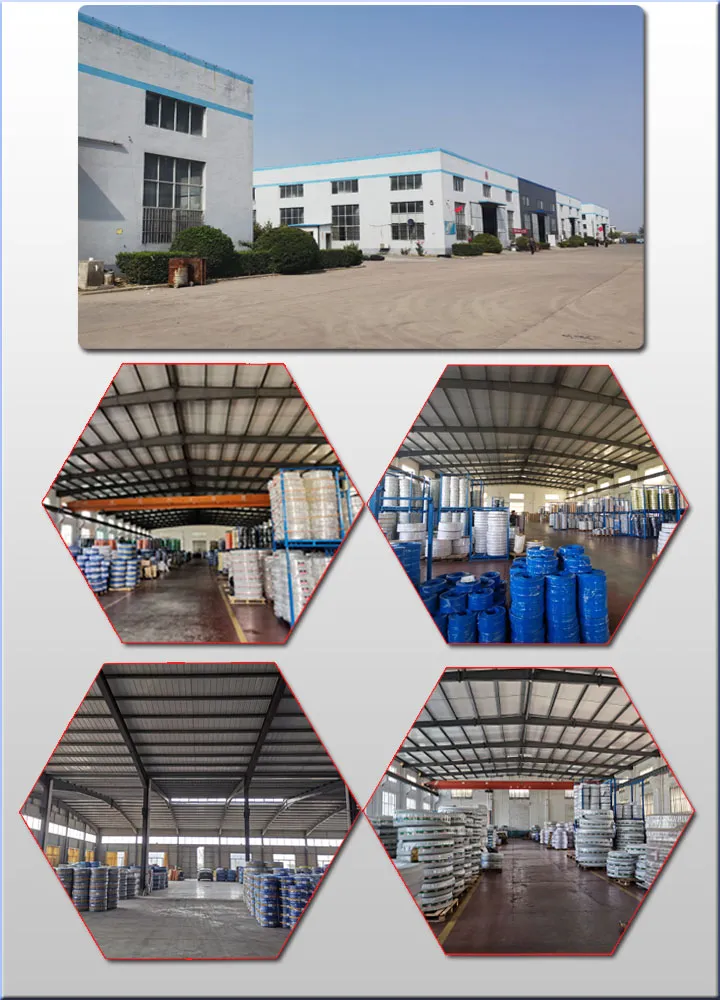

The facility covers an area of 70,000 square meters with 10 standard workshops and 80 production lines. The annual output reaches approximately 20,000 tons. All products are manufactured in accordance with PAHS, RoHS 2, REACH, and FDA standards to ensure safety and quality.
