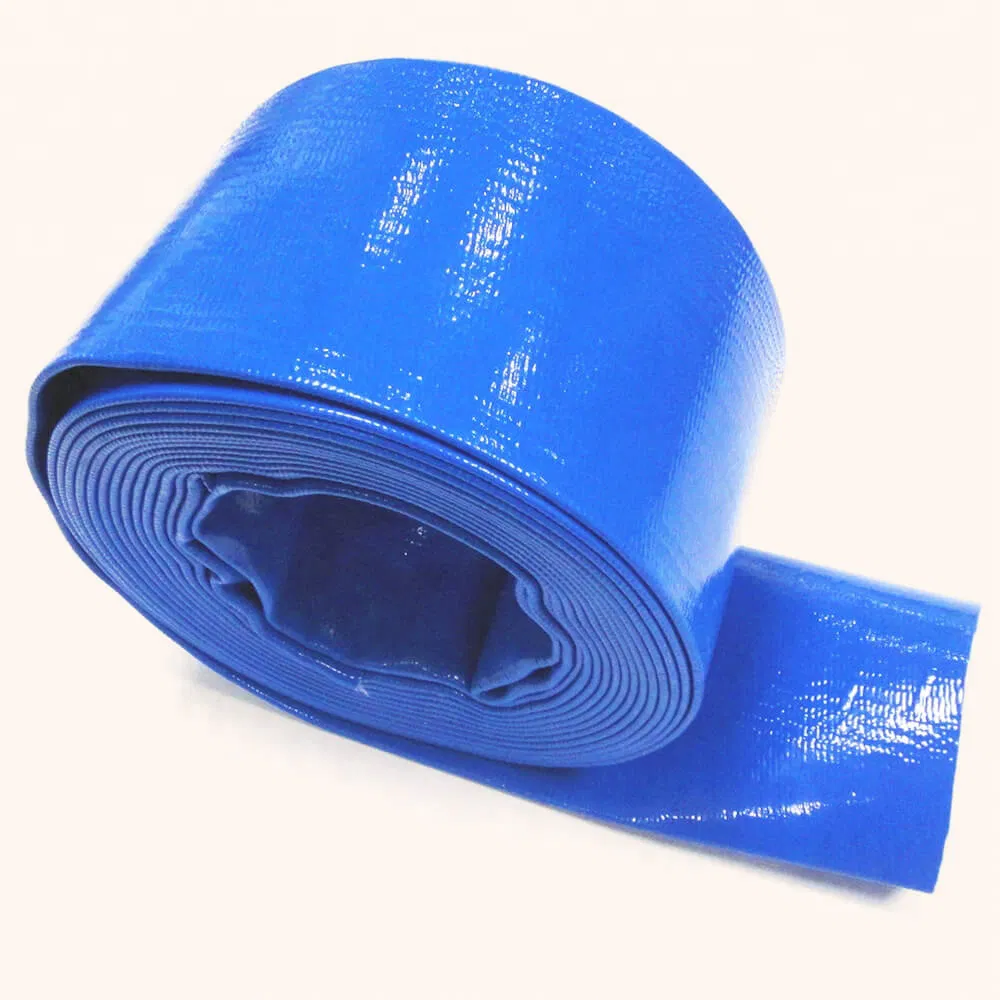

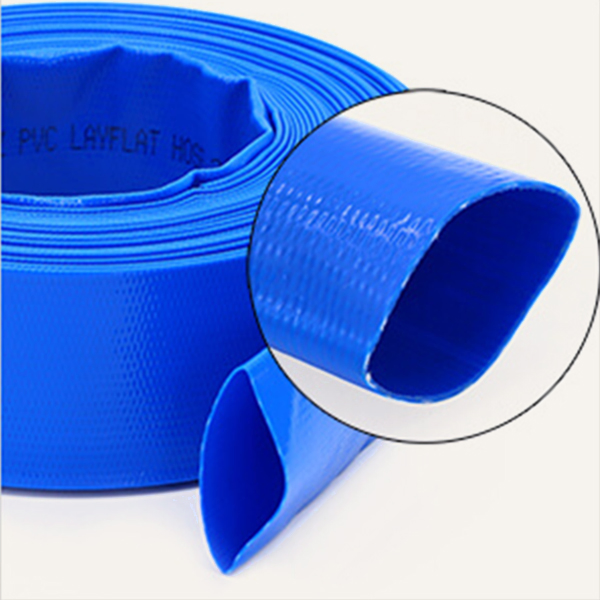

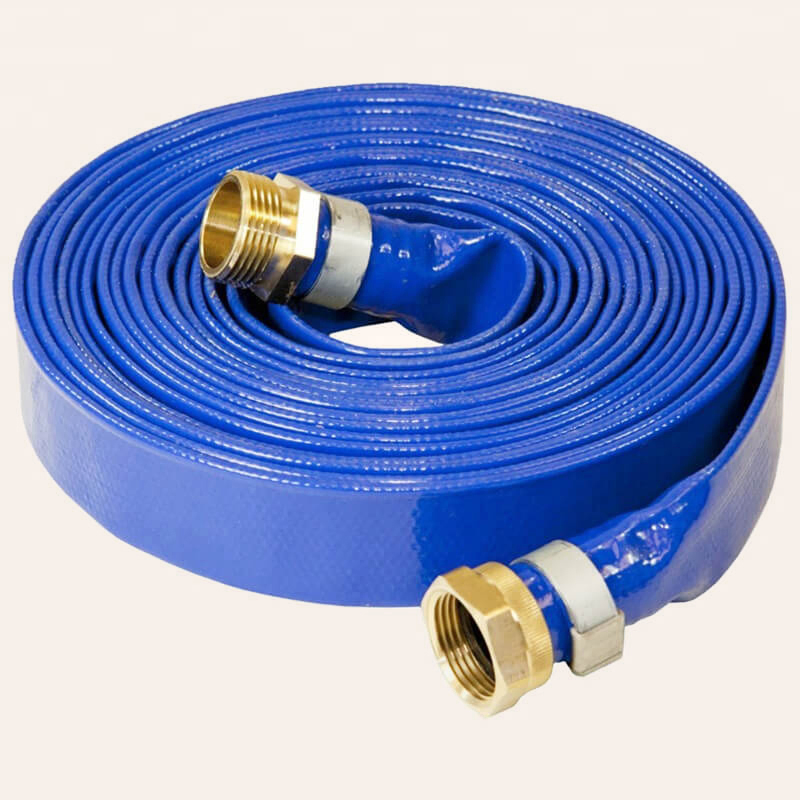

Top Quality PVC Lay Flat Hose Light Weight 2'' 3'' 4'' 6'' 8'' 10'' 14'' 16'' Sizes Water Transfer Drip Pool Pump Farm Iggigation Plastic Pipes
Top Quality PVC Lay Flat Hose Light Weight 2'' 3'' 4'' 6'' 8'' 10'' 14'' 16'' Sizes Water Transfer Drip Pool Pump Farm Iggigation Plastic Pipes
Top Quality PVC Lay Flat Hose Light Weight 2'' 3'' 4'' 6'' 8'' 10'' 14'' 16'' Sizes Water Transfer Drip Pool Pump Farm Iggigation Plastic Pipes
Top Quality PVC Lay Flat Hose Light Weight 2'' 3'' 4'' 6'' 8'' 10'' 14'' 16'' Sizes Water Transfer Drip Pool Pump Farm Iggigation Plastic Pipes
Top Quality PVC Lay Flat Hose Light Weight 2'' 3'' 4'' 6'' 8'' 10'' 14'' 16'' Sizes Water Transfer Drip Pool Pump Farm Iggigation Plastic Pipes
1 / 5
Top Quality PVC Lay Flat Hose Light Weight 2'' 3'' 4'' 6'' 8'' 10'' 14'' 16'' Sizes Water Transfer Drip Pool Pump Farm Iggigation Plastic Pipes
Top Quality PVC Lay Flat Hose Light Weight 2'' 3'' 4'' 6'' 8'' 10'' 14'' 16'' Sizes Water Transfer Drip Pool Pump Farm Iggigation Plastic Pipes
Top Quality PVC Lay Flat Hose Light Weight 2'' 3'' 4'' 6'' 8'' 10'' 14'' 16'' Sizes Water Transfer Drip Pool Pump Farm Iggigation Plastic Pipes
Top Quality PVC Lay Flat Hose Light Weight 2'' 3'' 4'' 6'' 8'' 10'' 14'' 16'' Sizes Water Transfer Drip Pool Pump Farm Iggigation Plastic Pipes
Top Quality PVC Lay Flat Hose Light Weight 2'' 3'' 4'' 6'' 8'' 10'' 14'' 16'' Sizes Water Transfer Drip Pool Pump Farm Iggigation Plastic Pipes

Top Quality PVC Lay Flat Hose Light Weight 2'' 3'' 4'' 6'' 8'' 10'' 14'' 16'' Sizes Water Transfer Drip Pool Pump Farm Iggigation Plastic Pipes

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
pvc layflat hose
Color
Blue, Orange, Red, etc.
Shape
Round
Usage
Drainpipe, Water Supply, Irrigation, Construction, Mines
Features
Durable, Light Weight, UV Resistance
Working Pressure
6-10 Bar
Raw Material
100% PVC
Length
50m/100m
Specification
3/4"-16"
P

Product Description

Top Quality PVC Lay Flat Hose Light Weight Water Transfer Drip Pool Pump Farm Irrigation Plastic Pipes

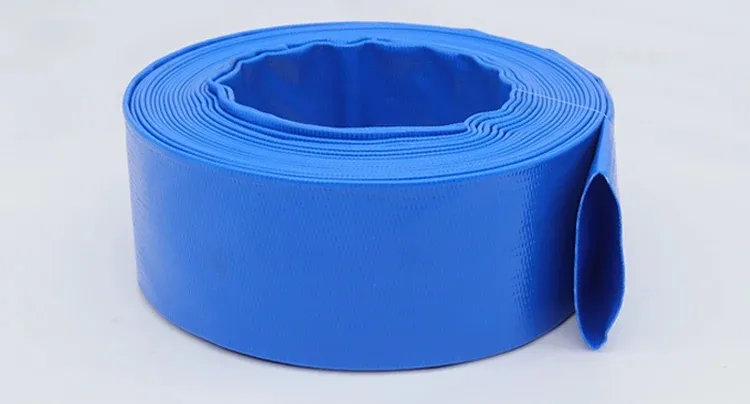

PVC Lay Flat Hose Overview

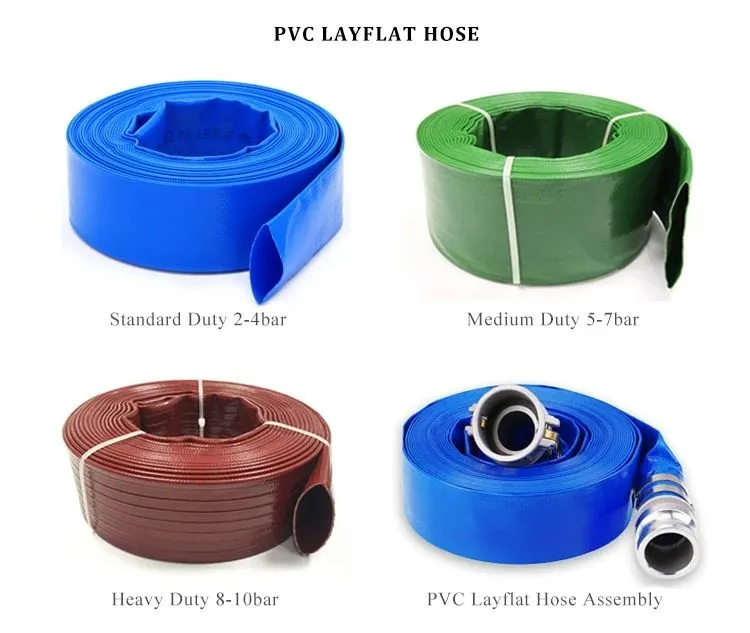

PVC Lay Flat Hose Dimensions
S

Specifications & Parameters

Product Number Inner Diameter Outer Dia. Working Pressure Burst Pressure Weight
inch mm mm bar psi bar psi g/m
ET-LFHS-0203/42022.446016240100
ET-LFHS-0512515346012180220
ET-LFHS-07637678.246012180360
ET-LFHS-1024102104.546012180550
ET-LFHS-1536153155.73459135900
ET-LFHS-203820320734591351600
ET-LFHS-30512305309.72306903000
ET-LFHS-408164084142306906000
C

Construction & Application

Construction:
Tube and Cover: PVC, available in blue, orange, red.
Reinforcement: High tensile polyester yarn reinforcement.

Characteristic:

  • Light weight and excellent flexibility.
  • Corrosion resistant and anti-aging properties.
  • Easy handling and compact storage.
  • Available in various colors and custom lengths.
  • Temperature range: -5°C to +65°C.

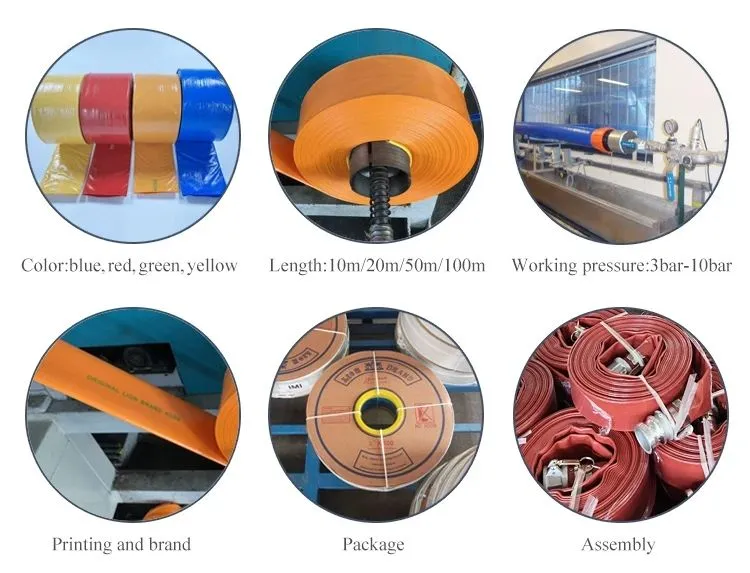

Product Details Display
F

Product Features & Advantages

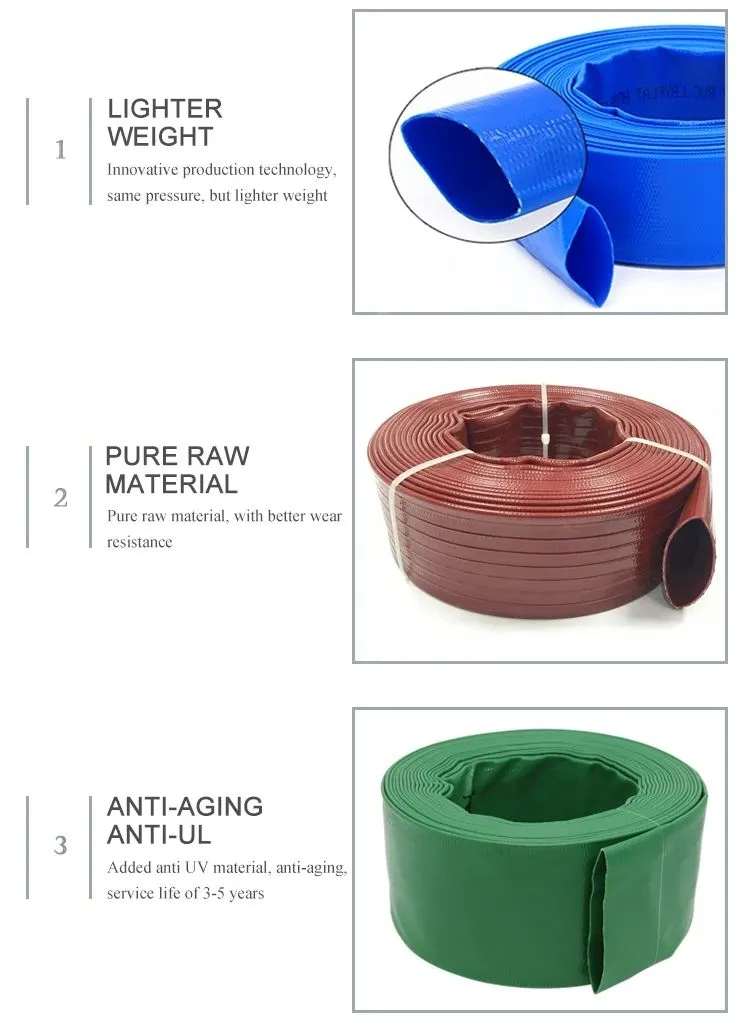

Product Features
Our Advantages
A

Certifications & Applications

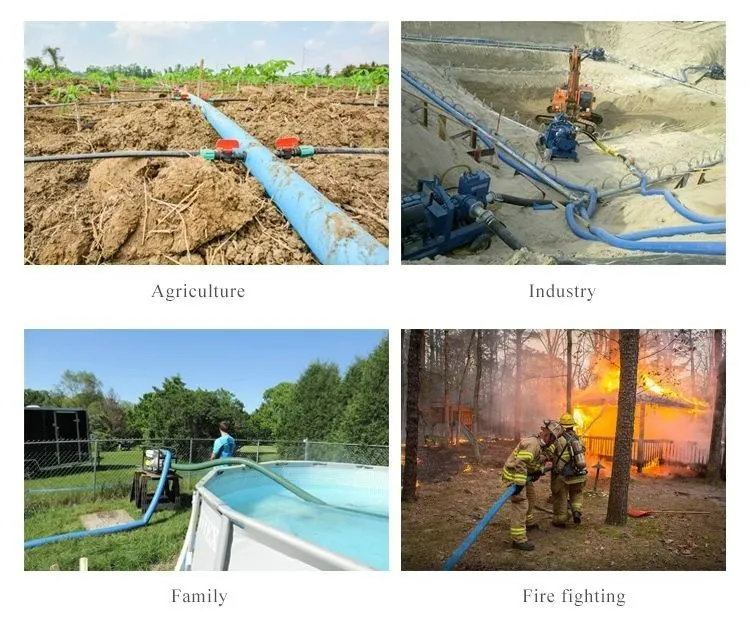

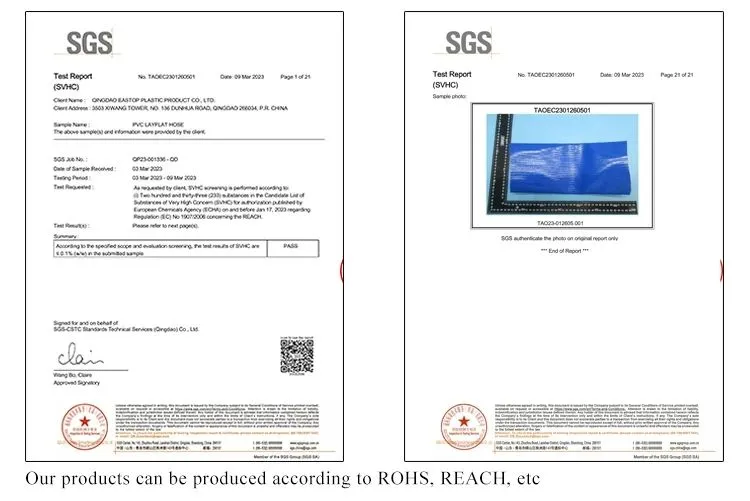

Certifications Applications
M

Manufacturing & Quality Control

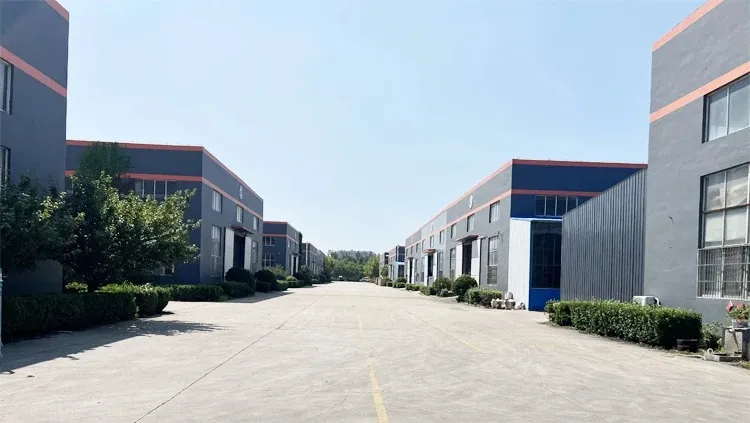

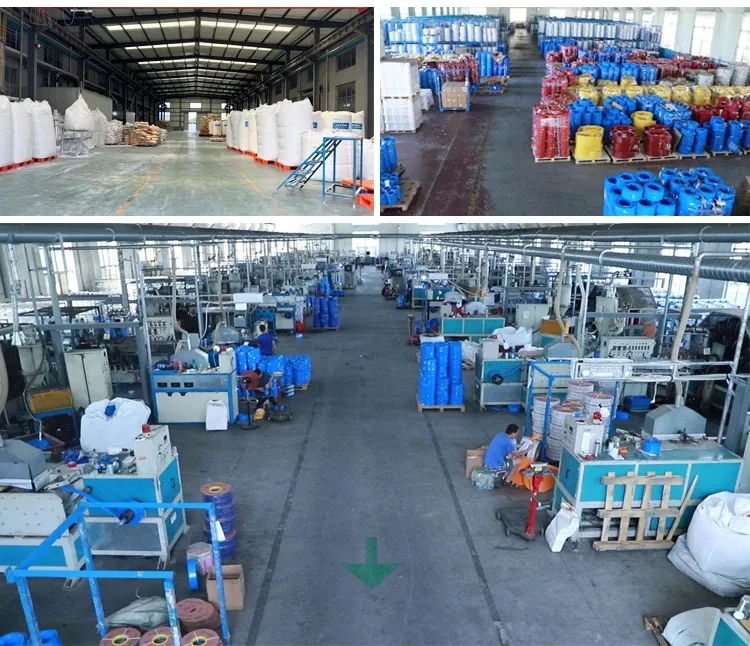

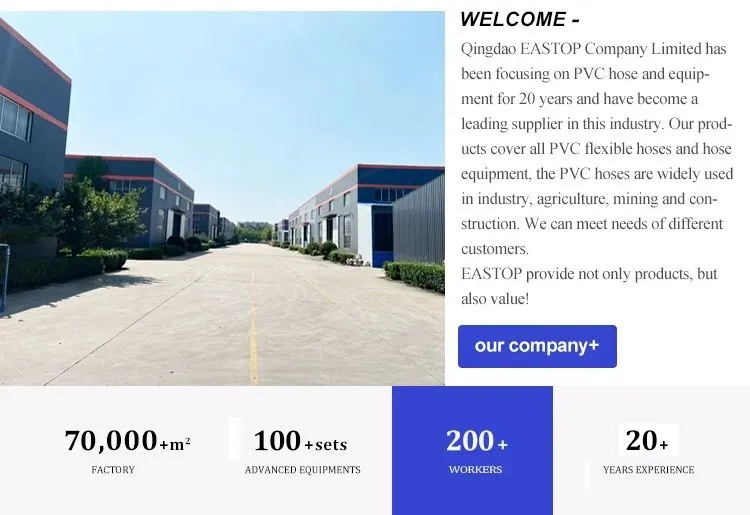

Production Line Testing Storage
?

Frequently Asked Questions

Q: What is your standard length per roll? A: The standard length is 100m. We can also produce custom lengths such as 10m, 20m, 30m, or 50m based on your requirements.
Q: What range of sizes can you produce? A: We manufacture sizes from a minimum of 3/4" (19mm) up to a maximum of 16" (406mm).
Q: What is the maximum working pressure for this hose? A: Our layflat hose is designed to handle a maximum working pressure of up to 10 bar.
Q: Is the PVC layflat hose UV resistant? A: Yes, our hoses are specially formulated to be UV resistant for outdoor use.
Q: What is the expected service life of the hose? A: With proper use and preservation, the typical service life is approximately 2-3 years.
Q: Can you provide customized branding on the hose? A: Yes, we can print your logo on the hose body and packaging at no additional cost.
