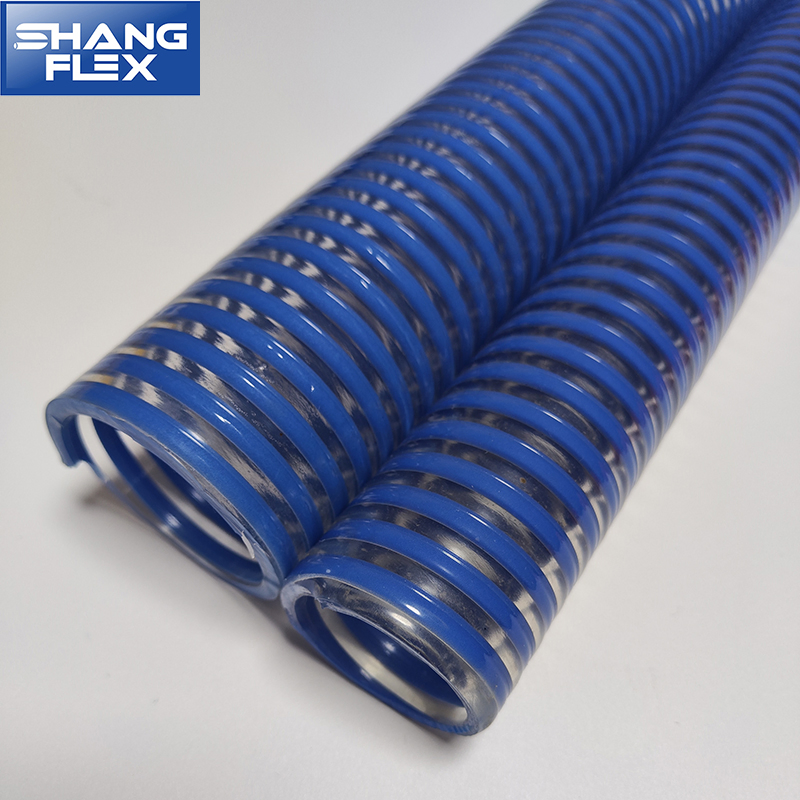

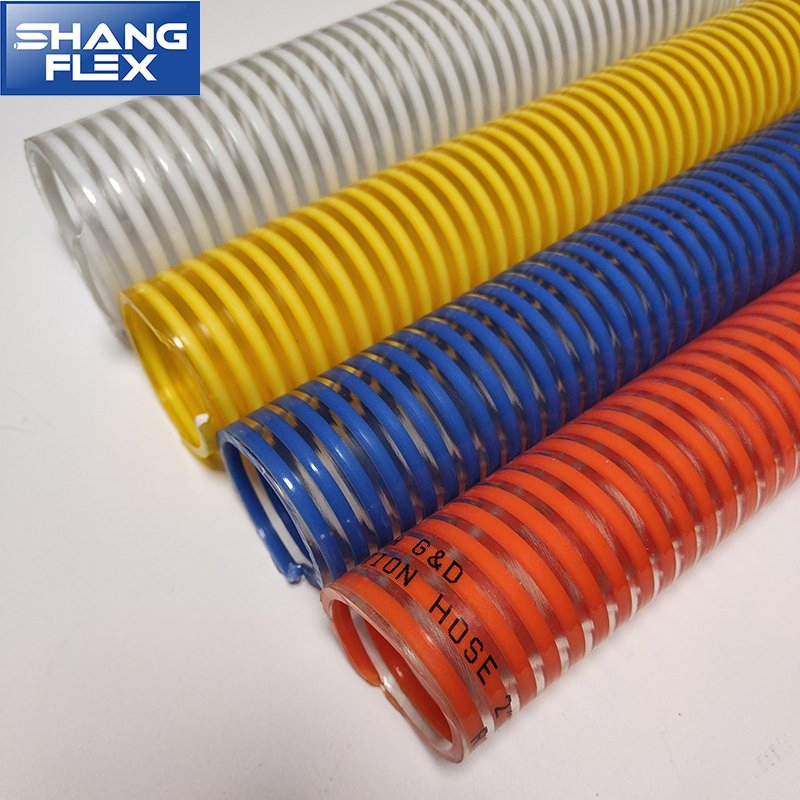

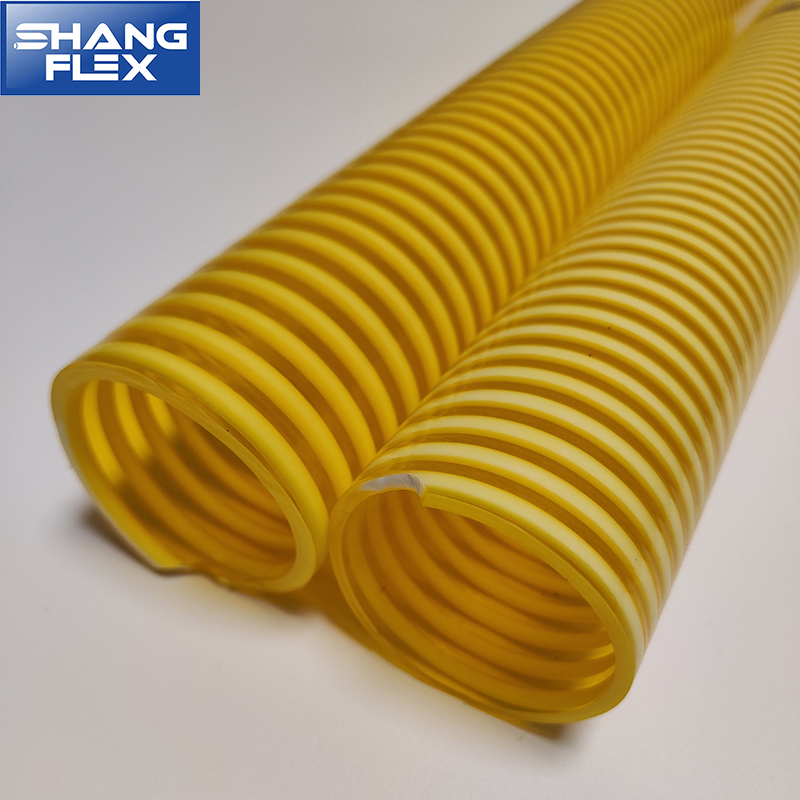

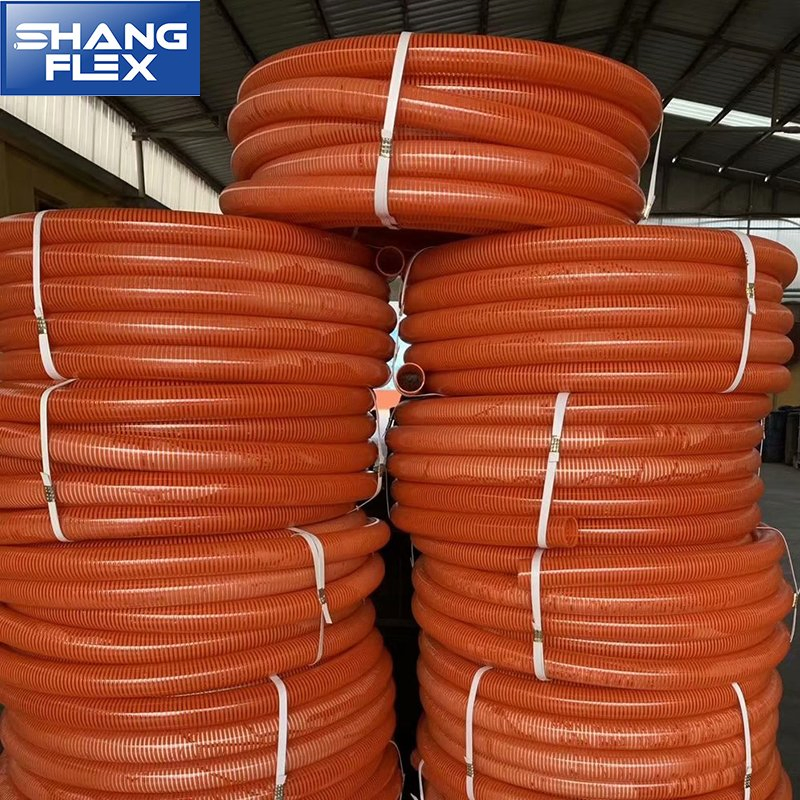

Orange Blue Yellow White Medium Duty Pump PVC Suction Delivery Water Hose

1 / 5

Orange Blue Yellow White Medium Duty Pump PVC Suction Delivery Water Hose

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

Medium Duty PVC Suction Hose

Type

Thermoplastic Pipe

Shape

Round

Usage

Drainpipe, Water Supply, Agricultural Irrigation

Length

30m/50m

MOQ

1000m

Delivery Time

20 days

Certificate

ISO/FDA/Reach/RoHS/CE

Specification

1" to 14"

HS Code

39173900

💧

Product Description

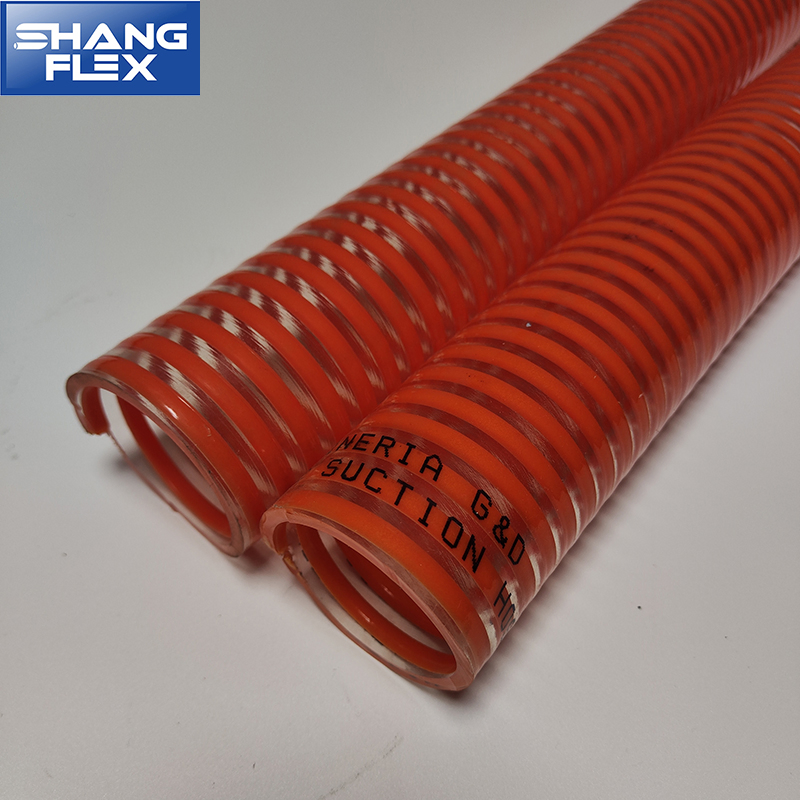

Medium Duty Orange Pump PVC Suction Water Hose

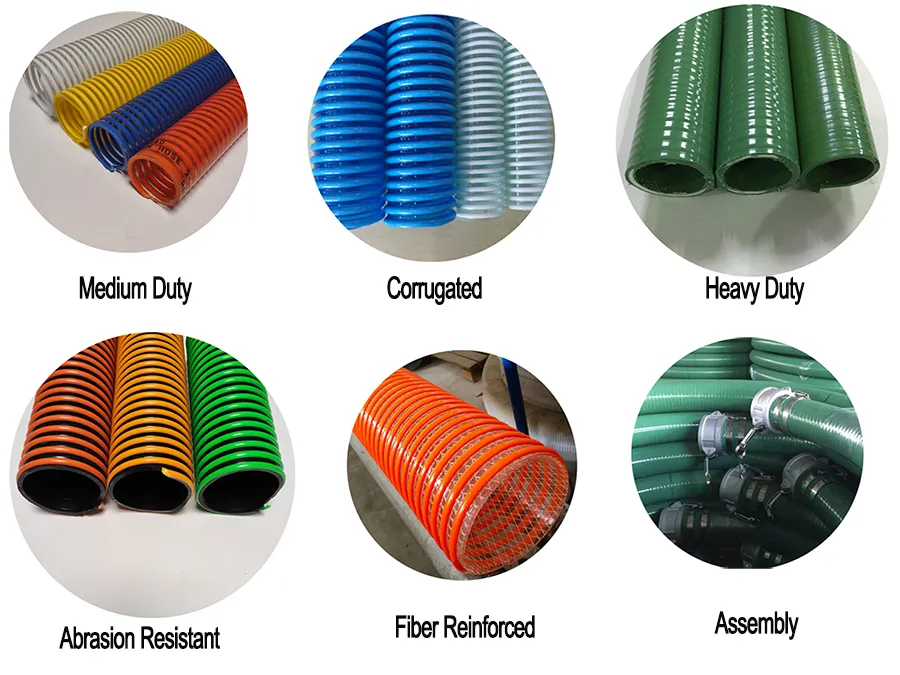

PVC Suction Hose Features

🚀

Key Features & Applications

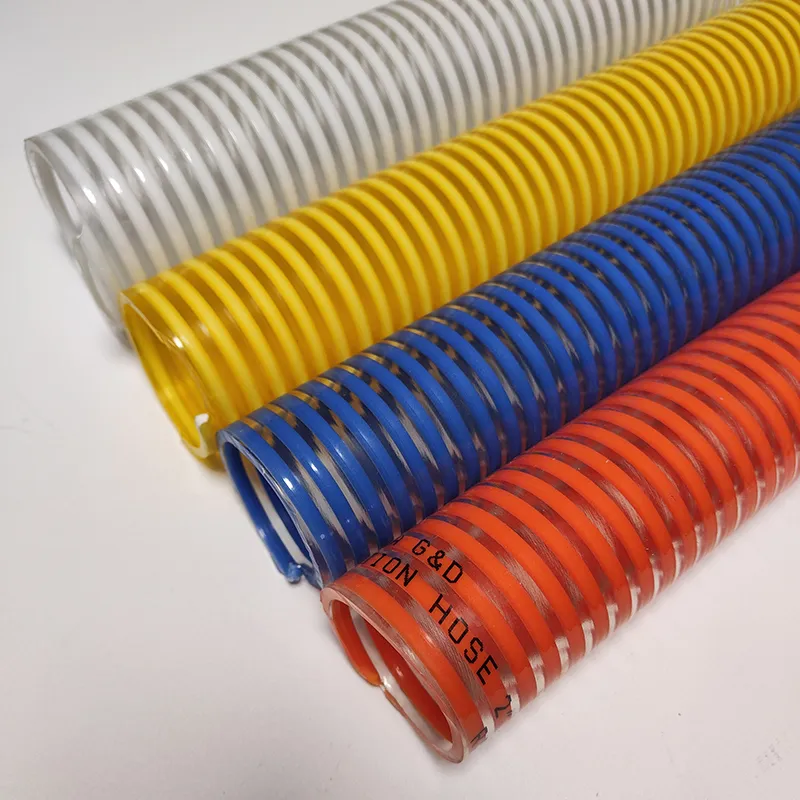

Smooth PVC inner tube and smooth cover, constructed with rigid PVC helix inside.
Minus pressure resistant with high working pressure performance.
Excellent flexibility and extreme bending radius.
Resistant to crushing, abrasion, and most chemicals.
High and low temperature resistant, working range: -5ºC to 70ºC.

Applications: Designed for delivery and suction of water and slurry with pumps in irrigation, mining, construction, drain cleaning trucks, and water trucks.

📊

Medium Duty Specifications

Inner Diameter		Outer Diameter	Length	Working Pressure	Burst Pressure	Weight
Inch	mm	mm	Mtr/Roll	bar	bar	kgs/Mtr
1"	25	29	50	8	24	0.29
2"	50	54	50	5	15	0.55
3"	75	81	50	4	12	1.16
4"	100	108	50	4	12	1.95
6"	150	163	30	4	12	3.60
10"	254	270	10	4	12	10.00

🏭

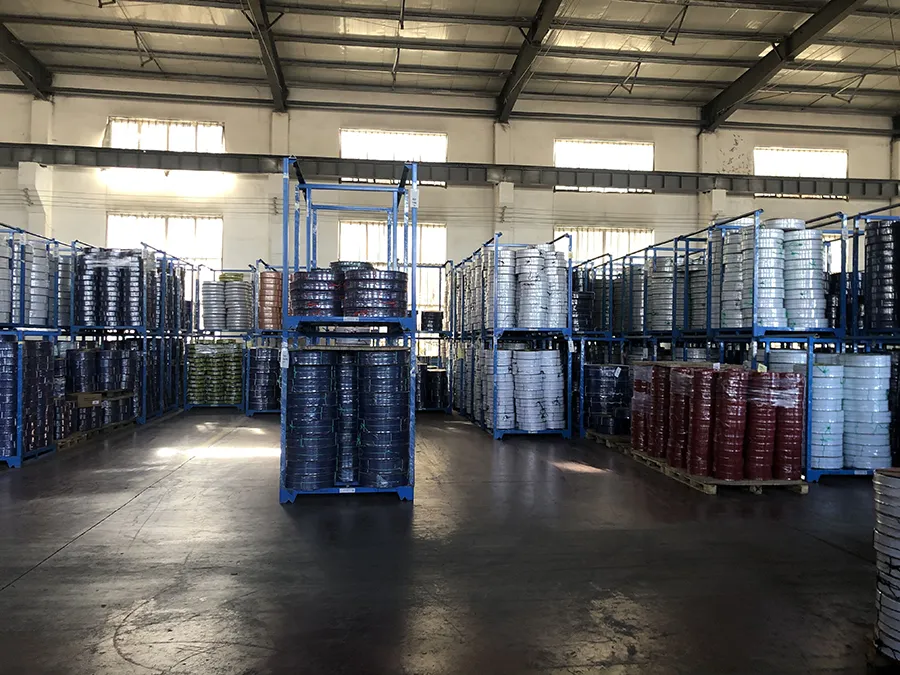

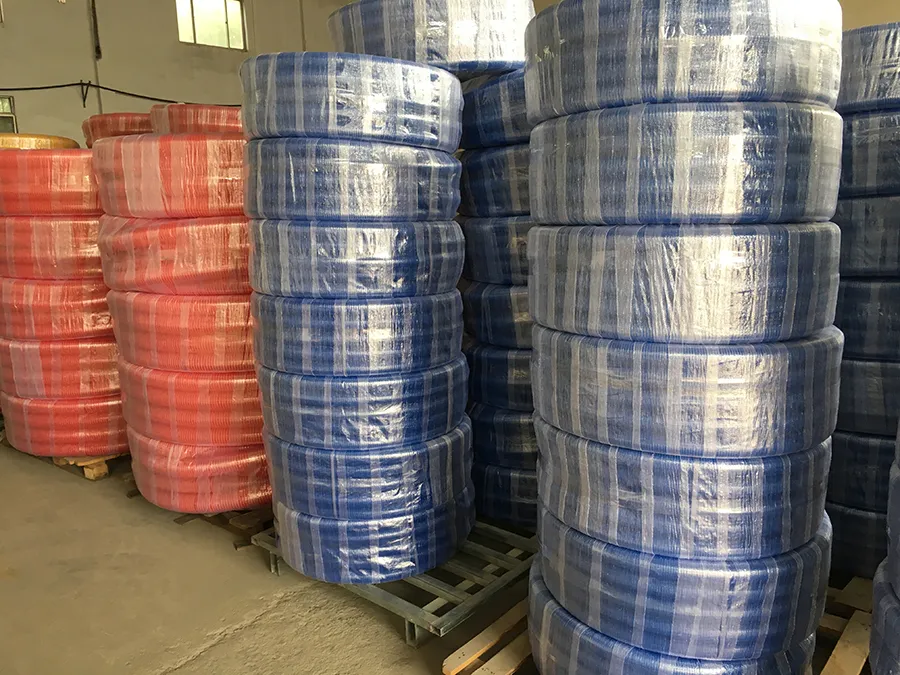

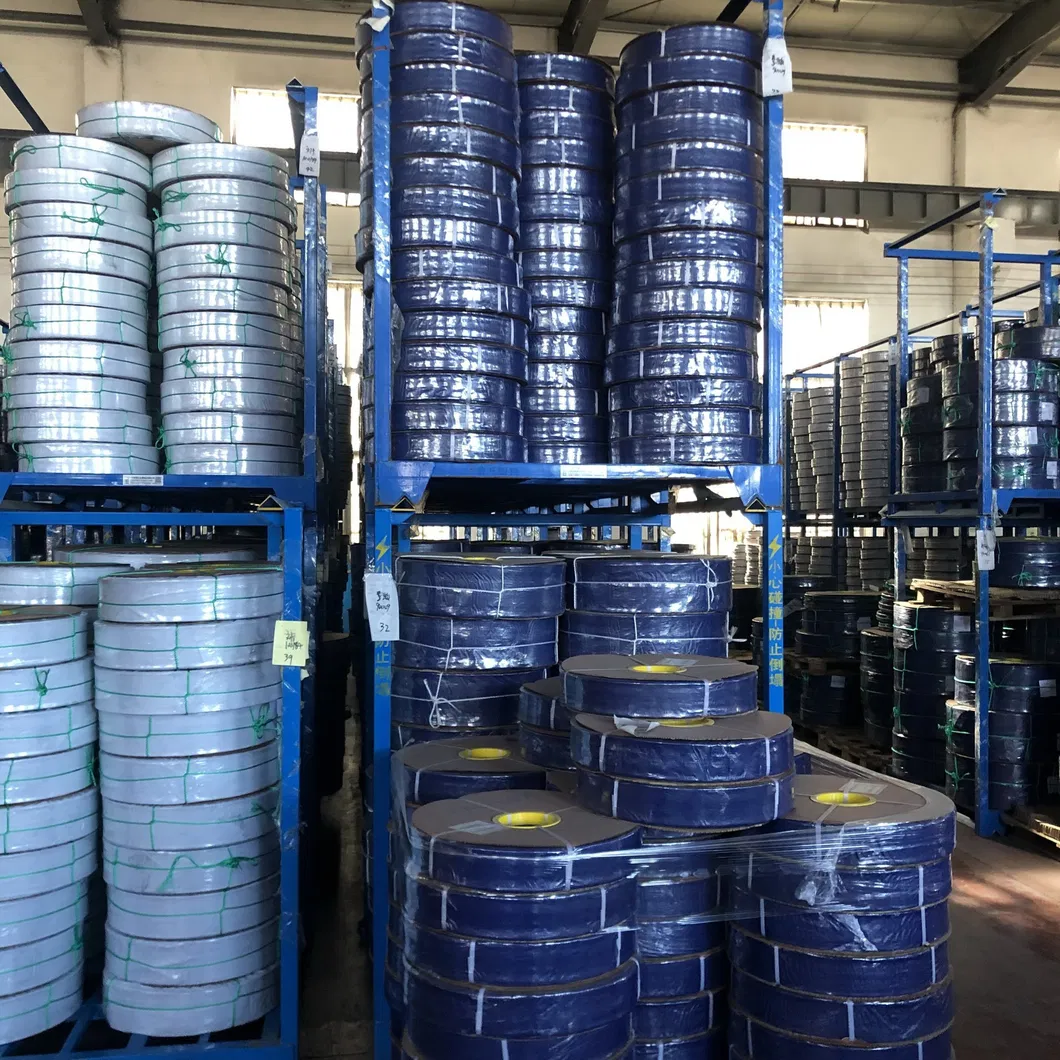

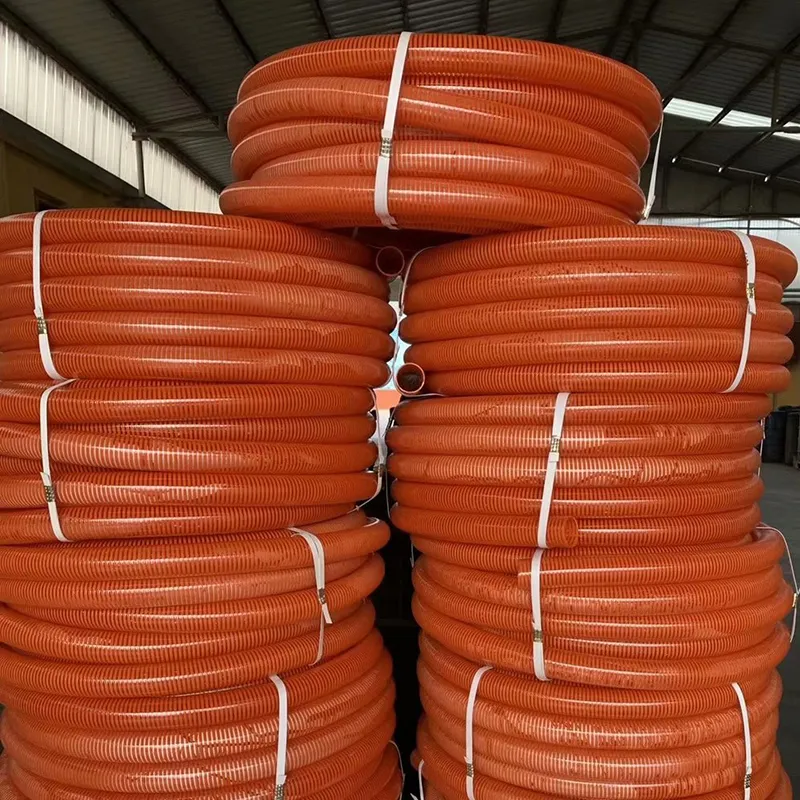

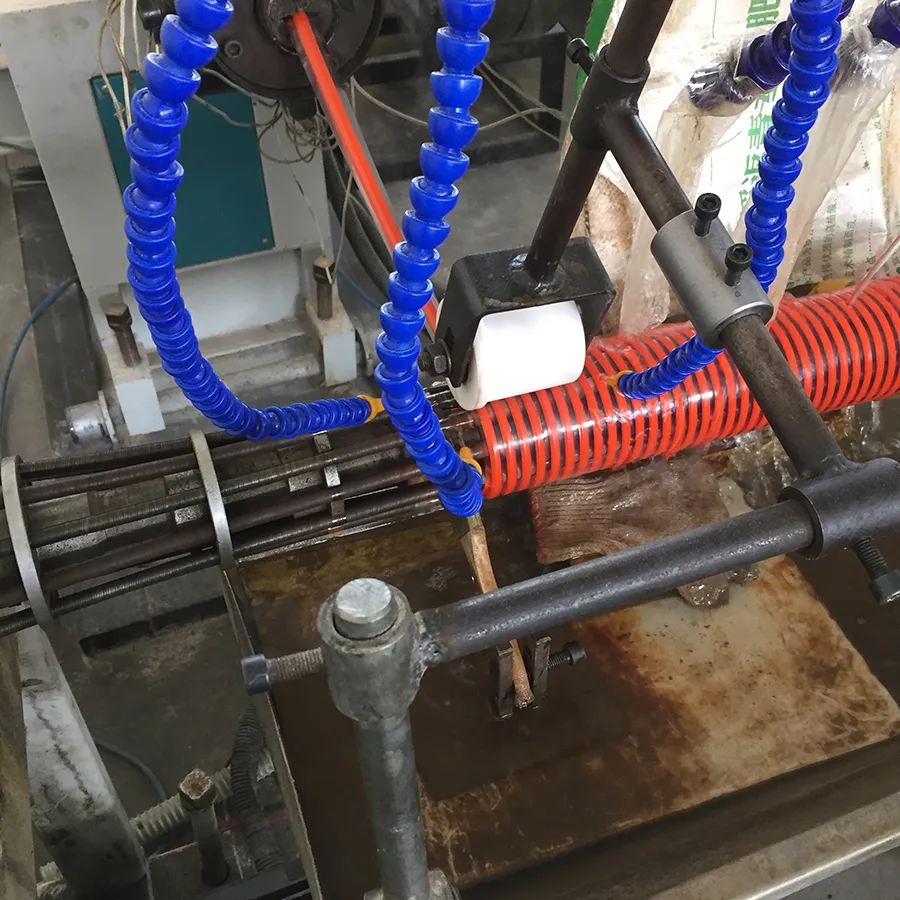

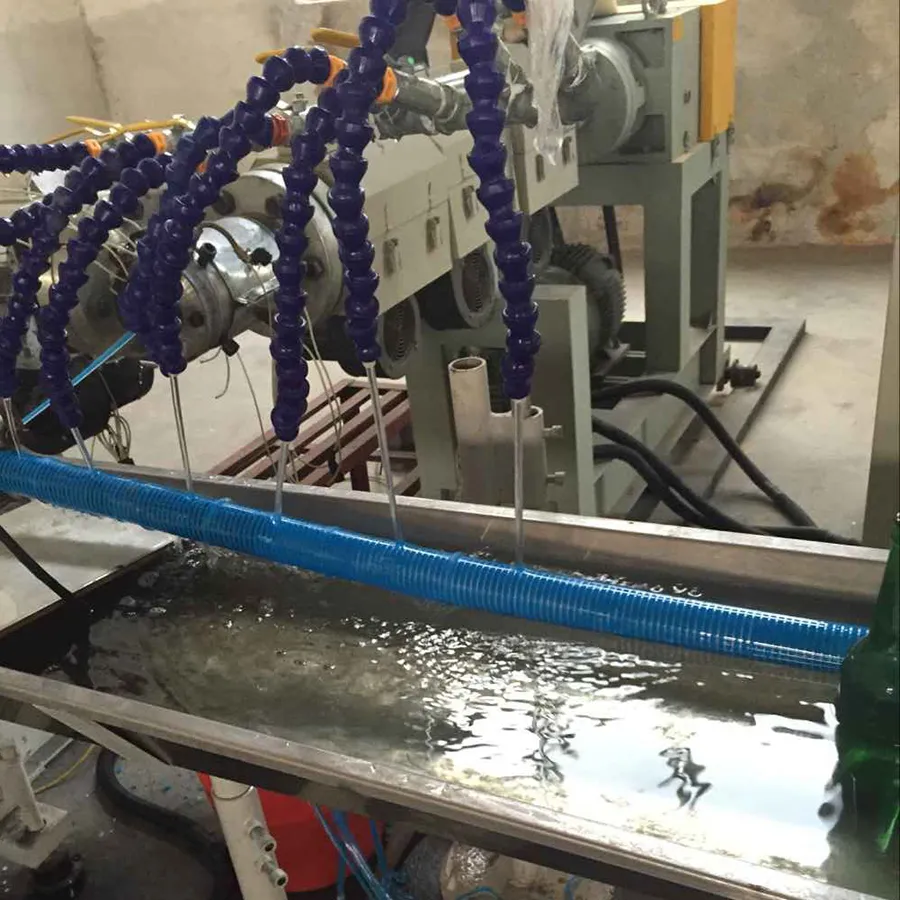

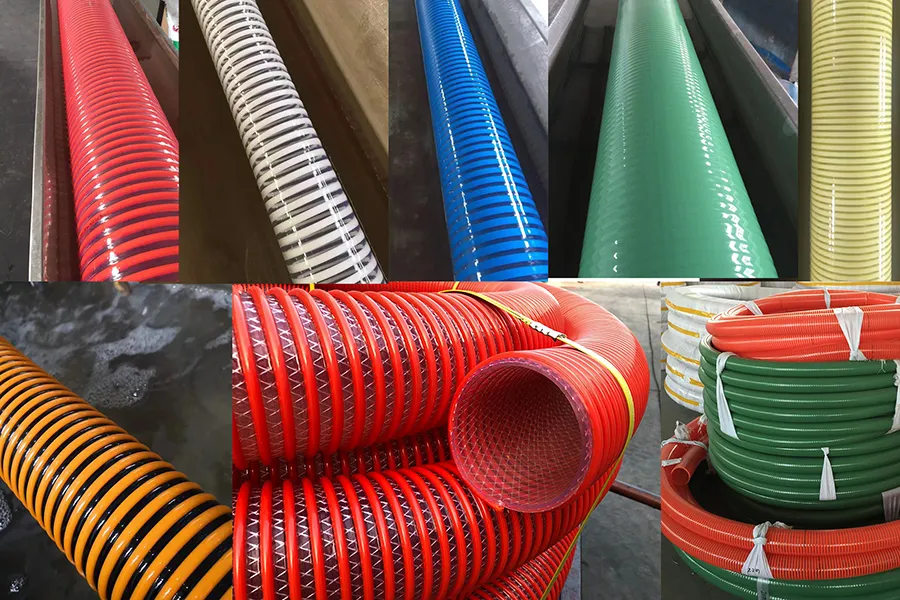

Production & Warehouse

📜

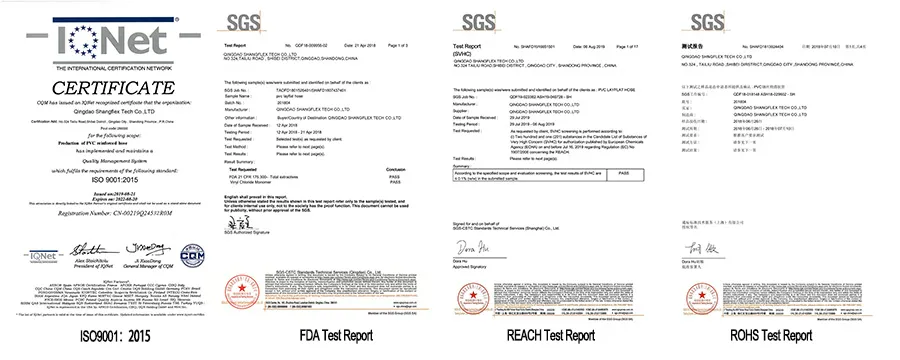

Certifications

Frequently Asked Questions

Q1: What is the working temperature range for this PVC suction hose? A: The hose is designed to operate efficiently within a temperature range of -5ºC to 70ºC.

Q2: Can this hose handle chemical transport? A: Yes, it is constructed to be resistant to most chemicals, as well as abrasion and crushing.

Q3: What industries commonly use the Medium Duty Suction Hose? A: It is widely used in agricultural irrigation, mining, construction, and for water/slurry delivery in pump systems.

Q4: What certifications do your hoses carry? A: Our products meet international standards including ISO, FDA, REACH, RoHS, and CE.

Q5: Is the hose flexible enough for tight spaces? A: Yes, the hose features excellent flexibility and a tight bending radius due to its rigid PVC helix reinforcement.

Q6: What are the standard lengths available? A: Standard lengths are usually 30 meters or 50 meters per roll, depending on the diameter and duty type.
