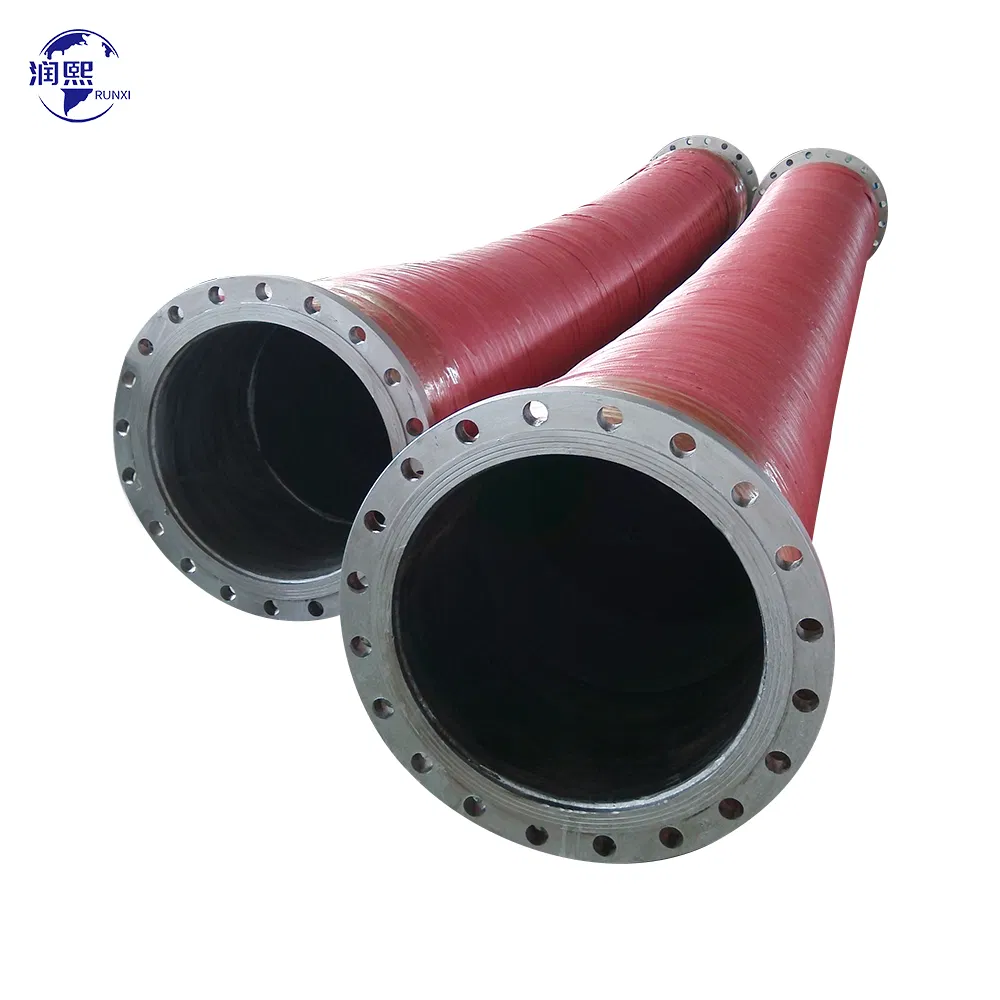

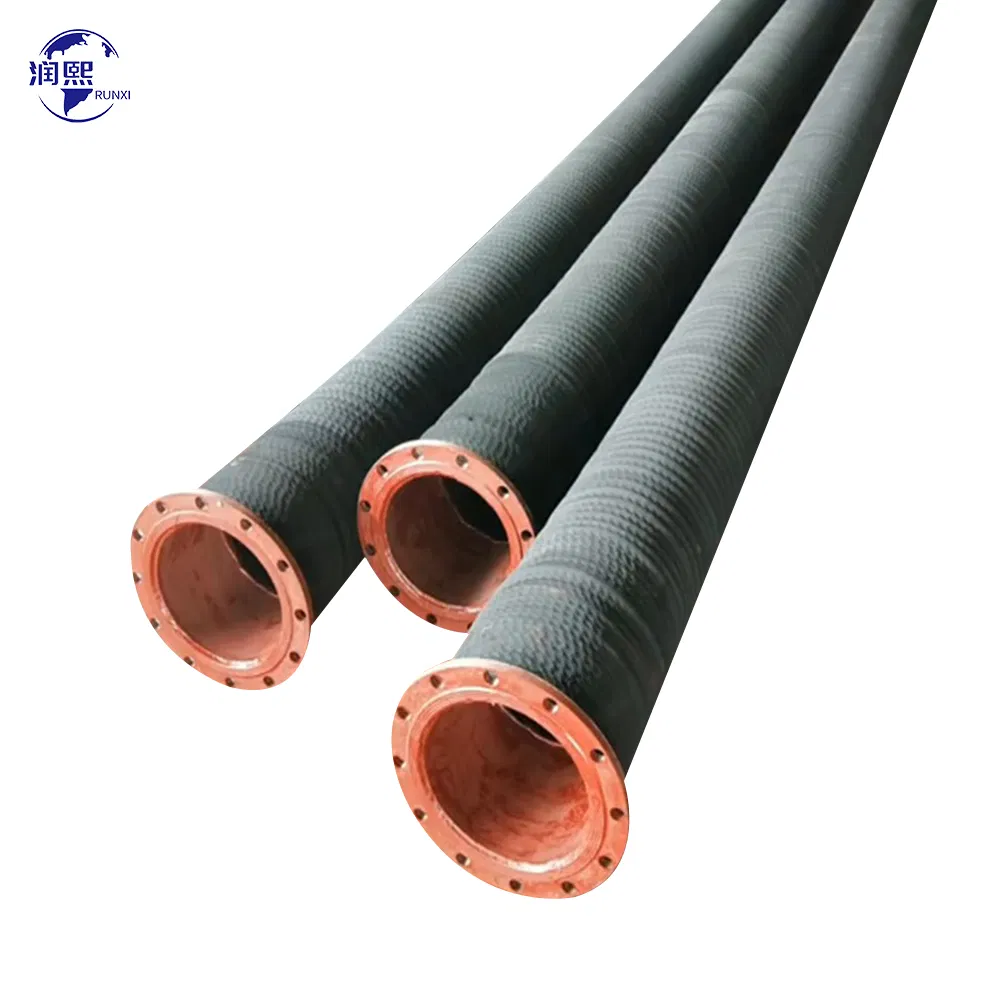

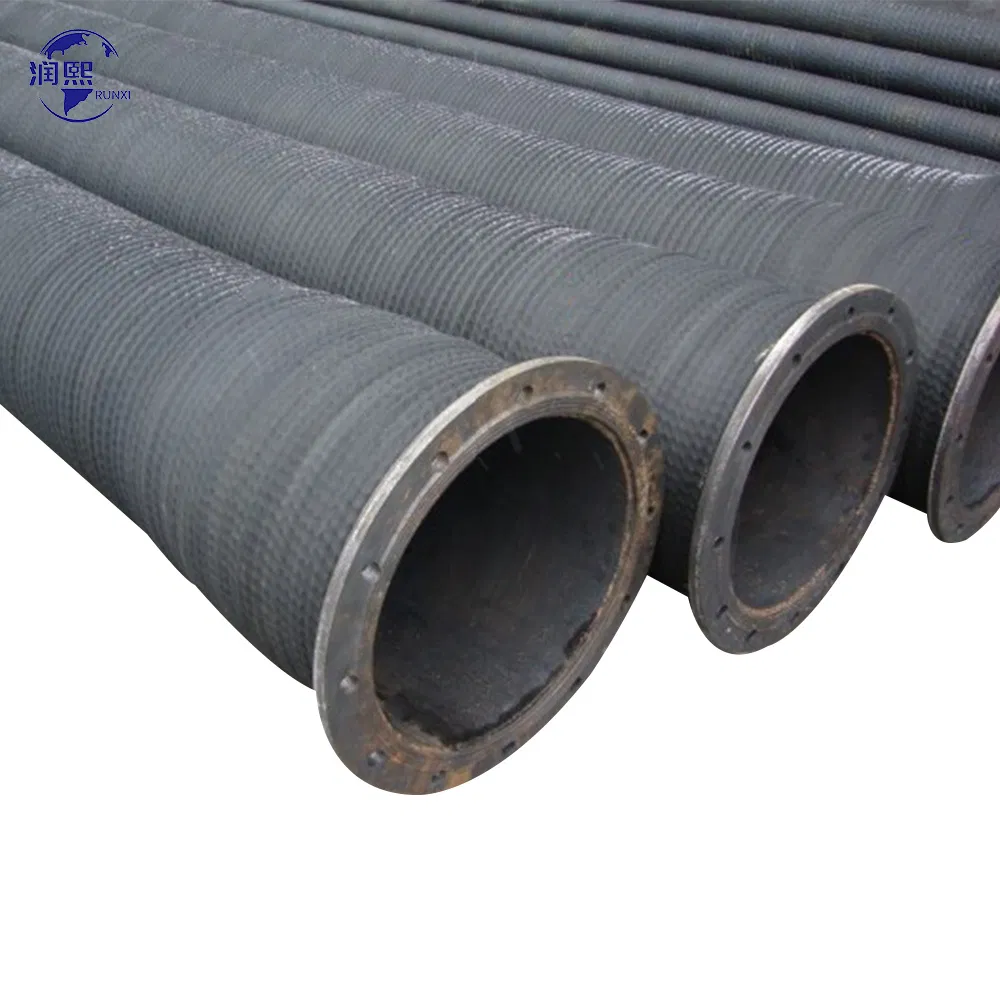

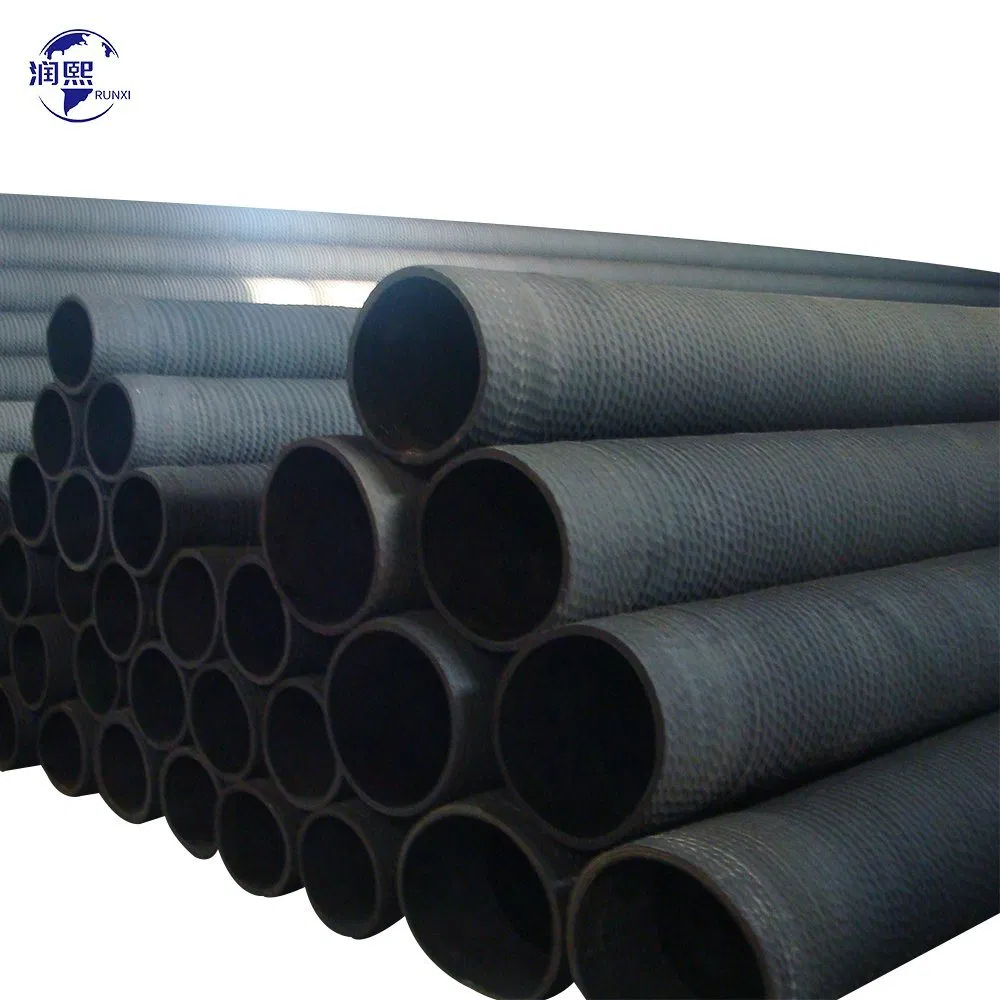

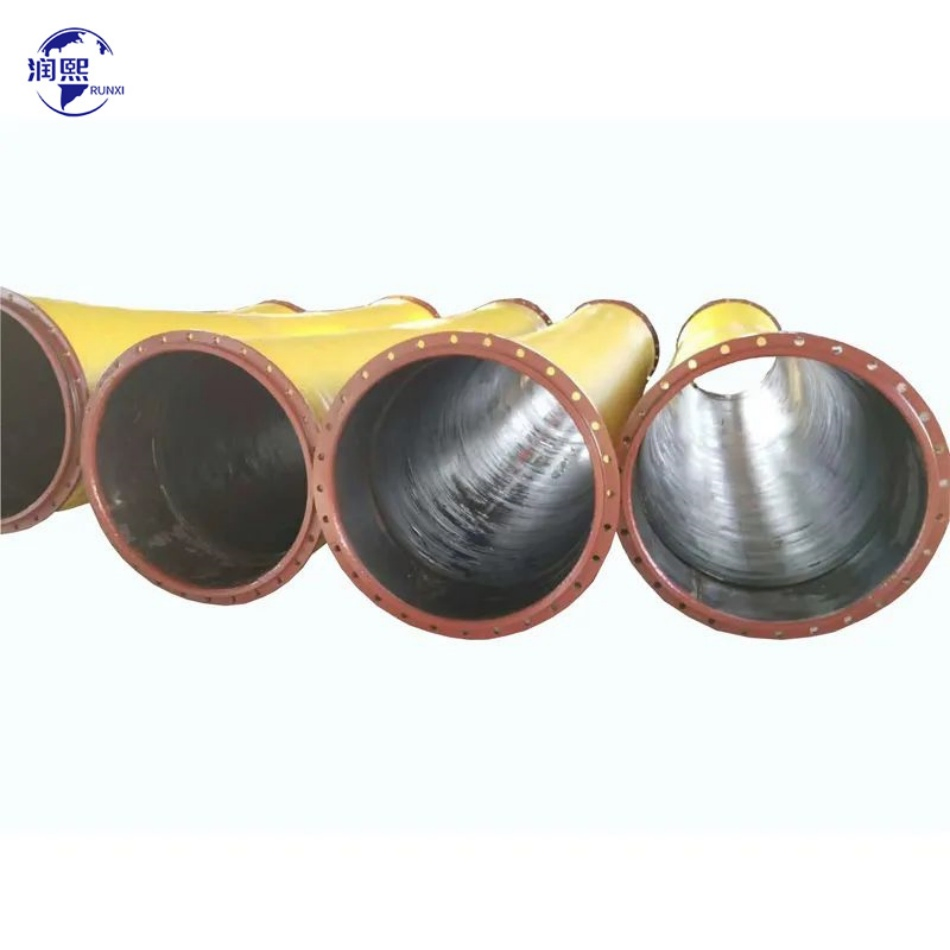

The rubber suction and discharge hose has an inner rubber layer, multiple layers of cloth or cord and spiral steel wire are used as the reinforcement layer, and the outer rubber layer is determined according to the use of the pipe. These materials provide resistance against the abrasion and chemical attack from the transported mud or slurry.
Outer Cover: Anti-aging and Abrasion Resistant Synthetic Rubber (SBR or NR)
Reinforcement Layer: High Strength Synthetic Textile Cords or Steel Wire Helix
Inner Tube: Anti-aging and Abrasion Resistant Synthetic Rubber
Applications:

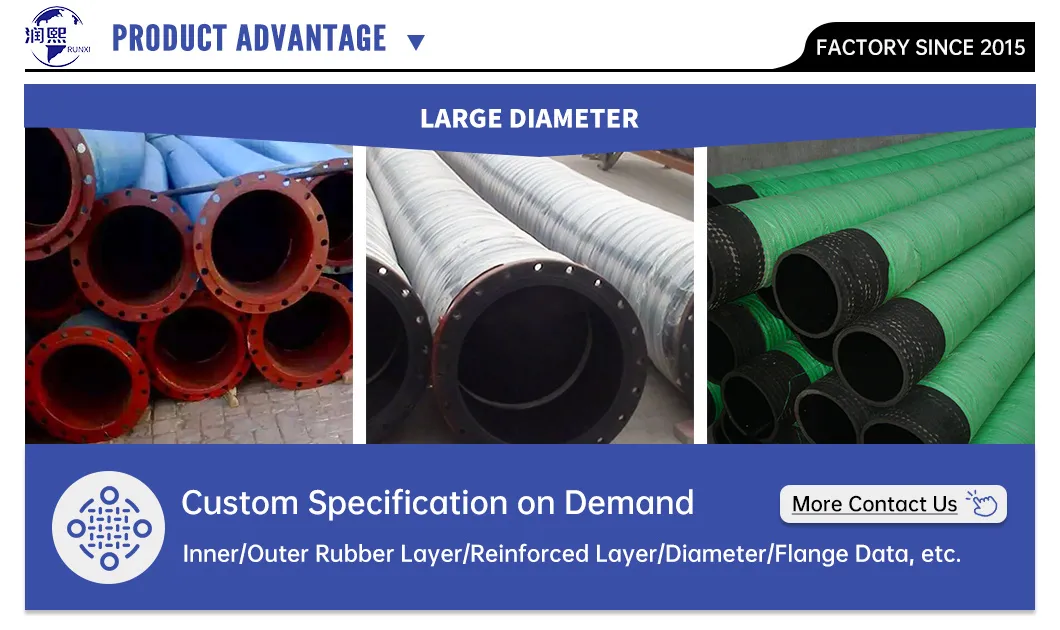

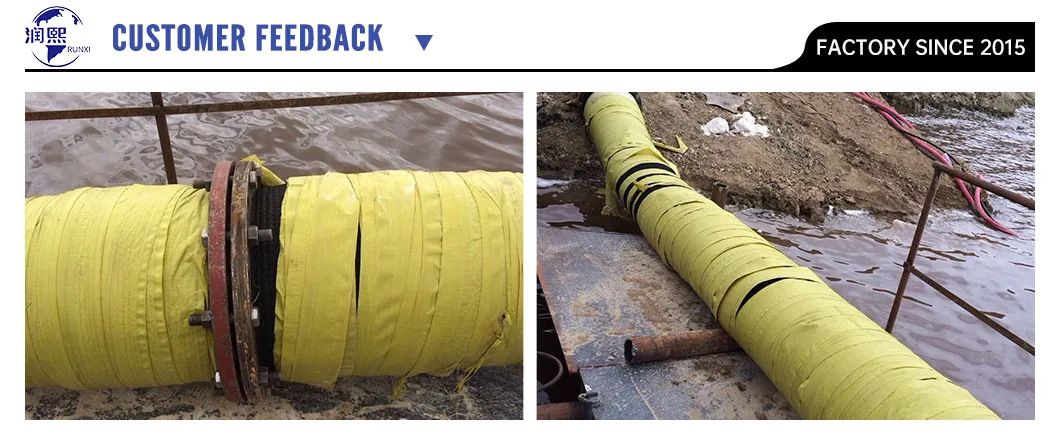

This product is widely used in dredging engineering dredging vessels to clean up sludge, suction and discharge seawater, sand, sewage, sludge and agricultural irrigation. Large diameter mud suction and discharge rubber hoses are also used for transferring drilling mud and other fluids between offshore drilling platforms and onshore storage tanks.
Suction and Discharge Hose Size Chart:
| Name | Nominal ID D(mm) | Inner Rubber t2(mm) | Flange OD D1 | Flange Thick t1(mm) | Joint Thread t1 | Center Circle (mm) | Number | Diameter (mm) |
|---|---|---|---|---|---|---|---|---|
| 200 | 205±3 | 10 | 320 | 12±2 | 6 | 280±1.0 | 8 | 23±1 |
| 250 | 245±3 | 10 | 385 | 12±2 | 6 | 345±1.0 | 12 | 23±1 |
| 300 | 305±3 | 10 | 430 | 12±2 | 6 | 390±1.0 | 12 | 23±1 |
| 350 | 338±5 | 10 | 480 | 19±2 | 6 | 435±1.0 | 12 | 23±1 |
| 400 | 400±5 | 10 | 540 | 19±2 | 6 | 495±1.0 | 16 | 23±1 |
| 510 | 510±5 | 15 | 710 | 19±2 | 9 | 650±1.0 | 16 | 23±1 |
| 640 | 640±5 | 20 | 914 | 22±2 | 9 | 750±1.0 | 20 | 25±1 |
| 800 | 800±5 | 25 | 1050 | 32±2 | 12 | 970±1.0 | 32 | 30±1 |
Our products are exported to more than 30 countries, such as Iran, Russia, USA, The UK, DAE, Korea, Vietnam, Iraq, Singapore, Indonesia, Azerbaijan and Japan, and some African countries, etc. We have obtained high praise from clients domestic and abroad due to the excellent quality and competitive price.
We place high emphasis on human resource development and have competent professionally qualified and experienced staff in each of our functions. We invest in developing staff through in-house, out-sourced and international training.

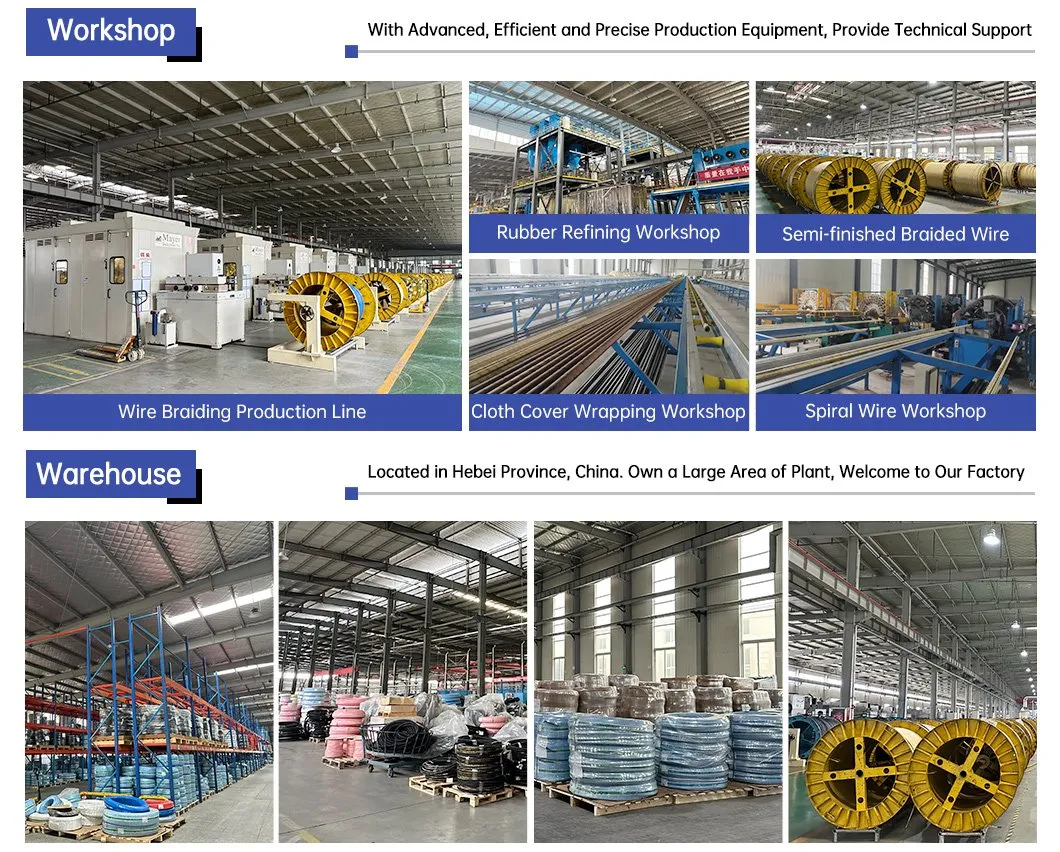

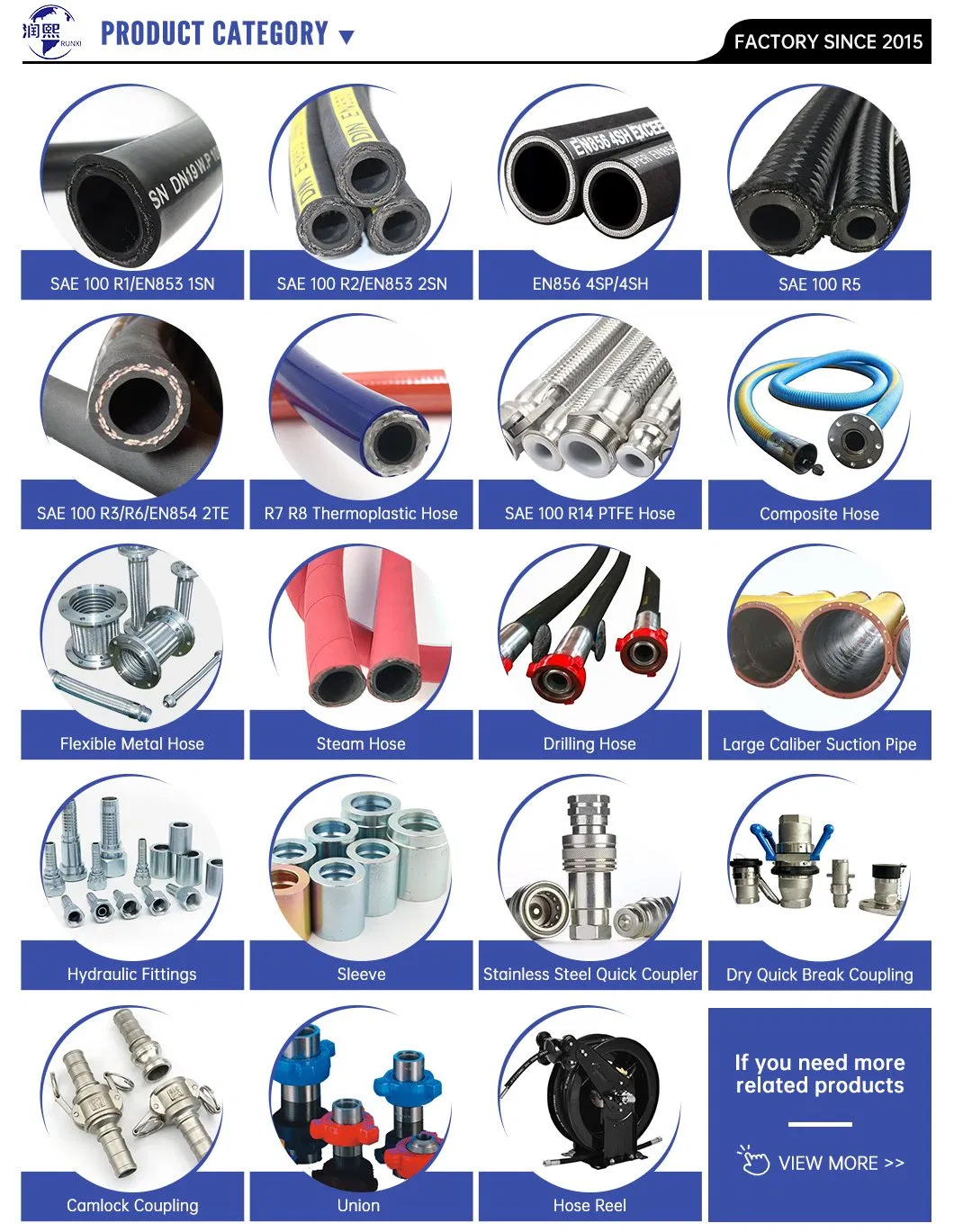

We are a technology-based enterprise specialized in the R&D and marketing of multiply rubber products, rubber hose production lines, and telecommunication towers. Our specialized range includes Telecom towers, High pressure hoses, Hydraulic hoses, Drilling Rotary hoses, Choke & Kill Lines, Bop hoses, Suction and Discharge hoses, and more.
