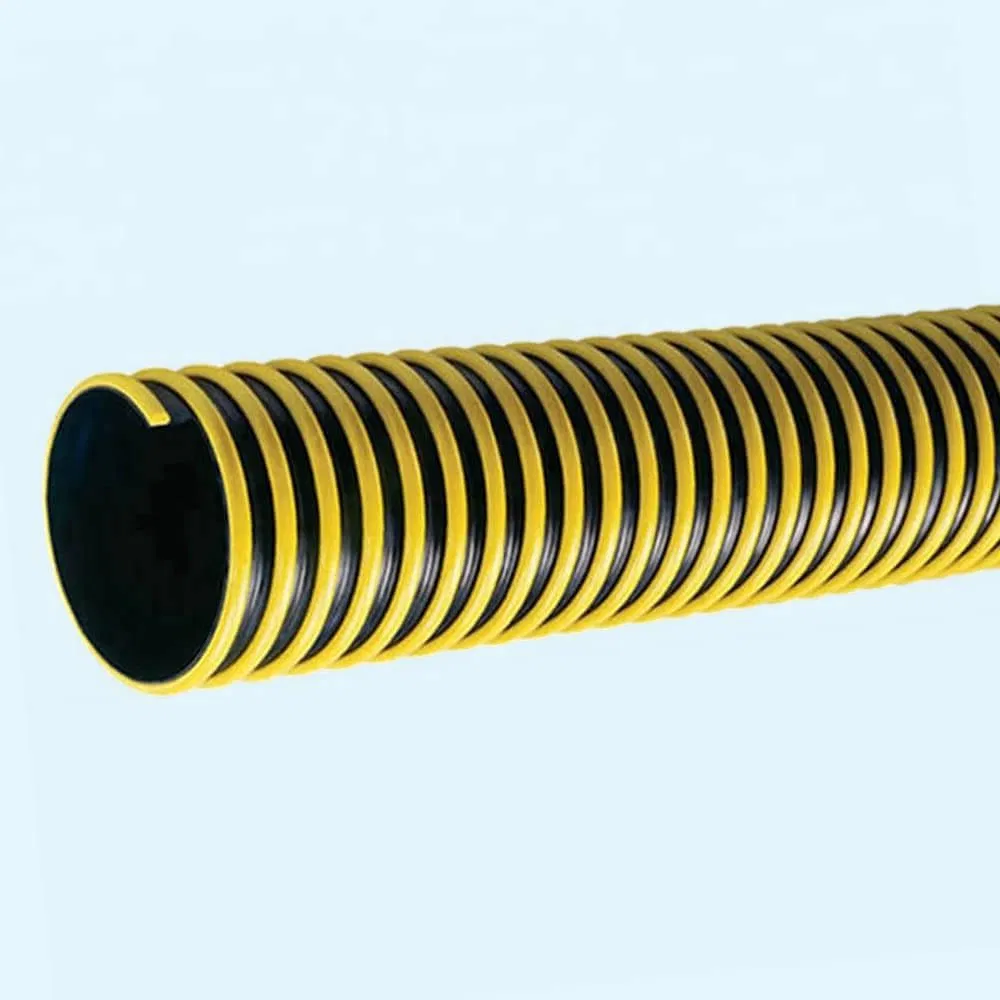

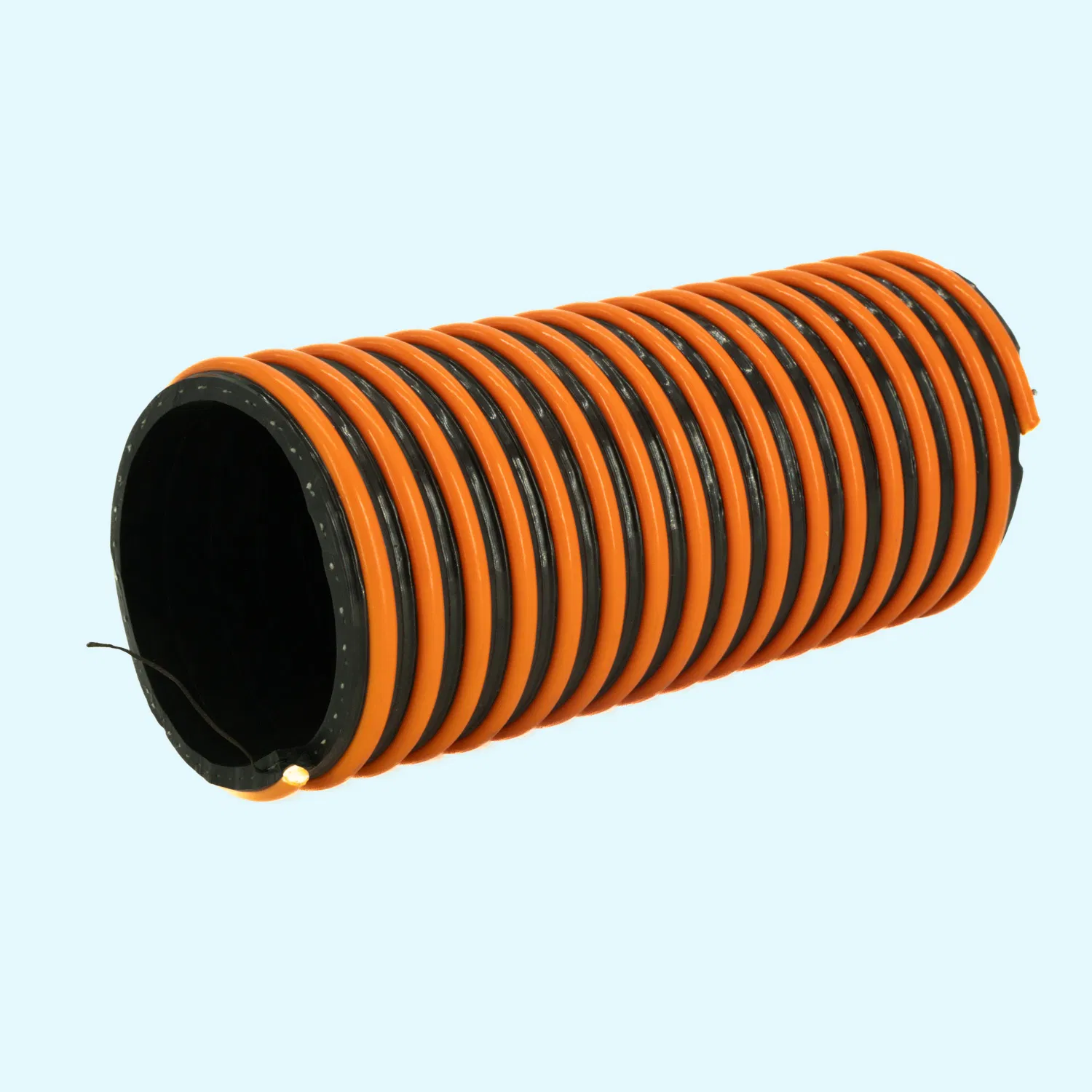

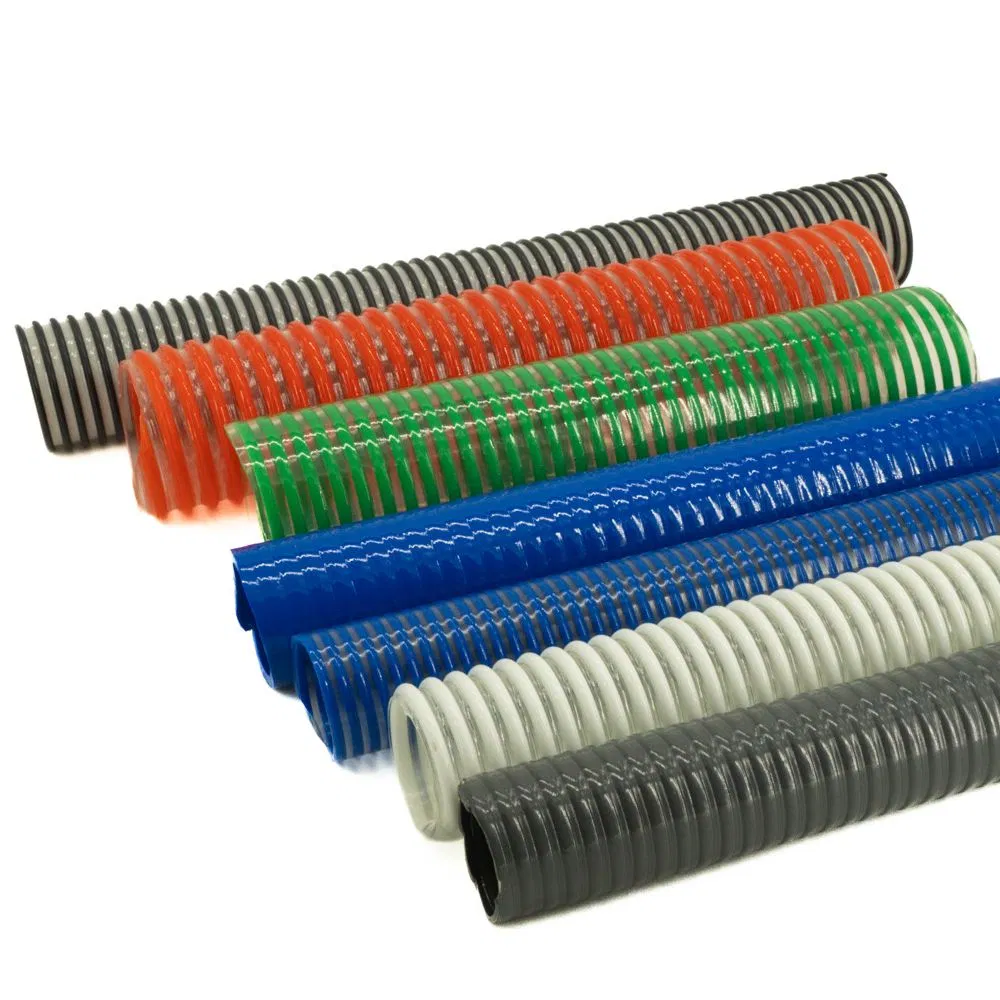

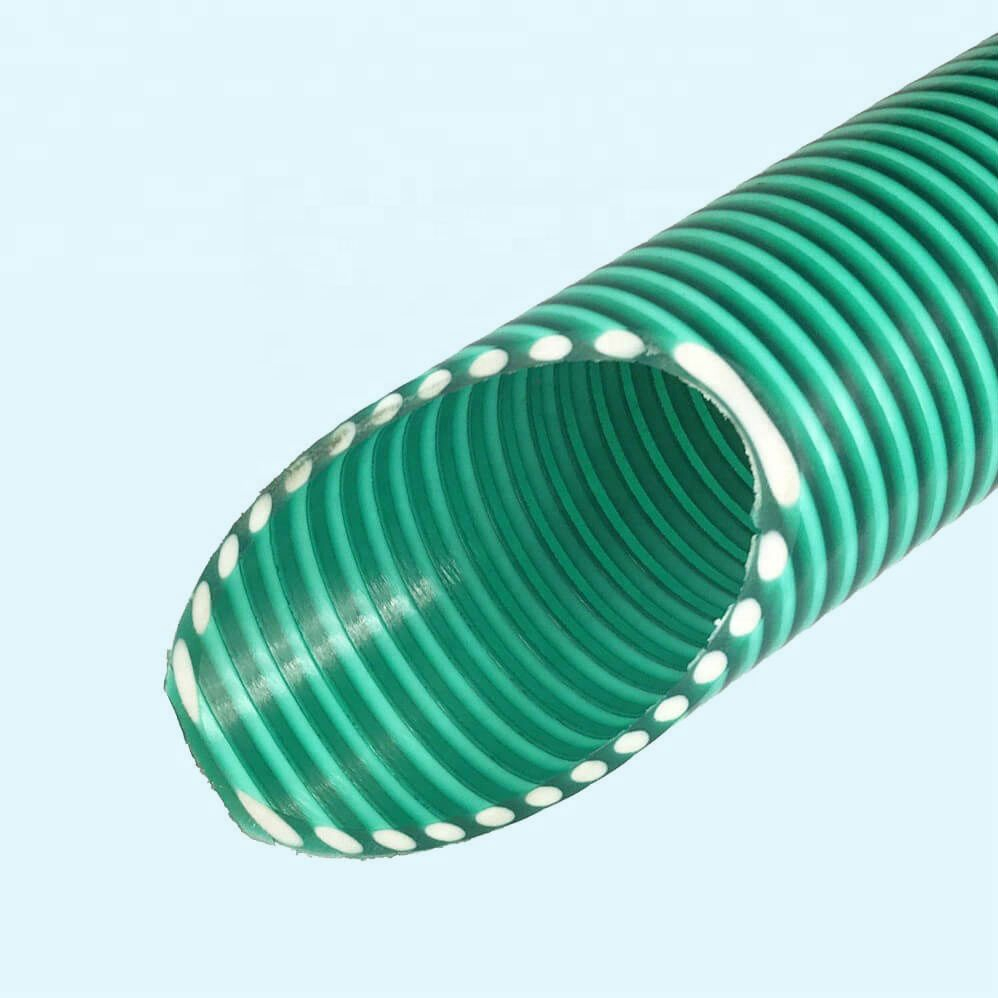

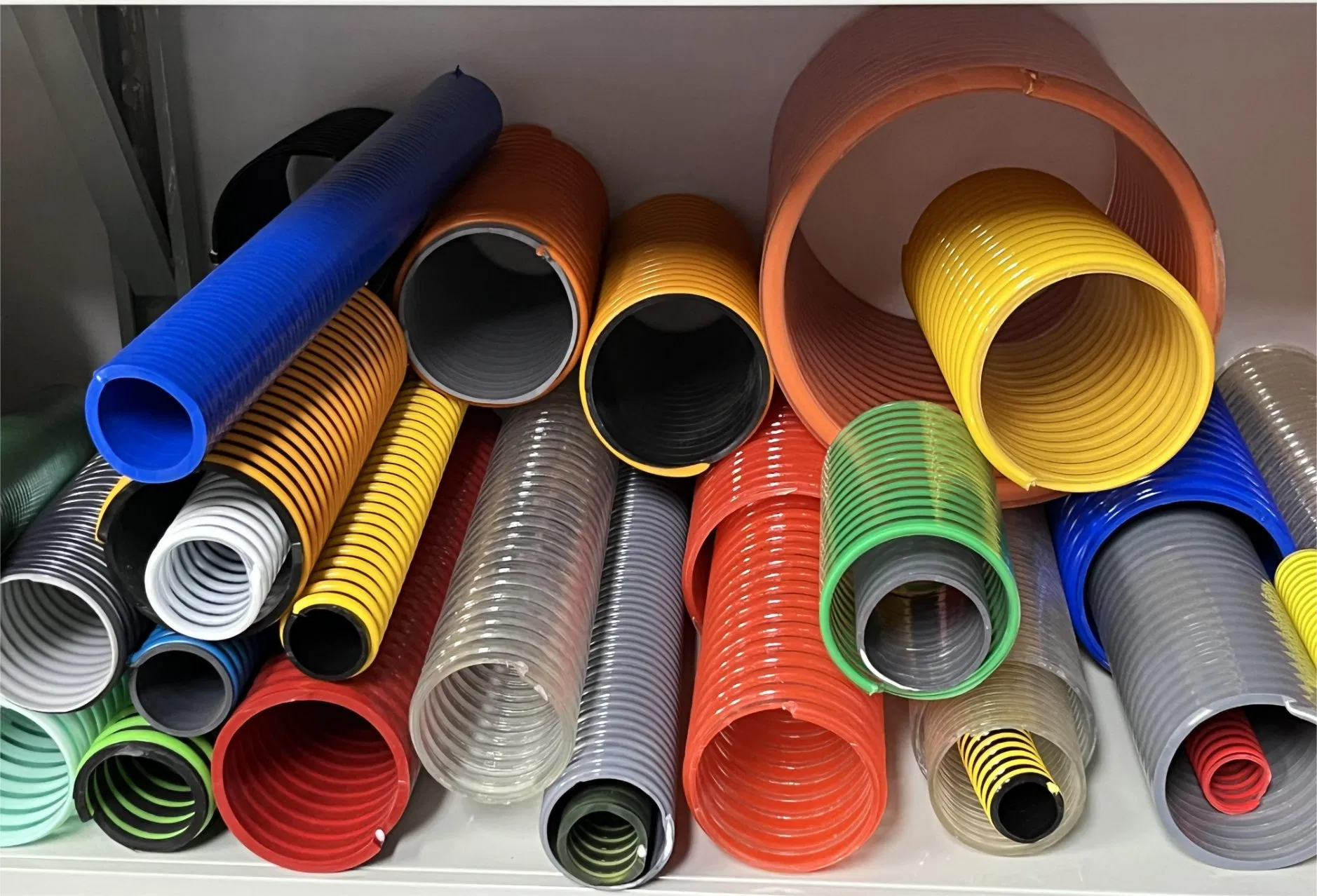

Corrugated Flexible PVC Suction Reinforced Hose 3/4'' 1'' 2'' 3'' 4'' 5'' 6'' 8'' for Water Oil Pump SPA Duct Grit Sewage Mining Vacuum Use

1 / 5

Corrugated Flexible PVC Suction Reinforced Hose 3/4'' 1'' 2'' 3'' 4'' 5'' 6'' 8'' for Water Oil Pump SPA Duct Grit Sewage Mining Vacuum Use

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.:

PVC suction hose

Shape:

Round

Usage:

Drainpipe, Water Supply, Agricultural Irrigation, Corrugated Pipe

Application:

Oil Suction and Delivery

Characteristic:

High Pressure

Feature:

Corrosion Resistant

Function:

Industrial Drainage

Thickness:

4mm-24mm

MOQ:

1000 Meters

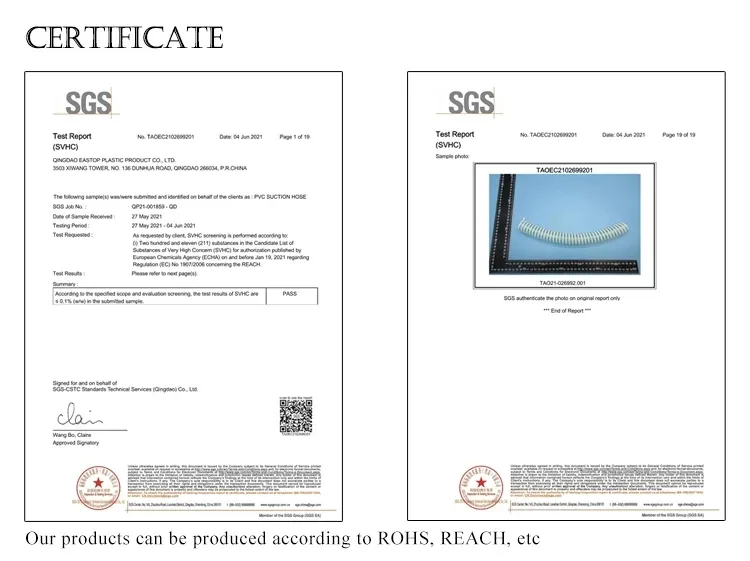

Certification:

CE ISO

Specification:

3/4"-16"

Production Capacity:

2000tons/Year

Product Description

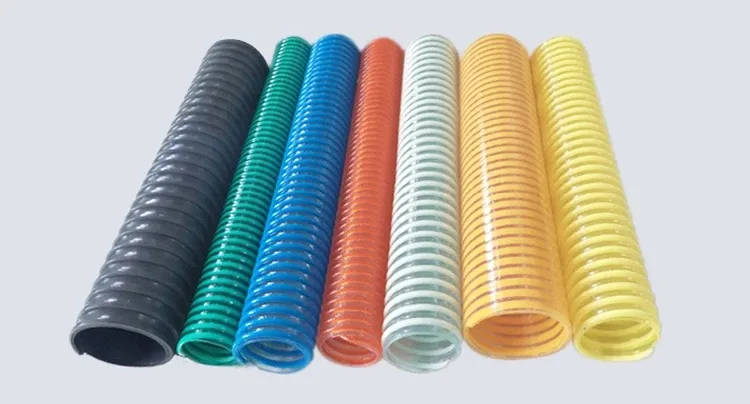

Corrugated Flexible PVC Suction Reinforced Hose - Suitable for water oil pump, spa, duct, grit, sewage, mining, and vacuum use. Available in sizes 3/4'', 1'', 2'', 3'', 4'', 5'', 6'', 8''.

Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		Weight	Coil
inch	mm	mm	bar	psi	bar	psi	g/m	m
3/4	19	23	6	90	18	270	230	50
1	25	29	6	90	18	270	290	50
1-1/4	32	38	6	90	18	270	400	50
1-1/2	38	46	6	90	18	270	650	50
2	50	56	5	75	15	225	700	50
2-1/2	63	71	4	60	12	180	1170	30
3	75	83	3	45	9	135	1300	30
4	100	110	3	45	9	135	2300	30
5	125	137	3	45	9	135	3300	30
6	152	166	2	30	6	90	5500	20
8	200	216	2	30	6	90	6700	10
10	254	270	2	30	6	90	10000	10
12	305	329	2	30	6	90	18000	10
14	358	382	2	30	6	90	20000	10
16	408	432	2	30	6	90	23000	10

Frequently Asked Questions

What are the primary applications for this PVC suction hose?

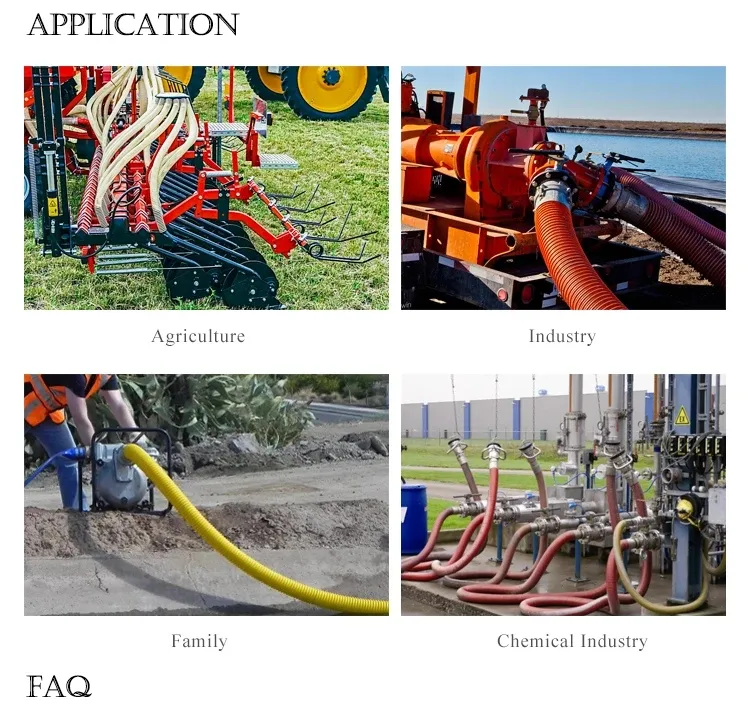

It is widely used for industrial drainage, water supply, oil suction and delivery, agricultural irrigation, and in mining or vacuum systems.

Is the hose resistant to chemicals and corrosion?

Yes, the hose is specifically designed with corrosion-resistant features, making it ideal for handling grit, sewage, and various industrial fluids.

What is the range of sizes available?

We offer a comprehensive range of sizes from 3/4" up to 16" in diameter to meet different operational requirements.

Can I request a sample before placing a bulk order?

Yes, we provide free samples to ensure the product meets your specific quality and application standards.

What is the typical working pressure for these hoses?

The working pressure varies by size, ranging from 6 bar (90 psi) for smaller diameters like 3/4" to 2 bar (30 psi) for larger industrial sizes.

How is the product packaged for transport?

The hoses are typically wrapped in woven plastic cloth to ensure protection during shipping and handling.
