1m/3m An4 An6 An8 An10 An12 Braided Fuel Oil Line Stainless Steel PTFE Gasoline Brake Hose Fuel Oil Line Oil Cooler Hose

1 / 5

1m/3m An4 An6 An8 An10 An12 Braided Fuel Oil Line Stainless Steel PTFE Gasoline Brake Hose Fuel Oil Line Oil Cooler Hose

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Type:

Brake Hose

Material:

Steel / PTFE

Position:

Front

Certification:

ISO/TS16949, IATF-16949, ISO9001, DOT

Size:

3.2mm(1/8'') X 7.5mm

Application:

Truck, Car, Motor

Standard:

SAE J1401, GB16897, FMVSS106

Origin:

China

Product Description

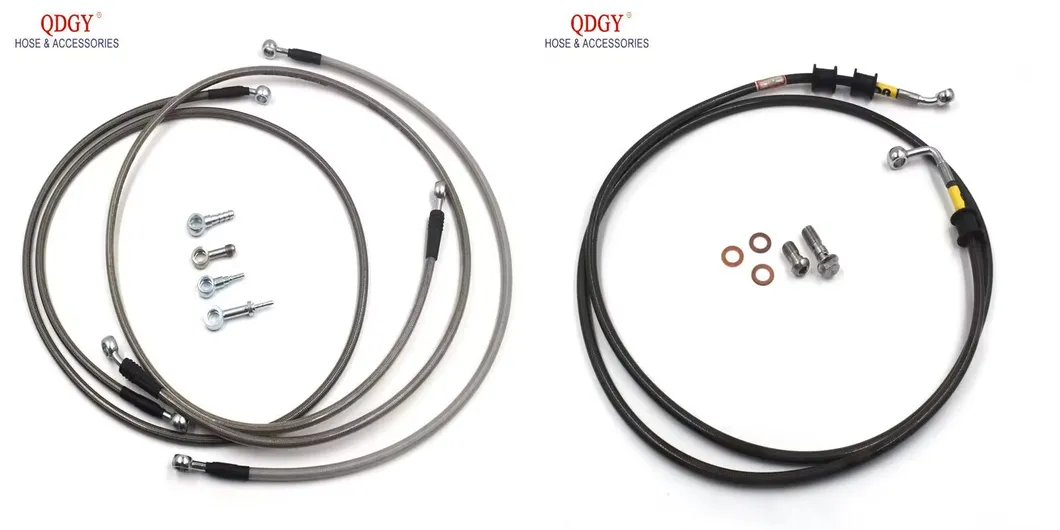

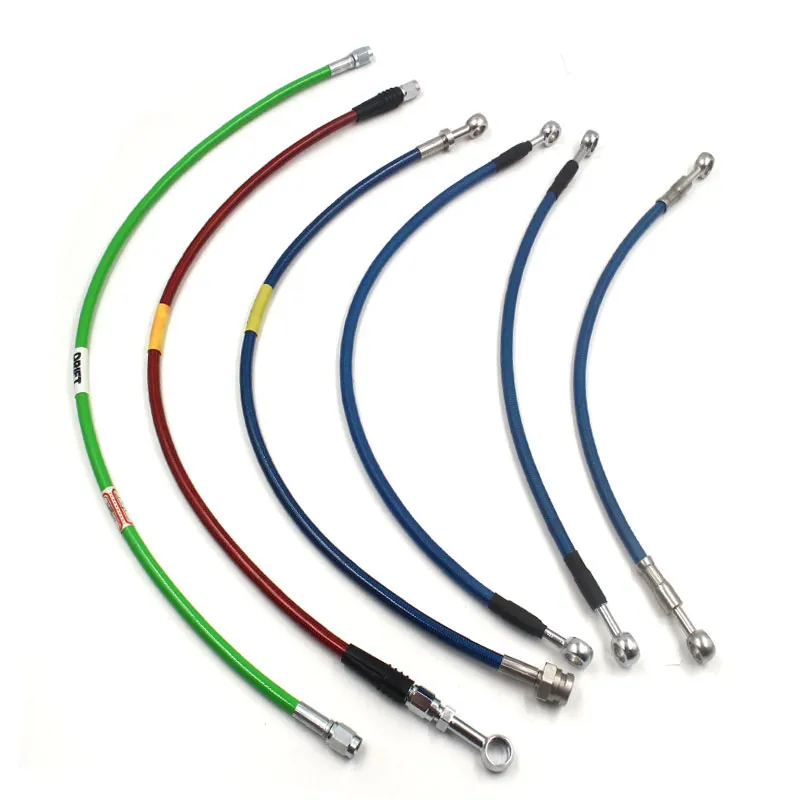

DOT SAE J1401 FMVSS106 Approved Customized Stainless Steel Braided Brake Hose Assembly

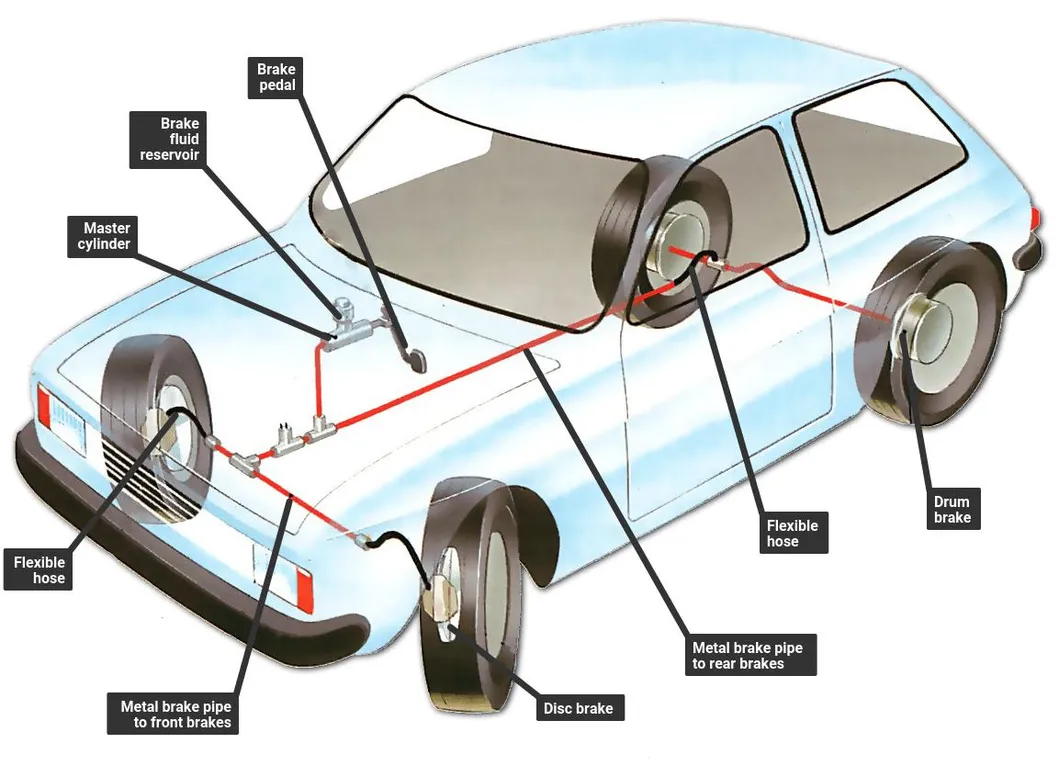

Automobile brake hoses are critical components used in vehicle braking systems. Their main function is to transfer the brake medium, ensuring that braking force is effectively transmitted to the brake linings or calipers at all times. Depending on the medium, hoses are categorized into Hydraulic Brake Hoses (suitable for passenger cars) and Air Brake Hoses (ideal for trucks).

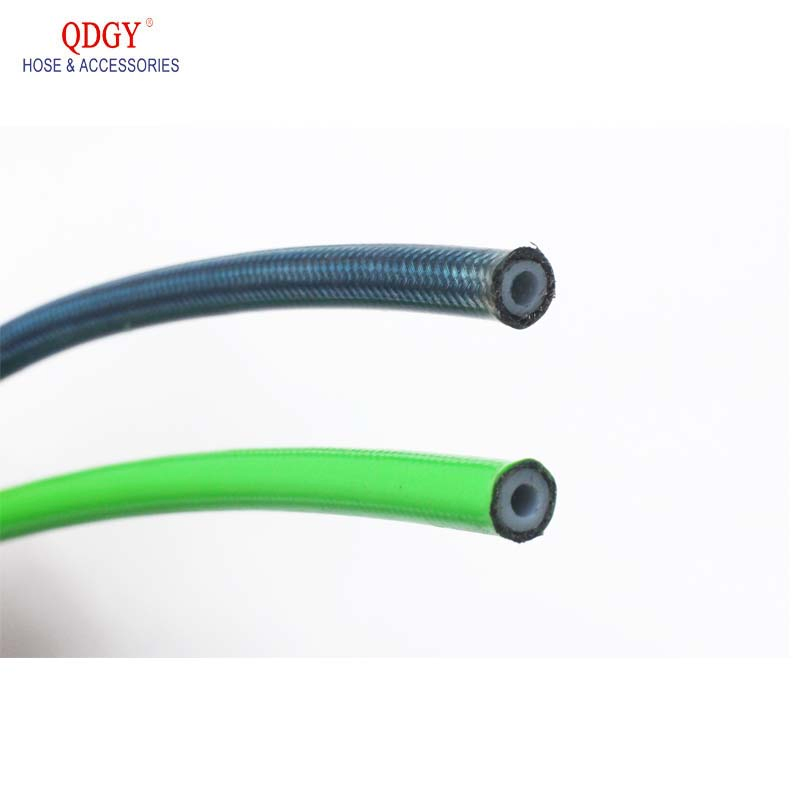

Part No.	Inner Diameter	Outer Diameter	Outer Layer	Stainless Braid	Inner Layer
GSG020	1/8"(3.2mm)	0.295"(7.5mm)	TPU	304 stainless steel	PTFE(Teflon)
GSG026	3/16"(4.8mm)	0.31"(8.0mm)	TPU	304 stainless steel	PTFE(Teflon)
GSG028	1/8"(3.2mm)	0.255"(6.5mm)	No covering	304 stainless steel	PTFE(Teflon)

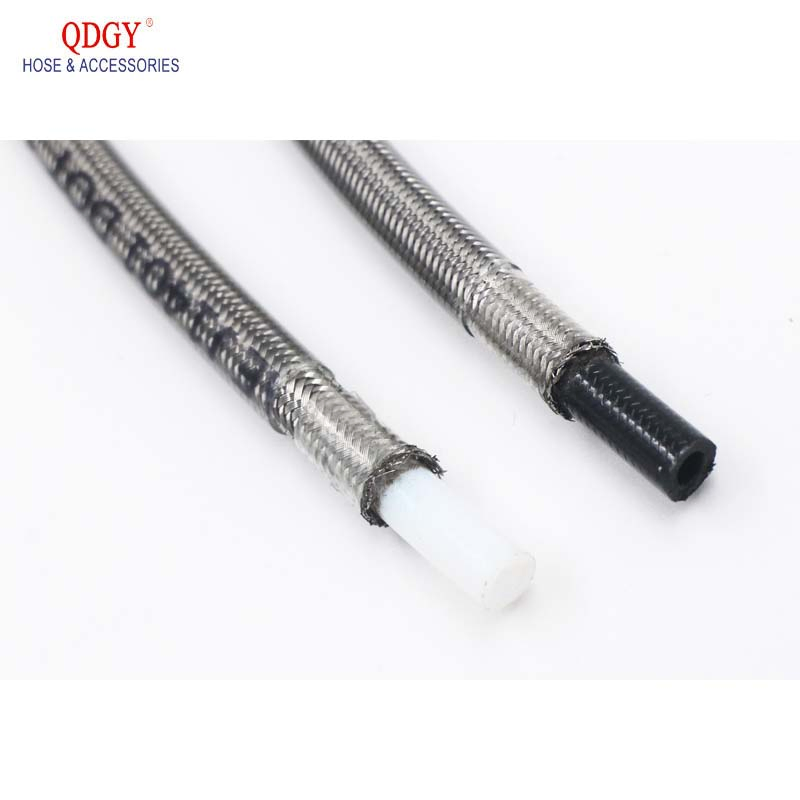

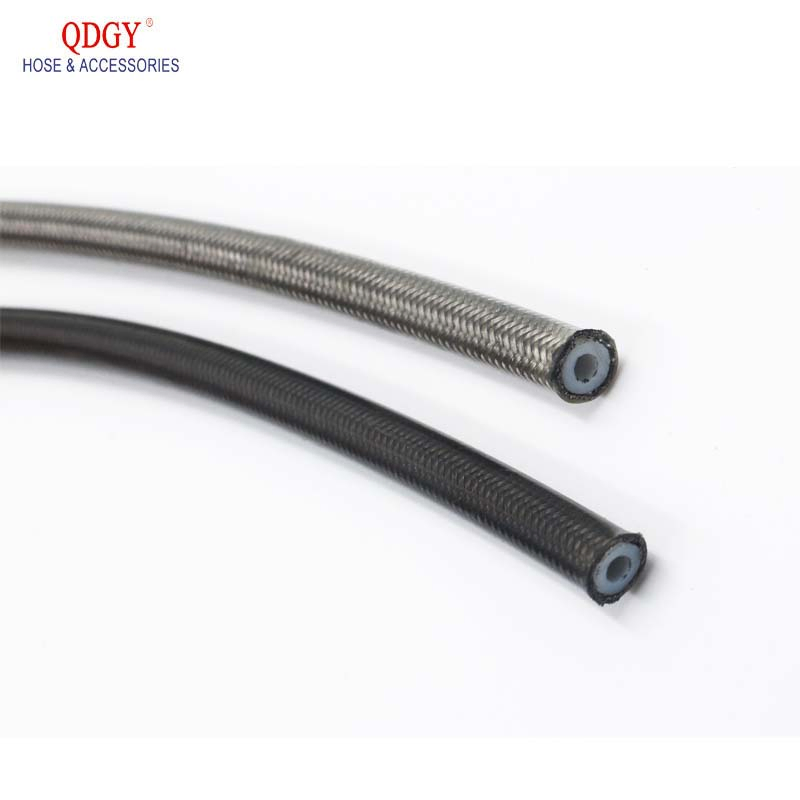

Stainless Steel Braided Teflon Hose Features

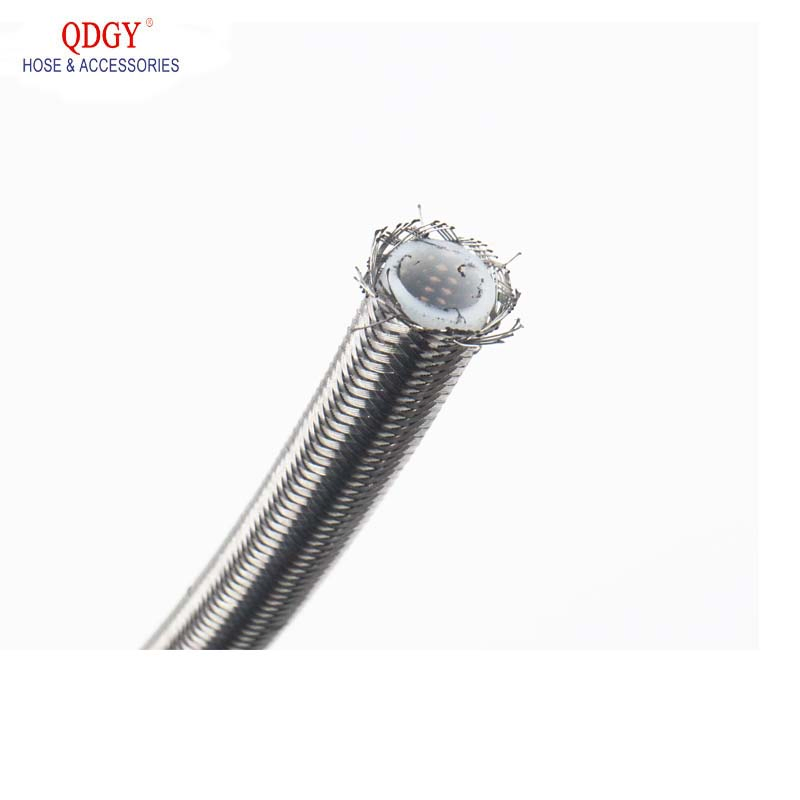

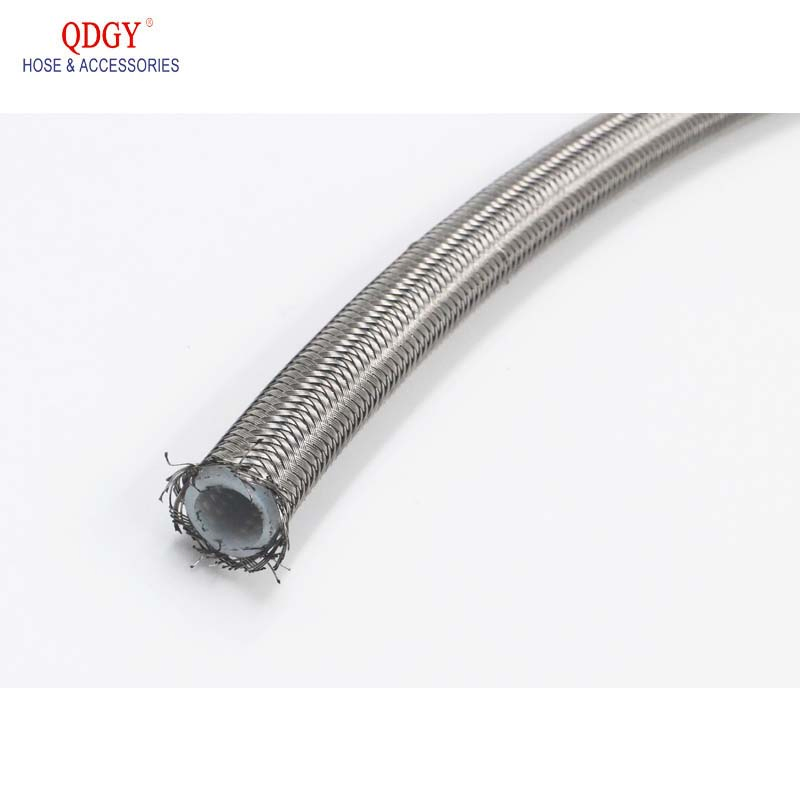

304 stainless steel braid reinforced construction
Meets FMVSS-106 and SAE J1401 specifications
Pressure tested to 3000 psi (207 bar)
Minimum burst pressure: 7250 psi (500 bar)
Wide temperature range: -73°C to 232°C
Compatible with DOT3, DOT4, and DOT4+ brake fluids
Available in various PVC/TPU color coverings

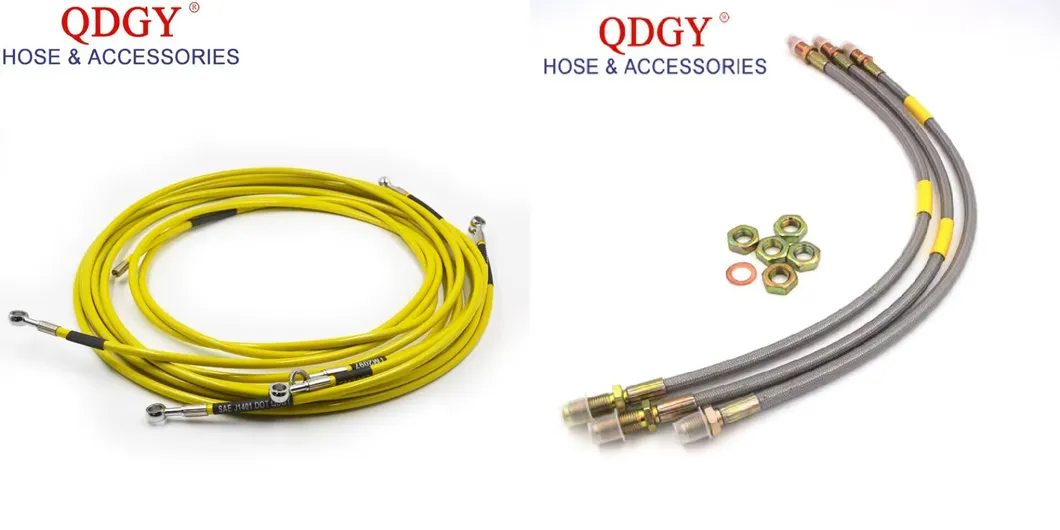

Application & Versatility

Designed for vehicle braking systems, these hoses are Teflon lined and compatible with all standard brake fluids. The braided stainless steel outer covering provides superior resistance against abrasion and corrosion. Due to their flexibility and high-pressure resistance, they are also suitable for:

Turbocharger oil feed lines
Vacuum and gauge lines
High-performance motorcycle brake systems

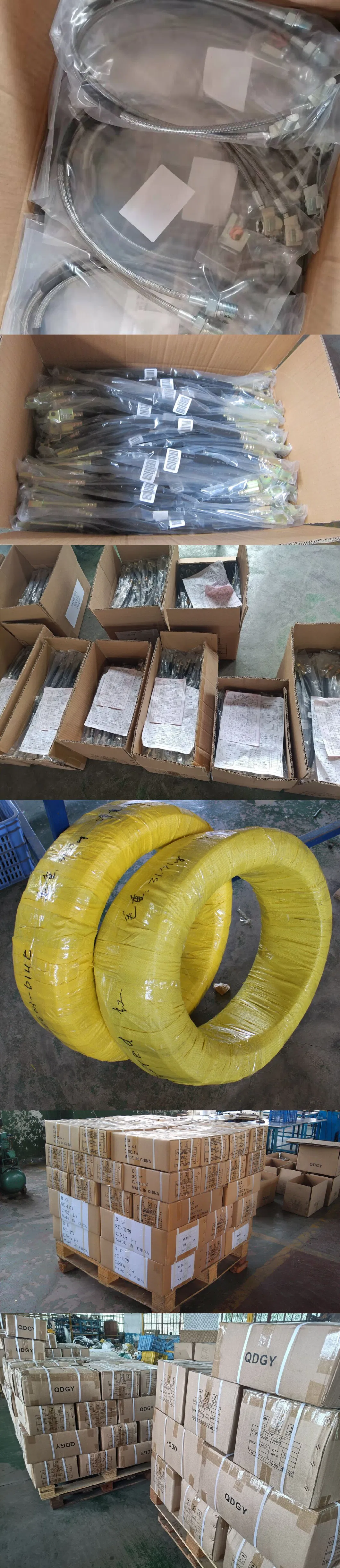

Quality Assurance & Logistics

Products are exported to over 56 countries via sea, air, or express. Compliance with international standards is guaranteed through rigorous testing and certifications.

Operating under IATF 16949 and ISO 9001 quality management systems, every assembly is built to last.

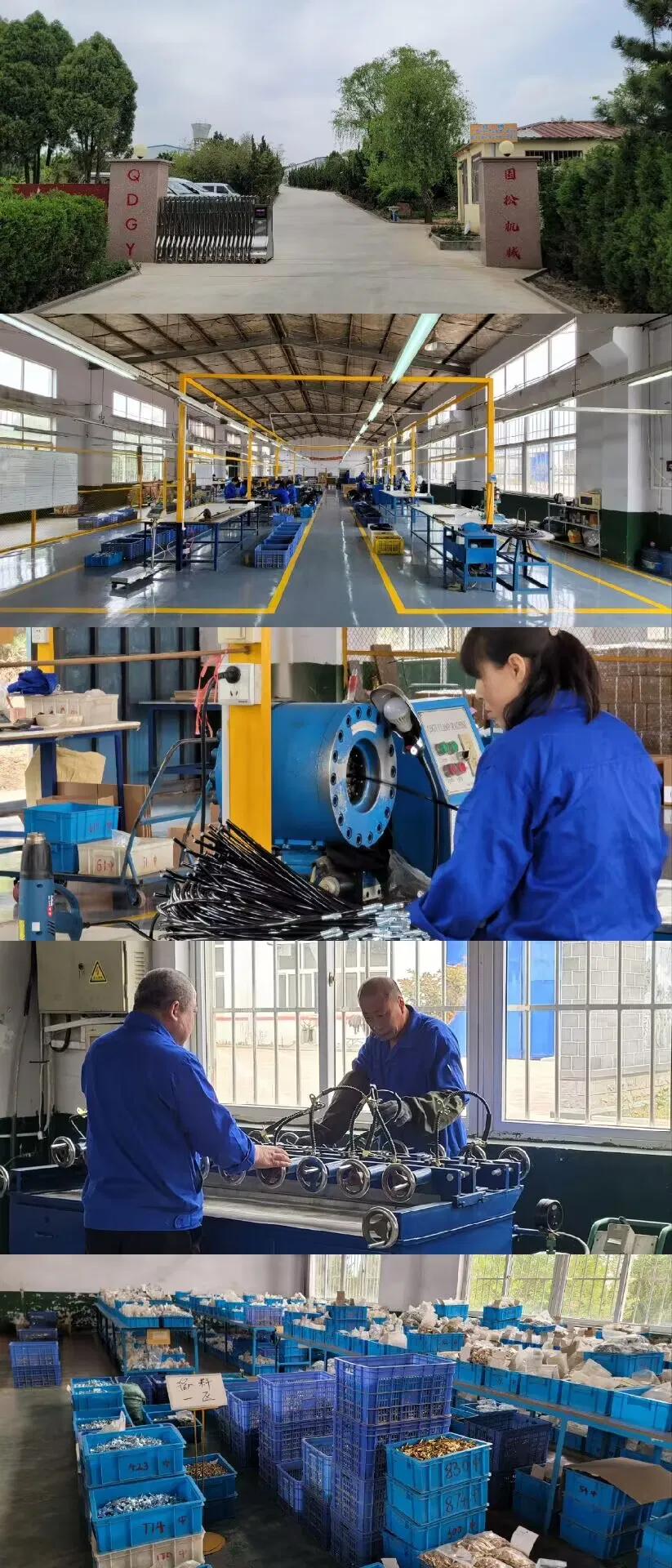

Professional Manufacturer Profile

Our facility specializes in the production of high-quality brake hoses, assemblies, and fittings. With extensive experience in the automotive and motorcycle industries, we serve both the aftermarket and OEM sectors. Our professional team ensures that 90% of our production meets the stringent requirements of clients in Europe, the U.S.A., and South East Asia.

Frequently Asked Questions

What international standards do these brake hoses meet?

Our brake hoses comply with SAE J1401, FMVSS106, and GB16897 standards, ensuring global safety and performance compliance.

What is the burst pressure of the stainless steel braided hose?

The minimum burst pressure is 7250 psi (500 bar), with some reinforced models reaching up to 12,000 psi.

Are these hoses compatible with synthetic brake fluids?

Yes, the PTFE (Teflon) inner lining is fully compatible with DOT3, DOT4, and DOT4+ brake fluids.

Can the hoses withstand extreme temperatures?

Absolutely. These hoses are designed to operate effectively within a temperature range of -73°C to 232°C.

Do you offer customization for specific car models?

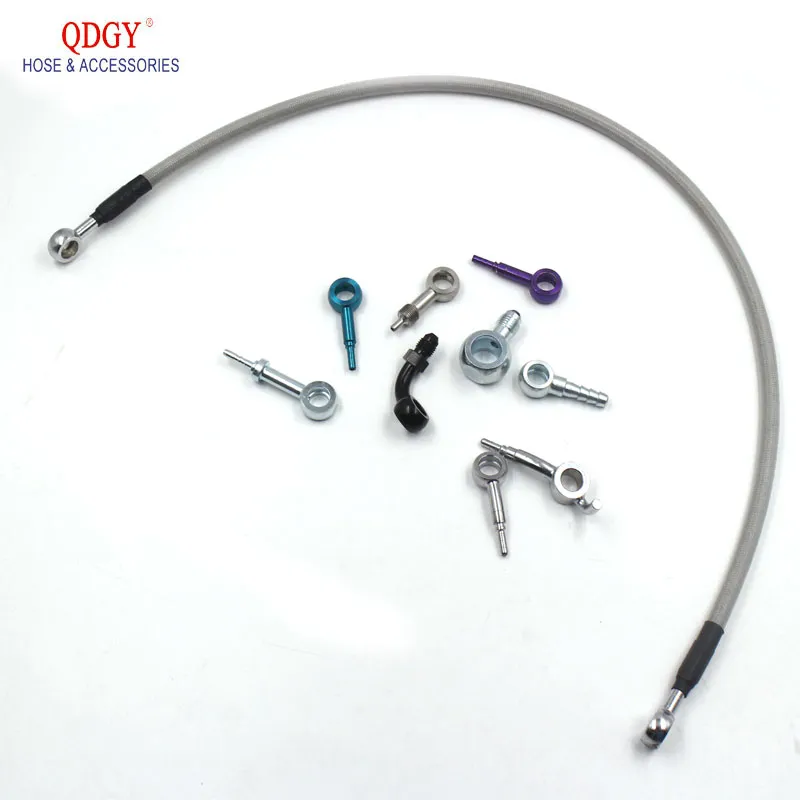

Yes, we can produce fittings and hose assemblies according to specific drawings, samples, or technical descriptions for various vehicle applications.

What materials are used for the outer reinforcement?

We use high-grade 304 or 316 stainless steel wire for the braiding to provide maximum strength and corrosion resistance.
