Racing Automotive An4 An6 An8 An10 An12 An16 An20 Nylon Stainless Steel Braided E85 Oil Cooler Fuel Line Rubber Hose

1 / 5

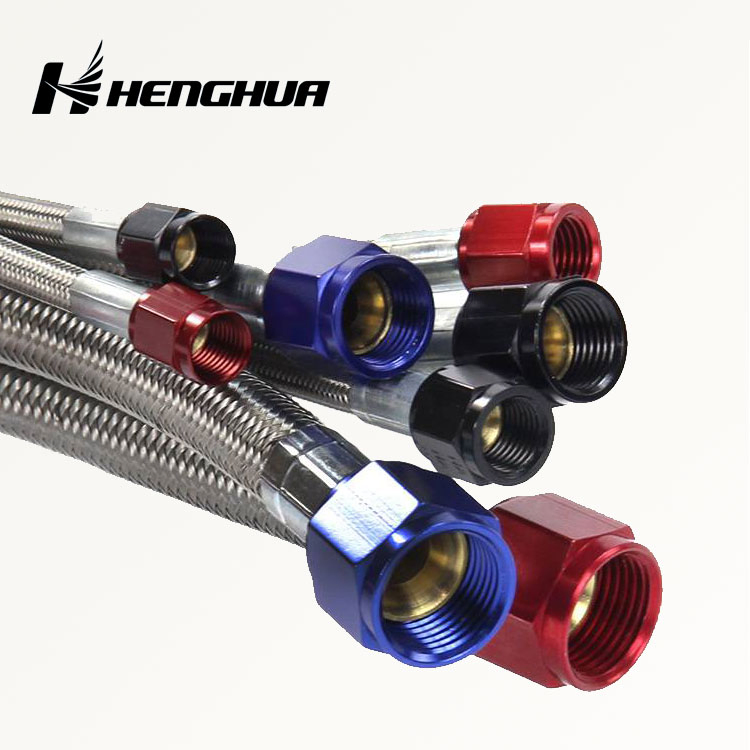

Racing Automotive An4 An6 An8 An10 An12 An16 An20 Nylon Stainless Steel Braided E85 Oil Cooler Fuel Line Rubber Hose

Customization:	Available
Material:	NBR +Ss Braided+Nylon Braided Outside, NBR/CPE Stainless Steel Braided
Capability:	Rubber Air Hose

Send Inquiry

Product Description

ℹ️

Basic Specifications

Color

Black

Size

An4 An6 An8 An10 An12 An16

Reinforcement

High Tensile Steel Wire Braided

Working Pressure

13.8MPa

Standard

SAE J1532

Certification

CE ISO

Cover

Nylon Braided

Temperature

-40 to 150℃

Transport Package

Plastic Bags or as Buyer Required

Specification

1" to 100"

HS Code

4009210000

Capacity

1000000 Meter Per Month

⚙️

Product Overview

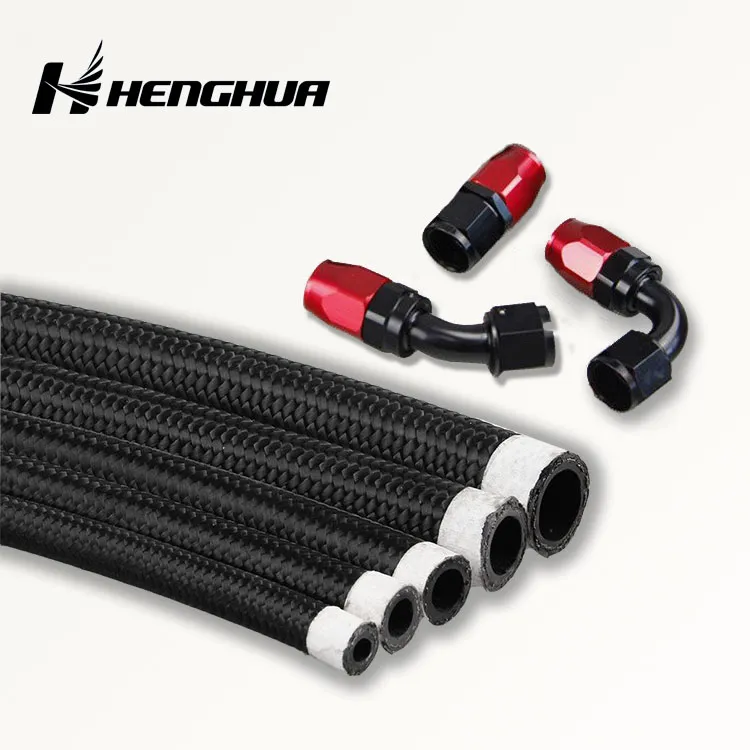

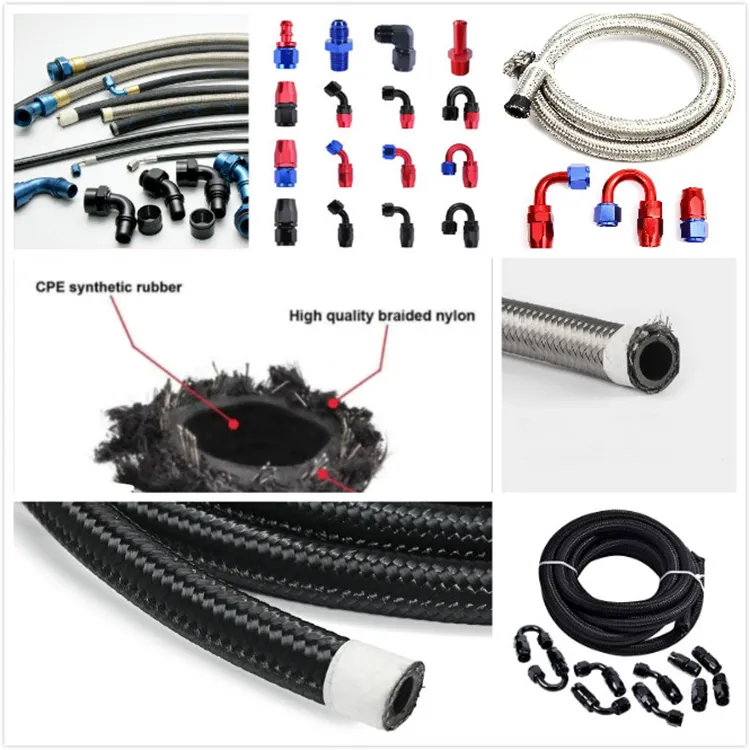

Racing Automotive Nylon Stainless Steel Braided Hose

Structure: Inner tube + 304 stainless steel braided
Teflon Lined: YES
Hose Size: AN4 AN6 AN8 AN10 AN12
Length: 1 meter

Key Features

High pressure resistance for demanding automotive environments.
Exceptionally lightweight, flexible, and durable construction.
Universal compatibility with any fuel (including methanol and nitromethane), oil, coolant, brake, transmission, clutch, and power steering fluids.
Advanced core tube provides superior longevity compared to standard NBR rubber inner tubes.

Applications & Compatibility

Applications: Universal Brake Lines, Clutch Lines, Fuel Systems, Turbo oil feed Hose, Coolant Systems, Oil Pressure Systems, Gauge lines & Power Steering.

Fluid Compatibility: Brake Fluids, Unleaded Petrol, Methanol, Water, & Oil. Ideal for use with Unleaded fuel.

📦

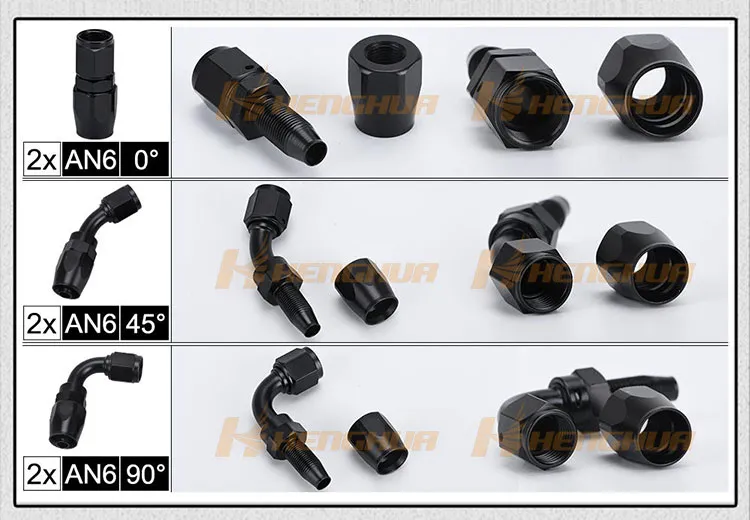

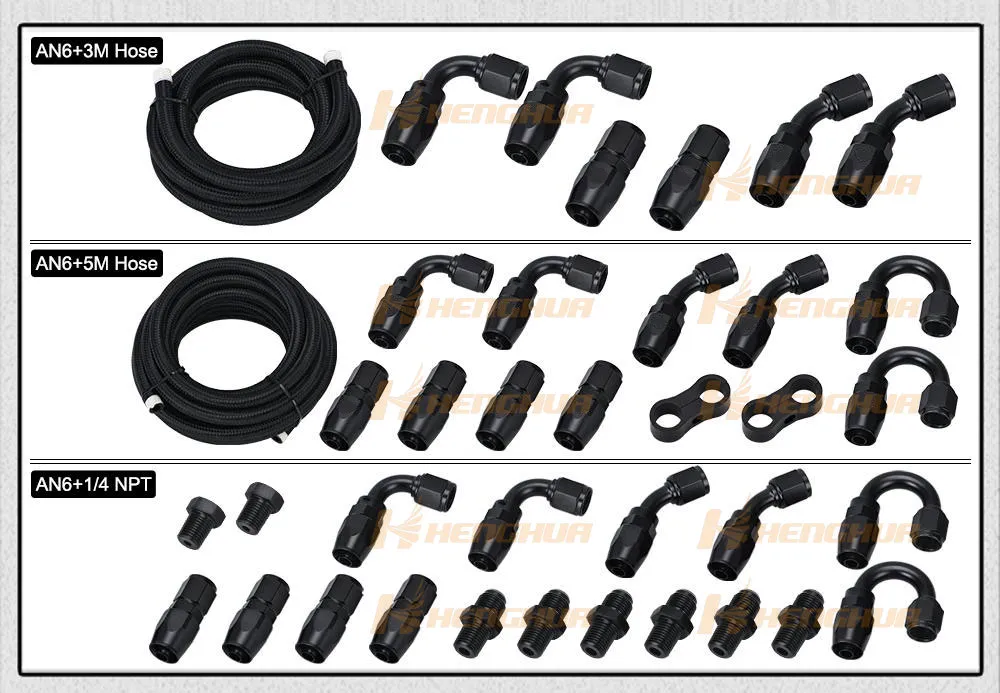

Package Contents

2 x AN6 Straight Reusable Swivel Hose End
2 x AN6 45 Degree Reusable Swivel Hose End
2 x AN6 90 Degree Reusable Swivel Hose End
3 Meter x AN6 Nylon Braided Hose

📊

Technical Specifications

Black Nylon Oil Cooler Rubber Hose

SN	I.D (mm)	O.D (mm)	W.P (MPa)	B.P (MPa)	Bend Radius (mm)	Temp Range (℃)
SN	Size	Outer	Work	Burst	Min	Min	Max
4	5.56	11.17	3.45	13.8	50.8	-40	148.9
6	8.71	14.22	3.45	13.8	63.5	-40	148.9
8	11.13	17.2	3.45	13.8	88.9	-40	148.9
10	14.29	20.83	3.45	13.8	101.6	-40	148.9
12	17.46	24.38	3.45	13.8	114.3	-40	148.9

Stainless Steel Wire Braided Oil Cooler Rubber Hose

SN	I.D (mm)	O.D (mm)	W.P (MPa)	B.P (MPa)	Bend Radius (mm)	Temp Range (℃)
SN	Size	Outer	Work	Burst	Min	Min	Max
4	5.56	11.13	7	42	50.8	-40	148.9
6	8.73	13.89	7	42	63.5	-40	148.9
8	11.12	16.28	7	35	88.9	-40	148.9
10	14.27	20.24	7	35	101.6	-40	148.9
12	17.47	23.82	7	26.3	114.3	-40	148.9
16	22.22	29.36	5.2	17.5	139.7	-40	148.9

🖼️

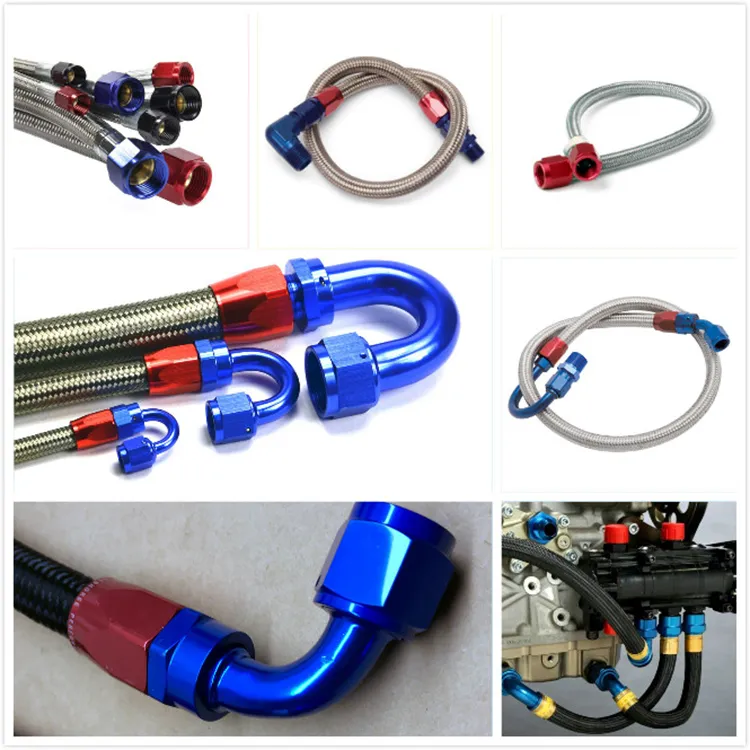

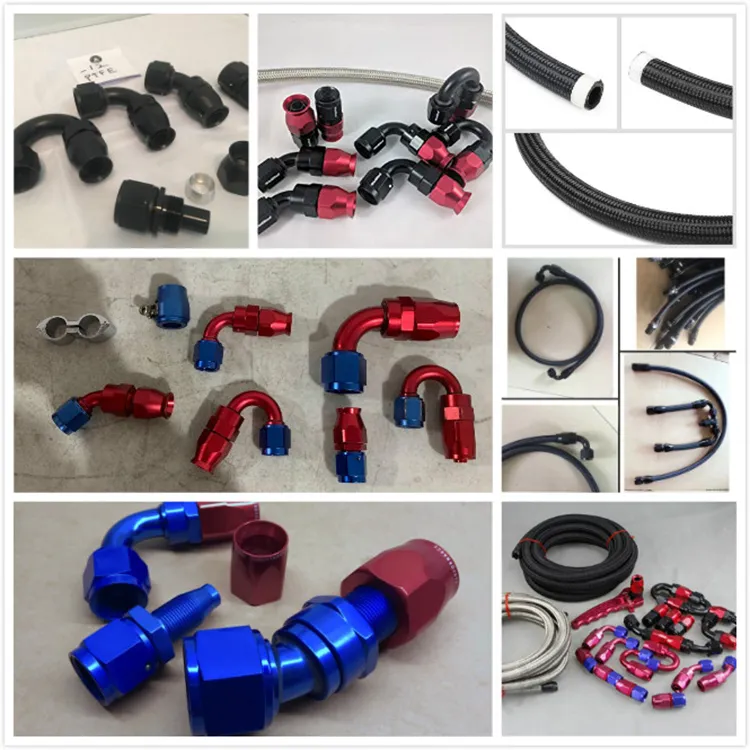

Product Details Gallery

❓

Frequently Asked Questions

1. What types of hoses are available in your range?

We offer a wide variety of hoses including high-pressure steel wire braided and spiral rubber hoses, nylon braided hoses, metal hoses, and specialized hoses for industrial applications like steam, air, and fuel delivery.

2. Is this braided hose compatible with E85 fuel?

Yes, the hose is specially designed to be compatible with a wide range of fuels, including unleaded petrol, methanol, nitromethane, and E85, as well as oil, coolant, and brake fluids.

3. What is the temperature resistance of these automotive hoses?

These hoses are designed to operate effectively in extreme temperatures ranging from -40°C to +150°C (-40°F to +302°F).

4. Can I use these for my power steering or brake system?

Absolutely. These are universal lines suitable for power steering, brake systems, clutch lines, turbo oil feed, and oil pressure gauge lines.

5. What makes the core tube superior to standard rubber hoses?

The inner lining (often Teflon/PTFE) provides significantly higher durability, chemical resistance, and a longer lifespan compared to regular NBR rubber inner tubes used in standard braided hoses.

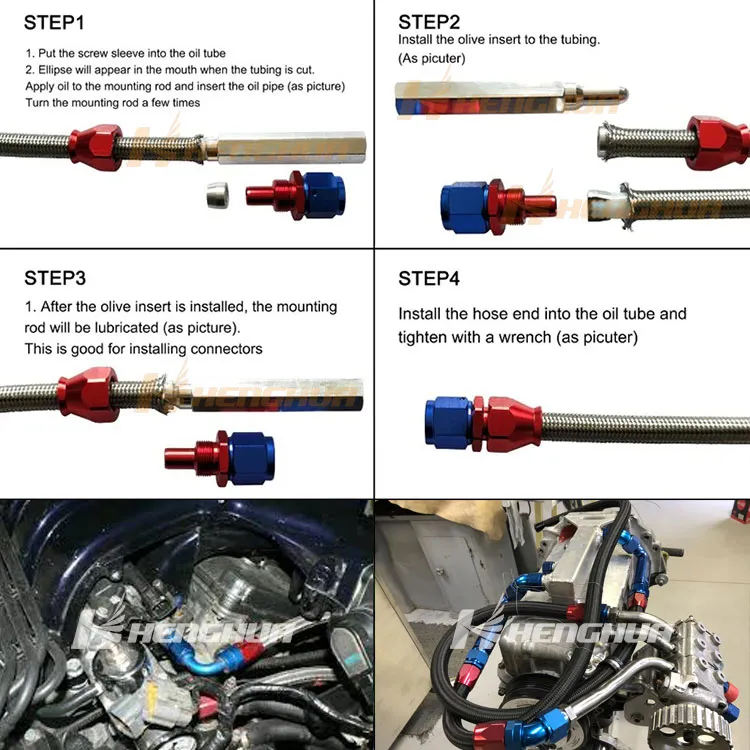

6. Are the hose ends reusable?

Yes, the package includes reusable swivel hose ends (Straight, 45 Degree, and 90 Degree) which allow for easier installation and maintenance.
