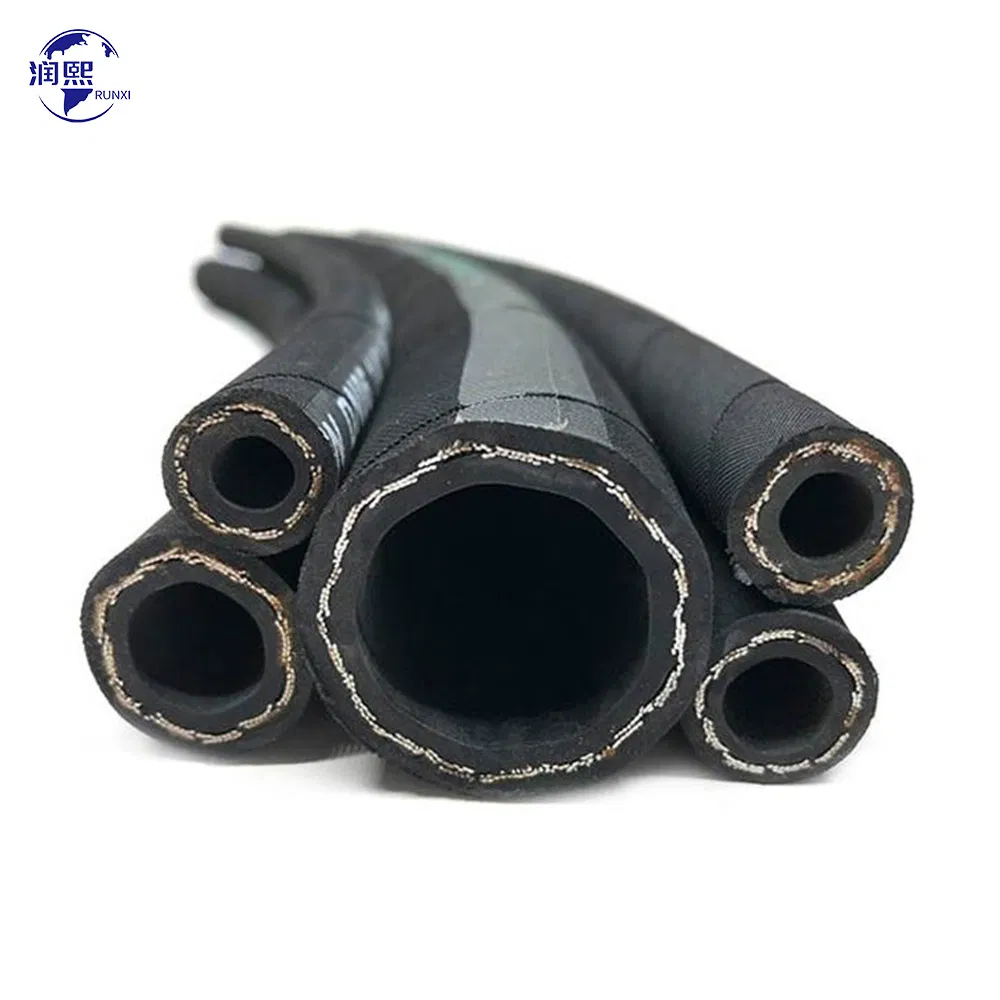

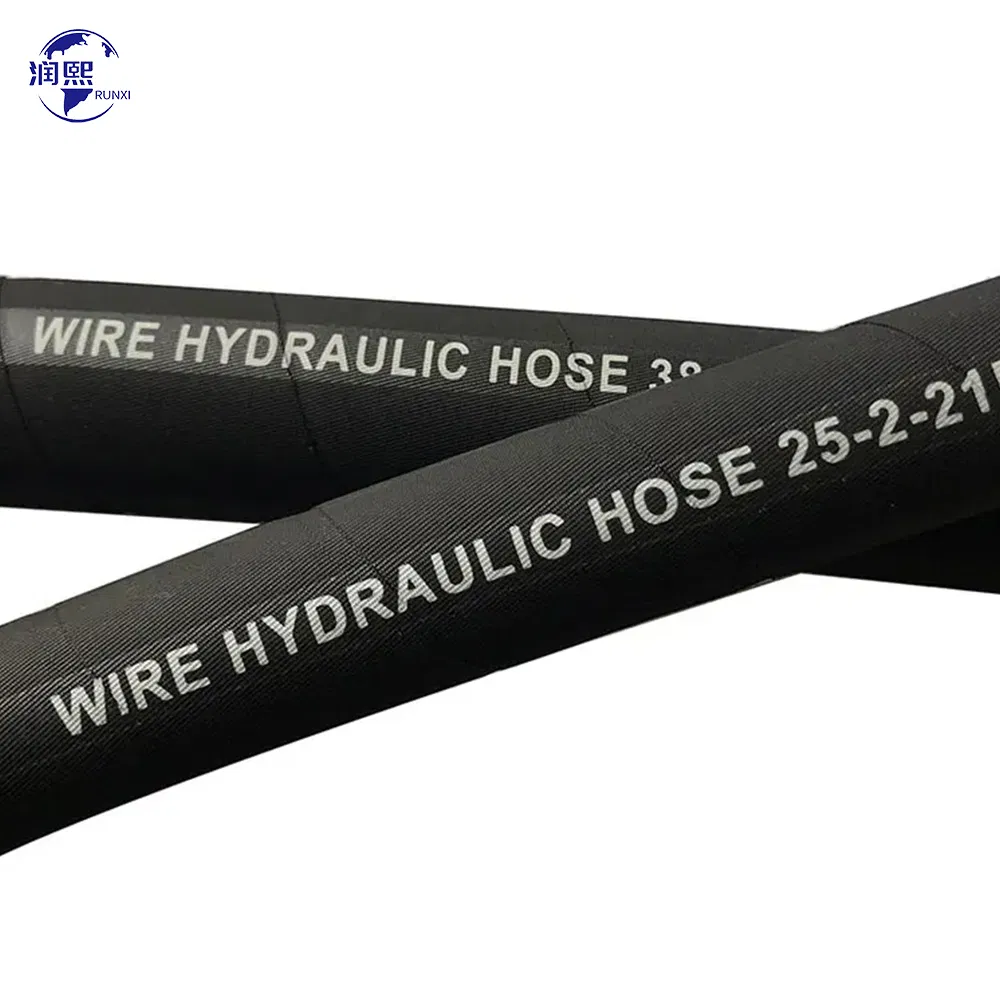

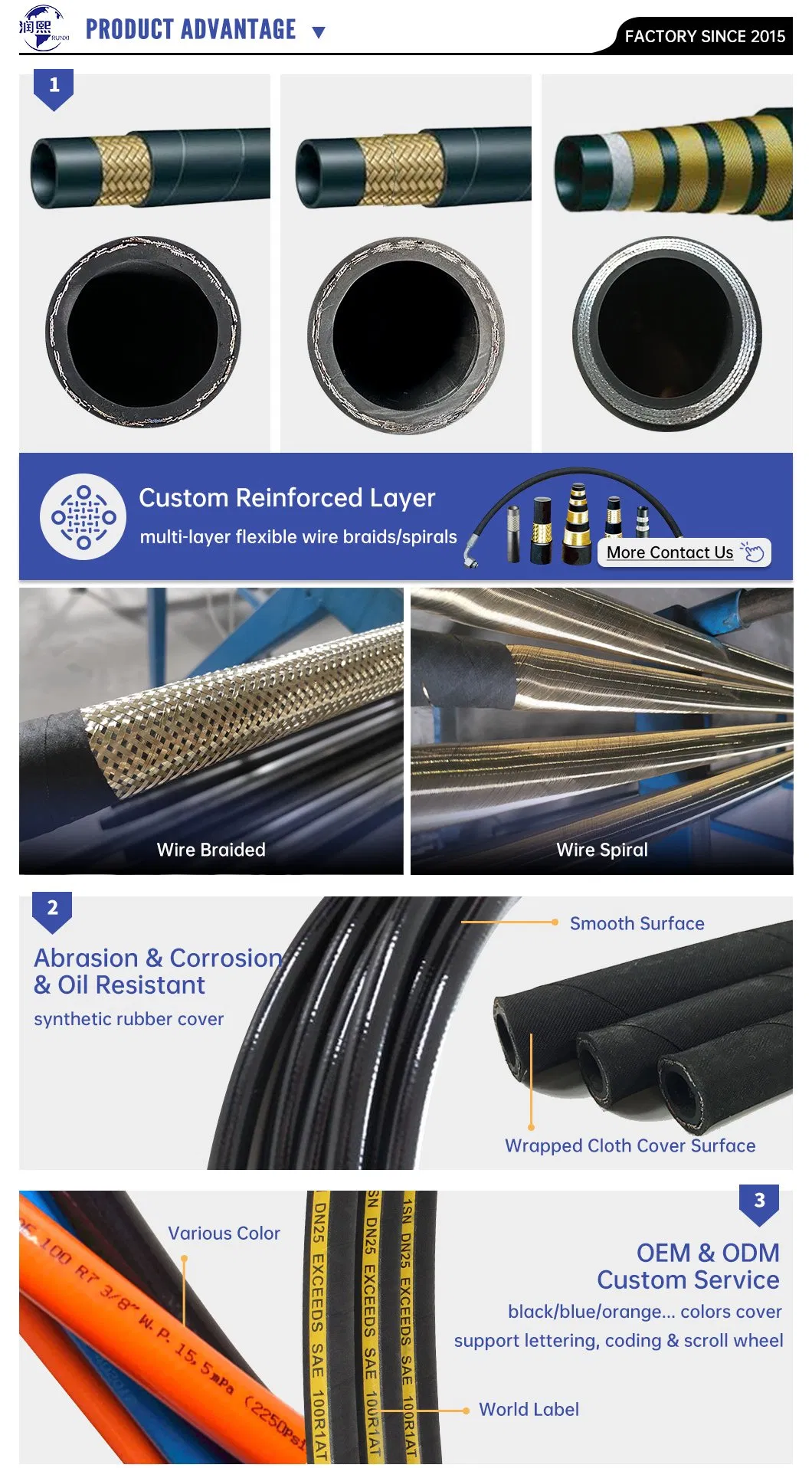

Construction: High pressure hose is made of internal rubber, middle rubber, 2, 4 or 6 layers of wire-wood, and external rubber.

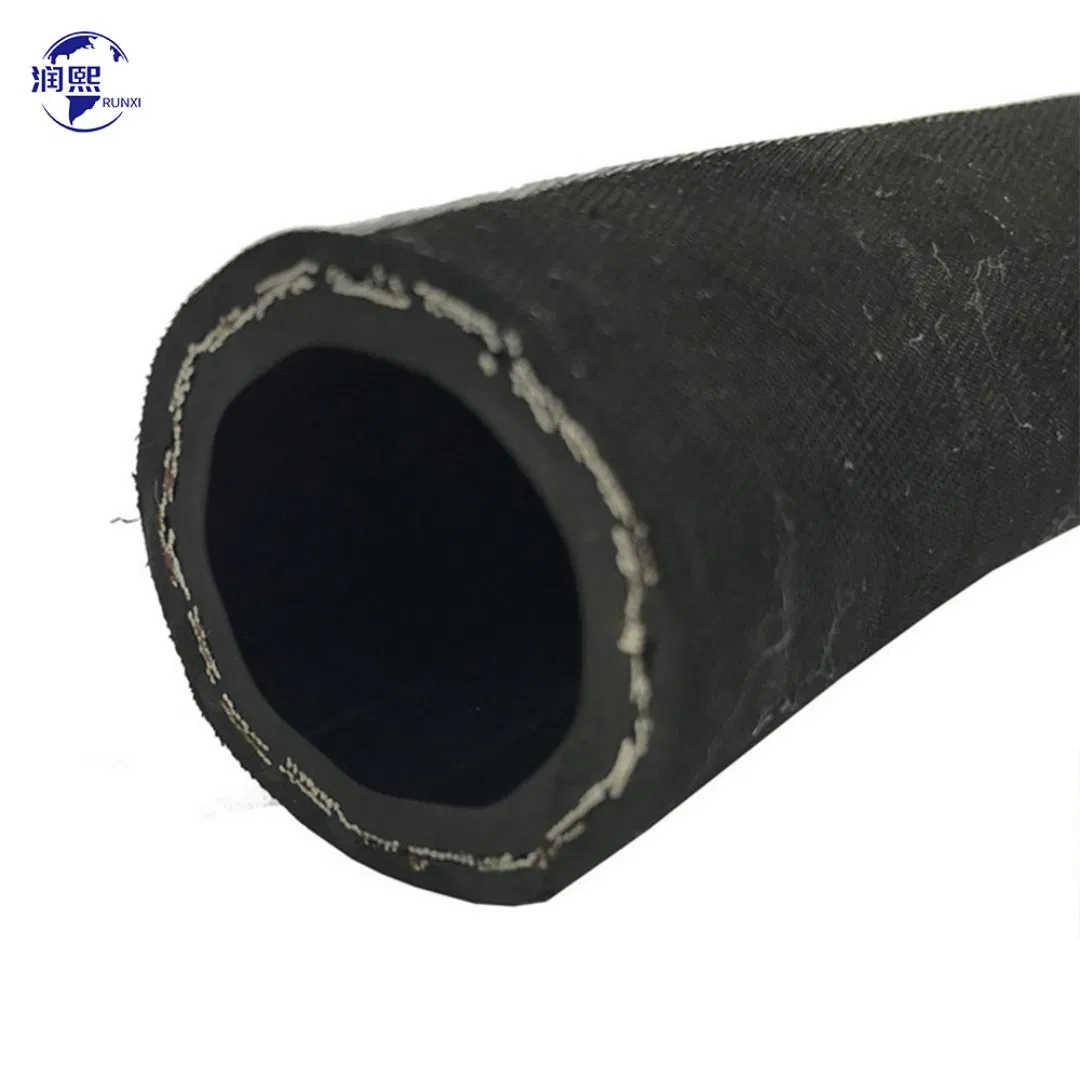

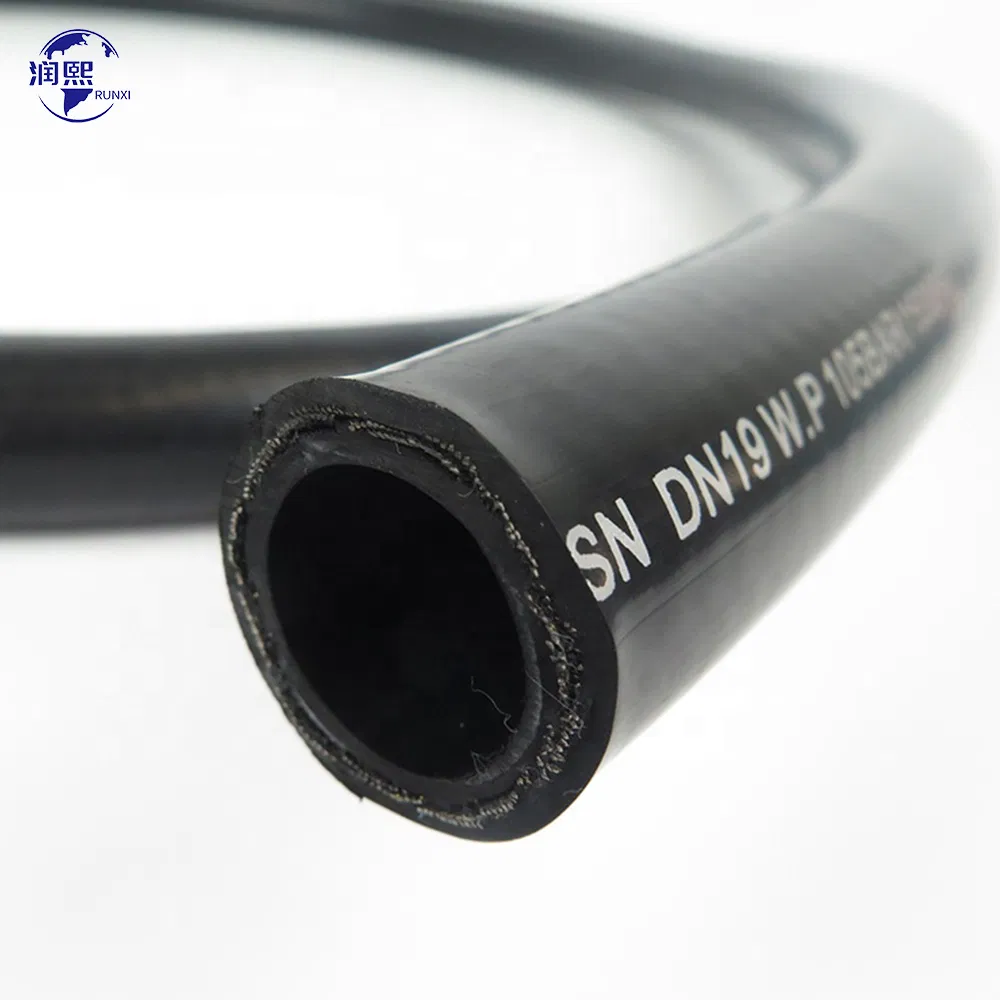

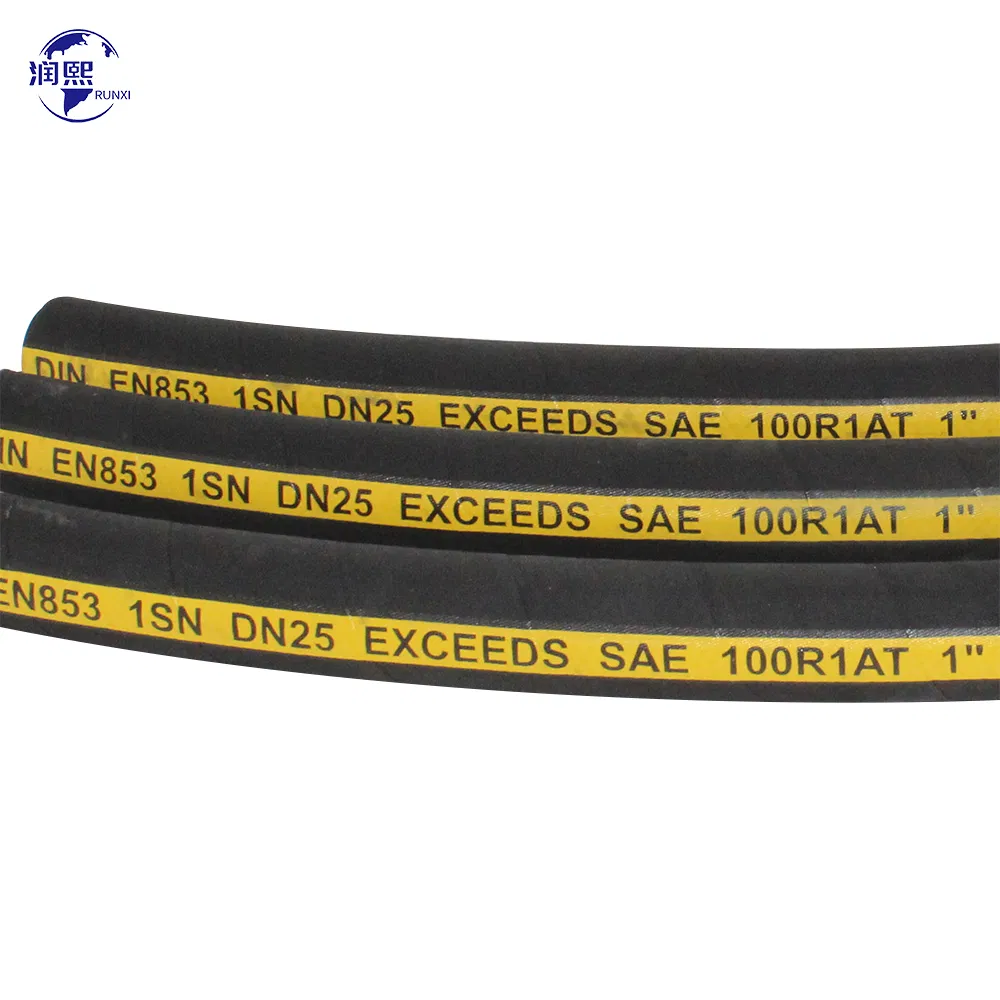

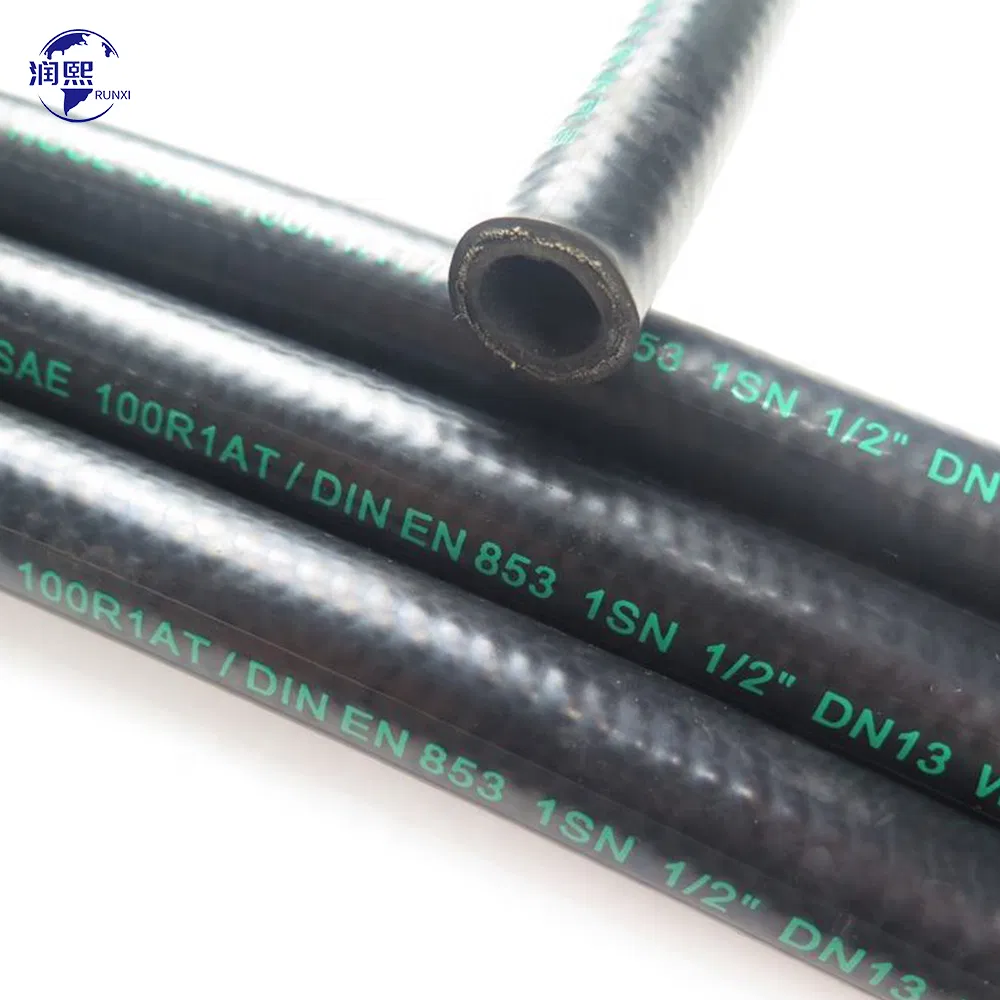

Synthetic Materials: This hose consists of an inner tube of oil-resistant synthetic rubber, a single steel wire braid reinforcement, and an oil and weather-resistant synthetic rubber cover.
| Part No. | SIZE | I.D | O.D | W.P | B.P | WEIGHT |
|---|---|---|---|---|---|---|
| inch | mm | mm | bar | bar | g/m | |
| P04-1SN | 1/4″ | 6.4 | 13.4 | 225 | 900 | 225 |
| P05-1SN | 5/16″ | 8 | 15.2 | 215 | 860 | 260 |
| P06-1SN | 3/8″ | 9.5 | 17.3 | 180 | 720 | 340 |
| P08-1SN | 1/2″ | 12.7 | 20.3 | 160 | 640 | 415 |
| P10-1SN | 5/8″ | 16 | 23.7 | 130 | 520 | 475 |
| P12-1SN | 3/4″ | 19 | 28 | 105 | 420 | 590 |
| P16-1SN | 1″ | 25.4 | 36.2 | 87 | 348 | 875 |
| P20-1SN | 1 1/4″ | 31.8 | 43 | 62 | 248 | 1205 |
| P24-1SN | 1 1/2″ | 38.1 | 49.2 | 50 | 200 | 1405 |
| P32-1SN | 2″ | 50.8 | 62.6 | 40 | 160 | 1910 |
Our hydraulic hoses are utilized across a diverse range of critical industries. Their robust features make them indispensable for power transmission and fluid control in:
Our products are exported to more than 30 countries, including Russia, USA, UK, UAE, Korea, Vietnam, Singapore, Indonesia, and Japan. We have earned high praise globally for excellent quality and competitive pricing.

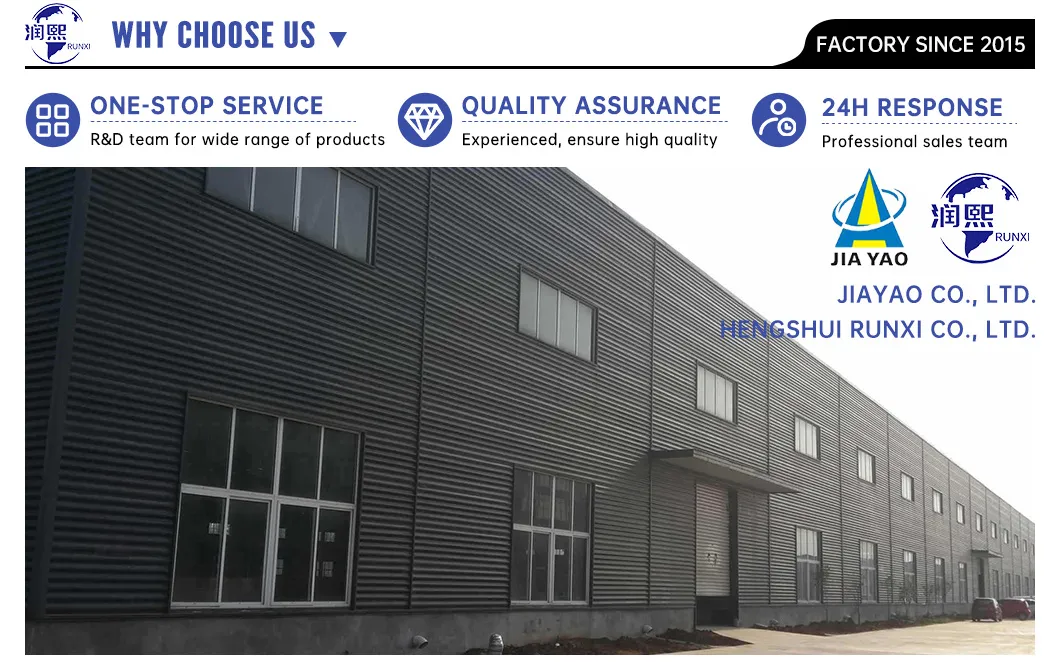

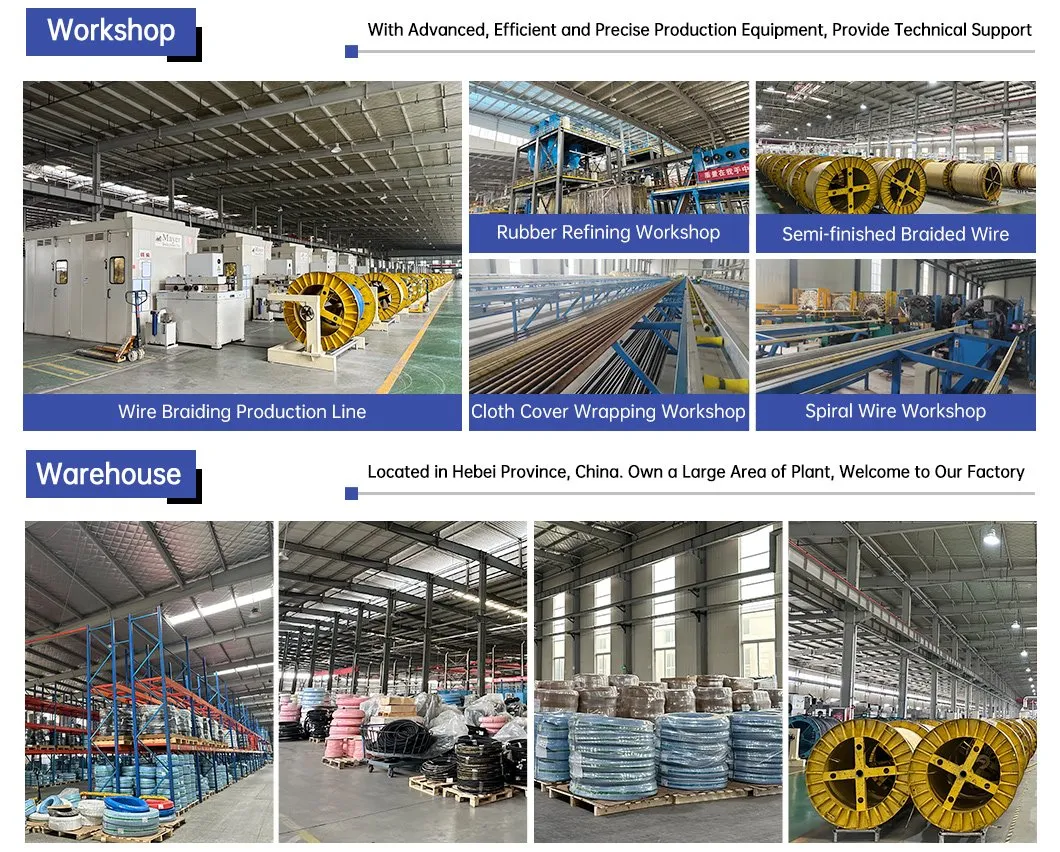

We are a technology-based enterprise specializing in R&D and marketing of multiple rubber products, including Telecom towers, High-pressure hoses, SAE & DIN series hoses, and Drilling Rotary hoses.
