📊 Basic Specification
After-Sales Service
24 Hours on Line
Reinforcement
High Tensile Strength Fabrics
Transport Package
Roll Packing
📦 Packaging & Delivery
Package Size
1000.00cm * 1000.00cm * 1000.00cm
Production Capacity
500set/Year
🚢

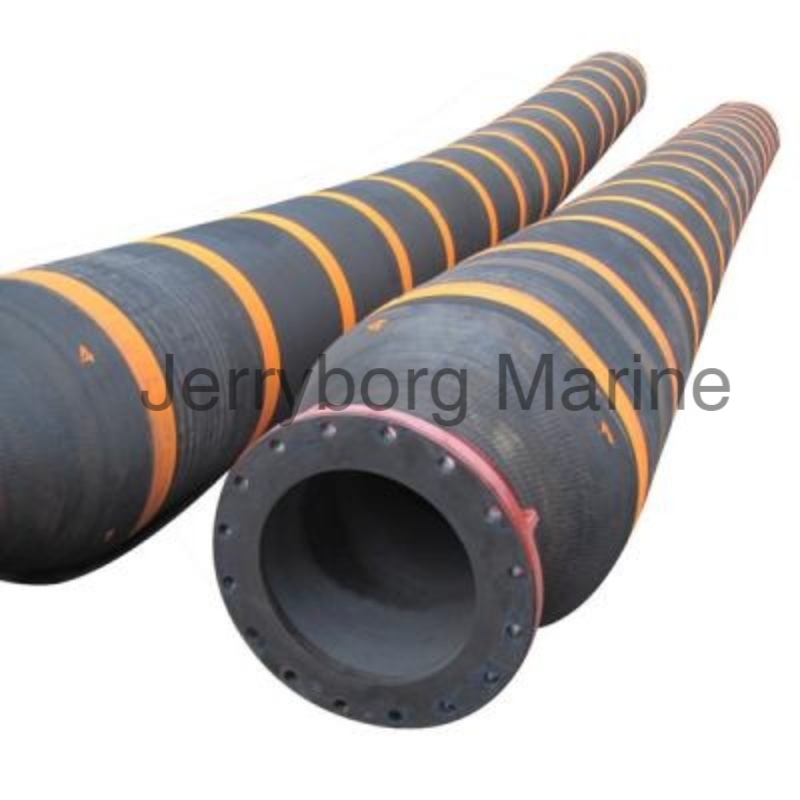

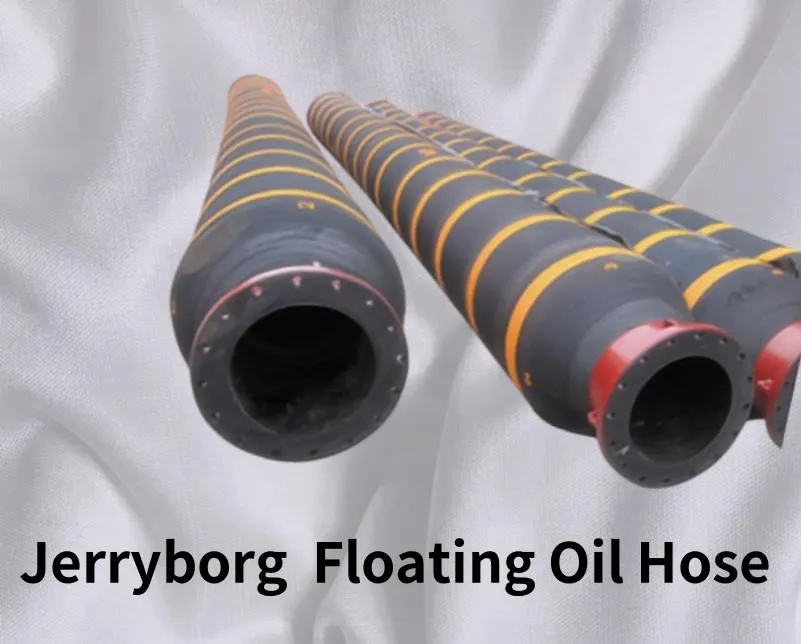

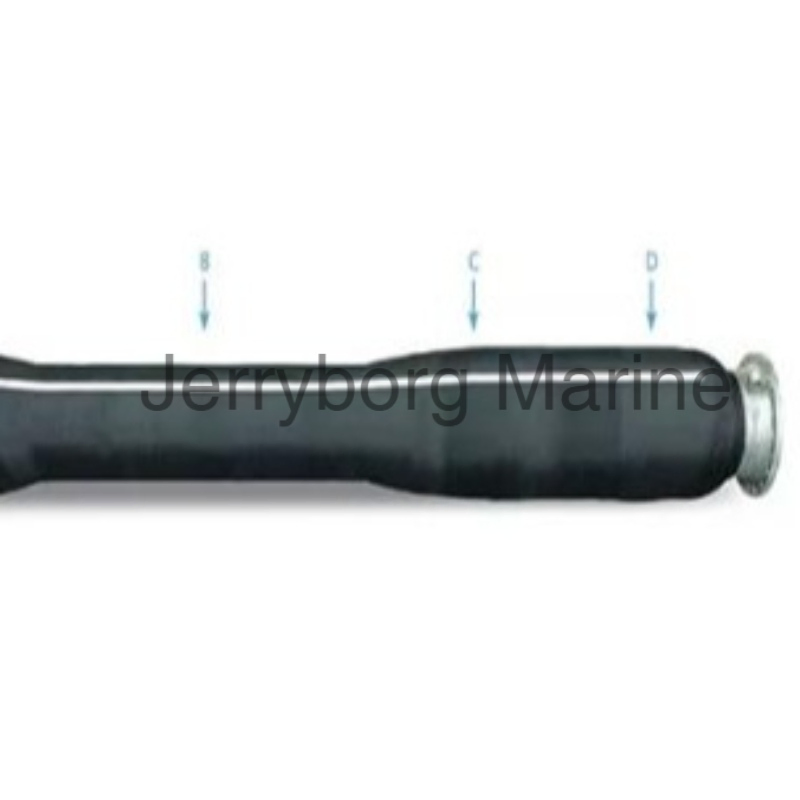

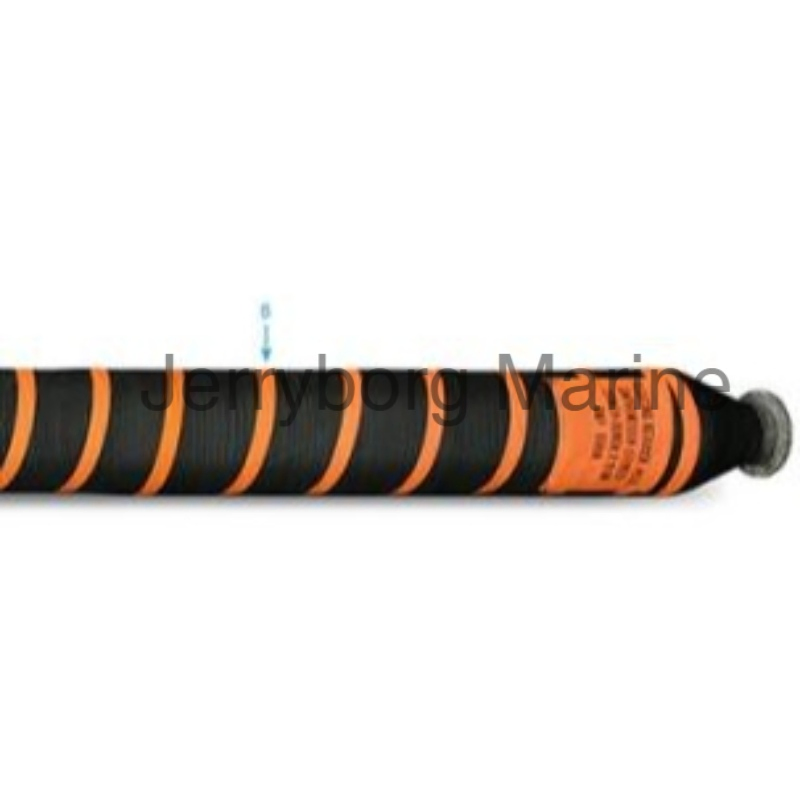

Floating Oil Transfer Hose

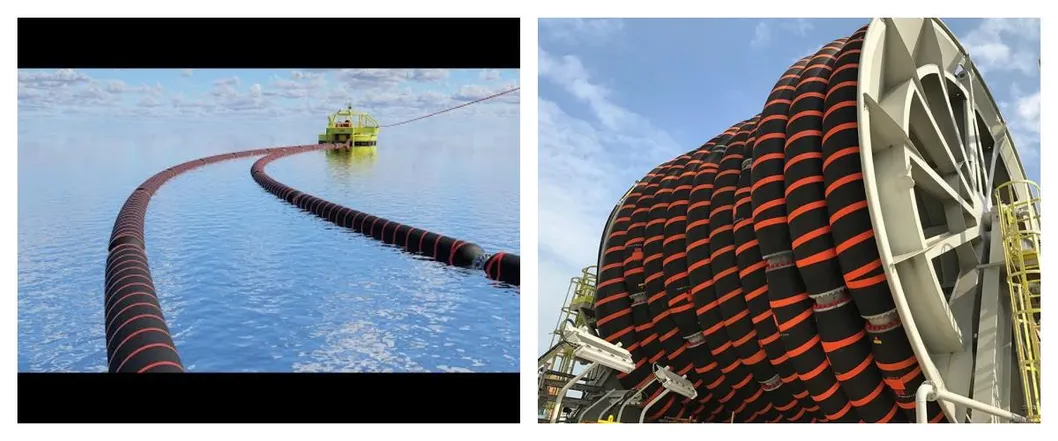

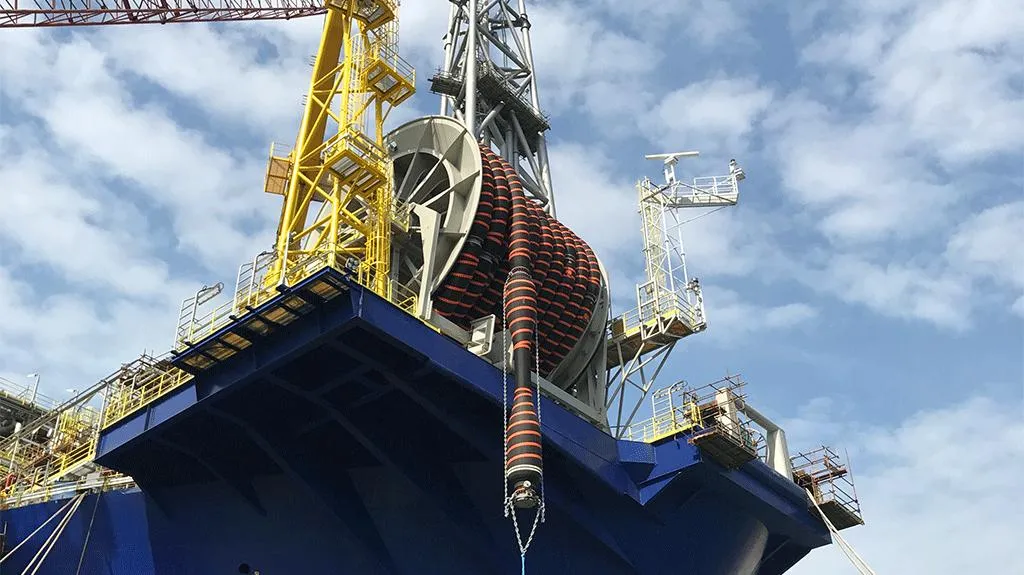

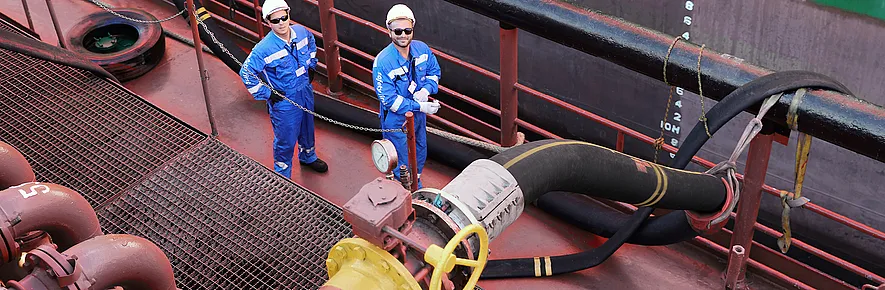

Floating oil transfer hoses are specialized pieces of equipment designed for the safe transfer of oil and other liquid hydrocarbons between vessels, such as oil tankers and offshore storage facilities.
These hoses are commonly used in the oil and gas industry to transport petroleum products and liquefied gas (LNG) in challenging offshore environments.
💎 Key Advantages
✓
Buoyancy: Designed with buoyant elements or foam-filled sections to stay afloat, preventing sinking during critical transfers.
✓
Flexibility: Highly flexible to accommodate vessel movement, waves, and tides for a safe connection.
✓
Reinforcement: Constructed with synthetic rubber and reinforced with high-tensile steel wire or fabric for high-pressure durability.
✓
End Fittings: Specialized leak-proof fittings for secure connection to loading points and offshore terminals.
✓
Safety: Features such as leak detection systems minimize the risk of spills and environmental accidents.
⚙️ Technical Specification
| Size (inch) |
I.D. (mm) |
W.P (bar) |
Length (m) |
| 6 inch | 150mm | 15bar~20bar | 3m~20m |
| 8 inch | 200mm | 15bar~20bar | 3m~20m |
| 10 inch | 250mm | 15bar~20bar | 3m~20m |
| 12 inch | 300mm | 15bar~20bar | 3m~20m |
| 16 inch | 400mm | 15bar~20bar | 3m~20m |
| 20 inch | 500mm | 15bar~20bar | 3m~20m |
| 24 inch | 600mm | 15bar~20bar | 3m~20m |
Note: Working pressure 19bar & 21bar and custom parameters are available upon request.
❓ Frequently Asked Questions
What materials are used in the construction of the floating oil hose?
The hoses are constructed using high-quality synthetic rubber (NR, BR, SBR) and reinforced with layers of high-tensile strength fabrics or steel wires to ensure durability and pressure resistance.
How does the hose maintain its buoyancy?
The hose is designed with integrated buoyant elements or specialized foam-filled sections that allow it to remain on the water's surface even when fully loaded with oil.
Can the technical parameters be customized?
Yes, we offer customization for length, internal diameter (I.D.), and working pressures (including 19bar and 21bar versions) to meet specific offshore operational requirements.
What is the safety factor for these floating hoses?
Our floating oil hoses are designed with a safety factor of 3:1, ensuring high reliability and structural integrity during high-pressure oil transfer operations.
Are the hoses resistant to wave movements?
Absolutely. These hoses are engineered for high flexibility, allowing them to adapt to the constant movement of vessels, waves, and tides without losing the connection or leaking.
What certifications do your products hold?
The products are manufactured under ISO 9001-2008 standards and carry quality authentication from major societies such as CCS, BV, GL, ABS, and LG.
