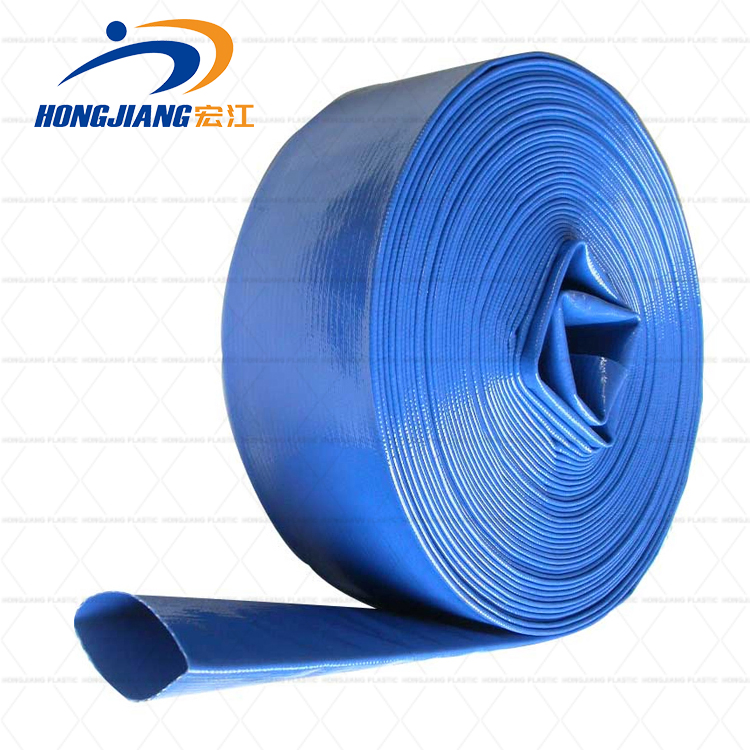

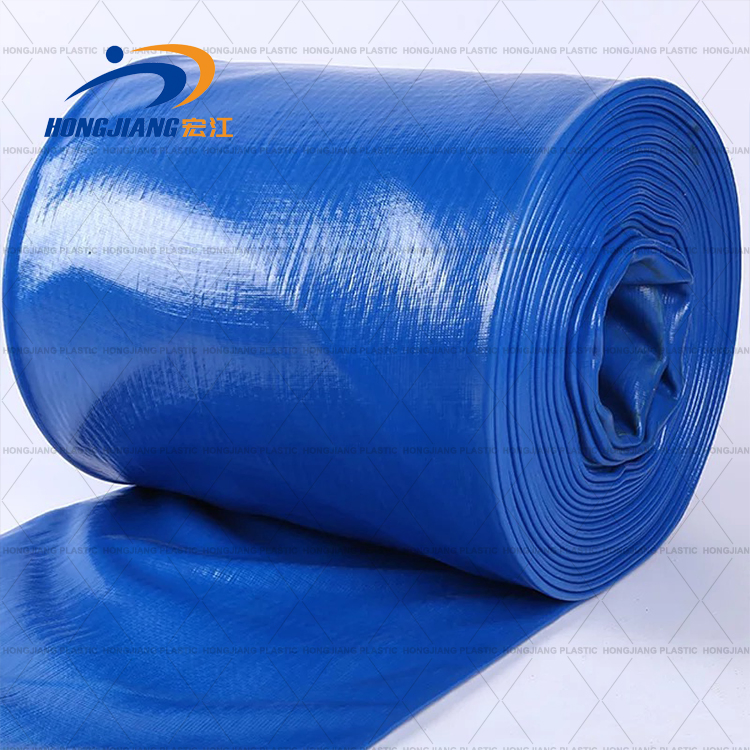

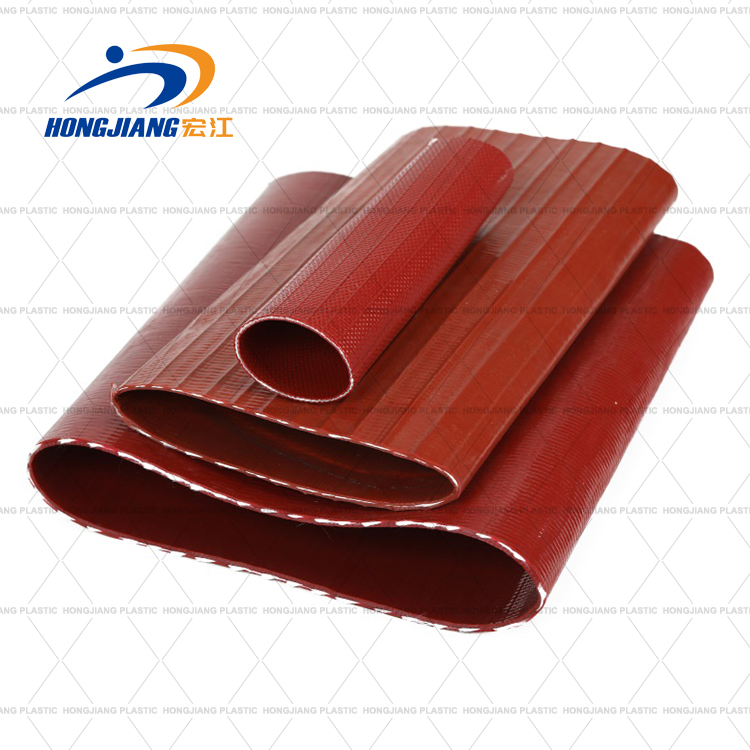

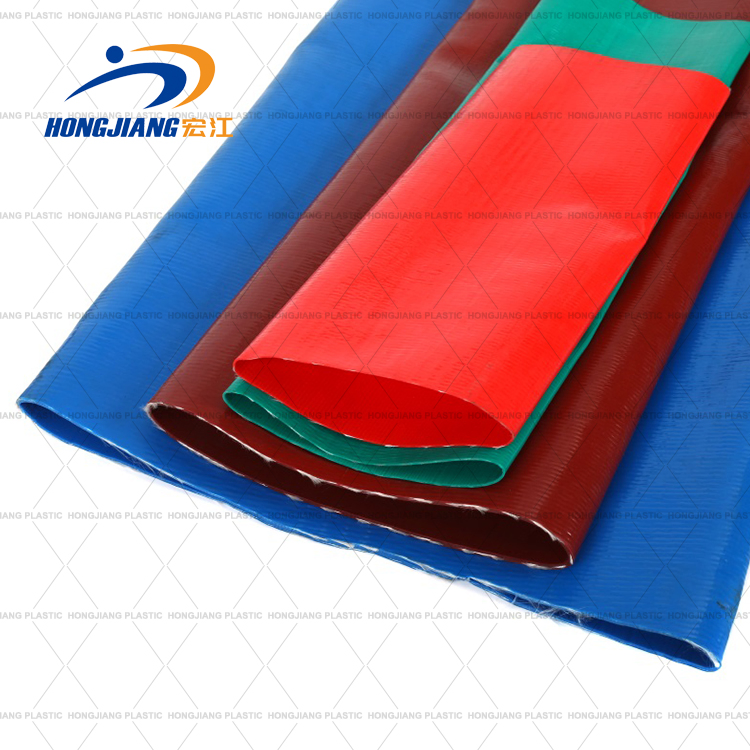

Flexible PVC Hose PVC Lay Flat Hose 2inch 4 6 8 10inch Water Discharged Sunny Hose for Water Pump

1 / 5

Flexible PVC Hose PVC Lay Flat Hose 2inch 4 6 8 10inch Water Discharged Sunny Hose for Water Pump

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

Type

Thermosetting Plastic Pipe

Color

Customizable Color

Shape

Round

Usage

Drainpipe, Water Supply, Irrigation, Wire Cable Pipe

Materials

High Quality PVC Materials

Size Range

1-20 Inch

Thickness

1.8-3.5mm

Pressure

2bar-10bar

Standard Length

50m / 100m / Customized

Origin

China

Capacity

1,000,000,000 Meters/Month

💡 Product Overview & Application

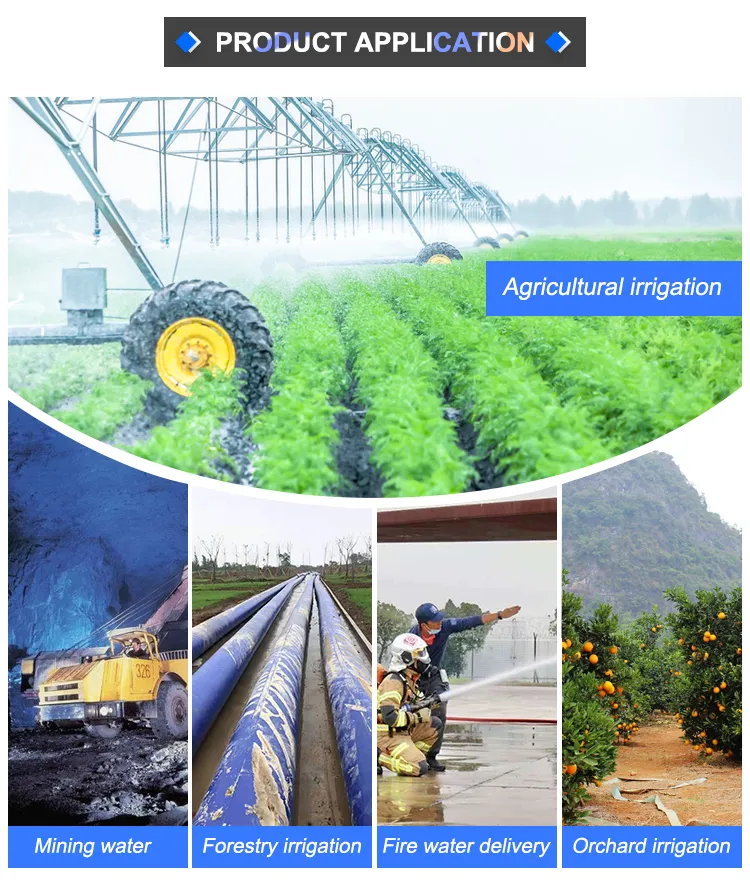

The lay flat hose is designed as a standard duty hose for water discharge in agricultural Irrigation, industrial and construction applications. It is highly economical and rolls up flat for easy storage, effectively resisting kinking and twisting.

Structure:

Tube: PVC compound
Cover: PVC compound
Reinforcement: High strength polyester yarn jacket

Service Temperature: -20°C to +65°C

⭐ Key Features

Light weight & Good flexibility
Corrosion resistant & anti-aging
Easy handle & space-saving storage
Non-toxic & Non-smell
Burst pressure 3x working pressure
High resistance to cold and sunlight

📏 Technical Specifications

HJ CODE	INCH	I.D. (mm)	Thickness (mm)	Length (m/roll)	W.P. (Bar)	B.P. (Bar)
HJ121	1''	25	1.3	100	4	15
HJ122	1-1/4''	32	1.2	100	4	15
HJ123	1-1/2''	38	1.2	100	4	15
HJ124	2''	51	1	100	4	12
HJ125	2-1/2''	64	1.1	100	4	12
HJ126	3''	76	1.1	100	4	12
HJ127	4''	103	1.25	100	4	12
HJ128	5''	127	1.35	100	4	10
HJ129	6''	153	1.35	100	3	9
HJ130	8''	203	2	100	3	9
HJ131	10''	255	2.4	100	3	7
HJ132	12''	305	2.35	100	2	6
HJ133	14"	358	3	50	2	6
HJ134	16"	408	3	50	2	6

📸 Product Display

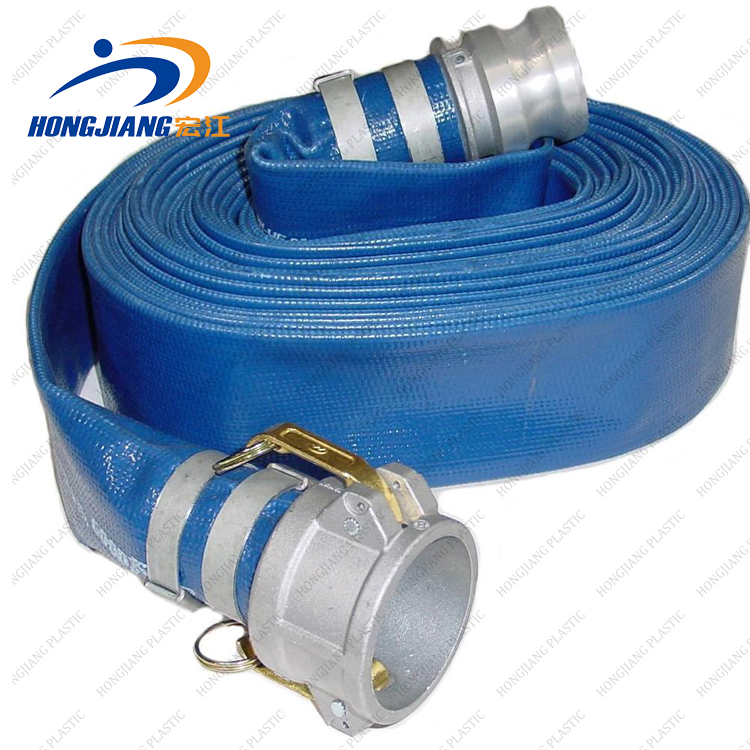

🛠️ Related Accessories

📦 Packaging & Shipping

❓ Frequently Asked Questions

Q1: What is the main application of the PVC Layflat Hose?

A: It is primarily used for water discharge in agricultural irrigation, industrial operations, and construction site applications.

Q2: What is the temperature range for this hose?

A: The service temperature ranges from -20°C to +65°C, making it suitable for both severe cold and hot sunlight conditions.

Q3: Does the hose kink or twist during use?

A: No, the layflat hose is designed to resist kinking and twisting, and it can be rolled up flat for easy storage.

Q4: What is the safety factor for the working pressure?

A: The burst pressure is 3 times the working pressure, ensuring high safety and durability during operations.

Q5: Can I get a free sample of the PVC hose?

A: Yes, you can contact our customer service to obtain a free sample for your quality evaluation.

Q6: What sizes are available for the Irrigation Layflat Hose?

A: We offer a wide range of sizes from 1 inch up to 20 inches in diameter.
