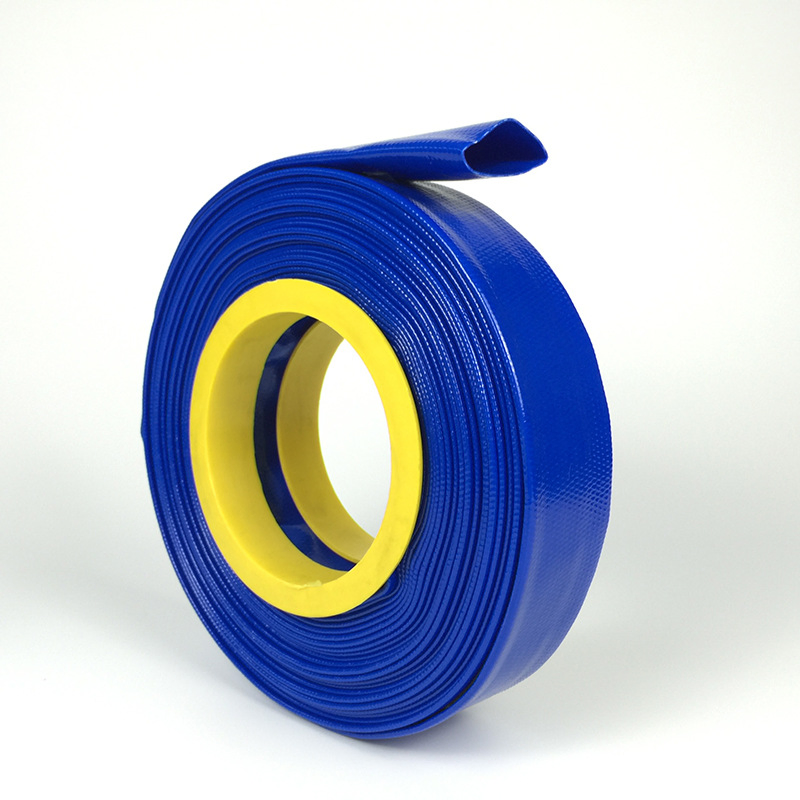

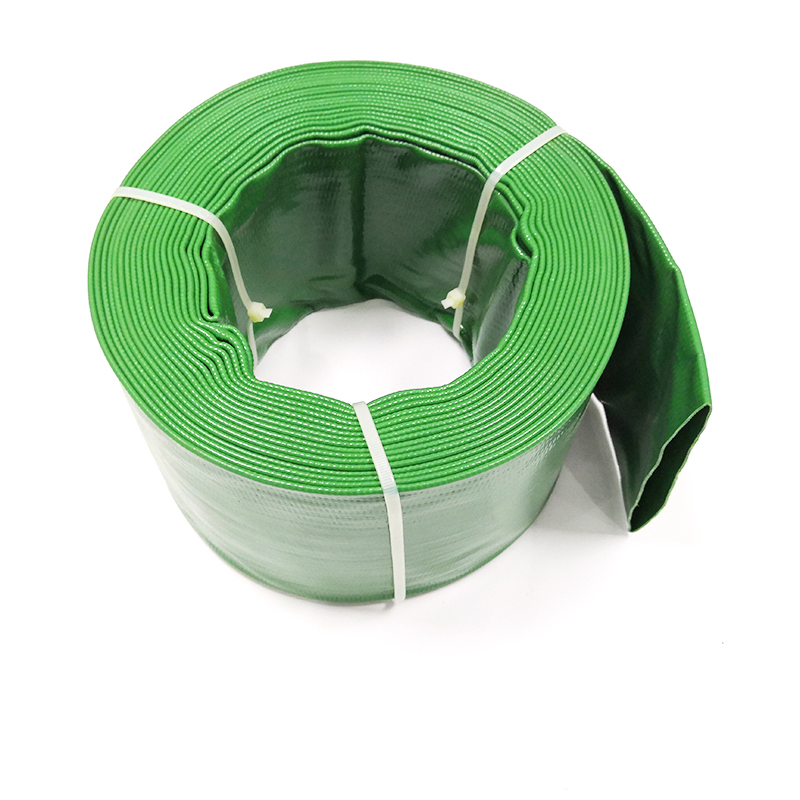

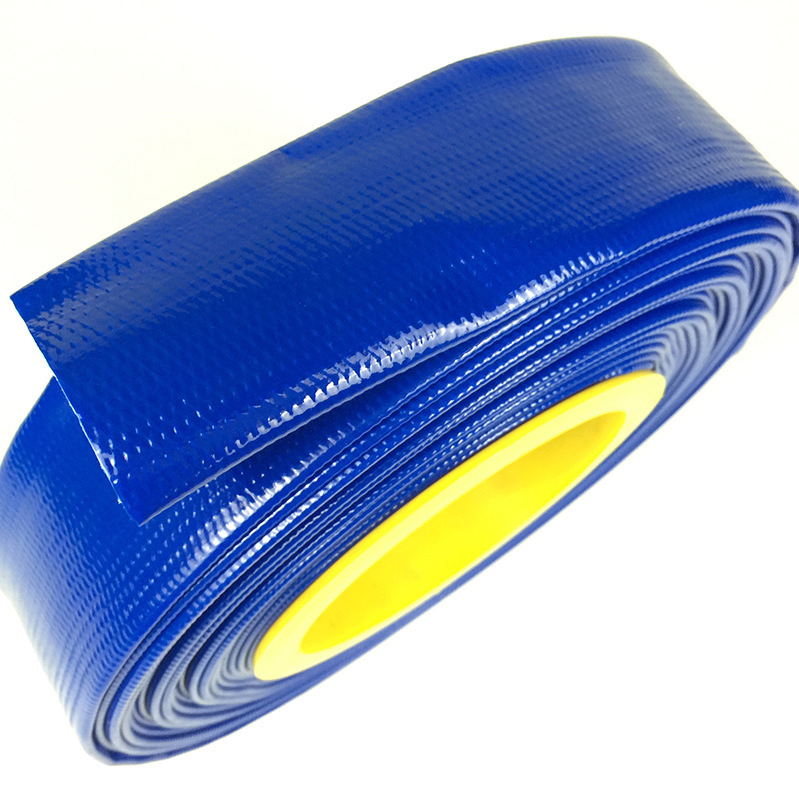

Heavy Duty 3 Inch Lay Flat Discharge Pipe 76mm Water Pump Hose

1 / 5

Heavy Duty 3 Inch Lay Flat Discharge Pipe 76mm Water Pump Hose

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Info

Type

Thermoplastic Pipe

Color

Blue, Red, Yellow, etc.

Shape

Round

Usage

Drainpipe, Water Supply, Irrigation, Construction

Length

10m/30m/50m/100m or Customized

Thickness

1mm-4mm

Working Pressure

2bar to 10bar

Features

Durable, Light Weight with High Pressure

Inner Diameter

19mm-406mm

Material

PVC and High Strength Fiber

📦 Product Description

Product Name	PVC Lay Flat Hose
Material	PVC and Polyester Yarn
Size	1 inch (25mm) to 16 inch (408mm)
Wall Thickness	1mm to 3.2mm
Color	Blue / Red / Yellow / Black / Green / Orange etc.
Working Pressure	2bar (30psi) to 15bar (225psi)
Temperature Range	-5 to 65 degree C.

Key Features

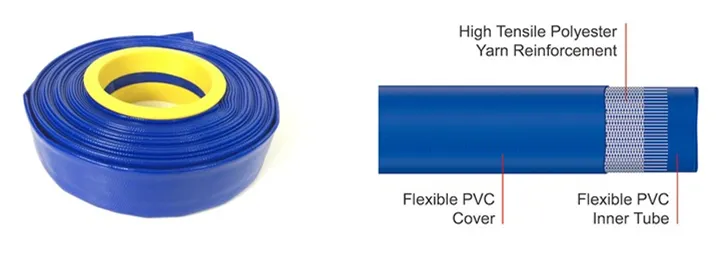

Made of PVC, reinforced with specialized industrial polyester yarn, high pressure resistance.
Once-molded by extruber plastic, light weight.
Anti-chemical, anti-aging, anti-UV, good abrasion resistance.
Environmental grade hose can meet REACH standard.

Applications

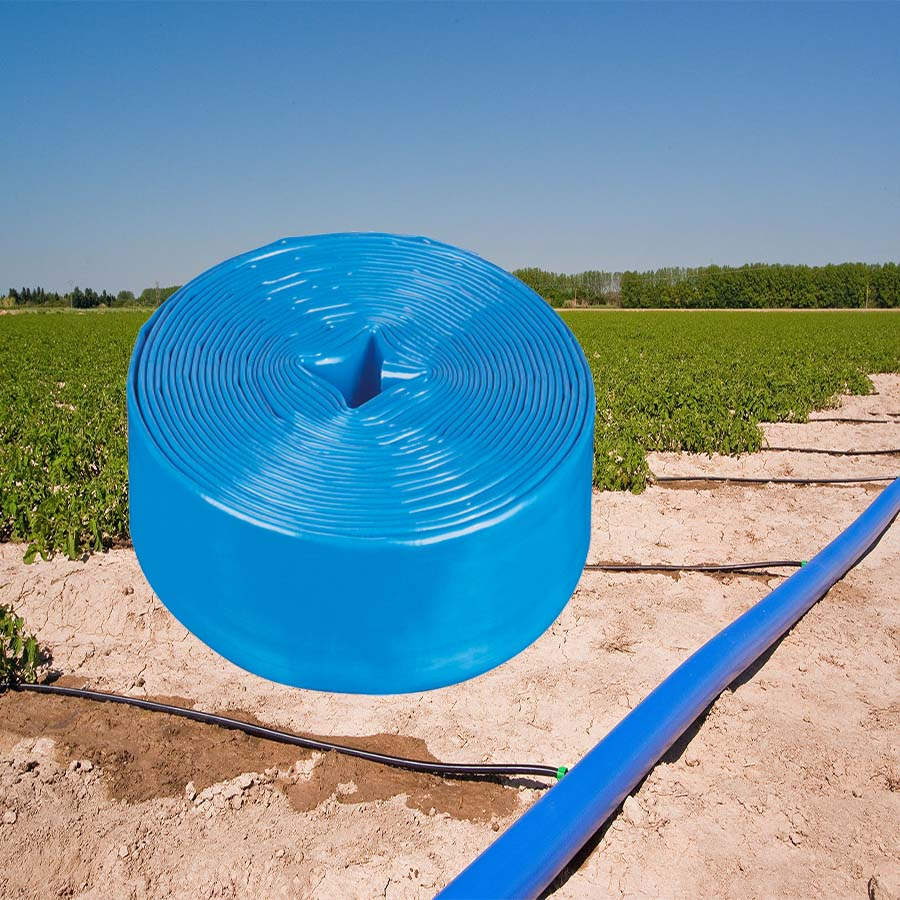

Used for irrigation in agriculture and transfer liquid in industry.
Suitable for drip irrigation system.

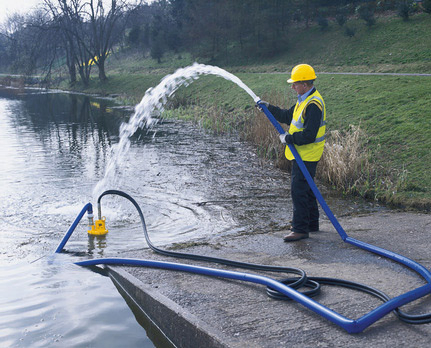

Discharge sludge in agriculture, construction, industry, mining and marine service.

📊 Technical Specifications

Inner Diameter		Wall Thickness		Weight	W.P. (at 23ºC)		Std Length
inch	mm	inch	mm	kg/m	bar	psi	m	ft
3/4	20	0.053	1.35	0.11	6	90	100	300
1	25	0.047	1.2	0.15	5	75	100	300
1 1/2	38	0.047	1.2	0.22	6	90	100	300
2	51	0.053	1.35	0.3	6	90	100	300
3	76	0.059	1.5	0.5	6	90	100	300
4	103	0.075	1.9	0.8	6	90	100	300
6	153	0.094	2.4	1.6	6	90	100	300
8	203	0.102	2.6	2.2	5	75	100	300

🖼️ Gallery & Details

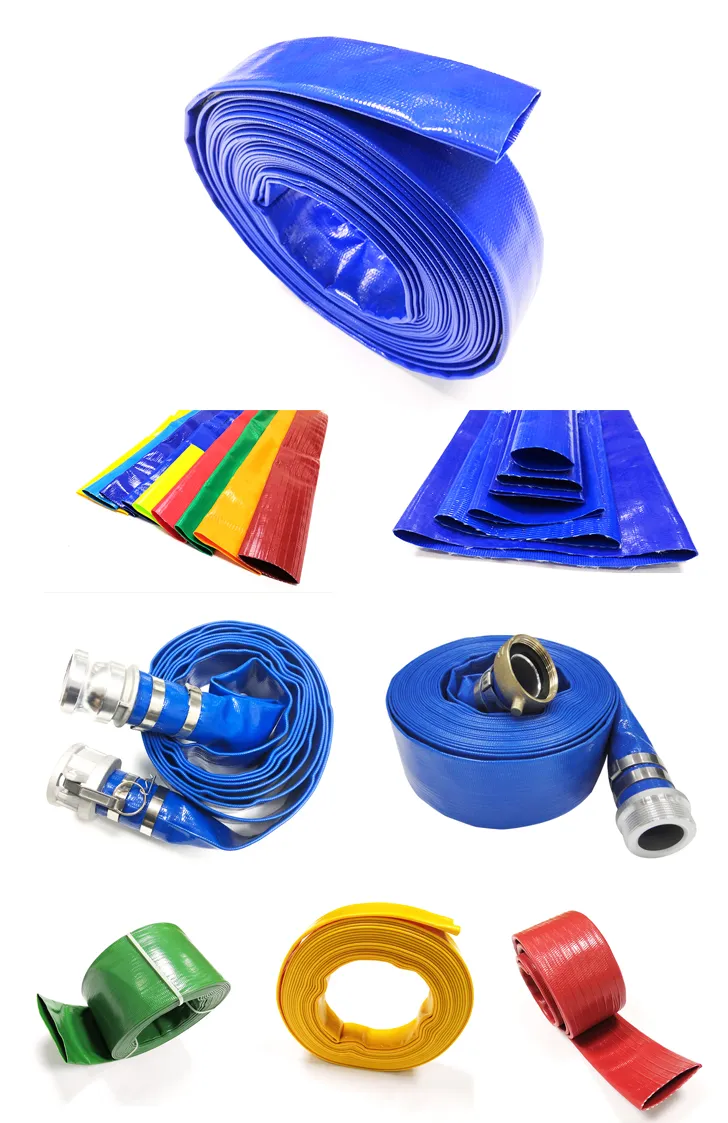

Detailed Images

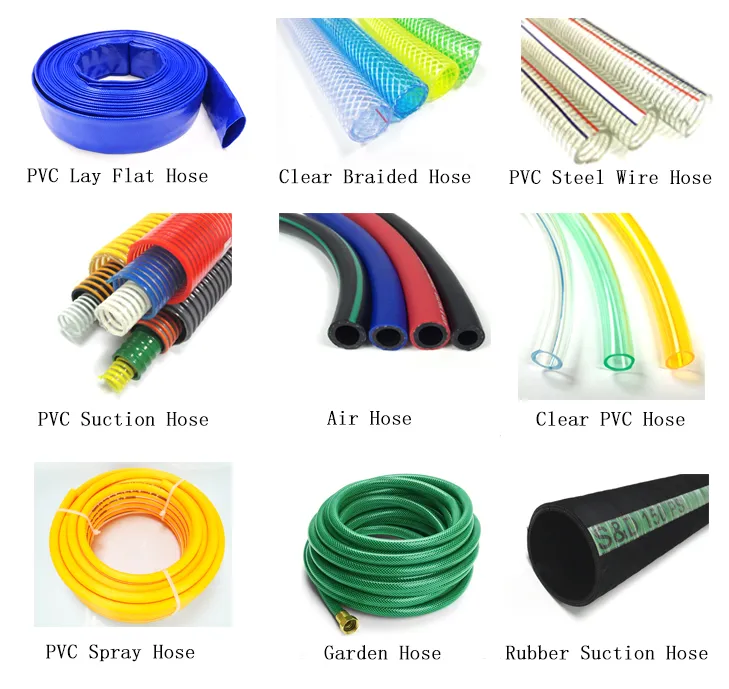

Packing & Related Products

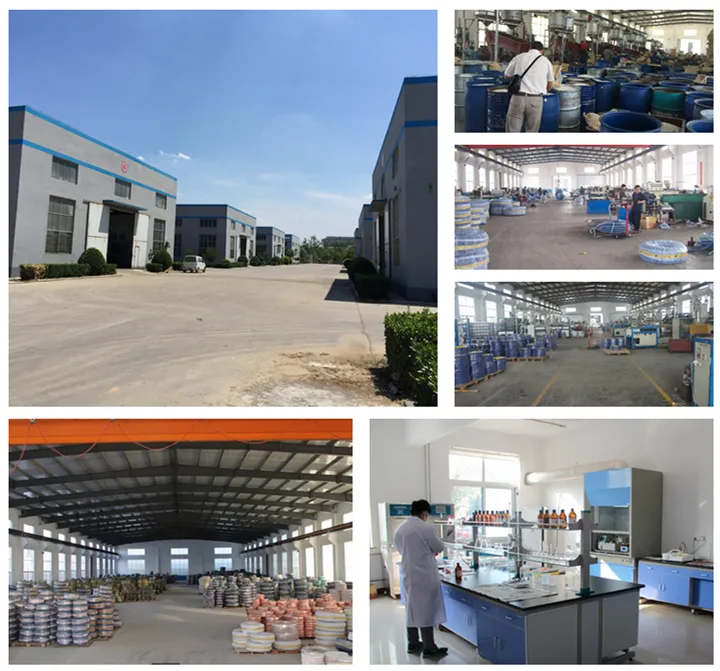

Production & Quality

Frequently Asked Questions

Q1: What materials are used in the lay flat hose? A: The hose is made of high-quality PVC and reinforced with high-tensile polyester yarn for maximum durability and pressure resistance.

Q2: What is the temperature range for this PVC hose? A: It is designed to work efficiently within a temperature range of -5°C to +65°C.

Q3: Can the length of the hose be customized? A: Yes, we offer standard lengths like 50m and 100m per roll, and we also support customized lengths based on your specific requirements.

Q4: Is the hose resistant to chemicals and UV rays? A: Yes, our lay flat hose features anti-UV and anti-chemical properties, making it suitable for harsh outdoor and industrial environments.

Q5: What are the primary applications of this hose? A: It is widely used for agricultural irrigation (including drip systems), construction drainage, mining, and industrial liquid transfer.

Q6: Does the hose support OEM/ODM orders? A: Yes, we support both OEM and ODM orders to meet specific branding and technical specifications.
