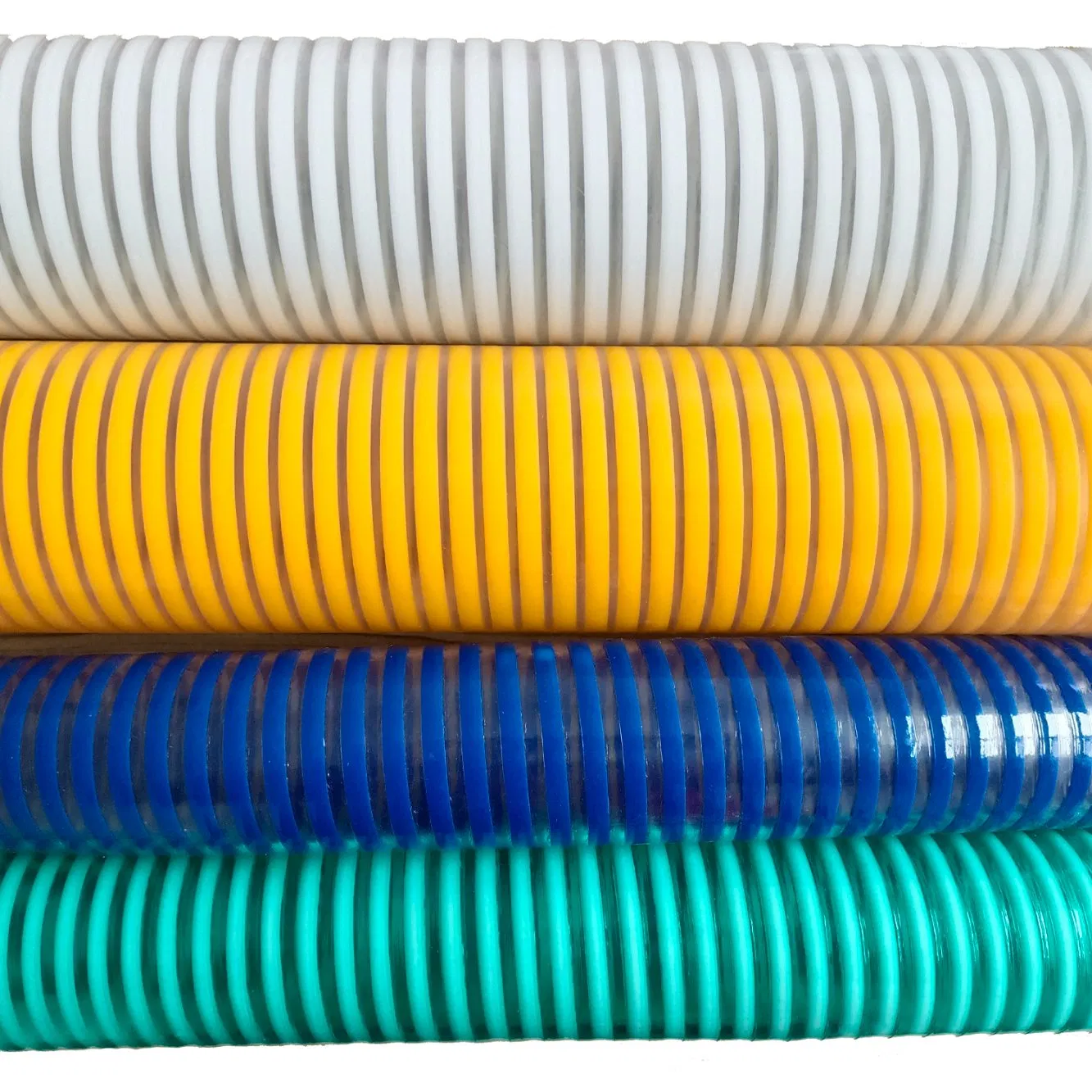

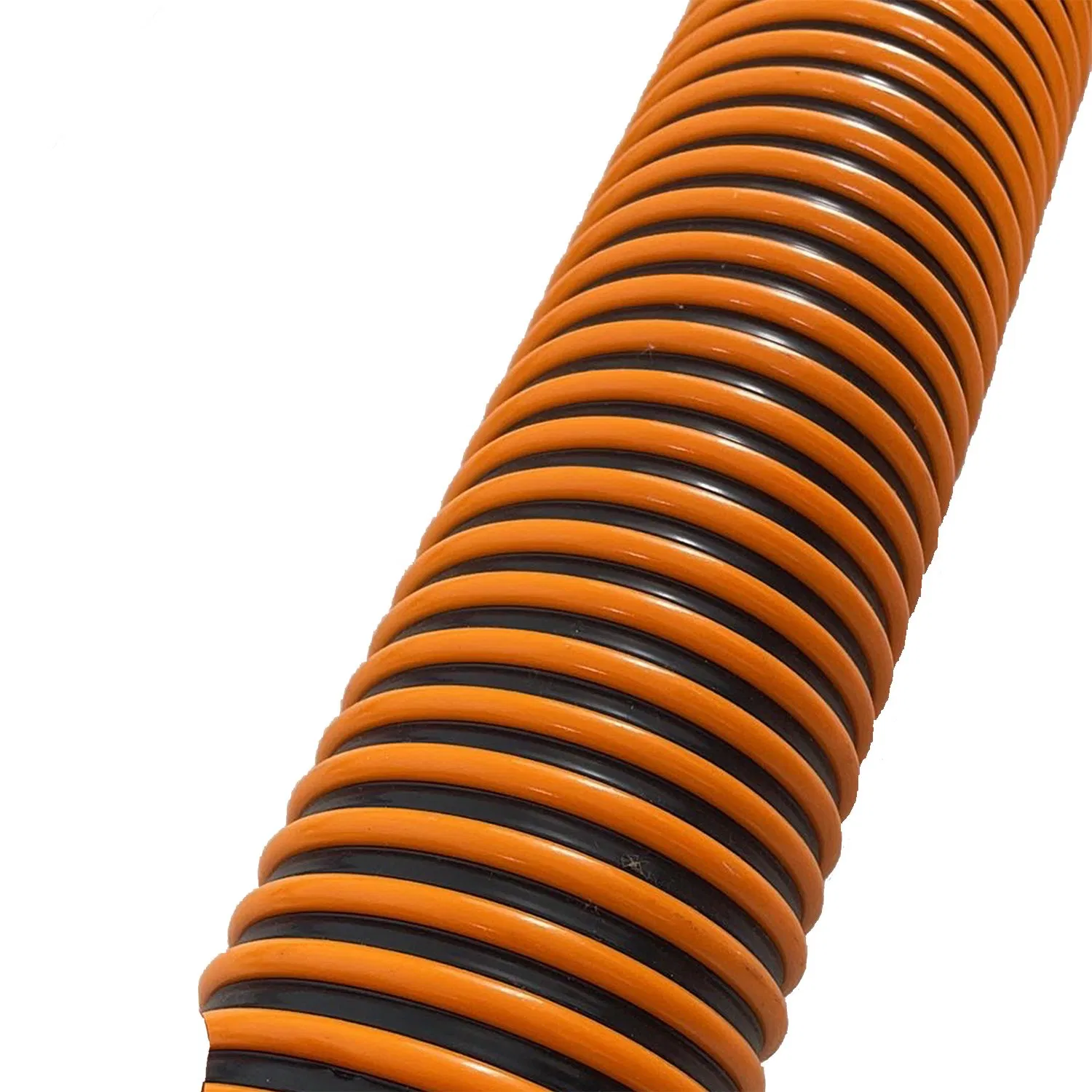

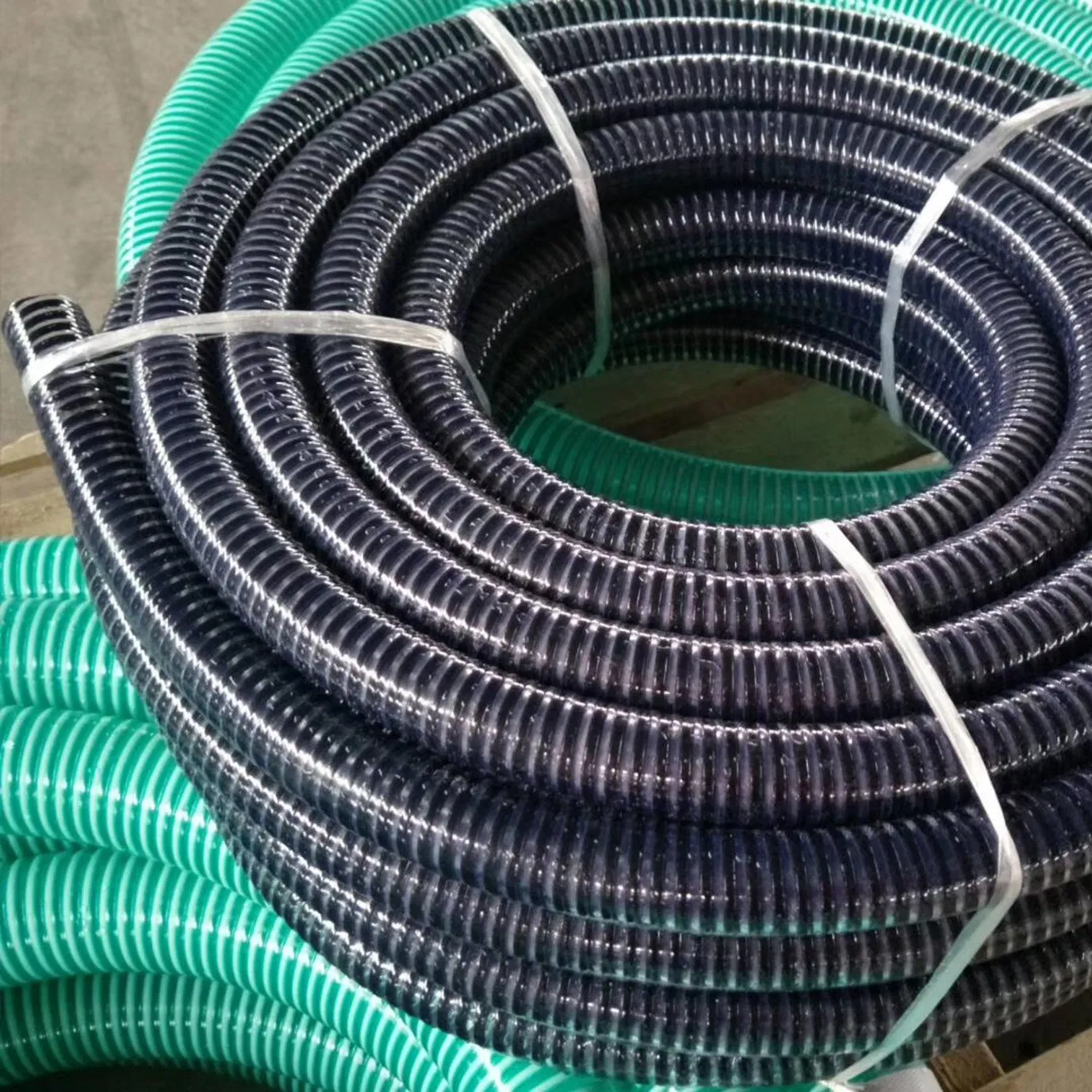

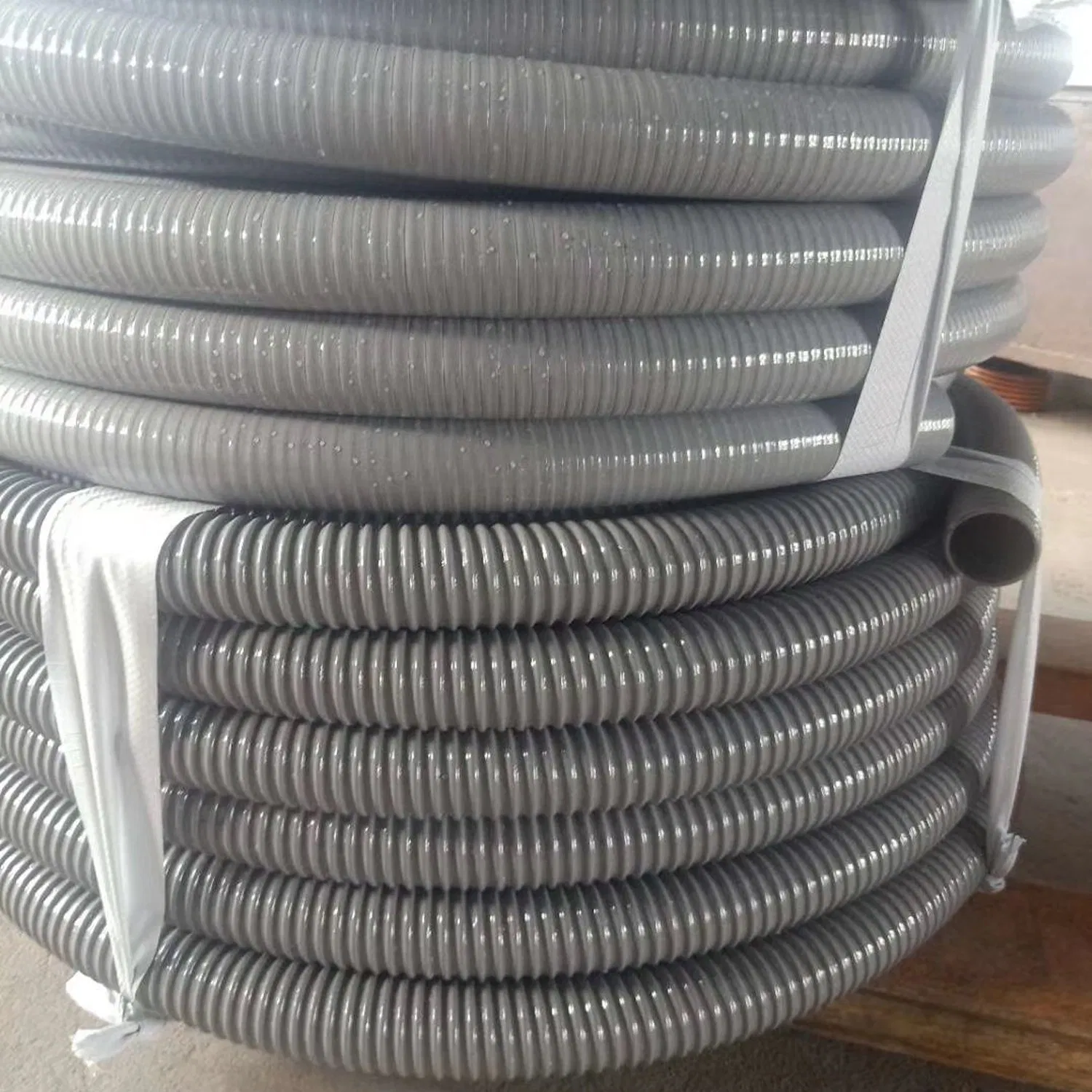

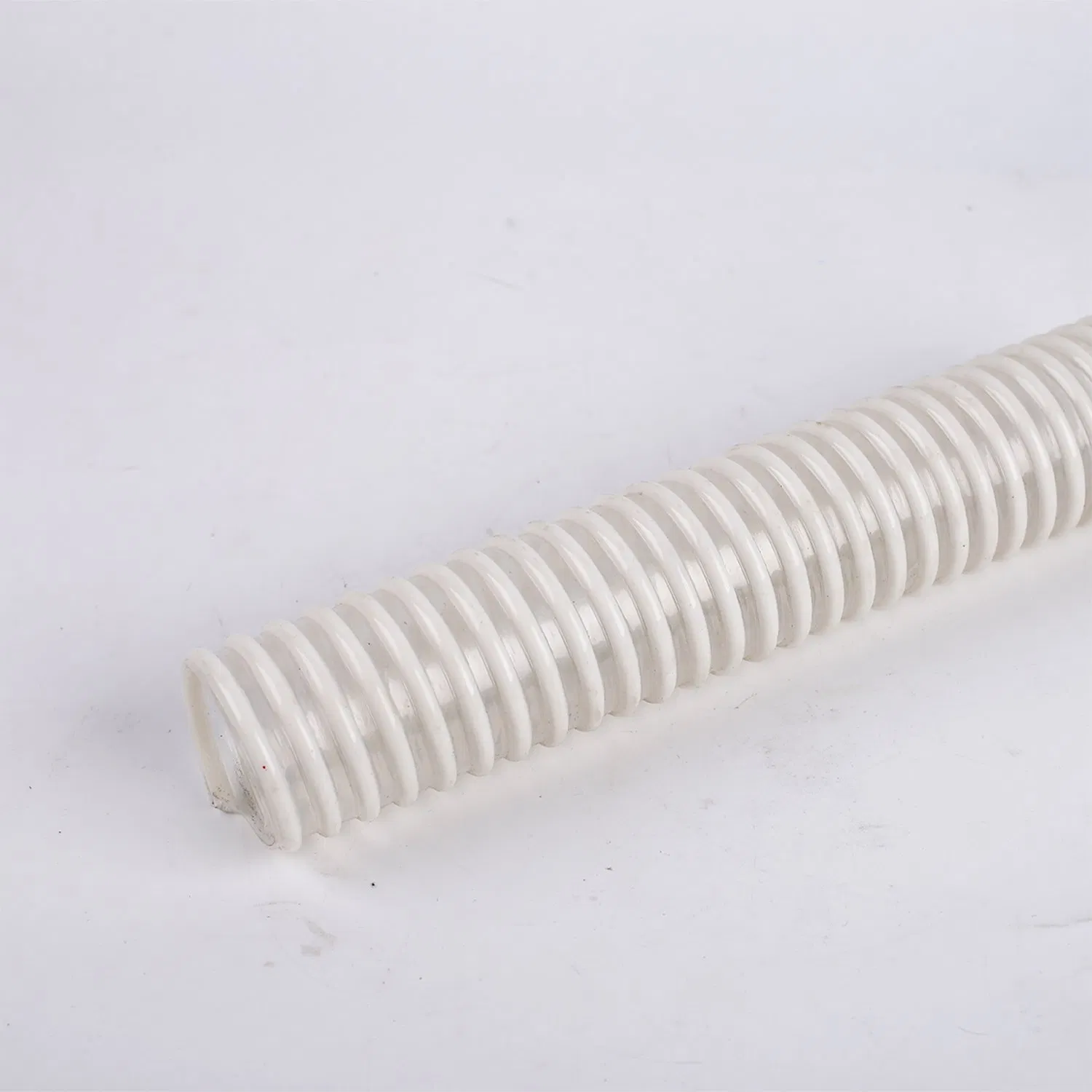

Heavy Duty Large Diameter PVC Helix Suction Hose for Mining vacuum Water Oil Pump

1 / 5

Heavy Duty Large Diameter PVC Helix Suction Hose for Mining vacuum Water Oil Pump

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model No.

1" to 12" inches

Type

Thermoplastic Pipe

Shape

Round / Hollow

Usage

Water Supply, Irrigation, Drainage

Working Pressure

2bar - 8bar

Wall Thickness

2mm - 12mm

Temperature

-5℃ to +65℃

Features

Non-Toxic, Flexible, Anti-Aging

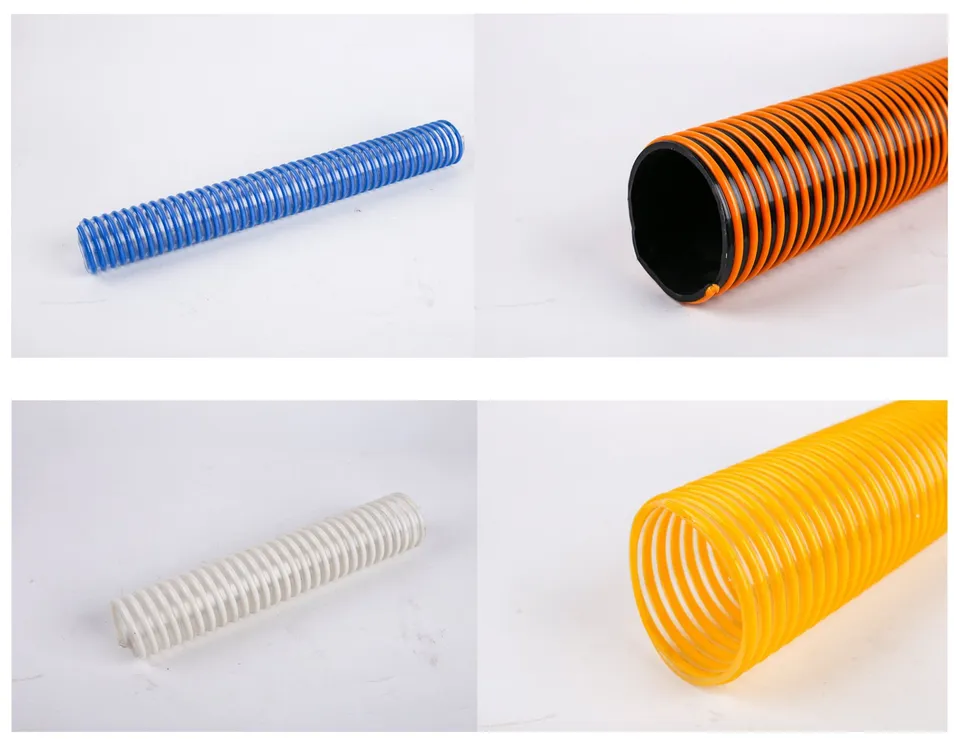

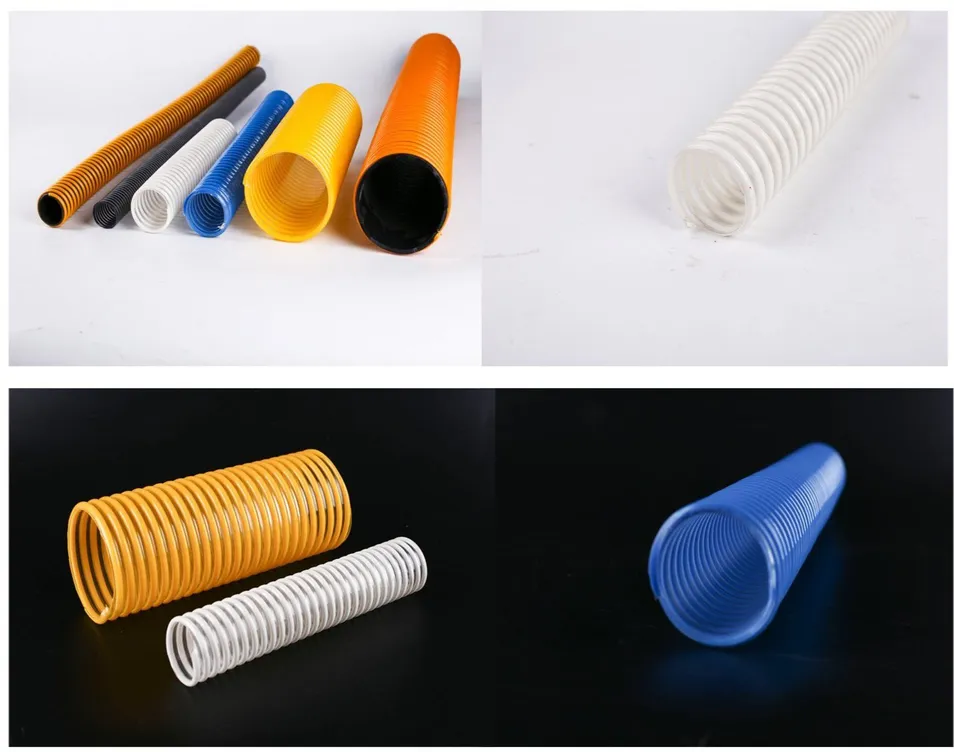

Product Description

PVC helix convex ribbed reinforcement suction hose is a new type of industrial hose created by PVC material modification technology. With breakthrough structural innovations and performance enhancement, it provides efficient and stable solutions for fluid and powder transmission.

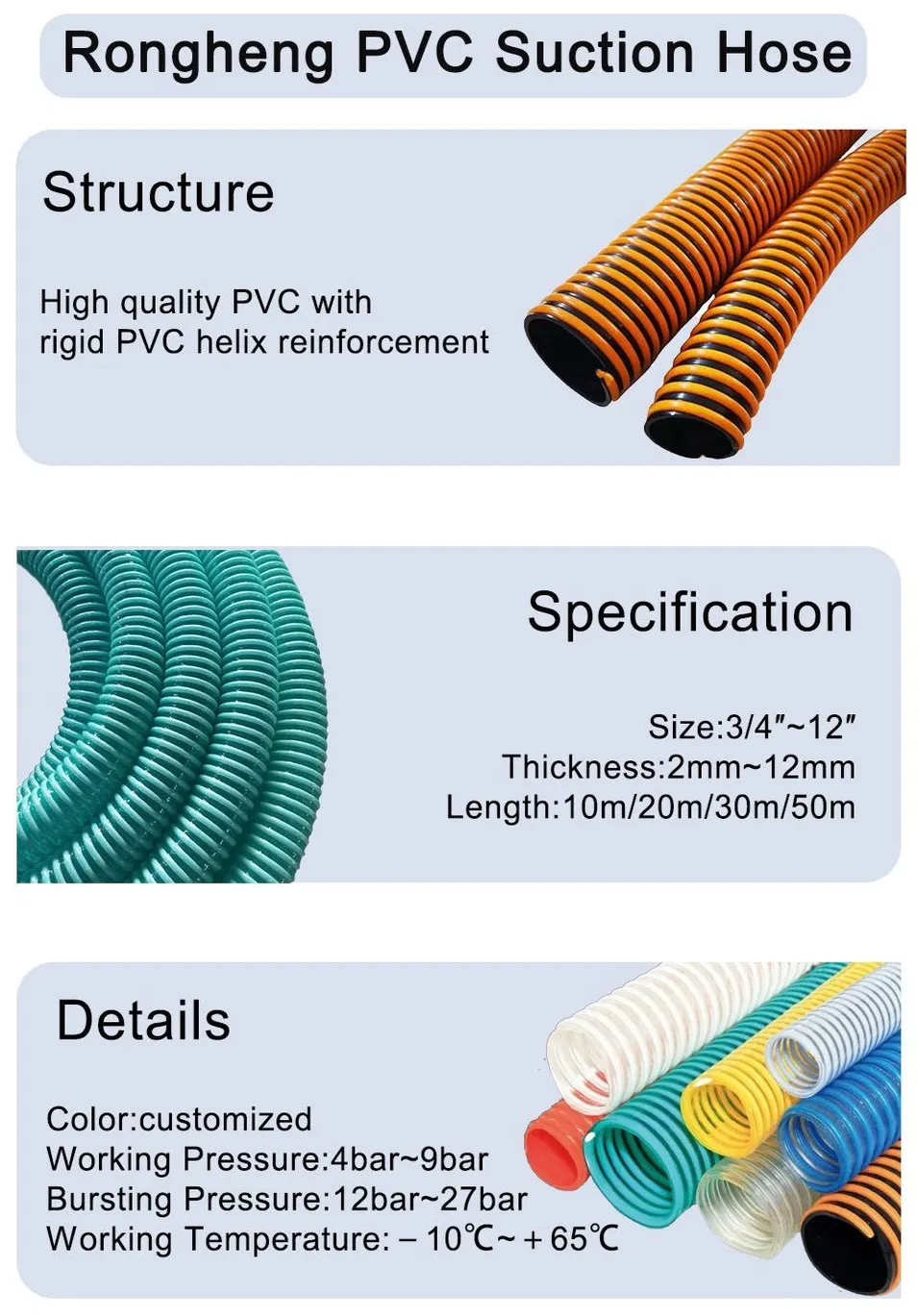

Innovative Composite Structure:
Flexible PVC smooth inner layer with spiral convex PVC reinforcement. This structure breaks the limitations of traditional designs, enabling the hose to distribute stress evenly when subjected to lateral pressure.

Excellent resistance to twisting ensures smooth medium transmission even in complex spaces.

🛡️

Strong & Durable: Tear and puncture resistance, wear resistance and impact resistance for long severe life.

🌡️

Wide Temperature Range: Stable performance from -15℃ to 65℃, adaptable to extreme environments.

🔇

Silent Operation: Special structural design reduces transmission noise by 40%.

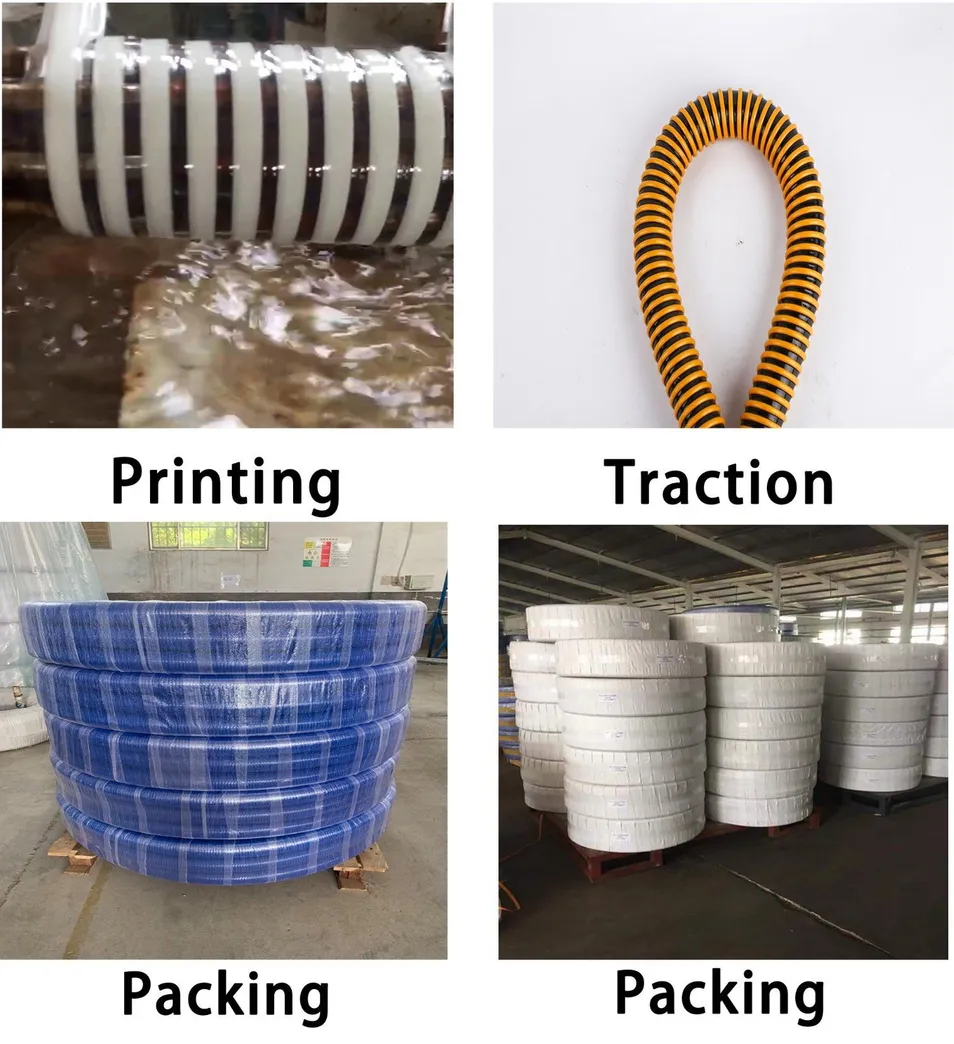

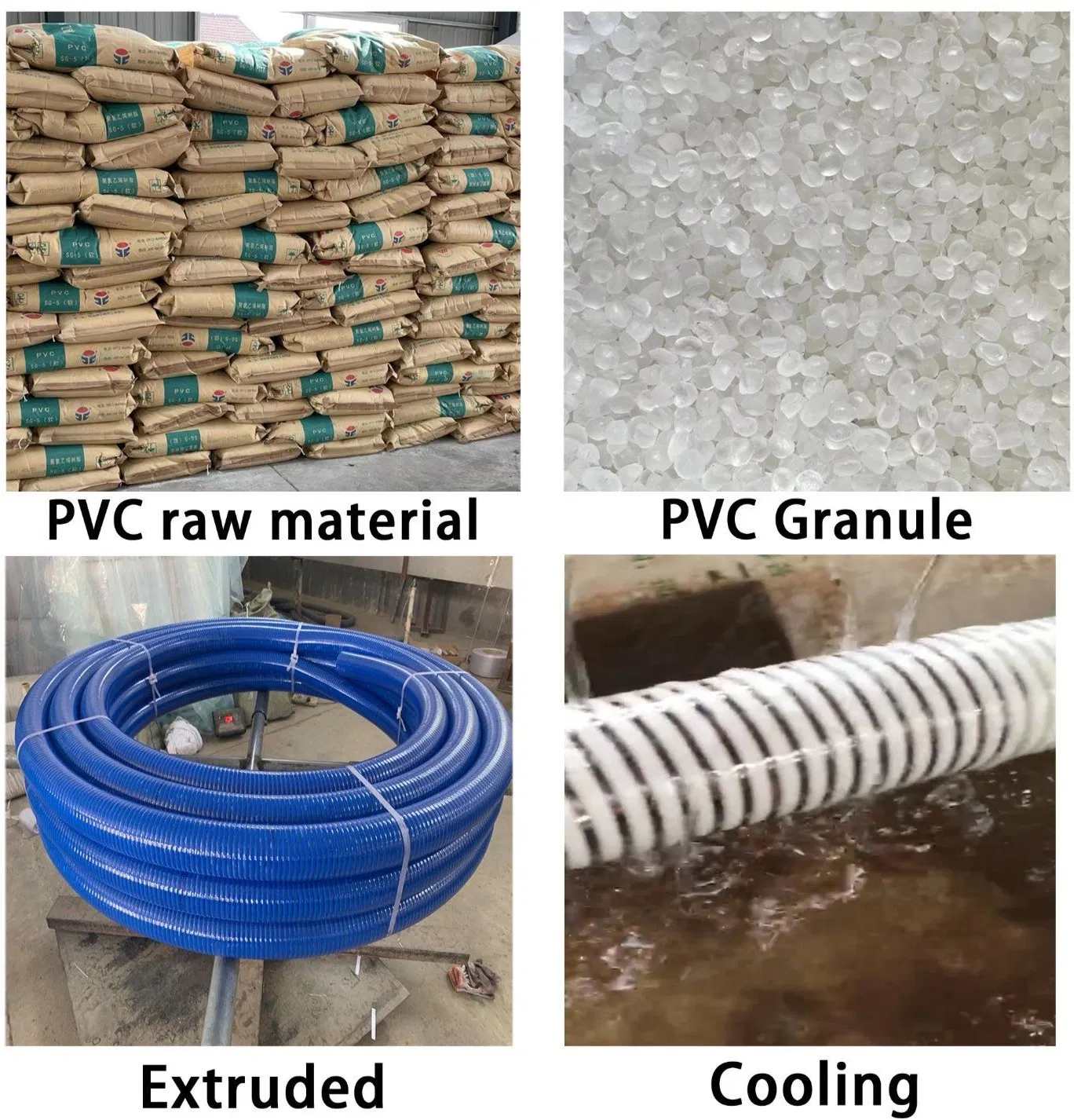

Production Process

Product Parameters

Hose diameter system: 6mm-305mm inner diameter range.
Wall thickness: 2mm-12mm customizable options.

I.D (inch/mm)		O.D (mm)	Length (m/roll)	W.P (bar)	B.P (bar)	Weight (g/m)
3/4"	19	2.5	30	8	24	250
1"	25	3.0	30	9	27	350
1-1/4"	32	4.0	30	9	27	500
2"	50	5.0	30	7	21	1050
3"	75	6.0	30	6	18	1850
4"	102	7.0	30	6	18	3200

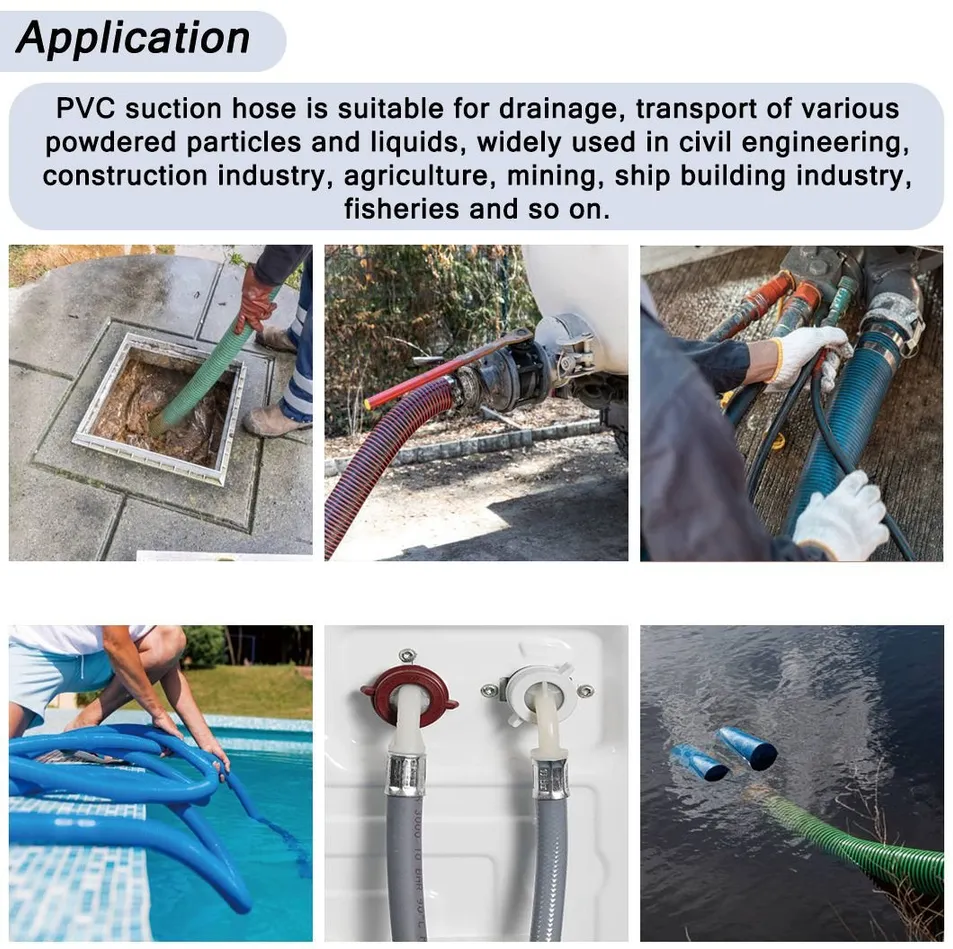

Applications

• Agricultural Irrigation: Ideal for water supply in varied terrains.

• Drainage Engineering: Urban and building drainage with strong suction.

• Chemical Transport: Suitable for non-corrosive chemical fluid transfer.

• Ventilation: Used as flexible ventilation ducting.

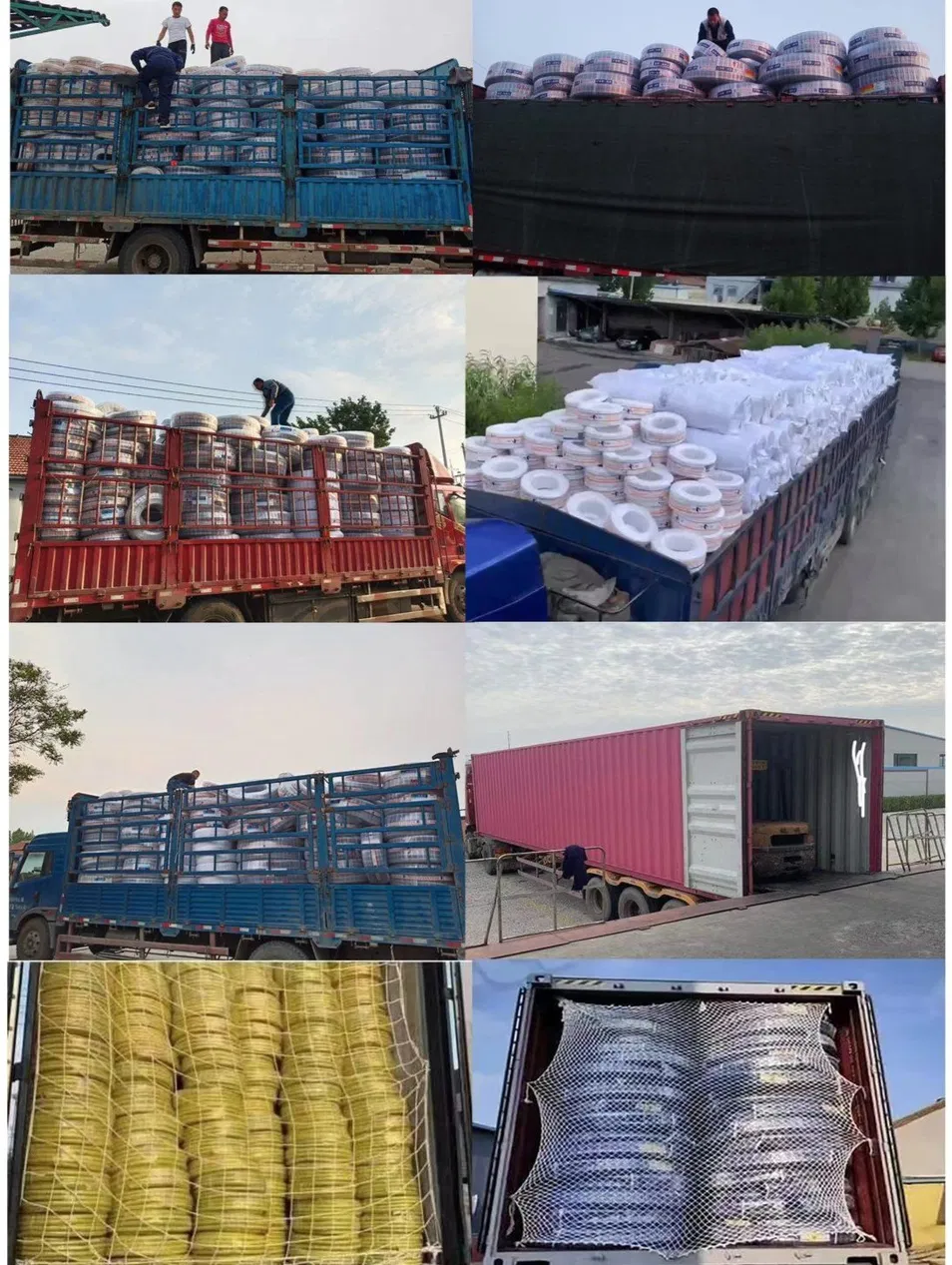

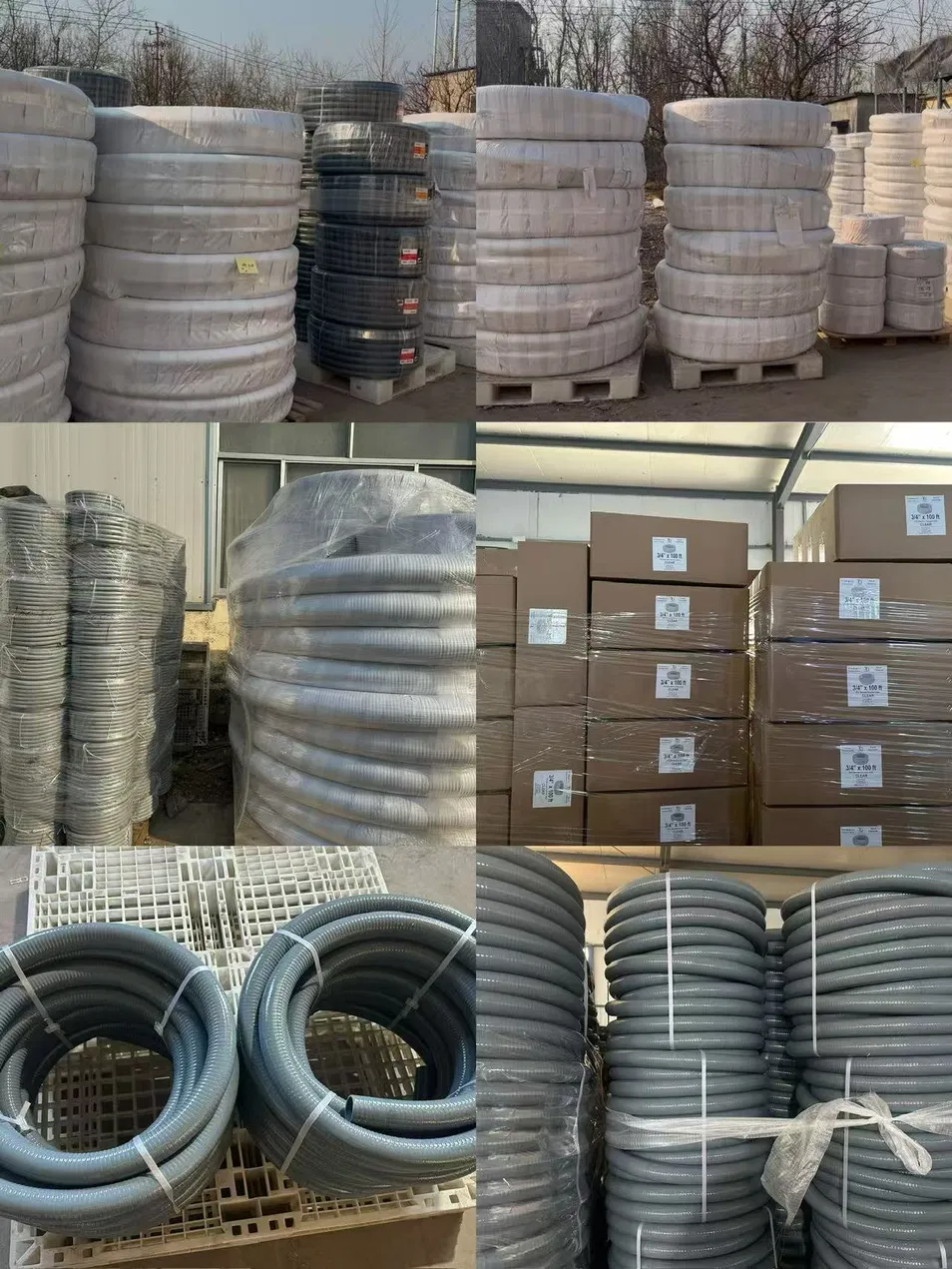

Packing & Delivery

Certifications

About Us

We are a professional manufacturer specializing in the production and sale of various plastic hoses. Our core products include PVC steel wire hoses, fiber reinforced hoses, garden hoses, and high-pressure hoses for pneumatic equipment. We focus on providing reliable product quality and flexible delivery capabilities. Our products are exported globally to markets including Europe, North America, Southeast Asia, and Australia.

Frequently Asked Questions

Are you a factory or a trading company?

We are a professional manufacturer specializing in various kinds of high-quality PVC hoses.

Where is your nearest shipping port?

The nearest port is Qingdao Port, China.

Can I request a sample of the helix suction hose?

Yes, we provide free samples for quality evaluation purposes.

What is the typical service life of your hoses?

When preserved and used correctly, the typical service life is approximately 2-3 years.

What is your Minimum Order Quantity (MOQ)?

We can accept orders of any quantity. For customized products, the MOQ is negotiable based on the complexity of the design.

What is the delivery cycle and logistics options?

Spot orders ship within 3-5 days. We support sea, air, and land transportation and can assist with customs clearance.
