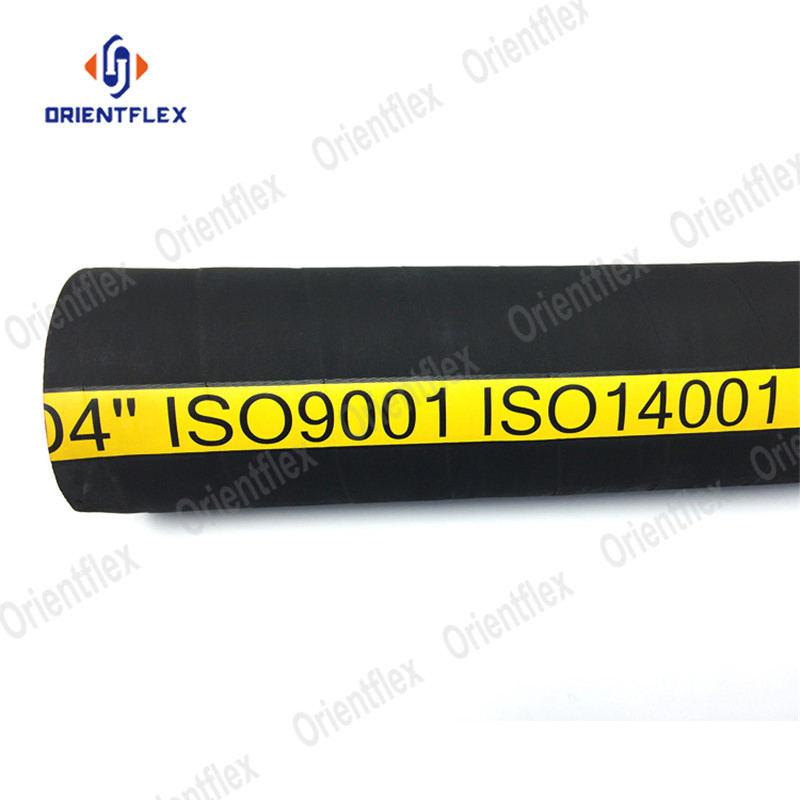

Industrial 8 Inch Large Diameter Flexible Water Pump Suction Rubber Hose for Sea Water

1 / 5

Industrial 8 Inch Large Diameter Flexible Water Pump Suction Rubber Hose for Sea Water

Customization:	Available
Material:	Natural Rubber
Capability:	Water Rubber Hose

Send Inquiry

Product Description

🔹 Basic Info

Model NO.

WSDH

Product Name

Water Suction Hose 150psi/300psi

Color

Black

Tube and Cover

Nr,SBR Rubber Compound

Reinforcement

High Strength Synthetic Fibre and Helix Steel Wire

Max Length

12/30/60m

Feature

Anti-Abrasion

Pressure Range

10 Bar - 20 Bar (W.P)

Burst Pressure

30 Bar - 60 Bar

Certification

ISO9001

Sample

Free Sample Available

Origin

China

📦 Packaging & Delivery

Package Size

1.00cm * 1.00cm * 1.00cm

Gross Weight

1.000kg

Transport

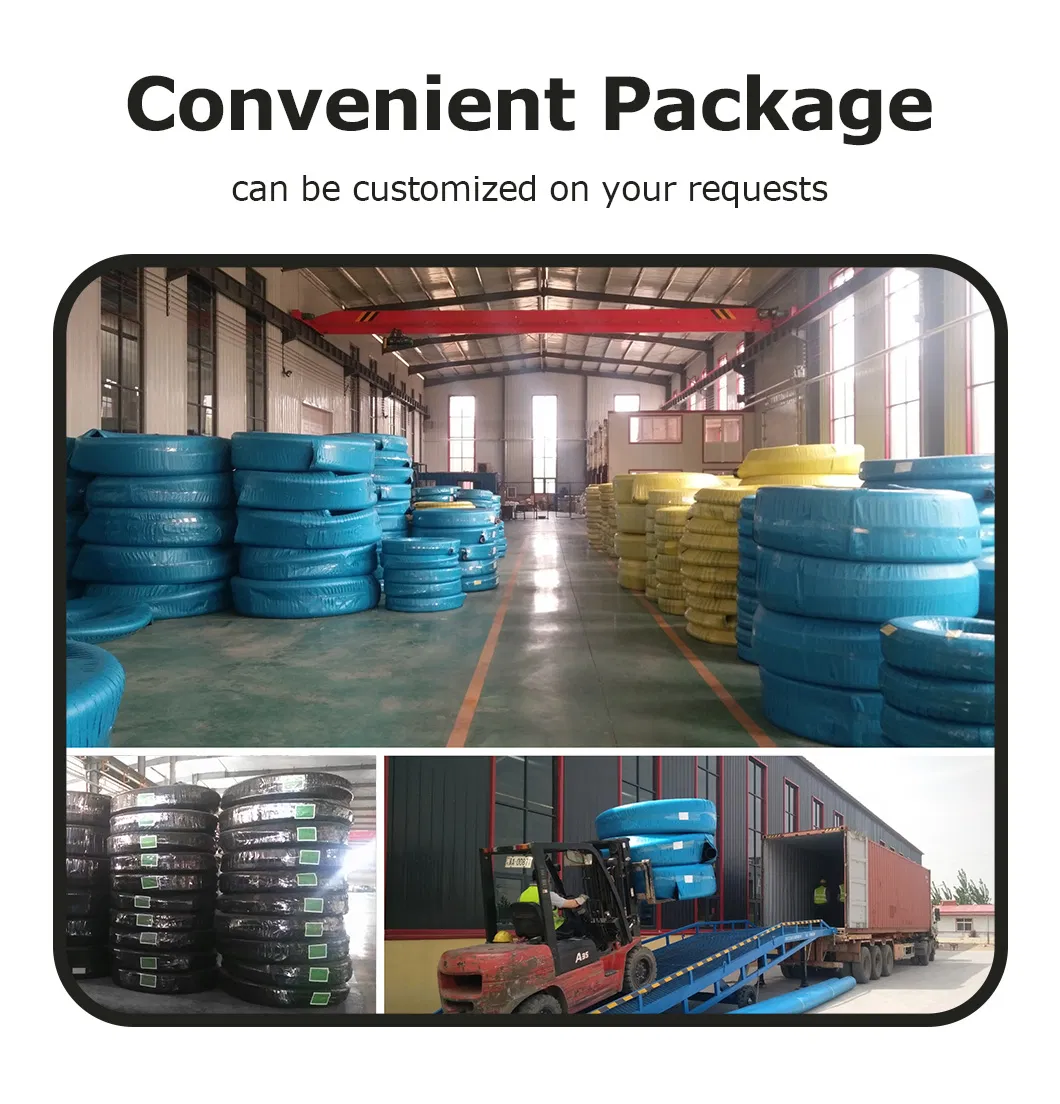

Woven Bag and Plastic Film.

📝 Product Description

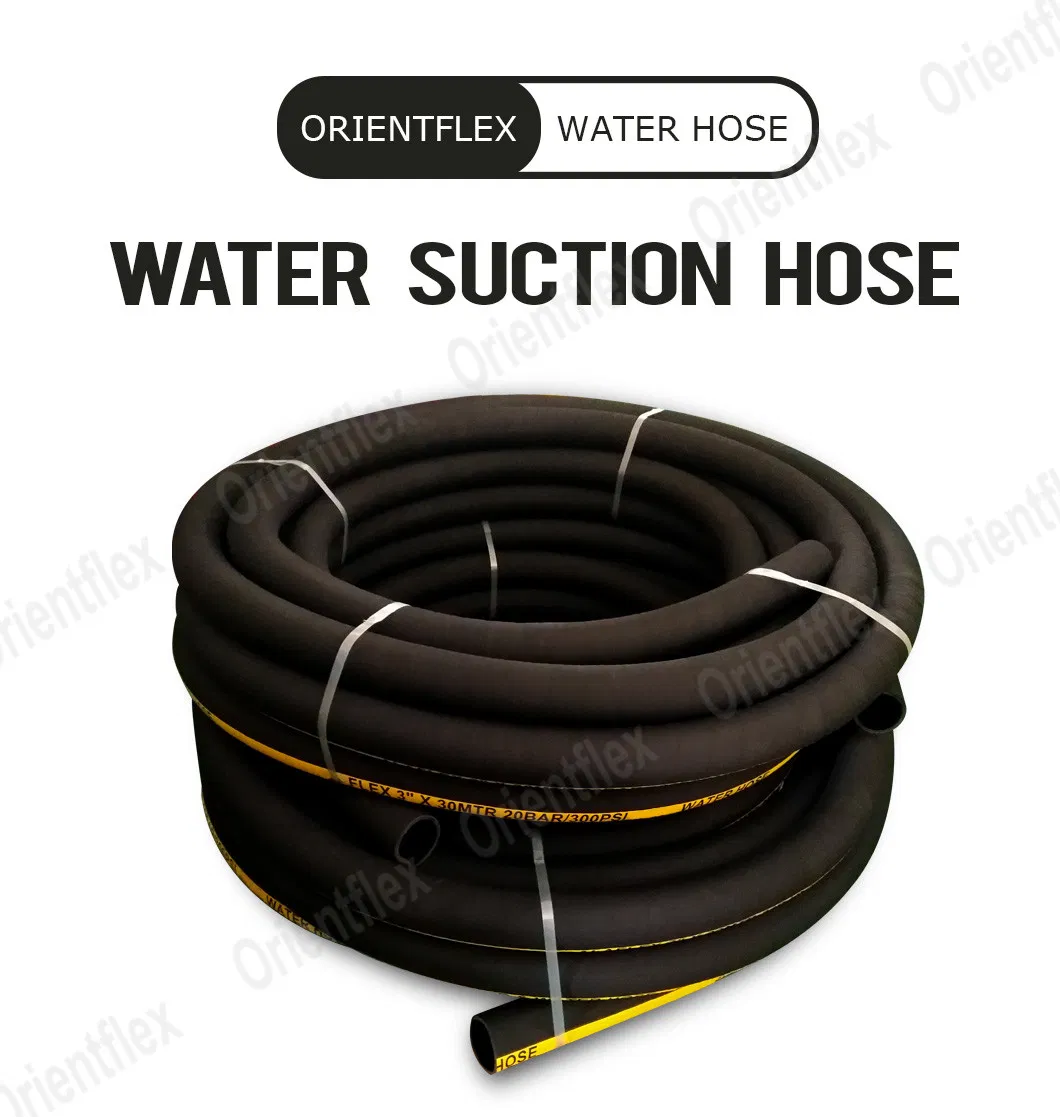

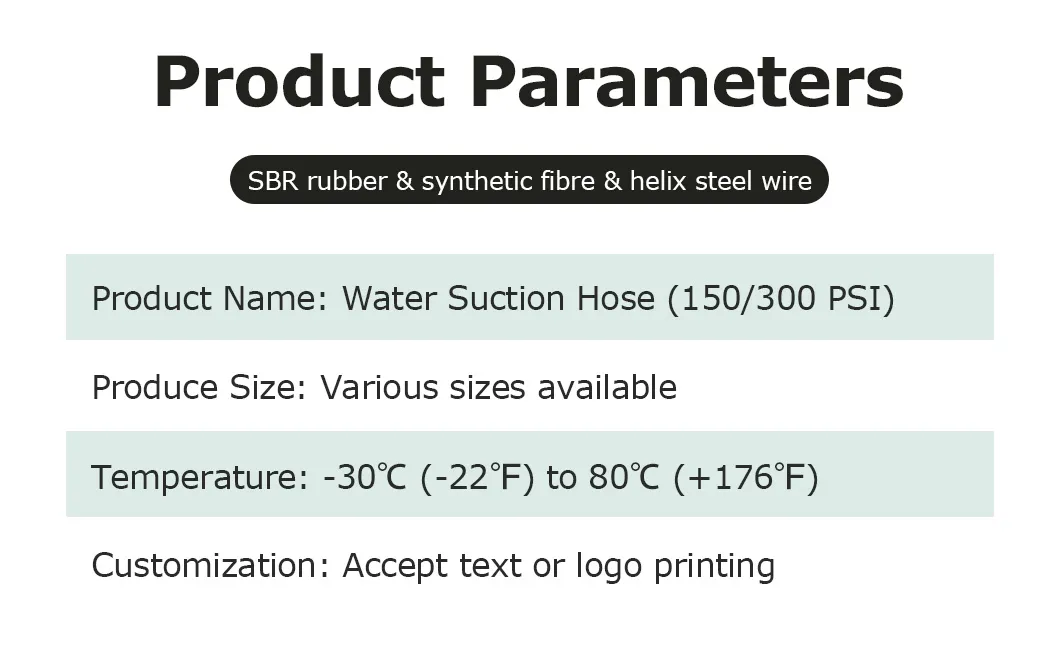

RUBBER WATER SUCTION HOSE

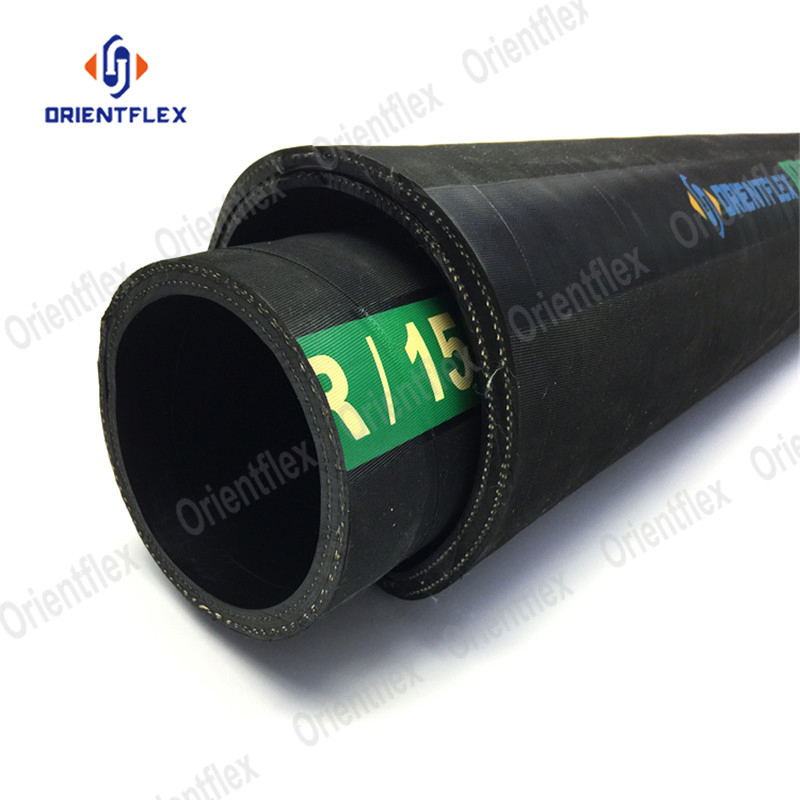

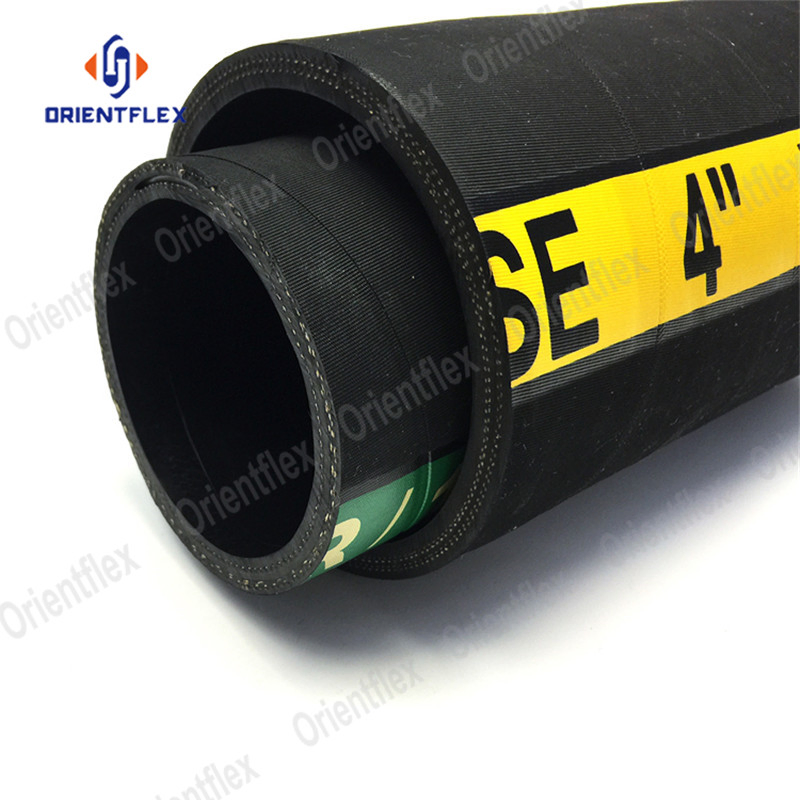

Construction:

Tube: Black, smooth, NR, SBR rubber compound.

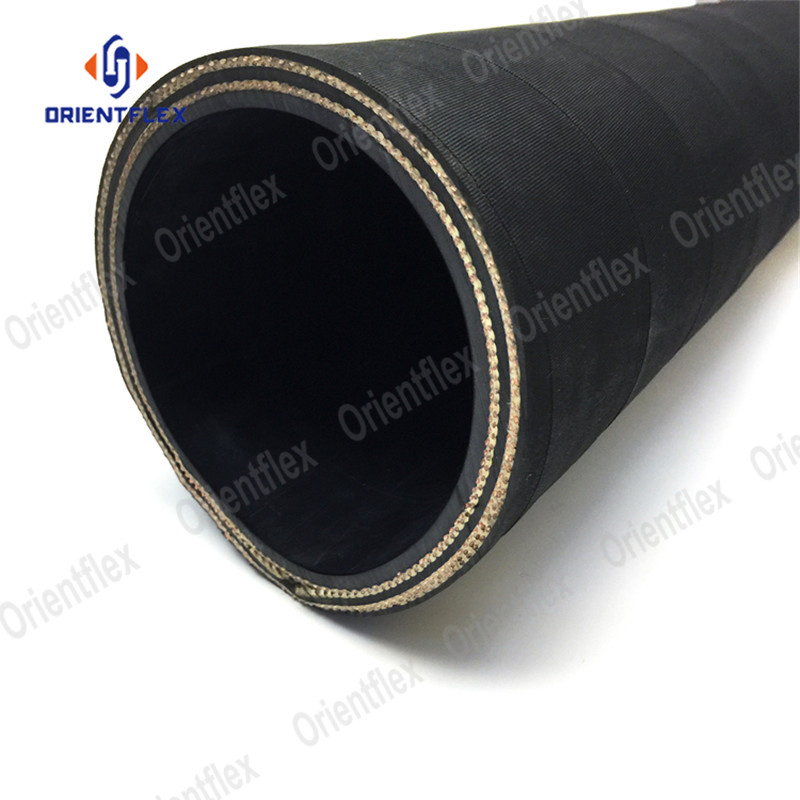

Reinforcement: Multi plies High strength synthetic fibre and helix steel wire.
Cover: Black, smooth, cloth impression, SBR rubber compound.

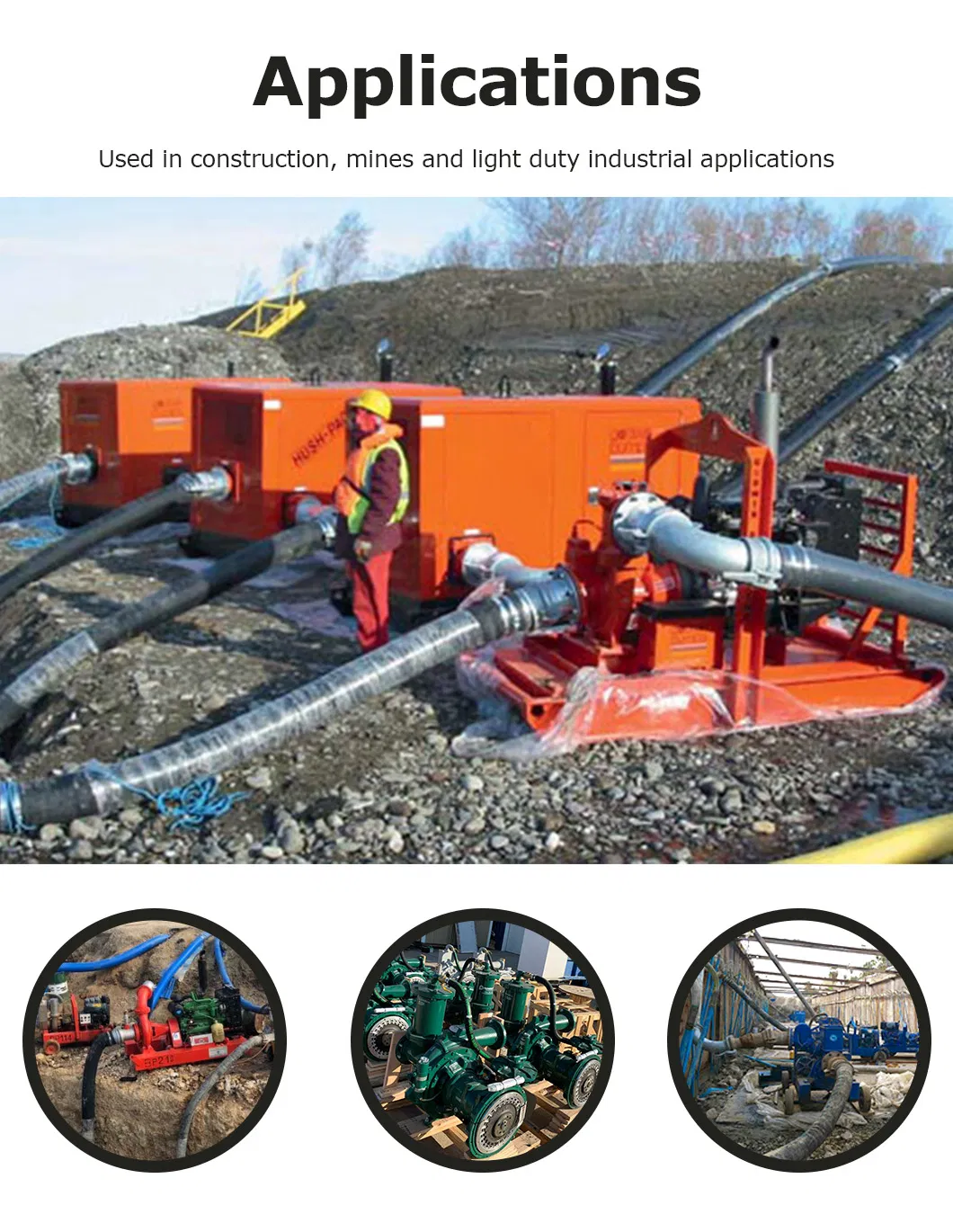

Application:
Hardwall hose designed for suction and discharge of water, and non-corrosive fluids used in construction sites and light duty industrial applications. Ideal high pressure water discharge hose for rugged, tough operating conditions.

Temperature: -30ºC(-22ºF) to +80ºC(+176ºF)

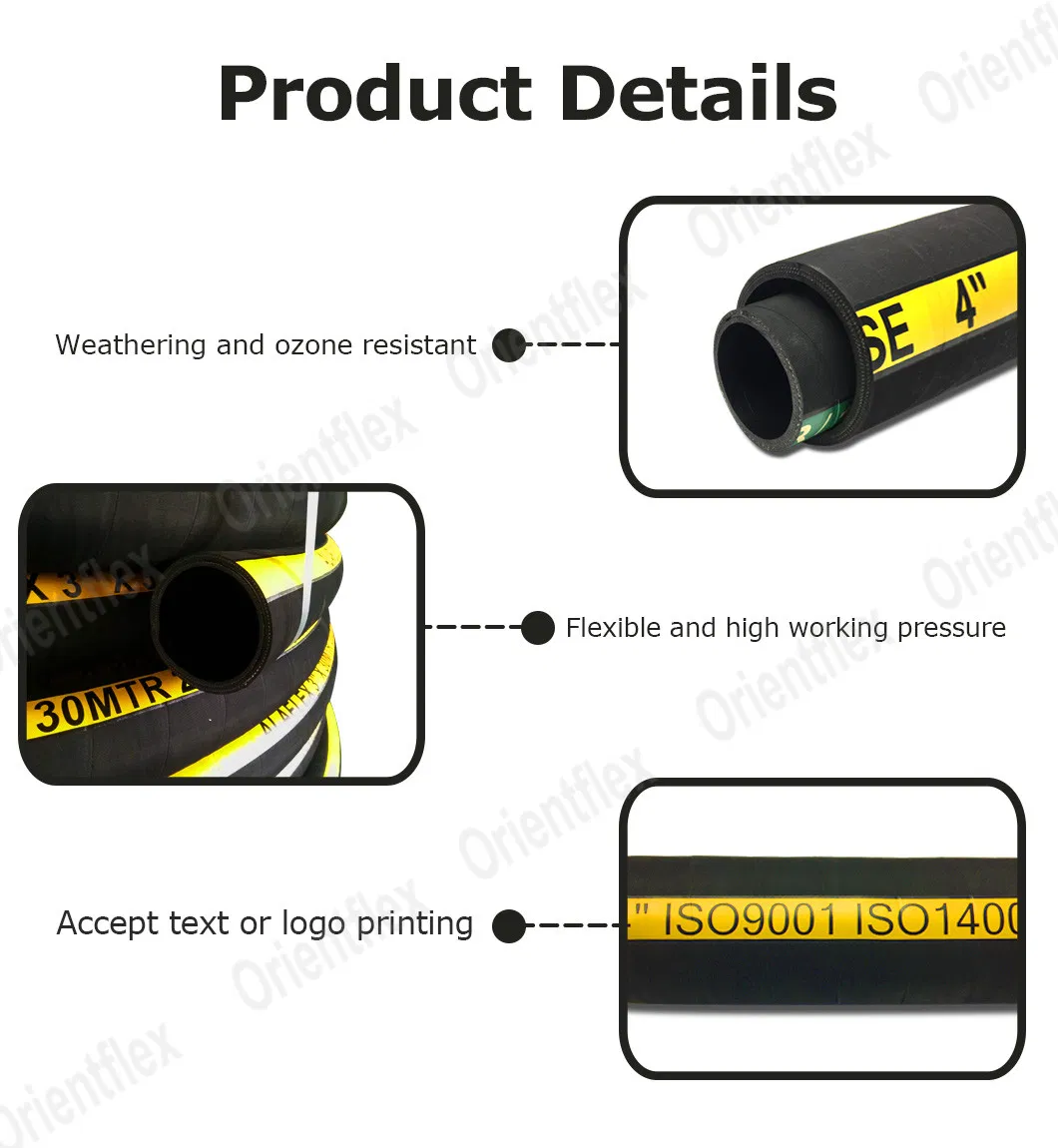

Characteristics:

Weathering and ozone resistant.
Anti-aging cover compound.
Flexible and light weight.

📊 Technical Specifications

WATER SUCTION HOSE 150 PSI

Item Code	I.D (inch)	I.D (mm)	O.D (mm)	W.P (bar)	W.P (psi)	B.P (bar)	B.P (psi)	Vacuum (bar)	L (m)	L (ft)
WSDH-019	3/4"	19.1	30	10	150	30	450	0.8	60	200
WSDH-025	1"	25.4	36	10	150	30	450	0.8	60	200
WSDH-032	1-1/4"	31.8	44	10	150	30	450	0.8	60	200
WSDH-038	1-1/2"	38.1	51	10	150	30	450	0.8	60	200
WSDH-050	2"	50.8	64	10	150	30	450	0.8	60	200
WSDH-076	3"	76.2	90	10	150	30	450	0.8	60	200
WSDH-102	4"	101.6	118	10	150	30	450	0.8	30	200
WSDH-152	6"	152.4	170	10	150	30	450	0.8	30	100
WSDH-203	8"	203.2	224	10	150	30	450	0.8	30	100
WSDH-304	12"	304	326	10	150	30	450	0.8	12	40

WATER SUCTION HOSE 300 PSI

Item Code	I.D (inch)	I.D (mm)	O.D (mm)	W.P (bar)	W.P (psi)	B.P (bar)	B.P (psi)	Vacuum (bar)	L (m)	L (ft)
WSH2-019	3/4"	19.1	31	17	250	51	750	0.8	60	200
WSH2-025	1"	25.4	38	17	250	51	750	0.8	60	200
WSH2-050	2"	50.8	67	17	250	51	750	0.8	60	200
WSH2-076	3"	76.2	94	17	250	51	750	0.8	60	200
WSH2-102	4"	101.6	122	17	250	51	750	0.8	60	200
WSH2-152	6"	152.4	176	17	250	51	750	0.8	30	100
WSH2-203	8"	203.2	232	17	250	51	750	0.8	12	40
WSH2-304	12"	304	340	17	250	51	750	0.8	12	40

📸 Product Gallery

❓ Frequently Asked Questions

What is the primary application for this water suction hose?

This hardwall hose is specifically designed for the suction and discharge of water and non-corrosive fluids, commonly used in construction sites and various industrial applications.

What temperature range can the hose withstand?

The hose is designed to operate effectively in temperatures ranging from -30ºC (-22ºF) up to +80ºC (+176ºF).

Is the hose resistant to outdoor weather conditions?

Yes, the cover is made from an SBR rubber compound that is both weathering and ozone resistant, ensuring durability in outdoor environments.

How is the hose reinforced for suction tasks?

It is reinforced with multiple plies of high-strength synthetic fibre and a helix steel wire to prevent collapse during suction operations.

What are the available sizes for this product?

We provide a wide range of specifications from 3/4" up to 14" inner diameter to suit different volume requirements.

Can I request a sample before placing a bulk order?

Yes, free samples are available for quality testing and verification purposes.
