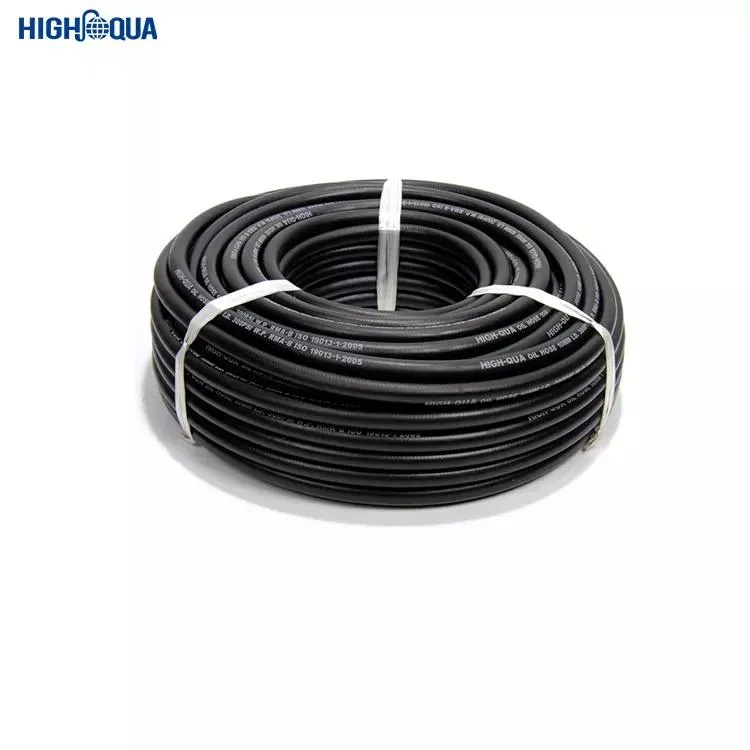

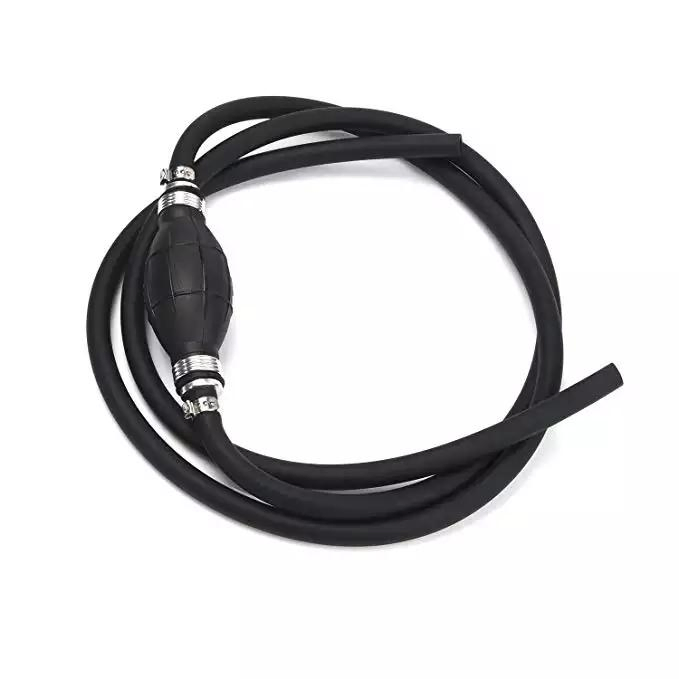

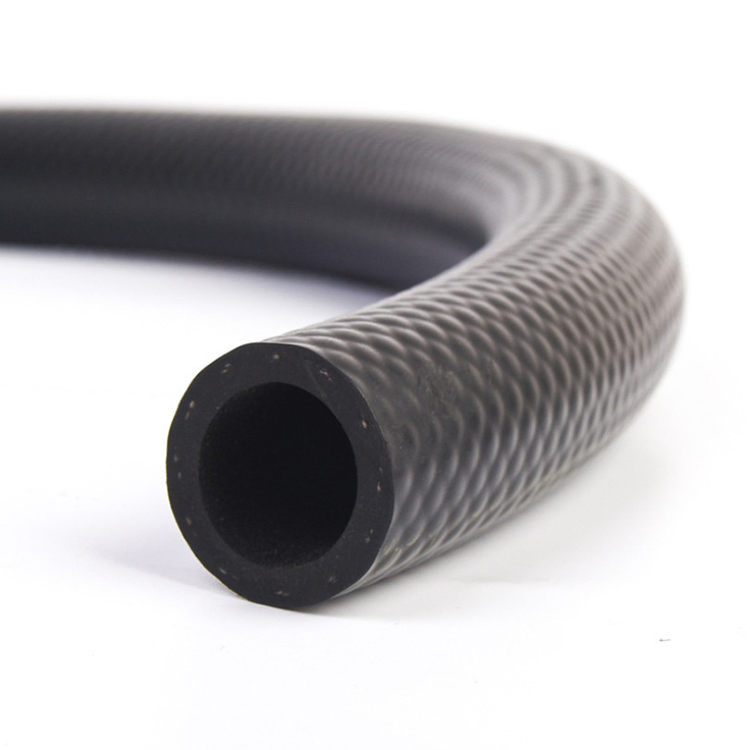

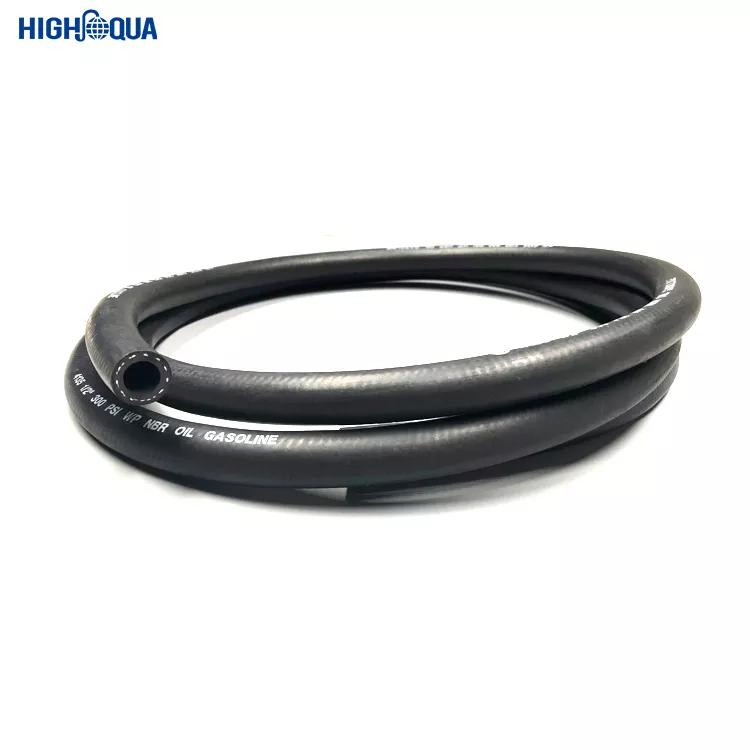

Marine Oil Delivery Hose Braided Oil Cooler Hose

1 / 5

Marine Oil Delivery Hose Braided Oil Cooler Hose

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.:

marine oil delivery hose

Color:

Black

I.D:

4.8mm~51mm

W.P:

20bar

B.P:

60bar

Length:

Max.100m/PC

Appearance:

Smooth or Wrapped, Black or Colorful

Product Standard:

ISO2398

Package:

by Transperant Plastic Film

Transport Package:

PP/ Woven Bag Braided, or Pallet

Specification:

HS Code:

4009310000

Capacity:

100000 Mtrs Per Month

Product Description

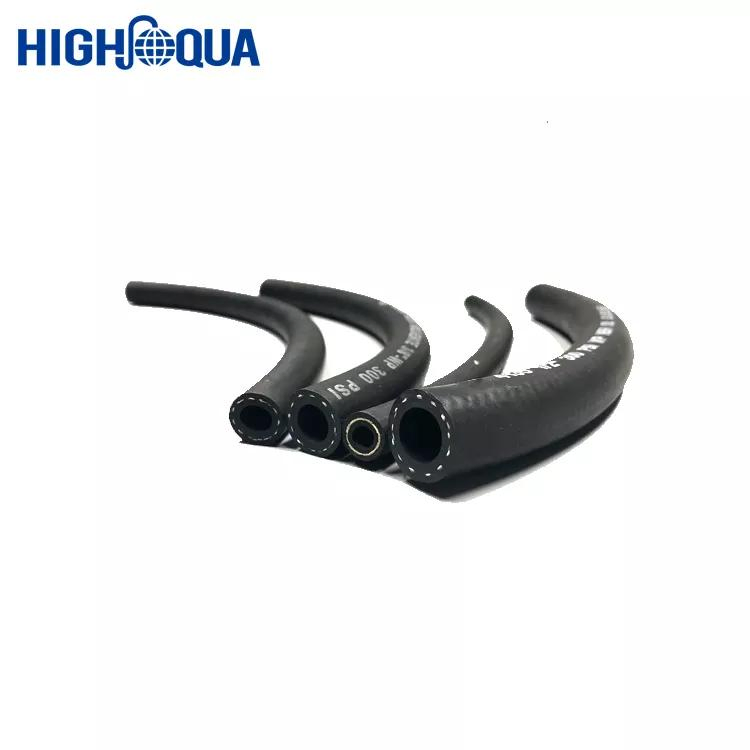

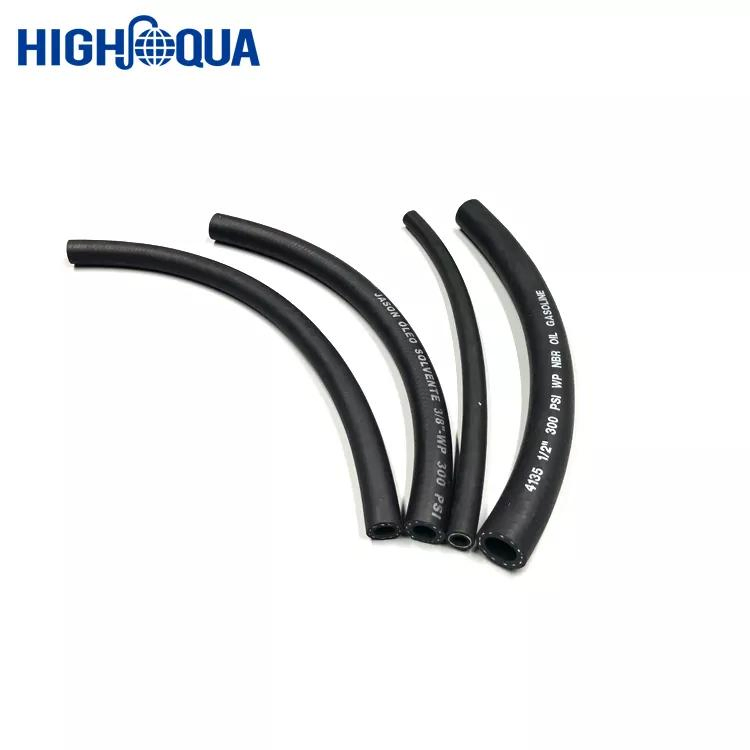

Smooth surface good performance pressure oil hose

1. High tensity textile cover oil hose
2. Specially designed for motorcycle brake systems and facility oil transport.

Application:
Suitable for low pressure oil brake systems in vehicles like motorcycles and other facilities to transport oil, petrol, lubricants, and hot oil.

Construction:

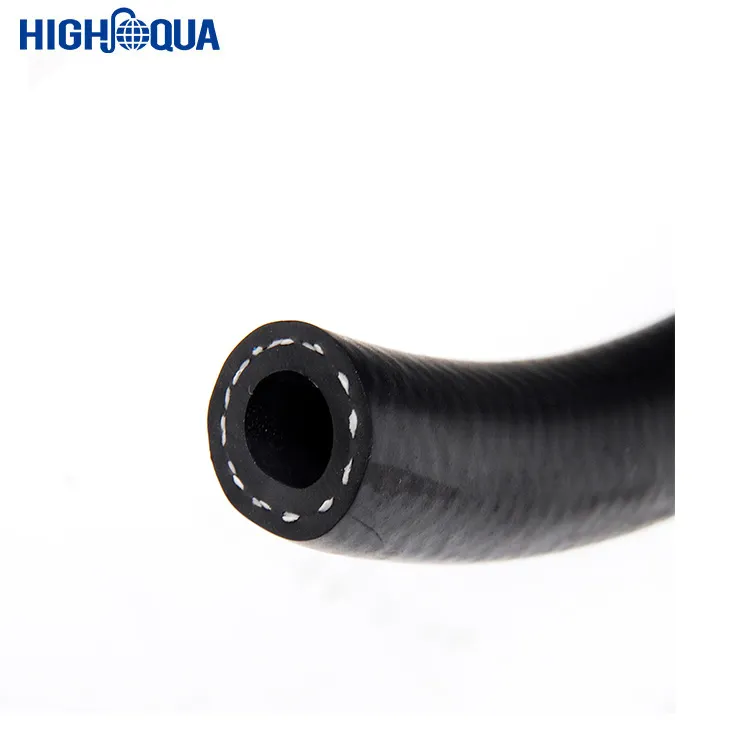

Inner line: Extruded nitrile rubber; Outer line: Braided textile cover.

Technical Specifications

I.D. (mm/in)		O.D. (mm)		W.P. (psi/mpa)		Reinforce Layer	Weight (kg/m)	Unit Length (m)
3/16	4.8	0.45	11.5	300	2.07	1	0.15	100
1/4	6.4	0.63	16	300	2.07	1	0.18	100
5/16	7.9	0.59	15.0	300	2.07	1	0.22	100
3/8	9.5	0.75	19.1	300	2.07	1	0.27	100
1/2	12.7	0.91	23.1	300	2.07	1	0.40	100
5/8	15.9	0.96	24.5	300	2.07	1	0.50	100
3/4	19.1	1.14	29.0	300	2.07	1	0.75	100
1	25.4	1.42	36.1	300	2.07	1	0.95	100
1 1/4	31.8	1.75	44.5	300	2.07	2	0.70	50
1 1/2	38.1	2.0	54.0	300	2.07	2	0.85	50

Packaging & Shipping

Packaging Details: By transparent plastic film and woven belt, or customized as per request.

Frequently Asked Questions

Q1: What is the main application of this marine oil delivery hose? A: It is primarily used for low-pressure oil brake systems in vehicles such as motorcycles, and for transporting petrol, lubricants, and hot oil in various facilities.

Q2: What materials are used in its construction? A: The hose features an extruded nitrile rubber inner line and a high-tensity braided textile outer cover for enhanced durability.

Q3: What is the maximum working pressure for these hoses? A: The standard working pressure (W.P.) is 20 bar (approx. 300 psi), with a burst pressure (B.P.) of up to 60 bar.

Q4: Does the product meet any international standards? A: Yes, the hose complies with ISO2398 product standards and carries CE specification marking.

Q5: Can the appearance of the hose be customized? A: Yes, the hose can be produced with either a smooth or wrapped appearance and is available in black or other colors.

Q6: How is the product usually packaged for shipment? A: It is typically wrapped in transparent plastic film and covered with woven bags or placed on pallets based on customer requirements.
