📊 Basic Specification
Color:Black, Grey, Blue, Yellow, Red, etc
I.D:3/16"-11/2"
W.P:Max.20bar
B.P:Max.60bar
Length:100m, 50meters
Temperature:-30~80c Degree
Surface:Smooth/Textile Surface
Specification:SAE J1527
Origin:Zhejiang, China
Capacity:100000m/Month

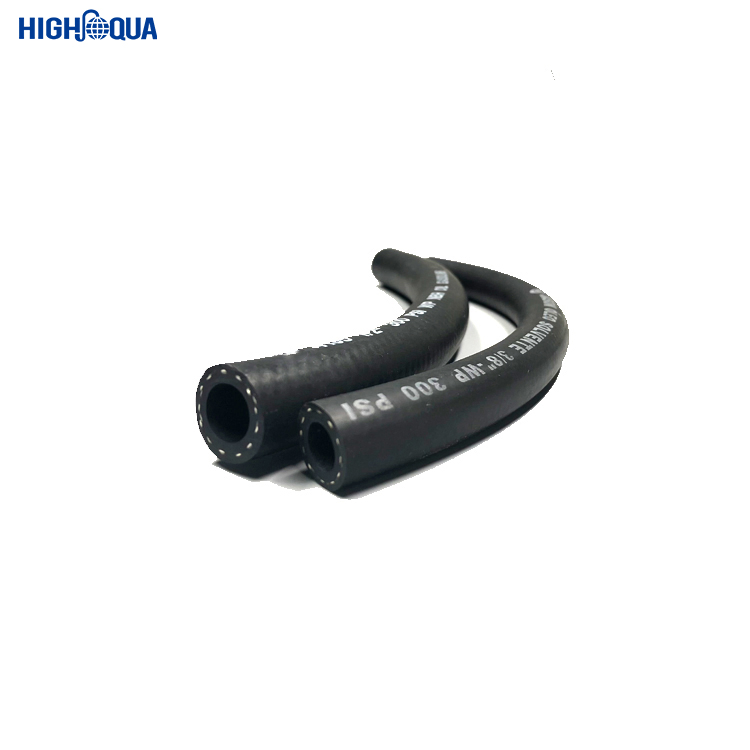

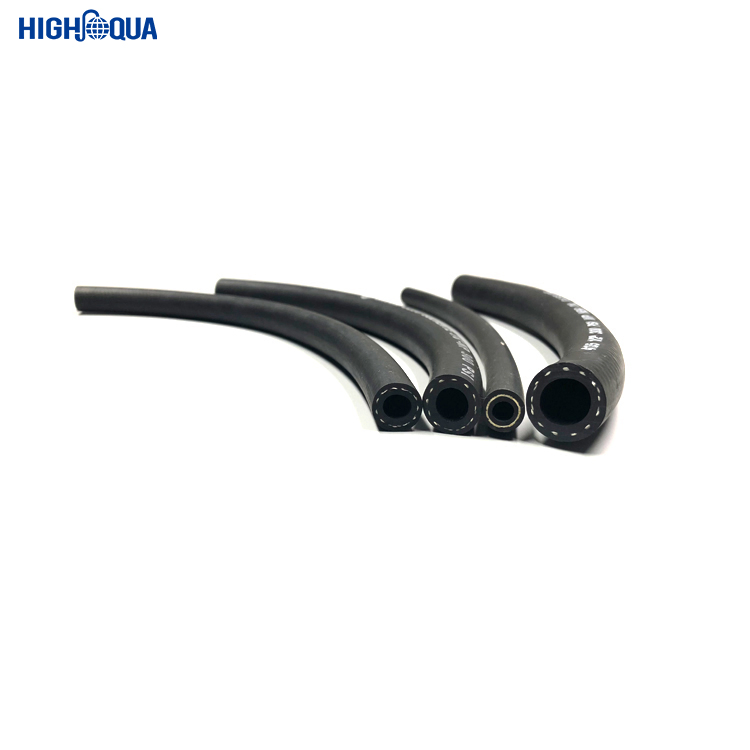

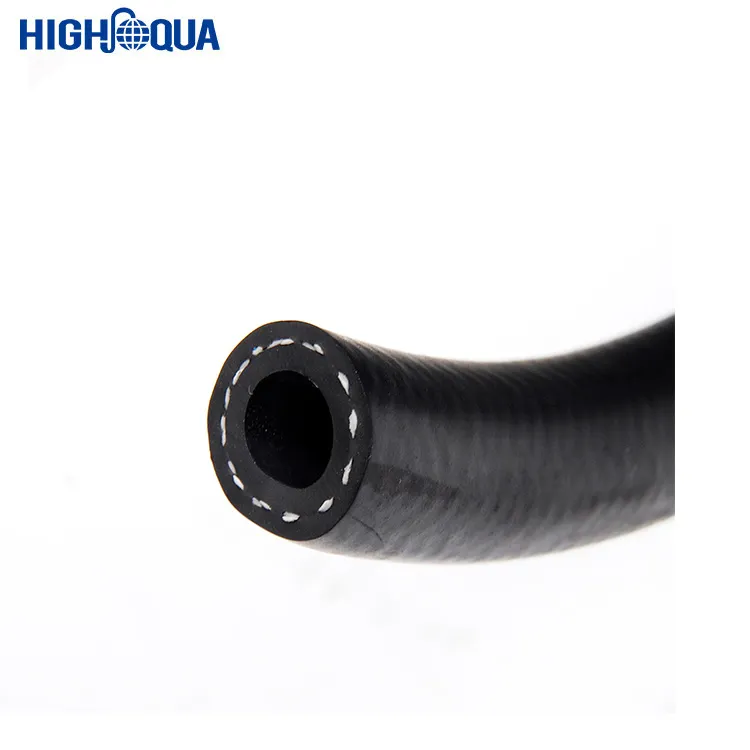

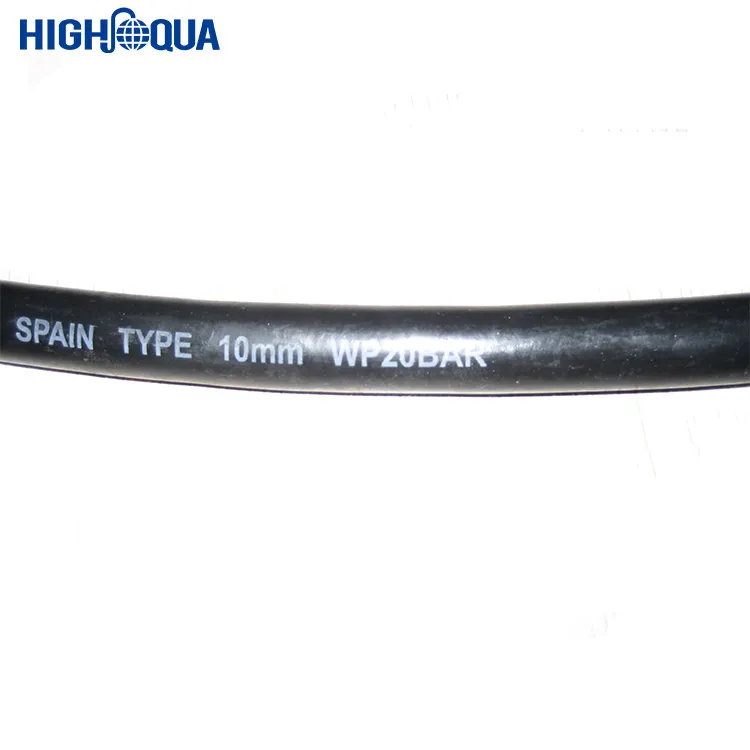

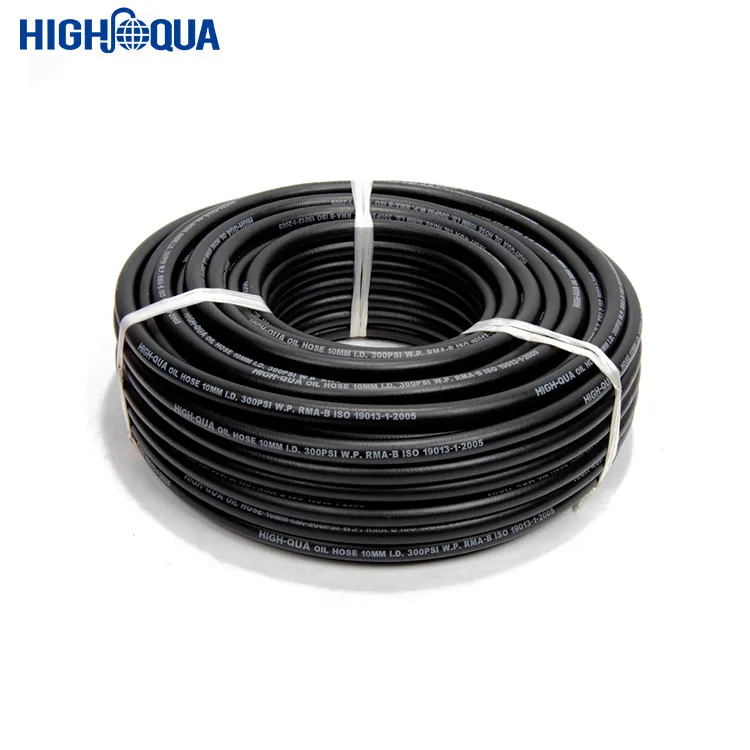

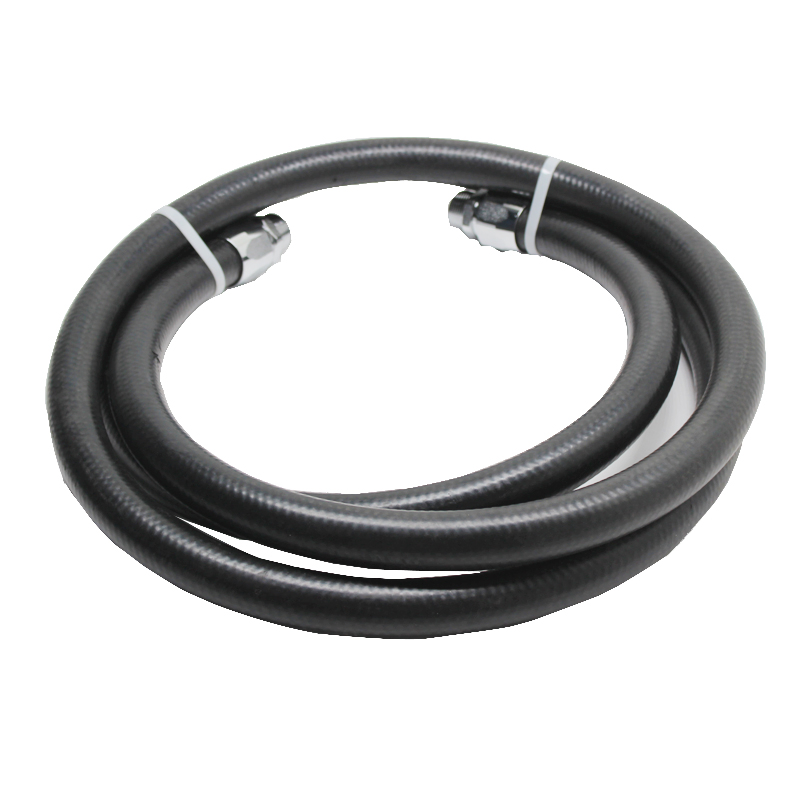

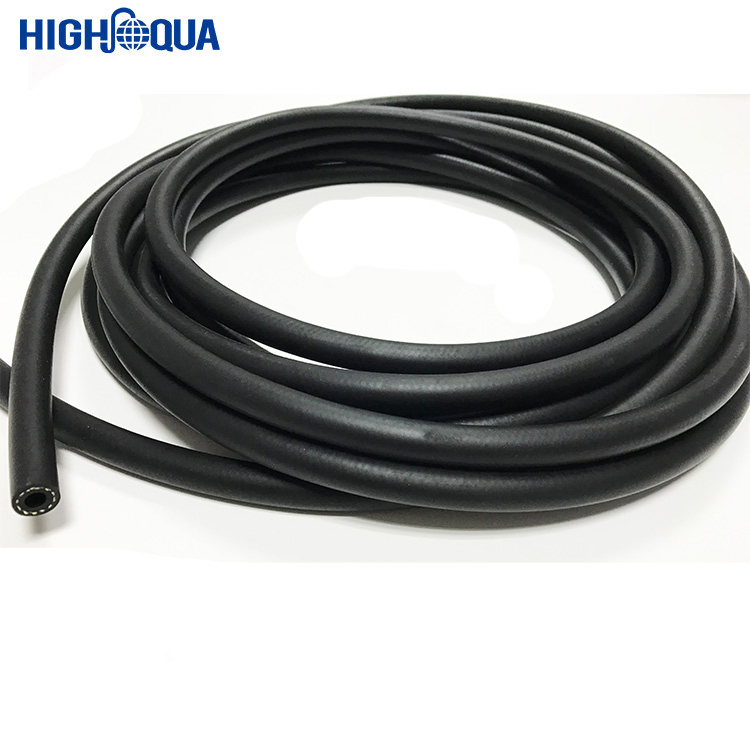

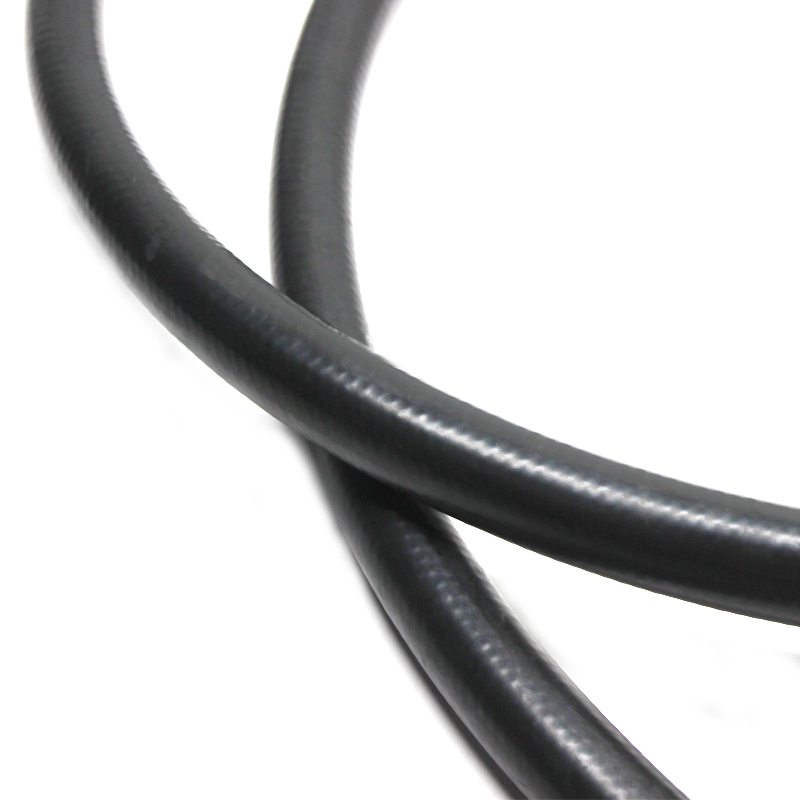

🛡️ Multipurpose Diesel Black Color Fuel Hose
⚙️ Product Features
- Material: NBR, which meets RMA-B grade (medium/ high level oil resistance).
- Color: Available in Black, red, or other custom colors.
- Structure:
1) Interior and exterior rubber lining use oil-endurable compound rubber formula.
2) Middle lining is high strengthen weaving fiber.
- Working Temperature: -30°C ~ 80°C.
🚀 Product Application
This hose is ideally applied to circulating diesel, biodiesel, hydraulic oil, machinery oil, and lubricating oil. It is suitable for oil products where the content of aromatic substances does not exceed 30%.
📏 Technical Parameters
| I.D. |
O.D. |
W.P. |
REINFORCE LAYER |
WEIGHT |
UNIT LENGTH |
| in. |
mm |
in. |
mm |
psi. |
mpa. |
kg/m |
m/roll |
| 3/16 | 4.8 | 0.45 | 11.5 | 300 | 2.07 | 1 | 0.15 | 100 |
| 1/4 | 6.4 | 0.63 | 16 | 300 | 2.07 | 1 | 0.18 | 100 |
| 5/16 | 7.9 | 0.59 | 15.0 | 300 | 2.07 | 1 | 0.22 | 100 |
| 3/8 | 9.5 | 0.75 | 19.1 | 300 | 2.07 | 1 | 0.27 | 100 |
| 1/2 | 12.7 | 0.91 | 23.1 | 300 | 2.07 | 1 | 0.40 | 100 |
| 3/4 | 19.1 | 1.14 | 29.0 | 300 | 2.07 | 1 | 0.75 | 100 |
| 1 | 25.4 | 1.42 | 36.1 | 300 | 2.07 | 1 | 0.95 | 100 |
| 1 1/2 | 38.1 | 2" | 54.0 | 300 | 2.07 | 2 | 0.85 | 50 |
💎 Our Service & Quality Assurance
- Quality First: High-grade materials (New NBR and CR) ensure long-lasting durability.

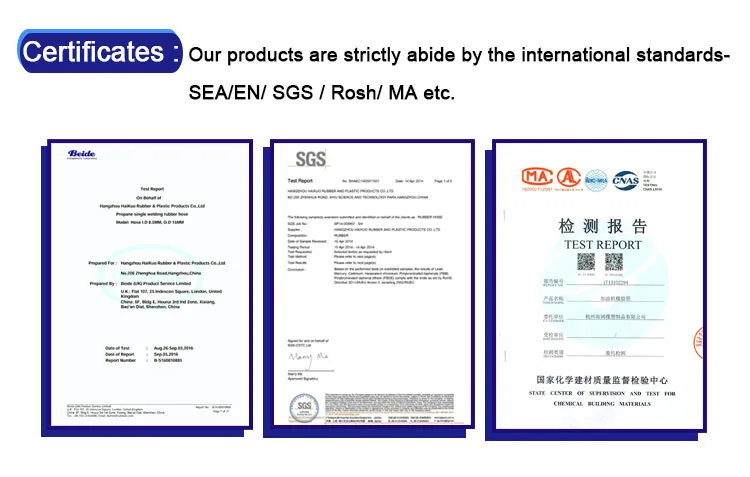

- SGS Certified: Products are highly approved by international authority organizations.
- OEM Welcome: We support customized production to meet specific requirements.
- Global Reach: Products exported to Eastern Europe, South America, North America, and Mid East.
- Sample Service: Free samples are available for quality verification.

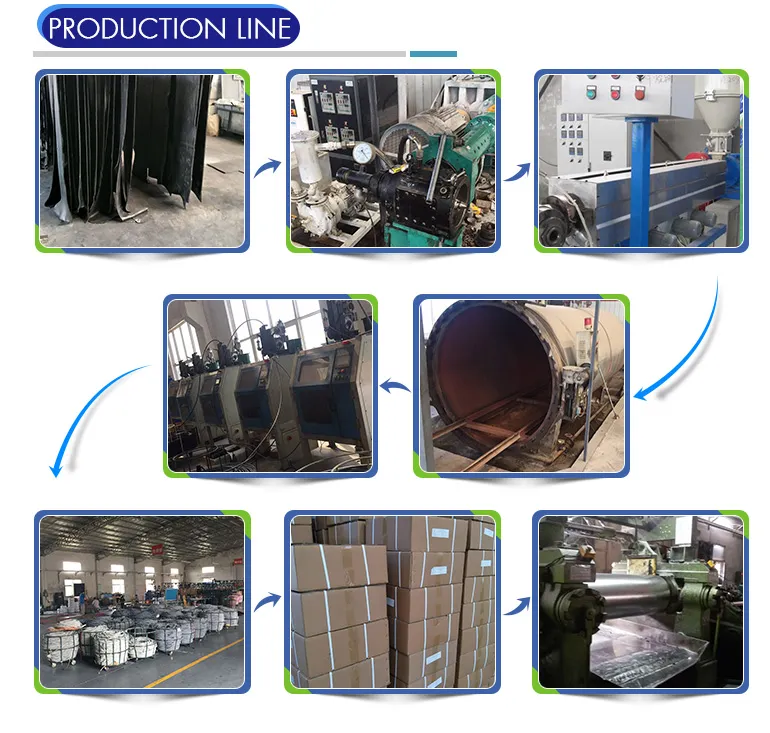

🏭 Production & Exhibition

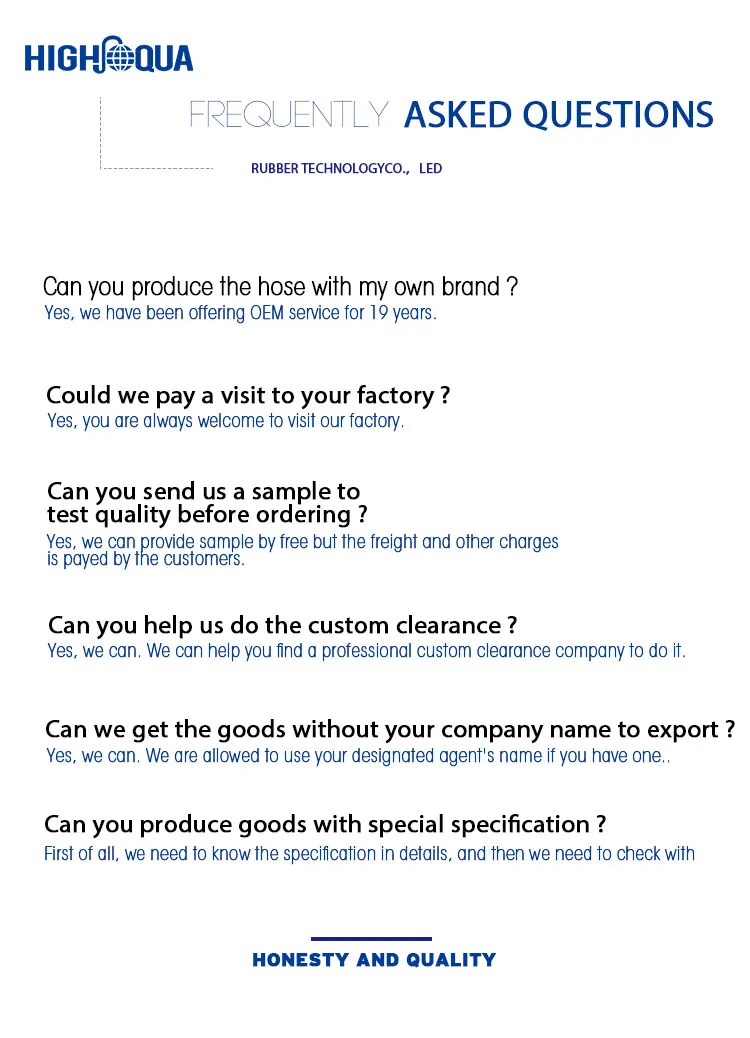

❓ Frequently Asked Questions
1. What materials are used in the construction of this fuel hose?
We use premium NBR (Nitrile Butadiene Rubber) and CR (Chloroprene Rubber) materials to ensure high oil resistance and durability.
2. Is the hose compatible with Biodiesel?
Yes, the hose is designed to handle circulating diesel, biodiesel, hydraulic oil, and machinery lubricating oils.
3. What is the working temperature range?
The hose operates efficiently within a temperature range of -30°C to 80°C.
4. Does the product meet any international standards?
Yes, the fuel hose meets SAE J1527 specifications and we have obtained SGS certification for our production quality.
5. Do you provide samples for testing?
Yes, we offer product samples free of charge so you can verify the quality before placing a bulk order.
6. What is the reinforcement structure of the hose?
The middle lining consists of high-strength weaving fiber to provide excellent pressure resistance up to 20 bar (W.P).
