| Product Detail Specifications | |
|---|---|

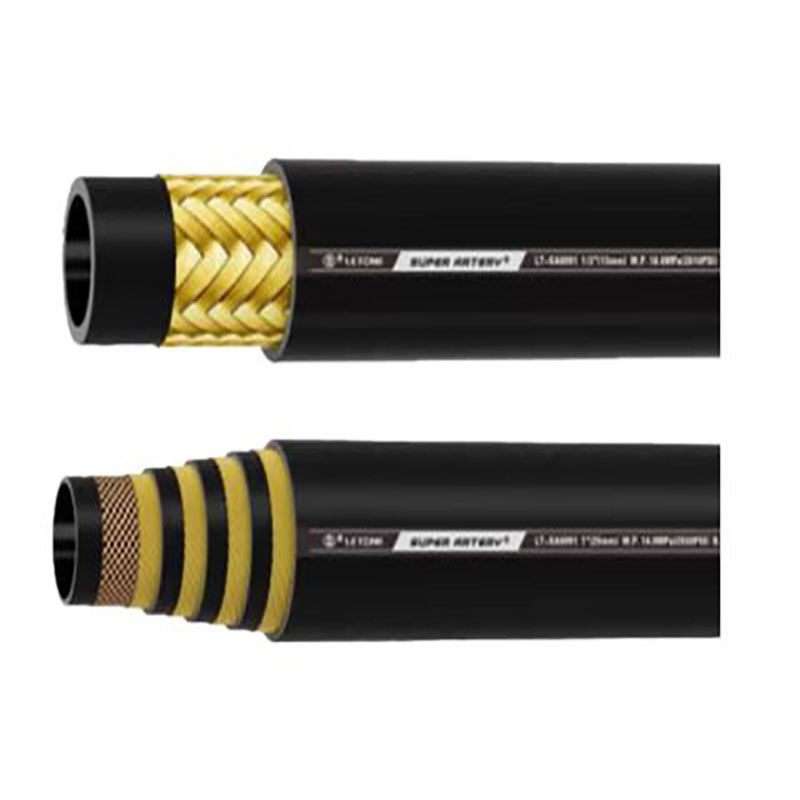

| Name | Hydraulic Rubber Hose |
| Size | 3/8" ~ 2" |

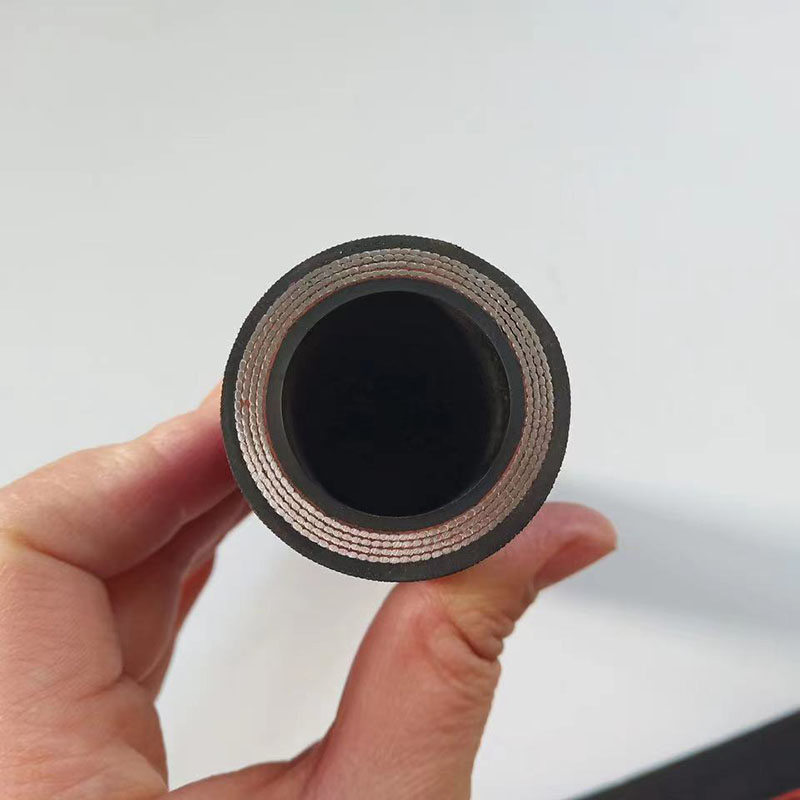

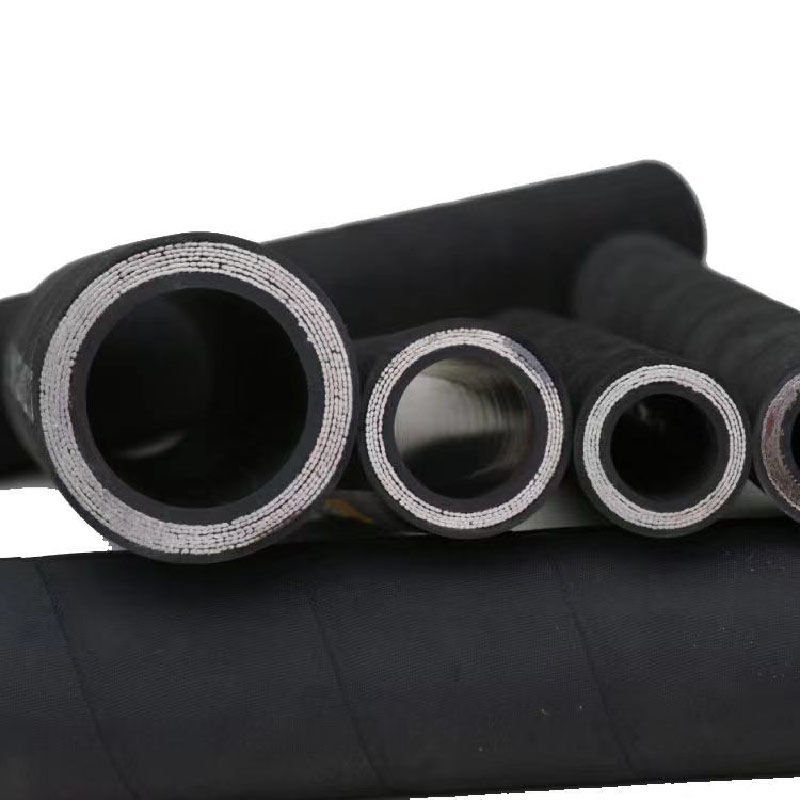

| Reinforcement | 4 or 6 spirals of high tensile steel wire |
| Temperature Range | -40ºC ~ +100ºC (-40ºF~ +212 ºF) |
| Application | High pressure hydraulic oil lines used in construction, machine tool and agricultural applications. |
| Certification | CE, MSHA, and ISO approved |
| Delivery | About 28 days for a 20' container. |
| Model | Inner Dia (mm) | Outer Dia (mm) | WP (Mpa) | Min. Burst (Mpa) | Weight (kg/m) |
|---|---|---|---|---|---|
| 1/2"-1 | 13.0 | 20.7 | 18 | 72 | 0.419 |
| 5/8"-1 | 16.0 | 24.0 | 15 | 60 | 0.515 |
| 3/4"-1 | 19.0 | 28.0 | 14 | 56 | 0.661 |
| 1"-4 | 25.0 | 33.5 | 14 | 56 | 0.998 |
| 1 1/4"-4 | 32.0 | 43.0 | 14 | 56 | 1.395 |
| 2"-4 | 51.0 | 62.5 | 8 | 32 | 2.341 |
Low / medium pressure hydraulic system with mineral and vegetable oils, water, aqueous solution, air, inert gases.
Internal hose: Synthetic rubber resistant to oils.
Reinforcement: 1 braid of high resistant steel.
Covering: Black synthetic rubber resistant to abrasion, oils, fuels, ozone, and atmospheric agents.
