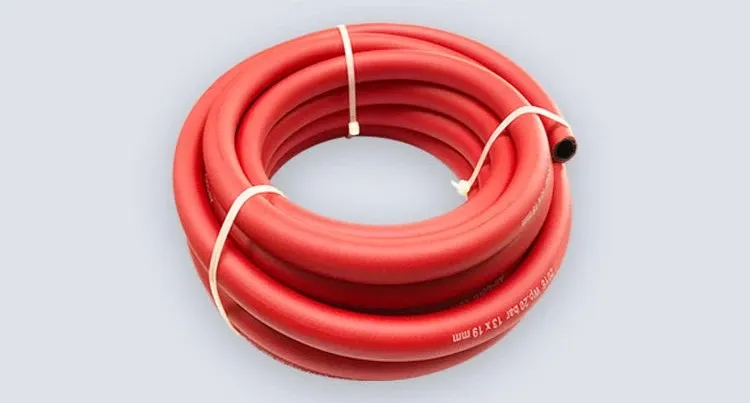

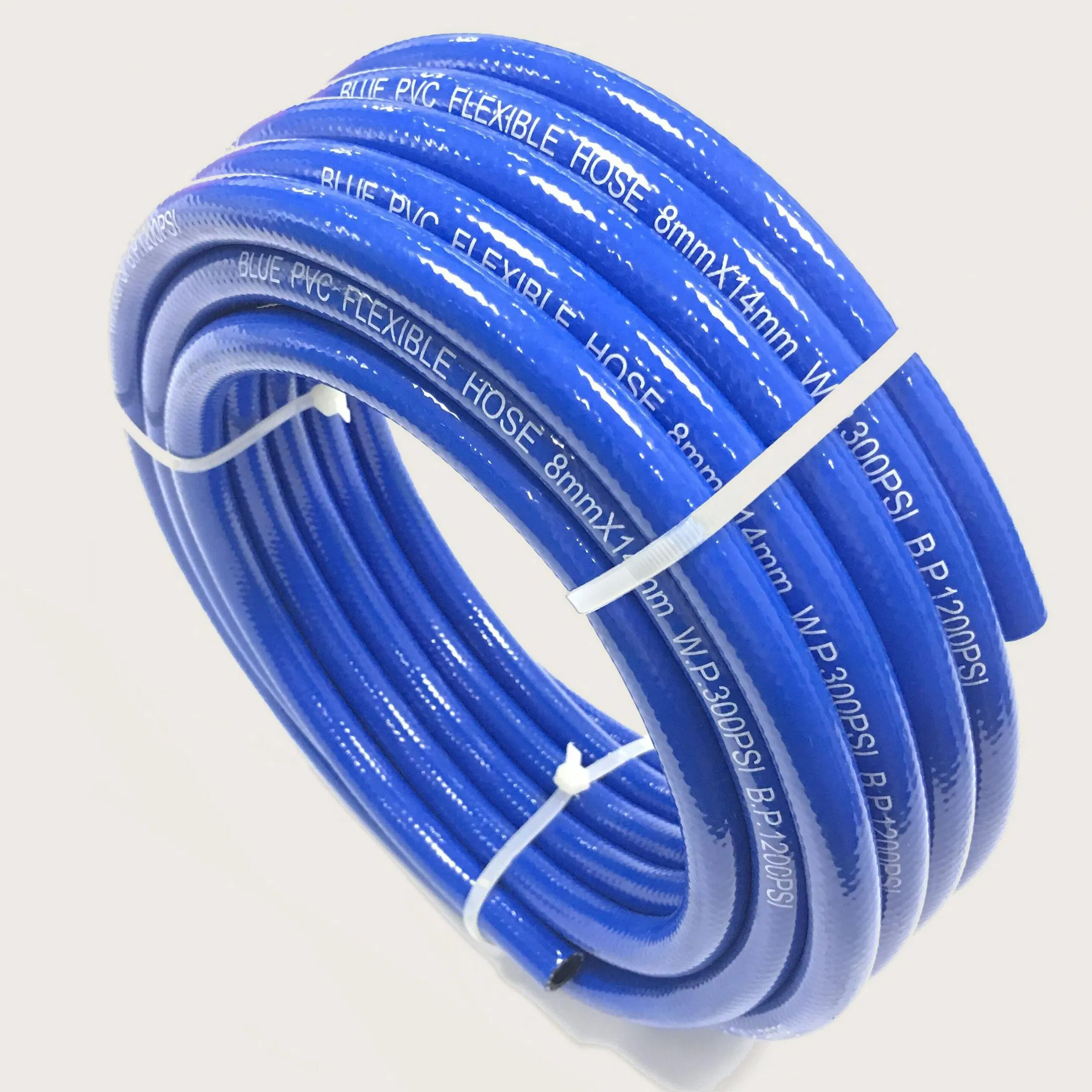

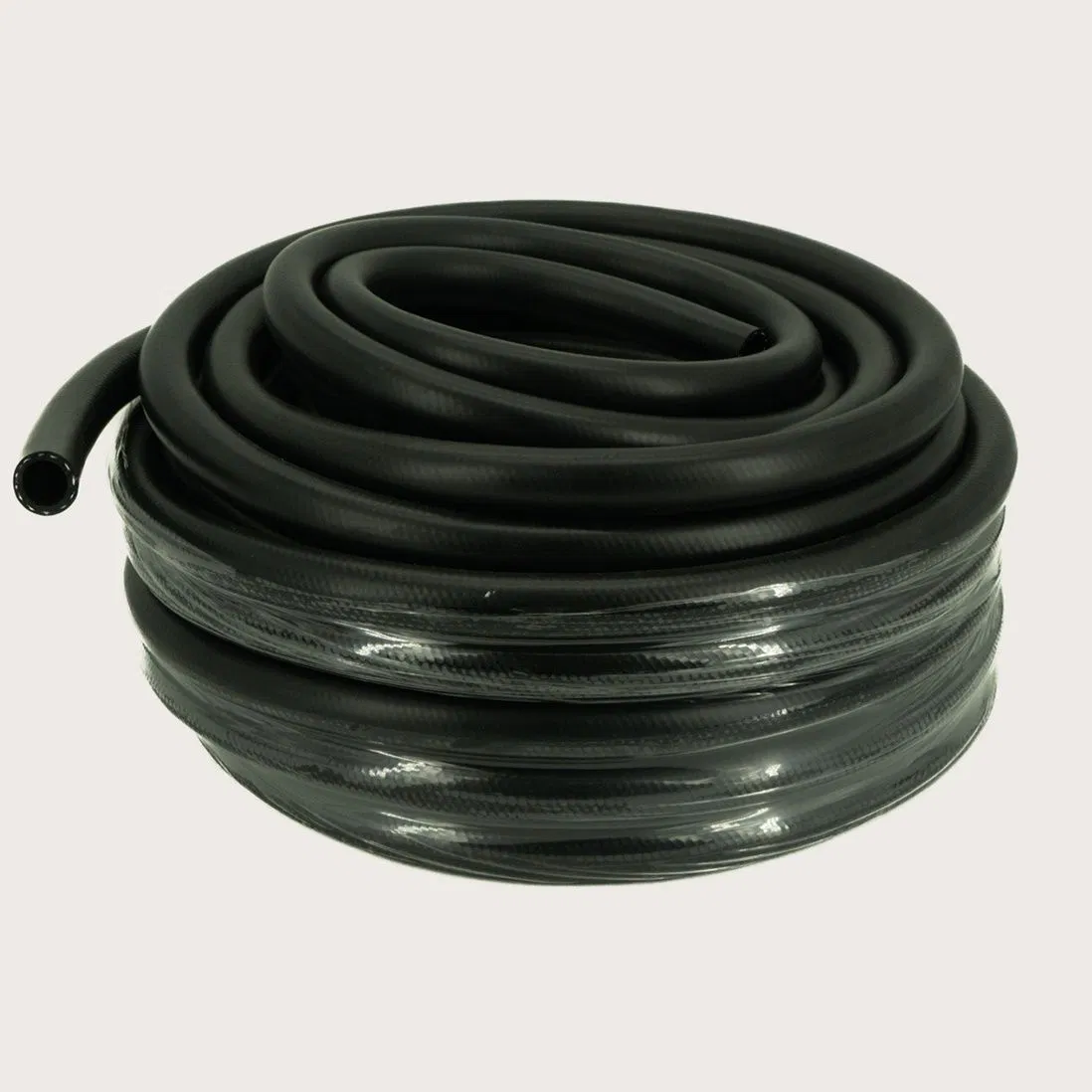

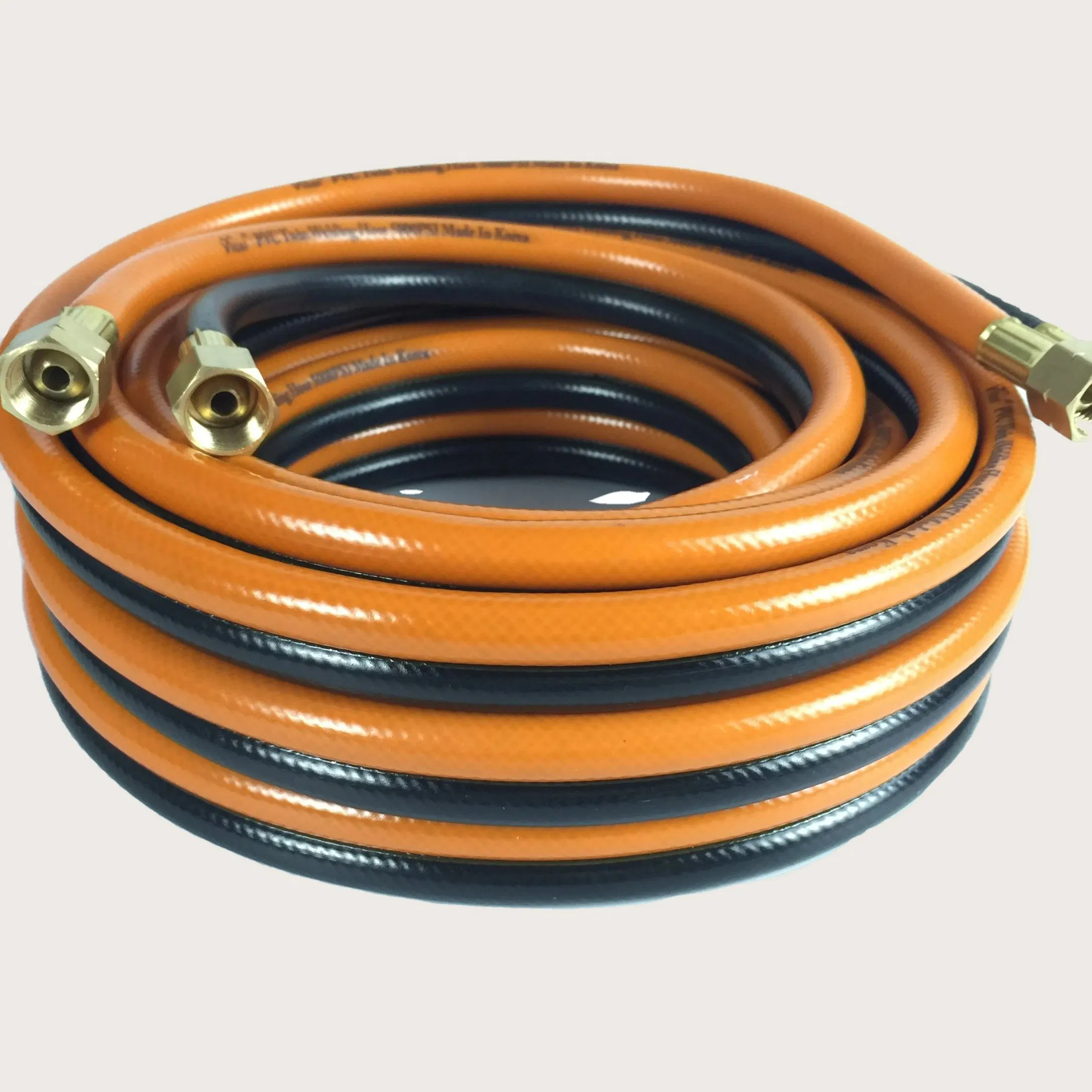

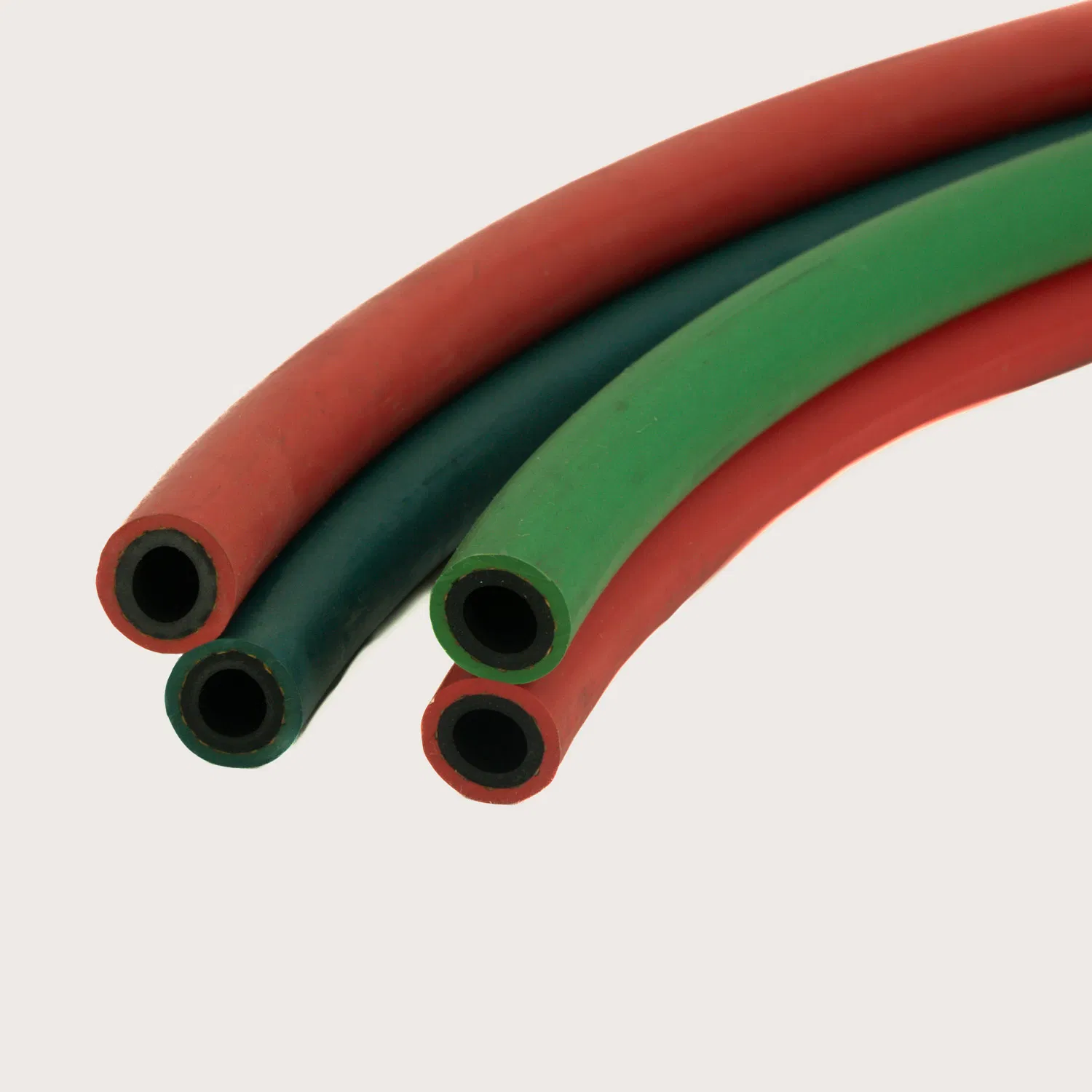

PVC Air Hose Pipe High Pressure 1/4'' 5/16'' 3/8'' 1/2'' 3/4'' 1'' for Water Pump Air Compressor

1 / 5

PVC Air Hose Pipe High Pressure 1/4'' 5/16'' 3/8'' 1/2'' 3/4'' 1'' for Water Pump Air Compressor

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📦 Basic Specification

Model NO.

pvc air hose

Color

Customized

Shape

Round

Usage

Gas Transfer

Application

Conveying Water, Oxygen

Feature

Anti-UV

Quality Grade

No Toxic Grade

Reinforcement

High Strength Fiber

Working Pressure

20 - 40 bar

Thickness

5.5mm-10mm

Length

50m / 100m

Certification

CE ISO

MOQ

1000 Meters

Specification

1/4"-1"

Origin

Shandong, China

Production Capacity

3000tons/Year

🚚 Packaging & Delivery

Transport Package

Reinforced Clear Film Wrapped with Label

Package Size

40.00cm * 40.00cm * 25.00cm

Gross Weight

25.000kg

🔍 Product Description

PVC Air Hose Pipe High Pressure 1/4'' 5/16'' 3/8'' 1/2'' 3/4'' 1'' for Water Pump & Air Compressor

Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		Weight	Coil
inch	mm	mm	bar	psi	bar	psi	g/m	m
1/4	6	11.5	20	300	60	900	102	100
1/4	6	12	40	600	120	1800	115	100
5/16	8	14	20	300	60	900	140	100
5/16	8	15	40	600	120	1800	170	100
3/8	10	16	20	300	60	900	165	100
3/8	10	17	40	600	120	1800	200	100
1/2	13	19	20	300	60	900	203	100
1/2	13	20	40	600	120	1800	245	100
5/8	16	24	20	300	60	900	340	50
5/8	16	25	40	600	120	1800	390	50
3/4	19	28	20	300	60	900	450	50
3/4	19	29	30	450	90	1350	510	50
1	25	34	20	300	45	675	560	50
1	25	35	30	450	90	1350	640	50

💡 Frequently Asked Questions

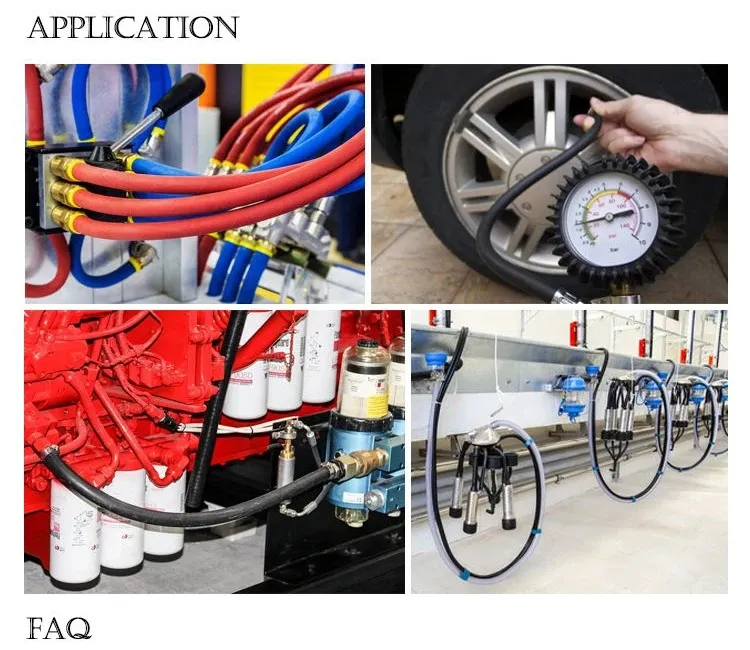

What are the main applications for this PVC air hose?

This high-pressure hose is ideal for gas transfer, air compressors, water pumps, and conveying water or oxygen in industrial and agricultural settings.

Is the hose resistant to outdoor weather conditions?

Yes, it features anti-UV properties and is constructed with high-strength fiber reinforcement to withstand various environmental factors.

What is the pressure capacity of these hoses?

Depending on the size, the working pressure ranges from 20 to 40 bar, with burst pressures reaching up to 120 bar for the reinforced models.

Are the materials used safe and non-toxic?

Absolutely. The hose is manufactured to a "No Toxic Grade" quality level, ensuring safety for various conveying applications.

Can I request a sample before purchasing?

Yes, free samples are available to help you verify the quality and specifications before placing a bulk order.

What certifications does the product hold?

Our PVC air hoses are CE and ISO certified, meeting international standards for performance and safety.
