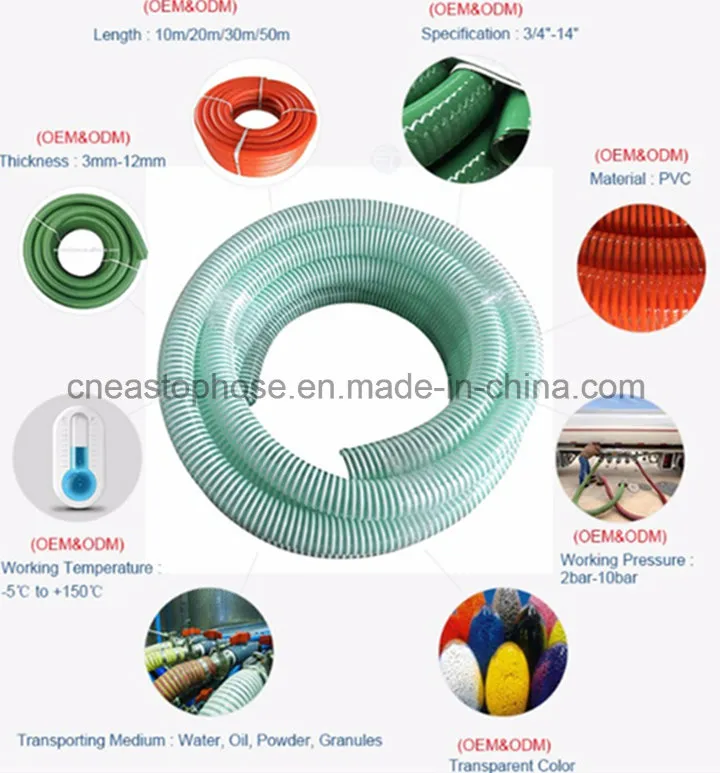

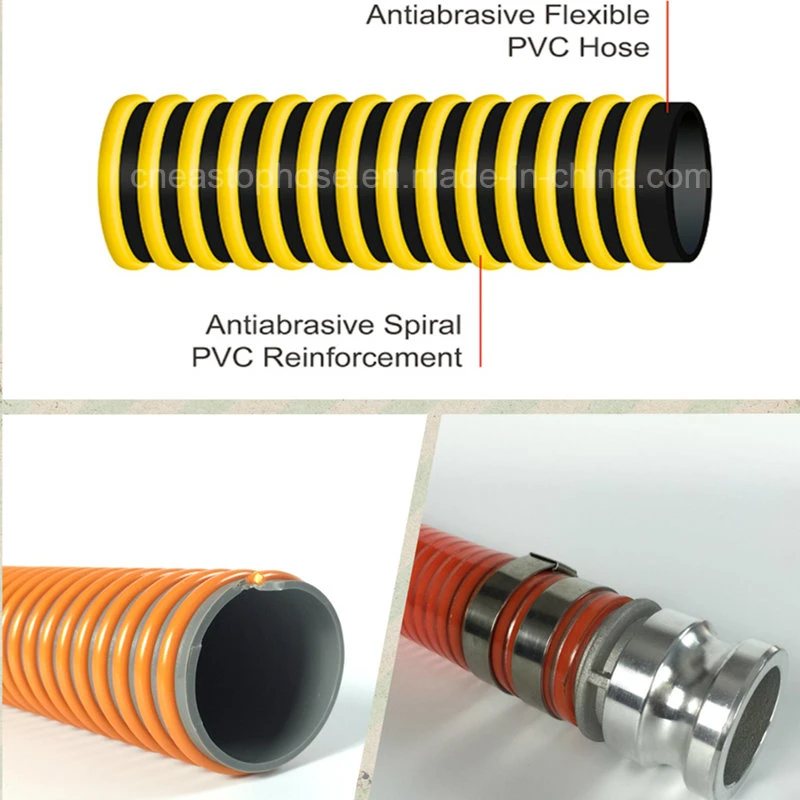

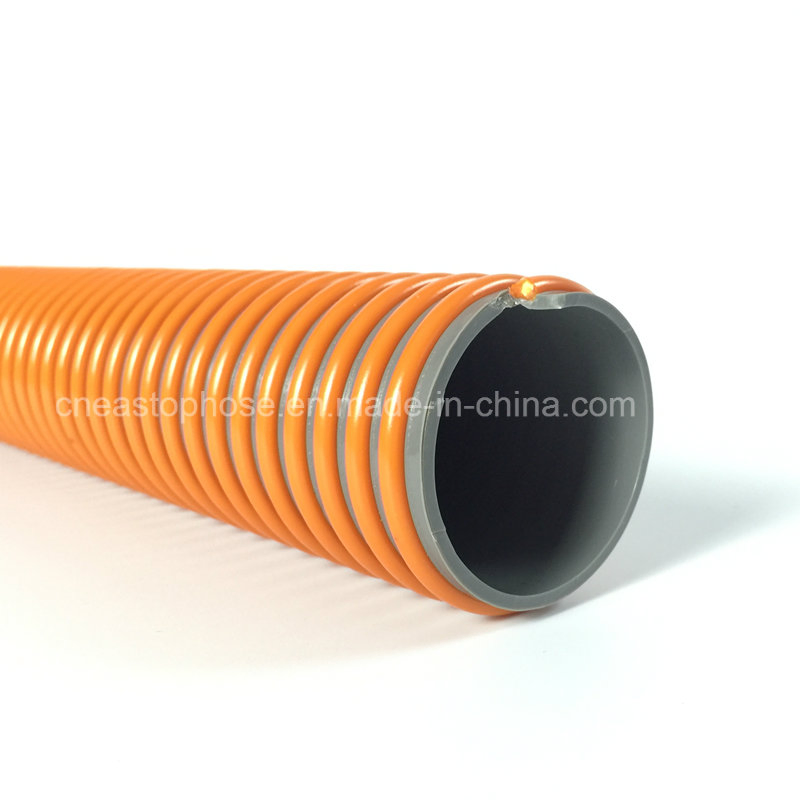

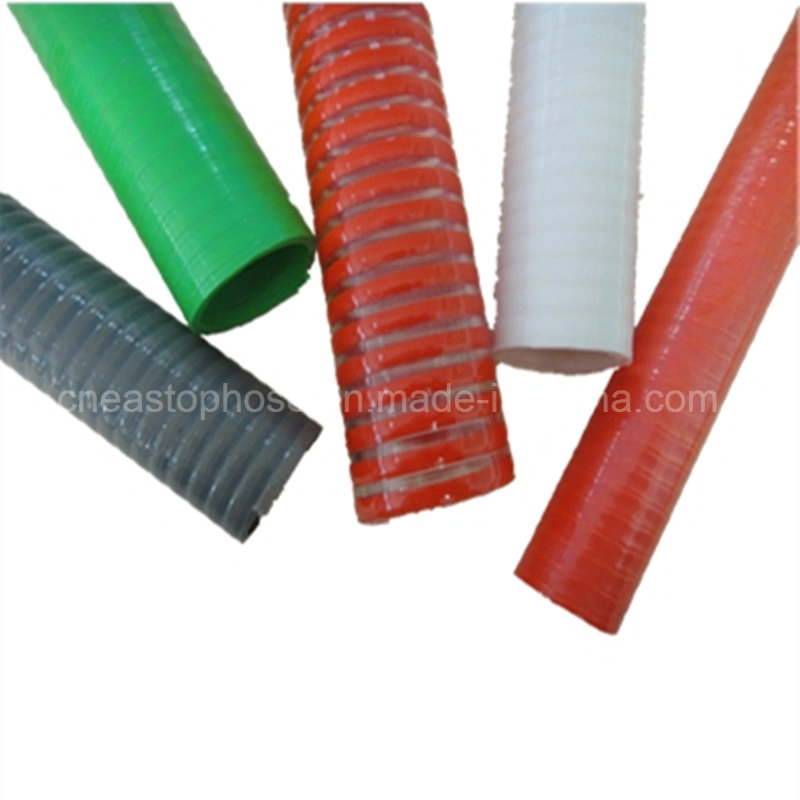

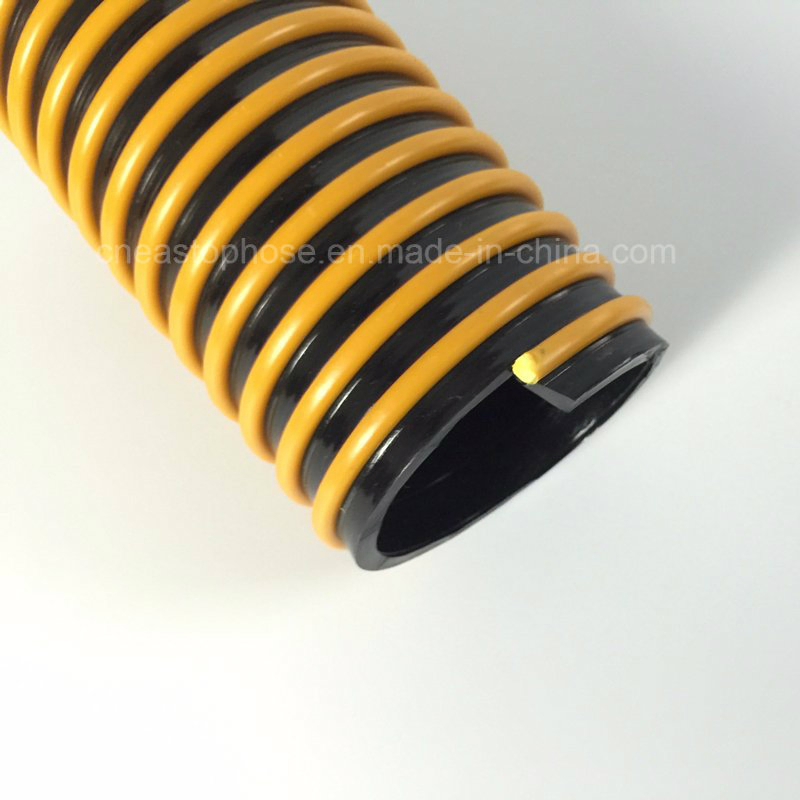

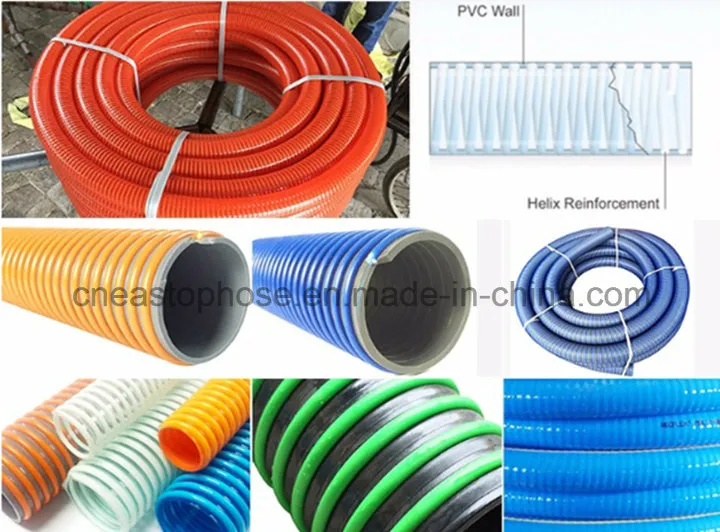

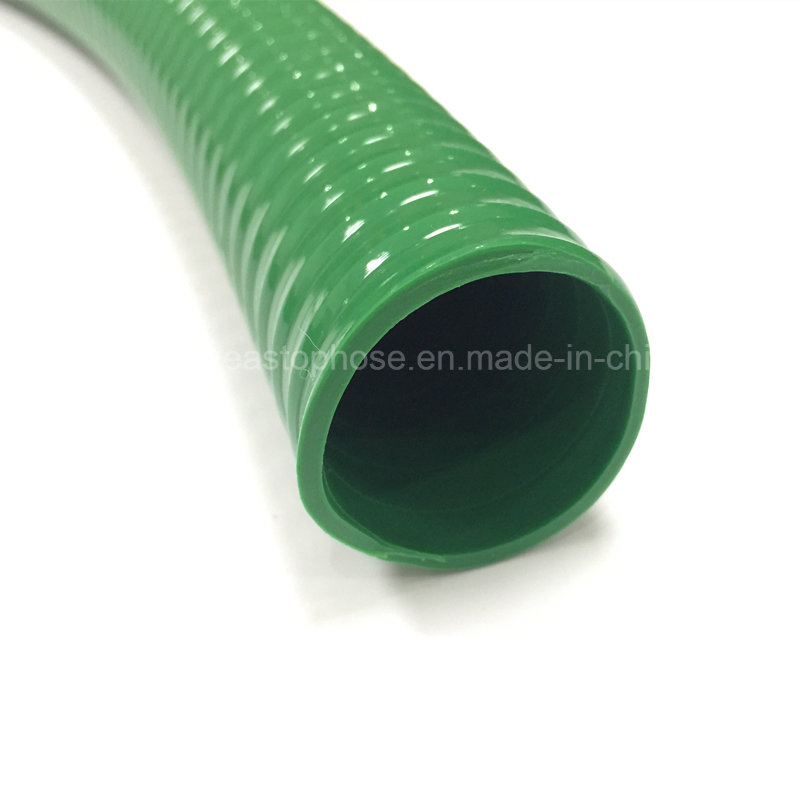

PVC Suction Hose For Irrigation Water Pump with Hard Rigid Reinforcement (1" - 6")
The Heavy Duty Suction Hose is designed for demanding industrial and agricultural applications. Also known as grit suction hose, sandblast suction hose, and dredge suction hose, it is ideally suited for the heavy-duty transfer of various materials in harsh environments.
Common Applications: Widely used for the delivery of water, oil, grits, cement, slurries, sewage, sand, and gravels in surface mines, quarries, construction sites, dredging equipment, shipyards, and ports.
| Inner Diameter | Outer Diameter | Weight | W.P. (at 23ºC) | Std Length | ||||
|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1 | 25 | 1.378 | 35 | 0.50 | 8 | 120 | 50 | 150 |
| 1-1/4 | 32 | 1.654 | 42 | 0.60 | 8 | 120 | 50 | 150 |
| 1-1/2 | 38 | 1.929 | 49 | 0.70 | 7 | 100 | 50 | 150 |
| 2 | 51 | 2.520 | 64 | 1.05 | 7 | 100 | 50 | 150 |
| 2-1/2 | 63 | 3.031 | 77 | 1.39 | 6 | 90 | 50 | 150 |
| 3 | 76 | 3.622 | 92 | 1.70 | 6 | 90 | 30 | 90 |
| 4 | 102 | 4.724 | 120 | 2.85 | 5 | 75 | 30 | 90 |
| 5 | 127 | 5.708 | 145 | 3.90 | 4 | 60 | 30 | 90 |
| 6 | 152 | 6.732 | 171 | 5.00 | 4 | 60 | 30 | 90 |
