Basic Specifications
Size
AN4, AN6, AN8, AN10, AN12, AN16
Reinforcement
High Tensile Steel Wire Braided
Capacity
1,000,000 Meters Per Month

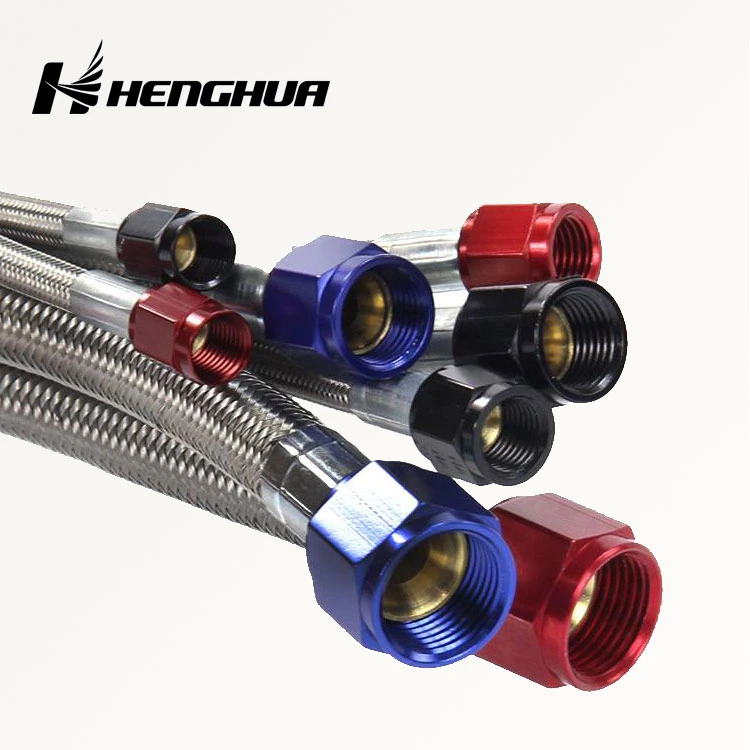

Product Overview

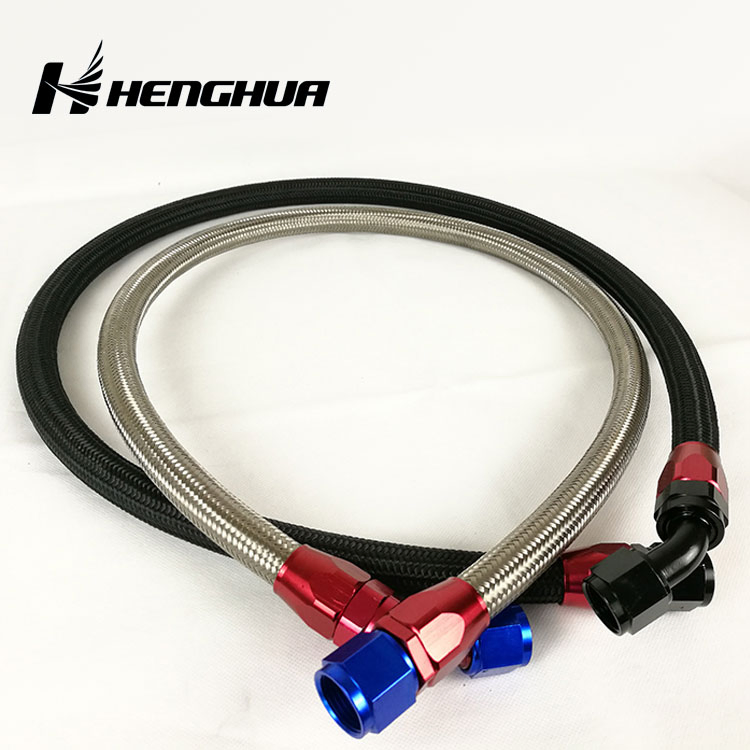

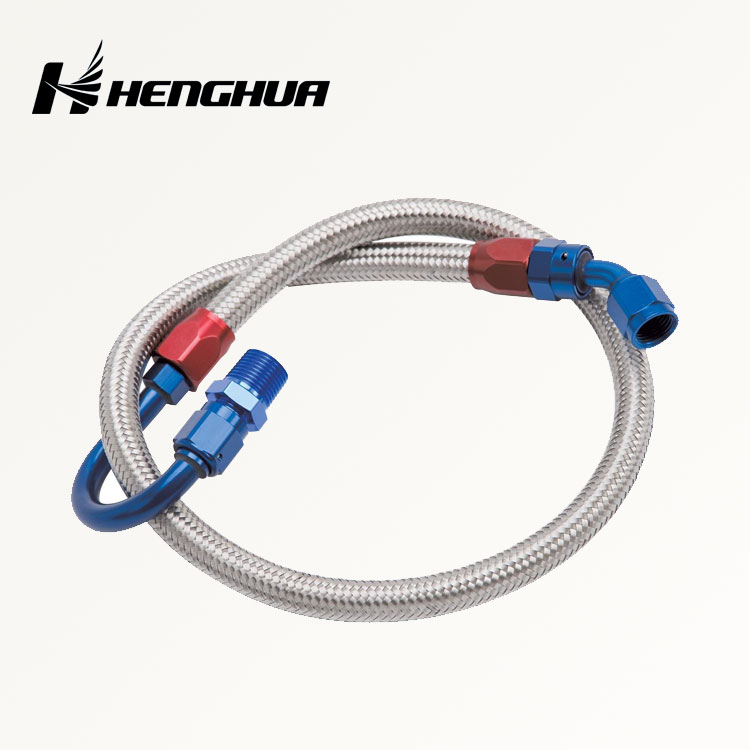

◈ Structure: Inner tube + 304 stainless steel braided
◈ Lightweight: Exceptionally flexible and durable
◈ Compatibility: Methanol, Nitromethane, Oil, Coolant, Brake, Transmission fluids
Applications: Universal Brake Lines, Clutch Lines, Fuel Systems, Turbo oil feed Hose, Coolant Systems, Oil Pressure Systems, Gauge lines & Power Steering.

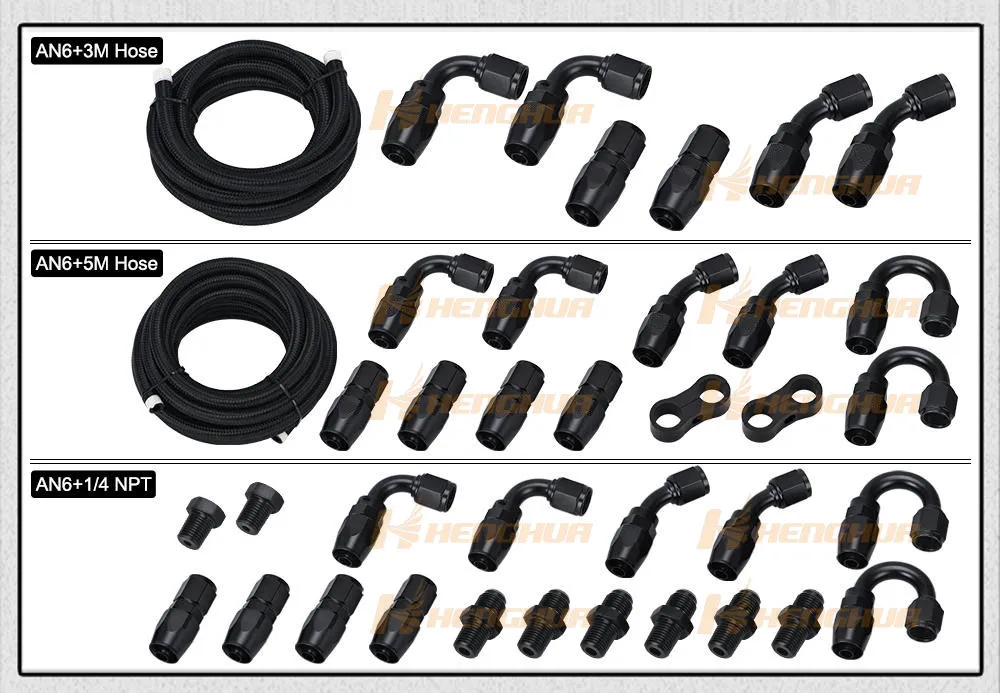

Package Included

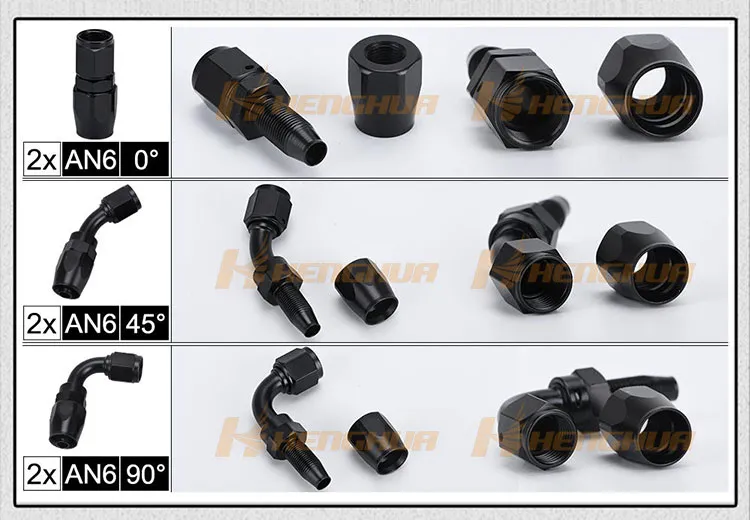

- 2 x AN6 Straight Reusable Swivel Hose End
- 2 x AN6 45 Degree Reusable Swivel Hose End
- 2 x AN6 90 Degree Reusable Swivel Hose End

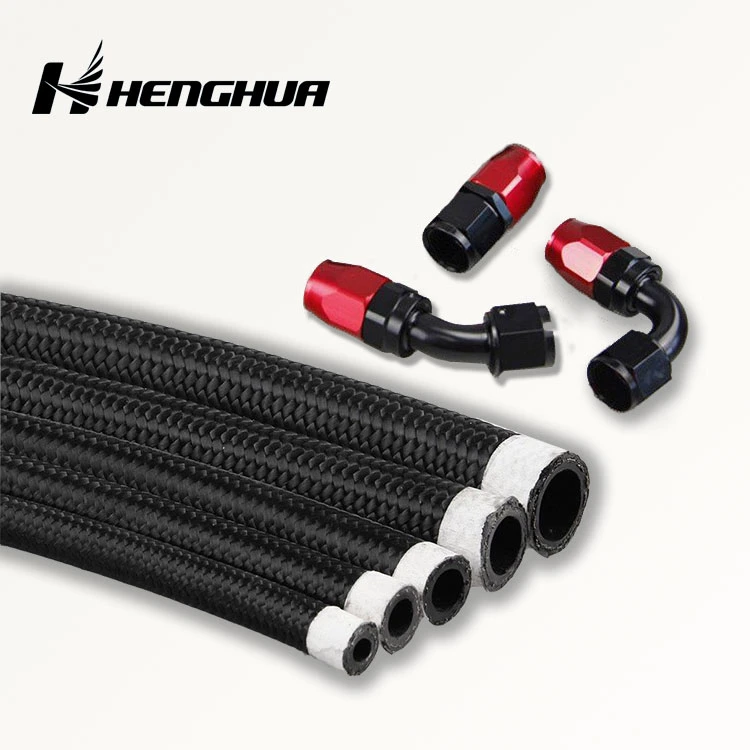

- 3 Meters x AN6 Nylon Braided Hose
Black Nylon Oil Cooler Hose Data
| SN |
I.D (mm) |
O.D (mm) |
W.P (MPa) |
B.P (MPa) |
Bend Radius |
Temp Range (℃) |
| mm |
mm |
MPa |
MPa |
mm |
Min |
Max |
| 4 | 5.56 | 11.17 | 3.45 | 13.8 | 50.8 | -40 | 148.9 |
| 6 | 8.71 | 14.22 | 3.45 | 13.8 | 63.5 | -40 | 148.9 |
| 10 | 14.29 | 20.83 | 3.45 | 13.8 | 101.6 | -40 | 148.9 |
| 12 | 17.46 | 24.38 | 3.45 | 13.8 | 114.3 | -40 | 148.9 |
Stainless Steel Wire Braided Data
| SN |
I.D |
O.D |
W.P |
B.P |
Bend Radius |
Temp Range |
| mm |
mm |
MPa |
MPa |
mm |
Min |
Max |
| 6 | 8.73 | 13.89 | 7 | 42 | 63.5 | -40 | 148.9 |
| 8 | 11.12 | 16.28 | 7 | 35 | 88.9 | -40 | 148.9 |
| 12 | 17.47 | 23.82 | 7 | 26.3 | 114.3 | -40 | 148.9 |
| 16 | 22.22 | 29.36 | 5.2 | 17.5 | 139.7 | -40 | 148.9 |

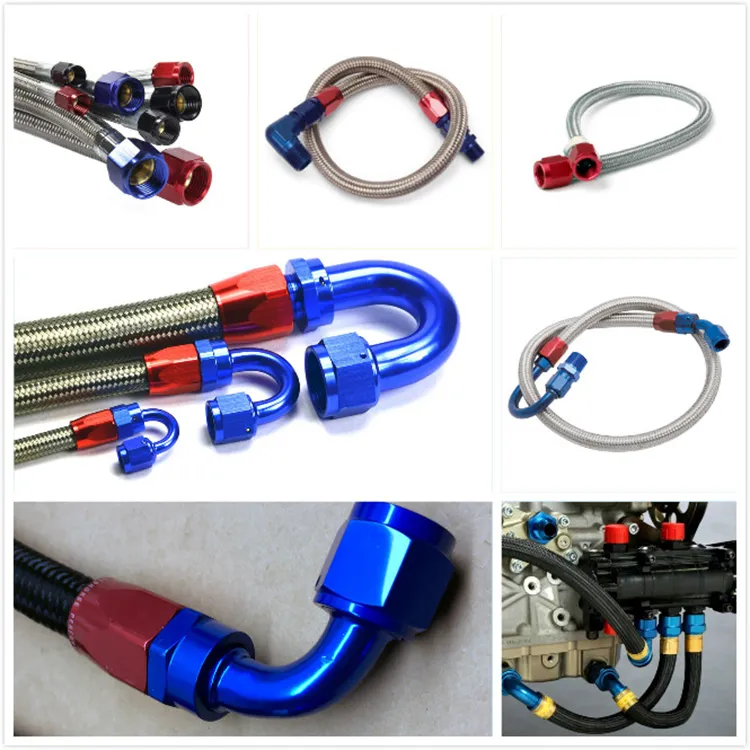

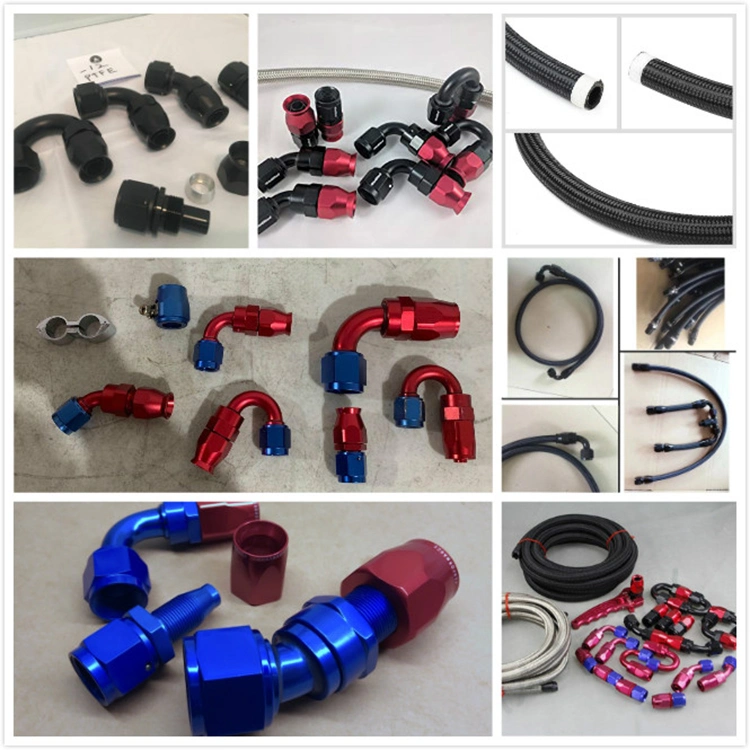

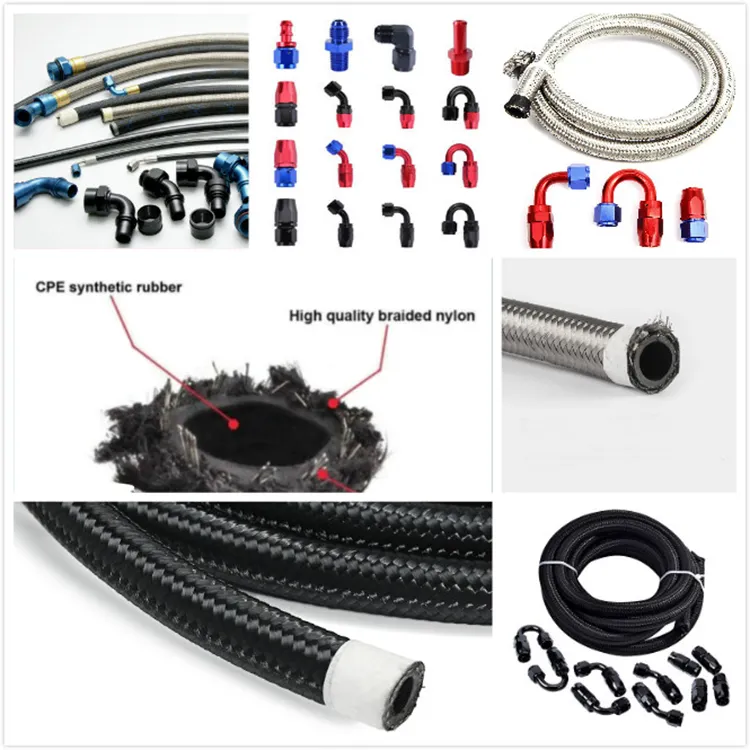

Product Details Gallery
Other Industrial Options
| Reinforcement |
Product Name / Standard |
| One steel wire braided | SAE R1AT/DIN 1SN, SAE R1AT/DIN 1ST, DIN 1SNK |
| Two steel wire braided | SAE R2AT/DIN 2SN, SAE R2AT/DIN 2ST, DIN 2SC |
| Four steel wire spiral | SAE R9AT, SAE R10, SAE R12, DIN 4SP, DIN 4SH |
| Thermoplastic | SAE R7, SAE R8 |
Frequently Asked Questions
What types of hoses are available in your range?
We offer a wide variety of hoses including high-pressure steel wire braided, steel wire spiral rubber hoses, flame-retardant versions, marine high-pressure oil hoses, and expansion pipes.
What are the primary applications for these hoses?
These hoses are ideal for mining, hydraulic systems, construction machinery, oil transportation, mud discharge, and engine gas pumping systems.
Is the nylon braided hose compatible with all fuels?
Yes, it is specially designed to be compatible with any fuel including methanol and nitromethane, as well as oil, coolant, brake, and transmission fluids.
What are the temperature limitations for these hoses?
The standard temperature range for these oil cooler hoses is -40℃ to +150℃, making them suitable for extreme engine environments.
Do the hoses come with certifications?
Yes, our products meet international quality standards and carry CE and ISO 9001:2015 management system certifications.
Are the hose ends reusable?
The package includes reusable swivel hose ends in straight, 45-degree, and 90-degree configurations for flexible installation.
