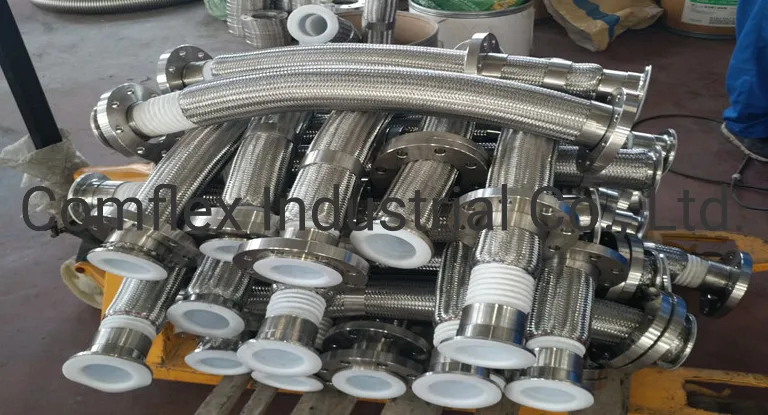

Oil Line Hose Stainless Steel Braided PTFE Brake Fuel Hose Pipe Oil Cooler Tubing
The pipe has changed the characteristics that the pipe can not be bent by special processing methods. It can be used to connect the lower graphite and ceramic glass pipes, and can be used as the feeding and discharging pipe for tank trucks, tanks, containers or reaction still. It can be used for pipe misalignment or to balance pipe displacements, dimensional changes caused by climate or other reasons, or to eliminate high-frequency mechanical vibrations.
PTFE stainless steel wire braided hose is a high-performance solution for various automobiles, machine tools, vulcanizing machines, foaming machines, machinery, diesel engines, and shipbuilding industries. It provides reliable soft connections for hydraulic pressure, steam pressure, and steam transportation.
| Item code | Inner Diameter (inch) | Inner Diameter (mm) | Outer Diameter (mm) | Working Pressure (bar) | Min. Bending Radius (mm) | Approx. Weight (Kg/m) |
|---|---|---|---|---|---|---|
| PS-8 | 5/16" | 8.0 | 13.5 | 97 | 20.3 | 0.15 |
| PS-10 | 3/8" | 10.0 | 14.5 | 76 | 22.5 | 0.17 |
| PS-12 | 1/2" | 13.0 | 19.5 | 50 | 25.4 | 0.31 |
| PS-16 | 5/8" | 16.0 | 24.5 | 45 | 76.2 | 0.47 |
| PS-19 | 3/4" | 19.0 | 27.3 | 38 | 88.9 | 0.57 |
| PS-25 | 1" | 25.0 | 35.0 | 30 | 99 | 0.8 |
| PS-32 | 1-1/4'' | 32.0 | 33.0 | 25 | 112 | 0.98 |

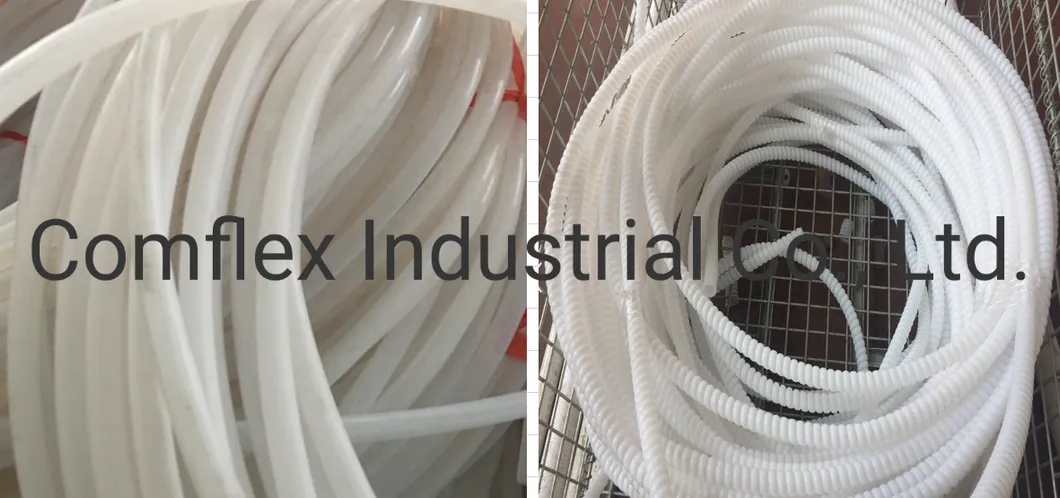

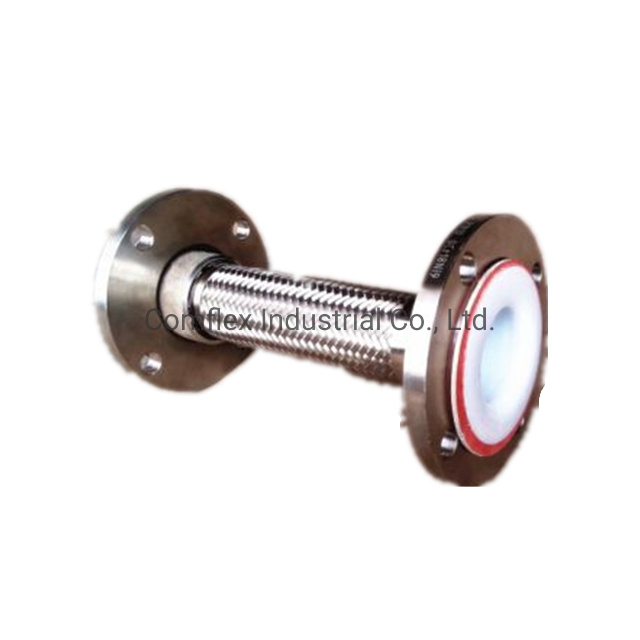

Flat PTFE Hose: Lightweight smooth bore hose with stainless steel braiding. Handles a broad range of chemicals at high temperatures and pressures.

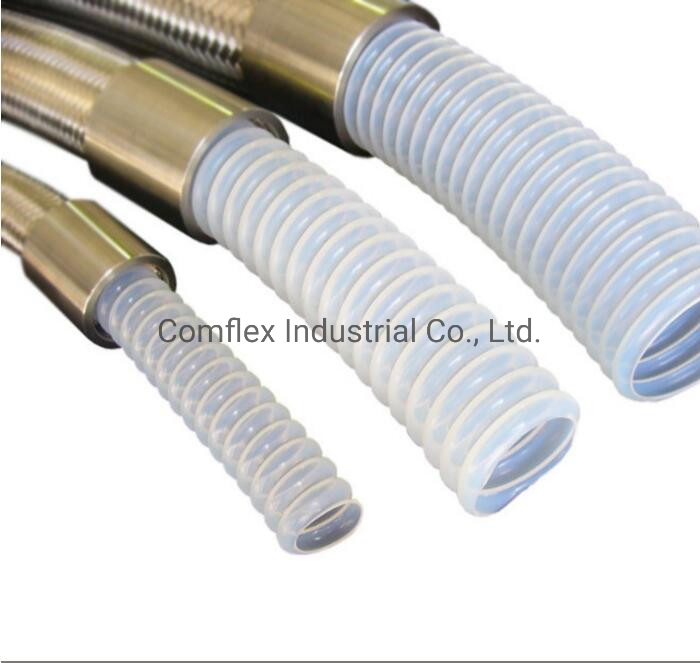

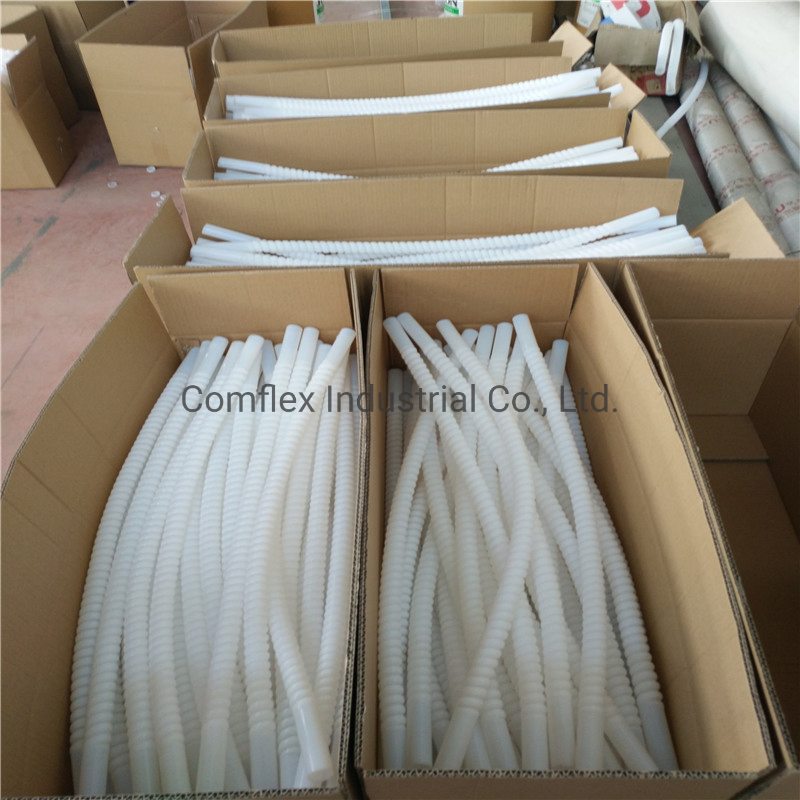

Corrugated PTFE Hose: Convoluted design provides a far tighter bend radius. Ideal for industrial applications requiring flexibility and full vacuum resistance.

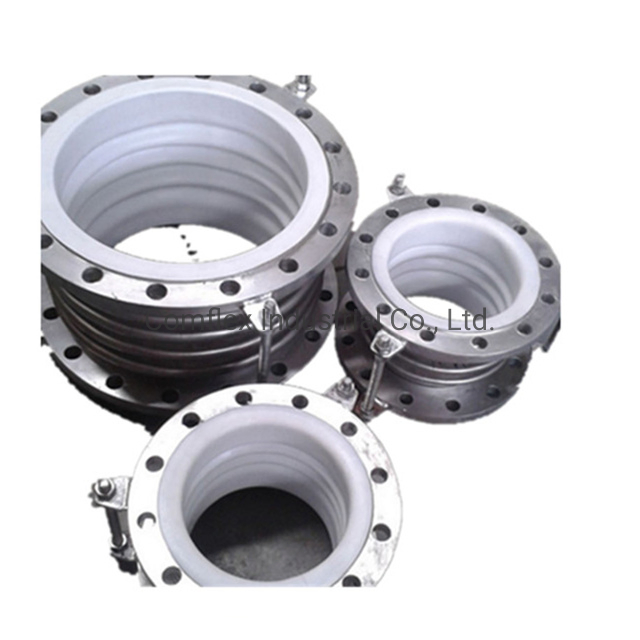

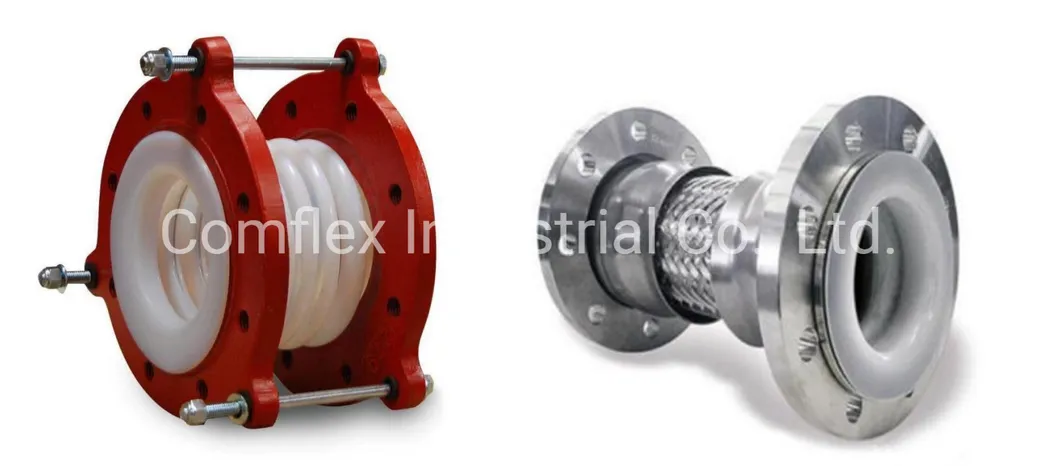

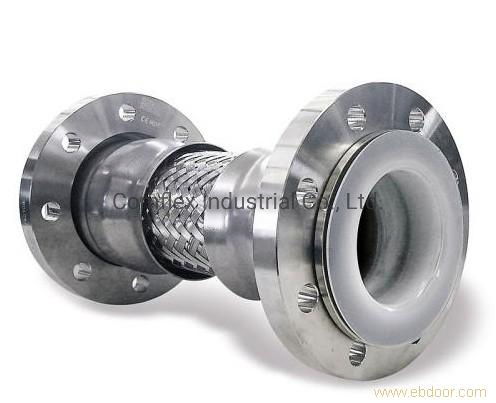

PTFE Expansion Joint: Corrosion-resistant joints designed to withstand high pressure in a space-saving design. Sizes from 1" to 48".

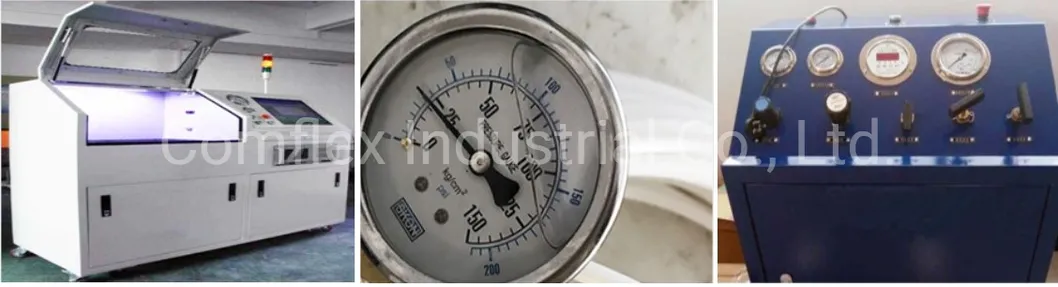

Professional testing equipment is used to ensure the reliability of each hose. This includes crystallinity tests for softness, pressure burst tests for internal resistance, and air tightness tests to detect any potential leaks or defects.
Blasting Pressure Test | Immersion Test | Air Leakage Test
